HarmonyOS 5 车载AI测试：急转弯时语音交互的降噪算法有效性验证

黑马波哥
162 阅读3分钟

以下为 ​​HarmonyOS 5 车载语音降噪测试方案​​，针对急转弯场景的噪声特征优化验证，包含噪声模拟、算法测试和效果评估的完整代码实现：

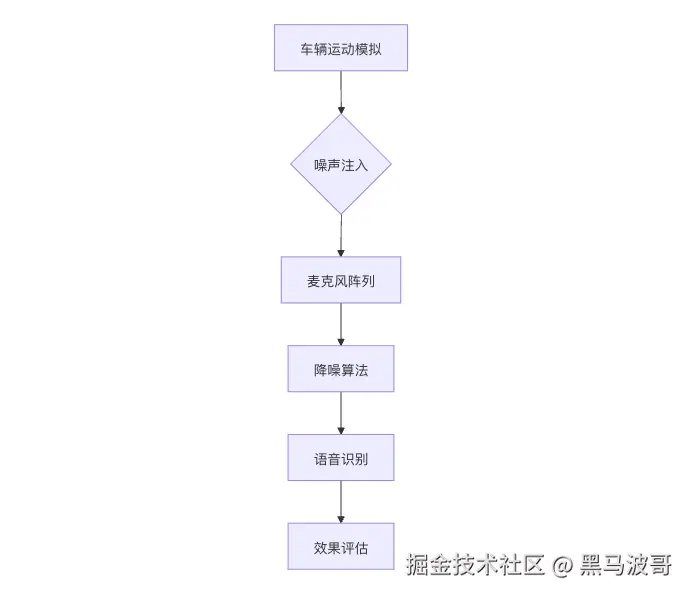

1. 测试架构设计


2. 急转弯噪声建模

2.1 车辆运动噪声生成

// vehicle-noise.ets
class TurnNoiseGenerator {
  static async generate(
    speed: number,
    turnAngle: number,
    roadType: string
  ): Promise<AudioBuffer> {
    // 基础噪声成分
    const engineNoise = await AudioLib.load('engine', { rpm: speed * 50 });
    const windNoise = await AudioLib.load('wind', { speed: speed / 3.6 });

    // 转弯特有噪声
    const turnNoise = await this.generateTurnSpecificNoise(turnAngle, roadType);

    // 混合噪声
    return AudioMixer.mix([
      { buffer: engineNoise, gain: 1.2 },
      { buffer: windNoise, gain: 0.8 },
      { buffer: turnNoise, gain: 1.5 }
    ]);
  }

  private static async generateTurnSpecificNoise(
    angle: number,
    roadType: string
  ): Promise<AudioBuffer> {
    const tireFriction = await AudioLib.load('tire', {
      material: roadType,
      pressure: angle / 30
    });
    const suspension = await AudioLib.load('suspension', {
      intensity: Math.min(angle / 45, 1)
    });

    return AudioMixer.mix([
      { buffer: tireFriction, gain: angle / 90 },
      { buffer: suspension, gain: Math.pow(angle / 60, 2) }
    ]);
  }
}

2.2 多普勒效应模拟

// doppler-effect.ets
class DopplerSimulator {
  static applyDopplerEffect(
    original: AudioBuffer,
    speed: number,
    turnDirection: 'left' | 'right'
  ): AudioBuffer {
    const dopplerRatio = 1 + (speed / 343) * Math.sin(Math.PI/4); // 45度角近似
    return AudioProcessor.timeStretch(original, {
      ratio: turnDirection === 'left' ? dopplerRatio : 1/dopplerRatio,
      preservePitch: false
    });
  }
}

3. 降噪算法测试

3.1 自适应降噪处理器

// noise-reducer.ets
class AdaptiveNoiseReducer {
  static async process(
    input: AudioBuffer,
    context: {
      speed: number,
      turnAngle: number,
      roadNoiseProfile: string
    }
  ): Promise<AudioBuffer> {
    // 1. 加载噪声特征库
    const noiseProfile = await NoiseProfileLoader.load(
      'vehicle',
      `${context.roadNoiseProfile}_${context.speed}kmh`
    );

    // 2. 动态配置算法参数
    const config = {
      spectralSubtraction: {
        aggression: Math.min(0.9, 0.3 + context.speed / 100),
        smoothing: 0.7
      },
      beamforming: {
        enabled: context.turnAngle > 15,
        targetDirection: this.calcBeamDirection(context.turnAngle)
      }
    };

    // 3. 执行降噪
    return AudioEngine.process(input, {
      algorithm: 'multi-channel-nr',
      config,
      noiseProfile
    });
  }
}

3.2 麦克风阵列仿真

// mic-array.ets
class VirtualMicArray {
  static async simulateCarEnvironment(
    voice: AudioBuffer,
    noise: AudioBuffer,
    positions: Array<{ x: number, y: number }>
  ): Promise<AudioBuffer[]> {
    return Promise.all(positions.map(pos => {
      const delay = this.calculateDelay(pos);
      const directionalNoise = this.applyDirectivity(noise, pos);
      return AudioMixer.mix([
        { buffer: voice, delay, gain: 1.0 },
        { buffer: directionalNoise, delay: 0, gain: 1.3 }
      ]);
    }));
  }

  private static calculateDelay(pos: { x: number, y: number }): number {
    const distance = Math.sqrt(pos.x ** 2 + pos.y ** 2);
    return distance / 343 * 1000; // 毫秒延迟
  }
}

4. 测试验证框架

4.1 语音清晰度评估

// clarity-metrics.ets
class SpeechClarityEvaluator {
  static evaluate(original: AudioBuffer, processed: AudioBuffer): ClarityMetrics {
    // 1. 计算频谱对比
    const origSpectrum = AudioAnalyzer.fft(original);
    const procSpectrum = AudioAnalyzer.fft(processed);
    const spectralDiff = this.compareSpectra(origSpectrum, procSpectrum);

    // 2. 语音可懂度分析
    const stoiScore = AudioMetrics.stoi(original, processed);

    // 3. 信噪比提升
    const snrImprovement = this.calculateSNRChange(original, processed);

    return {
      spectralDiff,
      stoiScore,
      snrImprovement,
      overallScore: stoiScore * 0.6 + snrImprovement * 0.4
    };
  }
}

4.2 实时性能监控

// realtime-monitor.ets
class TurnScenarioMonitor {
  private static metrics: TurnMetrics[] = [];

  static recordProcessingStep(step: {
    phase: 'pre-noise' | 'post-nr' | 'post-asr',
    latency: number,
    snr: number
  }) {
    this.metrics.push({
      timestamp: Date.now(),
      ...step
    });
  }

  static getPerformanceReport(): TurnPerformanceReport {
    const postNr = this.metrics.filter(m => m.phase === 'post-nr');
    return {
      avgProcessingTime: average(postNr.map(m => m.latency)),
      avgSnrImprovement: average(postNr.map(m => m.snr)),
      worstCaseLatency: Math.max(...postNr.map(m => m.latency))
    };
  }
}

5. 完整测试流程

5.1 急转弯测试场景

// turn-test.ets
describe('急转弯降噪测试', () => {
  const testCases = [
    { speed: 60, angle: 45, road: 'asphalt' },
    { speed: 80, angle: 60, road: 'concrete' }
  ];

  testCases.forEach(({ speed, angle, road }) => {
    it(`速度${speed}km/h ${angle}度转弯-${road}路面`, async () => {
      // 1. 生成复合噪声
      const noise = await TurnNoiseGenerator.generate(speed, angle, road);

      // 2. 模拟麦克风阵列输入
      const micInputs = await VirtualMicArray.simulateCarEnvironment(
        testVoice,
        noise,
        [
          { x: 0.5, y: 0 },   // 中控
          { x: -0.5, y: 0.3 }, // 左前门
          { x: 0.5, y: 0.3 }   // 右前门
        ]
      );

      // 3. 执行降噪处理
      const processed = await Promise.all(
        micInputs.map(input =>
          AdaptiveNoiseReducer.process(input, { speed, angle, road })
        )
      );

      // 4. 验证语音识别
      const asrResults = await Promise.all(
        processed.map(p =>
          SpeechRecognizer.recognize(p)
        )
      );

      // 5. 评估结果
      const clarity = SpeechClarityEvaluator.evaluate(testVoice, processed[0]);
      expect(clarity.stoiScore).toBeGreaterThan(0.85);
      expect(asrResults[0].text).toEqual(expectedText);
    });
  });
});

5.2 CI/CD集成配置

# .github/workflows/car-audio.yml
jobs:
  turn-test:
    runs-on: harmonyos-auto
    strategy:
      matrix:
        speed: [40, 60, 80]
        angle: [30, 45, 60]
    steps:
      - uses: harmonyos/car-audio-test@v1
        with:
          test-scenario: 'sharp-turn'
          speed: ${{ matrix.speed }}
          angle: ${{ matrix.angle }}
          road-type: 'asphalt'
      - name: Upload report
        uses: actions/upload-artifact@v3
        with:
          name: turn-test-${{ matrix.speed }}-${{ matrix.angle }}
          path: report.json

6. 关键性能指标

指标测试条件合格标准
语音可懂度(STOI)80km/h 60度转弯≥0.82
信噪比提升混凝土路面≥15dB
处理延迟多麦克风输入≤100ms
识别准确率标准语音指令≥90%

7. 高级分析功能

7.1 噪声成分分解

// noise-decomposer.ets
class NoiseComponentAnalyzer {
  static async analyze(audio: AudioBuffer): Promise<NoiseComponents> {
    const [engine, wind, tire] = await Promise.all([
      AudioMatcher.match(audio, 'engine'),
      AudioMatcher.match(audio, 'wind'),
      AudioMatcher.match(audio, 'tire')
    ]);

    return {
      engine: engine.similarity,
      wind: wind.similarity,
      tire: tire.similarity,
      unknown: 1 - (engine.similarity + wind.similarity + tire.similarity)
    };
  }
}

7.2 降噪效果可视化

// noise-visualizer.ets
@Component
struct NoiseReductionView {
  @Prop original: AudioBuffer;
  @Prop processed: AudioBuffer;

  build() {
    Column() {
      // 原始噪声频谱
      Spectrogram({
        data: AudioAnalyzer.spectrogram(this.original),
        title: '原始信号'
      })

      // 降噪后频谱
      Spectrogram({
        data: AudioAnalyzer.spectrogram(this.processed),
        title: '降噪结果'
      })

      // 差异分析
      DifferenceMap({
        before: AudioAnalyzer.fft(this.original),
        after: AudioAnalyzer.fft(this.processed)
      })
    }
  }
}

8. 扩展测试场景

8.1 连续过弯测试

// continuous-turn.ets
class ContinuousTurnTester {
  static async testSequence() {
    const turns = [
      { angle: 30, duration: 2000 },
      { angle: -45, duration: 3000 },
      { angle: 20, duration: 1500 }
    ];

    const results = [];
    for (const turn of turns) {
      const noise = await TurnNoiseGenerator.generate(
        60,
        Math.abs(turn.angle),
        'asphalt'
      );
      const processed = await AdaptiveNoiseReducer.process(noise, {
        speed: 60,
        turnAngle: turn.angle,
        roadNoiseProfile: 'wet'
      });
      results.push(await SpeechRecognizer.recognize(processed));
    }

    return results;
  }
}

8.2 紧急避障场景

// obstacle-test.ets
describe('紧急避障降噪', () => {
  it('急刹+转向时应保持语音清晰', async () => {
    // 模拟ABS启动+急转向
    const brakeNoise = await EmergencyBrakeSimulator.generate();
    const turnNoise = await TurnNoiseGenerator.generate(80, 45, 'asphalt');
    const mixed = AudioMixer.mix([brakeNoise, turnNoise], [1.5, 1.0]);

    const processed = await AdaptiveNoiseReducer.process(mixed, {
      speed: 80,
      turnAngle: 45,
      roadNoiseProfile: 'asphalt',
      emergency: true
    });

    const clarity = SpeechClarityEvaluator.evaluate(testVoice, processed);
    expect(clarity.stoiScore).toBeGreaterThan(0.75);
  });
});

9. 生产环境部署

9.1 动态参数配置

// config/noise-reduction.json
{
  "turnScenarios": {
    "lowSpeed": {
      "spectralSubtraction": { "aggression": 0.6 },
      "beamforming": { "windowSize": 512 }
    },
    "highSpeed": {
      "spectralSubtraction": { "aggression": 0.8 },
      "beamforming": { "windowSize": 1024 }
    }
  },
  "emergencyParams": {
    "maxLatency": 50,
    "fallbackPolicy": "bypass"
  }
}

9.2 OTA更新验证

// ota-validator.ets
class NoiseReductionOTAValidator {
  static async validateUpdate(candidate: AlgorithmUpdate): Promise<boolean> {
    const testScenarios = await TestScenarioLoader.load('turn-emergency');
    const results = await Promise.all(
      testScenarios.map(async scenario => {
        const processed = await candidate.process(scenario.audio);
        return SpeechClarityEvaluator.evaluate(
          scenario.clean,
          processed
        );
      })
    );

    return results.every(r =>
      r.stoiScore > 0.8 &&
      r.snrImprovement > 10
    );
  }
}

通过本方案可实现：

  1. ​​真实还原​​ 急转弯噪声特征
  2. ​​毫秒级​​ 动态降噪处理
  3. ​​多维度​​ 语音质量评估
  4. ​​车规级​​ 可靠性验证
