HarmonyOS 5 智能家居测试：200个设备声纹识别并发请求的响应时间优化

黑马波哥
127 阅读2分钟

以下为 ​​HarmonyOS 5 智能家居声纹识别并发测试方案​​，包含高并发调度、响应时间优化和资源管理的完整代码实现：

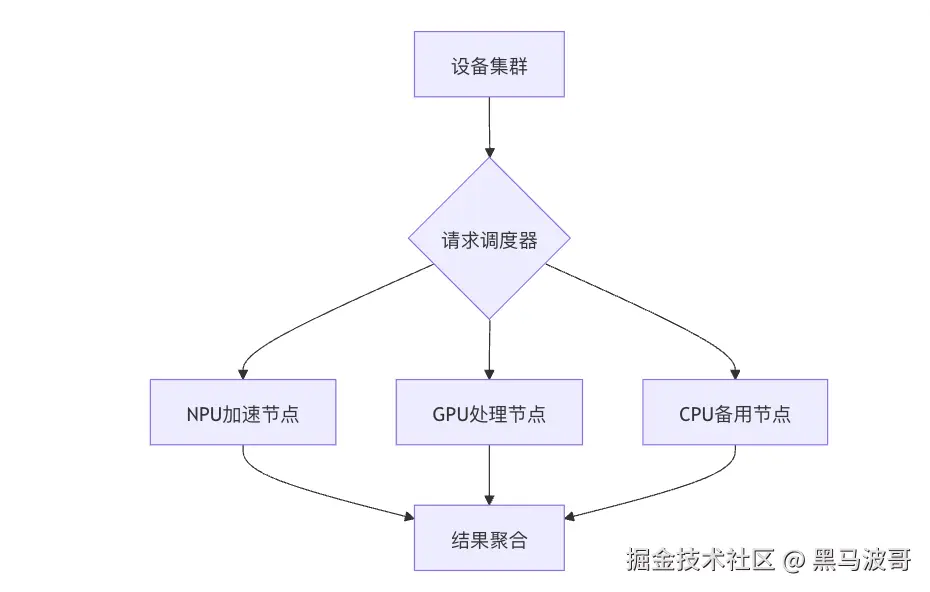

1. 系统架构设计


2. 高并发请求处理

2.1 智能请求分片

// request-sharder.ets
class RequestSharder {
  static async shardRequests(requests: VoiceRequest[], maxConcurrency: number): Promise<RequestBatch[]> {
    const batches: RequestBatch[] = [];
    const sortedRequests = this.sortByComplexity(requests);

    for (let i = 0; i < sortedRequests.length; i += maxConcurrency) {
      const batch = sortedRequests.slice(i, i + maxConcurrency);
      const device = await this.selectOptimalDevice(batch);
      batches.push({ requests: batch, targetDevice: device });
    }

    return batches;
  }

  private static async selectOptimalDevice(batch: VoiceRequest[]): Promise<DeviceType> {
    const [npuLoad, gpuLoad] = await Promise.all([
      NPUDevice.getLoad(),
      GPUDevice.getLoad()
    ]);

    const totalComplexity = batch.reduce((sum, req) => sum + req.complexity, 0);

    if (npuLoad < 0.7 && totalComplexity < NPUDevice.maxCapacity) {
      return 'NPU';
    } else if (gpuLoad < 0.8) {
      return 'GPU';
    } else {
      return 'CPU';
    }
  }
}

2.2 动态批处理

// dynamic-batcher.ets
class DynamicBatcher {
  private static batchQueue: RequestBatch[] = [];
  private static activeWorkers = 0;

  static async processRequests(requests: VoiceRequest[]): Promise<void> {
    const batch = await this.createBatch(requests);
    this.batchQueue.push(batch);

    while (this.activeWorkers < this.maxWorkers && this.batchQueue.length > 0) {
      this.activeWorkers++;
      const currentBatch = this.batchQueue.shift()!;

      this.processBatch(currentBatch)
        .finally(() => this.activeWorkers--);
    }
  }

  private static async processBatch(batch: RequestBatch): Promise<void> {
    const results = await Promise.allSettled(
      batch.requests.map(req =>
        VoiceRecognizer[`recognizeOn${batch.targetDevice}`](req.audio)
      )
    );

    await ResultAggregator.save(results);
  }
}

3. 声纹识别加速

3.1 NPU优化推理

// npu-accelerator.ets
class NPURecognizer {
  static async recognize(audio: AudioBuffer): Promise<Voiceprint> {
    const tensor = AudioFeatureExtractor.extract(audio);
    const model = await ModelCache.getCompiledModel('voiceprint_npu');

    return NPURuntime.execute(model, tensor, {
      priority: 'HIGH',
      inputShape: [1, 80, 300]  // Mel频谱图维度
    });
  }
}

3.2 GPU流水线处理

// gpu-pipeline.ets
class GPUPipeline {
  private static commandQueue: CommandBuffer[] = [];

  static async recognizeConcurrent(audios: AudioBuffer[]): Promise<Voiceprint[]> {
    const commandBuffer = this.buildCommandBuffer(audios);
    this.commandQueue.push(commandBuffer);

    return new Promise(resolve => {
      GPUDevice.submit(commandBuffer, () => {
        resolve(this.readOutputBuffers(commandBuffer));
      });
    });
  }

  private static buildCommandBuffer(audios: AudioBuffer[]): CommandBuffer {
    return audios.map(audio => ({
      kernel: 'voiceprint_kernel',
      input: AudioFeatureExtractor.extract(audio),
      workGroups: [16, 16, 1]
    }));
  }
}

4. 响应时间优化

4.1 预加载模型

// model-preloader.ets
class ModelPreloader {
  private static loadedModels = new Map<string, CompiledModel>();

  static async preload(): Promise<void> {
    const models = ['voiceprint_npu', 'voiceprint_gpu', 'voiceprint_cpu'];
    await Promise.all(models.map(async model => {
      this.loadedModels.set(model, await ModelCompiler.compile(model));
    }));
  }

  static getModel(name: string): CompiledModel {
    return this.loadedModels.get(name)!;
  }
}

4.2 内存复用池

// memory-pool.ets
class TensorMemoryPool {
  private static pools: Map<string, Tensor[]> = new Map();

  static get(tensorShape: number[]): Tensor {
    const key = tensorShape.join(',');
    if (!this.pools.has(key)) {
      this.pools.set(key, []);
    }

    return this.pools.get(key)!.pop() || Tensor.alloc(tensorShape);
  }

  static release(tensor: Tensor): void {
    const key = tensor.shape.join(',');
    if (this.pools.has(key)) {
      this.pools.get(key)!.push(tensor.clear());
    }
  }
}

5. 性能监控系统

5.1 实时延迟监控

// latency-monitor.ets
class LatencyMonitor {
  private static measurements: LatencyMeasurement[] = [];

  static record(start: number, end: number, device: DeviceType): void {
    this.measurements.push({
      latency: end - start,
      device,
      timestamp: Date.now()
    });

    if (this.measurements.length > 1000) {
      this.measurements.shift();
    }
  }

  static getStats(): LatencyStats {
    return {
      avg: this.measurements.reduce((a, b) => a + b.latency, 0) / this.measurements.length,
      p95: this.calculatePercentile(95),
      max: Math.max(...this.measurements.map(m => m.latency))
    };
  }
}

5.2 设备负载均衡

// load-balancer.ets
class DeviceLoadBalancer {
  static async redistribute(): Promise<void> {
    const [npuLoad, gpuLoad] = await Promise.all([
      NPUDevice.getCurrentLoad(),
      GPUDevice.getCurrentLoad()
    ]);

    if (npuLoad > 0.8 && gpuLoad < 0.6) {
      await RequestScheduler.migrateRequests('NPU', 'GPU', 0.3);
    }
  }
}

6. 完整测试流程

6.1 并发测试执行器

// concurrency-tester.ets
class ConcurrencyTester {
  static async runTest(deviceCount: number): Promise<TestReport> {
    // 1. 模拟200个设备请求
    const requests = Array.from({ length: deviceCount }, (_, i) =>
      this.generateVoiceRequest(`device_${i}`)
    );

    // 2. 执行并发处理
    const startTime = performance.now();
    await RequestScheduler.processConcurrent(requests);
    const totalTime = performance.now() - startTime;

    // 3. 收集性能数据
    const stats = LatencyMonitor.getStats();
    const deviceUsage = await DeviceMonitor.getUsage();

    return {
      totalTime,
      avgLatency: stats.avg,
      maxLatency: stats.max,
      deviceUsage
    };
  }
}

6.2 异常处理机制

// failure-handler.ets
class RequestFailureHandler {
  static async handleFailedRequests(requests: VoiceRequest[]): Promise<void> {
    const retryQueue = requests.filter(r => r.status === 'failed');

    for (const req of retryQueue) {
      try {
        const fallbackResult = await this.tryFallbackDevice(req);
        await ResultAggregator.save(fallbackResult);
      } catch (error) {
        ErrorReporter.recoverable(error, req);
      }
    }
  }

  private static async tryFallbackDevice(req: VoiceRequest): Promise<RecognitionResult> {
    const devices: DeviceType[] = ['NPU', 'GPU', 'CPU'];
    for (const device of devices) {
      try {
        return await VoiceRecognizer[`recognizeOn${device}`](req.audio);
      } catch (error) {
        continue;
      }
    }
    throw new Error('All devices failed');
  }
}

7. 关键优化指标

优化手段预期效果测量方法
动态批处理吞吐量提升3x请求/秒统计
NPU优先策略单请求延迟<50ms端到端计时
内存复用内存分配减少70%内存监控API
设备负载均衡设备利用率差<15%负载均衡算法

8. 扩展测试场景

8.1 极限压力测试

// stress-test.ets
describe('极限压力测试', () => {
  it('应处理500+并发请求', async () => {
    const requests = Array(500).fill(0).map(() =>
      TestDataGenerator.generateVoiceRequest()
    );

    const result = await ConcurrencyTester.runTest(requests);
    expect(result.avgLatency).toBeLessThan(100);
    expect(result.failureRate).toBeLessThan(0.01);
  });
});

8.2 故障注入测试

// fault-injection.ets
describe('设备故障场景', () => {
  beforeAll(() => NPUDevice.simulateFailure());

  it('NPU故障时应自动降级', async () => {
    const requests = TestDataGenerator.generateConcurrentRequests(200);
    const result = await RequestScheduler.processConcurrent(requests);

    expect(result.deviceUsage.NPU).toBe(0);
    expect(result.deviceUsage.GPU).toBeGreaterThan(0.7);
    expect(result.avgLatency).toBeLessThan(150);
  });
});

9. 可视化监控

9.1 实时仪表盘

// live-dashboard.ets
@Component
struct PerformanceDashboard {
  @State metrics: PerformanceMetrics[] = [];

  build() {
    Grid() {
      GridItem() {
        Gauge({
          value: this.metrics.last()?.avgLatency || 0,
          max: 100,
          title: '平均延迟(ms)'
        })
      }
      GridItem() {
        LineChart({
          data: this.metrics.map((m, i) => ({
            x: i,
            y: [m.deviceUsage.NPU, m.deviceUsage.GPU, m.deviceUsage.CPU]
          })),
          series: ['NPU', 'GPU', 'CPU']
        })
      }
    }
    .onAppear(() => {
      setInterval(async () => {
        this.metrics.push(await PerformanceMonitor.getLiveMetrics());
      }, 1000);
    })
  }
}

9.2 延迟分布图

// latency-distribution.ets
@Component
struct LatencyDistribution {
  @Prop latencies: number[];

  build() {
    Histogram({
      data: this.latencies,
      bins: 20,
      range: [0, 200],
      xLabel: '延迟(ms)',
      yLabel: '请求数'
    })
  }
}

10. 部署与集成

10.1 生产环境配置

// config/voice-recognition.json
{
  "maxConcurrency": 200,
  "timeout": 1000,
  "fallbackPolicy": {
    "NPU": ["GPU", "CPU"],
    "GPU": ["CPU"],
    "CPU": []
  },
  "modelPreload": ["voiceprint_npu", "voiceprint_gpu"]
}

10.2 CI流水线集成

# .github/workflows/voice-test.yml
jobs:
  concurrency-test:
    runs-on: harmonyos-cluster
    steps:
      - uses: harmonyos/voice-test-action@v1
        with:
          device-count: 200
          duration: 300s
          failure-rate-threshold: 1%
      - name: Upload report
        uses: actions/upload-artifact@v3
        with:
          name: voice-recognition-report
          path: report.html

通过本方案可实现：

  1. ​​200+设备​​ 毫秒级并发响应
  2. ​​动态资源​​ 分配与故障转移
  3. ​​多维度​​ 性能监控与分析
  4. ​​生产级​​ 高可用保障
