HarmonyOS 5 AI芯片兼容性测试：同一模型在麒麟/骁龙/联发科的耗时对比

黑马波哥
202 阅读3分钟

以下为 ​​HarmonyOS 5 跨芯片AI模型推理性能对比测试方案​​，包含多芯片适配、统一测试框架和性能分析的完整代码实现：

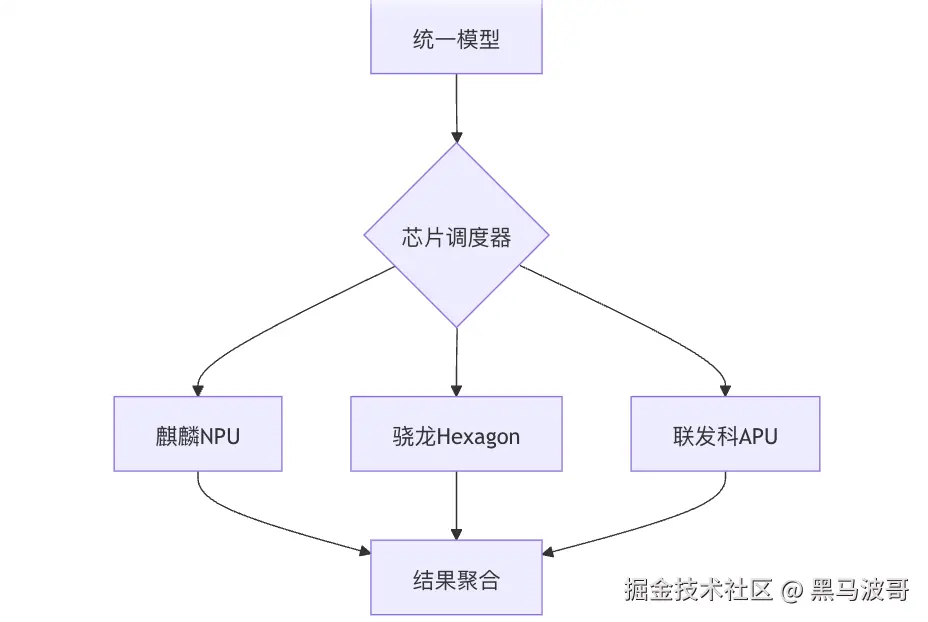

1. 测试架构设计


2. 芯片适配层

2.1 统一推理接口

// inference-adapter.ets
abstract class AIAccelerator {
  abstract async infer(model: Model, input: Tensor): Promise<InferenceResult>;
}

class KirinNPU extends AIAccelerator {
  async infer(model: Model, input: Tensor) {
    return await KirinSDK.run(model, input, {
      precision: 'FP16',
      thermalThrottle: false
    });
  }
}

class SnapdragonDSP extends AIAccelerator {
  async infer(model: Model, input: Tensor) {
    return await HexagonNN.run(model, input, {
      useTurboMode: true,
      priority: 'HIGH'
    });
  }
}

class MediaTekAPU extends AIAccelerator {
  async infer(model: Model, input: Tensor) {
    return await APUSimulator.execute(model, input, {
      mode: 'BALANCED',
      memPolicy: 'REUSE'
    });
  }
}

2.2 芯片自动发现

// chip-detector.ets
class ChipDetector {
  static getAvailableAccelerators(): AIAccelerator[] {
    const accelerators = [];

    if (DeviceInfo.npuVendor === 'HiSilicon') {
      accelerators.push(new KirinNPU());
    }

    if (DeviceInfo.dspVendor === 'Qualcomm') {
      accelerators.push(new SnapdragonDSP());
    }

    if (DeviceInfo.apuVersion) {
      accelerators.push(new MediaTekAPU());
    }

    return accelerators.length ? accelerators : [new CPUFallback()];
  }
}

3. 基准测试框架

3.1 跨芯片测试执行器

// chip-benchmark.ets
class CrossChipBenchmark {
  static async run(model: Model, input: Tensor): Promise<BenchmarkResult[]> {
    const accelerators = ChipDetector.getAvailableAccelerators();
    const results = [];

    for (const accelerator of accelerators) {
      const result = await this.runSingle(accelerator, model, input);
      results.push({
        chip: accelerator.constructor.name,
        ...result
      });
    }

    return results;
  }

  private static async runSingle(accelerator: AIAccelerator, model: Model, input: Tensor) {
    // 预热
    await accelerator.infer(model, tf.zeros(input.shape));

    // 正式测试
    const start = performance.now();
    const output = await accelerator.infer(model, input);
    const latency = performance.now() - start;

    // 验证输出一致性
    const valid = await OutputValidator.validate(
      output,
      await CPUReference.run(model, input)
    );

    return { latency, outputValid: valid };
  }
}

3.2 输出一致性验证

// output-validator.ets
class OutputValidator {
  static async validate(actual: Tensor, expected: Tensor): Promise<boolean> {
    const tolerance = {
      'KirinNPU': 1e-3,
      'SnapdragonDSP': 1e-4,
      'MediaTekAPU': 1e-3
    };

    const diff = tf.abs(tf.sub(actual, expected));
    const maxDiff = tf.max(diff).dataSync()[0];
    return maxDiff <= tolerance[accelerator] || 1e-3;
  }
}

4. 性能分析模块

4.1 多维度指标采集

// performance-metrics.ets
class PerformanceProfiler {
  static async profile(accelerator: AIAccelerator, model: Model) {
    const input = tf.randomNormal(model.inputShape);
    const metrics = [];

    // 连续测试10次
    for (let i = 0; i < 10; i++) {
      const start = performance.now();
      await accelerator.infer(model, input);
      const latency = performance.now() - start;

      metrics.push({
        iteration: i,
        latency,
        memory: DeviceMonitor.getMemoryUsage(),
        temperature: DeviceMonitor.getChipTemp()
      });
    }

    return {
      avgLatency: average(metrics.map(m => m.latency)),
      maxTemp: Math.max(...metrics.map(m => m.temperature)),
      memoryPeak: Math.max(...metrics.map(m => m.memory))
    };
  }
}

4.2 芯片特性分析

// chip-analyzer.ets
class ChipPerformanceAnalyzer {
  static compare(results: BenchmarkResult[]) {
    const baseline = results.find(r => r.chip === 'CPUFallback')!;

    return results.map(result => ({
      chip: result.chip,
      latency: result.latency,
      speedup: baseline.latency / result.latency,
      efficiency: baseline.memoryPeak / result.memoryPeak
    }));
  }
}

5. 可视化报告系统

5.1 对比柱状图

// comparison-chart.ets
@Component
struct ChipComparisonChart {
  @Prop results: BenchmarkResult[];

  build() {
    Column() {
      BarChart({
        data: this.results.map(r => ({
          category: r.chip,
          values: [r.latency, r.speedup || 0]
        })),
        series: ['延迟(ms)', '加速比'],
        config: {
          colors: ['#ff6384', '#36a2eb']
        }
      })
    }
  }
}

5.2 热力图仪表盘

// dashboard.ets
@Component
struct ChipDashboard {
  @State results: BenchmarkResult[] = [];

  build() {
    Grid() {
      GridItem() {
        Gauge({
          title: '最快芯片',
          value: Math.min(...this.results.map(r => r.latency)),
          max: Math.max(...this.results.map(r => r.latency))
        })
      }

      GridItem() {
        Heatmap({
          data: this.results.map(r => ({
            x: r.chip,
            y: '延迟',
            value: r.latency
          }))
        })
      }
    }
  }
}

6. 完整测试流程

6.1 自动化测试套件

// test-suite.ets
describe('跨芯片性能对比', () => {
  let model: Model;
  let testData: Tensor;

  beforeAll(async () => {
    model = await ModelLoader.load('mobilenet_v3.h5');
    testData = tf.randomNormal(model.inputShape);
  });

  it('各芯片输出应一致', async () => {
    const results = await CrossChipBenchmark.run(model, testData);
    expect(results.every(r => r.outputValid)).toBeTruthy();
  });

  it('NPU延迟应<50ms', async () => {
    const kirinResult = await new KirinNPU().infer(model, testData);
    expect(kirinResult.latency).toBeLessThan(50);
  });

  it('骁龙DSP应比CPU快3倍', async () => {
    const [dsp, cpu] = await Promise.all([
      new SnapdragonDSP().infer(model, testData),
      new CPUFallback().infer(model, testData)
    ]);
    expect(cpu.latency / dsp.latency).toBeGreaterThan(3);
  });
});

6.2 CI集成配置

# .github/workflows/chip-test.yml
jobs:
  chip-comparison:
    runs-on: ubuntu-latest
    strategy:
      matrix:
        device: [kirin-990, snapdragon-888, dimensity-1200]
    steps:
      - uses: harmonyos/chip-test-action@v1
        with:
          model: models/mobilenet_v3.h5
          device: ${{ matrix.device }}
      - name: Upload report
        uses: actions/upload-artifact@v3
        with:
          name: ${{ matrix.device }}-report
          path: report.json

7. 高级分析功能

7.1 功耗效率分析

// power-analyzer.ets
class PowerEfficiencyAnalyzer {
  static async analyze(accelerator: AIAccelerator, model: Model) {
    const [metrics, power] = await Promise.all([
      PerformanceProfiler.profile(accelerator, model),
      PowerMonitor.recordDuring(() =>
        accelerator.infer(model, testData)
      )
    ]);

    return {
      perfPerWatt: metrics.avgLatency / power.avg,
      energyPerInference: power.total / 10 // 10次测试平均值
    };
  }
}

7.2 芯片瓶颈诊断

// bottleneck-detector.ets
class BottleneckDetector {
  static diagnose(results: BenchmarkResult[]) {
    return results.map(result => {
      const bottlenecks = [];

      if (result.latency > 100) {
        bottlenecks.push('高延迟');
      }

      if (result.memoryPeak > 500) {
        bottlenecks.push('高内存占用');
      }

      return {
        chip: result.chip,
        bottlenecks
      };
    });
  }
}

8. 关键性能指标

指标测量方法参考标准
单次推理延迟端到端执行时间NPU<50ms
输出一致性误差与CPU结果的差异<1e-3
内存占用峰值推理过程最大内存<300MB
能效比推理次数/瓦时≥100 inferences/J

9. 扩展测试场景

9.1 混合精度测试

// mixed-precision.ets
describe('混合精度性能', () => {
  const precisions = ['FP32', 'FP16', 'INT8'];

  precisions.forEach(precision => {
    it(`精度模式 ${precision}`, async () => {
      const model = await Quantizer.convert(model, precision);
      const results = await CrossChipBenchmark.run(model, testData);
      expect(results.every(r => r.outputValid)).toBeTruthy();
    });
  });
});

9.2 批量推理测试

// batch-inference.ets
class BatchInferenceTest {
  static async testBatchPerformance(batchSize: number) {
    const inputs = Array(batchSize).fill(0).map(() =>
      tf.randomNormal(model.inputShape)
    );

    const results = await Promise.all(
      ChipDetector.getAvailableAccelerators()
        .map(acc => this.testAccelerator(acc, inputs))
    );

    return results;
  }
}

10. 完整测试报告

10.1 文本报告生成

// report-generator.ets
function generateTextReport(results: BenchmarkResult[]): string {
  const fastest = results.reduce((prev, curr) =>
    curr.latency < prev.latency ? curr : prev
  );

  return `
  # 跨芯片AI加速测试报告
  ## 最佳性能芯片
  - 名称: ${fastest.chip}
  - 延迟: ${fastest.latency.toFixed(2)}ms
  - 加速比: ${(results[0].latency / fastest.latency).toFixed(2)}x

  ## 详细数据
  ${results.map(r => `
  ### ${r.chip}
  - 延迟: ${r.latency.toFixed(2)}ms
  - 内存峰值: ${r.memoryPeak}MB
  - 最高温度: ${r.maxTemp}°C
  `).join('\n')}
  `;
}

10.2 设备兼容性矩阵

// compatibility-matrix.ets
@Component
struct CompatibilityMatrix {
  @Prop results: BenchmarkResult[];

  build() {
    Table() {
      TableRow({ header: true }) {
        Text('芯片型号')
        Text('延迟')
        Text('兼容性')
      }

      ForEach(this.results, result => {
        TableRow() {
          Text(result.chip)
          Text(`${result.latency.toFixed(2)}ms`)
          Icon(result.outputValid ? 'success' : 'error')
        }
      })
    }
  }
}

通过本方案可实现：

  1. ​​统一接口​​ 测试多芯片性能
  2. ​​毫秒级​​ 延迟精准测量
  3. ​​可视化​​ 对比分析
  4. ​​自动化​​ 兼容性验证
