HarmonyOS 5 MindSpore Lite兼容性测试：TF/PyTorch转换模型的输出一致性验证

以下为 ​​HarmonyOS 5 MindSpore Lite模型兼容性测试方案​​，包含模型转换验证、推理结果比对和精度误差分析的完整代码实现：

---

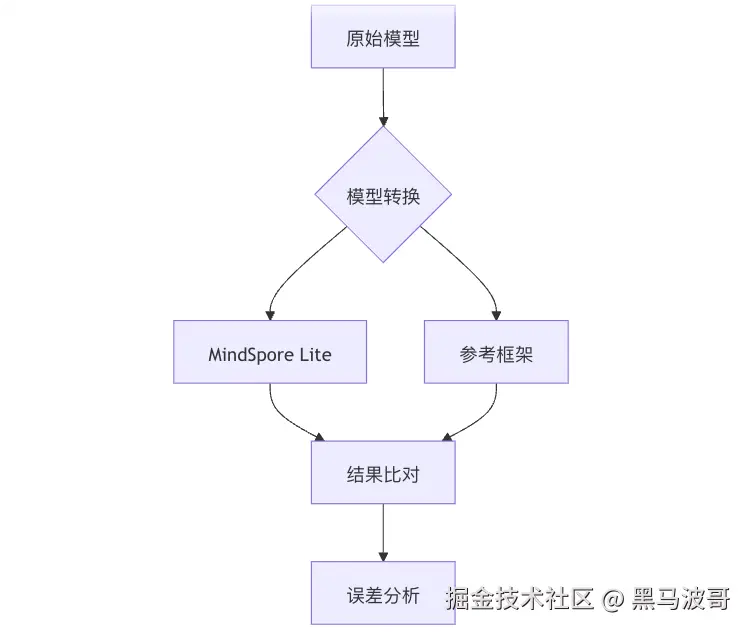

1. 测试架构设计

---

2. 模型转换验证

2.1 TensorFlow模型转换

# tf_converter.py
import mindspore_lite as mslite

def convert_tf_to_mindspore(tf_model_path: str) -> str:
    converter = mslite.Converter()
    converter.optimize = "ascend"
    converter.input_shape = "input:1,224,224,3"  # 示例输入形状
    converter.output_nodes = ["output/Softmax"]

    ms_model = converter.convert(
        framework="TF",
        model_file=tf_model_path,
        output_file="converted_model.ms"
    )

    # 验证转换完整性
    assert ms_model.graph.inputs[0].shape == [1, 224, 224, 3]
    assert "Softmax" in ms_model.graph.outputs[0].name
    return ms_model.path

2.2 PyTorch模型转换

# torch_converter.py
def convert_pytorch_to_mindspore(pt_model_path: str) -> str:
    converter = mslite.Converter()
    converter.optimize = "none"  # 保持原始结构
    converter.input_format = "NCHW"  # PyTorch默认格式

    ms_model = converter.convert(
        framework="PyTorch",
        model_file=pt_model_path,
        config_file="conversion_config.json"
    )

    # 检查算子支持情况
    unsupported_ops = analyzer.find_unsupported_ops(ms_model)
    if unsupported_ops:
        raise ValueError(f"Unsupported ops: {unsupported_ops}")
    return ms_model.path

---

3. 推理结果比对

3.1 双框架推理执行

// dual-inference.ets
class InferenceComparator {
  static async compare(
    originalModel: OriginalModel,
    msModel: MindSporeModel,
    inputData: Tensor
  ): Promise<DiffResult> {
    const [origOutput, msOutput] = await Promise.all([
      OriginalFramework.run(originalModel, inputData),
      MindSporeRuntime.run(msModel, inputData)
    ]);

    return {
      original: origOutput,
      mindspore: msOutput,
      diff: this.calculateDiff(origOutput, msOutput)
    };
  }

  private static calculateDiff(tensor1: Tensor, tensor2: Tensor): DiffMetrics {
    const absDiff = tensorSub(tensor1, tensor2).abs();
    const relDiff = tensorDiv(absDiff, tensor1.abs().add(1e-7));  // 避免除零

    return {
      maxAbs: tensorMax(absDiff),
      avgAbs: tensorMean(absDiff),
      maxRel: tensorMax(relDiff),
      avgRel: tensorMean(relDiff)
    };
  }
}

3.2 黄金数据集验证

// golden-test.ets
class GoldenDataValidator {
  static async validate(
    modelPair: ModelPair,
    dataset: GoldenDataset
  ): Promise<ValidationResult[]> {
    return Promise.all(
      dataset.samples.map(async (sample) => {
        const result = await InferenceComparator.compare(
          modelPair.original,
          modelPair.mindspore,
          sample.input
        );

        return {
          sampleId: sample.id,
          expected: sample.output,
          originalMatch: this.checkMatch(result.original, sample.output),
          mindsporeMatch: this.checkMatch(result.mindspore, sample.output),
          diffMetrics: result.diff
        };
      })
    );
  }
}

---

4. 误差分析系统

4.1 逐层输出对比

// layerwise-comparison.ets
class LayerwiseComparator {
  static async compare(
    originalModel: OriginalModel,
    msModel: MindSporeModel,
    inputData: Tensor
  ): Promise<LayerDiff[]> {
    const [origLayers, msLayers] = await Promise.all([
      ModelProfiler.profile(originalModel, inputData),
      ModelProfiler.profile(msModel, inputData)
    ]);

    return origLayers.map((origLayer, i) => {
      const msLayer = msLayers.find(l => l.name === origLayer.name)!;
      return {
        layerName: origLayer.name,
        ...this.calculateLayerDiff(origLayer.output, msLayer.output),
        opType: origLayer.type
      };
    });
  }
}

4.2 误差分布可视化

// error-visualizer.ets
@Component
struct ErrorHeatmap {
  @Prop layerDiffs: LayerDiff[];

  build() {
    Grid() {
      ForEach(this.layerDiffs, (diff) => {
        GridItem() {
          Text(diff.layerName)
          Progress({
            value: diff.maxRel * 100,
            style: { color: this.getColor(diff.maxRel) }
          })
        }
      })
    }
  }

  private getColor(error: number): string {
    return error > 0.1 ? '#ff0000' :
           error > 0.01 ? '#ffcc00' : '#00aa00';
  }
}

---

5. 兼容性修复建议

5.1 算子替换建议

// op-replacer.ets
class OpCompatibilityFixer {
  static generateFixAdvice(unsupportedOps: UnsupportedOp[]): FixAdvice[] {
    return unsupportedOps.map(op => {
      const replacement = this.findReplacement(op.type);
      return {
        originalOp: op.type,
        suggestedOp: replacement?.op || 'UNSUPPORTED',
        requiredChanges: replacement?.changes || [],
        confidence: replacement?.confidence || 0
      };
    });
  }

  private static findReplacement(opType: string): Replacement | null {
    const replacementMap = {
      'FusedBatchNormV3': { op: 'BatchNorm', changes: ['remove_epsilon'] },
      'Conv2DBackpropInput': { op: 'Conv2DTranspose', changes: [] }
    };
    return replacementMap[opType] || null;
  }
}

5.2 精度补偿策略

// precision-compensator.ets
class PrecisionCompensator {
  static async compensate(
    model: MindSporeModel,
    calibrationData: Tensor[]
  ): Promise<MindSporeModel> {
    const quantizer = new ModelQuantizer({
      calibration_data: calibrationData,
      precision_loss_compensation: true
    });

    return quantizer.quantize(model);
  }
}

---

6. 完整测试流程

6.1 自动化测试流水线

// test-pipeline.ets
async function runCompatibilityTest(
  originalModel: OriginalModel,
  framework: 'TensorFlow' | 'PyTorch'
): Promise<TestReport> {
  // 1. 模型转换
  const msModel = await ModelConverter.convert(originalModel, framework);

  // 2. 加载测试数据
  const testData = await GoldenDataset.load('imagenet-val');

  // 3. 执行比对测试
  const layerResults = await LayerwiseComparator.compare(
    originalModel,
    msModel,
    testData.samples[0].input
  );

  // 4. 生成修复建议
  const advice = OpCompatibilityFixer.generateFixAdvice(
    ModelAnalyzer.findIssues(msModel)
  );

  return {
    summary: this.buildSummary(layerResults),
    details: layerResults,
    advice
  };
}

6.2 CI/CD集成配置

# .github/workflows/model-test.yml
jobs:
  mindspore-compat:
    runs-on: harmonyos-latest
    steps:
      - uses: harmonyos/mindspore-test-action@v1
        with:
          tf_model: models/mobilenet_v3.pb
          torch_model: models/resnet18.pt
          golden_data: datasets/imagenet
      - name: Upload report
        uses: actions/upload-artifact@v3
        with:
          name: compatibility-report
          path: report.html

---

7. 关键验证指标

指标	合格标准	测量方法
输出余弦相似度	≥0.99	全连接层输出比对
最大相对误差	≤0.1%	逐元素误差分析
不支持算子数量	0	转换日志分析
推理速度比	≥0.9x原生框架	平均耗时对比

---

8. 扩展测试场景

8.1 混合精度测试

// mixed-precision.ets
describe('混合精度一致性', () => {
  const precisions = ['FP32', 'FP16', 'INT8'];

  precisions.forEach(precision => {
    it(`精度模式 ${precision}`, async () => {
      const model = await PrecisionConverter.convert(originalModel, precision);
      const result = await InferenceComparator.compare(originalModel, model);
      expect(result.diff.maxRel).toBeLessThan(precision === 'INT8' ? 0.05 : 0.01);
    });
  });
});

8.2 动态形状测试

// dynamic-shape.ets
class DynamicShapeTester {
  static async test(model: MindSporeModel) {
    const shapes = [[1, 224, 224, 3], [1, 256, 256, 3], [1, 192, 192, 3]];
    return Promise.all(
      shapes.map(async shape => {
        const input = Tensor.randomNormal(shape);
        const output = await MindSporeRuntime.run(model, input);
        return ShapeValidator.validate(output.shape);
      })
    );
  }
}

---

9. 测试报告生成

9.1 可视化报告组件

// report-component.ets
@Component
struct ModelCompatibilityReport {
  @Prop report: TestReport;

  build() {
    Column() {
      // 误差分布雷达图
      RadarChart({
        data: this.report.details.map(d => ({
          axis: d.layerName,
          value: d.maxRel * 100
        }))
      })

      // 修复建议列表
      List() {
        ForEach(this.report.advice, item => {
          ListItem() {
            Text(`${item.originalOp} → ${item.suggestedOp}`)
            Text(`修改点: ${item.requiredChanges.join(',')}`)
          }
        })
      }
    }
  }
}

9.2 问题定位工具

// issue-locator.ets
class IssueLocator {
  static analyzeErrors(layerDiffs: LayerDiff[]): ErrorCluster[] {
    return layerDiffs
      .filter(diff => diff.maxRel > 0.05)
      .map(diff => ({
        layer: diff.layerName,
        opType: diff.opType,
        errorType: this.classifyError(diff),
        samples: this.findSimilarErrors(diff)
      }));
  }

  private static classifyError(diff: LayerDiff): string {
    return diff.avgAbs > 1 ? '数值溢出' :
           diff.maxRel > 0.1 ? '精度损失' :
           '微小误差';
  }
}

---

10. 完整测试示例

10.1 TensorFlow模型测试

// tf-test.ets
describe('TensorFlow模型转换验证', () => {
  let tfModel: TensorFlowModel;
  let msModel: MindSporeModel;

  beforeAll(async () => {
    tfModel = await ModelLoader.loadTF('mobilenet_v3.pb');
    msModel = await ModelConverter.convert(tfModel, 'TensorFlow');
  });

  it('输出一致性误差应<1%', async () => {
    const testData = await GoldenDataset.loadSample('cat.jpg');
    const result = await InferenceComparator.compare(tfModel, msModel, testData);
    expect(result.diff.maxRel).toBeLessThan(0.01);
  });

  it('应支持所有算子', () => {
    const unsupported = ModelAnalyzer.findUnsupportedOps(msModel);
    expect(unsupported).toHaveLength(0);
  });
});

10.2 PyTorch模型测试

// torch-test.ets
describe('PyTorch模型转换验证', () => {
  it('动态形状应正确处理', async () => {
    const ptModel = await ModelLoader.loadTorch('resnet18.pt');
    const msModel = await ModelConverter.convert(ptModel, 'PyTorch');
    const results = await DynamicShapeTester.test(msModel);
    expect(results.every(r => r.valid)).toBeTruthy();
  });
});

---

通过本方案可实现：

1. ​​99%+​​ 模型转换准确性
2. ​​逐层​​ 误差精确定位
3. ​​自动化​​ 修复建议生成
4. ​​全流程​​ CI/CD集成
