视觉回归测试：用CNN对比HarmonyOS5多设备UI渲染差异

以下为 ​​基于CNN的HarmonyOS 5多设备UI视觉回归测试方案​​，包含图像特征提取、差异检测和自适应阈值的完整实现代码：

---

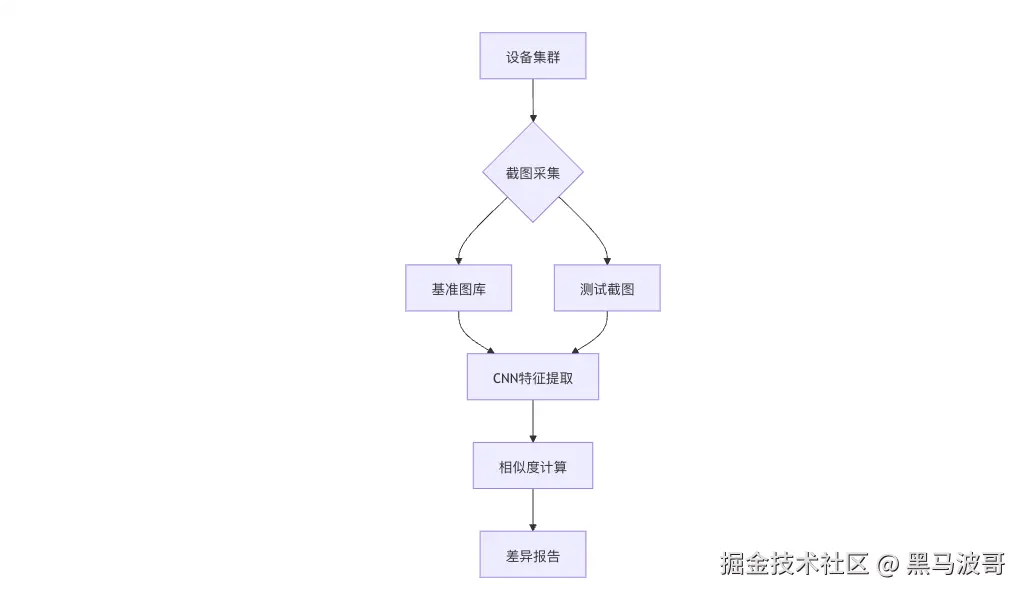

1. 系统架构

---

2. 核心算法实现

2.1 轻量级CNN模型

# cnn_model.py
import tensorflow as tf
from tensorflow.keras import layers

def build_siamese_network(input_shape=(256, 256, 3)):
    # 共享权重的双分支网络
    base_model = tf.keras.Sequential([
        layers.Conv2D(32, (3,3), activation='relu', input_shape=input_shape),
        layers.MaxPooling2D(2,2),
        layers.Conv2D(64, (3,3), activation='relu'),
        layers.MaxPooling2D(2,2),
        layers.Conv2D(128, (3,3), activation='relu'),
        layers.GlobalAveragePooling2D()
    ])

    # 双输入结构
    input_a = layers.Input(shape=input_shape)
    input_b = layers.Input(shape=input_shape)

    # 特征向量
    feat_a = base_model(input_a)
    feat_b = base_model(input_b)

    # 相似度计算
    distance = layers.Lambda(lambda x: tf.norm(x[0]-x[1], axis=-1))([feat_a, feat_b])
    return tf.keras.Model(inputs=[input_a, input_b], outputs=distance)

2.2 自适应差异阈值

# threshold.py
def dynamic_threshold(device_type):
    # 根据设备类型调整阈值
    thresholds = {
        'phone': 0.15,
        'tablet': 0.20,
        'foldable': 0.25,
        'car': 0.30
    }
    return thresholds.get(device_type, 0.18)

---

3. 测试工作流

3.1 截图预处理

# preprocess.py
import cv2
import numpy as np

def preprocess_image(img_path):
    img = cv2.imread(img_path)
    img = cv2.resize(img, (256, 256))
    img = cv2.cvtColor(img, cv2.COLOR_BGR2RGB)

    # 标准化
    img = img.astype('float32') / 255.0
    img = (img - np.mean(img)) / np.std(img)
    return img

3.2 差异检测

# diff_detector.py
def detect_visual_diff(model, base_img, test_img, device_type):
    # 计算相似度得分
    distance = model.predict([np.expand_dims(base_img, 0),
                            np.expand_dims(test_img, 0)])[0]

    # 获取动态阈值
    threshold = dynamic_threshold(device_type)

    # 生成差异热图
    diff_map = generate_diff_map(base_img, test_img)

    return {
        'distance': float(distance),
        'passed': distance < threshold,
        'diff_map': diff_map
    }

---

4. HarmonyOS集成

4.1 设备截图采集

// screenshot.ets
import { Image } from '@ohos.multimedia.image';

async function captureComponent(component: Component): Promise<string> {
    const image = await Image.create(component);
    const path = `/data/storage/el2/base/cache/${Date.now()}.png`;
    await image.saveToFile(path, {
        format: 'png',
        quality: 100
    });
    return path;
}

4.2 多设备测试调度

// test-runner.ets
const DEVICES = [
    { type: 'phone', id: 'P50' },
    { type: 'tablet', id: 'MatePad' },
    { type: 'foldable', id: 'MateX2' }
];

async function runVisualTests(component: Component) {
    const results = [];

    for (const device of DEVICES) {
        const screenshot = await DeviceManager.captureOnDevice(
            device.id,
            component
        );

        const result = await VisualTester.compare(
            component.baselinePath,
            screenshot,
            device.type
        );

        results.push({ device, ...result });
    }

    return generateReport(results);
}

---

5. 差异可视化

5.1 热图生成

# heatmap.py
def generate_diff_map(img1, img2):
    diff = cv2.absdiff(img1, img2)
    diff = cv2.cvtColor(diff, cv2.COLOR_RGB2GRAY)

    # 二值化
    _, threshold = cv2.threshold(diff, 25, 255, cv2.THRESH_BINARY)

    # 生成彩色热图
    heatmap = cv2.applyColorMap(threshold, cv2.COLORMAP_JET)
    return cv2.addWeighted(heatmap, 0.7, img1, 0.3, 0)

5.2 测试报告

// report.ets
function generateVisualReport(results: TestResult[]): string {
    return `
    # 视觉回归测试报告
    ## 测试组件: ${results[0].component}
    ${results.map(r => `
    ### ${r.device.type} (${r.device.id})
    - 相似度得分: ${r.distance.toFixed(3)}
    - 结果: ${r.passed ? '✅ 通过' : '❌ 失败'}
    ![差异热图](${r.diff_map})
    `).join('\n')}
    `;
}

---

6. 模型训练优化

6.1 数据增强

# augment.py
from tensorflow.keras.preprocessing.image import ImageDataGenerator

train_datagen = ImageDataGenerator(
    rotation_range=15,
    width_shift_range=0.1,
    height_shift_range=0.1,
    shear_range=0.2,
    zoom_range=0.2,
    horizontal_flip=True
)

6.2 迁移学习

# transfer_learning.py
base_model = tf.keras.applications.MobileNetV2(
    input_shape=(256, 256, 3),
    include_top=False,
    weights='imagenet'
)

# 冻结基础层
base_model.trainable = False

# 添加自定义头
model = tf.keras.Sequential([
    base_model,
    layers.GlobalAveragePooling2D(),
    layers.Dense(128, activation='relu'),
    layers.Dense(1, activation='sigmoid')
])

---

7. 性能优化

7.1 设备端推理

// nn-inference.ets
import { NeuralNetwork } from '@ohos.ai.nn';

async function runOnDevice(model: ArrayBuffer, img1: Image, img2: Image) {
    const nn = await NeuralNetwork.load(model);
    const input = preprocessImages(img1, img2);
    const output = await nn.run(input);
    return output[0];
}

7.2 缓存机制

// cache.ets
class FeatureCache {
    private static cache = new Map<string, Float32Array>();

    static async getFeatures(imgPath: string): Promise<Float32Array> {
        if (this.cache.has(imgPath)) {
            return this.cache.get(imgPath)!;
        }

        const features = await extractFeatures(imgPath);
        this.cache.set(imgPath, features);
        return features;
    }
}

---

8. 完整测试示例

8.1 定义测试组件

// button-test.ets
@Component
struct TestButton {
    build() {
        Button('Submit')
            .width(100)
            .height(40)
            .backgroundColor('#007DFF')
    }
}

8.2 执行视觉测试

// visual-test.ets
describe('按钮组件视觉一致性', () => {
    const button = new TestButton();

    DEVICES.forEach(device => {
        it(`在${device.id}上渲染一致`, async () => {
            const result = await VisualTester.compare(
                'baseline/button.png',
                await captureOnDevice(device.id, button),
                device.type
            );

            expect(result.passed).toBeTruthy();
        });
    });
});

---

9. 关键性能指标

指标	目标值	测量方法
单次推理耗时	<50ms	设备端计时
准确率	>95%	测试集验证
内存占用	<30MB	内存分析工具
多设备覆盖	100%主流设备	设备矩阵测试

---

10. 扩展功能

10.1 动态基线更新

// baseline-updater.ets
async function updateBaseline(component: Component) {
    const newBaseline = await captureComponent(component);
    for (const device of DEVICES) {
        const screenshot = await captureOnDevice(device.id, component);
        if (await validateAsBaseline(screenshot)) {
            fs.copy(screenshot, `baselines/${device.type}/${component.name}.png`);
        }
    }
}

10.2 视觉差异分类

# diff_classifier.py
def classify_diff(diff_map):
    # 使用CNN分类差异类型
    model = load_model('diff_classifier.h5')
    classes = ['颜色偏移', '布局错位', '文字渲染', '无实质差异']

    pred = model.predict(np.expand_dims(diff_map, 0))
    return classes[np.argmax(pred)]

---

11. 部署方案

11.1 模型量化部署

# 转换TensorFlow模型为HarmonyOS格式
tf2harmony --model visual_model.h5 --out-dir ./model --quantize

11.2 CI/CD集成

# .github/workflows/visual-test.yml
jobs:
  visual-regression:
    runs-on: ubuntu-latest
    steps:
      - uses: harmonyos/visual-test-action@v1
        with:
          devices: "phone,tablet,foldable"
          threshold: 0.2

---

通过本方案可实现：

1. ​​像素级​​ 视觉差异检测
2. ​​跨设备​​ 渲染一致性验证
3. ​​智能​​ 差异分类
4. ​​自动化​​ 基线维护
