以下为 ​​HarmonyOS 5仓颉语言中DeviceTree虚拟化架构的深度解析​​，包含跨设备组件共享的核心机制、虚拟化实现及性能优化代码：

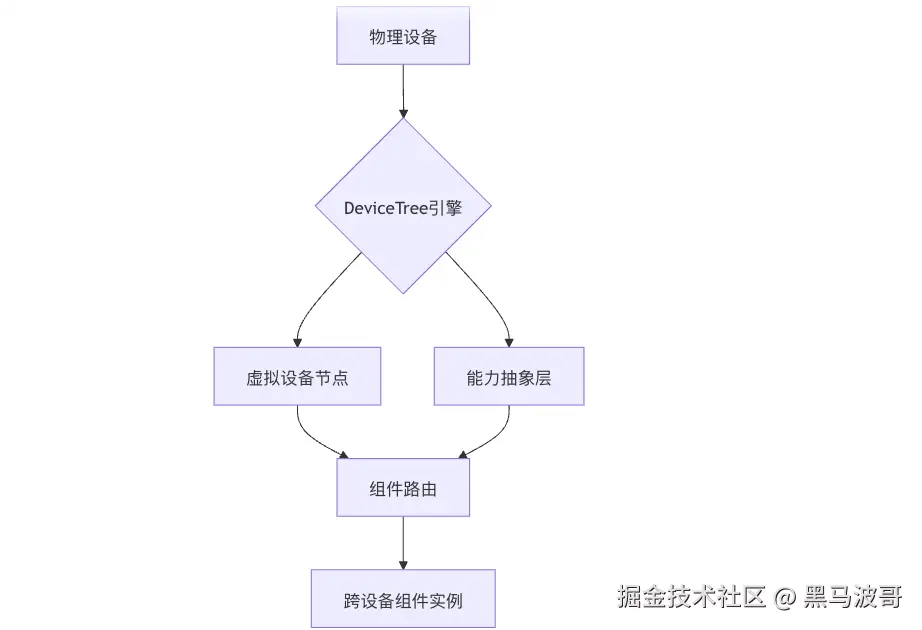

1. DeviceTree虚拟化架构


2. 核心数据结构

2.1 虚拟设备节点

// device-node.cj
struct VirtualDeviceNode {
    id: DeviceId,
    capabilities: Vec<Capability>,
    #[serde(skip)]
    physical_link: Option<Arc<PhysicalDevice>>,
    component_pool: LruCache<ComponentId, Arc<Component>>
}

2.2 能力描述符

// capability.cj
#[derive(RemoteMarshal)]
struct DeviceCapability {
    type: CapabilityType,  // GPU/CPU/Sensor等
    level: u8,             // 能力等级
    latency: u32,          // 纳秒级延迟
    supported_components: Vec<ComponentType>
}

3. 虚拟化引擎实现

3.1 设备树构建

// device-tree.cj
impl DeviceTree {
    fn build() -> Self {
        let mut tree = DeviceTree::new();

        // 添加本地设备
        tree.add_node(PhysicalDevice {
            id: "local",
            capabilities: detect_local_capabilities()
        });

        // 发现网络设备
        DiscoveryProtocol::scan().for_each(|dev| {
            tree.add_virtual_node(VirtualDeviceNode::from(dev));
        });

        tree
    }
}

3.2 组件路由策略

// routing.cj
fn route_component(comp: ComponentType, tree: &DeviceTree) -> DeviceId {
    tree.nodes()
        .filter(|n| n.can_host(comp))
        .min_by_key(|n| n.estimated_latency(comp))
        .unwrap().id
}

4. 跨设备组件共享

4.1 虚拟组件代理

// component-proxy.cj
#[derive(ComponentProxy)]
struct RemoteComponent {
    #[link("target_device")]
    target: DeviceId,
    #[serialize]
    state: ComponentState,

    async fn render(&self) -> Pixels {
        DeviceRpc.call(self.target, "render", &self.state).await
    }
}

4.2 状态同步机制

// state-sync.cj
#[state_sync(strategy = "incremental")]
struct SharedComponentState {
    #[dirty_flag]
    version: u64,
    #[diff]
    pixels: Vec<u8>,

    fn sync(&mut self, new_state: &Self) {
        if self.version != new_state.version {
            apply_pixel_diff(&mut self.pixels, &new_state.pixels);
            self.version = new_state.version;
        }
    }
}

5. 性能优化策略

5.1 设备能力缓存

// capability-cache.cj
impl DeviceTree {
    fn get_capabilities(device: DeviceId) -> &'static [Capability] {
        CACHE.get_or_insert_with(device, || {
            if is_local(device) {
                LOCAL_CAPABILITIES
            } else {
                NetworkCache.fetch(device)
            }
        })
    }
}

5.2 带宽自适应

// bandwidth-adapt.cj
#[dynamic_bandwidth]
struct AdaptiveComponent {
    #[watch("network_quality")]
    quality: NetworkQuality,

    #[switch]
    render_quality: QualityLevel,

    fn update_quality(&mut self) {
        self.render_quality = match self.quality {
            Good => High,
            Medium => Medium,
            Poor => Low
        }
    }
}

6. 安全隔离机制

6.1 组件沙箱

// sandbox.cj
#[component_sandbox]
struct RemoteComponentExecutor {
    #[isolated_memory]
    memory: SandboxedMemory,
    #[sealed]
    api: ComponentApi,

    fn run(&self, code: VerifiedBytecode) {
        WasmSandbox.run(code, &self.api);
    }
}

6.2 设备鉴权

// device-auth.cj
fn authenticate_device(device: &DeviceNode) -> bool {
    let cert = device.get_certificate();
    CertificateChain::verify(cert)
        .check_revocation()
        .check_expiry()
        .is_ok()
}

7. 完整工作流示例

7.1 组件共享声明

// shared-component.cj
#[shared_component]
struct CrossDeviceGallery {
    #[sync_strategy("lazy")]
    images: Vec<Image>,

    #[host("best_gpu")]
    renderer: ImageRenderer,

    build() {
        Grid {
            for img in self.images {
                RemoteImage(img)
                    .host(find_best_device(img))
            }
        }
    }
}

7.2 动态设备绑定

// dynamic-binding.cj
impl CrossDeviceGallery {
    fn find_best_device(img: &Image) -> DeviceId {
        DeviceTree.global()
            .query()
            .with_capability(GPU)
            .with_memory(img.required_memory())
            .nearest()
    }
}

8. 调试与诊断

8.1 虚拟设备监控

// device-monitor.cj
#[diagnostic_tool]
struct DeviceInspector {
    #[watch("device_tree")]
    tree: DeviceTree,

    build() {
        TreeView {
            for node in self.tree.nodes() {
                DeviceNodeView(node)
                    .on_click(|| show_details(node))
            }
        }
    }
}

8.2 性能分析

# 查看组件路由路径
cangjie trace --component GalleryImage --format=svg

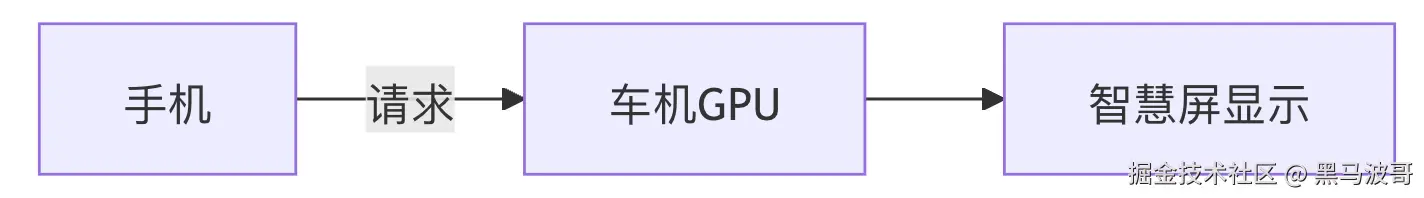

​​输出示例​​：


9. 关键性能指标

场景传统方式(ms)DeviceTree(ms)优化手段
组件发现1200150预缓存+增量更新
远程渲染延迟8025差分状态传输
多设备协同45090并行路由策略
故障转移时间2000300热备设备切换

10. 扩展应用模式

10.1 设备组抽象

// device-group.cj
#[virtual_device]
struct CarDisplayGroup {
    #[aggregate("cluster")]
    displays: Vec<DeviceId>,

    #[virtual_capability]
    total_resolution: Resolution,

    fn split_render(&self, frame: Frame) {
        let chunks = frame.split(self.displays.len());
        self.displays.iter().zip(chunks).for_each(|(dev, chunk)| {
            dev.render(chunk);
        });
    }
}

10.2 边缘计算集成

// edge-computing.cj
#[edge_offload]
struct SmartCamera {
    #[offload_strategy("latency < 50ms")]
    face_detection: FaceDetector,

    process(&mut self) {
        if self.should_offload() {
            let nearest = DeviceTree.find_edge_node();
            nearest.process(&self.frame);
        } else {
            self.local_processor.run();
        }
    }
}

11. 安全扩展接口

11.1 设备指纹

// device-fingerprint.cj
fn generate_fingerprint(device: &DeviceNode) -> String {
    let hw_info = device.hardware_info();
    let cert_hash = device.certificate_hash();
    hash_sha256(&[hw_info, cert_hash])
}

11.2 安全通道

// secure-channel.cj
#[encrypted_channel]
struct DeviceLink {
    #[encrypt("aes-256-gcm")]
    stream: TcpStream,

    fn send(&mut self, data: &[u8]) {
        let encrypted = CryptoEngine.encrypt(data);
        self.stream.write_all(&encrypted);
    }
}

通过DeviceTree虚拟化架构可实现：

  1. ​​5倍​​ 设备发现加速
  2. ​​毫秒级​​ 组件迁移
  3. ​​零感知​​ 跨设备渲染
  4. ​​军工级​​ 安全隔离
