源码编译安装
1. 下载源码
| 源码仓库地址 | Release Download |
|---|---|
| github.com/xuxueli/xxl… | Download |
| gitee.com/xuxueli0323… | Download |
| gitcode.com/xuxueli/xxl… | Download |
2. 编译
环境要求：
- Maven3+
- JDK17+（3.x版本要求17+；2.x及以下支持1.8）
- MySQL 8+
mvn install package -DskipTest -Dgpg.skip
3. 数据库初始化
项目文件：doc/db/tables_xxl_job.sql
#
# XXL-JOB
# Copyright (c) 2015-present, xuxueli.
CREATE database if NOT EXISTS `xxl_job` default character set utf8mb4 collate utf8mb4_unicode_ci;
use `xxl_job`;
SET NAMES utf8mb4;
CREATE TABLE `xxl_job_info`
(
`id` int(11) NOT NULL AUTO_INCREMENT,
`job_group` int(11) NOT NULL COMMENT '执行器主键ID',
`job_desc` varchar(255) NOT NULL,
`add_time` datetime DEFAULT NULL,
`update_time` datetime DEFAULT NULL,
`author` varchar(64) DEFAULT NULL COMMENT '作者',
`alarm_email` varchar(255) DEFAULT NULL COMMENT '报警邮件',
`schedule_type` varchar(50) NOT NULL DEFAULT 'NONE' COMMENT '调度类型',
`schedule_conf` varchar(128) DEFAULT NULL COMMENT '调度配置，值含义取决于调度类型',
`misfire_strategy` varchar(50) NOT NULL DEFAULT 'DO_NOTHING' COMMENT '调度过期策略',
`executor_route_strategy` varchar(50) DEFAULT NULL COMMENT '执行器路由策略',
`executor_handler` varchar(255) DEFAULT NULL COMMENT '执行器任务handler',
`executor_param` varchar(512) DEFAULT NULL COMMENT '执行器任务参数',
`executor_block_strategy` varchar(50) DEFAULT NULL COMMENT '阻塞处理策略',
`executor_timeout` int(11) NOT NULL DEFAULT '0' COMMENT '任务执行超时时间，单位秒',
`executor_fail_retry_count` int(11) NOT NULL DEFAULT '0' COMMENT '失败重试次数',
`glue_type` varchar(50) NOT NULL COMMENT 'GLUE类型',
`glue_source` mediumtext COMMENT 'GLUE源代码',
`glue_remark` varchar(128) DEFAULT NULL COMMENT 'GLUE备注',
`glue_updatetime` datetime DEFAULT NULL COMMENT 'GLUE更新时间',
`child_jobid` varchar(255) DEFAULT NULL COMMENT '子任务ID，多个逗号分隔',
`trigger_status` tinyint(4) NOT NULL DEFAULT '0' COMMENT '调度状态：0-停止，1-运行',
`trigger_last_time` bigint(13) NOT NULL DEFAULT '0' COMMENT '上次调度时间',
`trigger_next_time` bigint(13) NOT NULL DEFAULT '0' COMMENT '下次调度时间',
PRIMARY KEY (`id`)
) ENGINE = InnoDB
DEFAULT CHARSET = utf8mb4;
CREATE TABLE `xxl_job_log`
(
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`job_group` int(11) NOT NULL COMMENT '执行器主键ID',
`job_id` int(11) NOT NULL COMMENT '任务，主键ID',
`executor_address` varchar(255) DEFAULT NULL COMMENT '执行器地址，本次执行的地址',
`executor_handler` varchar(255) DEFAULT NULL COMMENT '执行器任务handler',
`executor_param` varchar(512) DEFAULT NULL COMMENT '执行器任务参数',
`executor_sharding_param` varchar(20) DEFAULT NULL COMMENT '执行器任务分片参数，格式如 1/2',
`executor_fail_retry_count` int(11) NOT NULL DEFAULT '0' COMMENT '失败重试次数',
`trigger_time` datetime DEFAULT NULL COMMENT '调度-时间',
`trigger_code` int(11) NOT NULL COMMENT '调度-结果',
`trigger_msg` text COMMENT '调度-日志',
`handle_time` datetime DEFAULT NULL COMMENT '执行-时间',
`handle_code` int(11) NOT NULL COMMENT '执行-状态',
`handle_msg` text COMMENT '执行-日志',
`alarm_status` tinyint(4) NOT NULL DEFAULT '0' COMMENT '告警状态：0-默认、1-无需告警、2-告警成功、3-告警失败',
PRIMARY KEY (`id`),
KEY `I_trigger_time` (`trigger_time`),
KEY `I_handle_code` (`handle_code`),
KEY `I_jobid_jobgroup` (`job_id`,`job_group`),
KEY `I_job_id` (`job_id`)
) ENGINE = InnoDB
DEFAULT CHARSET = utf8mb4;
CREATE TABLE `xxl_job_log_report`
(
`id` int(11) NOT NULL AUTO_INCREMENT,
`trigger_day` datetime DEFAULT NULL COMMENT '调度-时间',
`running_count` int(11) NOT NULL DEFAULT '0' COMMENT '运行中-日志数量',
`suc_count` int(11) NOT NULL DEFAULT '0' COMMENT '执行成功-日志数量',
`fail_count` int(11) NOT NULL DEFAULT '0' COMMENT '执行失败-日志数量',
`update_time` datetime DEFAULT NULL,
PRIMARY KEY (`id`),
UNIQUE KEY `i_trigger_day` (`trigger_day`) USING BTREE
) ENGINE = InnoDB
DEFAULT CHARSET = utf8mb4;
CREATE TABLE `xxl_job_logglue`
(
`id` int(11) NOT NULL AUTO_INCREMENT,
`job_id` int(11) NOT NULL COMMENT '任务，主键ID',
`glue_type` varchar(50) DEFAULT NULL COMMENT 'GLUE类型',
`glue_source` mediumtext COMMENT 'GLUE源代码',
`glue_remark` varchar(128) NOT NULL COMMENT 'GLUE备注',
`add_time` datetime DEFAULT NULL,
`update_time` datetime DEFAULT NULL,
PRIMARY KEY (`id`)
) ENGINE = InnoDB
DEFAULT CHARSET = utf8mb4;
CREATE TABLE `xxl_job_registry`
(
`id` int(11) NOT NULL AUTO_INCREMENT,
`registry_group` varchar(50) NOT NULL,
`registry_key` varchar(255) NOT NULL,
`registry_value` varchar(255) NOT NULL,
`update_time` datetime DEFAULT NULL,
PRIMARY KEY (`id`),
UNIQUE KEY `i_g_k_v` (`registry_group`, `registry_key`, `registry_value`) USING BTREE
) ENGINE = InnoDB
DEFAULT CHARSET = utf8mb4;
CREATE TABLE `xxl_job_group`
(
`id` int(11) NOT NULL AUTO_INCREMENT,
`app_name` varchar(64) NOT NULL COMMENT '执行器AppName',
`title` varchar(12) NOT NULL COMMENT '执行器名称',
`address_type` tinyint(4) NOT NULL DEFAULT '0' COMMENT '执行器地址类型：0=自动注册、1=手动录入',
`address_list` text COMMENT '执行器地址列表，多地址逗号分隔',
`update_time` datetime DEFAULT NULL,
PRIMARY KEY (`id`)
) ENGINE = InnoDB
DEFAULT CHARSET = utf8mb4;
CREATE TABLE `xxl_job_user`
(
`id` int(11) NOT NULL AUTO_INCREMENT,
`username` varchar(50) NOT NULL COMMENT '账号',
`password` varchar(50) NOT NULL COMMENT '密码',
`role` tinyint(4) NOT NULL COMMENT '角色：0-普通用户、1-管理员',
`permission` varchar(255) DEFAULT NULL COMMENT '权限：执行器ID列表，多个逗号分割',
PRIMARY KEY (`id`),
UNIQUE KEY `i_username` (`username`) USING BTREE
) ENGINE = InnoDB
DEFAULT CHARSET = utf8mb4;
CREATE TABLE `xxl_job_lock`
(
`lock_name` varchar(50) NOT NULL COMMENT '锁名称',
PRIMARY KEY (`lock_name`)
) ENGINE = InnoDB
DEFAULT CHARSET = utf8mb4;
## —————————————————————— init data ——————————————————
INSERT INTO `xxl_job_group`(`id`, `app_name`, `title`, `address_type`, `address_list`, `update_time`)
VALUES (1, 'xxl-job-executor-sample', '通用执行器Sample', 0, NULL, now()),
(2, 'xxl-job-executor-sample-ai', 'AI执行器Sample', 0, NULL, now());
INSERT INTO `xxl_job_info`(`id`, `job_group`, `job_desc`, `add_time`, `update_time`, `author`, `alarm_email`,
`schedule_type`, `schedule_conf`, `misfire_strategy`, `executor_route_strategy`,
`executor_handler`, `executor_param`, `executor_block_strategy`, `executor_timeout`,
`executor_fail_retry_count`, `glue_type`, `glue_source`, `glue_remark`, `glue_updatetime`,
`child_jobid`)
VALUES (1, 1, '示例任务01', now(), now(), 'XXL', '', 'CRON', '0 0 0 * * ? *',
'DO_NOTHING', 'FIRST', 'demoJobHandler', '', 'SERIAL_EXECUTION', 0, 0, 'BEAN', '', 'GLUE代码初始化',
now(), ''),
(2, 2, 'Ollama示例任务01', now(), now(), 'XXL', '', 'NONE', '',
'DO_NOTHING', 'FIRST', 'ollamaJobHandler', '{
"input": "慢SQL问题分析思路",
"prompt": "你是一个研发工程师，擅长解决技术类问题。"
}', 'SERIAL_EXECUTION', 0, 0, 'BEAN', '', 'GLUE代码初始化',
now(), ''),
(3, 2, 'Dify示例任务', now(), now(), 'XXL', '', 'NONE', '',
'DO_NOTHING', 'FIRST', 'difyWorkflowJobHandler', '{
"inputs":{
"input":"查询班级各学科前三名"
},
"user": "xxl-job",
"baseUrl": "http://localhost/v1",
"apiKey": "app-OUVgNUOQRIMokfmuJvBJoUTN"
}', 'SERIAL_EXECUTION', 0, 0, 'BEAN', '', 'GLUE代码初始化',
now(), '')
;
INSERT INTO `xxl_job_user`(`id`, `username`, `password`, `role`, `permission`)
VALUES (1, 'admin', 'e10adc3949ba59abbe56e057f20f883e', 1, NULL);
INSERT INTO `xxl_job_lock` (`lock_name`)
VALUES ('schedule_lock');
commit;
4. 配置XXL-Job Admin
主要调整数据库连接信息
### 调度中心JDBC链接：链接地址请保持和 2.1章节 所创建的调度数据库的地址一致
spring.datasource.url=jdbc:mysql://127.0.0.1:3306/xxl_job?useUnicode=true&characterEncoding=UTF-8&autoReconnect=true&serverTimezone=Asia/Shanghai
spring.datasource.username=root
spring.datasource.password=root_pwd
spring.datasource.driver-class-name=com.mysql.jdbc.Driver
### 报警邮箱
spring.mail.host=smtp.qq.com
spring.mail.port=25
spring.mail.username=xxx@qq.com
spring.mail.password=xxx
spring.mail.properties.mail.smtp.auth=true
spring.mail.properties.mail.smtp.starttls.enable=true
spring.mail.properties.mail.smtp.starttls.required=true
spring.mail.properties.mail.smtp.socketFactory.class=javax.net.ssl.SSLSocketFactory
### 调度中心通讯TOKEN [选填]：非空时启用；
xxl.job.accessToken=
### 调度中心通讯超时时间[选填]，单位秒；默认3s；
xxl.job.timeout=3
### 调度中心国际化配置 [必填]： 默认为 "zh_CN"/中文简体, 可选范围为 "zh_CN"/中文简体, "zh_TC"/中文繁体 and "en"/英文；
xxl.job.i18n=zh_CN
## 调度线程池最大线程配置【必填】
xxl.job.triggerpool.fast.max=200
xxl.job.triggerpool.slow.max=100
### 调度中心日志表数据保存天数 [必填]：过期日志自动清理；限制大于等于7时生效，否则, 如-1，关闭自动清理功能；
xxl.job.logretentiondays=30
启动项目
cd xxl-job-admin
mvn spring-boot:run

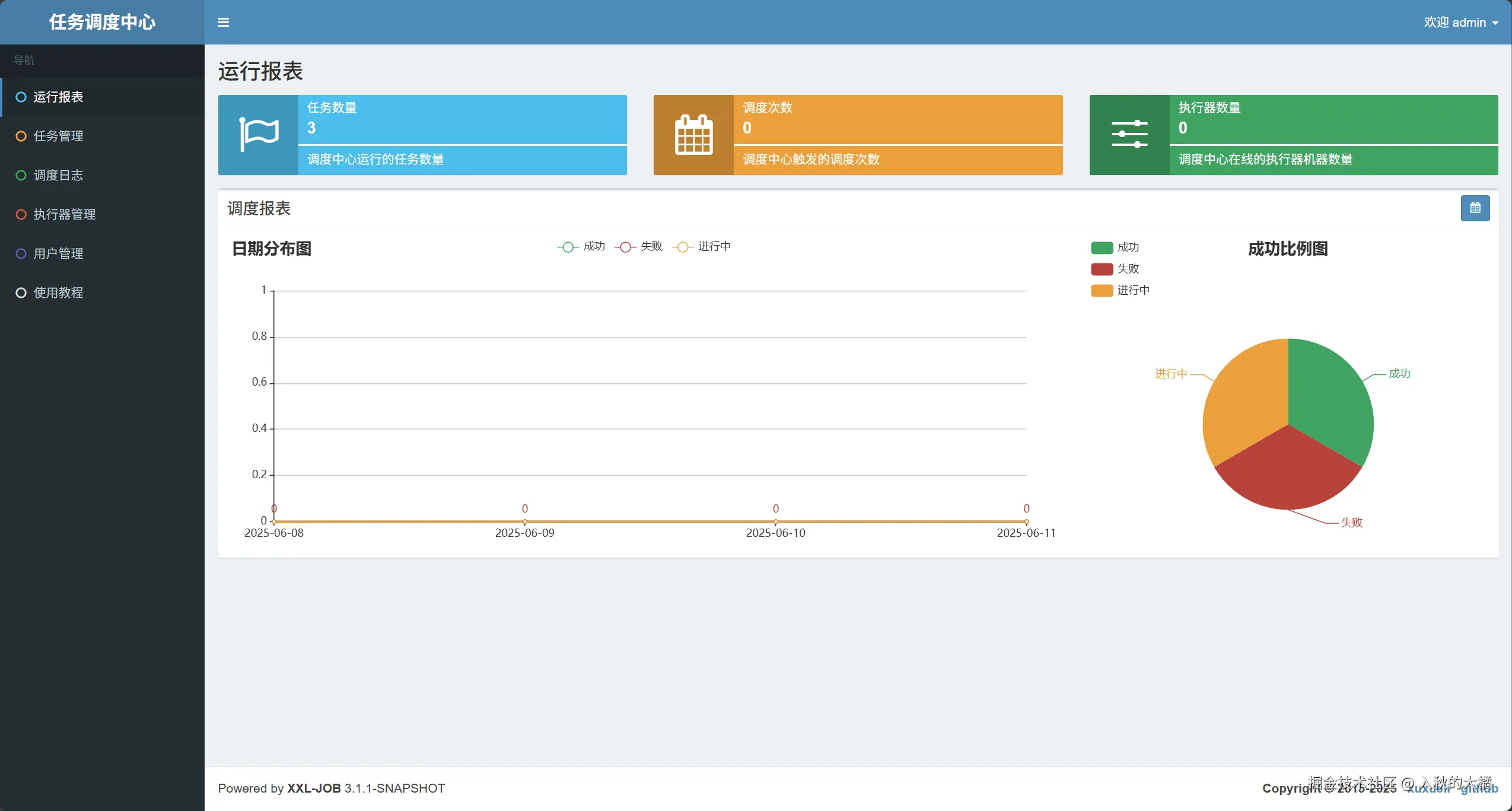

浏览器访问：http://127.0.0.1:8080/xxl-job-admin
Docker Compose 一键启动
文件结构
└─xxl-job
├─logs
└─mysql
├─data
└─init -- 放数据库初始化脚本
docker-compose.yml
version: '3'
services:
xxl-job-mysql:
image: mysql:8.0
container_name: xxl-job-mysql
restart: always
environment:
MYSQL_ROOT_PASSWORD: root
MYSQL_DATABASE: xxl_job
MYSQL_USER: xxl_job
MYSQL_PASSWORD: xxl_job
TZ: Asia/Shanghai
command:
--character-set-server=utf8mb4
--collation-server=utf8mb4_unicode_ci
--default-authentication-plugin=mysql_native_password
volumes:
- ./mysql/data:/var/lib/mysql
- ./mysql/init:/docker-entrypoint-initdb.d
ports:
- "3306:3306"
networks:
- xxl-job-net
healthcheck:
test: [ "CMD", "mysqladmin", "ping", "-h", "localhost", "-u", "root", "-p$$MYSQL_ROOT_PASSWORD" ]
interval: 5s
timeout: 5s
retries: 10
xxl-job-admin:
image: xuxueli/xxl-job-admin:3.1.0
container_name: xxl-job-admin
restart: always
depends_on:
xxl-job-mysql:
condition: service_healthy
environment:
PARAMS: >-
--spring.datasource.url=jdbc:mysql://xxl-job-mysql:3306/xxl_job?useUnicode=true&characterEncoding=UTF-8&autoReconnect=true&serverTimezone=Asia/Shanghai
--spring.datasource.username=root
--spring.datasource.password=root
--spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
--xxl.job.accessToken=default_token
--xxl.job.i18n=zh_CN
--server.servlet.context-path=/xxl-job-admin
ports:
- "8080:8080"
volumes:
- ./logs:/data/applogs
networks:
- xxl-job-net
networks:
xxl-job-net:
driver: bridge
