记录一次引入循环，导致undefined

是什么

循环依赖(Circular dependency)是指在模块系统中，两个或多个模块形成相互引用的依赖关系。这种情况会导致模块加载和初始化过程变得复杂且难以预测。

循环依赖示例

如下图所示，循环依赖可以是直接的相互引用，也可以是间接的依赖环：

flowchart TD
    subgraph "循环依赖结构"
        ModuleA((模块A)) -->|导入| ModuleB((模块B))
        ModuleB -->|导入| ModuleA
    end

    subgraph "间接循环依赖"
        ModC((模块C)) -->|导入| ModD((模块D))
        ModD -->|导入| ModE((模块E))
        ModE -->|导入| ModC
    end

循环依赖引发的常见问题

flowchart TD
    subgraph "引发问题"
        Problems[循环依赖] --> P1[未完成的对象初始化]
        Problems --> P2[undefined值]
        Problems --> P3[执行顺序不可预测]
        Problems --> P4[调试困难]
    end

问题详解

1. 未完成的对象初始化：模块在被完全初始化前就被引用，导致访问到不完整的对象
2. undefined值：尝试访问尚未定义的导出，导致运行时错误
3. 执行顺序不可预测：不同的模块系统处理循环依赖的方式不同，造成代码行为难以预测
4. 调试困难：错误堆栈跟踪混乱，难以定位问题根源

为什么？

flowchart TD
    subgraph "模块加载过程"
        Start[开始加载] --> LoadA[开始加载模块A]
        LoadA --> A1[解析模块A的依赖]
        A1 --> A2[发现模块A依赖模块B]
        A2 --> LoadB[开始加载模块B]
        LoadB --> B1[解析模块B的依赖]
        B1 --> B2[发现模块B依赖模块A]

        B2 --> Decision{模块系统如何处理?}

        Decision -->|CommonJS| CJS[返回未完成的A]
        CJS --> B3[完成模块B的初始化]
        B3 --> A3[继续模块A的初始化]
        A3 --> Done[加载完成]

        Decision -->|ES Modules| ESM[完成构造阶段]
        ESM --> ESM2[执行模块A代码]
        ESM2 --> ESM3[执行模块B代码]
        ESM3 --> Done

        Decision -->|未处理| Error[运行时错误]
    end

如何解决？

方法	示例	说明
✅ 延迟加载	require() 写到函数内部	避免初始化阶段访问未定义
✅ 提取公共模块	建立 shared.js	A 和 B 不直接依赖彼此
✅ 重构依赖方向	抽象高层逻辑模块	减少相互耦合

实际案例分析

现象

当从工单列表进入工单详情时，导致页面展示空白。代码报错：

hook.js:608 TypeError: _pages_cashRegister_ThirdPlatformService_SinopecCompService__WEBPACK_IMPORTED_MODULE_16__.SinopecCompService is not a constructor
    at ./src/pages/cashRegister/ThirdPlatformService/service.js (service.js:12:68)
    at __webpack_require__ (bootstrap:853:1)
    at fn (bootstrap:150:1)
    at ./src/class/cashRegister/GatheringInfo.js (42.js:725:107)
    at __webpack_require__ (bootstrap:853:1)
    at fn (bootstrap:150:1)
    at ./src/class/cashRegister/index.js (index.js:1:1)
    at __webpack_require__ (bootstrap:853:1)
    at fn (bootstrap:150:1)
    at ./src/pages/cashRegister/ThirdPlatformService/SinopecCompService.js (42.js:3437:78)
overrideMethod @ hook.js:608
s2.f6yc.comnull/:1

定位过程

错误日志中关键信息：

_pages_cashRegister_ThirdPlatformService_SinopecCompService__WEBPACK_IMPORTED_MODULE_16__.SinopecCompService is not a constructor

报错位置在：

at ./src/pages/cashRegister/ThirdPlatformService/service.js (service.js:12:68)

相关代码：

import {
  SinopecCompService
} from '@/pages/cashRegister/ThirdPlatformService/SinopecCompService'
import { ChinaSinopecCashPayService } from '@/pages/cashRegister/ThirdPlatformService/ChinaSinopecCashPayService'
import { ChinaSinopecService } from '@/pages/cashRegister/ThirdPlatformService/ChinaSinopecService'

const serviceList = [new SinopecService(), new MasterTooService(), new SinopecCompService(), new ChinaSinopecCashPayService(), new ChinaSinopecService()]

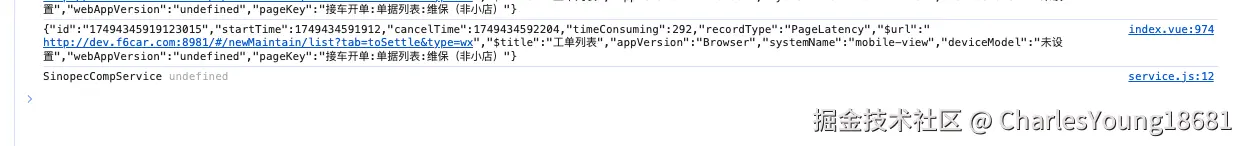

报错原因是SinopecCompService不是一个构造函数。我们尝试打印SinopecCompService：

报错信息表明SinopecCompService在被实例化时不是一个构造函数，实际上它在调用时是undefined。

调试过程

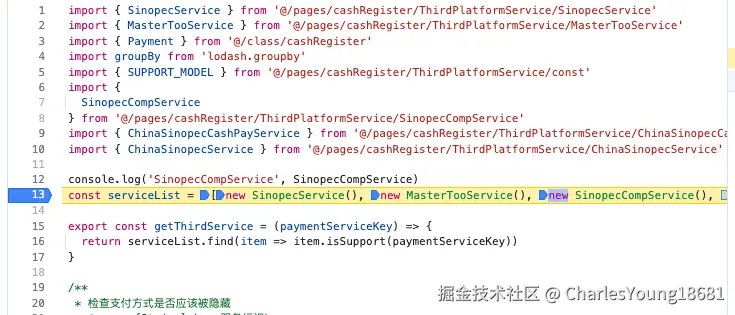

我们将断点打到SinopecCompService对象上面：

得到以下的堆栈，分析调用问题：

./src/pages/cashRegister/ThirdPlatformService/service.js (service.js:13)
__webpack_require__ (bootstrap:853)
fn (bootstrap:150)
./src/class/cashRegister/GatheringInfo.js (42.js:725)
__webpack_require__ (bootstrap:853)
fn (bootstrap:150)
./src/class/cashRegister/index.js (index.js:1)
__webpack_require__ (bootstrap:853)
fn (bootstrap:150)
./src/pages/cashRegister/ThirdPlatformService/SinopecCompService.js (42.js:3437)
__webpack_require__ (bootstrap:853)
fn (bootstrap:150)
./node_modules/cache-loader/dist/cjs.js?!./node_modules/babel-loader/lib/index.js!./node_modules/cache-loader/dist/cjs.js?!./node_modules/vue-loader/lib/index.js?!./src/pages/newMaintain/pages/ViewDetail/index.vue?vue&type=script&lang=js& (NewMaintainDetailView.js:1028)
__webpack_require__ (bootstrap:853)
fn (bootstrap:150)
./src/pages/newMaintain/pages/ViewDetail/index.vue?vue&type=script&lang=js& (index.vue:1)
__webpack_require__ (bootstrap:853)
fn (bootstrap:150)
./src/pages/newMaintain/pages/ViewDetail/index.vue (index.vue:1)
__webpack_require__ (bootstrap:853)....

通过调用堆栈，分析出循环依赖路径：

1. 从ViewDetail/index.vue开始，导入了SinopecCompService.js

2. 然后SinopecCompService.js导入了Payment类from '@/class/cashRegister'

3. class/cashRegister/index.js中导出了GatheringInfo等模块

   export { GatheringInfo } from './GatheringInfo'
   export { GatheringConfig } from './GatheringConfig'
   export { Payment } from './Payment'
   export { CzkCard } from './CzkCard'
   export { Coupon } from './Coupon'


4. GatheringInfo.js导入了service.js中的hiddenPayment

   import { hiddenPayment } from '@/pages/cashRegister/ThirdPlatformService/service'


5. 最后service.js又导入了SinopecCompService，从而形成了循环依赖

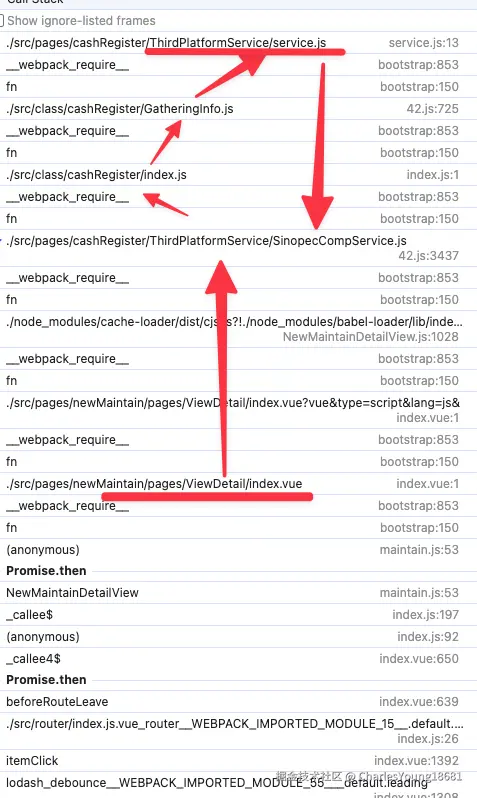

分析过程如图：

解决方案

解决方法很简单：将原先从ViewDetail/index.vue开始导入SinopecCompService.js的逻辑移出去，打破循环依赖链。
