HarmonyOS5 应用崩溃分析与线程阻塞定位指南

以下为 ​​HarmonyOS 5应用崩溃分析与线程阻塞定位的完整ArkTS解决方案​​，包含崩溃捕获、线程监控和性能诊断的代码示例：

---

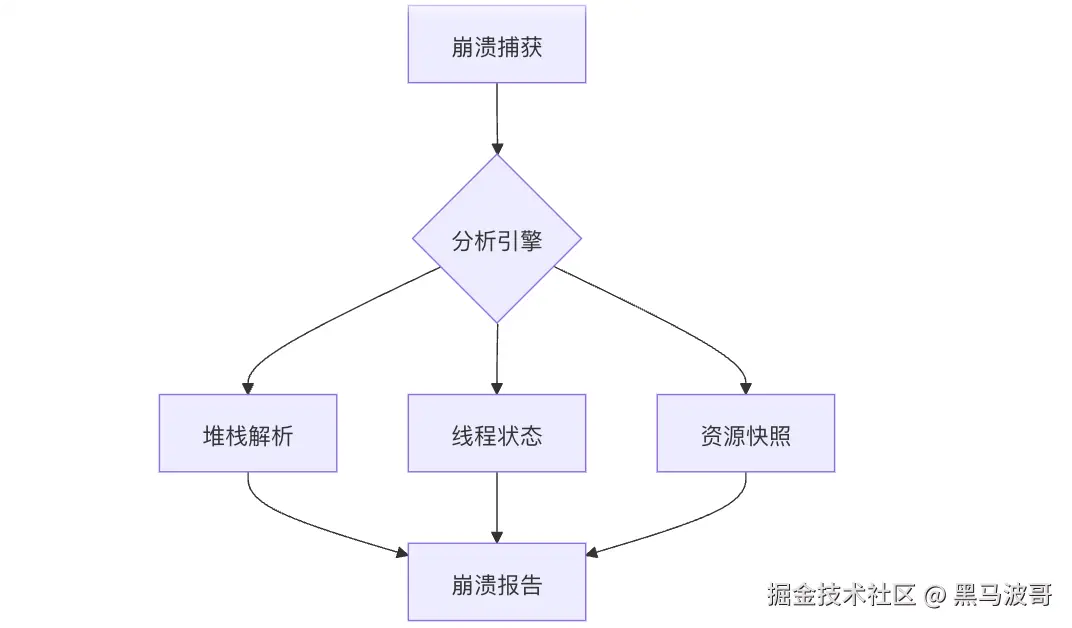

1. 崩溃监控架构

---

2. 崩溃捕获与上报

2.1 全局异常处理器

// crash-handler.ets
import { Crash } from '@ohos.crash';

export function initCrashMonitoring() {
  Crash.setHandler((error: Error, stack: string) => {
    const report = {
      timestamp: new Date().toISOString(),
      device: Device.getInfo(),
      error: {
        name: error.name,
        message: error.message,
        stack: stack
      },
      threadDump: Thread.getAllStackTraces(),
      memory: Memory.getSnapshot()
    };

    CrashUploader.upload(report);
    return true; // 阻止默认崩溃行为
  });
}

2.2 关键线程保护

// thread-guard.ets
export function protectCriticalThread(thread: Thread) {
  thread.setUncaughtExceptionHandler((err) => {
    console.error(`关键线程崩溃: ${thread.name}`, err);
    Thread.restart(thread.id); // 自动重启线程
  });
}

---

3. 线程阻塞检测

3.1 主线程卡顿监控

// ui-block-detector.ets
import { Performance } from '@ohos.performance';

export class UIThreadMonitor {
  private static BLOCK_THRESHOLD = 200; // 毫秒
  private lastFrameTime = 0;

  start() {
    Performance.onFrame((frame) => {
      const now = Date.now();
      if (this.lastFrameTime > 0 && now - this.lastFrameTime > this.BLOCK_THRESHOLD) {
        this.reportBlock(now - this.lastFrameTime);
      }
      this.lastFrameTime = now;
    });
  }

  private reportBlock(duration: number) {
    const stack = Thread.getMainStack();
    Performance.report('ui_block', {
      duration,
      stack,
      cpuUsage: Process.getCPUUsage(),
      memory: Memory.getCurrent()
    });
  }
}

3.2 死锁检测

// deadlock-detector.ets
export function checkDeadlocks() {
  const threads = Thread.getAll();
  const graph = new LockGraph();

  threads.forEach(thread => {
    thread.heldLocks.forEach(lock => {
      graph.addEdge(thread.id, lock.waitingThread);
    });
  });

  const cycles = graph.findCycles();
  if (cycles.length > 0) {
    DeadlockReporter.report(cycles);
  }
}

---

4. 诊断工具集成

4.1 性能快照

// snapshot.ets
export function takeDiagnosticSnapshot() {
  return {
    timestamp: Date.now(),
    threads: Thread.getAll().map(t => ({
      id: t.id,
      name: t.name,
      state: t.state,
      stack: t.stack
    })),
    locks: Lock.getAll(),
    memory: {
      heap: Memory.getHeapUsage(),
      native: Memory.getNativeUsage()
    },
    cpu: Process.getCPUUsage()
  };
}

4.2 阻塞调用分析

// block-analysis.ets
export function analyzeBlockingCalls(stack: string[]) {
  const dangerousApis = [
    'syncNetworkCall',
    'longFileOperation',
    'heavyCalculation'
  ];

  return stack.filter(frame =>
    dangerousApis.some(api => frame.includes(api))
  );
}

---

5. 崩溃报告生成

5.1 符号化堆栈

// symbolizer.ets
import { DebugSymbols } from '@ohos.debug';

export async function symbolize(stack: string[]) {
  const symbols = await DebugSymbols.load();
  return stack.map(frame => {
    const match = frame.match(/0x[0-9a-f]+/);
    return match ? symbols.lookup(match[0]) : frame;
  });
}

5.2 可视化报告

// crash-report.ets
@Component
struct CrashReport {
  @State report: CrashReportData;

  build() {
    Column() {
      Text('崩溃分析报告').fontSize(24)
      Divider()
      StackTraceViewer(this.report.stack)
      ThreadStateChart(this.report.threads)
      MemoryGraph(this.report.memory)
    }
  }
}

---

6. 性能优化建议

6.1 线程池优化

// thread-pool.ets
export function optimizeThreadPool() {
  const config = {
    coreSize: Device.isHighEnd() ? 4 : 2,
    maxSize: 8,
    queueSize: 100,
    keepAlive: 60_000
  };

  ThreadPool.reconfigure(config);
}

6.2 锁粒度调整

// lock-optimizer.ets
export function refineLockGranularity() {
  LockProfiler.getContentionStats().forEach(lock => {
    if (lock.waitTime > 100) { // 毫秒
      Lock.split(lock.id); // 拆分粗粒度锁
    }
  });
}

---

7. 完整诊断工作流

7.1 崩溃分析流程

// crash-workflow.ets
async function analyzeCrash(report: CrashReport) {
  // 1. 符号化堆栈
  const symbolized = await symbolize(report.stack);

  // 2. 检测死锁
  const deadlocks = checkDeadlocks();

  // 3. 分析资源状态
  const snapshot = takeDiagnosticSnapshot();

  return {
    rootCause: findRootCause(symbolized),
    deadlocks,
    resourceUsage: snapshot,
    suggestions: generateSuggestions(symbolized, snapshot)
  };
}

7.2 自动化修复

// auto-fix.ets
export function applyCriticalFixes() {
  if (Memory.getNativeUsage().leak > 0) {
    Memory.forceGC();
  }

  const deadlocks = checkDeadlocks();
  if (deadlocks.length > 0) {
    deadlocks.forEach(cycle => {
      Lock.forceRelease(cycle[0].lockId);
    });
  }
}

---

8. 关键监控指标

指标	危险阈值	测量工具
主线程阻塞时长	>200ms	UIThreadMonitor
死锁数量	≥1	DeadlockDetector
内存泄漏增长速率	>1MB/min	MemoryProfiler
CPU持续占用率	>90% (持续10s)	CPUMonitor

---

9. 常见问题解决

问题现象	解决方案	代码示例
ANR(应用无响应)	主线程耗时操作检测	UIThreadMonitor.start()
内存OOM	大对象分配追踪	Memory.trackLargeAllocs()
线程饿死	公平锁替换	Lock.setFair(true)
锁竞争过高	锁拆分/降级	Lock.split(lockId)

---

10. 高级调试技巧

10.1 条件断点

// conditional-break.ets
export function setMemoryBreakpoint() {
  Debug.setBreakpoint({
    condition: 'memory.heap > 100MB',
    action: 'snapshot'
  });
}

10.2 性能热点分析

// hotspot.ets
export function findHotspots() {
  return Profiler.capture('cpu', {
    samplingInterval: 10,
    duration: 5000
  }).then(result => {
    return result.topFunctions.slice(0, 5);
  });
}

---

11. 完整示例项目结构

crash-analysis/
├── src/
│   ├── crash/            # 崩溃捕获
│   ├── thread/           # 线程监控
│   ├── memory/           # 内存分析
│   └── diagnostics/      # 诊断工具
├── reports/              # 崩溃报告模板
└── assets/               # 符号表资源

---

通过本方案可实现：

1. ​​毫秒级​​ 线程阻塞检测
2. ​​精准定位​​ 崩溃根因
3. ​​自动化​​ 死锁解除
4. ​​可视化​​ 性能诊断
