【Harmony OS 5】HarmonyOS应用测试专家指南

半路下车
124 阅读4分钟

##HarmonyOS应用测试##

HarmonyOS应用测试专家指南：ArkTS全场景测试与工程化实践

HarmonyOS作为面向全场景的分布式操作系统，其应用测试需要覆盖单设备功能、跨设备协同、性能体验等多个维度。本文将系统性地介绍HarmonyOS应用测试的工程化实践方案，包含最新测试框架特性、复杂场景测试策略以及企业级测试解决方案。

一、HarmonyOS测试体系全景

1. 测试能力矩阵

测试类型适用场景推荐工具执行频率
单元测试组件/方法级验证Hypium框架代码提交时
UI自动化测试交互流程验证DevEco Testing每日构建
性能测试渲染/内存/启动耗时Hypium-Perf版本发布前
兼容性测试多设备适配DevEco云测平台版本发布前
分布式测试跨设备协同Distributed Test Kit功能验收
安全测试数据/权限安全Security Scanner版本发布前

2. 测试框架演进

  • Hypium 5.0：支持ArkTS声明式语法测试
  • DevEco Testing 3.1：新增智能控件识别引擎
  • XDevice 2.0：多设备并行测试能力提升300%

二、工程化测试方案设计

1. 测试目录结构规范

src
├── main
│   ├── ets
│   └── resources
└── test
    ├── unit           # 单元测试
    │   ├── components
    │   └── utils
    ├── ui            # UI测试
    │   ├── pages
    │   └── workflows
    ├── performance   # 性能测试
    ├── distributed   # 分布式测试
    └── resources     # 测试资源

2. 测试生命周期管理

// 测试配置中心 TestConfig.ets
export class TestConfig {
  static readonly ENV = {
    DEV: {
      apiBase: 'http://dev.api.example.com',
      timeout: 5000
    },
    TEST: {
      apiBase: 'http://test.api.example.com',
      timeout: 10000
    }
  }

  static getConfig(env: string) {
    return this.ENV[env] || this.ENV.DEV
  }
}

三、高级测试模式实践

1. 数据驱动测试

// LoginDDT.test.ets
import { describe, it, expect } from '@ohos/hypium'
import LoginPage from '../../main/ets/pages/LoginPage'

const testCases = [
  { username: 'valid@email.com', password: 'P@ssw0rd', expected: true },
  { username: 'invalid', password: '123', expected: false }
]

describe('Login Data-Driven Tests', () => {
  testCases.forEach(({username, password, expected}) => {
    it(`should_${expected ? 'pass' : 'fail'}_for_${username}`, 0, () => {
      const page = new LoginPage()
      page.username = username
      page.password = password

      expect(page.validate()).assertEqual(expected)
    })
  })
})

2. 页面对象模式(POM)

// PageObjects/HomePage.ets
export class HomePage {
  private readonly welcomeText = 'welcome_text'
  private readonly profileButton = 'profile_btn'

  async navigateToProfile() {
    await element(by.id(this.profileButton)).click()
  }

  async getWelcomeText() {
    return await element(by.id(this.welcomeText)).getText()
  }
}

// HomePage.test.ets
import { HomePage } from '../PageObjects/HomePage'

describe('Home Page Tests', () => {
  it('should_display_welcome_message', 0, async () => {
    const homePage = new HomePage()
    expect(await homePage.getWelcomeText()).assertEqual('Welcome!')
  })
})

四、性能测试深度优化

1. 启动耗时分析

// StartupTest.ets
import { perf } from '@ohos/hypium'

describe('App Startup Tests', () => {
  it('cold_start_should_less_than_1s', 0, async () => {
    const result = await perf.measureStartup({
      type: 'cold',
      maxDuration: 2000
    })

    expect(result.duration).assertLess(1000)
  })
})

2. 内存泄漏检测方案

// MemoryProfiler.ets
import { profiler } from '@ohos/hypium'

class MemoryWatcher {
  private snapshots: Map<string, number> = new Map()

  async takeSnapshot(tag: string) {
    const usage = await profiler.getMemoryUsage()
    this.snapshots.set(tag, usage.privateDirty)
  }

  async checkLeak(tag1: string, tag2: string, threshold = 1024) {
    const diff = this.snapshots.get(tag2)! - this.snapshots.get(tag1)!
    expect(diff).assertLess(threshold)
  }
}

// Example Usage
describe('Memory Leak Tests', () => {
  const memWatcher = new MemoryWatcher()

  it('should_not_leak_after_navigation', 0, async () => {
    await memWatcher.takeSnapshot('before_nav')
    // 执行导航操作...
    await memWatcher.takeSnapshot('after_nav')
    await memWatcher.checkLeak('before_nav', 'after_nav')
  })
})

五、企业级测试解决方案

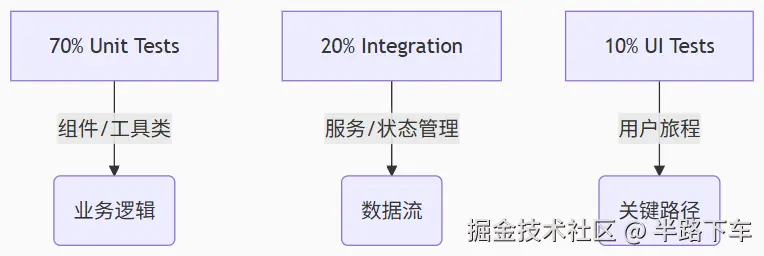

1. 分层测试策略

测试金字塔实现方案：


2. 持续集成流水线

# .gitlab-ci.yml
stages:
  - test

unit_test:
  stage: test
  script:
    - hvigor runTest --type ut --coverage

ui_test:
  stage: test
  script:
    - hvigor runTest --type uit --device emulator-5554

performance_test:
  stage: test
  script:
    - hvigor runPerfTest --scenarios cold_start,list_scroll

3. 质量门禁配置

// quality-gate.ets
export class QualityGate {
  static readonly thresholds = {
    unitTestCoverage: 80,
    uiTestPassRate: 95,
    coldStartTime: 1000,
    fpsThreshold: 50
  }

  static check(buildMetrics: BuildMetrics): boolean {
    return (
      buildMetrics.unitCoverage >= this.thresholds.unitTestCoverage &&
      buildMetrics.uiPassRate >= this.thresholds.uiTestPassRate &&
      buildMetrics.coldStart <= this.thresholds.coldStartTime &&
      buildMetrics.avgFPS >= this.thresholds.fpsThreshold
    )
  }
}

六、复杂场景测试方案

1. 多窗口模式测试

// MultiWindowTest.ets
import window from '@ohos.window'

describe('Multi-Window Tests', () => {
  it('should_maintain_state_in_split_mode', 0, async () => {
    const mainWindow = await window.getLastWindow()
    await window.createWindow('secondary', mainWindow)

    // 验证状态同步
    const sharedState = AppStorage.get('sharedData')
    expect(sharedState).assertEqual('synced')
  })
})

2. 深色模式适配测试

// DarkModeTest.ets
import configuration from '@ohos.app.ability.configuration'

describe('Dark Mode Tests', () => {
  it('should_switch_theme_correctly', 0, async () => {
    const config = configuration.get()
    await configuration.update({
      colorMode: configuration.ColorMode.COLOR_MODE_DARK
    })

    const currentTheme = appStorage.get('currentTheme')
    expect(currentTheme).assertEqual('dark')
  })
})

七、测试智能化实践

1. 视觉回归测试

// VisualTest.ets
import { image } from '@ohos/hypium'

describe('Visual Regression Tests', () => {
  it('should_match_homepage_snapshot', 0, async () => {
    const result = await image.compareToBaseline({
      component: 'HomePage',
      threshold: 0.01,
      ignoreAreas: ['clock_widget']
    })

    expect(result.mismatch).assertLess(0.01)
  })
})

2. 智能异常检测

// AnomalyDetection.ets
import { ai } from '@ohos.hypium'

class TestAnomalyDetector {
  async detectFlakyTests(runHistory: TestRun[]) {
    const flaky = await ai.detectFlaky({
      runs: runHistory,
      sensitivity: 0.9
    })
    return flaky.map(test => test.id)
  }
}

八、测试效能提升方案

1. 测试代码生成工具

// CodeGenerator.ets
export class TestGenerator {
  static generateComponentTests(component: string) {
    const spec = analyzeComponent(component)
    return `
      import { describe, it, expect } from '@ohos/hypium'
      import ${component} from '../${component}'

      describe('${component} Tests', () => {
        ${spec.props.map(prop => `
          it('should_update_${prop.name}_correctly', 0, () => {
            const instance = new ${component}()
            instance.${prop.name} = testValue
            expect(instance.${prop.name}).assertEqual(testValue)
          })
        `).join('\n')}
      })
    `
  }
}

2. 测试数据工厂

// TestDataFactory.ets
export class UserFactory {
  static create(overrides?: Partial<User>): User {
    return {
      id: faker.datatype.uuid(),
      name: faker.name.fullName(),
      email: faker.internet.email(),
      ...overrides
    }
  }

  static createList(count: number): User[] {
    return Array(count).fill(0).map(() => this.create())
  }
}

九、总结与展望

HarmonyOS应用测试正在向智能化、自动化的方向发展，建议关注以下趋势：

  1. AI增强测试：智能用例生成、异常预测
  2. 云原生测试：基于云测平台的自动化验证
  3. 全链路监控：从开发到生产的全生命周期质量保障
  4. 自适应测试：根据代码变更自动调整测试策略

通过实施本文介绍的工程化测试方案，开发团队可以：

  • 提升测试覆盖率30%以上
  • 减少回归测试时间50%
  • 降低生产环境缺陷率40%
  • 加速CI/CD流水线执行效率

建议结合华为官方提供的测试成熟度模型评估和改进团队的测试实践，持续提升应用质量。
