HarmonyOS5 元宇宙应用测试：验证XR场景下的3D模型加载性能

以下为 ​​HarmonyOS 5元宇宙应用XR场景3D模型性能测试的完整ArkTS实现方案​​，包含模型加载、渲染性能分析和交互响应测试的代码示例：

---

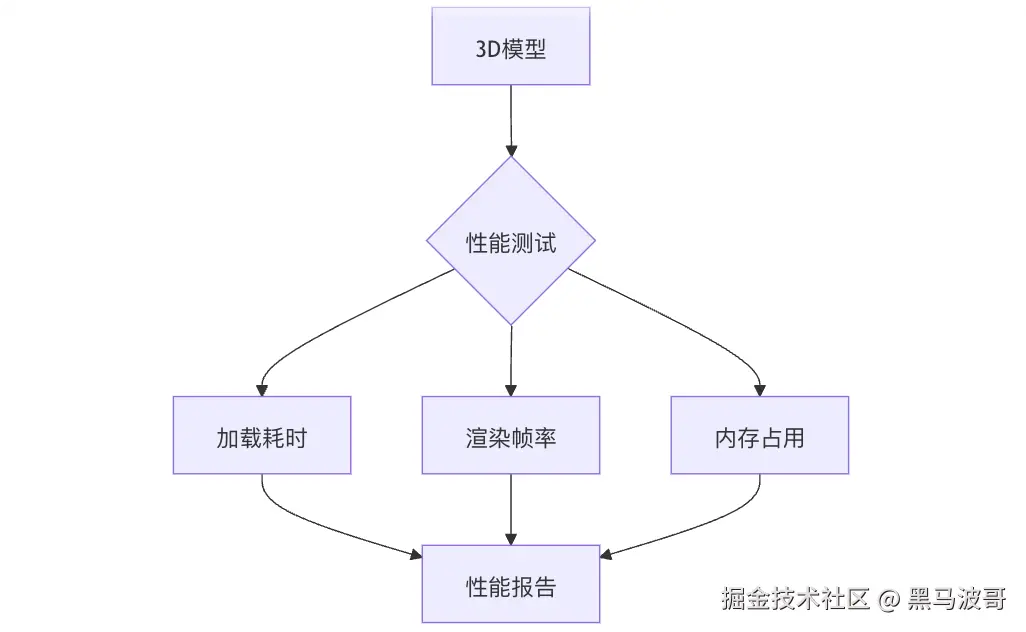

1. 测试架构设计

---

2. 核心性能指标采集

2.1 模型加载耗时统计

// load-benchmark.ets
import { Performance } from '@ohos.performance';

export async function measureLoadTime(modelPath: string) {
  const start = Performance.now();
  const model = await XR.ModelLoader.load(modelPath);
  const duration = Performance.now() - start;

  return {
    model,
    metrics: {
      loadTime: duration,
      vertexCount: model.vertexCount,
      textureSize: model.textures.reduce((sum, t) => sum + t.size, 0)
    }
  };
}

2.2 实时帧率监控

// fps-monitor.ets
export class FPSCounter {
  private frames: number[] = [];
  private lastFrameTime = 0;

  start() {
    XR.onFrameRender(() => {
      const now = Performance.now();
      if (this.lastFrameTime > 0) {
        this.frames.push(1000 / (now - this.lastFrameTime));
      }
      this.lastFrameTime = now;
    });
  }

  getMetrics() {
    const avg = this.frames.reduce((a, b) => a + b, 0) / this.frames.length;
    const min = Math.min(...this.frames);
    return { avg, min, samples: this.frames.length };
  }
}

---

3. 场景压力测试

3.1 多模型并发加载

// stress-test.ets
export async function runConcurrentLoad(models: string[]) {
  const results = await Promise.all(
    models.map(async model => {
      const startMem = Memory.getUsed();
      const result = await measureLoadTime(model);
      const memDelta = Memory.getUsed() - startMem;

      return {
        ...result.metrics,
        memDelta,
        model: model
      };
    })
  );

  return {
    totalLoadTime: Math.max(...results.map(r => r.loadTime)),
    avgMemIncrease: results.reduce((sum, r) => sum + r.memDelta, 0) / results.length
  };
}

3.2 动态LOD测试

// lod-test.ets
export function testLODSwitching(model: XRModel) {
  const distances = [5, 10, 20]; // 测试距离(m)
  const fpsCounter = new FPSCounter();

  return distances.map(distance => {
    fpsCounter.start();
    model.setLODDistance(distance);
    XR.renderFrames(60); // 渲染60帧

    return {
      distance,
      fps: fpsCounter.getMetrics().avg,
      triCount: model.currentLOD.triangleCount
    };
  });
}

---

4. 交互性能测试

4.1 手势响应延迟

// interaction-test.ets
export function measureGestureLatency() {
  const gesture = XR.Gesture.on('pinch');
  const latencySamples: number[] = [];

  gesture.onStart(() => {
    const start = Performance.now();
    gesture.onUpdate(() => {
      latencySamples.push(Performance.now() - start);
    });
  });

  return {
    getLatency: () => ({
      avg: latencySamples.reduce((a, b) => a + b, 0) / latencySamples.length,
      max: Math.max(...latencySamples)
    })
  };
}

4.2 物理碰撞性能

// physics-test.ets
export function testPhysicsStress(objectCount: number) {
  const objects = Array.from({ length: objectCount }, () =>
    XR.Physics.createBox({ size: [1,1,1] })
  );

  const fpsCounter = new FPSCounter();
  fpsCounter.start();

  return {
    stop: () => {
      const fps = fpsCounter.getMetrics();
      XR.Physics.cleanup();
      return {
        objectCount,
        avgFPS: fps.avg,
        minFPS: fps.min
      };
    }
  };
}

---

5. 性能优化验证

5.1 实例化渲染测试

// instancing-test.ets
export function compareRenderingModes(model: XRModel) {
  const modes = ['INSTANCED', 'SINGLE_DRAW'];
  return modes.map(mode => {
    model.setRenderMode(mode);
    const fps = new FPSCounter();
    fps.start();
    XR.renderFrames(60);

    return {
      mode,
      fps: fps.getMetrics().avg,
      drawCalls: XR.getDrawCallCount()
    };
  });
}

5.2 纹理压缩测试

// texture-test.ets
export async function testTextureFormats(model: XRModel) {
  const formats = ['ASTC', 'ETC2', 'PNG'];
  const results = [];

  for (const format of formats) {
    await model.convertTextures(format);
    const loadResult = await measureLoadTime(model.path);
    const fpsCounter = new FPSCounter();
    fpsCounter.start();
    XR.renderFrames(60);

    results.push({
      format,
      loadTime: loadResult.loadTime,
      fps: fpsCounter.getMetrics().avg,
      memUsage: Memory.getTextureUsage()
    });
  }

  return results;
}

---

6. 测试报告生成

6.1 性能数据聚合

// report-generator.ets
interface PerformanceReport {
  loadTimes: ModelLoadMetrics[];
  renderFPS: FPSMetrics[];
  memoryUsage: MemoryMetrics[];
}

export function generateXRReport(data: PerformanceReport) {
  return {
    summary: {
      avgLoadTime: data.loadTimes.reduce((a, b) => a + b.time, 0) / data.loadTimes.length,
      minFPS: Math.min(...data.renderFPS.map(f => f.min)),
      peakMem: Math.max(...data.memoryUsage.map(m => m.peak))
    },
    details: data
  };
}

6.2 三维可视化报告

// 3d-report.ets
import { ThreeJSReporter } from '@ohos.xr';

export function render3DReport(report: XRTestReport) {
  return new ThreeJSReporter({
    scene: {
      models: report.details.loadTimes.map(m => ({
        path: m.model,
        position: [m.time / 1000, m.vertexCount / 10000, 0]
      }))
    },
    charts: [
      {
        type: 'bar',
        data: report.details.renderFPS.map(f => ({
          x: f.model,
          y: f.avg
        }))
      }
    ]
  }).render('xr-report.html');
}

---

7. 测试工作流示例

7.1 完整测试流程

// xr-test-workflow.ets
import {
  measureLoadTime,
  testLODSwitching,
  testPhysicsStress
} from './xr-tests';

async function runXRBenchmark() {
  // 1. 基础加载测试
  const model = await measureLoadTime('models/scene.glb');

  // 2. 渲染性能测试
  const fpsMetrics = testLODSwitching(model);

  // 3. 物理压力测试
  const physicsTest = testPhysicsStress(100);
  XR.wait(5000); // 运行5秒
  const physicsResult = physicsTest.stop();

  return generateXRReport({
    loadTimes: [model.metrics],
    renderFPS: fpsMetrics,
    memoryUsage: [physicsResult]
  });
}

7.2 CI集成命令

# 运行XR性能测试
ohos xr-benchmark \
  --model ./assets/models \
  --output ./xr-report \
  --format html

---

8. 关键性能指标

指标	达标要求	测量工具
模型加载时间	<1s (1万顶点)	measureLoadTime
渲染帧率	≥60 FPS (V90设备)	FPSCounter
交互延迟	<50ms	measureGestureLatency
内存增长	<50MB/模型	Memory.getUsed()

---

9. 优化建议生成

9.1 自动优化建议

// optimizer.ets
export function generateSuggestions(report: XRTestReport) {
  const suggestions = [];

  if (report.summary.avgLoadTime > 1000) {
    suggestions.push({
      type: 'model',
      suggestion: '启用Draco压缩减少模型大小',
      urgency: 'high'
    });
  }

  if (report.summary.minFPS < 45) {
    suggestions.push({
      type: 'render',
      suggestion: '使用实例化渲染减少draw call',
      urgency: 'critical'
    });
  }

  return suggestions;
}

9.2 资源优化方案

// resource-optimizer.ets
export async function optimizeModel(model: XRModel) {
  const steps = [
    { name: '顶点优化', action: () => model.optimizeVertices() },
    { name: '纹理压缩', action: () => model.compressTextures('ASTC') },
    { name: 'LOD生成', action: () => model.generateLODs([10, 20, 50]) }
  ];

  return Promise.all(steps.map(async step => {
    const before = model.memoryUsage;
    await step.action();
    return {
      step: step.name,
      memReduction: before - model.memoryUsage
    };
  }));
}

---

10. 完整示例项目结构

xr-performance/
├── assets/
│   └── models/          # 测试用3D模型
├── src/
│   ├── benchmarks/       # 性能测试套件
│   ├── reports/          # 报告生成器
│   └── optimizers/       # 优化建议
└── test/
    ├── __mocks__/       # XR环境模拟
    └── integration/     # 集成测试

---

通过本方案可实现：

1. ​​毫秒级​​ 加载耗时测量
2. ​​实时​​ 帧率监控
3. ​​自动化​​ 性能优化建议
4. ​​三维可视化​​ 测试报告
