SpringAI(GA)：内存、Redis、ES的向量数据库存储—快速上手

原文链接：SpringAI(GA)：内存、Redis、ES的向量数据库存储—快速上手

教程说明

说明：本教程将采用2025年5月20日正式的GA版，给出如下内容

1. 核心功能模块的快速上手教程
2. 核心功能模块的源码级解读
3. Spring ai alibaba增强的快速上手教程 + 源码级解读

版本：JDK21 + SpringBoot3.4.5 + SpringAI 1.0.0 + SpringAI Alibaba 1.0.0.1

将陆续完成如下章节教程。本章是第五章（向量数据库）的快速上手篇，含基于内存、Redis、Elasticsearch

代码开源如下：github.com/GTyingzi/sp…

第五章：向量数据库

[!TIP] 向量数据库，查询不同于传统的关系型数据库，执行相似性搜索而不是完全匹配。当给定一个向量作为查询时，向量数据库会返回与查询向量“相似”的向量。

以下实现了向量数据库的典型案例：基于内存、Redis、Elasticsearch

实战代码可见：github.com/GTyingzi/sp… 下的 rag

基础 pom 文件

<properties>
    <es.version>8.17.4</es.version>
</properties

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.ai</groupId>
        <artifactId>spring-ai-autoconfigure-model-openai</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.ai</groupId>
        <artifactId>spring-ai-vector-store</artifactId>
    </dependency>

</dependencies>

Redis 的向量查询需要用到 RediSearch，这里附上 Docker 镜像启动方式 RediSearch（待补充）

内存

application.yml

server:
  port: 8080

spring:
  application:
    name: vector-simple

  ai:
    openai:
      api-key: ${DASHSCOPEAPIKEY}
      base-url: https://dashscope.aliyuncs.com/compatible-mode
      embedding:
        options:
          model: text-embedding-v1

VectorSimpleController

@RestController
@RequestMapping("/vector/simple")
public class VectorSimpleController {
    private static final Logger logger = LoggerFactory.getLogger(VectorSimpleController.class);
    private final SimpleVectorStore simpleVectorStore;
    private final String SAVEPATH = System.getProperty("user.dir") + "/vector/vector-simple/src/main/resources/save.json";

    public VectorSimpleController(EmbeddingModel embeddingModel) {
        this.simpleVectorStore = SimpleVectorStore
                .builder(embeddingModel).build();
    }

    @GetMapping("/add")
    public void add() {
        logger.info("start add data");

        HashMap<String, Object> map = new HashMap<>();
        map.put("year", 2025);
        map.put("name", "yingzi");
        List<Document> documents = List.of(
                new Document("The World is Big and Salvation Lurks Around the Corner"),
                new Document("You walk forward facing the past and you turn back toward the future.", Map.of("year", 2024)),
                new Document("Spring AI rocks!! Spring AI rocks!! Spring AI rocks!! Spring AI rocks!! Spring AI rocks!!", map),
                new Document("1", "test content", map));
        simpleVectorStore.add(documents);
    }

    @GetMapping("/delete")
    public void delete() {
        logger.info("start delete data");
        simpleVectorStore.delete(List.of("1"));
    }

    @GetMapping("/save")
    public void save() {
        logger.info("start save data: {}", SAVEPATH);
        File file = new File(SAVEPATH);
        if (file.exists()) {
            file.delete();
        }
        simpleVectorStore.save(file);
    }

    @GetMapping("/load")
    public void load() {
        logger.info("start load data: {}", SAVEPATH);
        File file = new File(SAVEPATH);
        simpleVectorStore.load(file);
    }

    @GetMapping("/search")
    public List<Document> search() {
        logger.info("start search data");
        return simpleVectorStore.similaritySearch(SearchRequest
                .builder()
                .query("Spring")
                .topK(2)
                .build());
    }

    @GetMapping("/search-filter")
    public List<Document> searchFilter() {
        logger.info("start search  filter data");
        FilterExpressionBuilder b = new FilterExpressionBuilder();
        Filter.Expression expression = b.and(
                b.in("year", 2025, 2024),
                b.eq("name", "yingzi")
        ).build();

        return simpleVectorStore.similaritySearch(SearchRequest
                .builder()
                .query("Spring")
                .topK(2)
                .filterExpression(expression).build());
    }
}

效果

导入 4 条数据

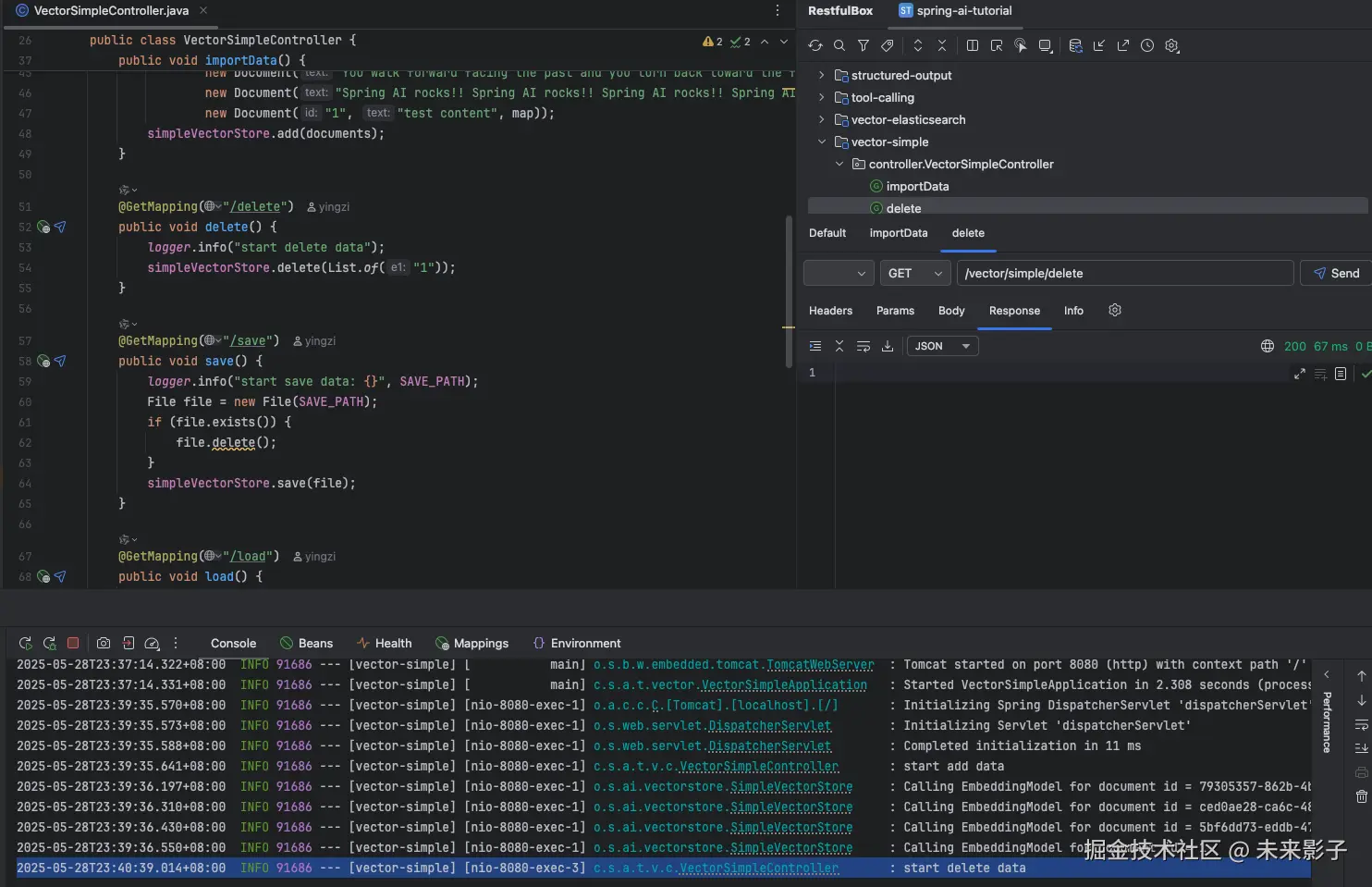

删除 id=1 的数据

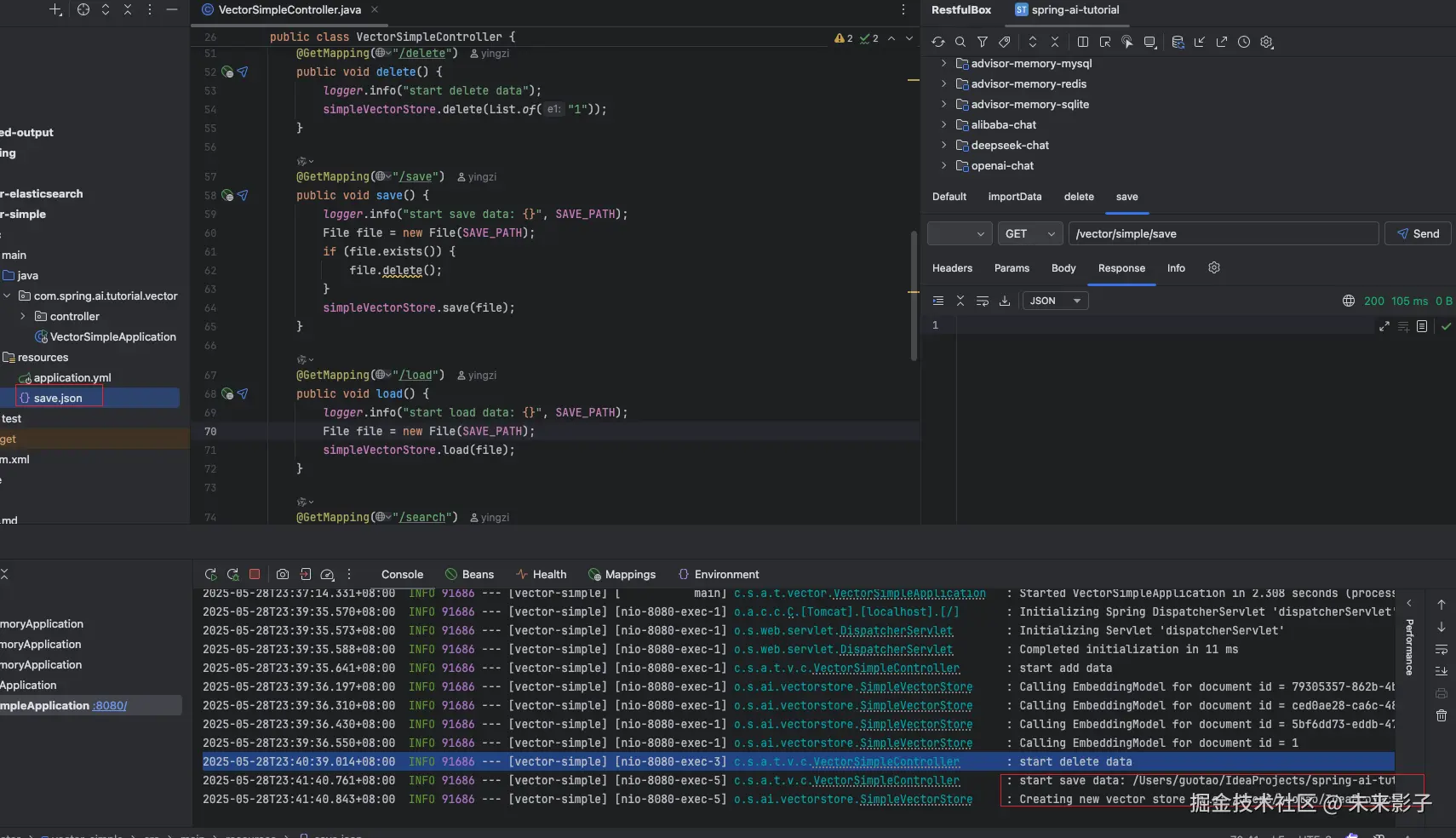

将内存里数据保存到本地

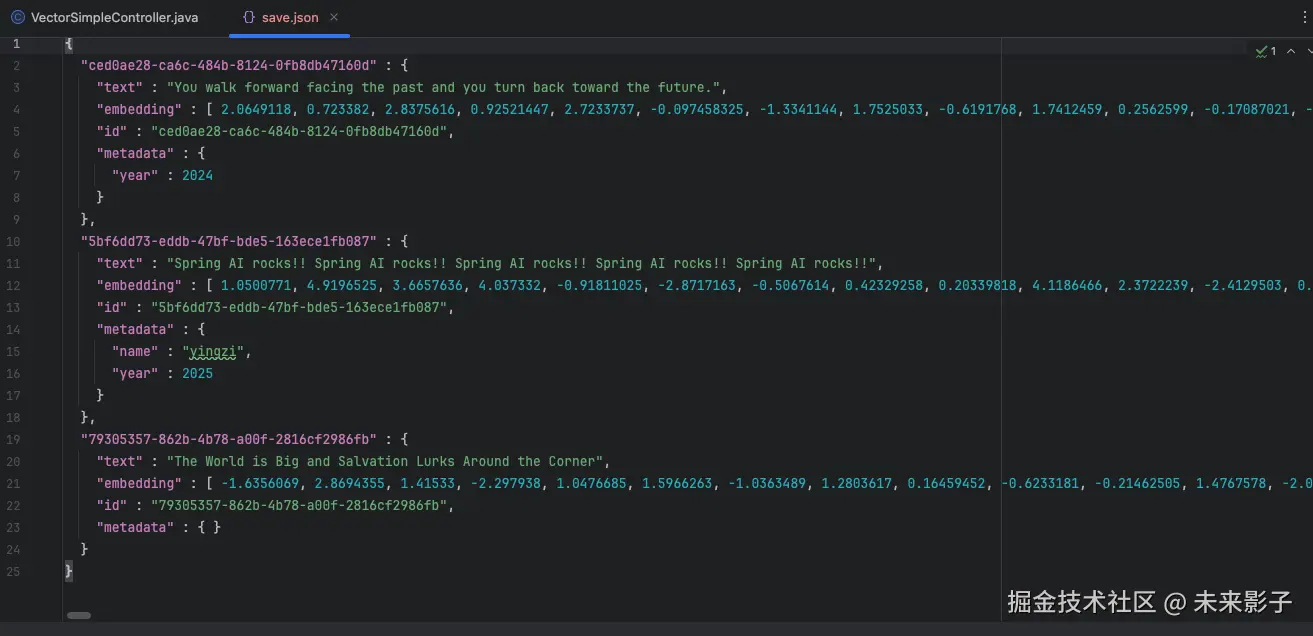

这是对应的 json 数据，可以看到只有三条数据，其中 id=1 的数据被删除了

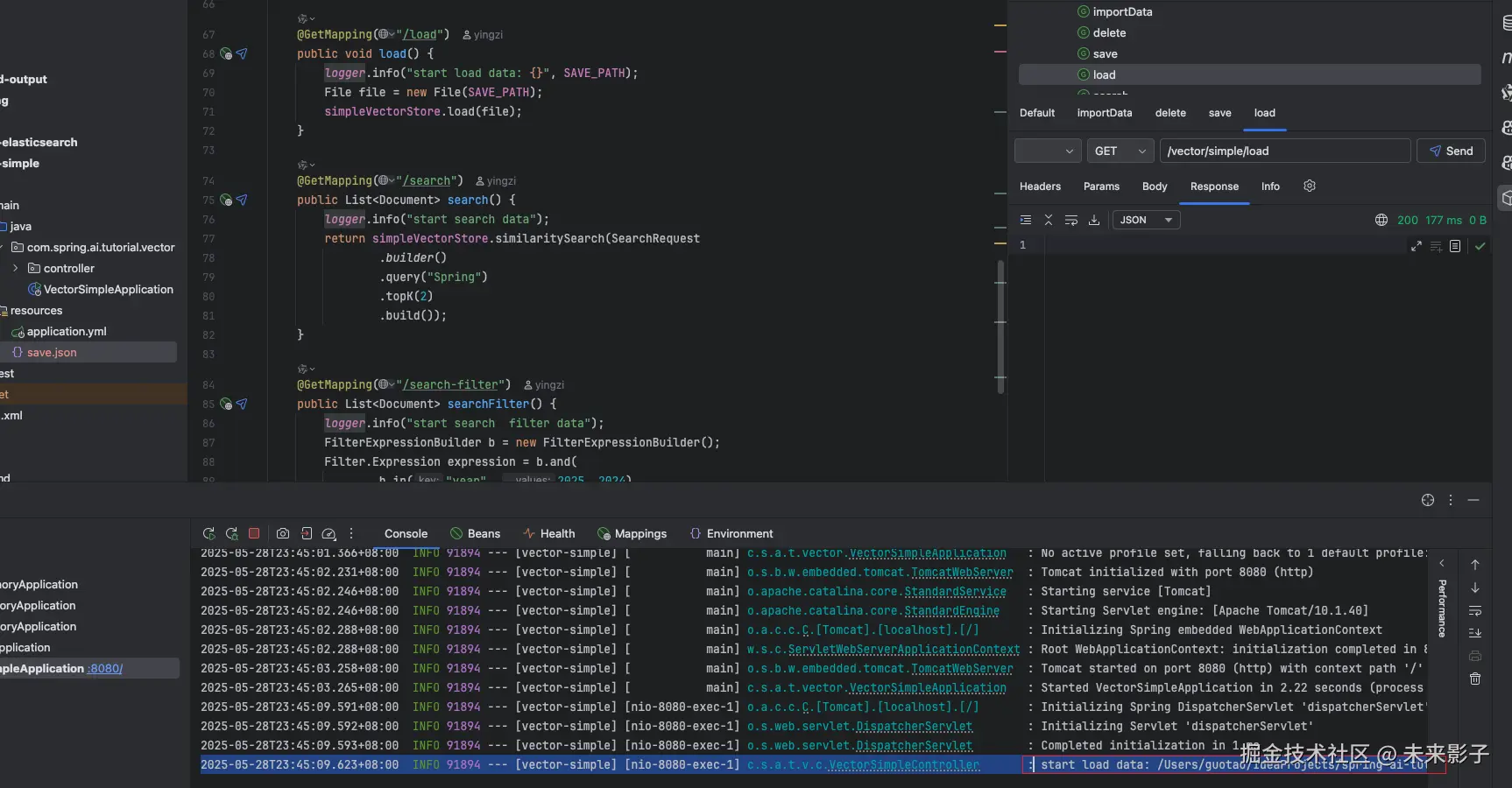

现在让我们重启服务，并调用 load 接口，重新从本地文件中加载数据到内存

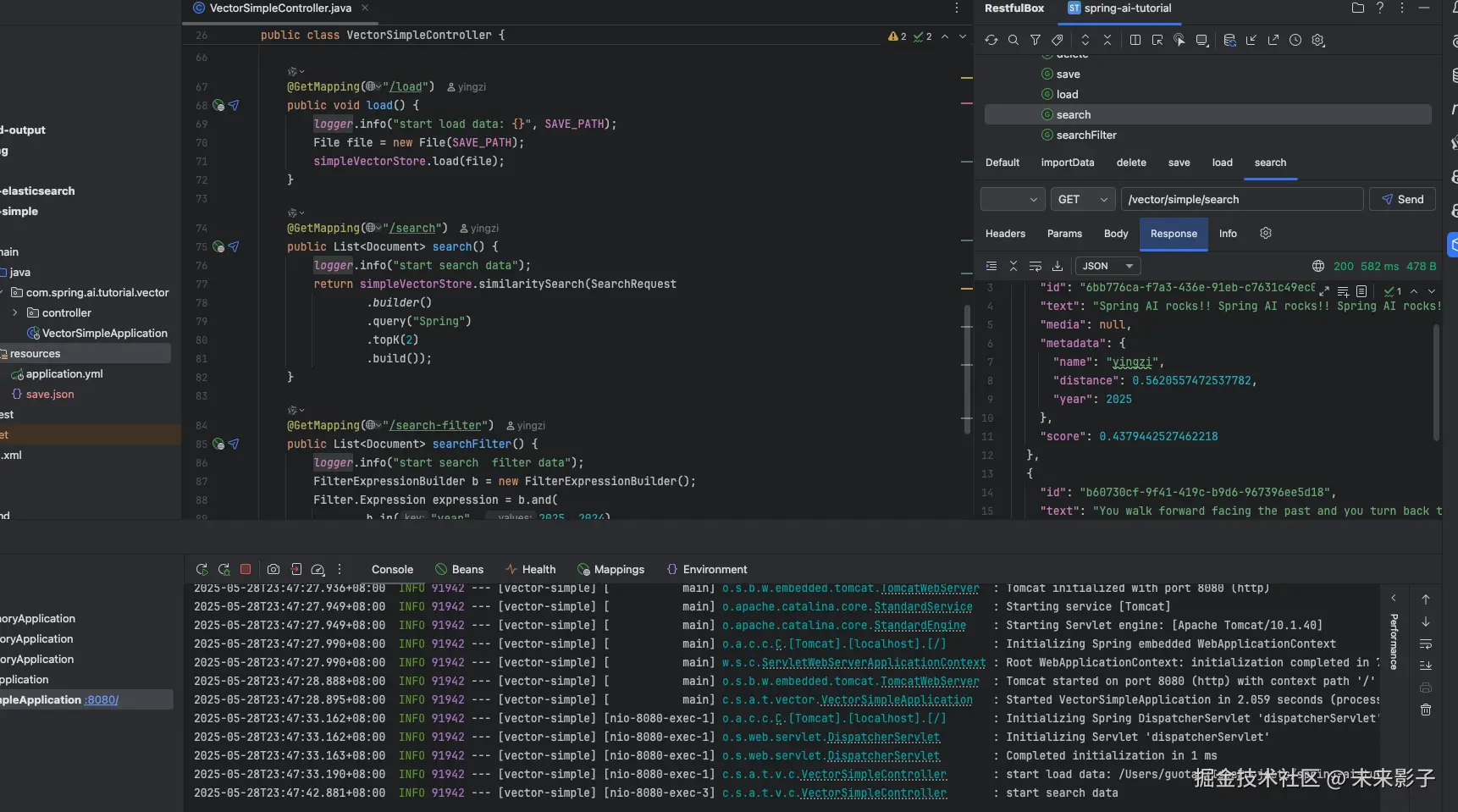

调用 search 查询数据

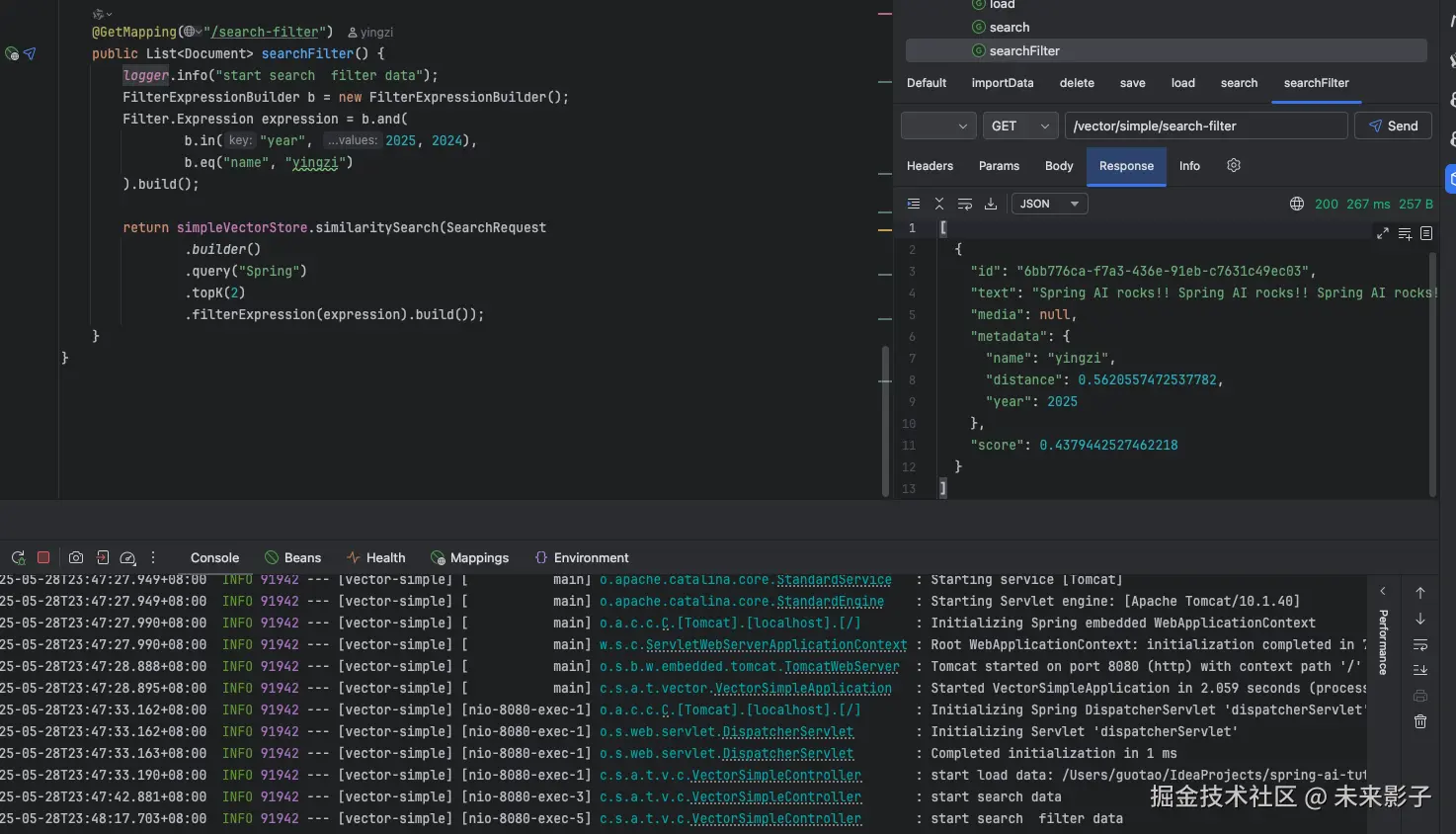

查询已经被过滤的数据

Redis

pom 依赖

<dependency>
        <groupId>org.springframework.ai</groupId>
        <artifactId>spring-ai-starter-vector-store-redis</artifactId>
    </dependency>

application.yml

Redis
server:
  port: 8080

spring:
  application:
    name: vector-redis

  ai:
    openai:
      api-key: ${DASHSCOPEAPIKEY}
      base-url: https://dashscope.aliyuncs.com/compatible-mode
      embedding:
        options:
          model: text-embedding-v1

    vectorstore:
      redis:
        initialize-schema: true
        prefix: prefixyingzi
        index-name: indexyingzi

  data:
    redis:
      host: localhost
      port: 6379 # Redis服务器连接端口

RedisConfig

package com.spring.ai.tutorial.vector.config;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.ai.embedding.EmbeddingModel;
import org.springframework.ai.embedding.TokenCountBatchingStrategy;
import org.springframework.ai.vectorstore.redis.RedisVectorStore;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import redis.clients.jedis.JedisPooled;

@Configuration
public class RedisConfig {

    private static final Logger logger = LoggerFactory.getLogger(RedisConfig.class);

    @Value("${spring.data.redis.host}")
    private String host;
    @Value("${spring.data.redis.port}")
    private int port;
    @Value("${spring.ai.vectorstore.redis.prefix}")
    private String prefix;
    @Value("${spring.ai.vectorstore.redis.index-name}")
    private String indexName;

    @Bean
    public JedisPooled jedisPooled() {
        logger.info("Redis host: {}, port: {}", host, port);
        return new JedisPooled(host, port);
    }

    @Bean
    @Qualifier("redisVectorStoreCustom")
    public RedisVectorStore vectorStore(JedisPooled jedisPooled, EmbeddingModel embeddingModel) {
        logger.info("create redis vector store");
        return RedisVectorStore.builder(jedisPooled, embeddingModel)
                .indexName(indexName)                // Optional: defaults to "spring-ai-index"
                .prefix(prefix)                  // Optional: defaults to "embedding:"
                .metadataFields(                         // Optional: define metadata fields for filtering
                        RedisVectorStore.MetadataField.tag("name"),
                        RedisVectorStore.MetadataField.numeric("year"))
                .initializeSchema(true)                   // Optional: defaults to false
                .batchingStrategy(new TokenCountBatchingStrategy()) // Optional: defaults to TokenCountBatchingStrategy
                .build();
    }

}

RedisController

package com.spring.ai.tutorial.vector.controller;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.ai.document.Document;
import org.springframework.ai.vectorstore.SearchRequest;
import org.springframework.ai.vectorstore.filter.Filter;
import org.springframework.ai.vectorstore.filter.FilterExpressionBuilder;
import org.springframework.ai.vectorstore.redis.RedisVectorStore;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.HashMap;
import java.util.List;
import java.util.Map;

@RestController
@RequestMapping("/redis")
public class RedisController {

    private static final Logger logger = LoggerFactory.getLogger(RedisController.class);
    private final RedisVectorStore redisVectorStore;

    @Autowired
    public RedisController(@Qualifier("redisVectorStoreCustom") RedisVectorStore redisVectorStore) {
        this.redisVectorStore = redisVectorStore;
    }

    @GetMapping("/add")
    public void add() {
        logger.info("start add data");

        HashMap<String, Object> map = new HashMap<>();
        map.put("id", "12345");
        map.put("year", 2025);
        map.put("name", "yingzi");
        List<Document> documents = List.of(
                new Document("The World is Big and Salvation Lurks Around the Corner"),
                new Document("You walk forward facing the past and you turn back toward the future.", Map.of("year", 2024)),
                new Document("Spring AI rocks!! Spring AI rocks!! Spring AI rocks!! Spring AI rocks!! Spring AI rocks!!", map));
        redisVectorStore.add(documents);
    }

    @GetMapping("/search")
    public List<Document> search() {
        logger.info("start search data");
        return redisVectorStore.similaritySearch(SearchRequest
                .builder()
                .query("Spring")
                .topK(2)
                .build());
    }

    @GetMapping("delete-filter")
    public void searchFilter() {
        logger.info("start delete data with filter");
        FilterExpressionBuilder b = new FilterExpressionBuilder();
        Filter.Expression expression = b.eq("name", "yingzi").build();

        redisVectorStore.delete(expression);
    }
}

效果

向 Redis 中添加数据

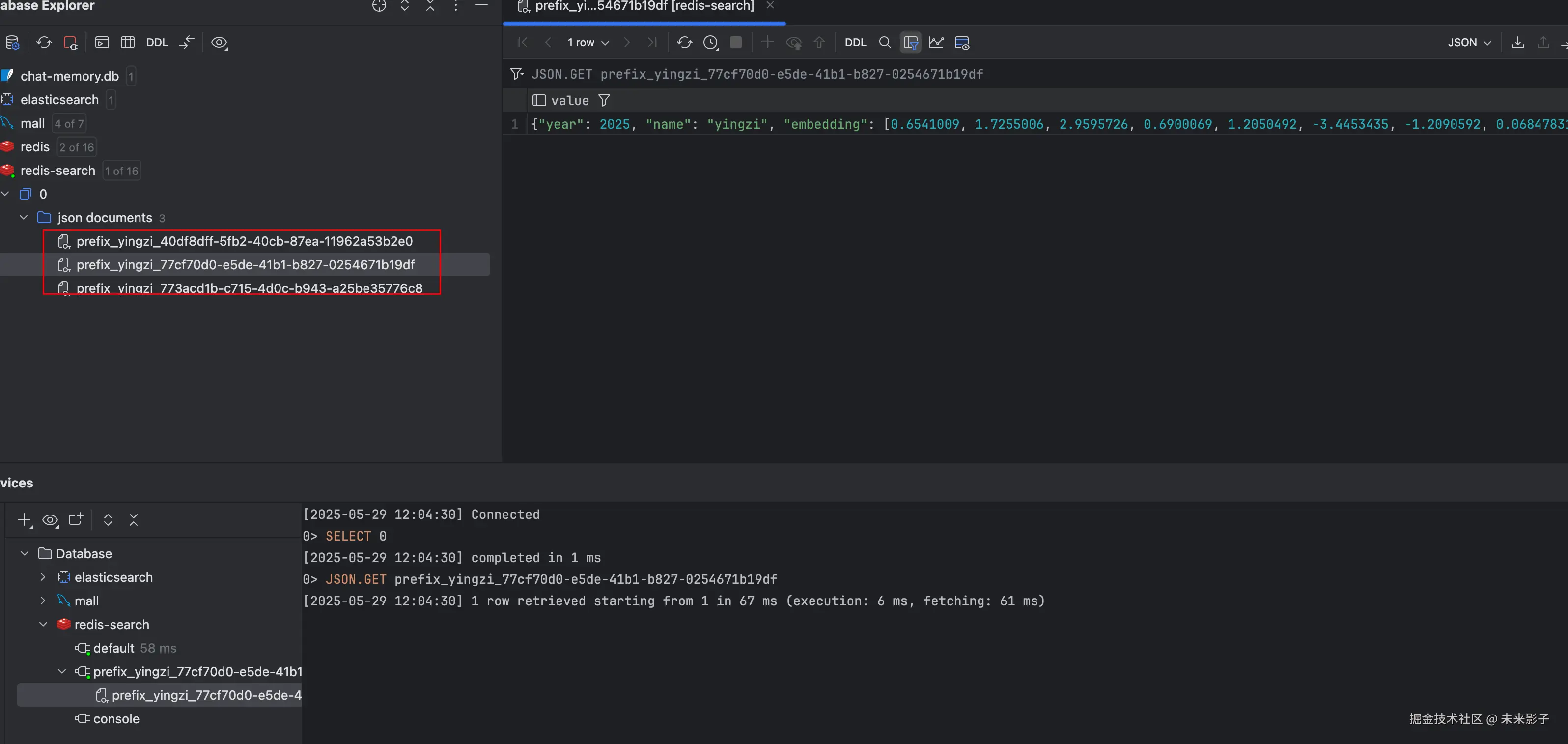

在 Redis 中查看数据

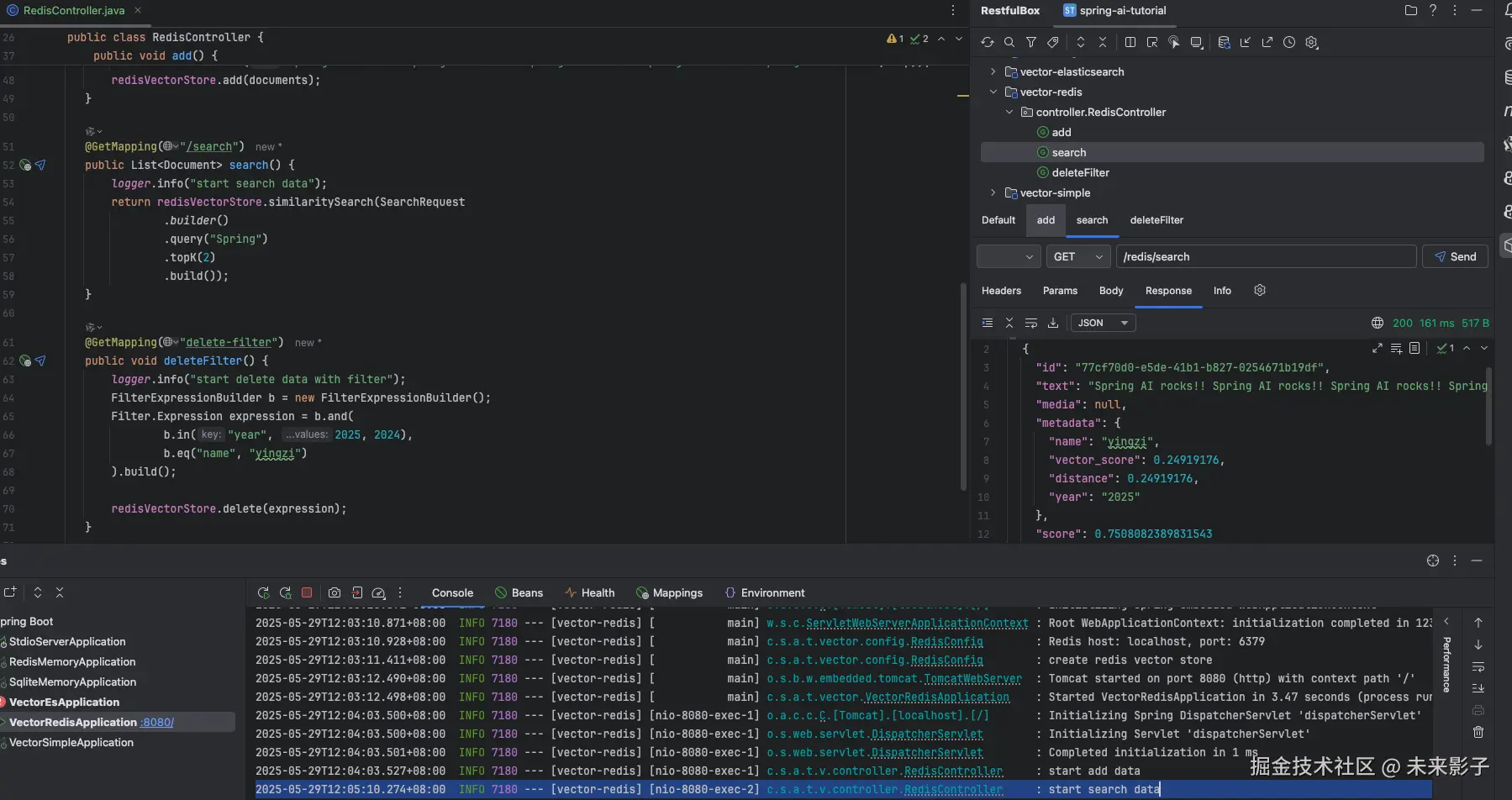

利用 Redis，进行向量查询

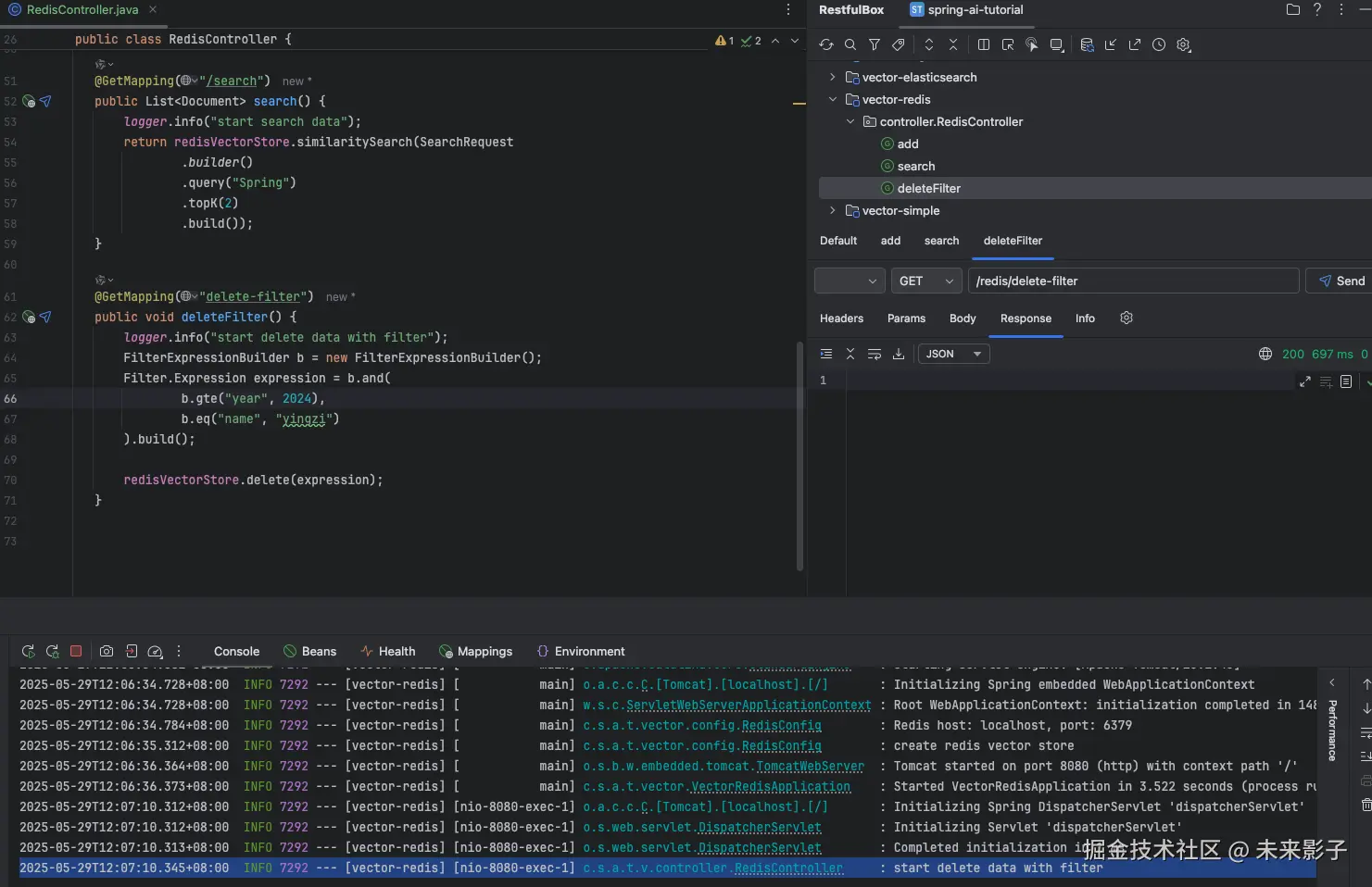

删除 year 大于等于 2024 && name 为"yinzgi"的数据

数据已被删除

Elasticsearch

pom 依赖

<properties>
        <es.version>8.17.4</es.version>
    </properties>

    // 额外添加的es依赖
    <dependency>
        <groupId>org.springframework.ai</groupId>
        <artifactId>spring-ai-starter-vector-store-elasticsearch</artifactId>
    </dependency>

    <dependency>
        <groupId>co.elastic.clients</groupId>
        <artifactId>elasticsearch-java</artifactId>
        <version>${es.version}</version>
        <scope>compile</scope>
    </dependency>

application.yml

server:
  port: 8080

spring:
  application:
    name: vector-elasticsearch

  ai:
    openai:
      api-key: ${DASHSCOPEAPIKEY}
      base-url: https://dashscope.aliyuncs.com/compatible-mode
      embedding:
        options:
          model: text-embedding-v1

    vectorstore:
      elasticsearch:
        initialize-schema: true
        index-name: yingzi
        similarity: cosine
        dimensions: 1536

  elasticsearch:
    uris: http://127.0.0.1:9200
    username: elastic
    password: yingzi

ElasticsearchConfig

package com.spring.ai.tutorial.vector.config;

import org.apache.http.HttpHost;
import org.apache.http.auth.AuthScope;
import org.apache.http.auth.UsernamePasswordCredentials;
import org.apache.http.client.CredentialsProvider;
import org.apache.http.impl.client.BasicCredentialsProvider;
import org.elasticsearch.client.RestClient;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.ai.embedding.EmbeddingModel;
import org.springframework.ai.embedding.TokenCountBatchingStrategy;
import org.springframework.ai.vectorstore.elasticsearch.ElasticsearchVectorStore;
import org.springframework.ai.vectorstore.elasticsearch.ElasticsearchVectorStoreOptions;
import org.springframework.ai.vectorstore.elasticsearch.SimilarityFunction;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class ElasticsearchConfig {

    private static final Logger logger = LoggerFactory.getLogger(ElasticsearchConfig.class);


    @Value("${spring.elasticsearch.uris}")
    private String url;
    @Value("${spring.elasticsearch.username}")
    private String username;
    @Value("${spring.elasticsearch.password}")
    private String password;

    @Value("${spring.ai.vectorstore.elasticsearch.index-name}")
    private String indexName;
    @Value("${spring.ai.vectorstore.elasticsearch.similarity}")
    private SimilarityFunction similarityFunction;
    @Value("${spring.ai.vectorstore.elasticsearch.dimensions}")
    private int dimensions;


    @Bean
    public RestClient restClient() {
        // 解析URL
        String[] urlParts = url.split("://");
        String protocol = urlParts[0];
        String hostAndPort = urlParts[1];
        String[] hostPortParts = hostAndPort.split(":");
        String host = hostPortParts[0];
        int port = Integer.parseInt(hostPortParts[1]);

        // 创建凭证提供者
        CredentialsProvider credentialsProvider = new BasicCredentialsProvider();
        credentialsProvider.setCredentials(AuthScope.ANY,
            new UsernamePasswordCredentials(username, password));

        logger.info("create elasticsearch rest client");
        // 构建RestClient
        return RestClient.builder(new HttpHost(host, port, protocol))
                .setHttpClientConfigCallback(httpClientBuilder -> {
                    httpClientBuilder.setDefaultCredentialsProvider(credentialsProvider);
                    return httpClientBuilder;
                })
                .build();
    }

    @Bean
    @Qualifier("elasticsearchVectorStore")
    public ElasticsearchVectorStore vectorStore(RestClient restClient, EmbeddingModel embeddingModel) {
        logger.info("create elasticsearch vector store");

        ElasticsearchVectorStoreOptions options = new ElasticsearchVectorStoreOptions();
        options.setIndexName(indexName);    // Optional: defaults to "spring-ai-document-index"
        options.setSimilarity(similarityFunction);           // Optional: defaults to COSINE
        options.setDimensions(dimensions);             // Optional: defaults to model dimensions or 1536

        return ElasticsearchVectorStore.builder(restClient, embeddingModel)
                .options(options)                     // Optional: use custom options
                .initializeSchema(true)               // Optional: defaults to false
                .batchingStrategy(new TokenCountBatchingStrategy())// Optional: defaults to TokenCountBatchingStrategy
                .build();
    }

}

VectorEsController

package com.spring.ai.tutorial.vector.controller;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.ai.document.Document;
import org.springframework.ai.vectorstore.SearchRequest;
import org.springframework.ai.vectorstore.elasticsearch.ElasticsearchVectorStore;
import org.springframework.ai.vectorstore.filter.Filter;
import org.springframework.ai.vectorstore.filter.FilterExpressionBuilder;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.HashMap;
import java.util.List;
import java.util.Map;

@RestController
@RequestMapping("/vector/es")
public class VectorEsController {

    private static final Logger logger = LoggerFactory.getLogger(VectorEsController.class);
    private final ElasticsearchVectorStore elasticsearchVectorStore;

    @Autowired
    public VectorEsController(@Qualifier("elasticsearchVectorStore") ElasticsearchVectorStore elasticsearchVectorStore) {
        this.elasticsearchVectorStore = elasticsearchVectorStore;
    }

    @GetMapping("/add")
    public void add() {
        logger.info("start import data");

        HashMap<String, Object> map = new HashMap<>();
        map.put("id", "12345");
        map.put("year", 2025);
        map.put("name", "yingzi");
        List<Document> documents = List.of(
                new Document("The World is Big and Salvation Lurks Around the Corner"),
                new Document("You walk forward facing the past and you turn back toward the future.", Map.of("year", 2024)),
                new Document("Spring AI rocks!! Spring AI rocks!! Spring AI rocks!! Spring AI rocks!! Spring AI rocks!!", map));
        elasticsearchVectorStore.add(documents);
    }

    @GetMapping("/search")
    public List<Document> search() {
        logger.info("start search data");
        return elasticsearchVectorStore.similaritySearch(SearchRequest
                .builder()
                .query("Spring")
                .topK(2)
                .build());
    }

    @GetMapping("delete-filter")
    public void searchFilter() {
        logger.info("start search data with filter");
        FilterExpressionBuilder b = new FilterExpressionBuilder();
        Filter.Expression expression = b.and(
                b.in("year", 2025, 2024),
                b.eq("name", "yingzi")
        ).build();

        elasticsearchVectorStore.delete(expression);
    }
}

效果

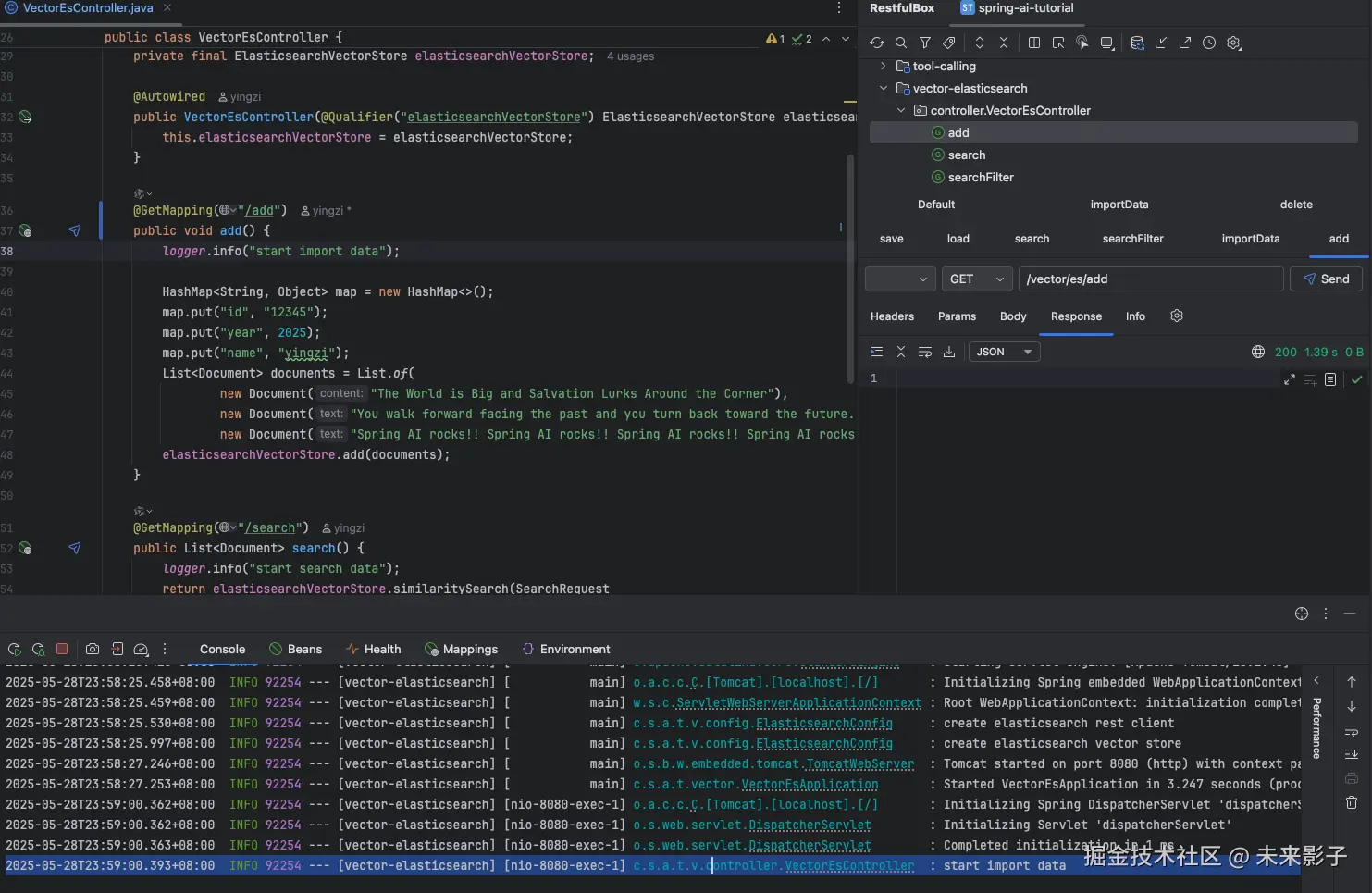

导入数据到 ES 中

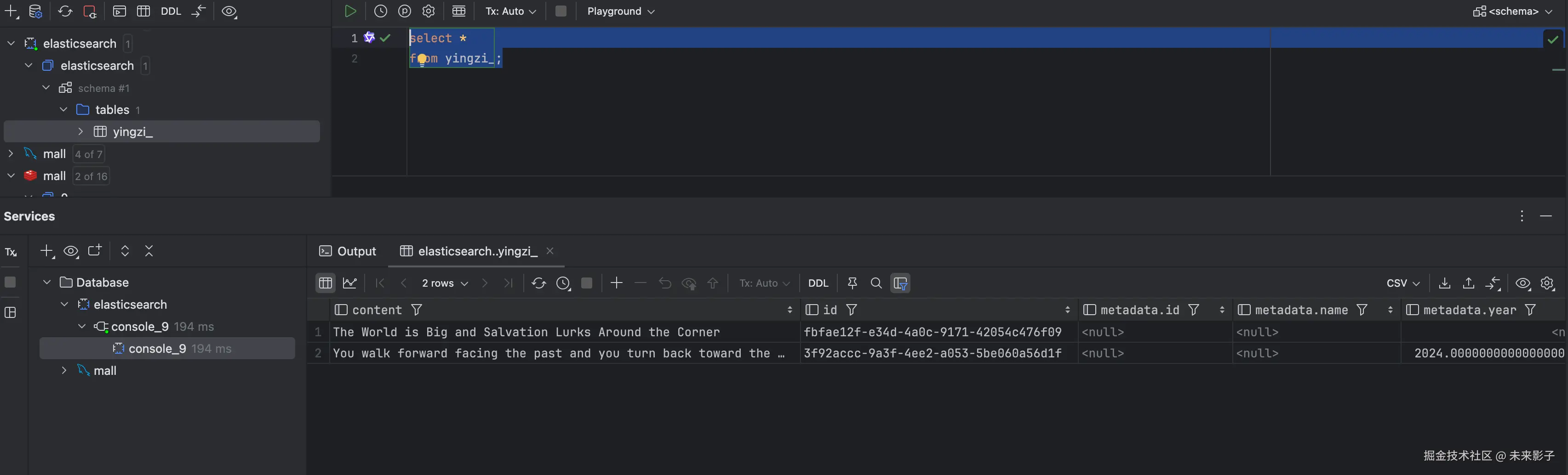

ES 中可查到对应的数据

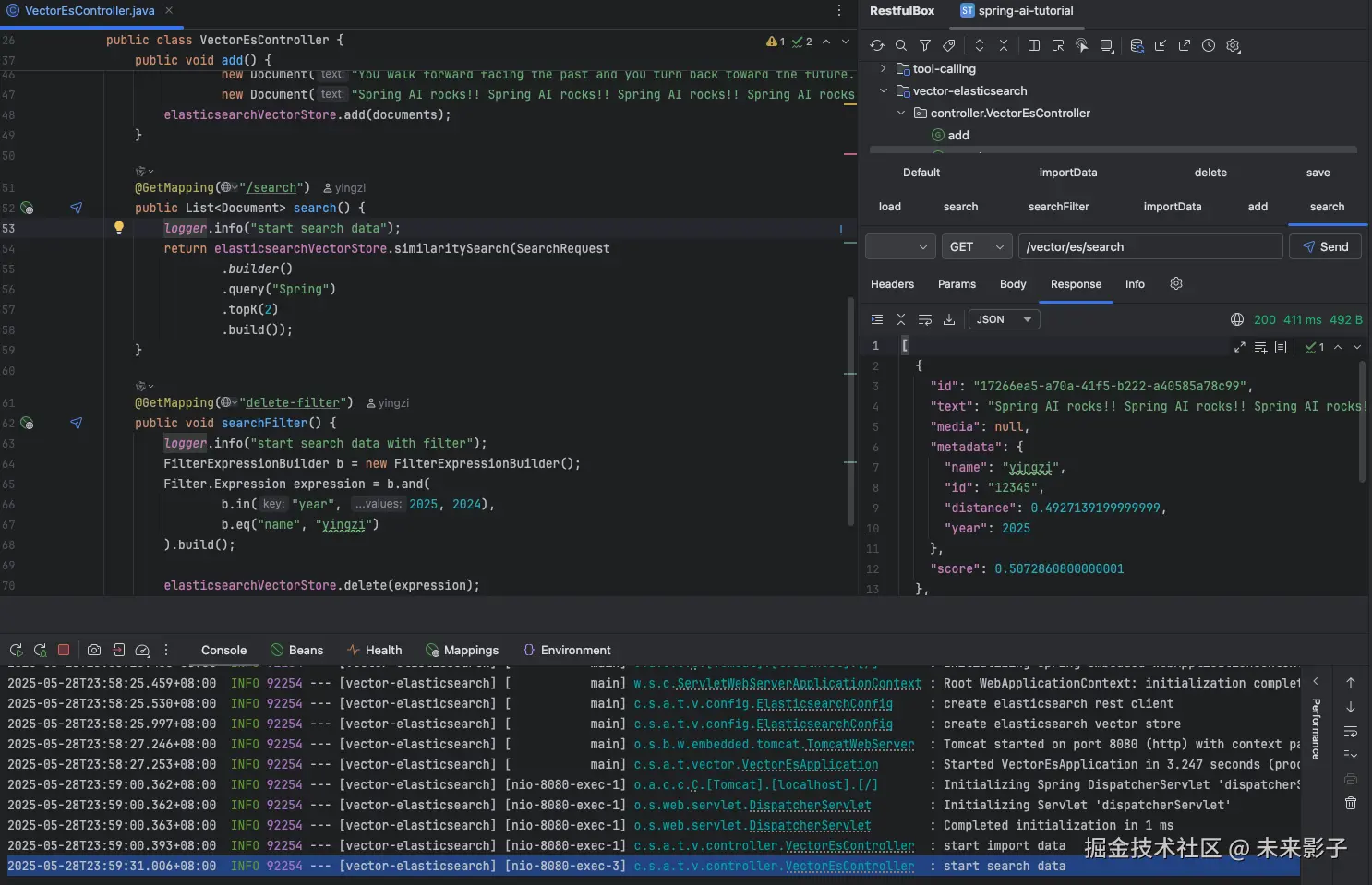

查询数据

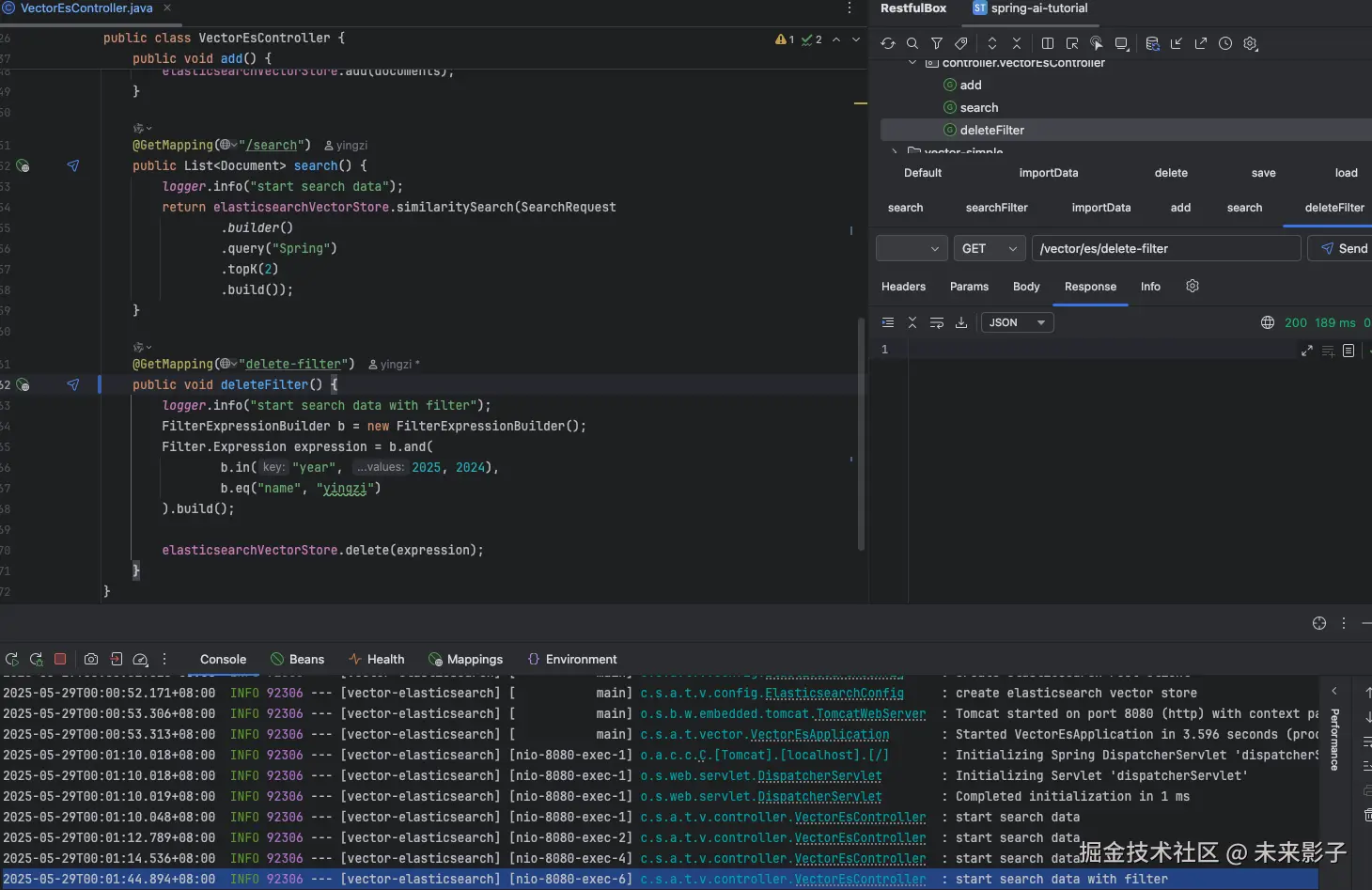

过滤删除

name 为 yingzi、year 为 2025 的数据被删除了

学习交流圈

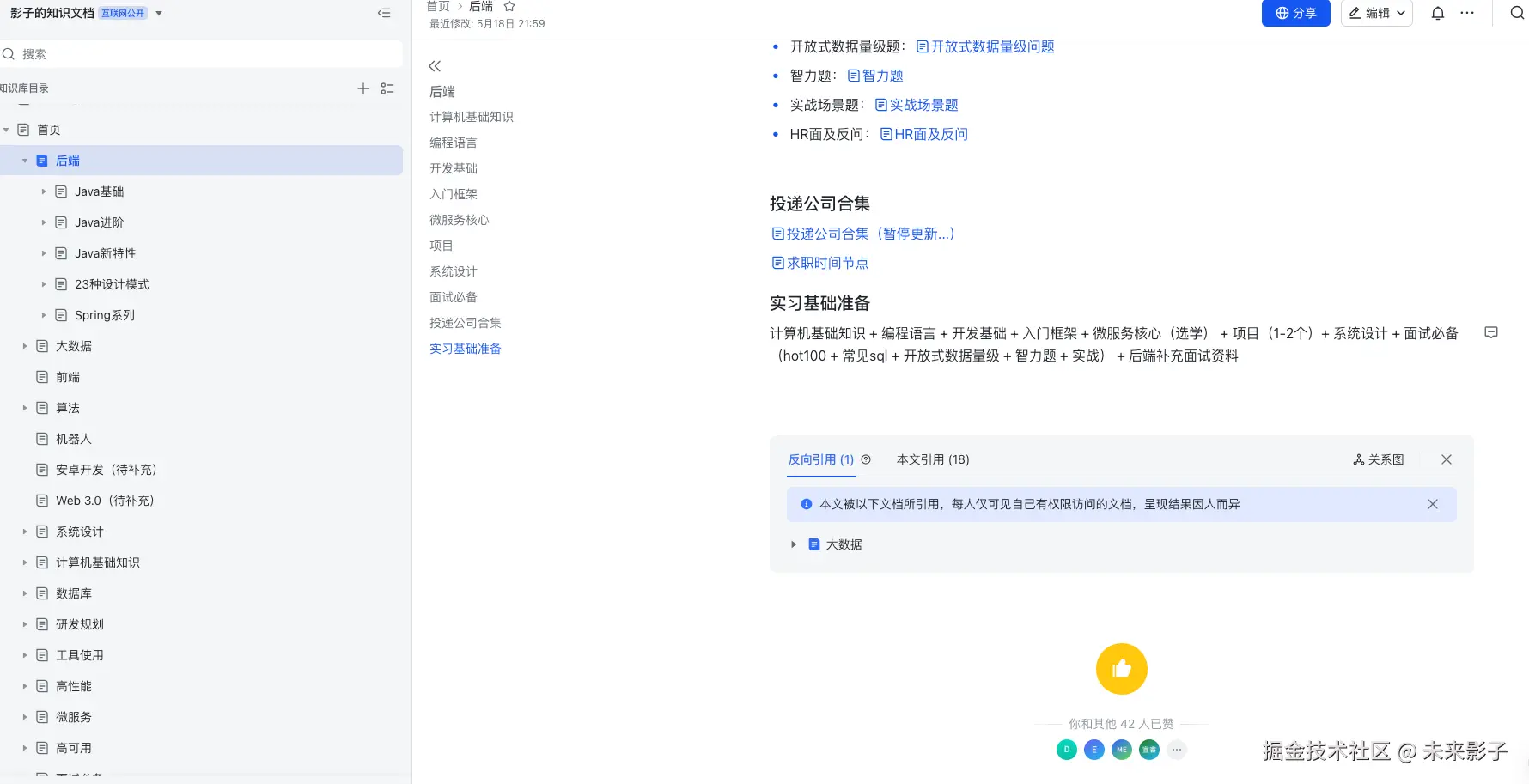

你好，我是影子，曾先后在🐻、新能源、老铁就职，现在是一名AI研发工程师。目前新建了一个交流群，一个人走得快，一群人走得远。另外，本人长期维护一套飞书云文档笔记，涵盖后端、大数据系统化的面试资料，可私信免费获取
