React+Echart 可视化实战：第四章：企业级项目实战

第四章：企业级项目实战

---

​​4.1 电商数据看板全链路开发​​

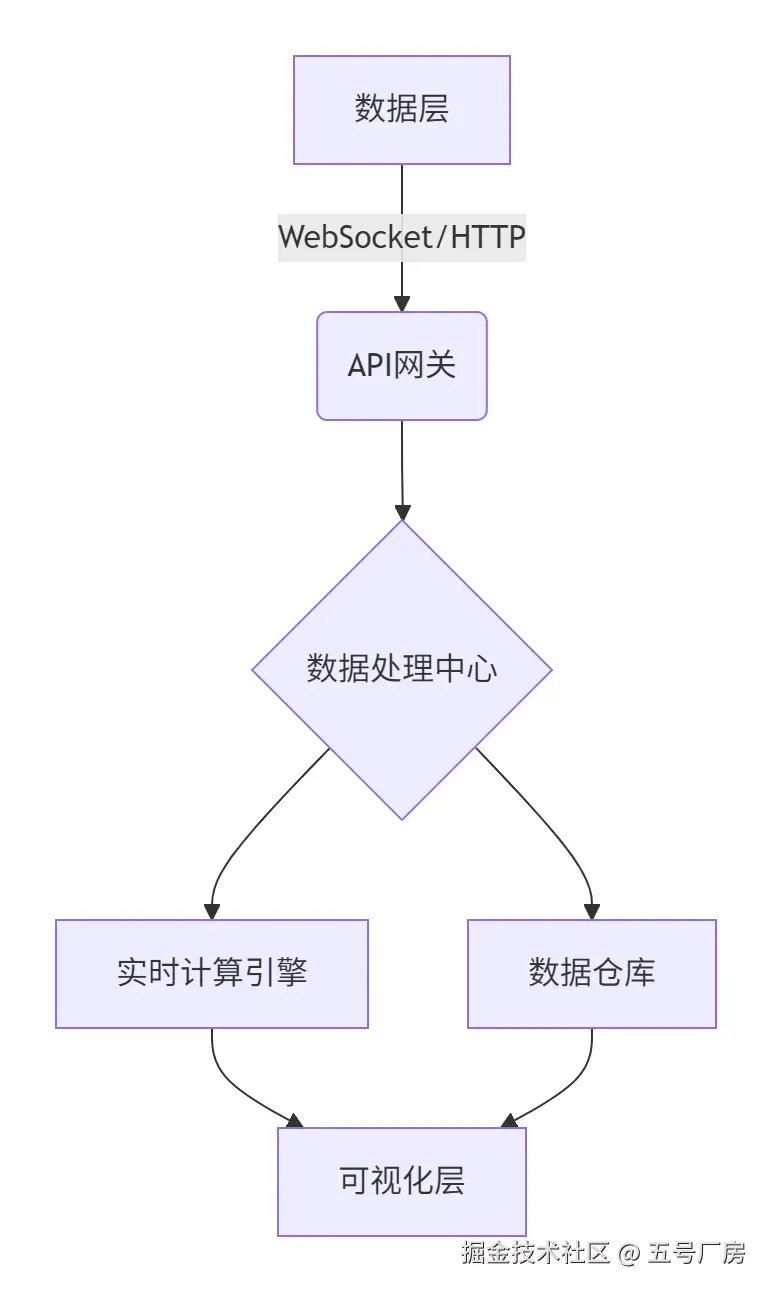

​​1. 架构设计​​

​​2. 核心功能实现​​

• ​​多图表联动​​

  // 使用Redux管理全局状态
  const store = configureStore({
    reducer: {
      sales: salesReducer,
      categories: categoryReducer
    }
  });

  // 主组件中订阅状态变化
  const { salesData, categoryData } = useSelector(state => state);


• ​​实时数据流处理​​

  // WebSocket连接管理
  const useWebSocket = (url: string) => {
    const [data, setData] = useState<any[]>([]);

    useEffect(() => {
      const ws = new WebSocket(url);
      ws.onmessage = (e) => {
        const newData = JSON.parse(e.data);
        setData(prev => [newData, ...prev].slice(-100));
      };
      return () => ws.close();
    }, [url]);

    return data;
  };


​​3. 数据钻取实现​​

// 钻取组件
const DrillDownChart = ({ categoryId }: { categoryId: string }) => {
  const [drillData, setDrillData] = useState<any[]>([]);

  useEffect(() => {
    fetch(`/api/sales?category=${categoryId}`)
      .then(res => res.json())
      .then(setDrillData);
  }, [categoryId]);

  return <BarChart data={drillData} />;
};

// 主图表点击事件
const handleMainClick = (params: any) => {
  history.push(`/detail/${params.categoryId}`);
};

---

​​4.2 后台管理系统深度开发​​

​​1. 权限控制体系​​

// 权限高阶组件
const withAuth = (allowedRoles: string[]) => (WrappedComponent: React.ComponentType) => {
  return (props: any) => {
    const { userRole } = useAuth();

    if (!allowedRoles.includes(userRole)) {
      return <AccessDenied />;
    }

    return <WrappedComponent {...props} />;
  };
};

// 使用示例
const AdminDashboard = withAuth(['admin'])(Dashboard);

​​2. 主题定制方案​​

// 主题配置文件
export const theme = {
  palette: {
    primary: '#1890ff',
    secondary: '#52c41a',
    danger: '#ff4d4f'
  },
  typography: {
    fontFamily: 'PingFang SC, Microsoft YaHei',
    fontSizeBase: 14
  }
};

// 初始化时应用主题
const chart = echarts.init(dom, null, {
  theme: theme.palette,
  textStyle: { fontFamily: theme.typography.fontFamily }
});

​​3. 响应式布局系统​​

// 自适应布局组件
const ResponsiveLayout = ({ children }: { children: React.ReactNode }) => {
  const [width, setWidth] = useState(window.innerWidth);

  useEffect(() => {
    const handler = () => setWidth(window.innerWidth);
    window.addEventListener('resize', handler);
    return () => window.removeEventListener('resize', handler);
  }, []);

  return width > 768 ? (
    <DesktopLayout>{children}</DesktopLayout>
  ) : (
    <MobileLayout>{children}</MobileLayout>
  );
};

---

​​4.3 数据可视化规范体系​​

​​1. 设计系统集成​​

// 设计规范组件
const DesignSystemProvider = ({ children }: { children: React.ReactNode }) => {
  const theme = useTheme();

  return (
    <EChartsProvider theme={theme}>
      <CSSReset />
      <GlobalStyles />
      {children}
    </EChartsProvider>
  );
};

// 使用示例
const App = () => (
  <DesignSystemProvider>
    <Dashboard />
  </DesignSystemProvider>
);

​​2. 标注系统实现​​

// 动态标注组件
const DynamicAnnotation = ({ data }: { data: any[] }) => {
  const annotations = data.map((item, index) => ({
    type: 'text',
    left: '5%',
    top: 10 + index * 15,
    style: {
      text: `${item.key}: ${item.value}`,
      fill: '#666',
      fontSize: 12
    }
  }));

  return <ECharts annotations={annotations} />;
};

---

​​4.4 工程化最佳实践​​

​​1. 代码规范方案​​

# ESLint配置
module.exports = {
  extends: ['eslint:recommended', 'plugin:react/recommended'],
  rules: {
    'react/prop-types': 'off',
    'react-hooks/rules-of-hooks': 'error',
    'import/no-cycle': 'error'
  },
  settings: {
    react: {
      version: 'detect'
    }
  }
};

​​2. 测试策略​​

// 图表单元测试
describe('SalesBarChart', () => {
  it('renders with correct data', () => {
    const { getByText } = render(<SalesBarChart data={[100,200]} />);
    expect(getByText('200')).toBeInTheDocument();
  });

  it('handles resize events', () => {
    const { container } = render(<SalesBarChart />);
    fireEvent.resize(container);
    expect(mockResize).toHaveBeenCalled();
  });
});

​​3. CI/CD流水线​​

# .github/workflows/ci.yml
name: CI Pipeline

on: [push]

jobs:
  build:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v2
      - name: Setup Node.js
        uses: actions/setup-node@v2
        with:
          node-version: '16'
      - run: npm ci
      - run: npm run build
      - run: npm test -- --watchAll=false
      - name: Deploy to Vercel
        uses: amondnet/vercel-action@v20
        with:
          vercel-token: ${{ secrets.VERCEL_TOKEN }}
          working-directory: ./

---

​​4.5 性能优化专项​​

​​1. 大数据量渲染方案​​

// 分片渲染策略
const LargeDataChart = ({ data }: { data: any[] }) => {
  const [visibleData, setVisibleData] = useState<any[]>([]);
  const chunkSize = 1000;

  useEffect(() => {
    const loadDataChunk = () => {
      const chunk = data.slice(0, visibleData.length + chunkSize);
      setVisibleData(chunk);
    };

    loadDataChunk();
  }, [data]);

  return <ECharts data={visibleData} />;
};

​​2. 内存管理方案​​

// 实例池管理
class ChartInstancePool {
  private pool = new WeakMap();

  get(dom: HTMLDivElement) {
    if (!this.pool.has(dom)) {
      this.pool.set(dom, echarts.init(dom));
    }
    return this.pool.get(dom);
  }

  dispose(dom: HTMLDivElement) {
    if (this.pool.has(dom)) {
      this.pool.get(dom)?.dispose();
      this.pool.delete(dom);
    }
  }
}

export const chartPool = new ChartInstancePool();

​​3. WebGL加速方案​​

// 3D图表配置
series: [{
  type: 'scatter3D',
  coordinateSystem: 'cartesian3D',
  data: data.map(item => [item.x, item.y, item.z]),
  itemStyle: {
    opacity: 0.8,
    color: new echarts.graphic.LinearGradient(0, 0, 0, 1, [
      { offset: 0, color: '#83bff6' },
      { offset: 1, color: '#188df0' }
    ])
  }
}]

---

​​4.6 企业级监控体系​​

​​1. 性能埋点方案​​

// 性能监控HOC
const withPerformance = (WrappedComponent: React.ComponentType) => {
  return (props: any) => {
    const start = performance.now();

    useEffect(() => {
      const end = performance.now();
      analytics.send('component_load_time', {
        component: WrappedComponent.name,
        duration: end - start
      });
    }, []);

    return <WrappedComponent {...props} />;
  };
};

// 使用示例
const PerformanceMonitoredChart = withPerformance(BarChart);

​​2. 异常监控系统​​

// 错误边界组件
class ChartErrorBoundary extends Component {
  state = { hasError: false };

  static getDerivedStateFromError() {
    return { hasError: true };
  }

  componentDidCatch(error: Error) {
    Sentry.captureException(error);
    this.props.onError?.(error);
  }

  render() {
    return this.state.hasError ? <FallbackUI /> : this.props.children;
  }
}

// 使用示例
<ChartErrorBoundary onError={handleChartError}>
  <SalesLineChart />
</ChartErrorBoundary>

---

​​4.7 项目部署方案​​

​​1. Docker容器化部署​​

# Dockerfile
FROM node:16-alpine as builder
WORKDIR /app
COPY package*.json ./
RUN npm ci --frozen-lockfile
COPY . .
RUN npm run build

FROM nginx:alpine
COPY --from=builder /app/dist /usr/share/nginx/html
COPY nginx.conf /etc/nginx/conf.d/default.conf

EXPOSE 80
CMD ["nginx", "-g", "daemon off;"]

​​2. 自动化部署流水线​​

# .gitlab-ci.yml
stages:
  - build
  - test
  - deploy

build_job:
  stage: build
  script:
    - npm ci
    - npm run build
  artifacts:
    paths:
      - dist/

test_job:
  stage: test
  script:
    - npm test -- --watchAll=false

deploy_job:
  stage: deploy
  script:
    - aws s3 sync dist/ s3://my-bucket --delete
  only:
    - main

---

​​4.8 常见问题解决方案​​

​​1. 内存泄漏排查​​

# 内存快照分析
npm install --save-dev @chialab/profiler

# 启动分析
PROFILER_ENABLED=true npm start

​​2. 大数据量卡顿优化​​

// 虚拟滚动实现
const VirtualScroll = ({ data, height, itemHeight }: VirtualScrollProps) => {
  const [startIndex, setStartIndex] = useState(0);
  const visibleCount = Math.ceil(height / itemHeight);

  const visibleData = data.slice(startIndex, startIndex + visibleCount);

  const handleScroll = (e: React.UIEvent) => {
    const scrollTop = e.currentTarget.scrollTop;
    setStartIndex(Math.floor(scrollTop / itemHeight));
  };

  return (
    <div
      style={{ height, overflow: 'auto' }}
      onScroll={handleScroll}
    >
      <div style={{ height: data.length * itemHeight }}>
        {visibleData.map(renderItem)}
      </div>
    </div>
  );
};

---

通过本章节内容，开发者可掌握企业级数据可视化项目的完整开发流程，包含架构设计、性能优化、安全防护等关键环节。
