从0到1构建MES系统7-附件管理本文以策略模式为核心，提出了一种可动态切换存储引擎的附件管理方案，支持本地存储与Min

今天我们来讲讲MES系统的【附件管理】。

SpringBoot+MinIO双引擎存储实战

一、传统附件管理的架构痛点

在传统单体应用中，开发者常将FileUtils.save() 等硬编码写入业务层，这种设计在面对多云存储、混合存储等复杂场景时，会出现以下问题：

存储介质切换引发雪崩式代码修改
不同存储协议的API差异导致业务逻辑污染
扩展新存储方案时产生重复造轮子现象

策略模式可完美解决上述问题，下面通过双存储引擎实战演示架构设计过程。

二、策略模式驱动存储引擎设计

2.1 UNL核心模型解析

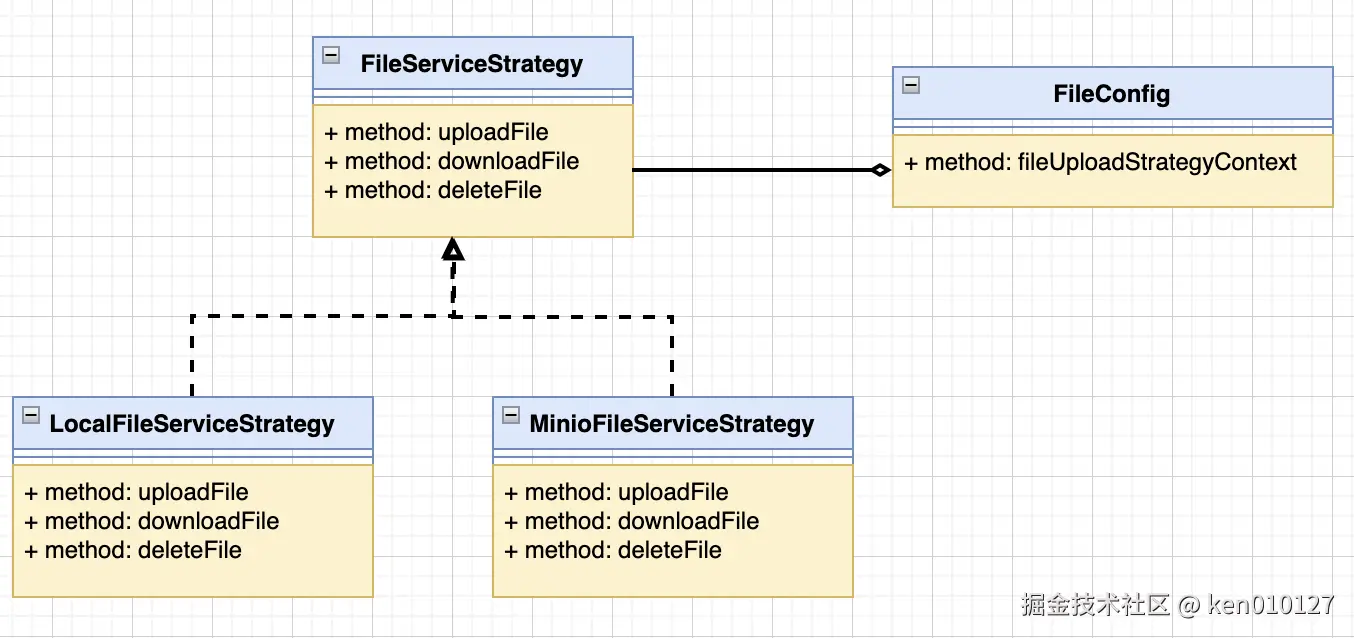

Pasted image 20250528171907.png 关键角色说明

FileServiceStrategy: 抽象策略接口，定义upload/delete/download核心方法
LocalFileServiceStrategy: 本地磁盘策略实现类
MinioFileServiceStrategy: MinIO对象存储实现类
FileConfig: 策略执行配置，持有策略引用

2.2 双存储引擎实现

2.2.1 本地磁盘策略实现

/**
 * 本地文件服务
 * @author fwj
 * @since 2025/4/24 */@Slf4j
@Service
@ConditionalOnProperty(name = "mom.upload.strategy", havingValue = "local")
public class LocalFileServiceImpl implements FileServiceStrategy {

    @Autowired
    private FileProperties properties;

    @Override
    public String uploadFile(MultipartFile file) throws FileException {
        try {
            return FileUtils.upload(properties.getUploadPath(), file);
        } catch (IOException e) {
            throw new FileException("文件上传失败", e);
        }
    }

    @Override
    public byte[] downloadFile(String filePath) throws FileException {
        // 参数校验
        if (filePath == null || filePath.trim().isEmpty()) {
            throw new FileException("文件路径不能为空");
        }

        // 路径处理
        Path fullPath;
        try {
            fullPath = Paths.get(properties.getUploadPath(), filePath).normalize();
        } catch (InvalidPathException e) {
            throw new FileException("无效的文件路径: " + filePath, e);
        }

        // 资源加载和校验
        UrlResource resource;
        try {
            resource = new UrlResource(fullPath.toUri());
        } catch (MalformedURLException e) {
            throw new FileException("无效的文件URL路径: " + fullPath, e);
        }

        if (!resource.exists()) {
            throw new FileException("文件不存在: " + fullPath);
        }
        if (!resource.isReadable()) {
            throw new FileException("文件不可读: " + fullPath);
        }

        // 读取文件内容
        try (InputStream inputStream = resource.getInputStream()) {
            return inputStream.readAllBytes();
        } catch (IOException e) {
            throw new FileException("读取文件失败: " + fullPath, e);
        }
    }

    @Override
    public void deleteFile(String filePath) throws FileException {
        // 参数校验
        if (filePath == null || filePath.trim().isEmpty()) {
            throw new IllegalArgumentException("文件路径不能为空或空字符串");
        }

        // 路径处理和安全检查
        Path fullPath;
        try {
            fullPath = Paths.get(properties.getUploadPath(), filePath).normalize();

            // 安全验证：确保目标路径在基础目录内
            if (!fullPath.startsWith(Paths.get(properties.getUploadPath()).normalize())) {
                throw new FileException("非法文件路径: 尝试访问外部目录");
            }
        } catch (InvalidPathException e) {
            throw new FileException("无效的文件路径: " + filePath, e);
        }

        // 执行删除
        try {
            boolean deleted = Files.deleteIfExists(fullPath);
            if (!deleted) {
                log.warn("文件不存在，无需删除: {}", fullPath);
            }
        } catch (NoSuchFileException e) {
            log.warn("文件不存在，无需删除: {}", fullPath);
        } catch (AccessDeniedException e) {
            throw new FileException("无权限删除文件: " + fullPath, e);
        } catch (DirectoryNotEmptyException e) {
            throw new FileException("无法删除非空目录: " + fullPath, e);
        } catch (SecurityException e) {
            throw new FileException("安全限制阻止文件删除: " + fullPath, e);
        } catch (IOException e) {
            throw new FileException("删除文件失败: " + fullPath, e);
        }
    }
}

2.2.2 MinIO对象存储策略实现

添加maven引用

<dependency>
    <groupId>io.minio</groupId>
    <artifactId>minio</artifactId>
    <version>${minio.version}</version>
</dependency>

Java实现类

/**
 * Minio文件服务
 * @author fwj
 * @since 2025/4/24 */@Service
@ConditionalOnProperty(name = "mom.upload.strategy", havingValue = "minio")
public class MinioFileServiceImpl implements FileServiceStrategy {

    @Autowired
    private MinioConfig minioConfig;

    @Override
    public String uploadFile(MultipartFile file) throws FileException {
        try {
            return FileUtils.uploadMinio(file);
        } catch (IOException e) {
            throw new FileException("文件上传失败", e);
        }
    }

    @Override
    public byte[] downloadFile(String filePath) throws FileException {
        if (filePath == null || filePath.trim().isEmpty()) {
            throw new FileException("文件路径不能为空");
        }

        try (InputStream inputStream = minioConfig.getMinioClient().getObject(
                GetObjectArgs.builder()
                        .bucket(minioConfig.getBucketName())
                        .object(filePath)
                        .build())) {

            if (inputStream == null) {
                throw new FileException("无法获取文件输入流");
            }

            return inputStream.readAllBytes();
        } catch (IOException ex) {
            throw new FileException("文件下载失败: " + ex.getMessage(), ex);
        } catch (Exception ex) {
            throw new FileException("发生未知错误: " + ex.getMessage(), ex);
        }
    }

    @Override
    public void deleteFile(String filePath) throws FileException {
        if (filePath == null || filePath.trim().isEmpty()) {
            throw new FileException("文件路径不能为空");
        }

        if (minioConfig == null || minioConfig.getMinioClient() == null) {
            throw new FileException("MinIO配置未初始化");
        }

        try {
            minioConfig.getMinioClient().removeObject(
                    RemoveObjectArgs.builder()
                            .bucket(minioConfig.getBucketName())
                            .object(filePath)
                            .build());
        } catch (ErrorResponseException ex) {
            // 文件不存在或其他MinIO特定错误
            throw new FileException("删除文件失败: " + ex.getMessage(), ex);
        } catch (InsufficientDataException | InternalException |
                 InvalidKeyException | InvalidResponseException |
                 IOException | NoSuchAlgorithmException |
                 ServerException | XmlParserException ex) {
            // MinIO客户端可能抛出的其他异常
            throw new FileException("删除文件时发生错误: " + ex.getMessage(), ex);
        } catch (Exception ex) {
            // 其他未预期的异常
            throw new FileException("发生未知错误: " + ex.getMessage(), ex);
        }
    }

2.3、SpringBoot自动化装配

yml配置文件

mom:
  #附件配置
  upload:
    strategy: local # 可选 local 或 minio
    public-url: http://localhost:8081/uploads # 本地文件访问URL前缀
    upload-path: ./uploads

    minio:
      accessKey: minioadmin
      secretKey: minioadmin
      bucketName: test
      public-url: http://192.168.1.1:9000

Java代码

/**
 * 文件配置信息
 * @author fwj
 * @since 2025/4/24 */@Configuration
public class FileConfig {

    @Bean
    public FileServiceContext fileUploadStrategyContext(
            FileProperties properties,
            FileServiceStrategy localFileServiceStrategy,
            FileServiceStrategy minioFileServiceStrategy) {

        FileServiceStrategy strategy = "minio".equals(properties.getStrategy())
                ? minioFileServiceStrategy
                : localFileServiceStrategy;

        return new FileServiceContext(strategy);
    }

}

2.4 存储上下文实战应用

文件存储上下文类

/**
 * 文件服务上下文
 * @author fwj
 * @since 2025/4/24 */@Service
public class FileServiceContext {

    private FileServiceStrategy fileServiceStrategy;

    public FileServiceContext(FileServiceStrategy fileServiceStrategy) {
        this.fileServiceStrategy = fileServiceStrategy;
    }

    public void setFileService(FileServiceStrategy fileServiceStrategy) {
        this.fileServiceStrategy = fileServiceStrategy;
    }

    public String uploadFile(MultipartFile file) throws FileException {
        return fileServiceStrategy.uploadFile(file);
    }

    public byte[] downloadFile(String filePath) throws FileException {
        return fileServiceStrategy.downloadFile(filePath);
    }

    public void deleteFile(String filePath) throws FileException {
        fileServiceStrategy.deleteFile(filePath);
    }
}

使用实例

@Autowired
private FileServiceContext fileServiceContext;

...

// 上传并返回新文件名称
String filePath = fileServiceContext.uploadFile(file);

备注： 其中策略实现类中的FileUtils工具类如需要了解请下载源码查看

三、架构设计精要

开闭原则：新增存储方案只需实现FileServiceStrategy接口，无需修改已有代码
依赖倒置：高层模块依赖抽象接口，与具体存储实现解耦

四、拓展思考

混合存储策略：通过组合模式实现冷热数据分层存储
多云容灾方案：在不同云厂商间实现双活存储
智能路由：根据文件特征自动选择最优存储引擎

本文源码已上传Gitee 开源项目地址：

前端仓库

后端仓库

欢迎在评论区分享你的技术选型经验，或对本文方案的改进建议！
