Android10 Framework—Zygote-3.启动应用程序

在上一篇文章已讲解如下两个主要流程，如下图所示

• 启动SystemServer进程，流程走到com.android.server.SystemServer.Main中;
• 另一个就是Zygote进程进入休眠等待客户端请求;

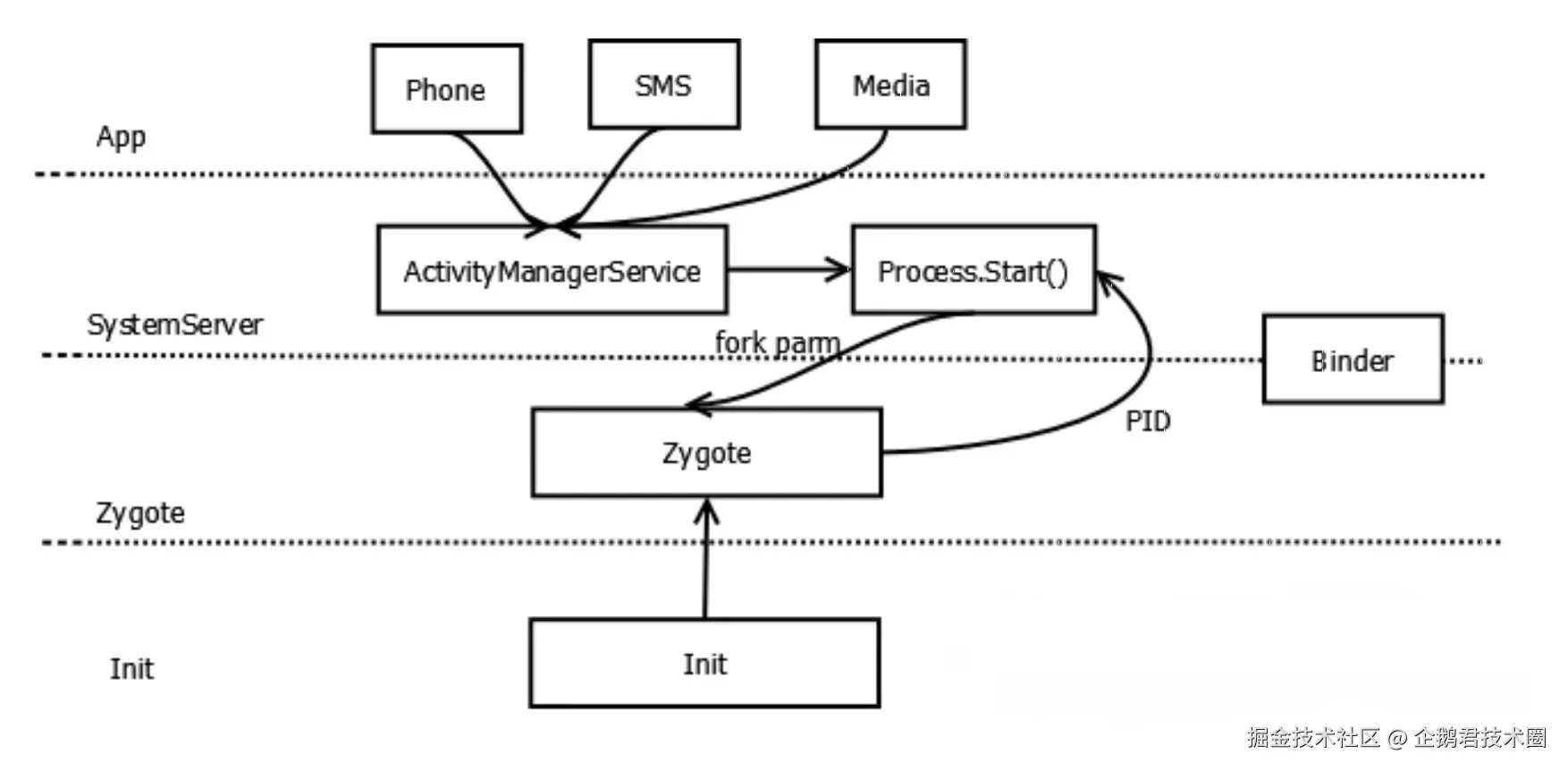

Zygote进程作为服务端，等待客户端向它发出“孵化”请求，而Zygote接收到这个请求后就“孵化”出一个新的进程；比如，当点击Launcher里的应用程序图标去启动一个新的应用程序进程时，这个请求会到达框架层的核心服务 ActivityManagerService中，当AMS收到这个请求后，它通过调用Process类发出一个“孵化”子进 程的Socket请求，而Zygote监听到这个请求后就立刻fork一个新的进程出来。

因为这里涉及到AMS相关内容还没讲解，因此讲解的重点会放到Zygote对请求的处理上。

Process请求

从上图所示AMS是通过Process.start发起请求的，因此我们直接看Process.start方法

// frameworks/base/core/java/android/os/Process.java

/**
 * Start a new process.
 *
 * <p>If processes are enabled, a new process is created and the
 * static main() function of a <var>processClass</var> is executed there.
 * The process will continue running after this function returns.
 *
 * <p>If processes are not enabled, a new thread in the caller's
 * process is created and main() of <var>processclass</var> called there.
 *
 * <p>The niceName parameter, if not an empty string, is a custom name to
 * give to the process instead of using processClass.  This allows you to
 * make easily identifyable processes even if you are using the same base
 * <var>processClass</var> to start them.
 *
 * When invokeWith is not null, the process will be started as a fresh app
 * and not a zygote fork. Note that this is only allowed for uid 0 or when
 * runtimeFlags contains DEBUG_ENABLE_DEBUGGER.
 *
 * @param processClass The class to use as the process's main entry
 *                     point.
 * @param niceName A more readable name to use for the process.
 * @param uid The user-id under which the process will run.
 * @param gid The group-id under which the process will run.
 * @param gids Additional group-ids associated with the process.
 * @param runtimeFlags Additional flags.
 * @param targetSdkVersion The target SDK version for the app.
 * @param seInfo null-ok SELinux information for the new process.
 * @param abi non-null the ABI this app should be started with.
 * @param instructionSet null-ok the instruction set to use.
 * @param appDataDir null-ok the data directory of the app.
 * @param invokeWith null-ok the command to invoke with.
 * @param packageName null-ok the name of the package this process belongs to.
 * @param zygoteArgs Additional arguments to supply to the zygote process.
 *
 * @return An object that describes the result of the attempt to start the process.
 * @throws RuntimeException on fatal start failure
 */
public static ProcessStartResult start(@NonNull final String processClass,
                                       @Nullable final String niceName,
                                       int uid, int gid, @Nullable int[] gids,
                                       int runtimeFlags,
                                       int mountExternal,
                                       int targetSdkVersion,
                                       @Nullable String seInfo,
                                       @NonNull String abi,
                                       @Nullable String instructionSet,
                                       @Nullable String appDataDir,
                                       @Nullable String invokeWith,
                                       @Nullable String packageName,
                                       @Nullable String[] zygoteArgs) {
    return ZYGOTE_PROCESS.start(processClass, niceName, uid, gid, gids,
                runtimeFlags, mountExternal, targetSdkVersion, seInfo,
                abi, instructionSet, appDataDir, invokeWith, packageName,
                /*useUsapPool=*/ true, zygoteArgs);
}

里面调用ZYGOTE_PROCESS.start，它里面又调用startViaZygote，这里需要注意2个重要参数，后面会涉及到：

• processClass：启动进程的入口点class（processClass The class to use as the process's main entry point）
• niceName：启动进程名称

private Process.ProcessStartResult startViaZygote(@NonNull final String processClass,
                                                  @Nullable final String niceName,
                                                  final int uid, final int gid,
                                                  @Nullable final int[] gids,
                                                  int runtimeFlags, int mountExternal,
                                                  int targetSdkVersion,
                                                  @Nullable String seInfo,
                                                  @NonNull String abi,
                                                  @Nullable String instructionSet,
                                                  @Nullable String appDataDir,
                                                  @Nullable String invokeWith,
                                                  boolean startChildZygote,
                                                  @Nullable String packageName,
                                                  boolean useUsapPool,
                                                  @Nullable String[] extraArgs)
                                                  throws ZygoteStartFailedEx {
    ArrayList<String> argsForZygote = new ArrayList<>();

    // --runtime-args, --setuid=, --setgid=,
    // and --setgroups= must go first
    argsForZygote.add("--runtime-args");
    argsForZygote.add("--setuid=" + uid);
    argsForZygote.add("--setgid=" + gid);
    argsForZygote.add("--runtime-flags=" + runtimeFlags);
    if (mountExternal == Zygote.MOUNT_EXTERNAL_DEFAULT) {
        argsForZygote.add("--mount-external-default");
    } else if (mountExternal == Zygote.MOUNT_EXTERNAL_READ) {
        argsForZygote.add("--mount-external-read");
    } else if (mountExternal == Zygote.MOUNT_EXTERNAL_WRITE) {
        argsForZygote.add("--mount-external-write");
    } else if (mountExternal == Zygote.MOUNT_EXTERNAL_FULL) {
        argsForZygote.add("--mount-external-full");
    } else if (mountExternal == Zygote.MOUNT_EXTERNAL_INSTALLER) {
        argsForZygote.add("--mount-external-installer");
    } else if (mountExternal == Zygote.MOUNT_EXTERNAL_LEGACY) {
        argsForZygote.add("--mount-external-legacy");
    }

    argsForZygote.add("--target-sdk-version=" + targetSdkVersion);

    // --setgroups is a comma-separated list
    if (gids != null && gids.length > 0) {
        StringBuilder sb = new StringBuilder();
        sb.append("--setgroups=");

        int sz = gids.length;
        for (int i = 0; i < sz; i++) {
            if (i != 0) {
                sb.append(',');
            }
            sb.append(gids[i]);
        }

        argsForZygote.add(sb.toString());
    }

    if (niceName != null) {
        argsForZygote.add("--nice-name=" + niceName);
    }

    if (seInfo != null) {
        argsForZygote.add("--seinfo=" + seInfo);
    }

    if (instructionSet != null) {
        argsForZygote.add("--instruction-set=" + instructionSet);
    }

    if (appDataDir != null) {
        argsForZygote.add("--app-data-dir=" + appDataDir);
    }

    if (invokeWith != null) {
        argsForZygote.add("--invoke-with");
        argsForZygote.add(invokeWith);
    }

    if (startChildZygote) {
        argsForZygote.add("--start-child-zygote");
    }

    if (packageName != null) {
        argsForZygote.add("--package-name=" + packageName);
    }

    argsForZygote.add(processClass);

    if (extraArgs != null) {
        Collections.addAll(argsForZygote, extraArgs);
    }

    synchronized(mLock) {
        // The USAP pool can not be used if the application will not use the systems graphics
        // driver.  If that driver is requested use the Zygote application start path.
        return zygoteSendArgsAndGetResult(openZygoteSocketIfNeeded(abi),
                                          useUsapPool,
                                          argsForZygote);
    }
}

• startViaZygote前面都是构建与Zygote通信时需要传递的参数argsForZygote
• 调用openZygoteSocketIfNeeded，创建于Zygote通信的socket
• 然后调用zygoteSendArgsAndGetResult，里面会调用attemptZygoteSendArgsAndGetResult发送请求

private ZygoteState openZygoteSocketIfNeeded(String abi) throws ZygoteStartFailedEx {
    try {
        attemptConnectionToPrimaryZygote();

        if (primaryZygoteState.matches(abi)) {
            return primaryZygoteState;
        }

        if (mZygoteSecondarySocketAddress != null) {
            // The primary zygote didn't match. Try the secondary.
            attemptConnectionToSecondaryZygote();

            if (secondaryZygoteState.matches(abi)) {
                return secondaryZygoteState;
            }
        }
    } catch (IOException ioe) {
        throw new ZygoteStartFailedEx("Error connecting to zygote", ioe);
    }

    throw new ZygoteStartFailedEx("Unsupported zygote ABI: " + abi);
}

attemptConnectionToPrimaryZygote方法进行socket连接

private void attemptConnectionToPrimaryZygote() throws IOException {
    if (primaryZygoteState == null || primaryZygoteState.isClosed()) {
        primaryZygoteState =
                ZygoteState.connect(mZygoteSocketAddress, mUsapPoolSocketAddress);

        maybeSetApiBlacklistExemptions(primaryZygoteState, false);
        maybeSetHiddenApiAccessLogSampleRate(primaryZygoteState);
        maybeSetHiddenApiAccessStatslogSampleRate(primaryZygoteState);
    }
}

mZygoteSocketAddress定义在构造函数中

public static final String PRIMARY_SOCKET_NAME = "zygote";

public ZygoteProcess() {
    mZygoteSocketAddress =
            new LocalSocketAddress(Zygote.PRIMARY_SOCKET_NAME,
                                   LocalSocketAddress.Namespace.RESERVED);
    mZygoteSecondarySocketAddress =
            new LocalSocketAddress(Zygote.SECONDARY_SOCKET_NAME,
                                   LocalSocketAddress.Namespace.RESERVED);

    mUsapPoolSocketAddress =
            new LocalSocketAddress(Zygote.USAP_POOL_PRIMARY_SOCKET_NAME,
                                   LocalSocketAddress.Namespace.RESERVED);
    mUsapPoolSecondarySocketAddress =
            new LocalSocketAddress(Zygote.USAP_POOL_SECONDARY_SOCKET_NAME,
                                   LocalSocketAddress.Namespace.RESERVED);
}

再回到zygoteSendArgsAndGetResult里面会调用attemptZygoteSendArgsAndGetResult发送请求

private Process.ProcessStartResult attemptZygoteSendArgsAndGetResult(
        ZygoteState zygoteState, String msgStr) throws ZygoteStartFailedEx {
    try {
        final BufferedWriter zygoteWriter = zygoteState.mZygoteOutputWriter;
        final DataInputStream zygoteInputStream = zygoteState.mZygoteInputStream;

        zygoteWriter.write(msgStr);
        zygoteWriter.flush();

        // Always read the entire result from the input stream to avoid leaving
        // bytes in the stream for future process starts to accidentally stumble
        // upon.
        Process.ProcessStartResult result = new Process.ProcessStartResult();
        result.pid = zygoteInputStream.readInt();
        result.usingWrapper = zygoteInputStream.readBoolean();

        if (result.pid < 0) {
            throw new ZygoteStartFailedEx("fork() failed");
        }

        return result;
    } catch (IOException ex) {
        zygoteState.close();
        Log.e(LOG_TAG, "IO Exception while communicating with Zygote - "
                + ex.toString());
        throw new ZygoteStartFailedEx(ex);
    }
}

Zygote响应

上一篇文章中讲过在ZygoteConnection.processOneCommand处理请求

    Runnable processOneCommand(ZygoteServer zygoteServer) {
        String args[];
        ZygoteArguments parsedArgs = null;
        FileDescriptor[] descriptors;

        try {
            args = Zygote.readArgumentList(mSocketReader);

            // TODO (chriswailes): Remove this and add an assert.
            descriptors = mSocket.getAncillaryFileDescriptors();
        } catch (IOException ex) {
            throw new IllegalStateException("IOException on command socket", ex);
        }

        // readArgumentList returns null only when it has reached EOF with no available
        // data to read. This will only happen when the remote socket has disconnected.
        if (args == null) {
            isEof = true;
            return null;
        }

        int pid = -1;
        FileDescriptor childPipeFd = null;
        FileDescriptor serverPipeFd = null;
        //解析参数
        parsedArgs = new ZygoteArguments(args);

        //参数检查和设置
        ....

        fd = null;
        //调用fork创建进程
        pid = Zygote.forkAndSpecialize(parsedArgs.mUid, parsedArgs.mGid, parsedArgs.mGids,
                parsedArgs.mRuntimeFlags, rlimits, parsedArgs.mMountExternal, parsedArgs.mSeInfo,
                parsedArgs.mNiceName, fdsToClose, fdsToIgnore, parsedArgs.mStartChildZygote,
                parsedArgs.mInstructionSet, parsedArgs.mAppDataDir, parsedArgs.mTargetSdkVersion);

        try {
            if (pid == 0) {
                // in child
                zygoteServer.setForkChild();

                zygoteServer.closeServerSocket();
                IoUtils.closeQuietly(serverPipeFd);
                serverPipeFd = null;
                //子进程启动目标对象
                return handleChildProc(parsedArgs, descriptors, childPipeFd,
                        parsedArgs.mStartChildZygote);
            } else {
                // In the parent. A pid < 0 indicates a failure and will be handled in
                // handleParentProc.
                IoUtils.closeQuietly(childPipeFd);
                childPipeFd = null;
                handleParentProc(pid, descriptors, serverPipeFd);
                return null;
            }
        } finally {
            IoUtils.closeQuietly(childPipeFd);
            IoUtils.closeQuietly(serverPipeFd);
        }
    }

• 将参数解析为ZygoteArguments对象
• 参数检查和设置
• 调用forkAndSpecialize创建子进程
• 子进程中调用handleChildProc启动目标对象

private Runnable handleChildProc(ZygoteArguments parsedArgs, FileDescriptor[] descriptors,
        FileDescriptor pipeFd, boolean isZygote) {
    ...

    //设置进程名称
    if (parsedArgs.mNiceName != null) {
        Process.setArgV0(parsedArgs.mNiceName);
    }

    // End of the postFork event.
    Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
    if (parsedArgs.mInvokeWith != null) {
        WrapperInit.execApplication(parsedArgs.mInvokeWith,
                parsedArgs.mNiceName, parsedArgs.mTargetSdkVersion,
                VMRuntime.getCurrentInstructionSet(),
                pipeFd, parsedArgs.mRemainingArgs);

        // Should not get here.
        throw new IllegalStateException("WrapperInit.execApplication unexpectedly returned");
    } else {
        if (!isZygote) {
            return ZygoteInit.zygoteInit(parsedArgs.mTargetSdkVersion,
                    parsedArgs.mRemainingArgs, null /* classLoader */);
        } else {
            return ZygoteInit.childZygoteInit(parsedArgs.mTargetSdkVersion,
                    parsedArgs.mRemainingArgs, null /* classLoader */);
        }
    }
}

然后调用ZygoteInit.zygoteInit，这里的mNiceName就是Process.start方法中传递过来的niceName，然后传入parsedArgs.mRemainingArgs参数

public static final Runnable zygoteInit(int targetSdkVersion, String[] argv,
        ClassLoader classLoader) {
    if (RuntimeInit.DEBUG) {
        Slog.d(RuntimeInit.TAG, "RuntimeInit: Starting application from zygote");
    }

    Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "ZygoteInit");
    RuntimeInit.redirectLogStreams();

    RuntimeInit.commonInit();
    ZygoteInit.nativeZygoteInit();
    return RuntimeInit.applicationInit(targetSdkVersion, argv, classLoader);
}

commonInit用于执行一些通用配置的初始化：

• 设置 KillApplicationHandler 为默认的 UncaughtExceptionHandler;
• 设置时区;
• 设置 http.agent 属性，用于 HttpURLConnection;
• 重置 Android 的 Log 系统;
• 通过 NetworkManagementSocketTagger 设置 socket 的 tag，用于流量统计;

nativeZygoteInit做初始化工作，它是一个native方法

//frameworks/base/core/jni/AndroidRuntime.cpp

static void com_android_internal_os_ZygoteInit_nativeZygoteInit(JNIEnv* env, jobject clazz)
{
    gCurRuntime->onZygoteInit();
}

gCurRuntime就是前面创建的AppRuntime实例，onZygoteInit在AppRuntime进行了实现。这部分代码在 Binder 中都介绍过了，主要用于初始化 Binder 的使用环境，这样应用进程就可以使用Binder了。

virtual void onZygoteInit()
{
    sp<ProcessState> proc = ProcessState::self();
    ALOGV("App process: starting thread pool.\n");
    proc->startThreadPool();
}

最后调用RuntimeInit.applicationInit

protected static Runnable applicationInit(int targetSdkVersion, String[] argv,
        ClassLoader classLoader) {
    // If the application calls System.exit(), terminate the process
    // immediately without running any shutdown hooks.  It is not possible to
    // shutdown an Android application gracefully.  Among other things, the
    // Android runtime shutdown hooks close the Binder driver, which can cause
    // leftover running threads to crash before the process actually exits.
    nativeSetExitWithoutCleanup(true);

    // We want to be fairly aggressive about heap utilization, to avoid
    // holding on to a lot of memory that isn't needed.
    VMRuntime.getRuntime().setTargetHeapUtilization(0.75f);
    VMRuntime.getRuntime().setTargetSdkVersion(targetSdkVersion);

    final Arguments args = new Arguments(argv);

    // The end of of the RuntimeInit event (see #zygoteInit).
    Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);

    // Remaining arguments are passed to the start class's static main
    return findStaticMain(args.startClass, args.startArgs, classLoader);
}

• 设置虚拟机的 HeapUtilization 为 0.75f;
• 设置当前的 SDKVersion;
• 调用findStaticMain函数来查找启动类main方法(启动类就是Process.start传递过来的processClass),然后将main方法的Method对象和参数并包装成MethodAndArgsCaller（它继承Runnable）;

protected static Runnable findStaticMain(String className, String[] argv,
        ClassLoader classLoader) {
    Class<?> cl;

    try {
        cl = Class.forName(className, true, classLoader);
    } catch (ClassNotFoundException ex) {
        throw new RuntimeException(
                "Missing class when invoking static main " + className,
                ex);
    }

    Method m;
    try {
        m = cl.getMethod("main", new Class[] { String[].class });
    } catch (NoSuchMethodException ex) {
        throw new RuntimeException(
                "Missing static main on " + className, ex);
    } catch (SecurityException ex) {
        throw new RuntimeException(
                "Problem getting static main on " + className, ex);
    }

    int modifiers = m.getModifiers();
    if (! (Modifier.isStatic(modifiers) && Modifier.isPublic(modifiers))) {
        throw new RuntimeException(
                "Main method is not public and static on " + className);
    }

    return new MethodAndArgsCaller(m, argv);
}

返回MethodAndArgsCaller后，再调用r.run方法，这样就调用了启动类.main()方法。

static class MethodAndArgsCaller implements Runnable {
    /** method to call */
    private final Method mMethod;

    /** argument array */
    private final String[] mArgs;

    public MethodAndArgsCaller(Method method, String[] args) {
        mMethod = method;
        mArgs = args;
    }

    public void run() {
        try {
            mMethod.invoke(null, new Object[] { mArgs });
        } catch (IllegalAccessException ex) {
            throw new RuntimeException(ex);
        } catch (InvocationTargetException ex) {
            Throwable cause = ex.getCause();
            if (cause instanceof RuntimeException) {
                throw (RuntimeException) cause;
            } else if (cause instanceof Error) {
                throw (Error) cause;
            }
            throw new RuntimeException(ex);
        }
    }
}
