教程说明

说明：本教程将采用2025年5月20日正式的GA版，给出如下内容

  1. 核心功能模块的快速上手教程
  2. 核心功能模块的源码级解读
  3. Spring ai alibaba增强的快速上手教程 + 源码级解读

版本：JDK21 + SpringBoot3.4.5 + SpringAI 1.0.0 + SpringAI Alibaba最新

将陆续完成如下章节教程。本章是第三章（tool整合）的快速上手

代码开源如下：github.com/GTyingzi/sp…

第三章：tool 整合—快速上手

[!TIP] Tool 工具允许模型与一组 API 或工具进行交互，增强模型功能

以下实现了工具的典型案例：Method 版、Function 版实现、internalToolExecutionEnabled 设置

实战代码可见：github.com/GTyingzi/sp… 下的 tool-calling

pom 文件

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.ai</groupId>
        <artifactId>spring-ai-autoconfigure-model-openai</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.ai</groupId>
        <artifactId>spring-ai-autoconfigure-model-chat-client</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.ai</groupId>
        <artifactId>spring-ai-autoconfigure-model-tool</artifactId>
    </dependency>

<!--        下面这两个依赖是额外引入的工具处理类，不需要可删除-->
    <dependency>
        <groupId>cn.hutool</groupId>
        <artifactId>hutool-extra</artifactId>
        <version>5.8.20</version>
    </dependency>

    <dependency>
        <groupId>com.belerweb</groupId>
        <artifactId>pinyin4j</artifactId>
        <version>2.5.1</version>
    </dependency>

</dependencies>

application.yml

server:
  port: 8080

spring:
  application:
    name: tool-calling

  ai:
    openai:
      api-key: ${DASHSCOPEAPIKEY}
      base-url: https://dashscope.aliyuncs.com/compatible-mode
      chat:
        options:
          model: qwen-max

    // 启动配置的time、weather的工具
    toolcalling:
      time:
        enabled: true
      weather:
        enabled: true
        api-key: ${WEATHERAPIKEY}

天气预测 API 接入文档：www.weatherapi.com/docs/

时间工具

TimeUtils
import java.time.ZoneId;
import java.time.ZonedDateTime;
import java.time.format.DateTimeFormatter;

public class TimeUtils {

    public static String getTimeByZoneId(String zoneId) {

        // Get the time zone using ZoneId
        ZoneId zid = ZoneId.of(zoneId);

        // Get the current time in this time zone
        ZonedDateTime zonedDateTime = ZonedDateTime.now(zid);

        // Defining a formatter
        DateTimeFormatter formatter = DateTimeFormatter.ofPattern("yyyy-MM-dd HH:mm:ss z");

        // Format ZonedDateTime as a string
        String formattedDateTime = zonedDateTime.format(formatter);

        return formattedDateTime;
    }
}
TimeTools（Method 版）
public class TimeTools {

    private static final Logger logger = LoggerFactory.getLogger(TimeTools.class);

    @Tool(description = "Get the time of a specified city.")
    public String  getCityTimeMethod(@ToolParam(description = "Time zone id, such as Asia/Shanghai") String timeZoneId) {
        logger.info("The current time zone is {}", timeZoneId);
        return String.format("The current time zone is %s and the current time is " + "%s", timeZoneId,
                TimeUtils.getTimeByZoneId(timeZoneId));
    }
}
TimeAutoConfiguration（Function 版）
import org.springframework.boot.autoconfigure.condition.ConditionalOnClass;
import org.springframework.boot.autoconfigure.condition.ConditionalOnMissingBean;
import org.springframework.boot.autoconfigure.condition.ConditionalOnProperty;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Description;

@Configuration
@ConditionalOnClass({GetCurrentTimeByTimeZoneIdService.class})
@ConditionalOnProperty(prefix = "spring.ai.toolcalling.time", name = "enabled", havingValue = "true")
public class TimeAutoConfiguration {

    @Bean(name = "getCityTimeFunction")
    @ConditionalOnMissingBean
    @Description("Get the time of a specified city.")
    public GetCurrentTimeByTimeZoneIdService getCityTimeFunction() {
        return new GetCurrentTimeByTimeZoneIdService();
    }

}
GetCurrentTimeByTimeZoneIdService（Function 版）
import com.fasterxml.jackson.annotation.JsonClassDescription;
import com.fasterxml.jackson.annotation.JsonInclude;
import com.fasterxml.jackson.annotation.JsonProperty;
import com.fasterxml.jackson.annotation.JsonPropertyDescription;
import com.spring.ai.tutorial.toolcall.component.time.TimeUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.util.function.Function;

public class GetCurrentTimeByTimeZoneIdService implements Function<GetCurrentTimeByTimeZoneIdService.Request, GetCurrentTimeByTimeZoneIdService.Response> {

    private static final Logger logger = LoggerFactory.getLogger(GetCurrentTimeByTimeZoneIdService.class);

    @Override
    public Response apply(Request request) {
        String timeZoneId = request.timeZoneId;
        logger.info("The current time zone is {}", timeZoneId);
        return new Response(String.format("The current time zone is %s and the current time is " + "%s", timeZoneId,
                TimeUtils.getTimeByZoneId(timeZoneId)));
    }

    @JsonInclude(JsonInclude.Include.NONNULL)
    @JsonClassDescription("Get the current time based on time zone id")
    public record Request(@JsonProperty(required = true, value = "timeZoneId") @JsonPropertyDescription("Time zone id, such as Asia/Shanghai") String timeZoneId) {
    }

    public record Response(String description) {
    }

}
TimeController
import com.spring.ai.tutorial.toolcall.component.time.method.TimeTools;
import org.springframework.ai.chat.client.ChatClient;
import org.springframework.ai.chat.client.advisor.MessageChatMemoryAdvisor;
import org.springframework.ai.chat.memory.InMemoryChatMemoryRepository;
import org.springframework.ai.chat.memory.MessageWindowChatMemory;
import org.springframework.ai.chat.messages.Message;
import org.springframework.ai.chat.model.ChatResponse;
import org.springframework.ai.model.tool.ToolCallingChatOptions;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import java.util.List;

import static org.springframework.ai.chat.memory.ChatMemory.CONVERSATIONID;

@RestController
@RequestMapping("/chat/time")
public class TimeController {

    private final ChatClient chatClient;
    private final InMemoryChatMemoryRepository chatMemoryRepository = new InMemoryChatMemoryRepository();
    private final int MAXMESSAGES = 100;
    private final MessageWindowChatMemory messageWindowChatMemory = MessageWindowChatMemory.builder()
            .chatMemoryRepository(chatMemoryRepository)
            .maxMessages(MAXMESSAGES)
            .build();


    public TimeController(ChatClient.Builder chatClientBuilder) {
        this.chatClient = chatClientBuilder
                .defaultAdvisors(
                        MessageChatMemoryAdvisor.builder(messageWindowChatMemory)
                                .build()
                )
                .build();
    }

    /**
     * 无工具版
     */
    @GetMapping("/call")
    public String call(@RequestParam(value = "query", defaultValue = "请告诉我现在北京时间几点了") String query) {
        return chatClient.prompt(query).call().content();
    }

    /**
     * 调用工具版 - function
     */
    @GetMapping("/call/tool-function")
    public String callToolFunction(@RequestParam(value = "query", defaultValue = "请告诉我现在北京时间几点了") String query) {
        return chatClient.prompt(query).toolNames("getCityTimeFunction").call().content();
    }

    /**
     * 调用工具版 - method
     */
    @GetMapping("/call/tool-method")
    public String callToolMethod(@RequestParam(value = "query", defaultValue = "请告诉我现在北京时间几点了") String query) {
        return chatClient.prompt(query).tools(new TimeTools()).call().content();
    }

    /**
     * call 调用工具版 - method - false
     */
    @GetMapping("/call/tool-method-false")
    public ChatResponse callToolMethodFalse(@RequestParam(value = "query", defaultValue = "请告诉我现在北京时间几点了") String query) {
        ChatClient.CallResponseSpec call = chatClient.prompt(query).tools(new TimeTools())
                .advisors(
                        a -> a.param(CONVERSATIONID, "yingzi")
                )
                .options(ToolCallingChatOptions.builder()
                        .internalToolExecutionEnabled(false)  // 禁用内部工具执行
                        .build()
                )
                .call();
        return call.chatResponse();
    }

    @GetMapping("/messages")
    public List<Message> messages(@RequestParam(value = "conversationid", defaultValue = "yingzi") String conversationId) {
        return messageWindowChatMemory.get(conversationId);
    }

}
效果

无工具版，大模型无法知道当前时间

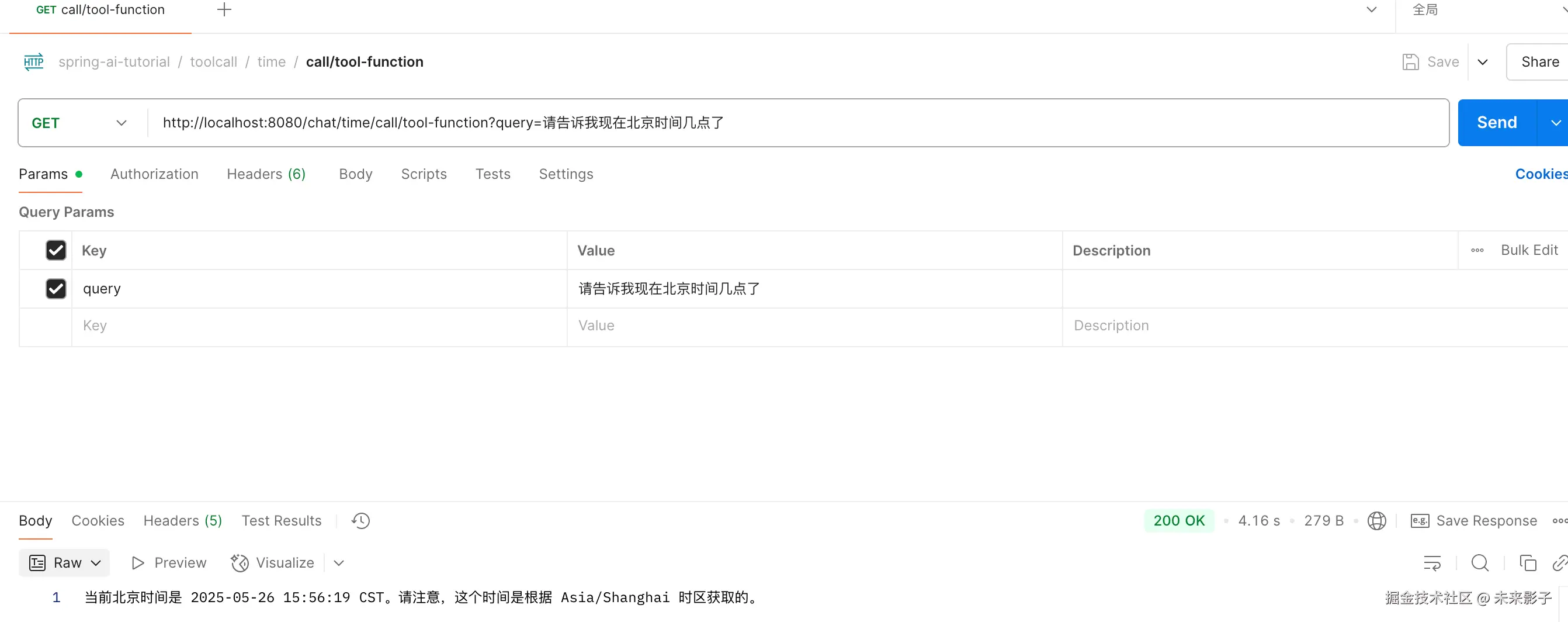

工具版—Function，通过自动注入对应的工具 Bean，实现获取时间

工具版—Method，通过 @Tool 注解指定工具 Bean，实现获取时间

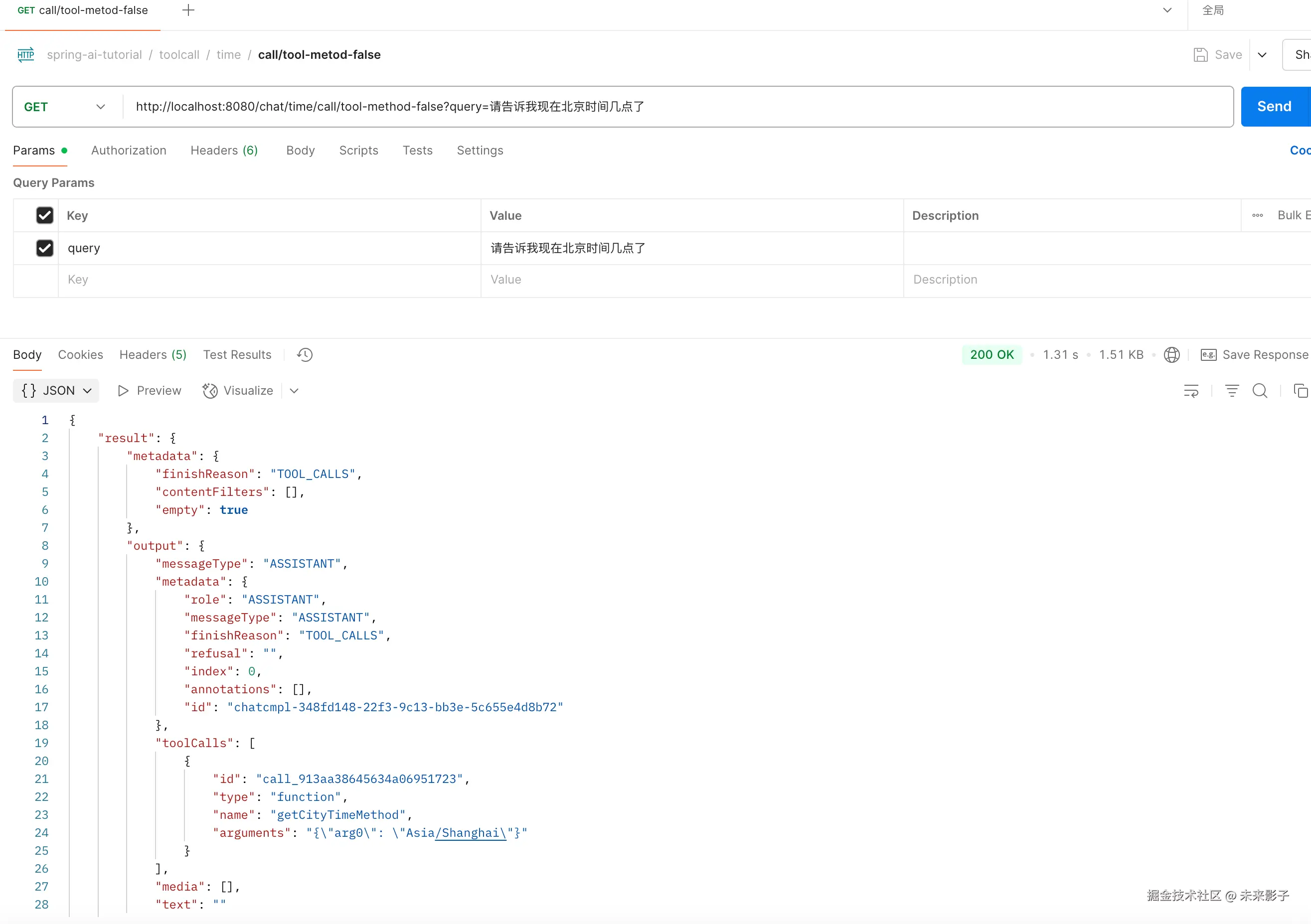

通过设置工具判断字段 internalToolExecutionEnabled=false（默认为 true），来手动控制工具执行

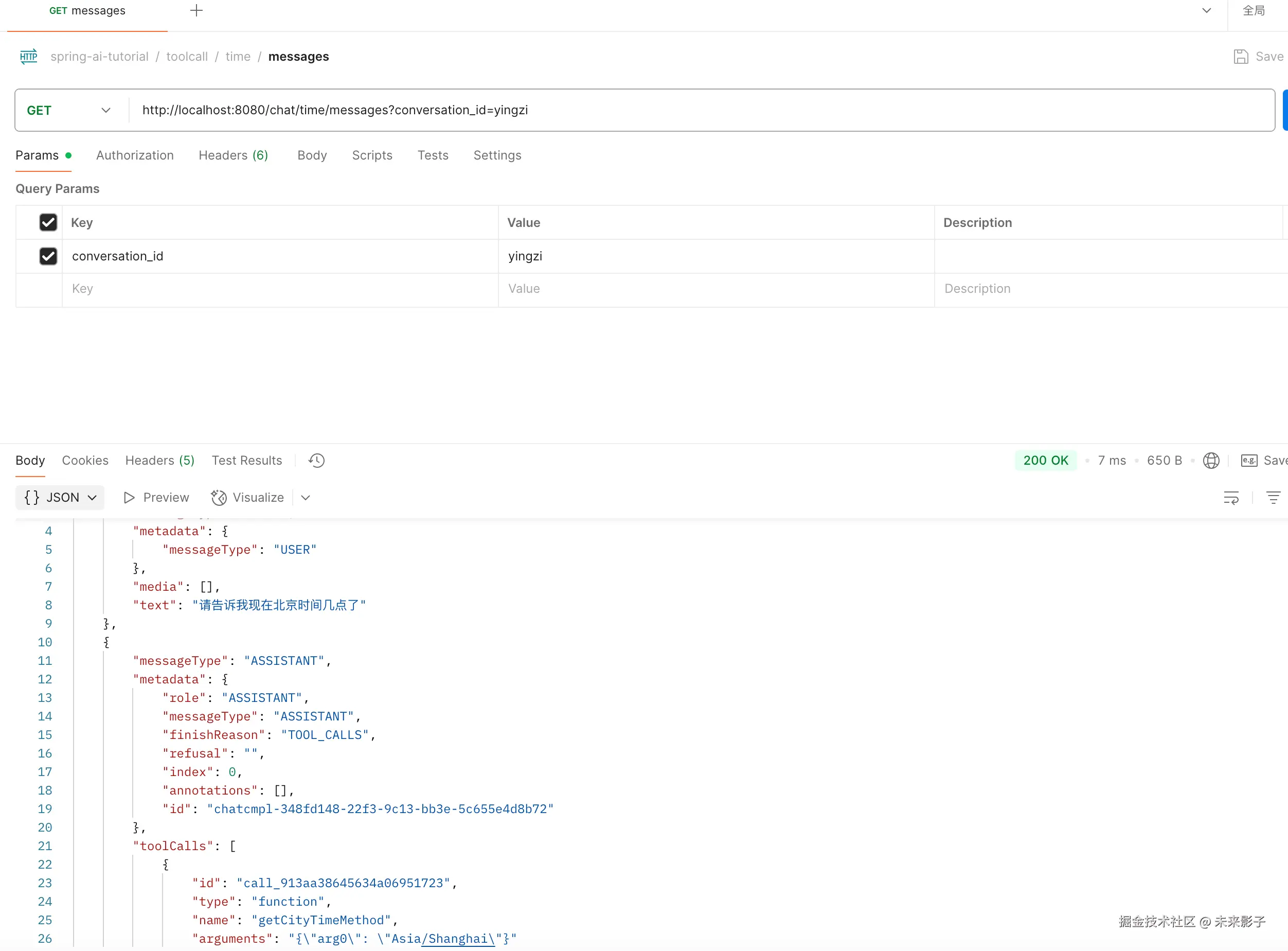

可结合历史消息记录，用来编写手动控制工具之后的逻辑

天气工具

WeatherUtils
import cn.hutool.extra.pinyin.PinyinUtil;

public class WeatherUtils {

    public static String preprocessLocation(String location) {
        if (containsChinese(location)) {
            return PinyinUtil.getPinyin(location, "");
        }
        return location;
    }

    public static boolean containsChinese(String str) {
        return str.matches(".*[\u4e00-\u9fa5].*");
    }
}
WeatherProperties
import org.springframework.boot.context.properties.ConfigurationProperties;

@ConfigurationProperties(prefix = "spring.ai.toolcalling.weather")
public class WeatherProperties {

    private String apiKey;

    public String getApiKey() {
        return apiKey;
    }

    public void setApiKey(String apiKey) {
        this.apiKey = apiKey;
    }

}
WeatherTools（Method 版）
package com.spring.ai.tutorial.toolcall.component.weather.method;

import com.fasterxml.jackson.core.type.TypeReference;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.spring.ai.tutorial.toolcall.component.weather.WeatherProperties;
import com.spring.ai.tutorial.toolcall.component.weather.WeatherUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.ai.tool.annotation.Tool;
import org.springframework.ai.tool.annotation.ToolParam;
import org.springframework.http.HttpHeaders;
import org.springframework.util.StringUtils;
import org.springframework.web.reactive.function.client.WebClient;
import org.springframework.web.util.UriComponentsBuilder;
import reactor.core.publisher.Mono;

import java.util.List;
import java.util.Map;

public class WeatherTools {

    private static final Logger logger = LoggerFactory.getLogger(WeatherTools.class);

    private static final String WEATHERAPIURL = "https://api.weatherapi.com/v1/forecast.json";

    private final WebClient webClient;

    private final ObjectMapper objectMapper = new ObjectMapper();

    public WeatherTools(WeatherProperties properties) {
        this.webClient = WebClient.builder()
                .defaultHeader(HttpHeaders.CONTENTTYPE, "application/x-www-form-urlencoded")
                .defaultHeader("key", properties.getApiKey())
                .build();
    }

    @Tool(description = "Use api.weather to get weather information.")
    public Response getWeatherServiceMethod(@ToolParam(description = "City name") String city,
                                            @ToolParam(description = "Number of days of weather forecast. Value ranges from 1 to 14") int days) {

        if (!StringUtils.hasText(city)) {
            logger.error("Invalid request: city is required.");
            return null;
        }
        String location = WeatherUtils.preprocessLocation(city);
        String url = UriComponentsBuilder.fromHttpUrl(WEATHERAPIURL)
                .queryParam("q", location)
                .queryParam("days", days)
                .toUriString();
        logger.info("url : {}", url);
        try {
            Mono<String> responseMono = webClient.get().uri(url).retrieve().bodyToMono(String.class);
            String jsonResponse = responseMono.block();
            assert jsonResponse != null;

            Response response = fromJson(objectMapper.readValue(jsonResponse, new TypeReference<Map<String, Object>>() {
            }));
            logger.info("Weather data fetched successfully for city: {}", response.city());
            return response;
        } catch (Exception e) {
            logger.error("Failed to fetch weather data: {}", e.getMessage());
            return null;
        }
    }

    public static Response fromJson(Map<String, Object> json) {
        Map<String, Object> location = (Map<String, Object>) json.get("location");
        Map<String, Object> current = (Map<String, Object>) json.get("current");
        Map<String, Object> forecast = (Map<String, Object>) json.get("forecast");
        List<Map<String, Object>> forecastDays = (List<Map<String, Object>>) forecast.get("forecastday");
        String city = (String) location.get("name");
        return new Response(city, current, forecastDays);
    }

    public record Response(String city, Map<String, Object> current, List<Map<String, Object>> forecastDays) {
    }

}
WeatherAutoConfiguration（Function 版）
import com.spring.ai.tutorial.toolcall.component.weather.WeatherProperties;
import org.springframework.boot.autoconfigure.condition.ConditionalOnClass;
import org.springframework.boot.autoconfigure.condition.ConditionalOnMissingBean;
import org.springframework.boot.autoconfigure.condition.ConditionalOnProperty;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Description;

@Configuration
@ConditionalOnClass(WeatherService.class)
@EnableConfigurationProperties(WeatherProperties.class)
@ConditionalOnProperty(prefix = "spring.ai.toolcalling.weather", name = "enabled", havingValue = "true")
public class WeatherAutoConfiguration {

    @Bean(name = "getWeatherFunction")
    @ConditionalOnMissingBean
    @Description("Use api.weather to get weather information.")
    public WeatherService getWeatherServiceFunction(WeatherProperties properties) {
        return new WeatherService(properties);
    }

}
WeatherService（Function 版）
import com.fasterxml.jackson.annotation.JsonClassDescription;
import com.fasterxml.jackson.annotation.JsonInclude;
import com.fasterxml.jackson.annotation.JsonProperty;
import com.fasterxml.jackson.annotation.JsonPropertyDescription;
import com.fasterxml.jackson.core.type.TypeReference;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.spring.ai.tutorial.toolcall.component.weather.WeatherProperties;
import com.spring.ai.tutorial.toolcall.component.weather.WeatherUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.http.HttpHeaders;
import org.springframework.util.StringUtils;
import org.springframework.web.reactive.function.client.WebClient;
import org.springframework.web.util.UriComponentsBuilder;
import reactor.core.publisher.Mono;

import java.util.List;
import java.util.Map;
import java.util.function.Function;

public class WeatherService implements Function<WeatherService.Request, WeatherService.Response> {

    private static final Logger logger = LoggerFactory.getLogger(WeatherService.class);

    private static final String WEATHERAPIURL = "https://api.weatherapi.com/v1/forecast.json";

    private final WebClient webClient;

    private final ObjectMapper objectMapper = new ObjectMapper();

    public WeatherService(WeatherProperties properties) {
        this.webClient = WebClient.builder()
                .defaultHeader(HttpHeaders.CONTENTTYPE, "application/x-www-form-urlencoded")
                .defaultHeader("key", properties.getApiKey())
                .build();
    }

    public static Response fromJson(Map<String, Object> json) {
        Map<String, Object> location = (Map<String, Object>) json.get("location");
        Map<String, Object> current = (Map<String, Object>) json.get("current");
        Map<String, Object> forecast = (Map<String, Object>) json.get("forecast");
        List<Map<String, Object>> forecastDays = (List<Map<String, Object>>) forecast.get("forecastday");
        String city = (String) location.get("name");
        return new Response(city, current, forecastDays);
    }

    @Override
    public Response apply(Request request) {
        if (request == null || !StringUtils.hasText(request.city())) {
            logger.error("Invalid request: city is required.");
            return null;
        }
        String location = WeatherUtils.preprocessLocation(request.city());
        String url = UriComponentsBuilder.fromHttpUrl(WEATHERAPIURL)
                .queryParam("q", location)
                .queryParam("days", request.days())
                .toUriString();
        logger.info("url : {}", url);
        try {
            Mono<String> responseMono = webClient.get().uri(url).retrieve().bodyToMono(String.class);
            String jsonResponse = responseMono.block();
            assert jsonResponse != null;

            Response response = fromJson(objectMapper.readValue(jsonResponse, new TypeReference<Map<String, Object>>() {
            }));
            logger.info("Weather data fetched successfully for city: {}", response.city());
            return response;
        } catch (Exception e) {
            logger.error("Failed to fetch weather data: {}", e.getMessage());
            return null;
        }
    }

    @JsonInclude(JsonInclude.Include.NONNULL)
    @JsonClassDescription("Weather Service API request")
    public record Request(
            @JsonProperty(required = true, value = "city") @JsonPropertyDescription("city name") String city,

            @JsonProperty(required = true,
                    value = "days") @JsonPropertyDescription("Number of days of weather forecast. Value ranges from 1 to 14") int days) {
    }

    public record Response(
            String city,
            Map<String, Object> current,
            List<Map<String, Object>> forecastDays) {
    }

}
WeatherController
package com.spring.ai.tutorial.toolcall.controller;

import com.spring.ai.tutorial.toolcall.component.weather.WeatherProperties;
import com.spring.ai.tutorial.toolcall.component.weather.method.WeatherTools;
import org.springframework.ai.chat.client.ChatClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("/chat/weather")
public class WeatherController {

    private final ChatClient chatClient;

    private final WeatherProperties weatherProperties;


    public WeatherController(ChatClient.Builder chatClientBuilder, WeatherProperties weatherProperties) {
        this.chatClient = chatClientBuilder.build();
        this.weatherProperties = weatherProperties;
    }

    /**
     * 无工具版
     */
    @GetMapping("/call")
    public String call(@RequestParam(value = "query", defaultValue = "请告诉我北京1天以后的天气") String query) {
        return chatClient.prompt(query).call().content();
    }

    /**
     * 调用工具版 - function
     */
    @GetMapping("/call/tool-function")
    public String callToolFunction(@RequestParam(value = "query", defaultValue = "请告诉我北京1天以后的天气") String query) {
        return chatClient.prompt(query).toolNames("getWeatherFunction").call().content();
    }

    /**
     * 调用工具版 - method
     */
    @GetMapping("/call/tool-method")
    public String callToolMethod(@RequestParam(value = "query", defaultValue = "请告诉我北京1天以后的天气") String query) {
        return chatClient.prompt(query).tools(new WeatherTools(weatherProperties)).call().content();
    }
}
效果

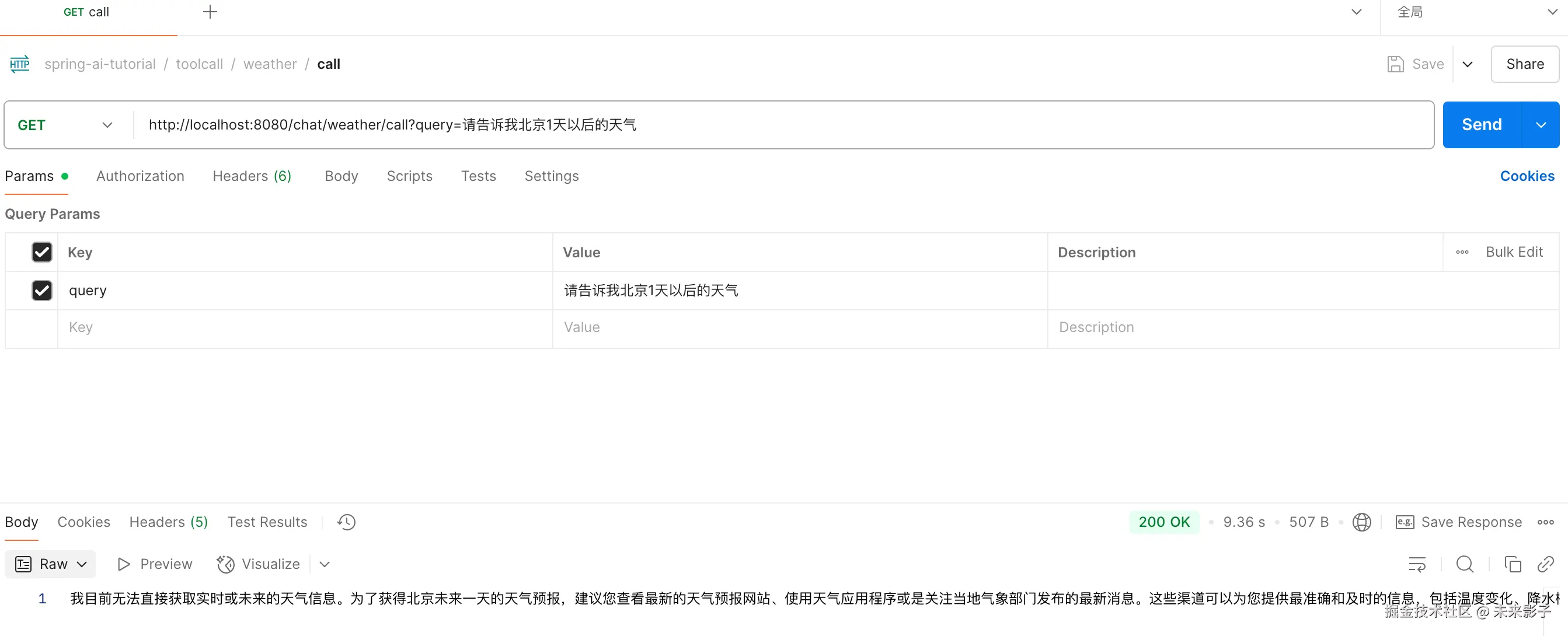

无工具版，大模型无法知道天气情况

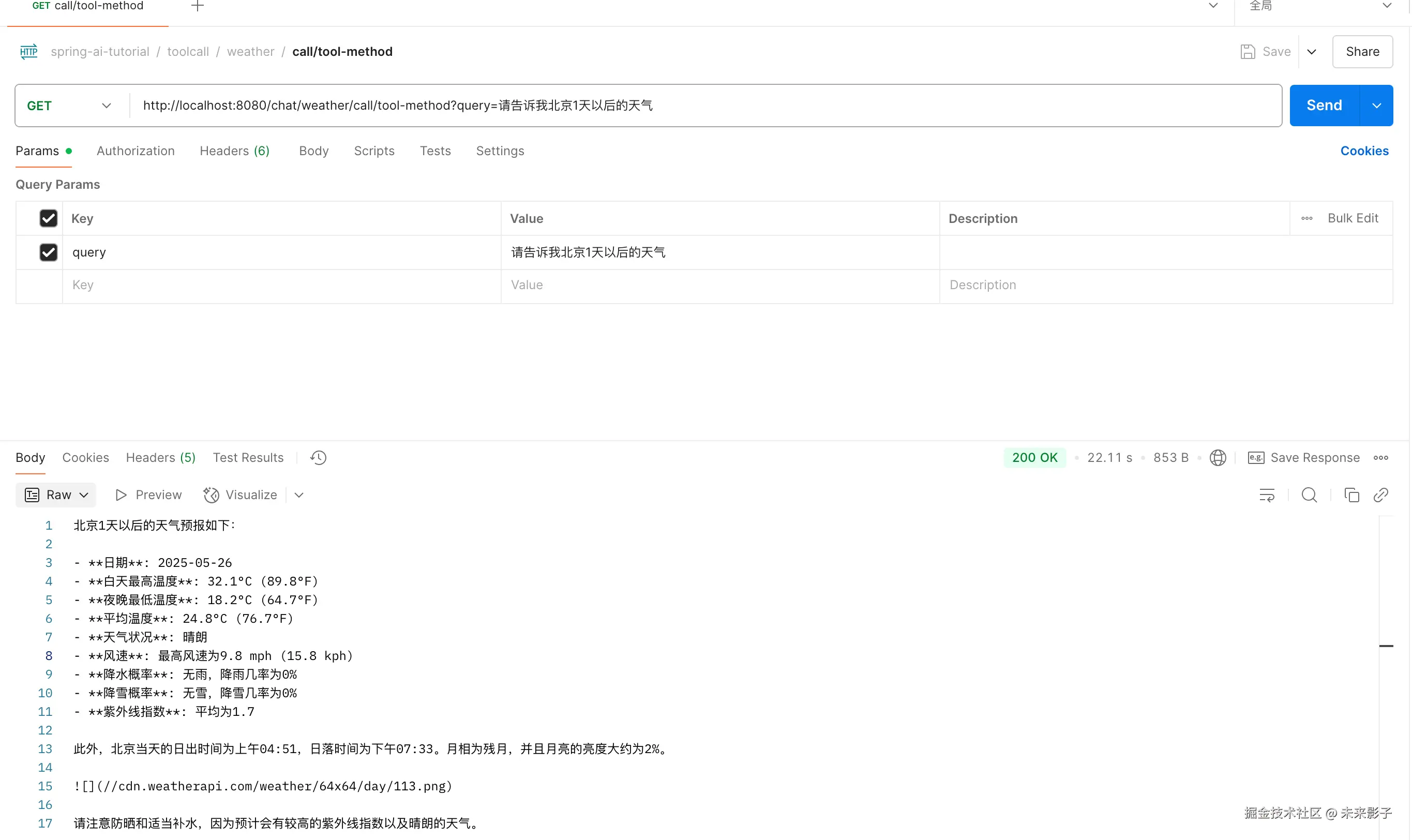

工具版—Function，通过自动注入对应的工具 Bean，实现获取天气

工具版—Function，通过 @Tool 注解指定工具 Bean，实现获取天气

avatar
文章
阅读
粉丝
