Fract

Task

Create a shader program that divides the normalized coordinate range of [0, 1] into 10 equal intervals across the entire width of the texture. Each interval should be 0.1 of the total screen width. The left half of each interval should be black, and the right half should be red. As a result, the program should produce a sequence of alternating black and red intervals across the entire width of the texture.

创建一个着色器程序，采用[0,1]之间的标准化设备坐标，分成10等分，每份的宽度大小相等，都是0.1的宽度，每份的都是左边一半是黑色，右边是红色，一直这样交替出现。

Requirements

The shader should avoid using branching or conditional statements in its code, and instead rely on the fract and step functions to determine the color of each pixel.

着色器应避免在其代码中使用分支或条件语句，而是依靠fract和step函数来确定每个像素的颜色。

Theory

fract函数用来处理浮点数的小数部分。该函数接受一个参数，可以是float、vec2、vec3或vec4， 并返回[0, 1]之间的值。

示例用法

float x = 3.75;
float fractionalPart = fract(x); // will be 0.75

vec2 v = vec2(1.25, 2.75);
vec2 fractionalParts = fract(v); // will be vec2(0.25, 0.75)

Answer

uniform vec2 iResolution;

void main() {
  // Normalized pixel coordinates (from 0 to 1)
  vec2 uv = gl_FragCoord.xy / iResolution.xy;

  float x = fract(uv.x * 10.0); // 主要是判断小数的第二位【0-1】

   gl_FragColor = vec4(step(0.5, x), 0.0, 0.0, 1.0);
}

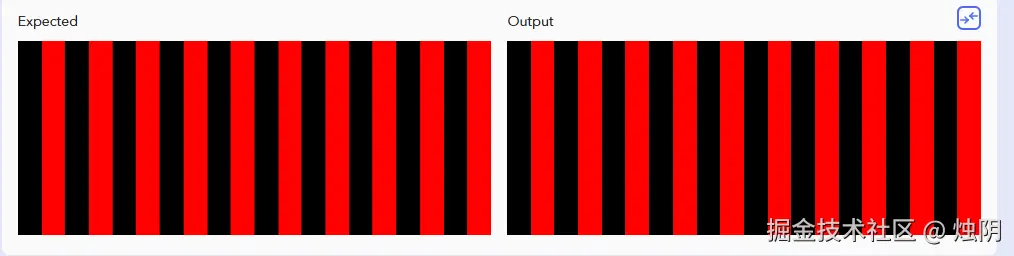

效果

练习

Fract
