前言:这两个球在干嘛?
各位前端艺术家们,今天我们要用纯CSS画一对神奇的小球球。左边那个看起来人畜无害,右边那个却在疯狂挑眉——这简直就是CSS版的"你瞅啥?瞅你咋地!"(笑)
- HTML结构设计
- CSS选择器精髓
- display属性奥秘
- 定位(position)玄学
完整代码见文章末,请结合完整代码食用
一些需要掌握的知识:
- 定位
- position 定位
static 没有定位能力
relative 相对定位
- 子元素想对它定位
- 相对于自身的位置定位
absolute 绝对定位
absolute 找到离它(管着它的)最近的position 不为static 的元素定位
absolute 找到离他最近的position 不为static 的属性定位
直到body 为止
- display属性
display 切换行内块级的格式化上下文能力
inline-block 行内块级 设置宽高 在一行
inline 行内 不可以设置宽高
block 块级 可以设置宽高 独占一行
- position 定位
static 没有定位能力
relative 相对定位

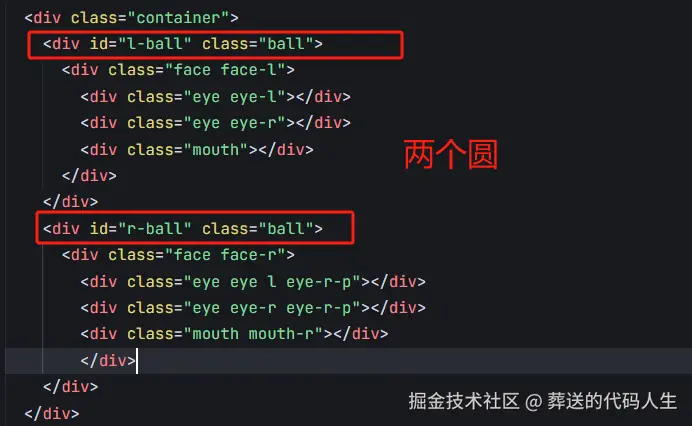

一、HTML结构:用Emmet语法光速编码
首先我们来构建基础结构:
html
<div class="container">
<!-- 左边球球 -->
<div id="l-ball" class="ball">/*圆形的脸*/
<div class="face face-l">/*两只眼睛*/
<div class="eye eye-l"></div>
<div class="eye eye-r"></div>
<div class="mouth"></div>/*嘴*/
</div>
</div>
<!-- 右边球球(那个不安分的) -->
<div id="r-ball" class="ball">
<div class="face face-r">
<div class="eye eye l eye-r-p"></div>
<div class="eye eye-r eye-r-p"></div>
<div class="mouth mouth-r"></div>
</div>
</div>
</div>
Emmet语法小课堂:
div#l-ball.ball→<div id="l-ball" class="ball"></div>.container>#l-ball.ball+#r-ball.ball→ 生成有父子关系的结构>子选择器,+兄弟选择器
二、CSS核心技巧揭秘
1. 居中大法好
.container{
position: absolute;/*定位*/
top: 50%;
left: 50%;
width: 238px;
height: 238px;
background-color: #333637;
transform: translate(-50%,-50%);/* 这才是真·居中 */
}
这招比margin: 0 auto厉害多了,连垂直居中都能搞定!
2. 画圆不靠美术功底
.ball {
width: 100px;
height: 100px;
border: 8px solid black;
border-radius: 50%;/* 变圆魔法 */
display: inline-block;/*让两个园在一行*/
background: white;
position: relative;
margin: 0 10px;
}
.face {
width: 70px;
height: 30px;
position: absolute;
right: 0;
top: 30px;
}

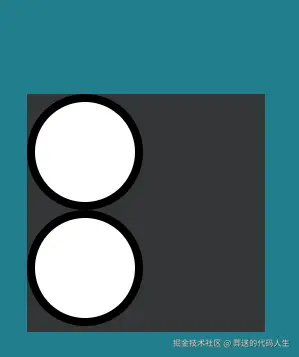

display: inline-block;的重要性,如果没有则不在一行:

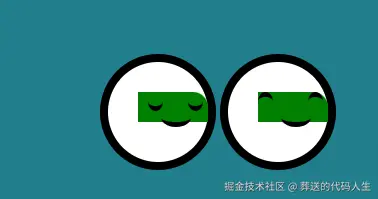

3.在脸上加一些东西
比如随意加点东西
.face
{
width: 70px;
height: 30px;
position: absolute;/*绝对定位,子元素相对它定位*/;
right: 0;
top: 30px;
border-top-right-radius: 15px;
background-color: green;
}

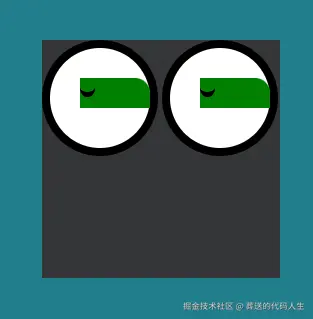

加上眼睛
.eye
{
width: 15px;
height: 14px;
border-radius: 50%;
border-bottom: 5px solid black;
position: absolute;/*绝对定位,子元素相对它定位*/;
/*圆角*/
}
化一只眼为两只
嘴巴
.mouth{
width: 30px;
height: 14px;
border-radius: 50%;
border-bottom: 5px solid black;
position: absolute;/*绝对定位,子元素相对它定位*/;
bottom: -5px;
transform: translateX(3px);
left: 0;
right: 0;
margin: auto;
}
4.眼睛弯曲的秘密
.eye-r-p{
border-top: 5px solid black;
border-bottom: 0px;
}
右边球球通过这个类实现了"挑眉"效果,CSS界的表情管理大师!
三、优化我们的画面

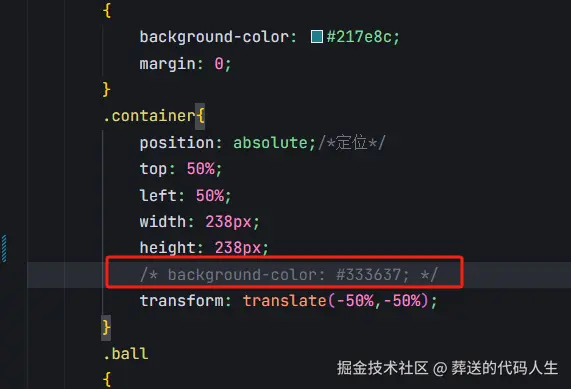

/* background-color: #333637; transform: translate(-50%,-50%); */是去掉灰框让我们的图案在页面上更和谐

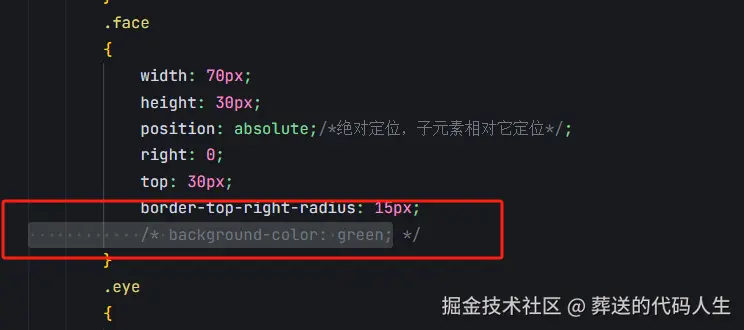

去掉脸上的绿框
四、完整代码优化版
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Document</title>
<style>
body
{
background-color: #217e8c;
margin: 0;
}
.container{
position: absolute;/*定位*/
top: 50%;
left: 50%;
width: 238px;
height: 238px;
/* background-color: #333637;
transform: translate(-50%,-50%); */
}
.ball
{
width: 100px;
height: 100px;
border: 8px solid black;
border-radius: 50%;
display: inline-block; /* 行内块级 */
background: white;
vertical-align: top;
position: relative;/*相对定位,子元素相对它定位*/;
}
.face
{
width: 70px;
height: 30px;
position: absolute;/*绝对定位,子元素相对它定位*/;
right: 0;
top: 30px;
border-top-right-radius: 15px;
/* background-color: green; */
}
.eye
{
width: 15px;
height: 14px;
border-radius: 50%;
border-bottom: 5px solid black;
position: absolute;/*绝对定位,子元素相对它定位*/;
/*圆角*/
}
.eye-l
{
left: 10px;
}
.eye-r
{
right: 5px;
}
.mouth{
width: 30px;
height: 14px;
border-radius: 50%;
border-bottom: 5px solid black;
position: absolute;/*绝对定位,子元素相对它定位*/;
bottom: -5px;
transform: translateX(3px);
left: 0;
right: 0;
margin: auto;
}
.eye-r-p{
border-top: 5px solid black;
border-bottom: 0px;
}
</style>
</head>
<body>
<div class="container">
<div id="l-ball" class="ball">
<div class="face face-l">
<div class="eye eye-l"></div>
<div class="eye eye-r"></div>
<div class="mouth"></div>
</div>
</div>
<div id="r-ball" class="ball">
<div class="face face-r">
<div class="eye eye l eye-r-p"></div>
<div class="eye eye-r eye-r-p"></div>
<div class="mouth mouth-r"></div>
</div>
</div>
</div>
</body>
</html>

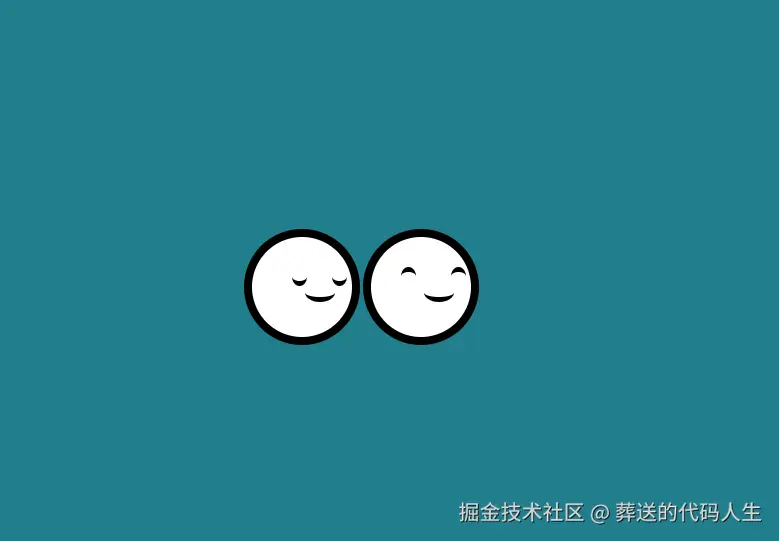

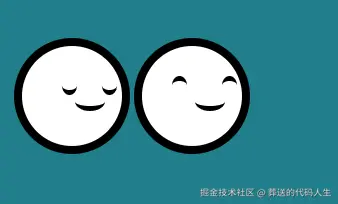

结果演示
五、知识点总结
| 技术点 | 应用场景 | 幽默解读 |
|---|---|---|
| 绝对定位 | 元素精准定位 | CSS版的"我的地盘听我的" |
| border妙用 | 画眼睛眉毛 | 一根border走天下 |
| transform | 居中/动画 | CSS的变形金刚 |
| 嵌套结构 | 组织复杂元素 | 俄罗斯套娃式编程 |
🚀 下期预告:《用CSS让这两个球球谈恋爱》
(到底要让它们kiss还是打架?评论区说了算!)
