FreeRadius+H3C交换机802.1X实现认证授权

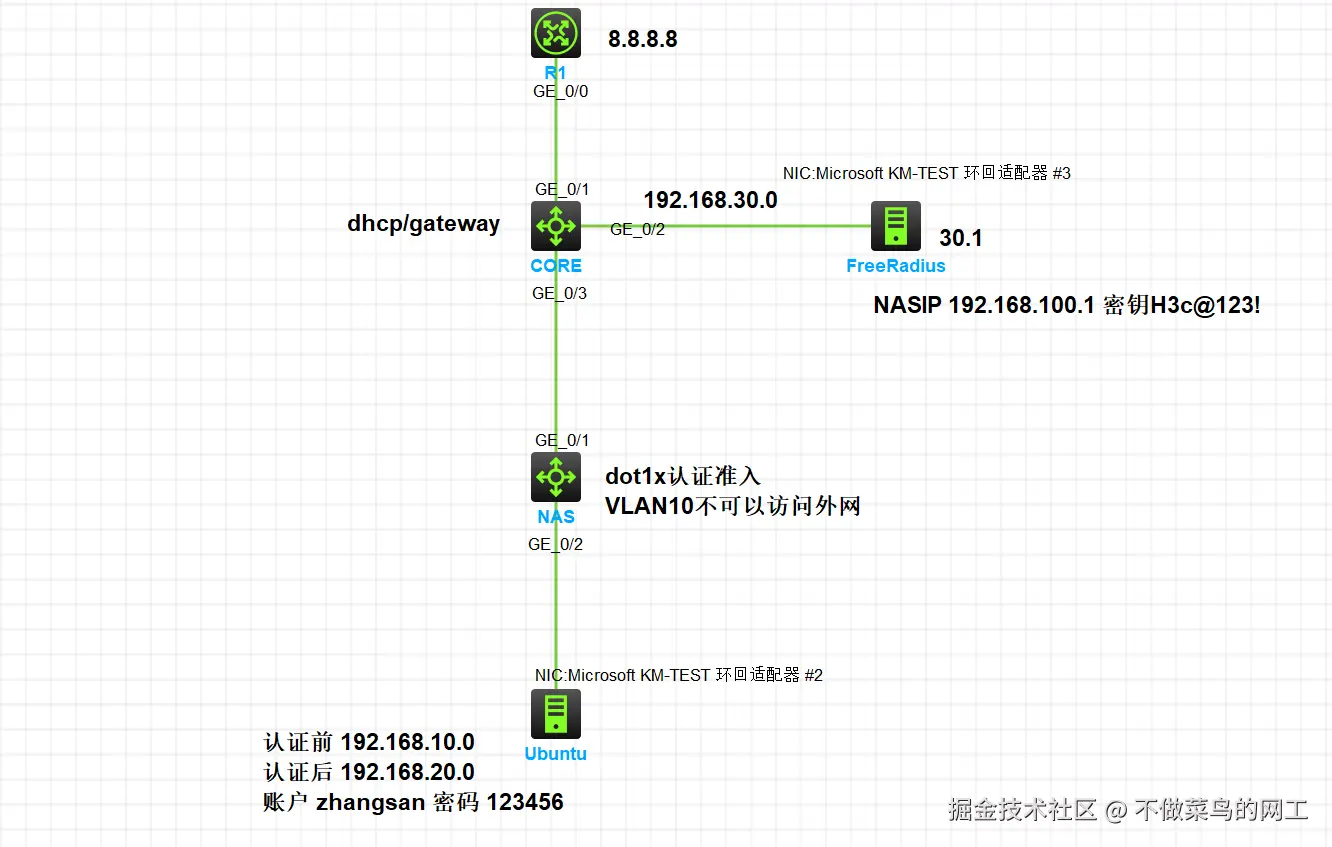

网络拓扑

CORE配置

vlan 10 20 30 100

interface GigabitEthernet1/0/2
 port access vlan 30
 stp edged-port

interface GigabitEthernet1/0/3
 port link-type trunk
 port trunk permit vlan 10 20 100

// 配置dhcp
dhcp enable
dhcp server ip-pool VLAN10
 gateway-list 192.168.10.254
 network 192.168.10.0 mask 255.255.255.0
 forbidden-ip 192.168.10.254

dhcp server ip-pool VLAN20
 gateway-list 192.168.20.254
 network 192.168.20.0 mask 255.255.255.0
 forbidden-ip 192.168.20.254

dhcp server ip-pool VLAN30
 gateway-list 192.168.30.254
 network 192.168.30.0 mask 255.255.255.0
 forbidden-ip 192.168.30.254

int vlan 10
 ip add 192.168.10.254 24
int vlan 20
 ip add 192.168.20.254 24
int vlan 30
 ip add 192.168.30.254 24
int vlan 100
 ip add 192.168.100.1 24

NAS网络配置

vlan 10 20 100

interface GigabitEthernet1/0/1
 port link-type trunk
 port trunk permit vlan 10 20 100

interface GigabitEthernet1/0/2
 port link-type hybrid
 port hybrid vlan 1 10 20 untagged
 port hybrid pvid vlan 10
 stp edged-port

interface Vlan-interface100
 ip address 192.168.100.2 255.255.255.0

ip route-static 0.0.0.0 0 192.168.100.1

NAS关键配置

dot1x
dot1x authentication-method eap  // 采用中继的方式 默认chap终结 中继可减轻交换机压力

radius scheme beijing
 primary authentication 192.168.30.1 key simple H3c@123!  // 密钥需与认证服务器一致
 primary accounting 192.168.30.1 key simple H3c@123!
 nas-ip 192.168.100.2
 user-name-format without-domain    // 不携带域名

domain beijing
 authentication lan-access radius-scheme beijing  // 有线网络认证关联模板  (local本地登入)
 authorization lan-access radius-scheme beijing   // 授权
 accounting lan-access radius-scheme beijing      // 计费

int g1/0/2   // 下联口调用
 dot1x // 接口开启
 dot1x port-method macbased  // mac认证
 dot1x mandatory-domain beijing  // 调用域名模板

FreeRadius配置

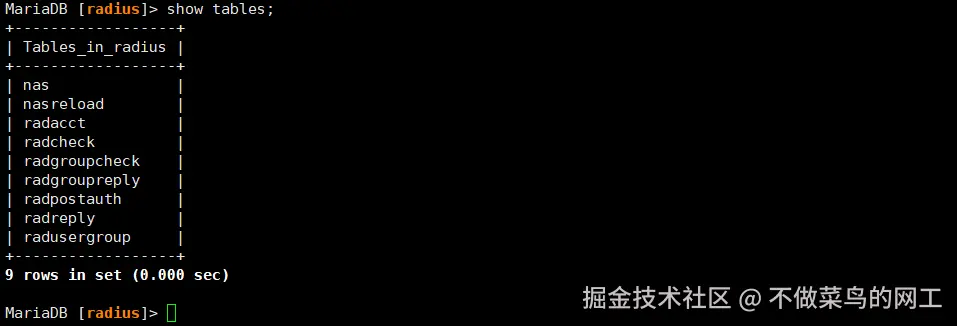

mysql -u root -p

use radius;

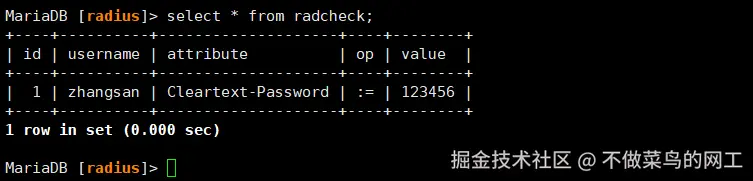

// 创建用户
INSERT INTO radcheck (id,username,attribute,op,VALUE) VALUES ('1','zhangsan','Cleartext-Password',':=','123456');

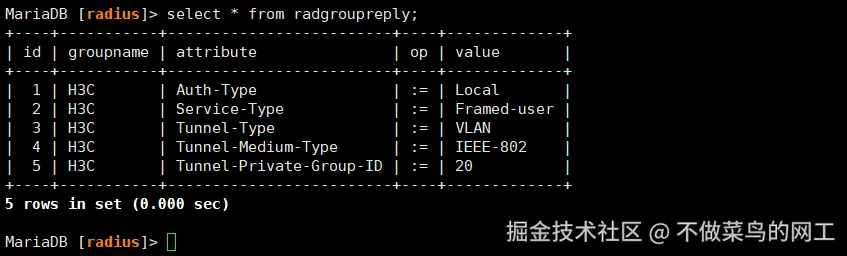

// 配置用户组策略
INSERT INTO radgroupreply (groupname,attribute,op,VALUE) VALUES ('H3C','Auth-Type',':=','Local');
INSERT INTO radgroupreply (groupname,attribute,op,VALUE) VALUES ('H3C','Service-Type',':=','Framed-user');
INSERT INTO radgroupreply (groupname,attribute,op,VALUE) VALUES ('H3C','Tunnel-Type',':=','VLAN');
INSERT INTO radgroupreply (groupname,attribute,op,VALUE) VALUES ('H3C','Tunnel-Medium-Type',':=','IEEE-802');
INSERT INTO radgroupreply (groupname,attribute,op,VALUE) VALUES ('H3C','Tunnel-Private-Group-ID',':=','20');

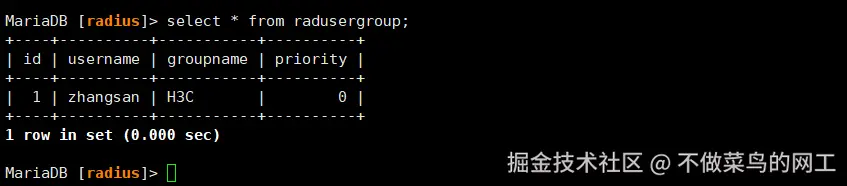

// 将用户zhangsan绑定到H3C用户组
INSERT INTO radusergroup (username,groupname,priority) VALUES ('zhangsan','H3C','0');

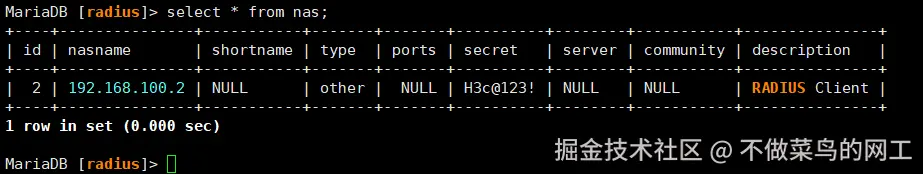

// 创建NAS
INSERT INTO nas (nasname, type, secret) VALUES ('192.168.100.2', 'other', 'H3c@123!');

如何删除条目

DELETE FROM nas WHERE id = 1;

如何去调试?

radiusd -X

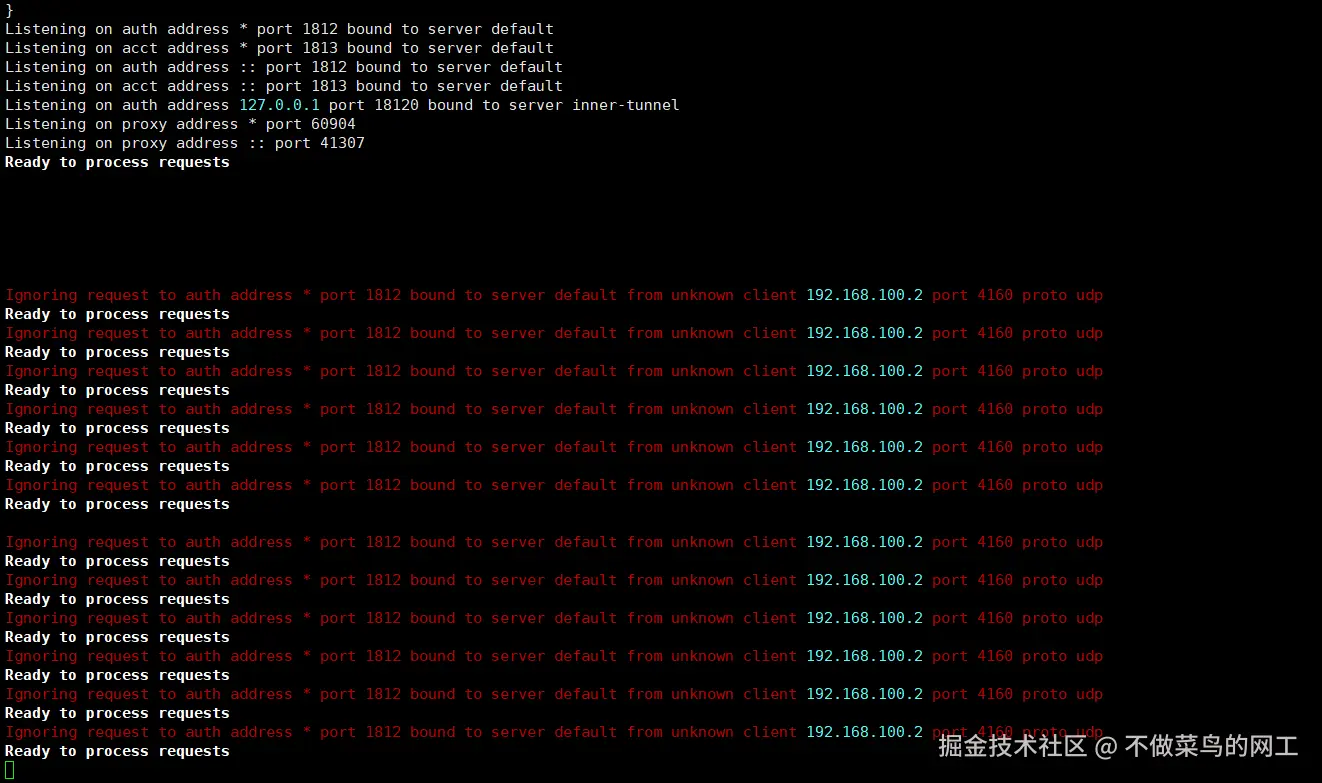

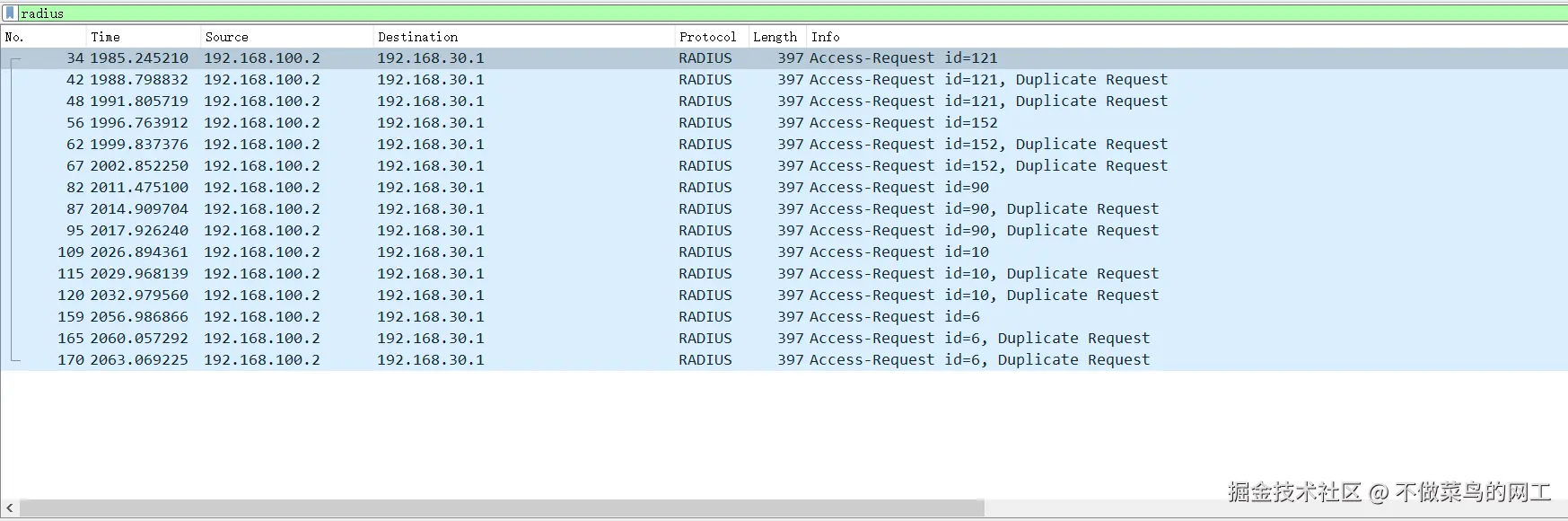

• 此处代表NAS未存在数据库中

解决NAS地址不存在的问题

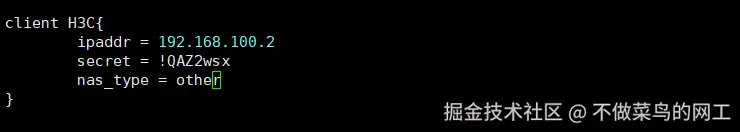

1. conf文件添加地址

// 在文件末尾添加NAS

vim /etc/raddb/clients.conf

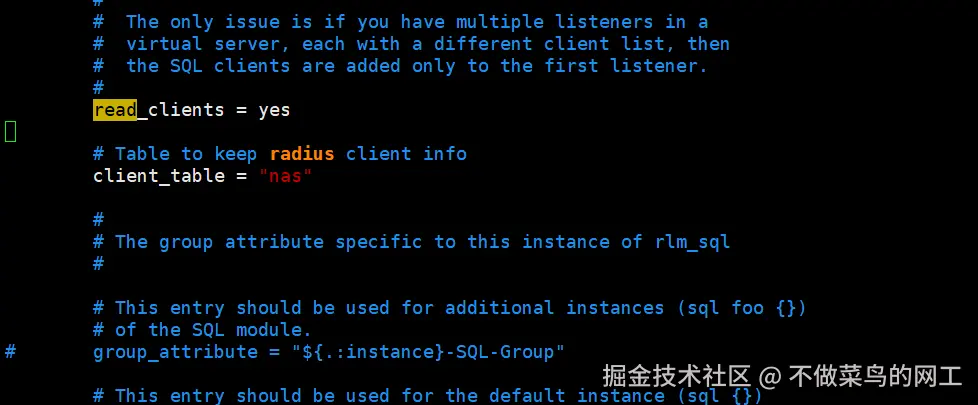

2. 修改sql文件

vim /etc/raddb/mods-enabled/sql

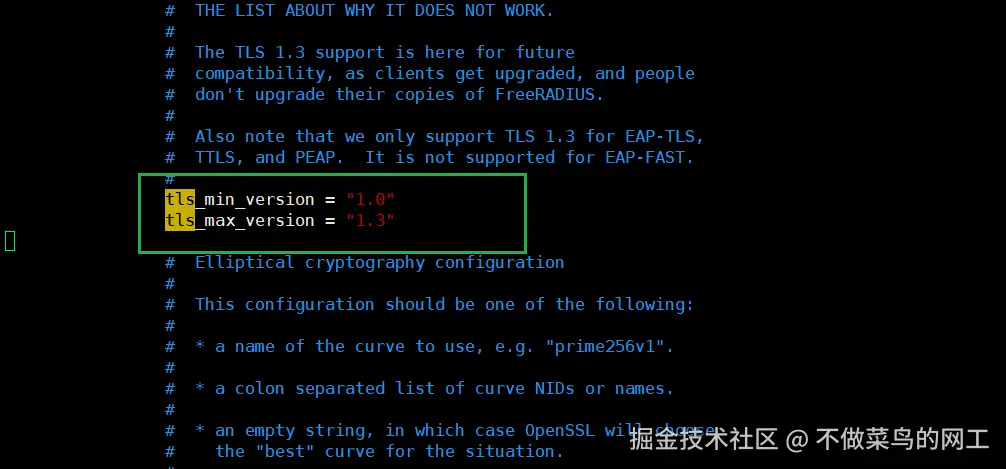

解决TLS不匹配问题

vim /etc/raddb/mods-enabled/eap

systemctl restart radiusd.service
systemctl restart mariadb.service

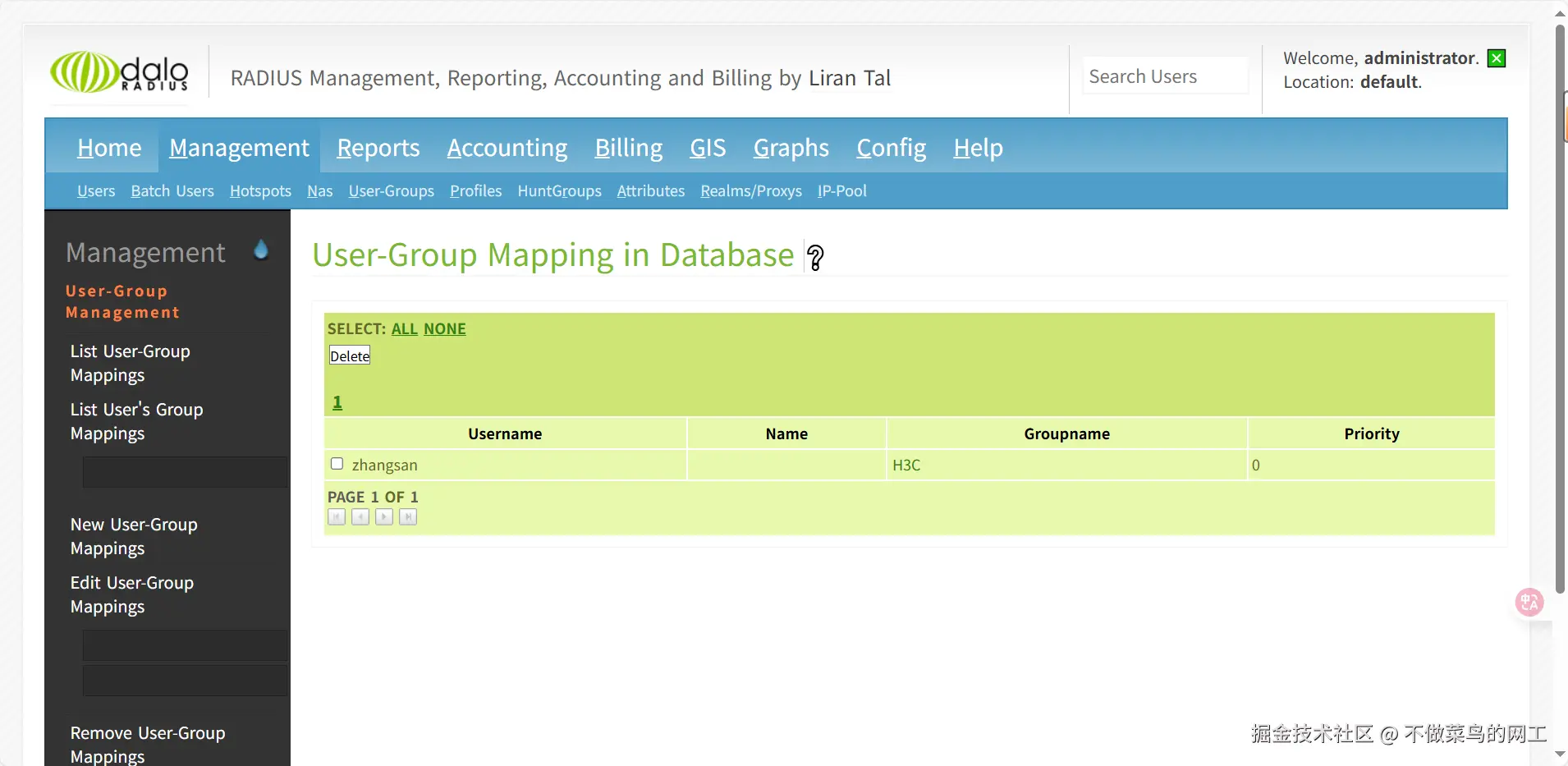

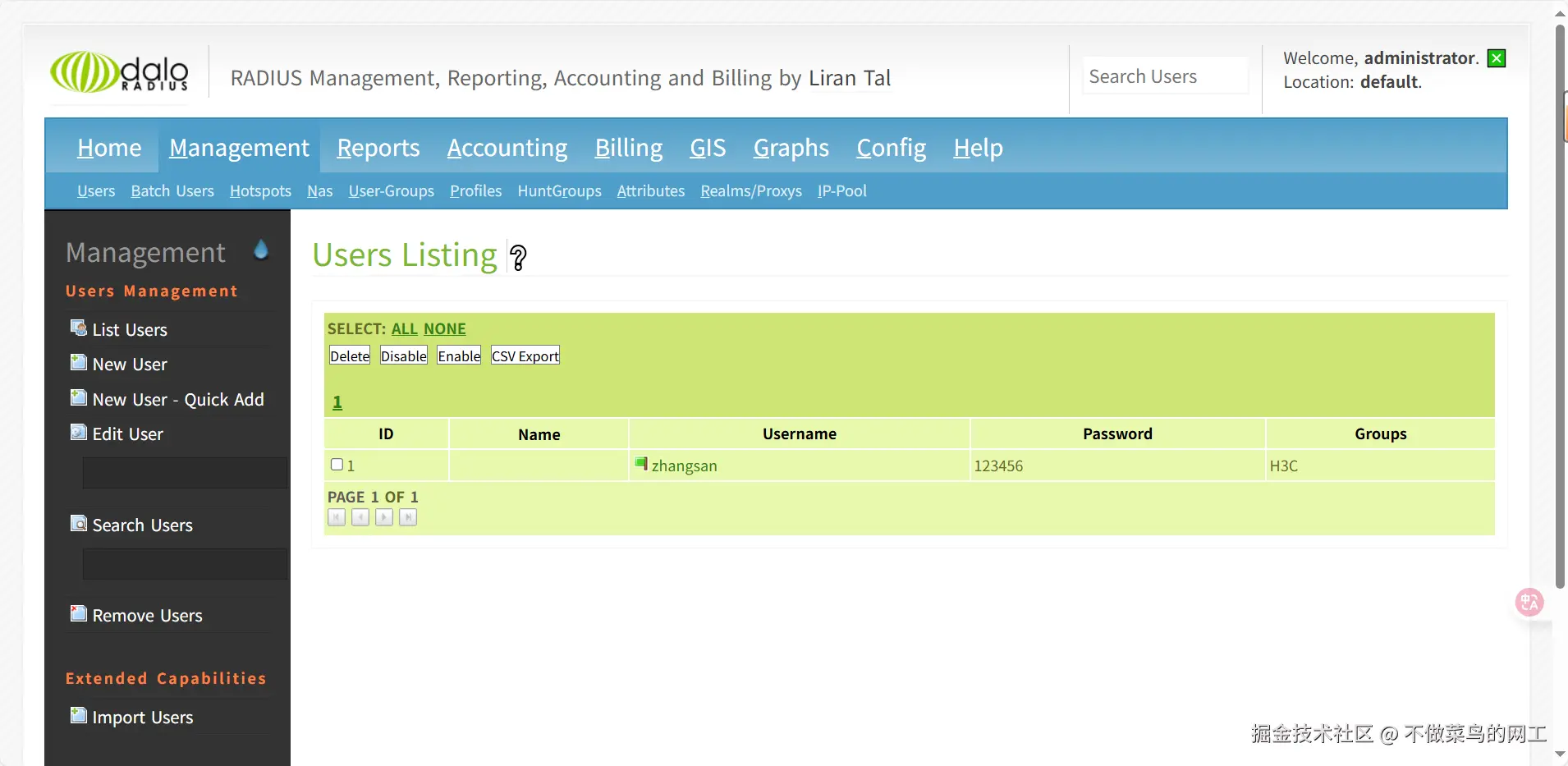

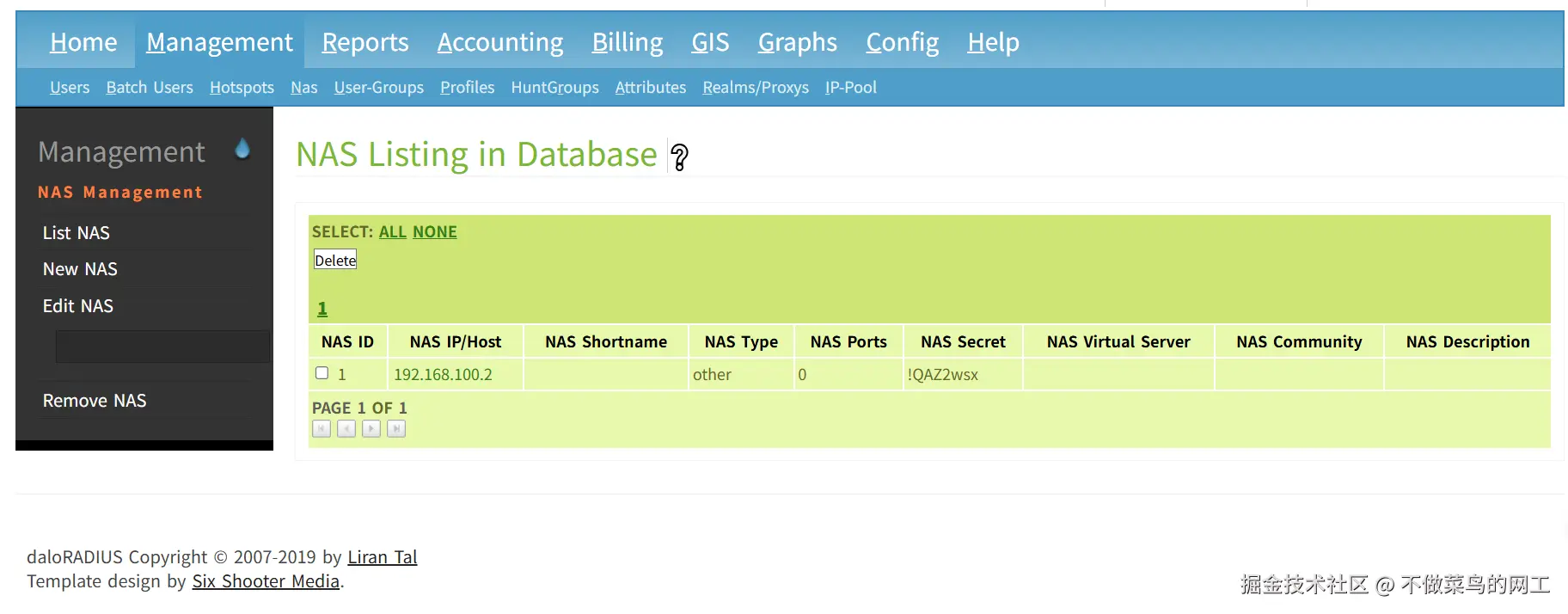

WEB效果

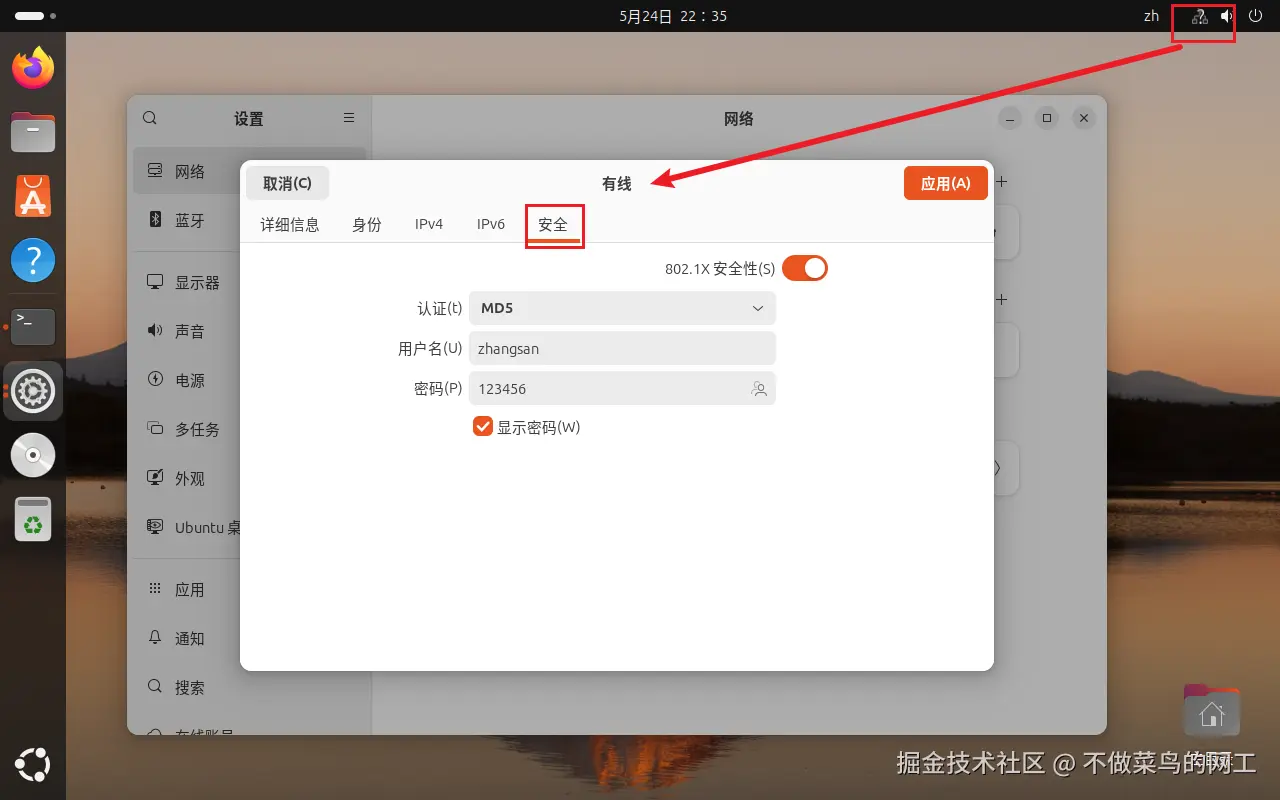

Ubuntu系统登入操作

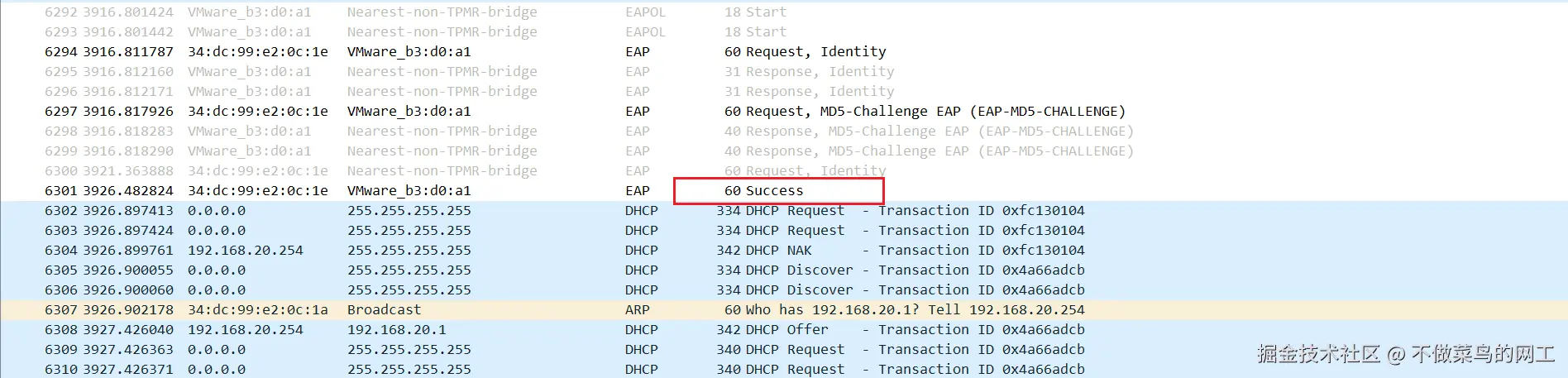

最终测试效果

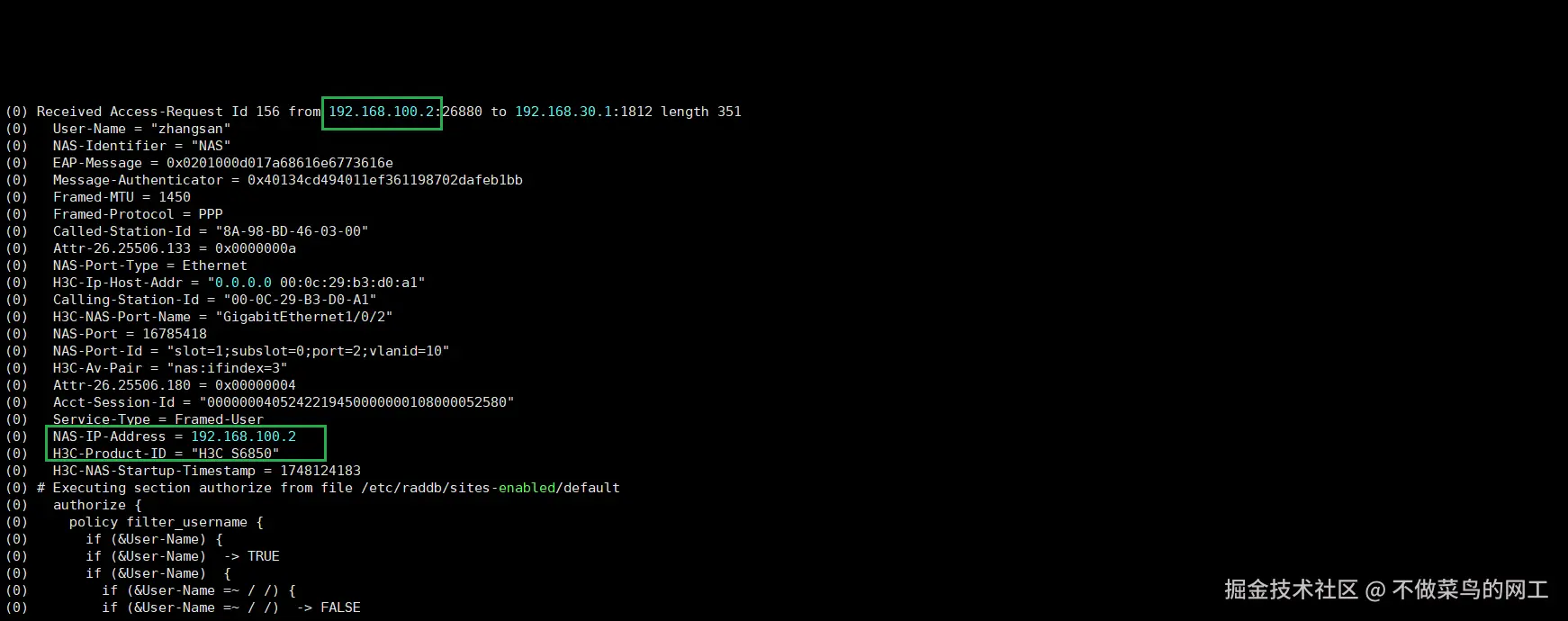

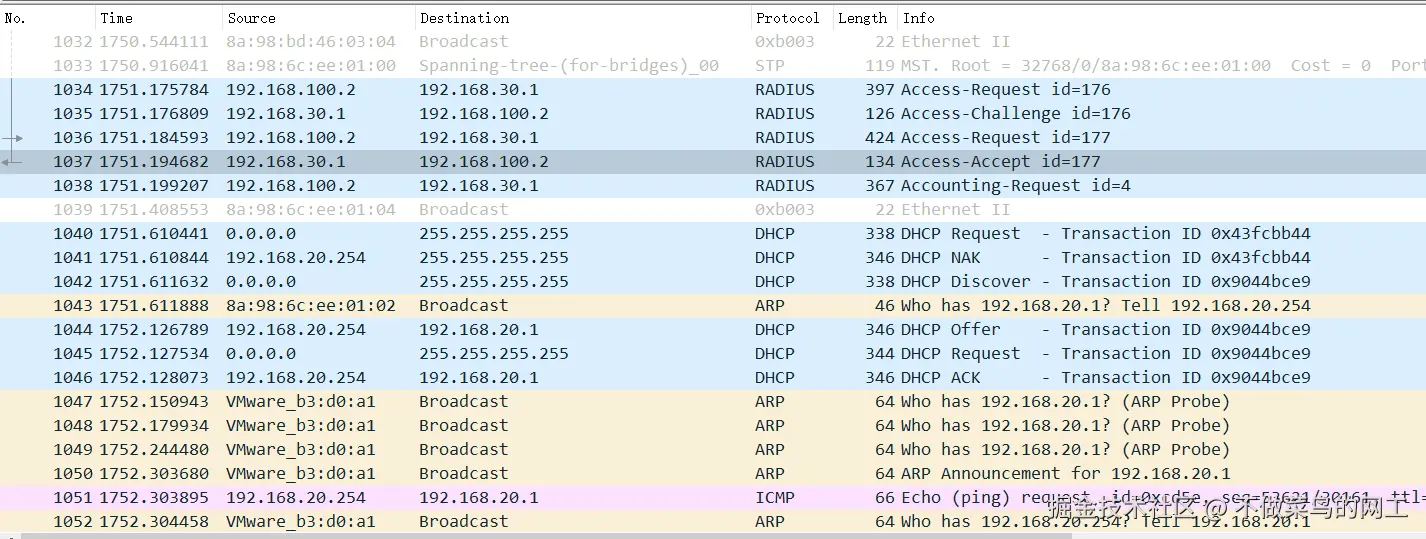

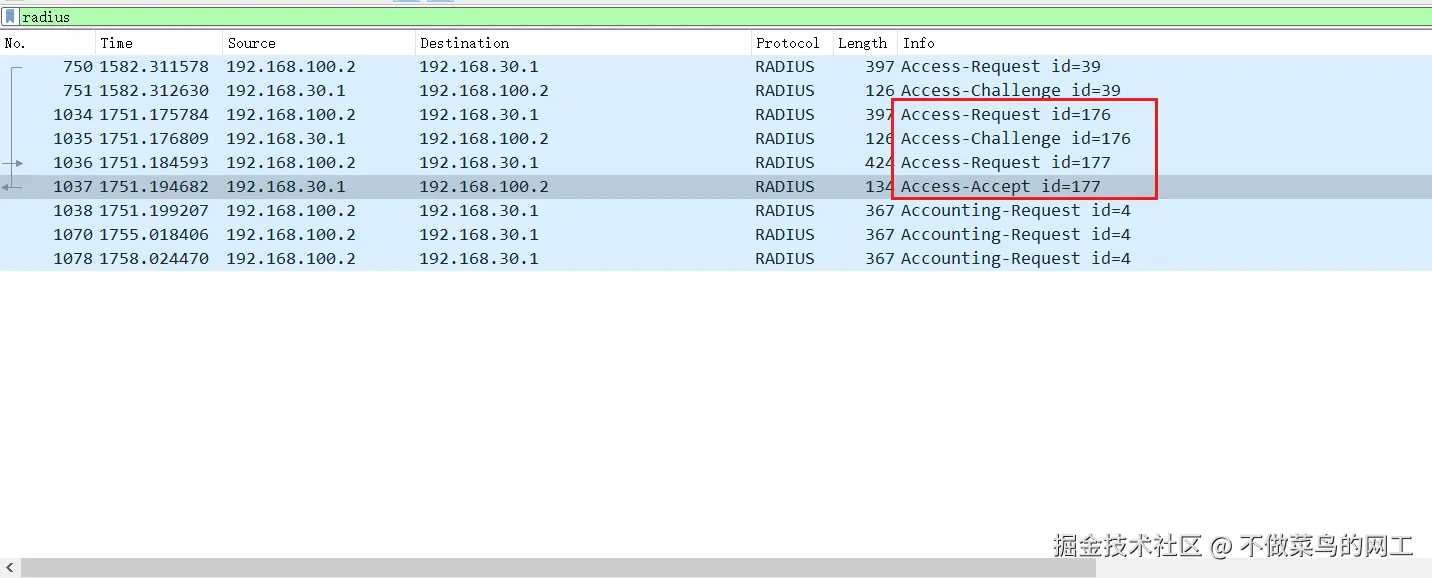

• 服务器端监听到报文

• 报文 accept报文代表认证成功

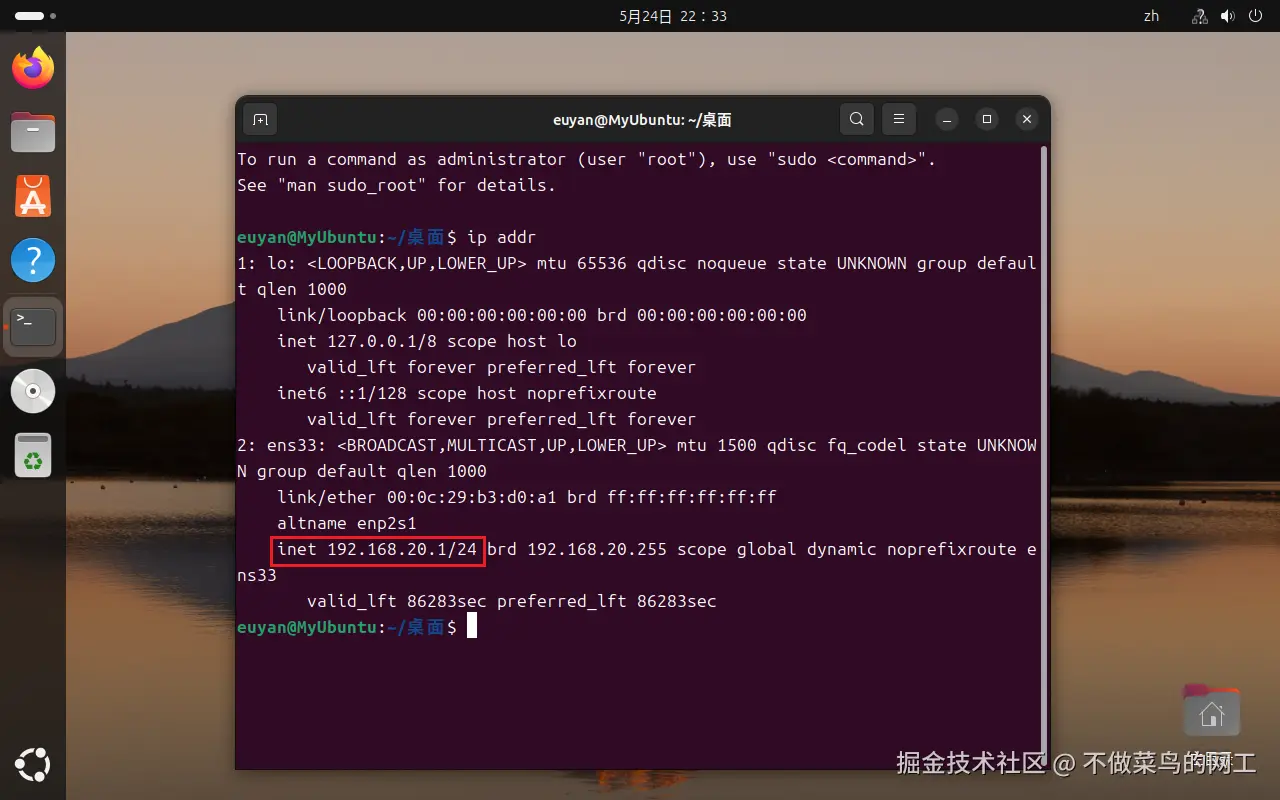

• IP地址由192.168.10.1切换到192.168.20.1

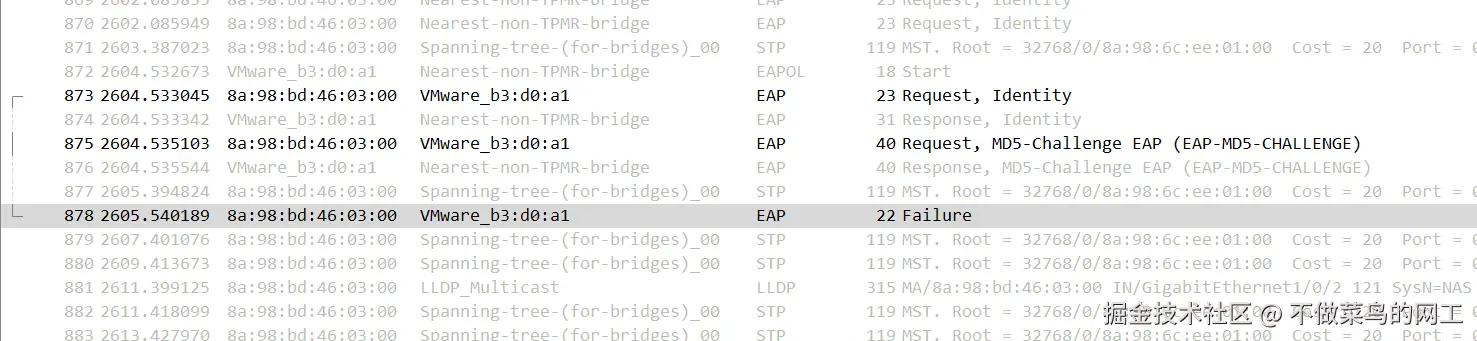

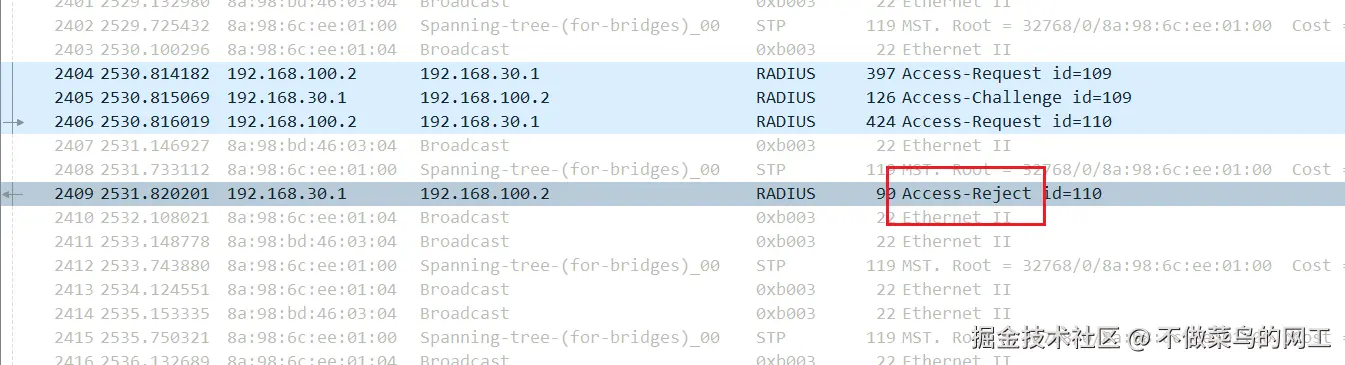

• 错误密码则认证失败

• 交换机向客户端发送认证失败

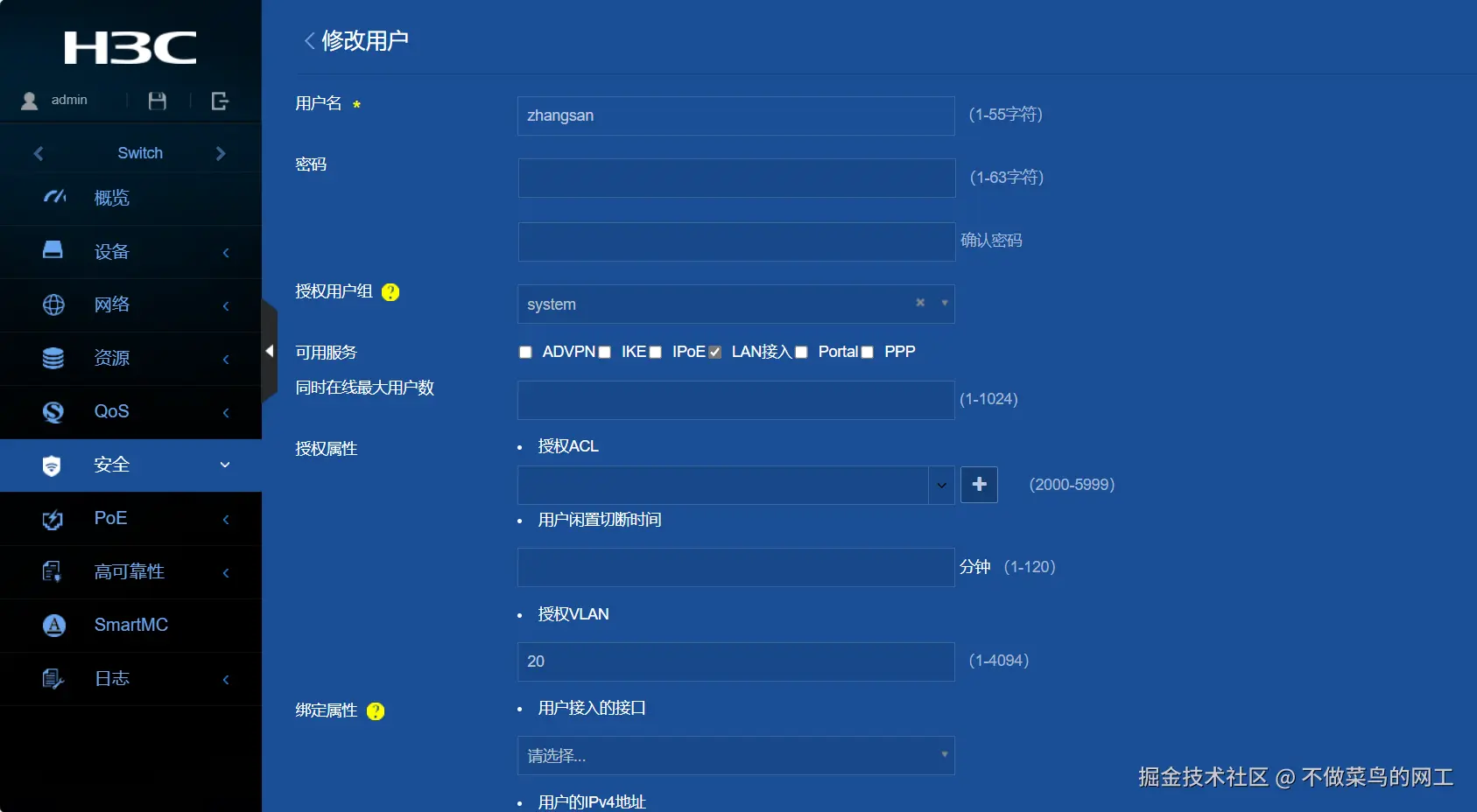

H3C真机交换机本地认证配置

local-user zhangsan class network
 password simple 123456
 service-type lan-access
 authorization-attribute vlan 20
 authorization-attribute user-role network-operator

domain beijing
 authentication lan-access radius-scheme h3c local

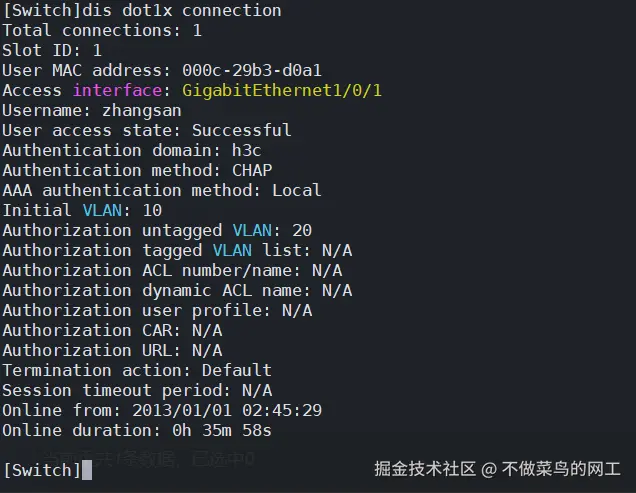

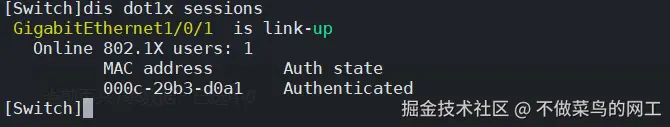

查看用户登入情况

MAC地址认证情况

清空认证用户

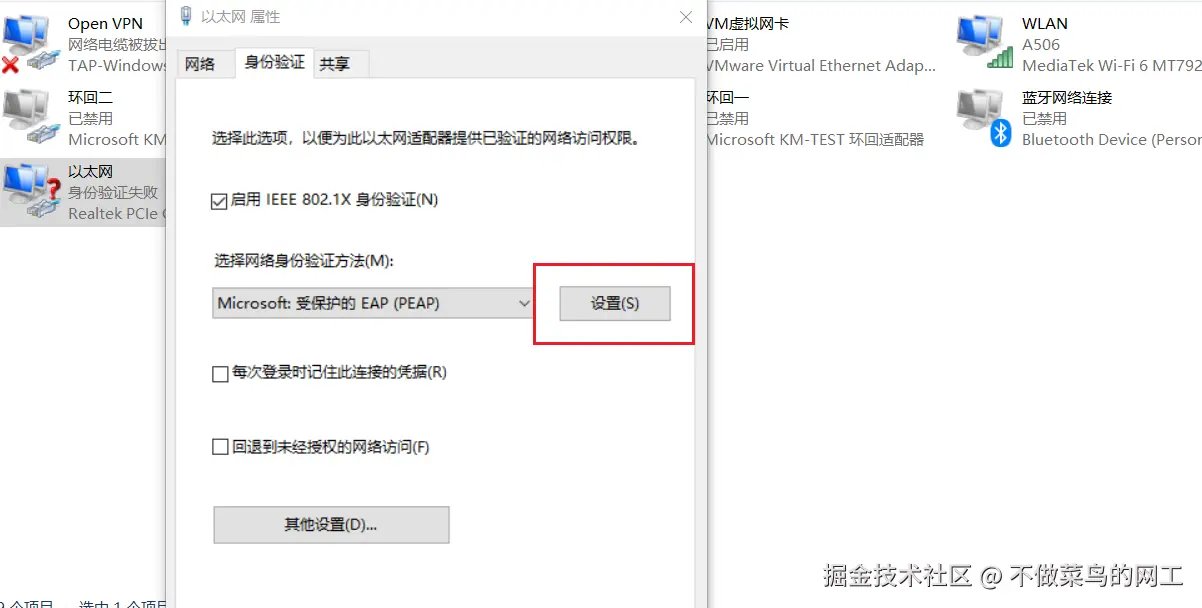

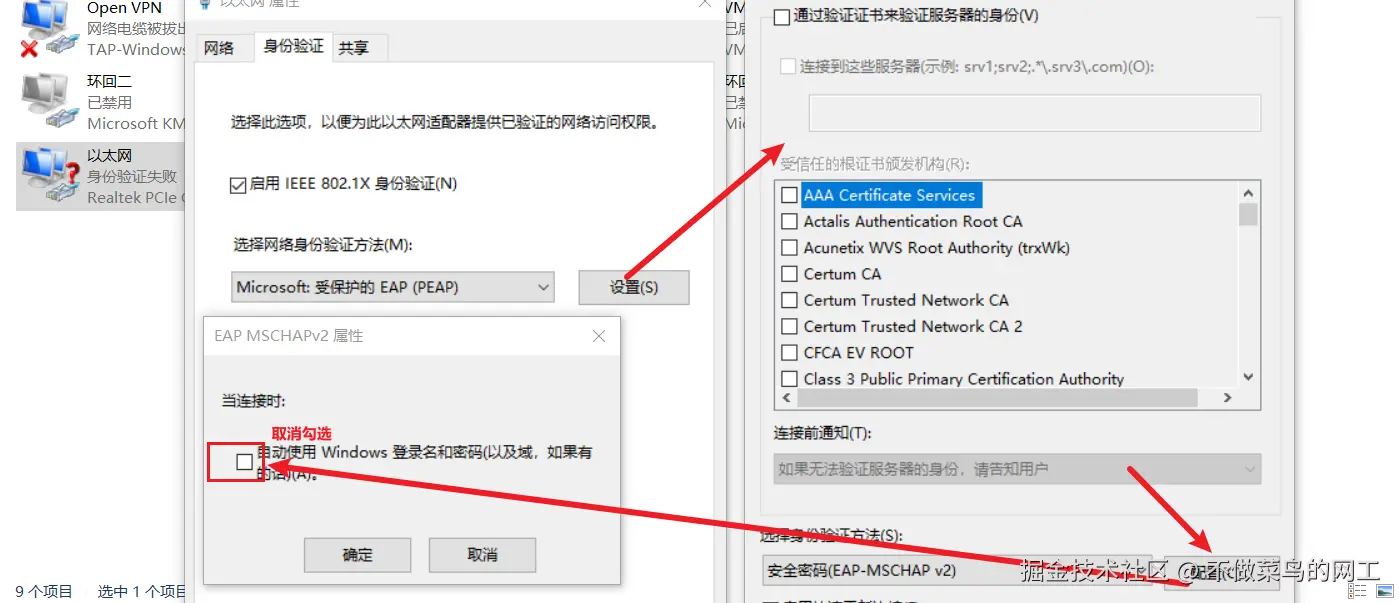

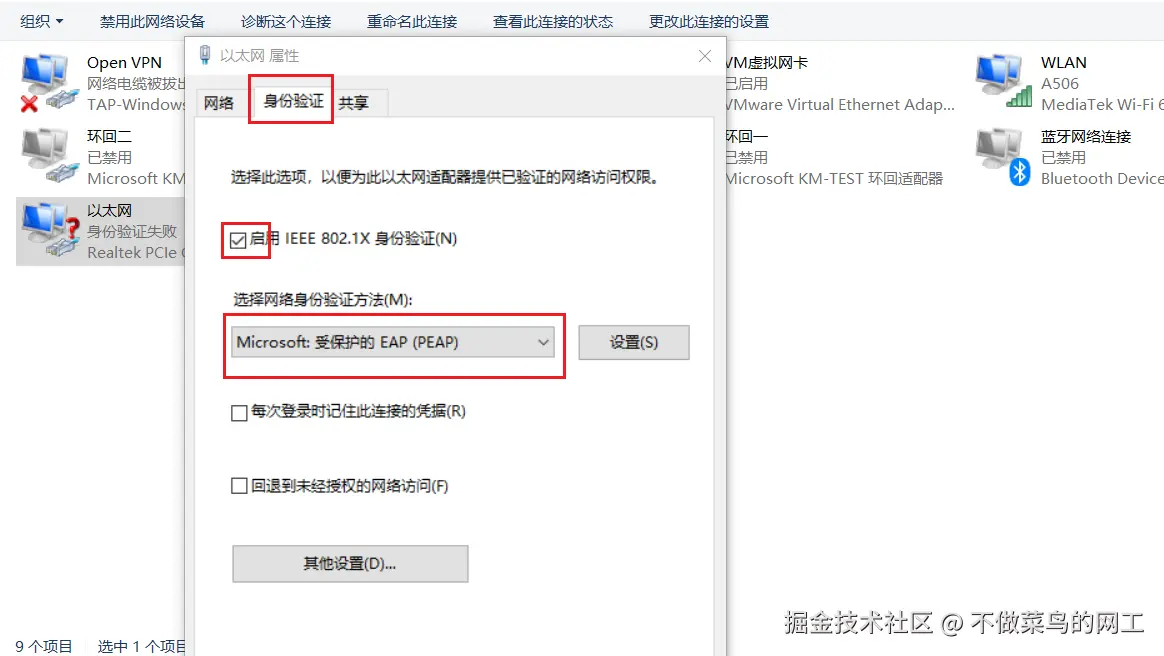

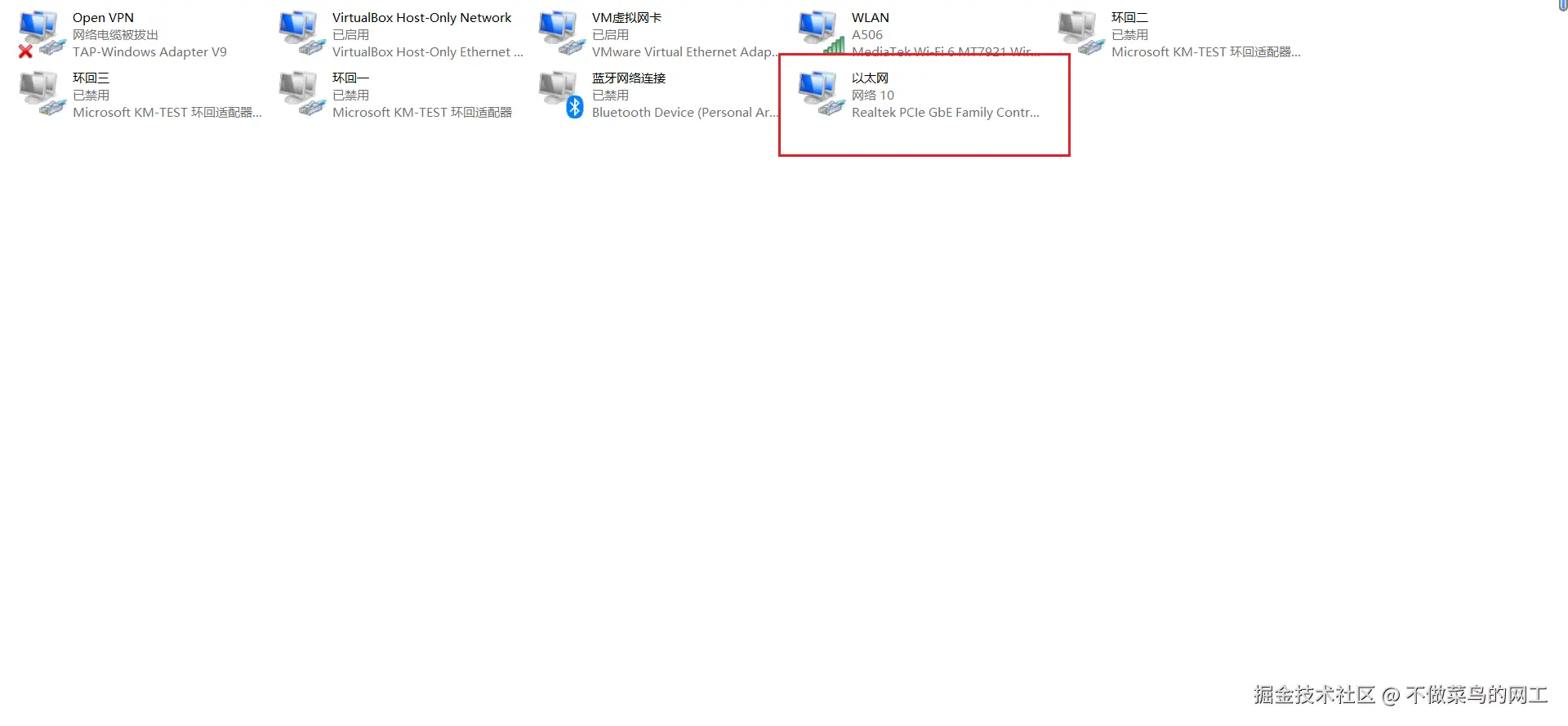

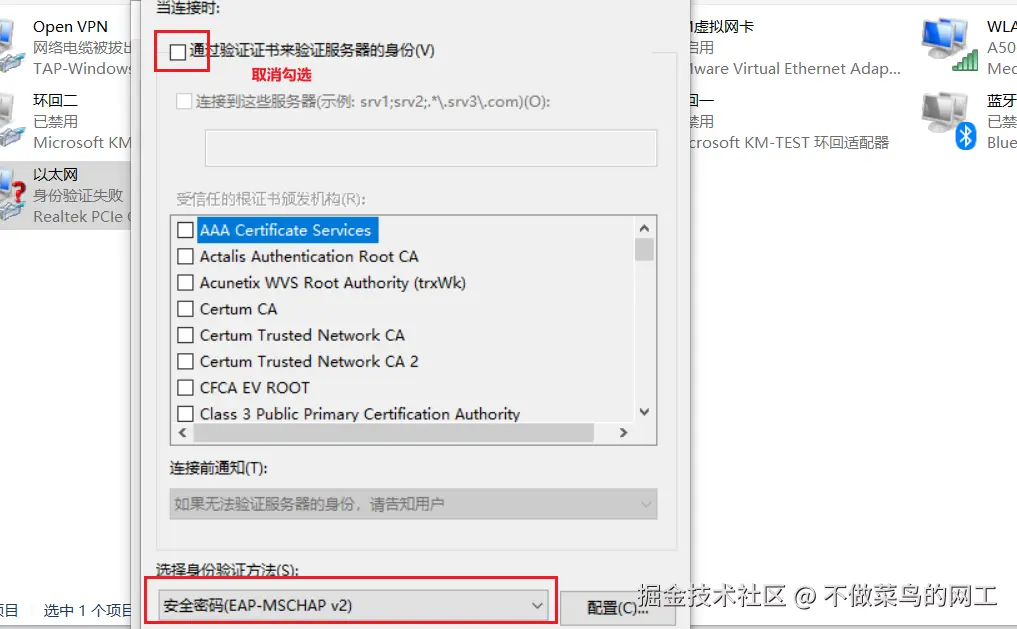

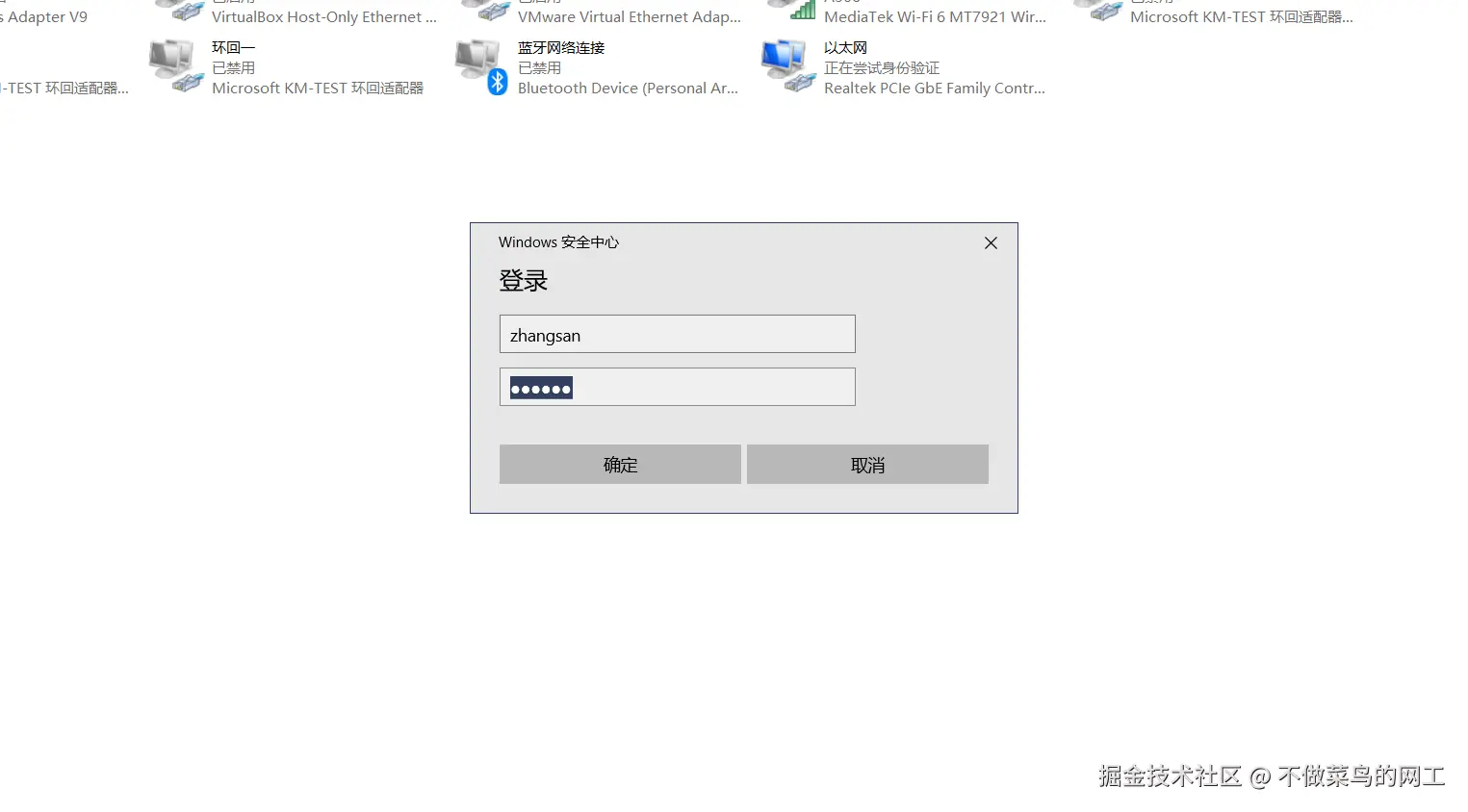

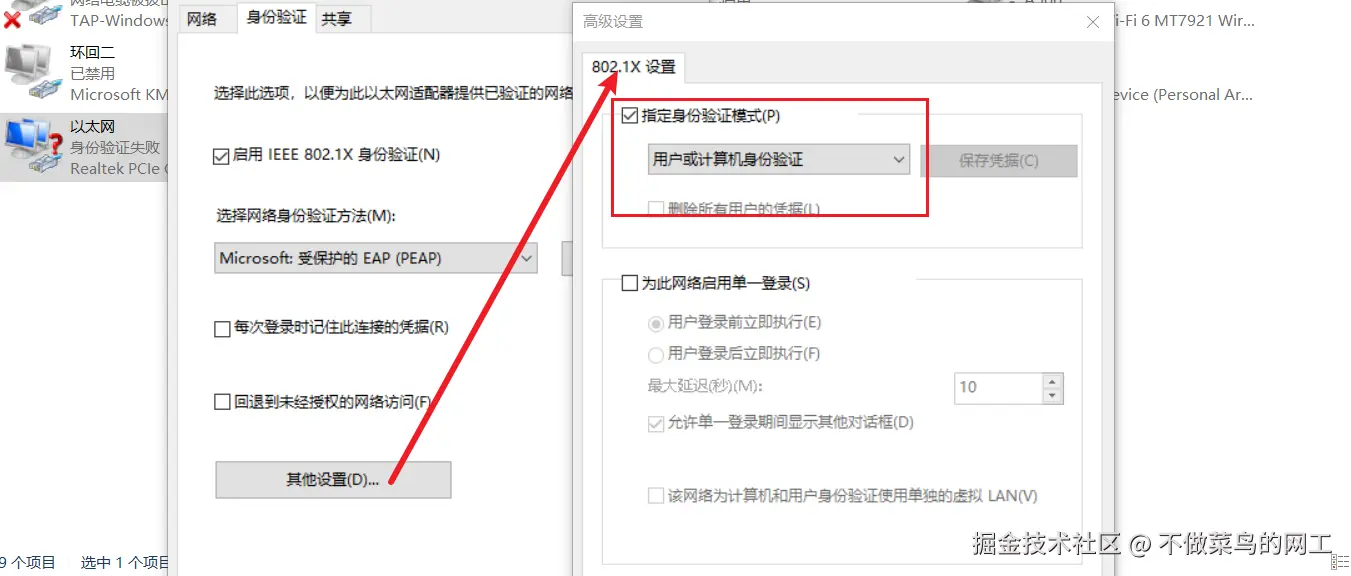

WIN10系统登入操作

最终效果

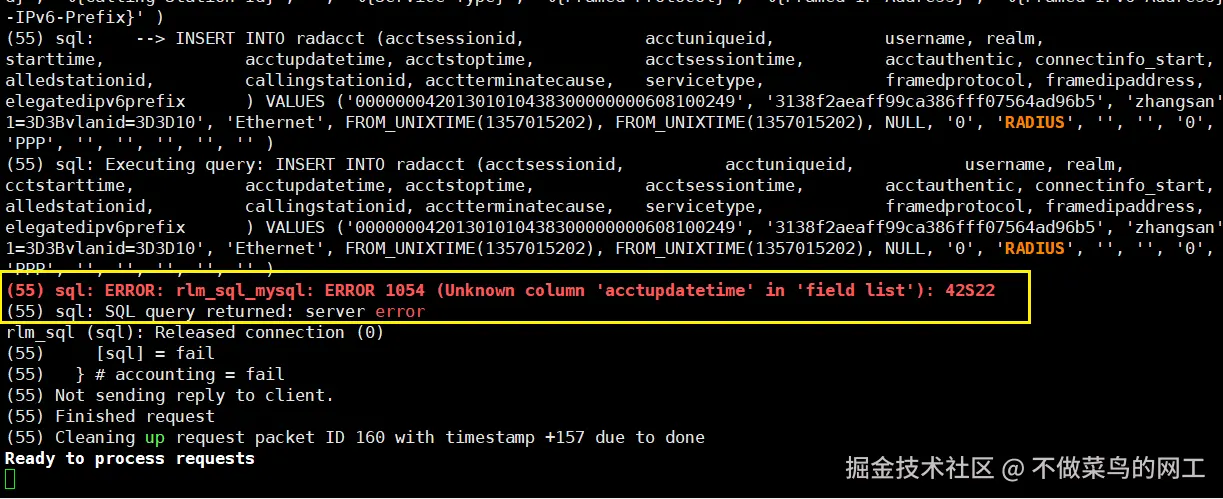

计费环节排查

• 提示数据过长 无法写入数据库

解决办法

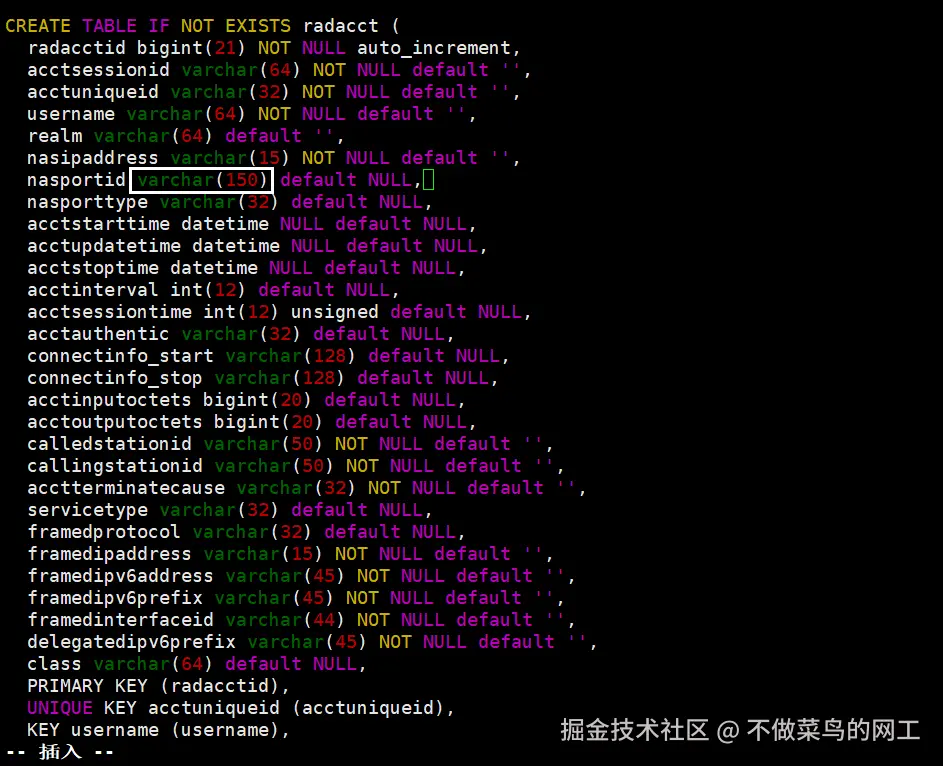

cd /etc/raddb/mods-config/sql/main/mysql/
vim ./schema.sql

// 重新导入数据库
mysql -u root -p
use radius;

// 删除原有表
DROP TABLE  radacct;

source /etc/raddb/mods-config/sql/main/mysql/schema.sql;
quit

systemctl restart mariadb.service

最后

• 如果认证失败 获取不到IP地址数据正常情况 认证失败 交换机不会处理PC数据报文 导致DHCP无法交互
• 如果链接话机的话 需要开启voice vlan xxx enable
