FreeRadius部署笔记

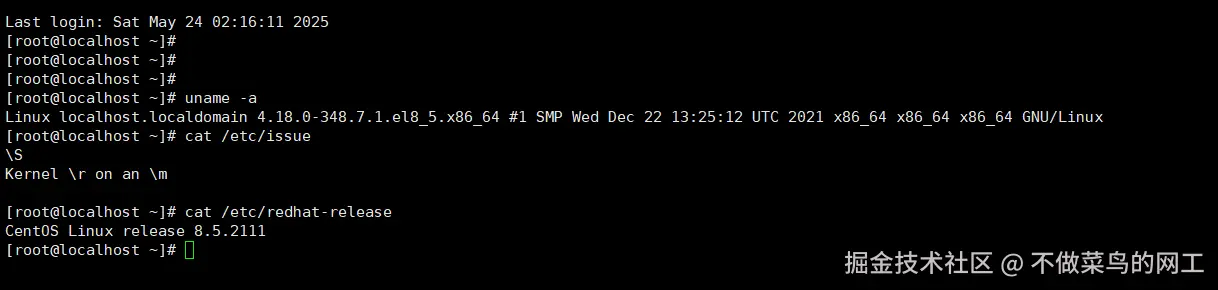

部署系统

• CentOS8
  • 下载地址 mirrors.aliyun.com/centos/8.5.…
  • 选择版本为服务器版本
• 阿里镜像源
  • mirrors.aliyun.com/centos/8.5.…

安装步骤

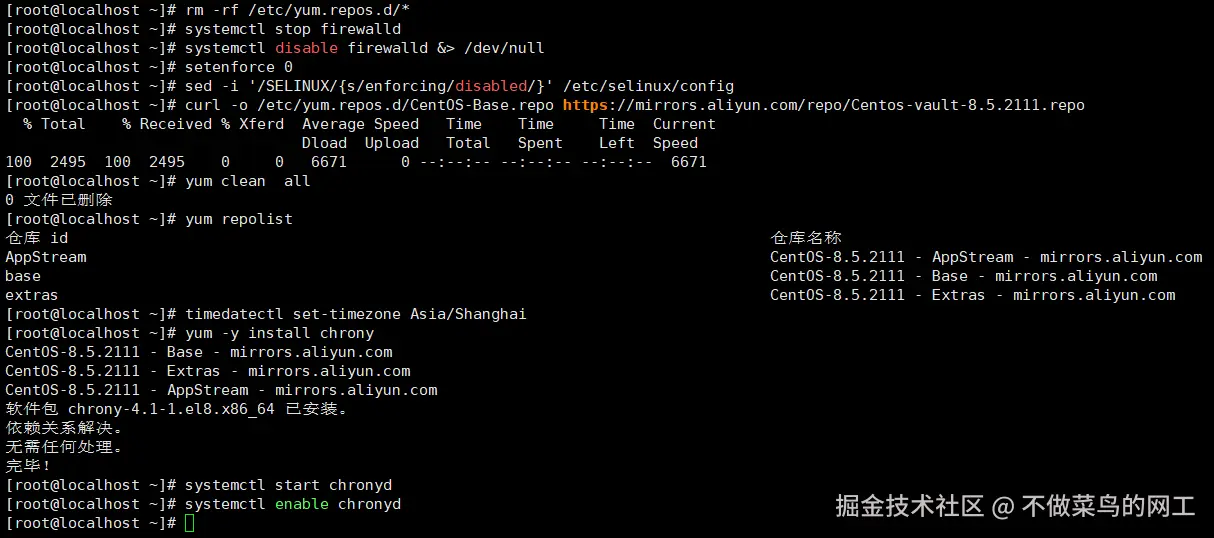

步骤一

rm -rf /etc/yum.repos.d/*
systemctl stop firewalld
systemctl disable firewalld &> /dev/null
setenforce 0
sed -i '/SELINUX/{s/enforcing/disabled/}' /etc/selinux/config
curl -o /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-vault-8.5.2111.repo
yum clean all
yum repolist
timedatectl set-timezone Asia/Shanghai
yum -y install chrony
systemctl start chronyd
ystemctl enable chronyd

步骤二

安装freeradius依赖

yum  -y install net-snmp  perl python2 mysql-libs

• 前往官网查看安装步骤networkradius.com/packages/#f…

导入官方镜像

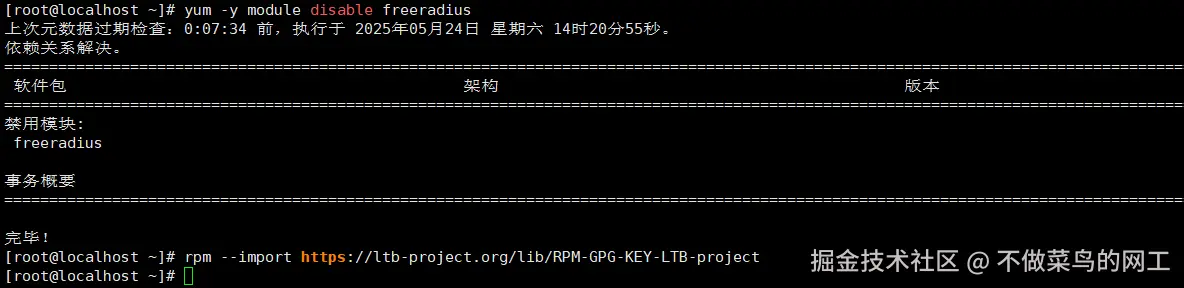

yum -y module disable freeradius
rpm --import https://ltb-project.org/lib/RPM-GPG-KEY-LTB-project

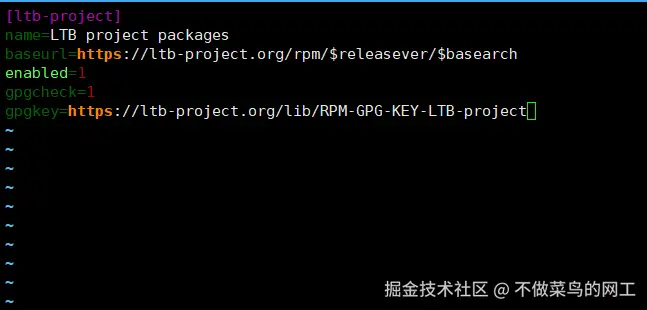

vim /etc/yum.repos.d/ltb-project.repo

[ltb-project]
name=LTB project packages
baseurl=https://ltb-project.org/rpm/$releasever/$basearch
enabled=1
gpgcheck=1
gpgkey=https://ltb-project.org/lib/RPM-GPG-KEY-LTB-project

rpm --import 'https://packages.networkradius.com/pgp/packages%40networkradius.com'

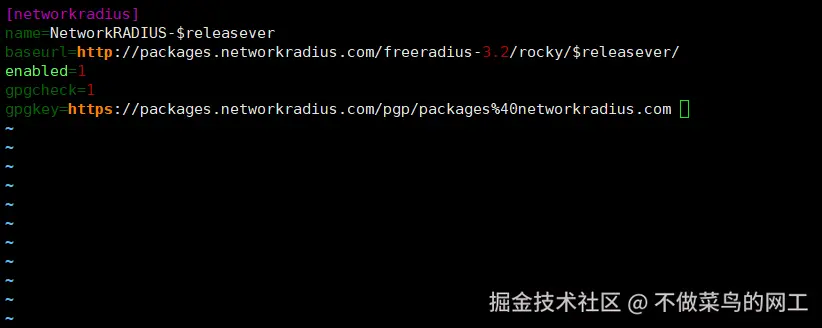

vim /etc/yum.repos.d/networkradius.repo

[networkradius]
name=NetworkRADIUS-$releasever
baseurl=http://packages.networkradius.com/freeradius-3.2/rocky/$releasever/
enabled=1
gpgcheck=1
gpgkey=https://packages.networkradius.com/pgp/packages%40networkradius.com

删除阿里源

rm -rf /etc/yum.repos.d/CentOS-Base.repo

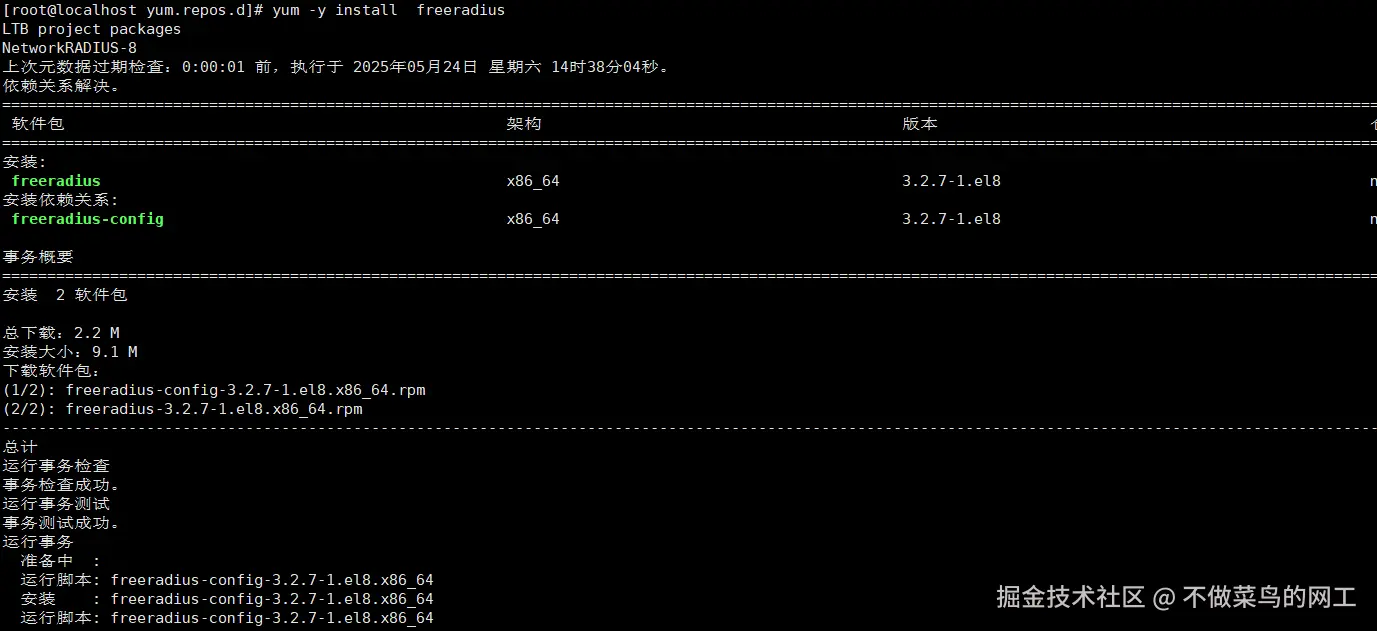

安装freeradius

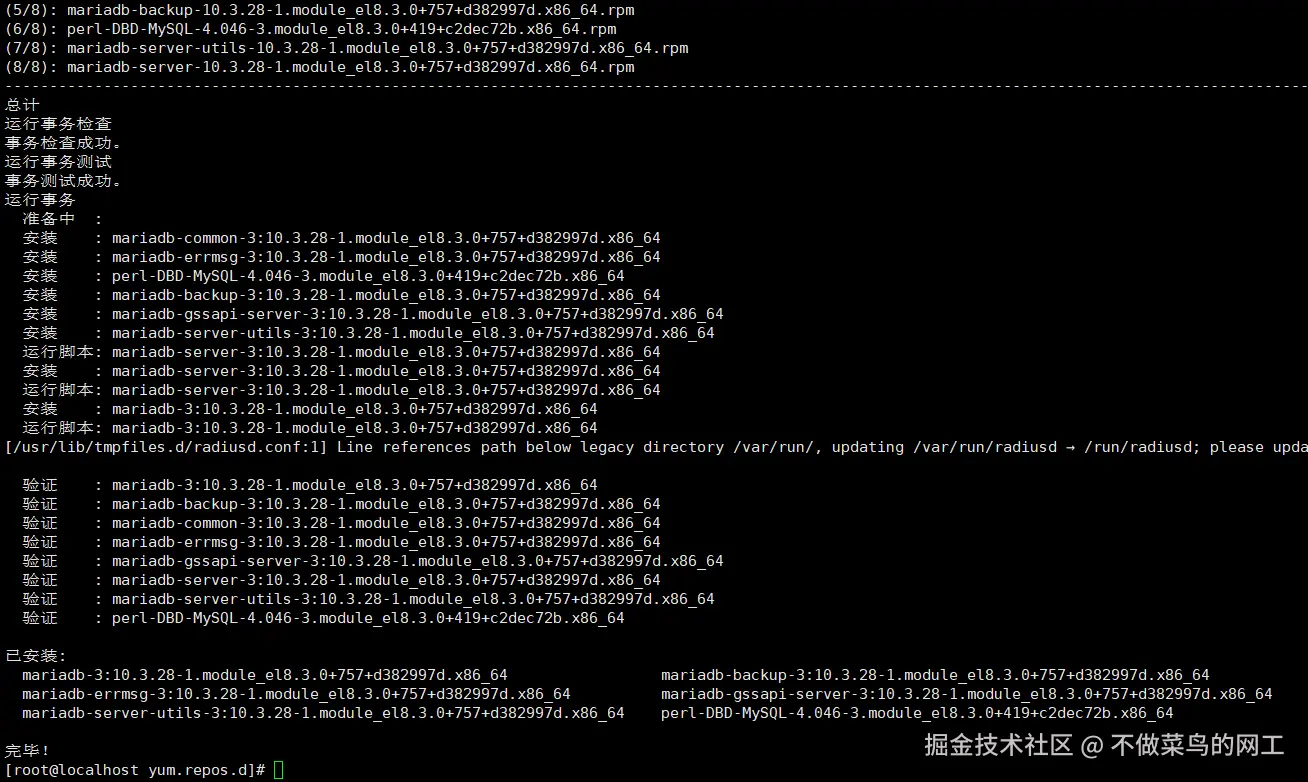

yum -y install freeradius

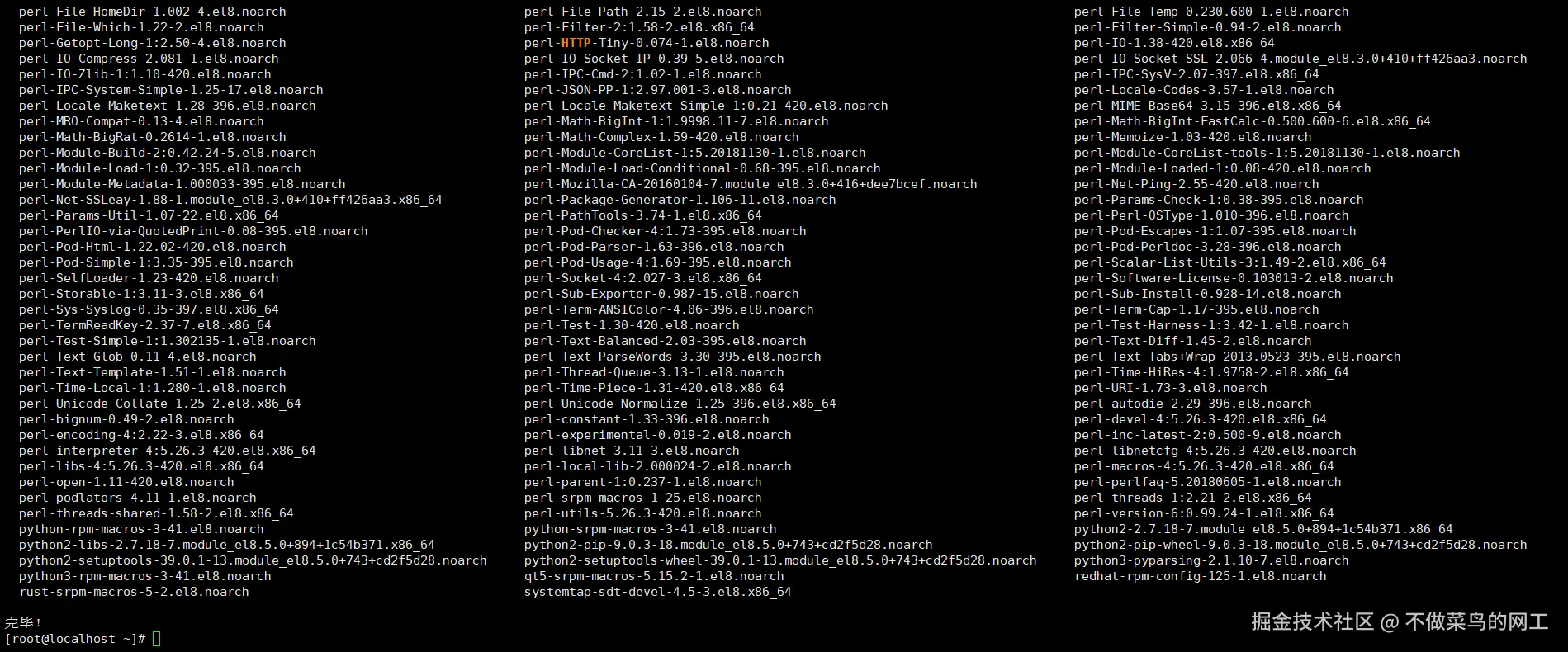

查看安装是否完整

再次导入阿里源

curl -o /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-vault-8.5.2111.repo

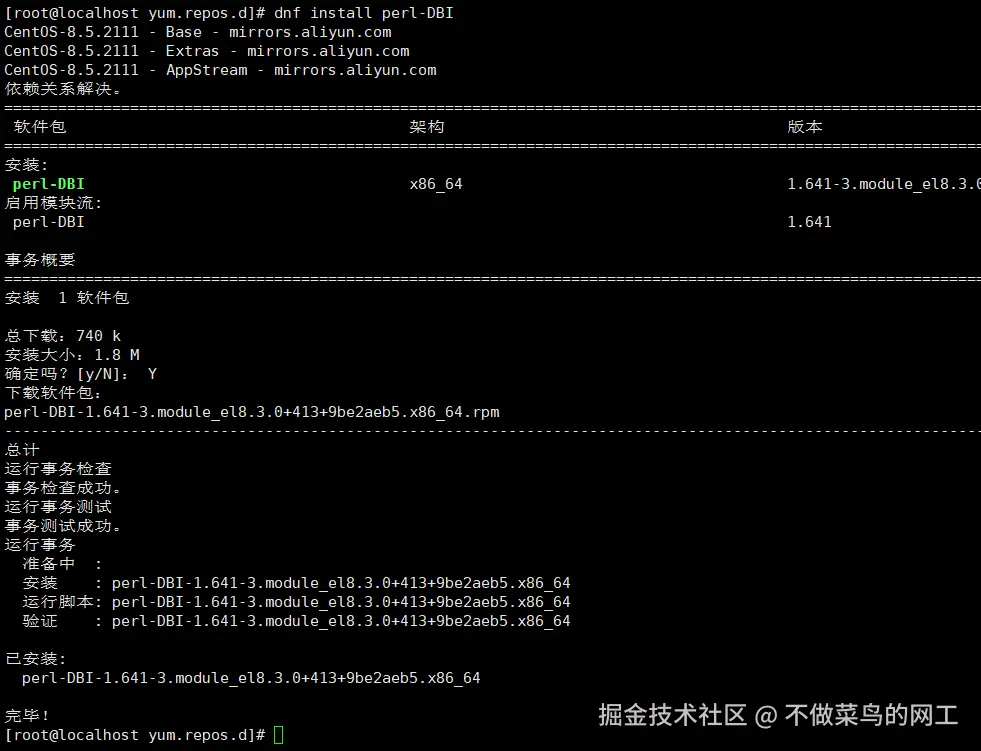

安装依赖

dnf install perl-DBI

安装数据库

rm -rf CentOS-Base.repo

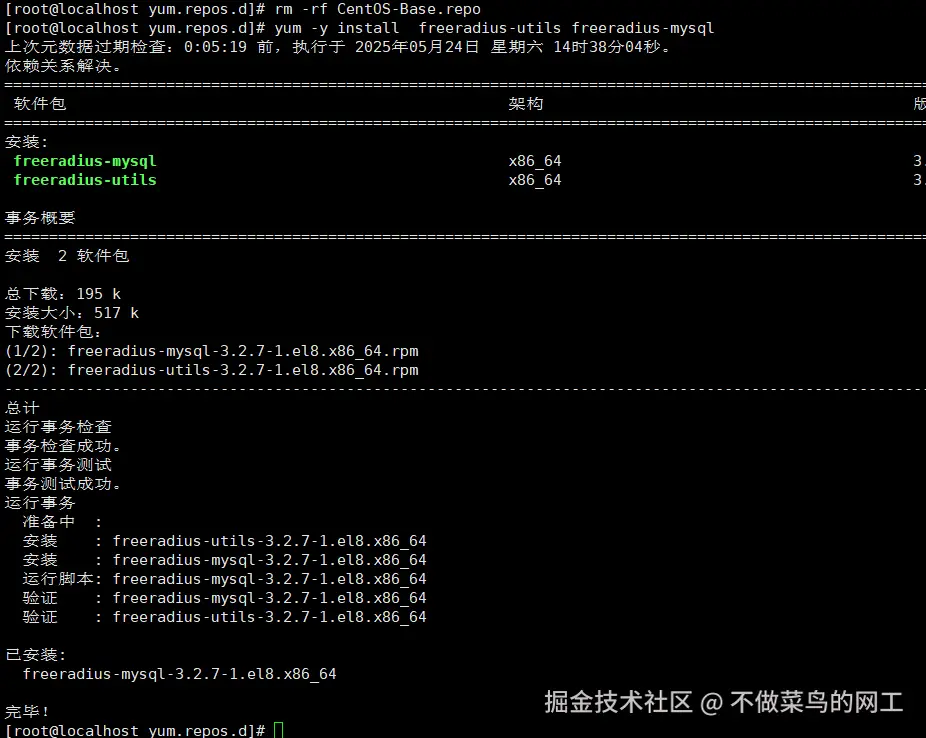

yum -y install  freeradius-utils freeradius-mysql

启动服务

systemctl start radiusd.service
systemctl enable radiusd.service

步骤三

安装阿里镜像源

curl -o /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-vault-8.5.2111.repo

安装数据库

yum -y install mariadb mariadb-server

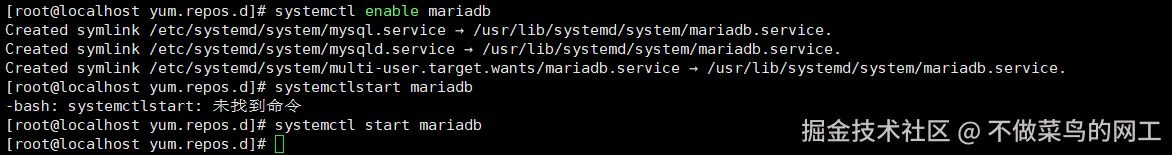

启动数据库

systemctl enable mariadb
systemctlstart mariadb

数据库初始化

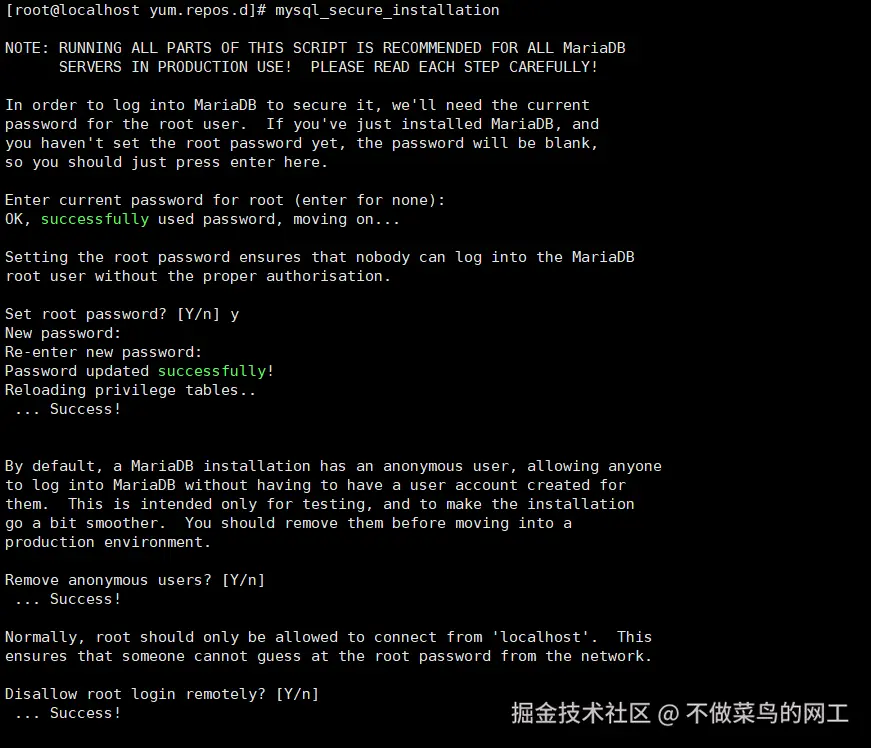

mysql_secure_installation

• 是否设置密码y 其余都是回车

步骤四

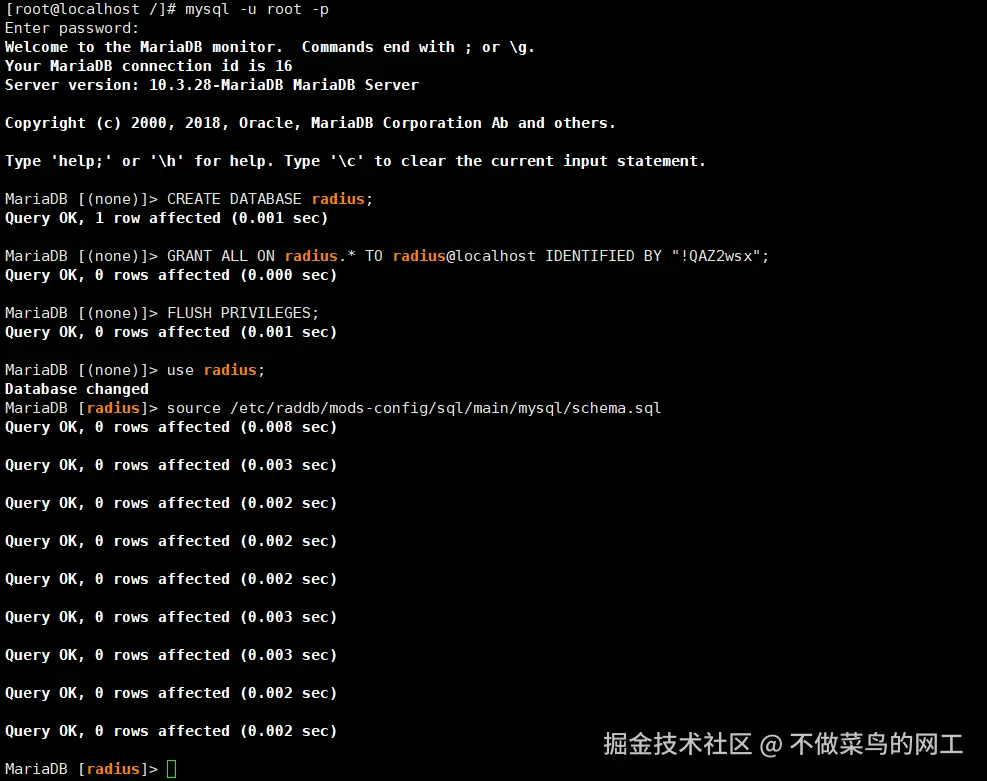

数据库导表

mysql -u root -p
 CREATE DATABASE radius;
 GRANT ALL ON radius.* TO radius@localhost IDENTIFIED BY "!QAZ2wsx";
 FLUSH PRIVILEGES;

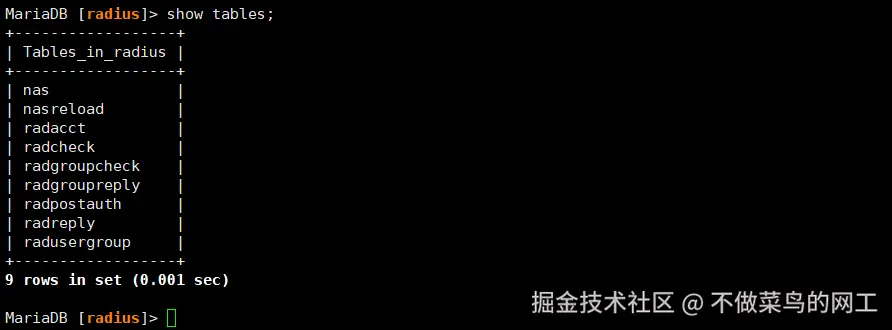

 use radius;
 source /etc/raddb/mods-config/sql/main/mysql/schema.sql
 quit

为sql启用模组

ln -s /etc/raddb/mods-available/sql /etc/raddb/mods-enabled/
chgrp -h radiusd /etc/raddb/mods-enabled/sql

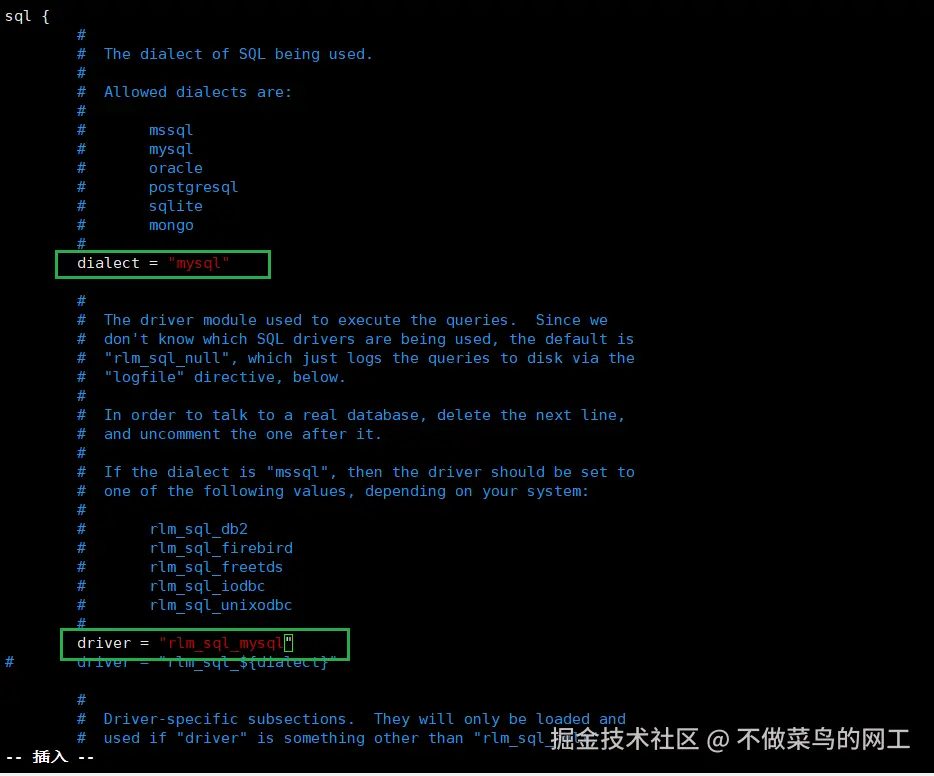

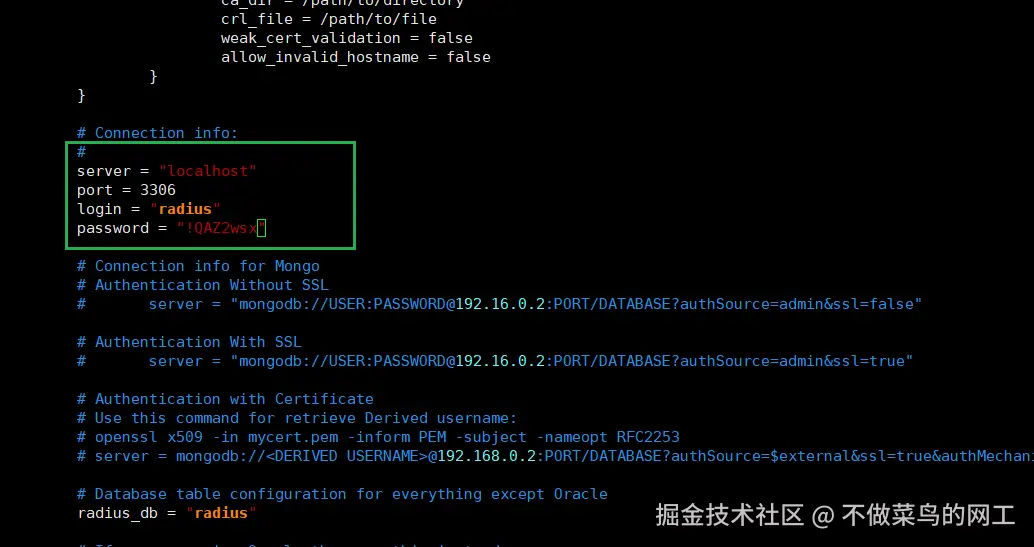

vim /etc/raddb/mods-available/sql

• 修改为下图所示

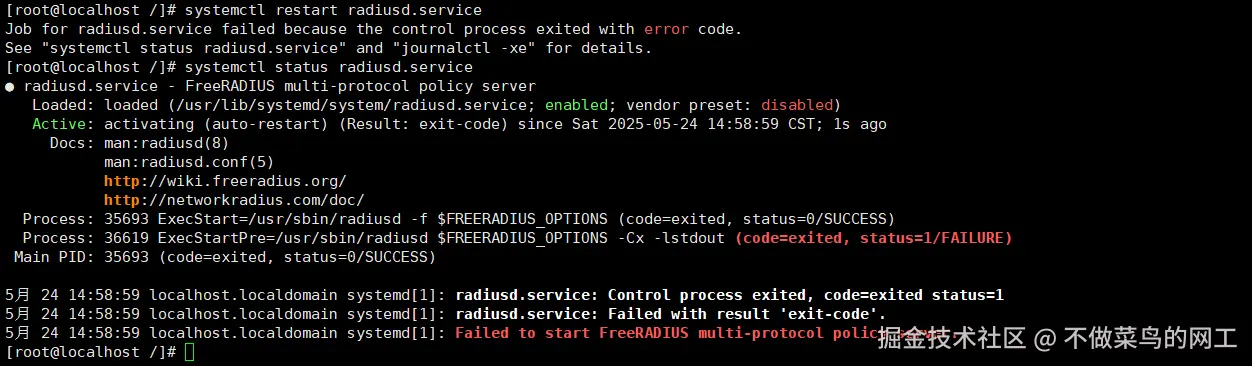

重启服务报错

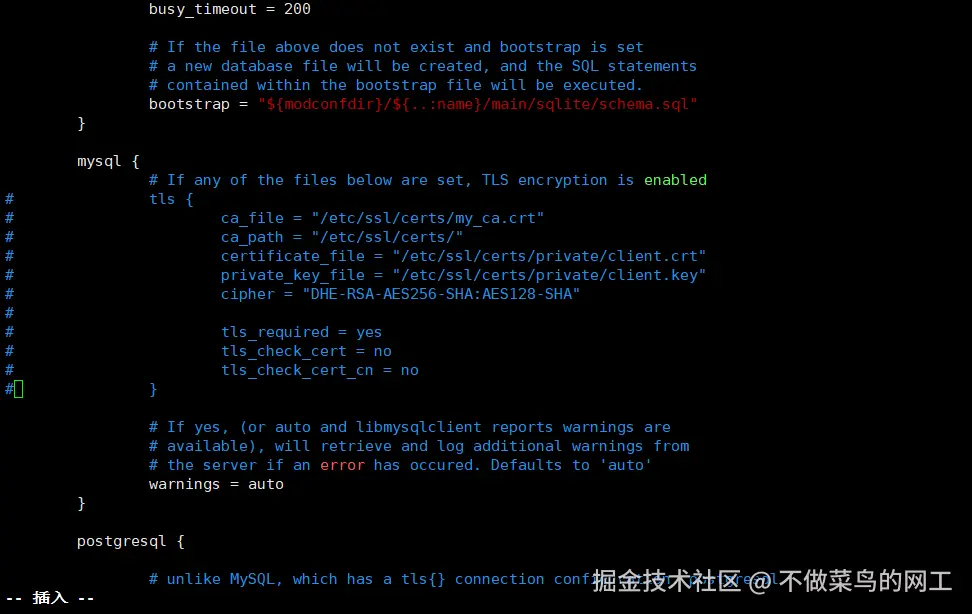

vim /etc/raddb/mods-enabled/sql

• 修改为下图所示

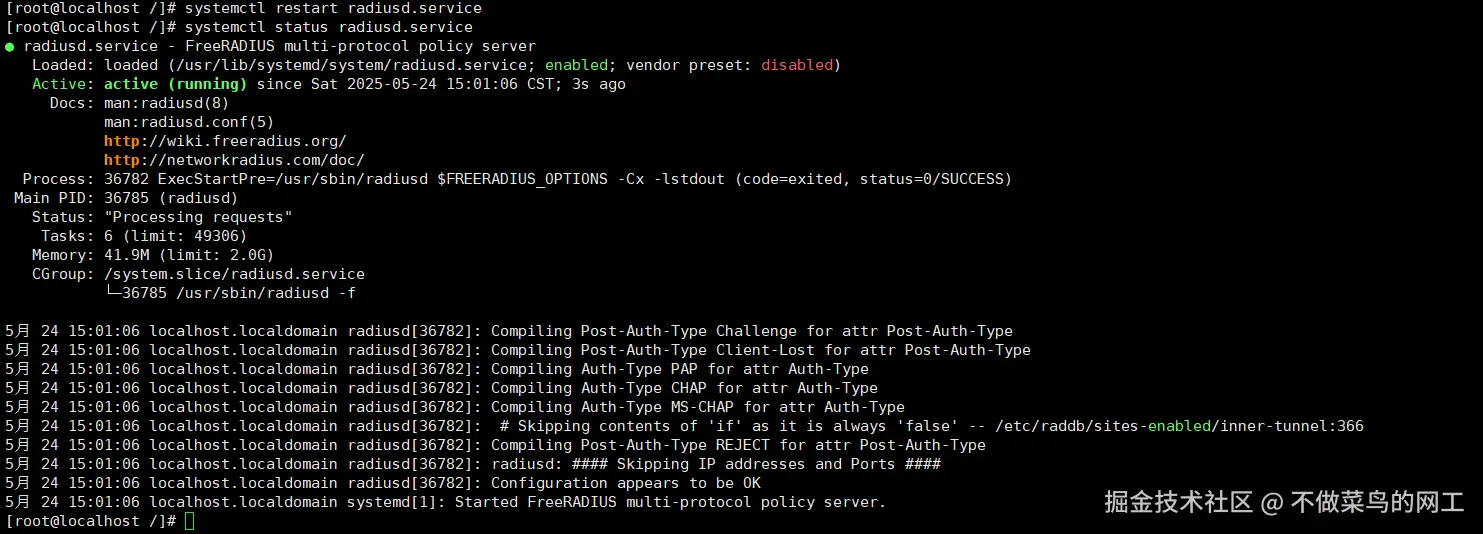

成功

最后在此感谢B站UP主大十字不理人的部署视频

【服务器FreeRadius和其web界面安装详解-哔哩哔哩】 b23.tv/iI3QPKR
