模型加载与动画
在 Three.js 中，模型加载和动画是创建复杂 3D 场景的重要组成部分。本章将介绍如何加载和管理 3D 模型，以及如何实现和控制动画效果。
模型加载
1. 基础模型加载

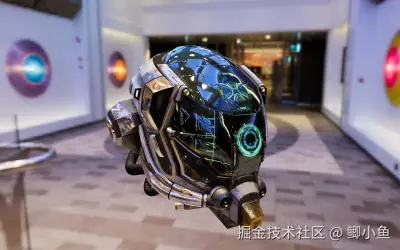

图 10.1: GLTF 模型加载示例
import { GLTFLoader } from 'three/examples/jsm/loaders/GLTFLoader.js';
import { DRACOLoader } from 'three/examples/jsm/loaders/DRACOLoader.js';
// 创建加载器
const loader = new GLTFLoader();
// 配置 DRACO 加载器（用于压缩模型）
const dracoLoader = new DRACOLoader();
dracoLoader.setDecoderPath('/path/to/draco/');
loader.setDRACOLoader(dracoLoader);
// 加载模型
loader.load(
'model.gltf',
(gltf) => {
const model = gltf.scene;
scene.add(model);
},
(xhr) => {
console.log((xhr.loaded / xhr.total * 100) + '% loaded');
},
(error) => {
console.error('An error happened:', error);
}
);
2. 模型管理器
// 模型管理器
class ModelManager {
constructor() {
this.loader = new GLTFLoader();
this.models = new Map();
this.loadingManager = new THREE.LoadingManager();
this.setupLoadingManager();
}
setupLoadingManager() {
this.loadingManager.onProgress = (url, itemsLoaded, itemsTotal) => {
console.log(`Loading: ${itemsLoaded}/${itemsTotal}`);
};
this.loadingManager.onError = (url) => {
console.error('Error loading:', url);
};
}
loadModel(name, url) {
return new Promise((resolve, reject) => {
this.loader.load(
url,
(gltf) => {
this.models.set(name, gltf);
resolve(gltf);
},
undefined,
(error) => reject(error)
);
});
}
getModel(name) {
return this.models.get(name);
}
dispose() {
this.models.forEach(model => {
model.scene.traverse((object) => {
if (object.isMesh) {
object.geometry.dispose();
object.material.dispose();
}
});
});
this.models.clear();
}
}
骨骼动画
1. 基础骨骼动画
// 骨骼动画控制器
class SkeletonAnimation {
constructor(model) {
this.model = model;
this.mixer = new THREE.AnimationMixer(model);
this.actions = new Map();
this.currentAction = null;
this.init();
}
init() {
// 获取所有动画
this.model.animations.forEach(clip => {
const action = this.mixer.clipAction(clip);
this.actions.set(clip.name, action);
});
}
play(name, options = {}) {
const action = this.actions.get(name);
if (!action) return;
// 停止当前动画
if (this.currentAction) {
this.currentAction.fadeOut(0.5);
}
// 设置新动画
action.reset();
action.fadeIn(0.5);
action.play();
// 设置动画参数
if (options.loop !== undefined) {
action.loop = options.loop;
}
if (options.timeScale !== undefined) {
action.timeScale = options.timeScale;
}
this.currentAction = action;
}
update(deltaTime) {
this.mixer.update(deltaTime);
}
}
2. 动画混合
// 动画混合器
class AnimationBlender {
constructor(model) {
this.model = model;
this.mixer = new THREE.AnimationMixer(model);
this.actions = new Map();
this.activeActions = new Set();
}
addAction(name, clip, weight = 1.0) {
const action = this.mixer.clipAction(clip);
action.weight = weight;
this.actions.set(name, action);
}
blend(name, weight, duration = 0.5) {
const action = this.actions.get(name);
if (!action) return;
// 淡入新动画
action.reset();
action.fadeIn(duration);
action.play();
// 淡出其他动画
this.activeActions.forEach(activeAction => {
if (activeAction !== action) {
activeAction.fadeOut(duration);
}
});
this.activeActions.add(action);
}
update(deltaTime) {
this.mixer.update(deltaTime);
}
}
动画控制
1. 动画状态机
// 动画状态机
class AnimationStateMachine {
constructor(model) {
this.model = model;
this.blender = new AnimationBlender(model);
this.states = new Map();
this.currentState = null;
this.transitions = new Map();
}
addState(name, clip, weight = 1.0) {
this.blender.addAction(name, clip, weight);
this.states.set(name, { clip, weight });
}
addTransition(from, to, condition) {
if (!this.transitions.has(from)) {
this.transitions.set(from, new Map());
}
this.transitions.get(from).set(to, condition);
}
update(deltaTime, input) {
// 检查状态转换
if (this.currentState) {
const transitions = this.transitions.get(this.currentState);
if (transitions) {
for (const [nextState, condition] of transitions) {
if (condition(input)) {
this.transitionTo(nextState);
break;
}
}
}
}
// 更新动画
this.blender.update(deltaTime);
}
transitionTo(state) {
if (this.states.has(state)) {
this.currentState = state;
this.blender.blend(state, this.states.get(state).weight);
}
}
}
2. 动画事件系统
// 动画事件系统
class AnimationEventSystem {
constructor() {
this.events = new Map();
}
addEvent(name, time, callback) {
if (!this.events.has(name)) {
this.events.set(name, new Map());
}
this.events.get(name).set(time, callback);
}
checkEvents(mixer, clip, time) {
const events = this.events.get(clip.name);
if (!events) return;
events.forEach((callback, eventTime) => {
if (Math.abs(time - eventTime) < 0.1) {
callback();
}
});
}
}
实战：创建一个动画场景
让我们创建一个展示模型加载和动画效果的场景：
// 创建场景
const scene = new THREE.Scene();
scene.background = new THREE.Color(0x000000);
// 创建相机
const camera = new THREE.PerspectiveCamera(
75,
window.innerWidth / window.innerHeight,
0.1,
1000
);
camera.position.set(0, 2, 5);
// 创建渲染器
const renderer = new THREE.WebGLRenderer({ antialias: true });
renderer.setSize(window.innerWidth, window.innerHeight);
renderer.shadowMap.enabled = true;
document.body.appendChild(renderer.domElement);
// 创建模型管理器
const modelManager = new ModelManager();
// 创建动画状态机
let animationStateMachine;
// 加载模型
modelManager.loadModel('character', 'character.gltf').then(gltf => {
const model = gltf.scene;
model.scale.set(1, 1, 1);
model.position.set(0, 0, 0);
scene.add(model);
// 设置动画状态机
animationStateMachine = new AnimationStateMachine(model);
// 添加动画状态
gltf.animations.forEach(clip => {
animationStateMachine.addState(clip.name, clip);
});
// 添加状态转换
animationStateMachine.addTransition('idle', 'walk', () => {
return input.keys.has('w') || input.keys.has('a') ||
input.keys.has('s') || input.keys.has('d');
});
animationStateMachine.addTransition('walk', 'idle', () => {
return !input.keys.has('w') && !input.keys.has('a') &&
!input.keys.has('s') && !input.keys.has('d');
});
// 设置初始状态
animationStateMachine.transitionTo('idle');
});
// 创建输入控制器
const input = {
keys: new Set(),
init() {
window.addEventListener('keydown', (e) => this.keys.add(e.key));
window.addEventListener('keyup', (e) => this.keys.delete(e.key));
}
};
input.init();
// 添加光源
const ambientLight = new THREE.AmbientLight(0xffffff, 0.5);
scene.add(ambientLight);
const directionalLight = new THREE.DirectionalLight(0xffffff, 1.0);
directionalLight.position.set(5, 5, 5);
directionalLight.castShadow = true;
scene.add(directionalLight);
// 动画循环
const clock = new THREE.Clock();
function animate() {
requestAnimationFrame(animate);
const deltaTime = clock.getDelta();
// 更新动画状态机
if (animationStateMachine) {
animationStateMachine.update(deltaTime, input);
}
renderer.render(scene, camera);
}
animate();
练习
- 加载一个 3D 模型
- 实现基本的骨骼动画
- 创建动画状态机
- 添加动画事件系统
下一步学习
在下一章中，我们将学习：
- 3D 产品展示
- 模型交互
- 相机控制
- 场景优化
