定个小目标

最近刚看完一本书Ray Tracing in One Weekend，书里是通过软件渲染的形式（纯 CPU 计算）实现光线追踪，打算在 macOS 上用 Metal API 调用 GPU 实现一下。

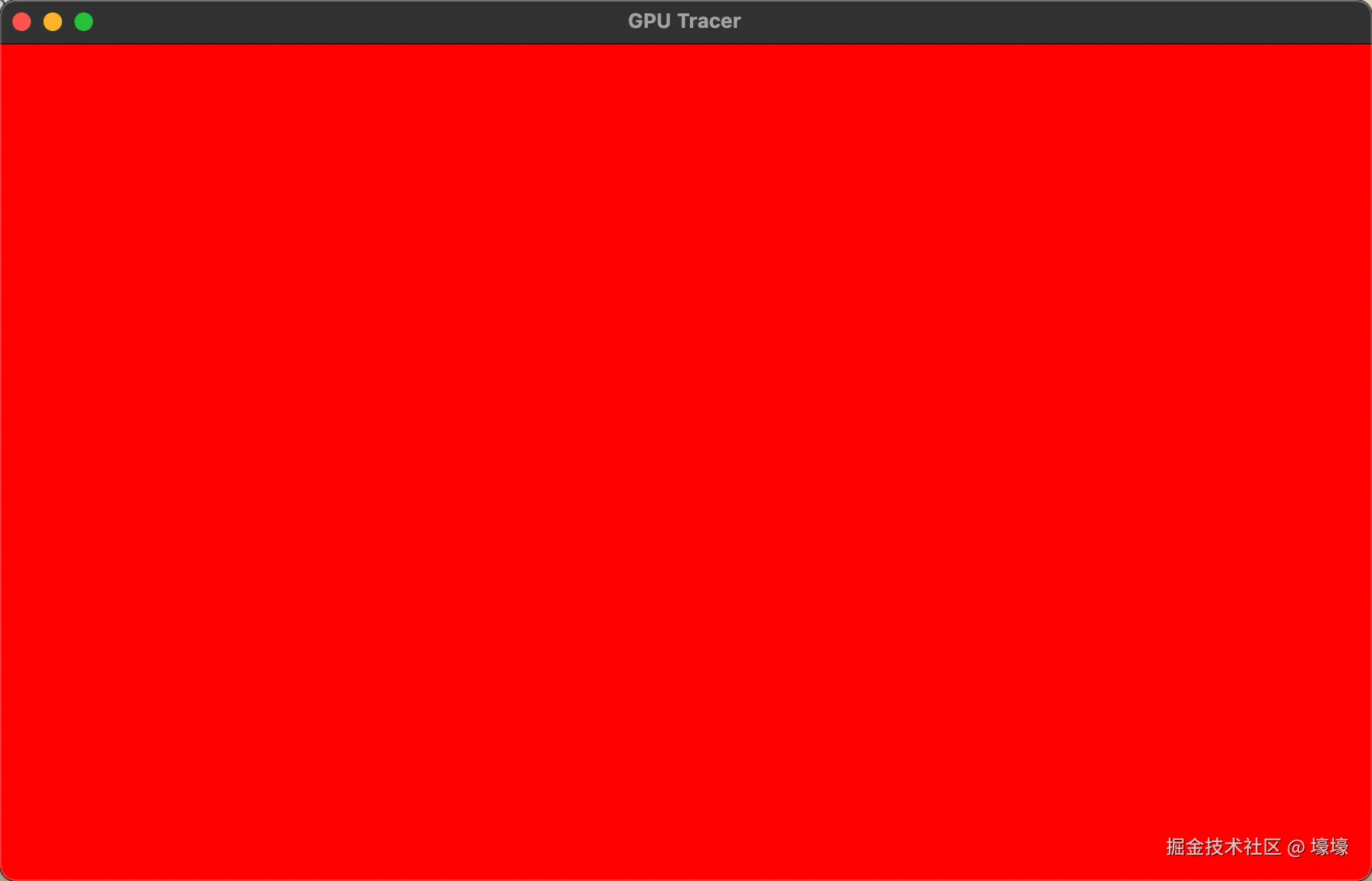

看看本节最终效果

画三角形

老早之前我就写过一篇我当时觉得好玩的东西，用 Metal 画一个三角形（Swift 函数式风格），其实当时的写法相当 naive，不过里面相对有价值的内容就是 $自定义操作符$ 之前的实现。现在首先来新建一个项目，顺便把之前 $普通的方式画一个三角形$ 抄过来，接下来在此基础上重构。

ViewController 实现 MTKViewDelegate

抄完之后第一步就是实现 draw(in view: MTKView)

import Cocoa
import MetalKit

class ViewController: NSViewController {
  override func viewDidLoad() {
    super.viewDidLoad()
    (view as? MetalView)?.delegate = self
  }

  override var representedObject: Any? {
    didSet {}
  }
}

extension ViewController: MTKViewDelegate {
  func mtkView(_ view: MTKView, drawableSizeWillChange size: CGSize) {}

  func draw(in view: MTKView) {
    if let v = view as? MetalView {
      v.render()
    }
  }
}

protocol 开道

我们定义一下 PathTracer 协议

import Metal

protocol PathTracer {
  var device: (any MTLDevice)? { get }
  var queue: (any MTLCommandQueue)? { get }
  var pipeline: (any MTLRenderPipelineState)? { get }

  func render()
}

让 MetalView 实现 PathTracer 协议

class MetalView: MTKView {
  required init(coder: NSCoder) {
    super.init(coder: coder)
    device = MTLCreateSystemDefaultDevice()
    _queue = device?.makeCommandQueue()
    createPipeline()
  }
  private var _queue: (any MTLCommandQueue)?
  private var _pipeline: (any MTLRenderPipelineState)?
}

extension MetalView: PathTracer {
  var queue: (any MTLCommandQueue)? { _queue }
  var pipeline: (any MTLRenderPipelineState)? { _pipeline }
}

接着来改造一下原先版本的 render 函数

extension MetalView {
  private func createPipeline() {
    if let device, let library = device.makeDefaultLibrary() {
      let renderPipelineDesc = MTLRenderPipelineDescriptor()
      renderPipelineDesc.vertexFunction = library.makeFunction(name: "vertexFn")
      renderPipelineDesc.fragmentFunction = library.makeFunction(name: "fragmentFn")
      renderPipelineDesc.colorAttachments[0].pixelFormat = .bgra8Unorm
      _pipeline = try? device.makeRenderPipelineState(descriptor: renderPipelineDesc)
    }
  }

  func render() {
    guard let device = device else { fatalError("Failed to find default device.") }
    let vertexData: [Float] = [
        0.0,  0.5,
       -0.5, -0.5,
        0.5, -0.5,
    ]

    let dataSize = vertexData.count * MemoryLayout<Float>.size
    let vertexBuffer = device.makeBuffer(bytes: vertexData, length: dataSize, options: [])
    let renderPassDesc = MTLRenderPassDescriptor()
    if let currentDrawable {
      renderPassDesc.colorAttachments[0].texture = currentDrawable.texture
      renderPassDesc.colorAttachments[0].clearColor = MTLClearColor(red: 0.0, green: 0.0, blue: 0, alpha: 1.0)
      renderPassDesc.colorAttachments[0].loadAction = .clear
      guard let queue else { fatalError("Failed to make command queue.") }
      let commandBuffer = queue.makeCommandBuffer()
      guard let commandBuffer else { fatalError("Failed to make command buffer.") }
      let encoder = commandBuffer.makeRenderCommandEncoder(descriptor: renderPassDesc)
      guard let encoder = encoder else { fatalError("Failed to make render command encoder.") }
      if let pipeline {
        encoder.setRenderPipelineState(pipeline)
        encoder.setVertexBuffer(vertexBuffer, offset: 0, index: 0)
        encoder.drawPrimitives(type: .triangle, vertexStart: 0, vertexCount: 3, instanceCount: 1)
        encoder.endEncoding()
        commandBuffer.present(currentDrawable)
        commandBuffer.commit()
      }
    }
  }
}

由于我们把 vertexData 调整了一下，所以别忘了把 shader 也调整一下，主要是调整顶点

#include <metal_stdlib>

using namespace metal;

struct VertexIn {
  float2 position;
};

struct Vertex {
  float4 position [[position]];
};

vertex Vertex vertexFn(constant VertexIn *vertices [[buffer(0)]], uint vid [[vertex_id]]) {
  return Vertex { float4(vertices[vid].position, 0, 1) };
}

fragment float4 fragmentFn(Vertex vert [[stage_in]]) {
  return float4(1, 0, 0, 1);
}

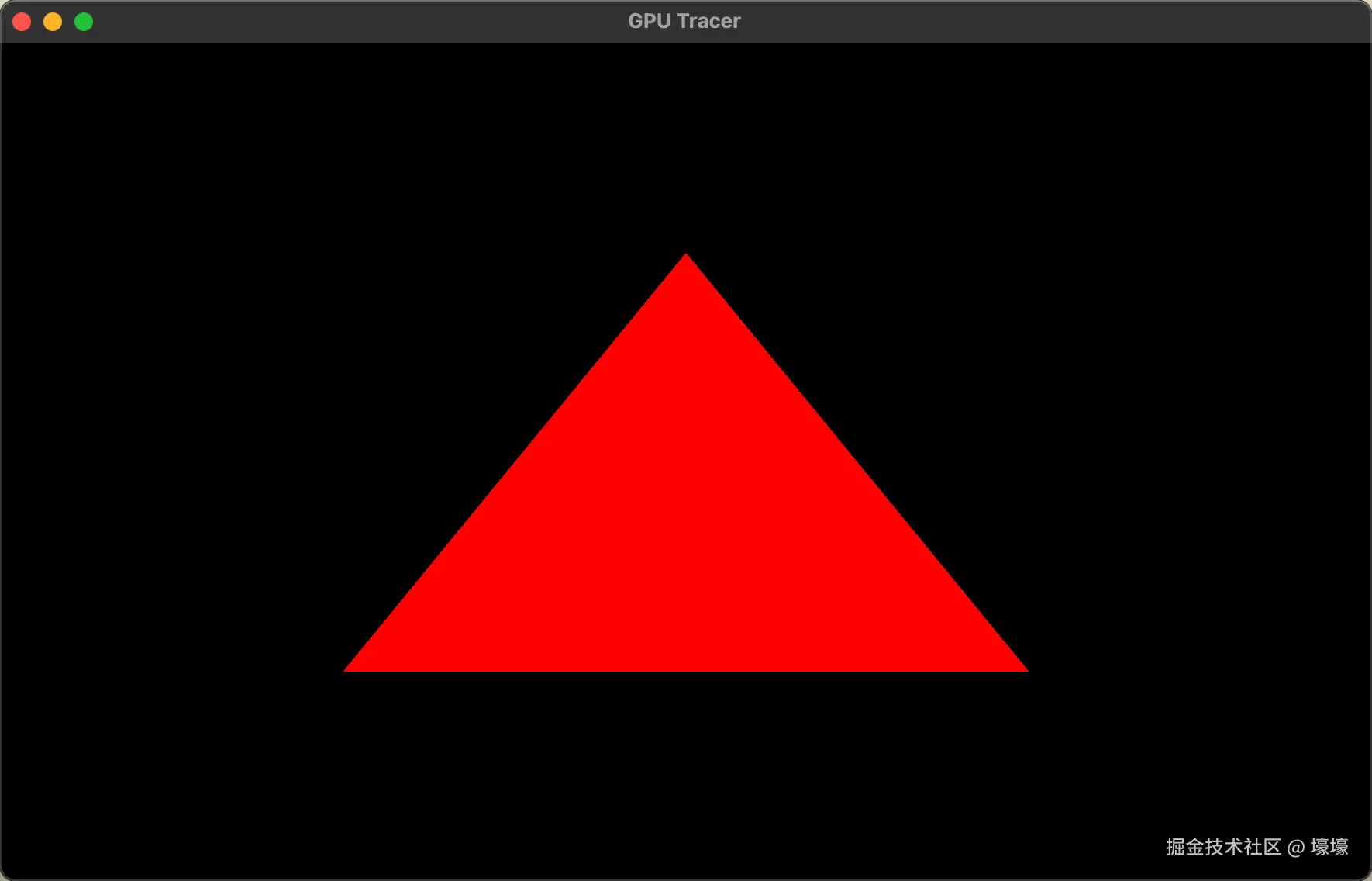

来运行一下看看当前的结果

其实这个坐标是这样的

画直角三角形

根据前面的坐标图，我们把这个三角形改成直角三角形，其实就是把顶点坐标改成左上、右上、左下三个点，所以顶点很明显就是

let vertexData: [Float] = [
  -1,  1,
  -1, -1,
   1,  1
]

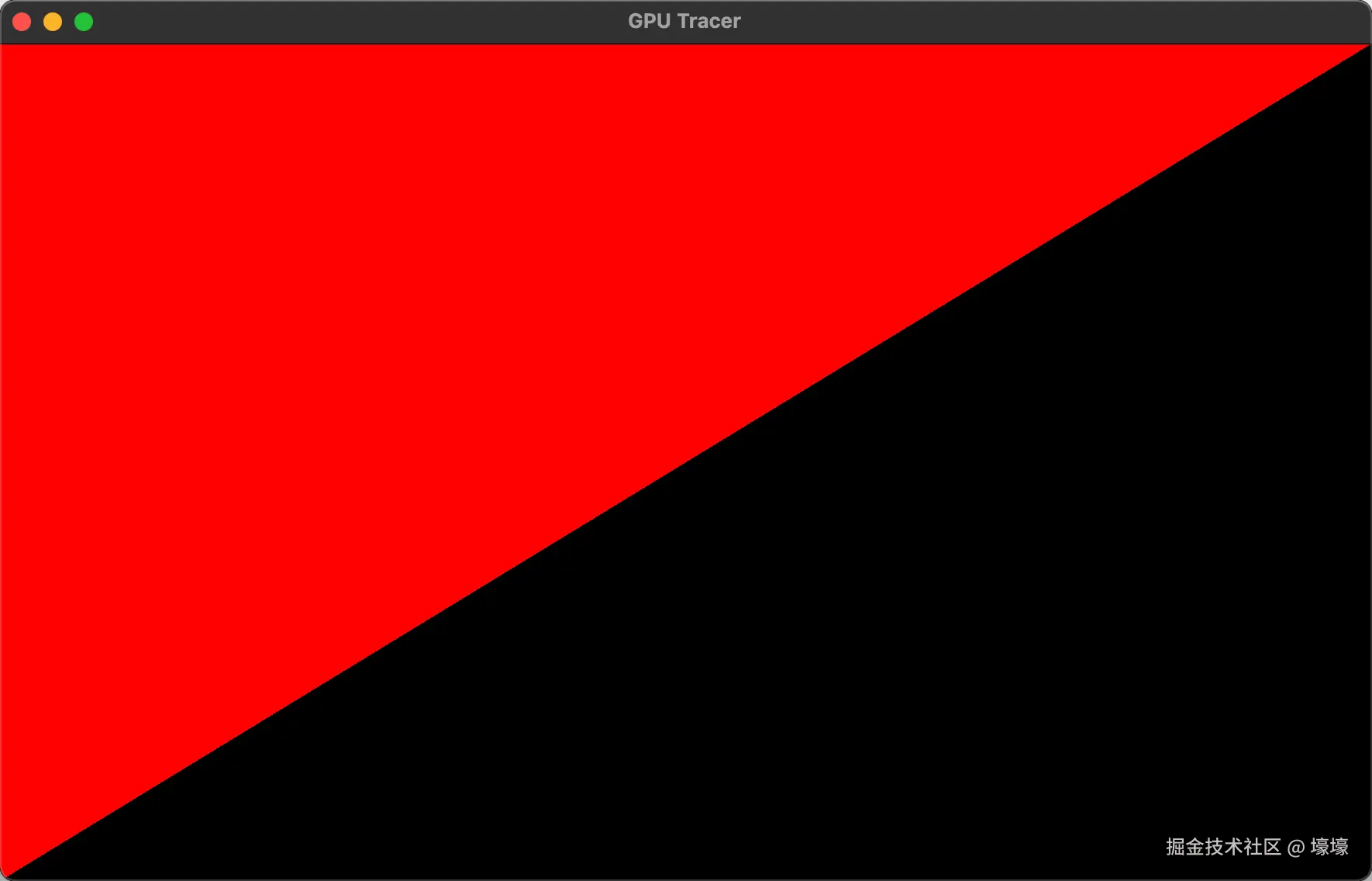

于是就会显示出这样子的结果

拼一个矩形

现在如果放两个直角三角形拼起来，就能画出我们这节最终想要的一个“战场”

extension MetalView: PathTracer {
  // ...
  func render() {
    // ...
    let vertexData: [Float] = [
      -1, 1,
      -1, -1,
      1, 1,
      1, 1,
      -1, -1,
      1, -1,
    ]

    // ...
    if let currentDrawable {
      // ...
      if let pipeline {
        // ...
        encoder.drawPrimitives(
          type: .triangle,
          vertexStart: 0,
          vertexCount: 6,
          instanceCount: 2
        )
        // ...
      }
    }
  }
}

最终我们就完成了开头提到的本节最终效果

---

暂时先到这，我们说白了现在就是搞了一张画布，后续的渲染工作基本上只需要调整 Fragment Shader 的代码就可以了。
