前言

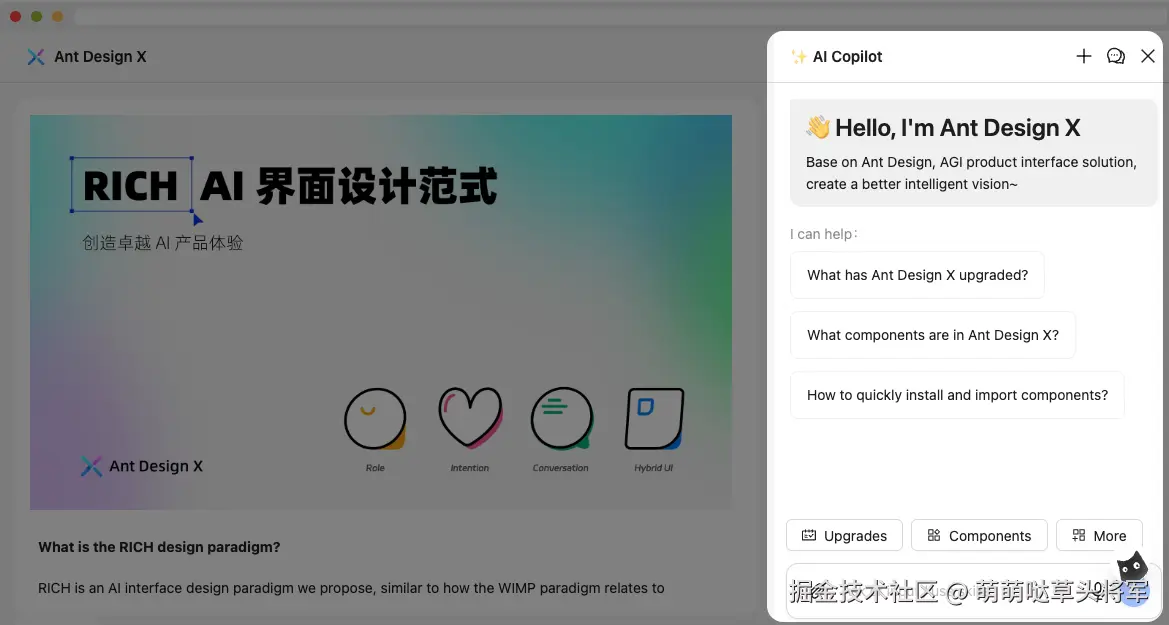

产品最近要求在老系统里加一个AI助手功能,类似下面这样:
正好最近在刷到了 Ant Design X 组件库,那就马上来封装一个通用的AI助手组件吧!
往期精彩推荐
- 🚀🚀🚀 pnpm 实践:挑战将前后端项目合并在 monorepo 项目并保留历史提交信息
- 优雅,太优雅了,NestJS 🔥 实在是太优雅了!🚀🚀🚀
- 🚀🚀 🚀 太棒了,有了它,终于不用翻阅屎山💩代码了!
- 更多精彩文章欢迎关注我的公众号:萌萌哒草头将军
正文

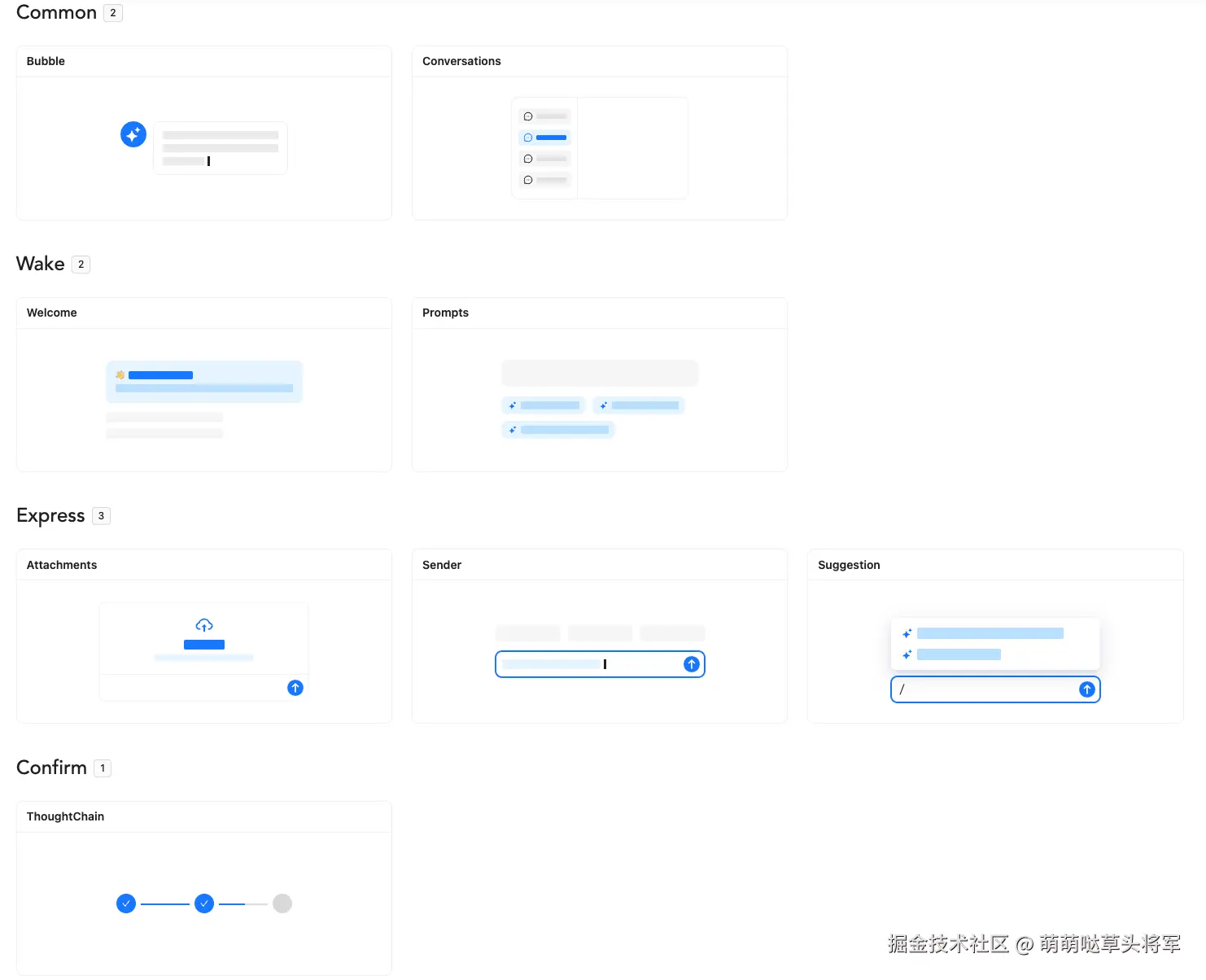

Ant Design X 专为 AI 驱动的用户界面量身定制。它在 AntD 的基础上扩展。

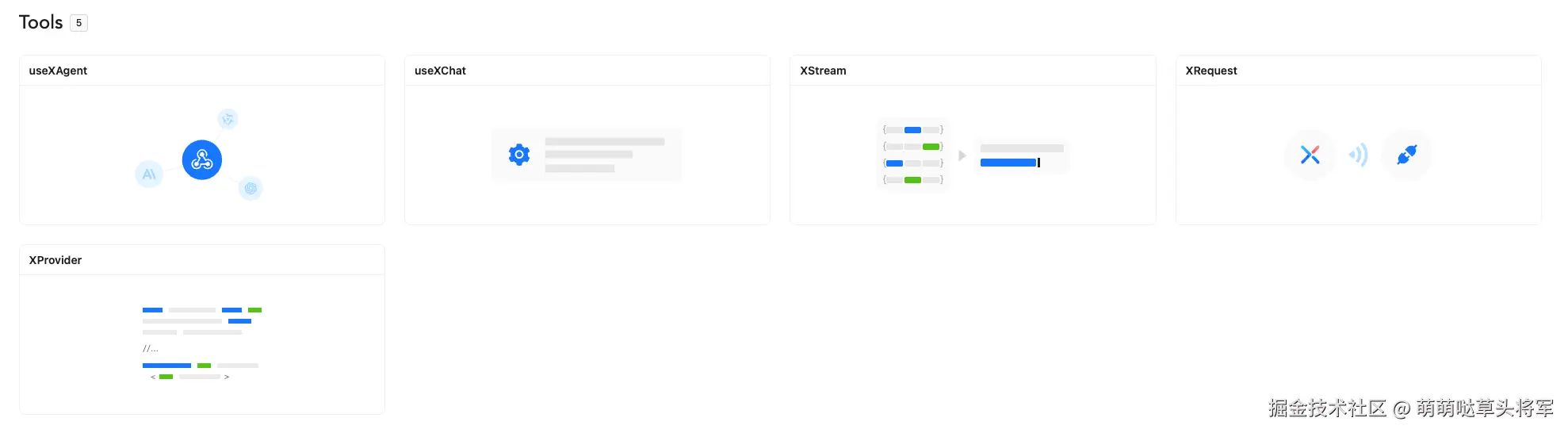

该库提供了一系列丰富的组件,这些组件高度可定制且模块化。这些组件内置了数据消费工具,支持与后端服务的无缝集成,并高效管理数据流。
但是 Ant Design X 最大的问题就是组件过于零散,想马上实现一个完整的聊天助手比较困难,所以我进行了一次封装,方便大家更快完成开发!
我的封装仅涉及到 UI 布局组装,不涉及具体细节样式,高度可自定义!
antdx 给你的是零散的部件,而antdx-pro给你的是成型的骨骼!
细节的雕刻,需要自己完成!
文档:mmdctjj.github.io/antdx-pro
明确需求
首先,我们需要明确一个AI助手应该有哪些内容

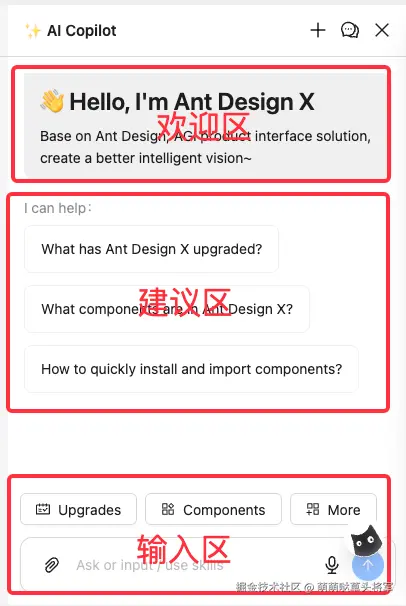

欢迎界面包含:欢迎区、建议区、输入区!

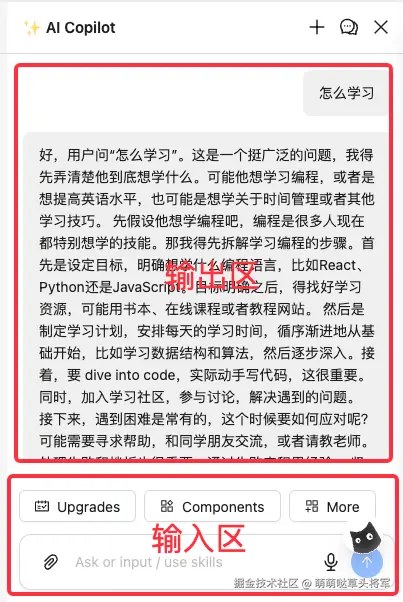

聊天页面主要包含:输出区和输入区!
开始封装 UI
现在,我们开始封装 UI ,如果你刚上手一定要记得先阅读下文档,这里我尽量保持原有的 API 结构,再次基础上,我们定义组件的 props
interface IAssistantProps {
/** 欢迎 **/
welcomeProps?: WelcomeProps
/** 聊天 **/
bubbleProps?: BubbleProps,
/** 建议 **/
promptsProps?: PromptsProps
/** 输入 **/
expressProps?: {
attachmentsProps?: AttachmentsProps,
senderProp?s: SenderProps,
suggestionProps?: SuggestionProps
}
}
接下来写组件,要保证聊天区始终在底部,所以打算使用 flex 布局!
import { Button, Flex } from "antd";
import {
Attachments,
AttachmentsProps,
Bubble,
Prompts,
PromptsProps,
Sender,
SenderProps,
Suggestion,
SuggestionProps,
Welcome,
WelcomeProps,
} from "@ant-design/x";
import { LinkOutlined, UserOutlined } from "@ant-design/icons";
import { BubbleListProps } from "@ant-design/x/es/bubble/BubbleList";
interface IAIAssistantProps {
/** 欢迎 **/
welcomeProps?: WelcomeProps;
/** 聊天 **/
bubbleListProps?: BubbleListProps;
/** 建议 **/
promptsProps?: PromptsProps;
/** 输入 **/
expressProps?: {
attachmentsProps?: AttachmentsProps;
senderProps?: SenderProps;
suggestionProps?: SuggestionProps;
};
}
export const AIAssistant = (props: IAIAssistantProps) => {
return (
<Flex
vertical
gap="middle"
style={{ height: `100%` }}
justify="space-between"
>
{!props?.bubbleListProps?.items?.length ? (
<Flex vertical gap="middle">
<Welcome {...props?.welcomeProps} />
<Prompts {...props?.promptsProps} />
</Flex>
) : (
<Bubble.List {...(props?.bubbleListProps ?? {})} />
)}
<Flex vertical gap={0}>
{!!props?.expressProps?.attachmentsProps?.items?.length && (
<Attachments {...(props?.expressProps?.attachmentsProps ?? {})} />
)}
<Suggestion
{...(props?.expressProps?.suggestionProps ?? { items: [] })}
>
{({ onTrigger, onKeyDown }) => {
return (
<Sender
{...props.expressProps?.senderProps}
onChange={(nextVal) => {
if (nextVal === "/") {
onTrigger();
} else if (!nextVal) {
onTrigger(false);
}
props?.expressProps?.senderProps?.onChange?.(nextVal);
}}
onKeyDown={onKeyDown}
/>
);
}}
</Suggestion>
</Flex>
</Flex>
);
};
代码可以看这里:http://localhost:8000/antdx-pro/components/copilot

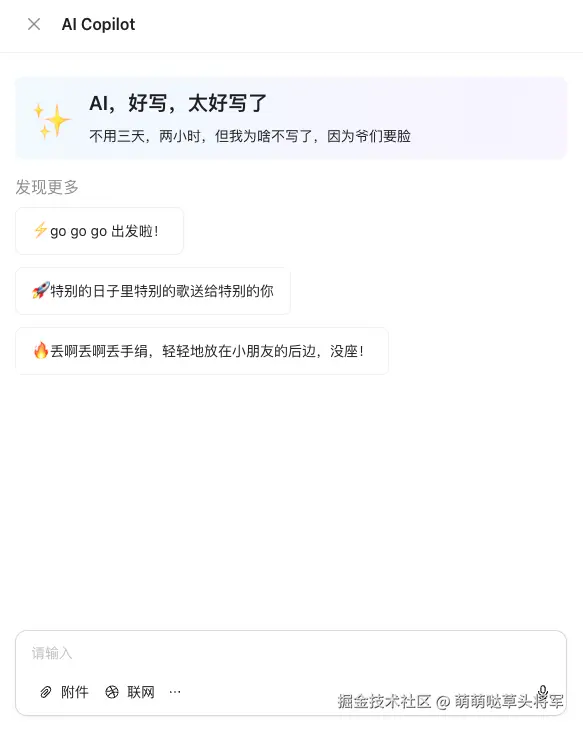

首页会显示 欢迎语 和 提示建议,开始聊天后这部分会隐藏!

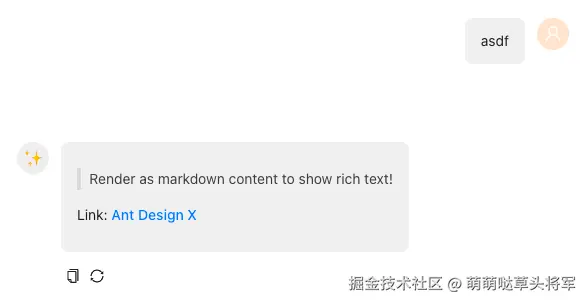

搭配 markdown-it 可以做到 markdown 渲染!

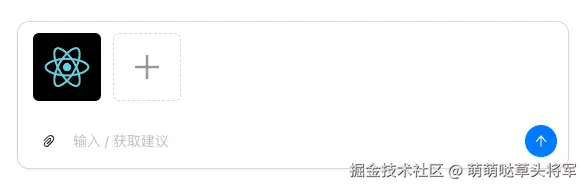

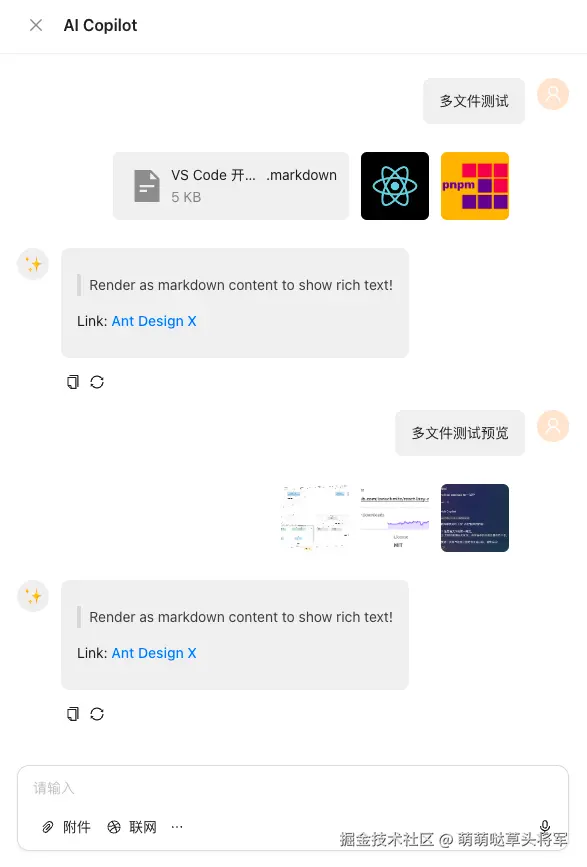

通过传入 Attachments 实现文件上传功能,聊天内容可以预览图片,当前文件不支预览!

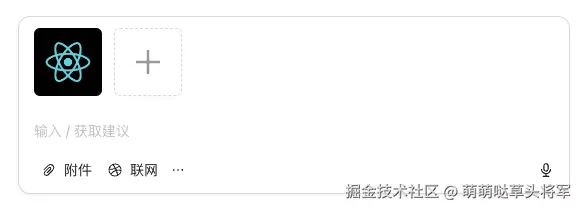

输入框的样式可以借助 prefix header footer 属性实现个性化的样式!
最后
希望这篇文章可以帮助到你,这个组件库还会继续完善!求 star ~
