C#实现Windows桌面截图功能(二)本文描述如何使用C#实现Windows桌面截图功能，允许局部截图。通过案例学习是

摘要： 本文描述如何使用C#实现Windows桌面截图功能，允许局部截图。

前言
- 通过案例学习是一种比较有趣的学习方式，下面是使用C#开发Windows桌面截图程序的案例。
- 案例实现了基本的屏幕截图功能，包括捕获全屏、预览图像以及保存截图文件。
- 通过该案例，可以让我们了解到使用GDI绘图的技术、文件对话框的使用以及事件驱动编程的概念。
- 通过自定义图像控件优化UI设计、实现图像显示，滚动缩放、显示图像信息等。
- 实现功能：
  - 点击按钮截图功能。
  - 屏幕遮罩截图功能：截图时透明显示屏幕，高亮显示截取的局部矩形区域。
  - 截图显示、并显示图像大小、保存图像功能。
  - 鼠标移动显示鼠标点位置及位置对应的RGB颜色。
- 主要内容：
  - 实现局部截图功能需要创建下面的方法：该方法是DPI感知声明:启动时调用,应对屏幕缩放。如果不创建并调用该方法，屏幕缩放时会获取不到真正的区域。
```
[System.Runtime.InteropServices.DllImport("user32.dll")]
private static extern bool SetProcessDPIAware();
```
  - 除了实现上面的方法，还有一些参数需要设置，是实现桌面遮罩，然后局部截图的。
```
this.FormBorderStyle = FormBorderStyle.None;    //无边框
this.WindowState = FormWindowState.Maximized;   //最大化
this.Location = Point.Empty;                    //桌面左上角起始位
this.DoubleBuffered = true;                     //双缓冲
this.AllowTransparency = true;                  //可调整透明度
this.TransparencyKey = SystemColors.Control;    //透明区域颜色
this.TopMost = true;                            //顶层窗体
this.Opacity = 0.5;                             //透明度
this.BackColor = Color.White;                   //背景色
this.Cursor = Cursors.Cross;                    //十字光标
```

预览

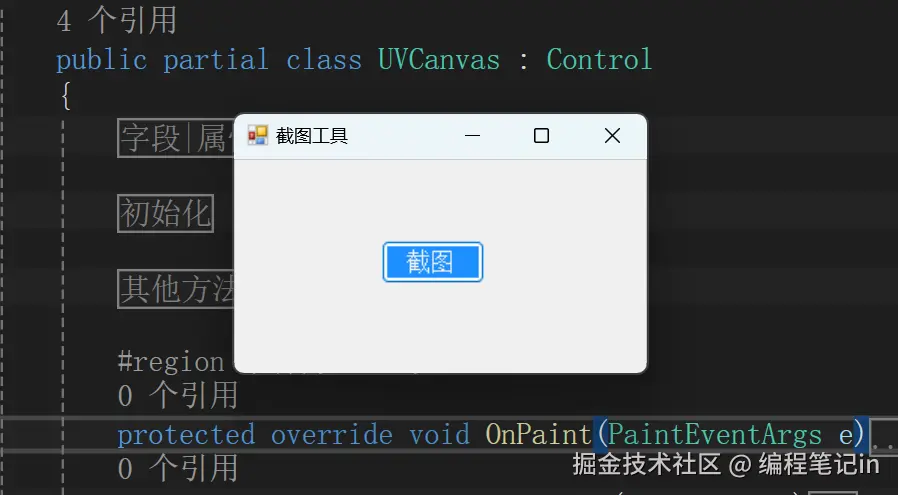

- 主界面

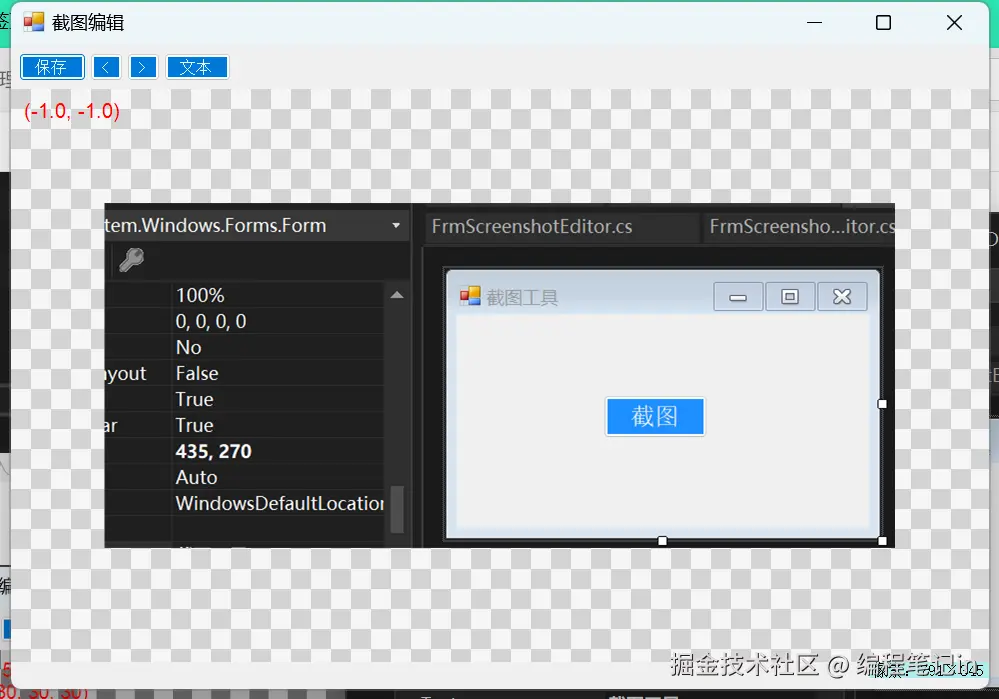

- 截图

代码

主窗体

public partial class MainForm : Form
{
    public MainForm()
    {
        InitializeComponent();
        this.CenterToParent();
        this.Location = new Point(100,100);
        this.MaximumSize = this.Size;
        this.MinimumSize = this.Size;
    }
    private void Btn_Screenshot_Click(object sender, EventArgs e)
    {
        try
        {
            this.Hide();
            FrmScreenshotEditor frmScreenshotEditor = new FrmScreenshotEditor();
            FrmScreenshot frmScreenshot = new FrmScreenshot(frmScreenshotEditor);
            frmScreenshot.ShowDialog();
            if (frmScreenshotEditor.Image == null)
            {
                this.Show();
                return;
            }
            else
            {
                Image image = new Bitmap(frmScreenshotEditor.Image);
                frmScreenshotEditor.PixelSize = image.Size;
                Debug.WriteLine($"图像大小：X = {image.Width},Y = {image.Height}");
                frmScreenshotEditor.ShowDialog();
                this.Show();
            }
        }
        catch (Exception ex)
        {
            this.Show();
        }
    }
}

截图窗体

public partial class FrmScreenshot : Form
{
    #region 字段|属性
    private Point startPoint;
    private Point endPoint;
    private Point mouseLastPoint;
    private bool isSelecting = false;
    FrmScreenshotEditor frm_ScreenshotEidtor;
    #endregion

    #region 初始化|加载
    public FrmScreenshot()
    {
        InitializeComponent();
    }
    public FrmScreenshot(FrmScreenshotEditor form)
    {
        InitializeComponent();
        SetProcessDPIAware();
        frm_ScreenshotEidtor = form;
    }
    private void FrmScreenshot_Load(object sender, EventArgs e)
    {
        this.FormBorderStyle = FormBorderStyle.None;    //无边框
        this.WindowState = FormWindowState.Maximized;   //最大化
        this.Location = Point.Empty;                    //桌面左上角起始位
        this.DoubleBuffered = true;                     //双缓冲
        this.AllowTransparency = true;                  //可调整透明度
        this.TransparencyKey = SystemColors.Control;    //透明区域颜色
        this.TopMost = true;                            //顶层窗体
        this.Opacity = 0.5;                             //透明度
        this.BackColor = Color.White;                   //背景色
        this.Cursor = Cursors.Cross;                    //十字光标
    }
    #endregion

    #region 方法|自定义方法
    /// <summary>
    /// DPI感知声明:启动时调用,应对屏幕缩放
    /// </summary>
    [System.Runtime.InteropServices.DllImport("user32.dll")]
    private static extern bool SetProcessDPIAware();
    //采集选择区域
    public Bitmap CaptureSelectedRegion()
    {
        // 计算选择区域
        int captureX = Math.Min(startPoint.X, endPoint.X);
        int captureY = Math.Min(startPoint.Y, endPoint.Y);
        int captureWidth = Math.Abs(startPoint.X - endPoint.X);
        int captureHeight = Math.Abs(startPoint.Y - endPoint.Y);
        if (captureWidth <= 0 || captureHeight <= 0) return null;

        // 获取屏幕DPI缩放比例
        float dpiScaleX, dpiScaleY;
        using (Graphics g = this.CreateGraphics())
        {
            dpiScaleX = g.DpiX / 96f;
            dpiScaleY = g.DpiY / 96f;
        }
        // 将逻辑坐标转换为物理坐标
        Point upperLeftSource = this.PointToScreen(new Point(
            (int)(captureX * dpiScaleX),
            (int)(captureY * dpiScaleY)));
        // 计算物理尺寸
        int physicalWidth = (int)(captureWidth * dpiScaleX);
        int physicalHeight = (int)(captureHeight * dpiScaleY);
        this.Invalidate();
        Debug.WriteLine($"起始位置：{startPoint}，结束位置：{endPoint}");
        Debug.WriteLine($"采集X：{captureX}，采集Y：{captureY}");
        Debug.WriteLine($"采集宽度：{captureWidth}，采集高度：{captureHeight}");
        Debug.WriteLine($"转换点：{upperLeftSource}");

        // 截取屏幕
        Bitmap bitmap = new Bitmap(captureWidth, captureHeight);
        using (Graphics g = Graphics.FromImage(bitmap))
        {
            g.CopyFromScreen(upperLeftSource, Point.Empty, new Size(captureWidth, captureHeight));
        }
        return bitmap;
    }
    // 显示（绘制）鼠标位置文本
    private void DrawMousePosition(Graphics graphics)
    {
        using (Pen pen = new Pen(Color.Red, 1))
        {
            int x = Math.Min(startPoint.X, endPoint.X);
            int y = Math.Min(startPoint.Y, endPoint.Y);
            int width = Math.Abs(startPoint.X - endPoint.X);
            int height = Math.Abs(startPoint.Y - endPoint.Y);
            // 绘制选择矩形
            DrawSelectedRegion(graphics, new Rectangle(x, y, width, height));
            // 显示尺寸信息
            string sizeText = $"{width} x {height}";
            Font font = new Font("Arial", 14);
            SizeF textSize = graphics.MeasureString(sizeText, font);
            // 确保文本不会超出屏幕
            float textX = x + width - textSize.Width - 5;
            float textY = y + height - textSize.Height - 5;
            if (textX < x) textX = x + 5;
            if (textY < y) textY = y + 5;
            // 绘制文本背景
            graphics.FillRectangle(Brushes.White, textX - 2, textY - 2, textSize.Width + 4, textSize.Height + 4);
            // 绘制文本
            graphics.DrawString(sizeText, font, Brushes.Blue, textX, textY);
        }
    }
    //绘制选择矩形
    private void DrawSelectedRegion(Graphics graphics, Rectangle selectionRect)
    {
        // 绘制半透明背景
        using (Brush overlayBrush = new SolidBrush(Color.FromArgb(128, Color.Black)))
        {
            graphics.FillRectangle(overlayBrush, this.ClientRectangle);
        }
        graphics.SetClip(selectionRect, CombineMode.Exclude);
        graphics.Clear(Color.FromArgb(255, 0, 0, 0));
        graphics.ResetClip();
        // 2. 如果有选择区域，使该区域完全透明
        using (Pen pen = new Pen(Color.Blue, 1))
        {
            graphics.DrawRectangle(pen, selectionRect);
        }
    }
    #endregion

    #region 重写事件方法
    protected override void OnMouseDown(MouseEventArgs e)
    {
        base.OnMouseDown(e);
        if (e.Button == MouseButtons.Left)
        {
            startPoint = e.Location;
            isSelecting = true;
        }
        else if (e.Button == MouseButtons.Right)
        {
            this.Close(); // 右键取消
        }
    }
    protected override void OnMouseMove(MouseEventArgs e)
    {
        base.OnMouseMove(e);
        if (isSelecting)
        {
            endPoint = e.Location;
            this.Invalidate();
        }
        else
        {
            mouseLastPoint = e.Location;
            this.Invalidate();
        }
    }
    protected override void OnMouseUp(MouseEventArgs e)
    {
        base.OnMouseUp(e);
        if (e.Button == MouseButtons.Left)
        {
            isSelecting = false;
            if (frm_ScreenshotEidtor != null)
            {
                this.Opacity = 0;
                Thread.Sleep(100);
                this.Refresh();
                frm_ScreenshotEidtor.Image = CaptureSelectedRegion();
            }
            this.Close();
        }
    }
    protected override void OnMouseHover(EventArgs e)
    {
        base.OnMouseHover(e);
    }
    protected override void OnKeyDown(KeyEventArgs e)
    {
        base.OnKeyDown(e);
        if (e.KeyCode == Keys.Escape)
        {
            this.Close(); // ESC键取消
        }
    }
    protected override void OnPaint(PaintEventArgs e)
    {
        base.OnPaint(e);
        if (isSelecting)
        {
            DrawMousePosition(e.Graphics);
        }
        else
        {
            using (Pen pen = new Pen(Color.Blue, 1))
            {
                int x = mouseLastPoint.X;
                int y = mouseLastPoint.Y;
                int width = 100;
                int height = 100;
                string sizeText = $"{x} x {y}";
                Font font = new Font("宋体", 14);
                SizeF textSize = e.Graphics.MeasureString(sizeText, font);
                float textX = x + width - textSize.Width - 5;
                float textY = y + height - textSize.Height - 5;
                // 绘制文本背景
                e.Graphics.FillRectangle(Brushes.White, textX - 2, textY - 2,textSize.Width + 4, textSize.Height + 4);
                // 绘制文本
                e.Graphics.DrawString(sizeText, font, Brushes.Blue, x-20, y);
            }
        }
    }
    #endregion
}

截图编辑窗体

public partial class FrmScreenshotEditor :Form
{
    #region 字段|属性
    private Size pixelSize = new Size(0,0);
    public Image Image
    {
        get => uvCanvas.Image;
        set
        {
            uvCanvas.Image = value;
            label_PixelSize.Text = $"像素：{PixelSize.Width}×{PixelSize.Height}";
            Invalidate();
        }
    }
    public Size PixelSize {
        get => pixelSize;
        set
        {
            pixelSize = value;
            label_PixelSize.Text = $"像素：{PixelSize.Width}×{PixelSize.Height}";
            Invalidate();
        }
    }
    #endregion

    #region 初始化|加载
    public FrmScreenshotEditor()
    {
        this.WindowState = FormWindowState.Maximized;
        InitializeComponent();
        this.Size = new Size(1000, 700);
        uvCanvas.ImagePixPointEvent += UvCanvas_ImagePixPointEvent;
    }
    private void UvCanvas_ImagePixPointEvent(PointF e)
    {
        Debug.WriteLine($"当前图像点：{(int)e.X},{(int)e.Y}");
    }
    #endregion

    #region 按钮事件方法
    private void btn_Save_Click(object sender, System.EventArgs e)
    {
        SaveFileDialog saveFileDialog = new SaveFileDialog();
        saveFileDialog.FileName = "截图1";     //设置初始文件名
        saveFileDialog.Filter = "PNG Image|*.png|JPEG Image|*.jpg|BMP Image|*.bmp";
        if (saveFileDialog.ShowDialog() == DialogResult.OK)
        {
            string extension = Path.GetExtension(saveFileDialog.FileName).ToLower();
            ImageFormat imageFormat;
            switch (extension)
            {
                case ".png":
                    imageFormat = ImageFormat.Png;
                    break;
                case ".jpg":
                    imageFormat = ImageFormat.Jpeg;
                    break;
                case ".bmp":
                    imageFormat = ImageFormat.Bmp;
                    break;
                default:
                    imageFormat = ImageFormat.Png;
                    break;
            }
            try
            {
                Image.Save(saveFileDialog.FileName, imageFormat);
                MessageBox.Show($"图片已成功保存至: {saveFileDialog.FileName}");
            }
            catch (Exception ex)
            {
                MessageBox.Show($"保存图片时出错: {ex.Message}");
            }
        }
    }
    private void BtnUndo_Click(object sender, EventArgs e)
    {

    }
    private void BtnRedo_Click(object sender, EventArgs e)
    {

    }
    private void BtnAddText_Click(object sender, EventArgs e)
    {
    }
    #endregion

    #region 重写事件方法
    protected override void OnResize(EventArgs e)
    {
        base.OnResize(e);
    }
    #endregion
}

自定义控件代码

public partial class UVCanvas : Control
{
    #region 字段|属性
    public delegate void ImagePixPointCallback(PointF pointF);
    public event ImagePixPointCallback ImagePixPointEvent;
    //基本参数
    private Image _image;                               //图像
    private Point _lastMousePosition;                   //鼠标最后位置
    private PointF _imagePoint = new PointF(0, 0);      //图像位置点
    private PointF _imagePosition = new PointF(0, 0);   //图像位置
    private float _zoom = 1.0f;                         //当前缩放
    private const float MinZoom = 0.15f;                //最小缩放
    private const float MaxZoom = 10.0f;                //最大缩放
    private const float ZoomStep = 0.1f;                //缩放步长
    //控件背景棋盘格参数
    private int controlGridSize = 20;           // 每个格子的大小
    private Color backColor1 = Color.LightGray; // 第一种颜色
    private Color backColor2 = Color.WhiteSmoke;     // 第二种颜色
    //属性
    public Image Image
    {
        get => _image;
        set
        {
            _image = value;
            CenterImage();
            Invalidate();
        }
    }
    /// <summary>
    /// 当前像素点
    /// </summary>
    public PointF ImagePoint { get => _imagePoint;private set => _imagePoint = value; }
    #endregion

    #region 初始化
    public UVCanvas()
    {
        this.DoubleBuffered = true;
        this.SetStyle(ControlStyles.OptimizedDoubleBuffer | ControlStyles.UserPaint, true);
    }
    #endregion
    #region 其他方法
    private PointF ScreenToImage(Point screenPoint)
    {
        return new PointF((screenPoint.X - _imagePosition.X) / _zoom, (screenPoint.Y - _imagePosition.Y) / _zoom);
    }
    /// <summary>
    /// 获取目标矩形
    /// </summary>
    private RectangleF GetDestinationRectangle()
    {
        if (_image == null) return RectangleF.Empty;
        return new RectangleF(_imagePosition.X, _imagePosition.Y, (_image.Width * _zoom), (_image.Height * _zoom));
    }
    /// <summary>
    /// 图像居中
    /// </summary>
    private void CenterImage()
    {
        if (_image == null) return;
        _imagePosition = new PointF((this.Width - _image.Width * _zoom) / 2, (this.Height - _image.Height * _zoom) / 2);
        Invalidate();
    }
    public void ResetImage()
    {
        _zoom = 1.0f;
        CenterImage();
    }
    /// <summary>
    /// 获取像素值
    /// </summary>
    private Color GetPixelColor(PointF imagePoint)
    {
        if (_image == null
            ||imagePoint.X < 0 || imagePoint.X >= _image.Width
            || imagePoint.Y < 0 || imagePoint.Y >= _image.Height)
        {
            return Color.Empty; // 无效坐标
        }
        // 如果是 Bitmap，直接读取像素
        if (_image is Bitmap bitmap)
        {
            return bitmap.GetPixel((int)imagePoint.X, (int)imagePoint.Y);
        }
        else
        {
            // 如果是其他 Image 类型（如 Metafile），先转换为 Bitmap
            using (Bitmap tempBitmap = new Bitmap(_image))
            {
                return tempBitmap.GetPixel((int)imagePoint.X, (int)imagePoint.Y);
            }
        }
    }
    #region 绘制网格
    /// <summary>
    /// 绘制控件棋盘格背景
    /// </summary>
    private void DrawControlGridBackgroud(PaintEventArgs e)
    {
        // 获取绘制区域
        Rectangle clipRect = e.ClipRectangle;
        // 计算需要绘制的起始行列
        int startX = (int)(clipRect.Left / controlGridSize) * controlGridSize;
        int startY = (int)(clipRect.Top / controlGridSize) * controlGridSize;
        // 循环绘制棋盘格
        for (int y = startY; y < clipRect.Bottom; y += controlGridSize)
        {
            for (int x = startX; x < clipRect.Right; x += controlGridSize)
            {
                // 根据位置绘制颜色
                bool isAlternate = ((x / controlGridSize) + (y / controlGridSize)) % 2 == 0;
                using (Brush brush = new SolidBrush(isAlternate ? backColor1 : backColor2))
                {
                    e.Graphics.FillRectangle(brush, x, y, controlGridSize, controlGridSize);
                }
            }
        }
    }
    #endregion
    #endregion

    #region 事件方法重写
    protected override void OnPaint(PaintEventArgs e)
    {
        base.OnPaint(e);
        DrawControlGridBackgroud(e);
        if (_image == null) return;
        e.Graphics.InterpolationMode = InterpolationMode.HighQualityBicubic;
        e.Graphics.PixelOffsetMode = PixelOffsetMode.HighQuality;
        RectangleF destRect = GetDestinationRectangle();
        e.Graphics.DrawImage(_image, destRect);
        // 新增：绘制当前鼠标位置的图像坐标
        string coordText = $"({ImagePoint.X:F1}, {ImagePoint.Y:F1})";
        // 新增：获取 RGB 值
        Color pixelColor = GetPixelColor(ImagePoint);
        using (var font = new Font("Arial", 10))
        using (var brush = new SolidBrush(Color.Red))
        {
            //判断显示 RGB 值
            if (pixelColor != Color.Empty)
            {
                string rgbText = $"RGB: ({pixelColor.R}, {pixelColor.G}, {pixelColor.B})";
                coordText = $"{coordText}\r\n{rgbText}";
            }
            e.Graphics.DrawString(coordText, font, brush, 10, 10);
        }
    }
    protected override void OnResize(EventArgs e)
    {
        base.OnResize(e);
        CenterImage();
    }
    protected override void OnDoubleClick(EventArgs e)
    {
        base.OnDoubleClick(e);
        ResetImage();
    }
    protected override void OnMouseDown(MouseEventArgs e)
    {
        base.OnMouseDown(e);
        if (e.Button == MouseButtons.Left && _image != null)
        {
            _lastMousePosition = e.Location;
            this.Cursor = Cursors.Hand;
        }
    }
    protected override void OnMouseUp(MouseEventArgs e)
    {
        base.OnMouseUp(e);
        this.Cursor = Cursors.Default;
    }
    protected override void OnMouseMove(MouseEventArgs e)
    {
        base.OnMouseMove(e);
        if (_image != null)
        {
            // 获取图像在屏幕上的绘制区域
            ImagePoint = ScreenToImage(e.Location);
            // 检查鼠标是否在图像区域内
            RectangleF imageRect = GetDestinationRectangle();
            //计算图像坐标（仅在图像区域内计算）
            if (imageRect.Contains(e.Location)){ ImagePoint = ScreenToImage(e.Location);}
            // 不在图像内，设为 (-1, -1)
            else { ImagePoint = new PointF(-1, -1); }
            // 回调图像点
            ImagePixPointEvent?.Invoke(ImagePoint);
            Invalidate();
        }
        if (e.Button == MouseButtons.Left && _image != null)
        {
            // 计算鼠标移动增量
            _imagePosition.X += (e.X - _lastMousePosition.X);
            _imagePosition.Y += (e.Y - _lastMousePosition.Y);
            // 记录鼠标最后位置
            _lastMousePosition = e.Location;
            Invalidate();
        }
    }
    protected override void OnMouseWheel(MouseEventArgs e)
    {
        base.OnMouseWheel(e);
        if (_image == null) return;
        // 1. 记录缩放前鼠标在 "图像坐标" 中的位置
        PointF mouseInImageSpace = ScreenToImage(e.Location);
        // 2. 计算新的缩放级别
        _zoom += (e.Delta > 0 ? ZoomStep : -ZoomStep);
        _zoom = Math.Max(MinZoom, Math.Min(MaxZoom, _zoom));
        // 3. 计算缩放后该点在屏幕上的新位置（基于鼠标点缩放）
        PointF mouseInScreenSpaceAfterZoom = new PointF(
            mouseInImageSpace.X * _zoom + _imagePosition.X,
            mouseInImageSpace.Y * _zoom + _imagePosition.Y);
        // 4. 计算偏移量，使鼠标下的点仍然在原来的屏幕位置
        _imagePosition.X += (e.Location.X - mouseInScreenSpaceAfterZoom.X);
        _imagePosition.Y += (e.Location.Y - mouseInScreenSpaceAfterZoom.Y);
        // 更新显示
        Invalidate();
    }
    #endregion
}

总结
- 通过实现案例学习编程是一种高效的学习方法。这种学习方式将抽象概念具体化。通过上面的截图程序，我们实际应用了窗体控件、事件处理、GDI+绘图等核心知识点，比单纯学习理论更容易理解和记忆。
- 其次通过案例可以获得正向反馈，看到自己编写的代码真正实现功能，极大提升了学习动力和成就感。
- 最后，该案例后面可以自己扩展性，当你掌握了更多的基础知识后，可以逐步添加区域选择、图像编辑等更高级的功能。

最后
- 项目源码： gitee.com/incodenotes…
- 如果你觉得这篇文章对你有帮助，不妨点个赞再走呗！
- 如有其他疑问，欢迎评论区留言讨论！
- 也可以关注微信公众号 [编程笔记in] ，一起交流学习！

❖ 感谢您的关注 ❖

C#实现Windows桌面截图功能(二)

前言

实现功能：

主要内容：

预览

主界面

截图

代码

主窗体

截图窗体

截图编辑窗体

自定义控件代码

总结

最后
