一、zygote进程的启动与初始化
1. init进程触发zygote启动
-
核心机制
由Linux内核首个用户进程`init`解析`init.rc`脚本启动Zygote： service zygote /system/bin/app_process -Xzygote /system/bin --zygote --start-system-server class main socket zygote stream 660 root system 关键参数`--start-system-server`触发SystemServer进程的创建 首先解释一下这里面的代码，他们分别是干什么的， 1.定义一个名为 `zygote` 的系统服务。 `zygote` 是 Android 的核心服务，负责孵化（fork）新的应用进程。 `/system/bin/app_process` 是 Zygote 的可执行文件路径。 `-Xzygote /system/bin`：传递给 `app_process` 的 JVM 参数（设置 Zygote 的启动路径）。 `--zygote`：标志位，表示启动 Zygote 进程。 `--start-system-server`：启动后立即创建 System Server 进程（如 `ActivityManagerService` 等核心系统服务）。 2. **`class main`** 指定该服务属于 `main` 类。 `main` 是 Android 中预定义的服务类别，系统启动时会通过 `class_start main` 命令启动所有属于 `main` 类的服务。其他可能的类名包括 `core`（更早启动的服务）或自定义类别。 3. **`socket zygote stream 660 root system`** 为 Zygote 服务创建一个 Unix Domain Socket。 `socket zygote`：定义 Socket 名称为 `zygote`。 `stream`：Socket 类型为流式（可靠的双向字节流，类似 TCP）。 `660`：文件权限（`rw-rw----`），即拥有者和所属组有读写权限，其他用户无权限。 `root system`：Socket 的拥有者为 `root` 用户，所属组为 `system` 组。 **用途**：Zygote 通过此 Socket 接收来自系统或应用的请求（例如启动新应用进程）。 -

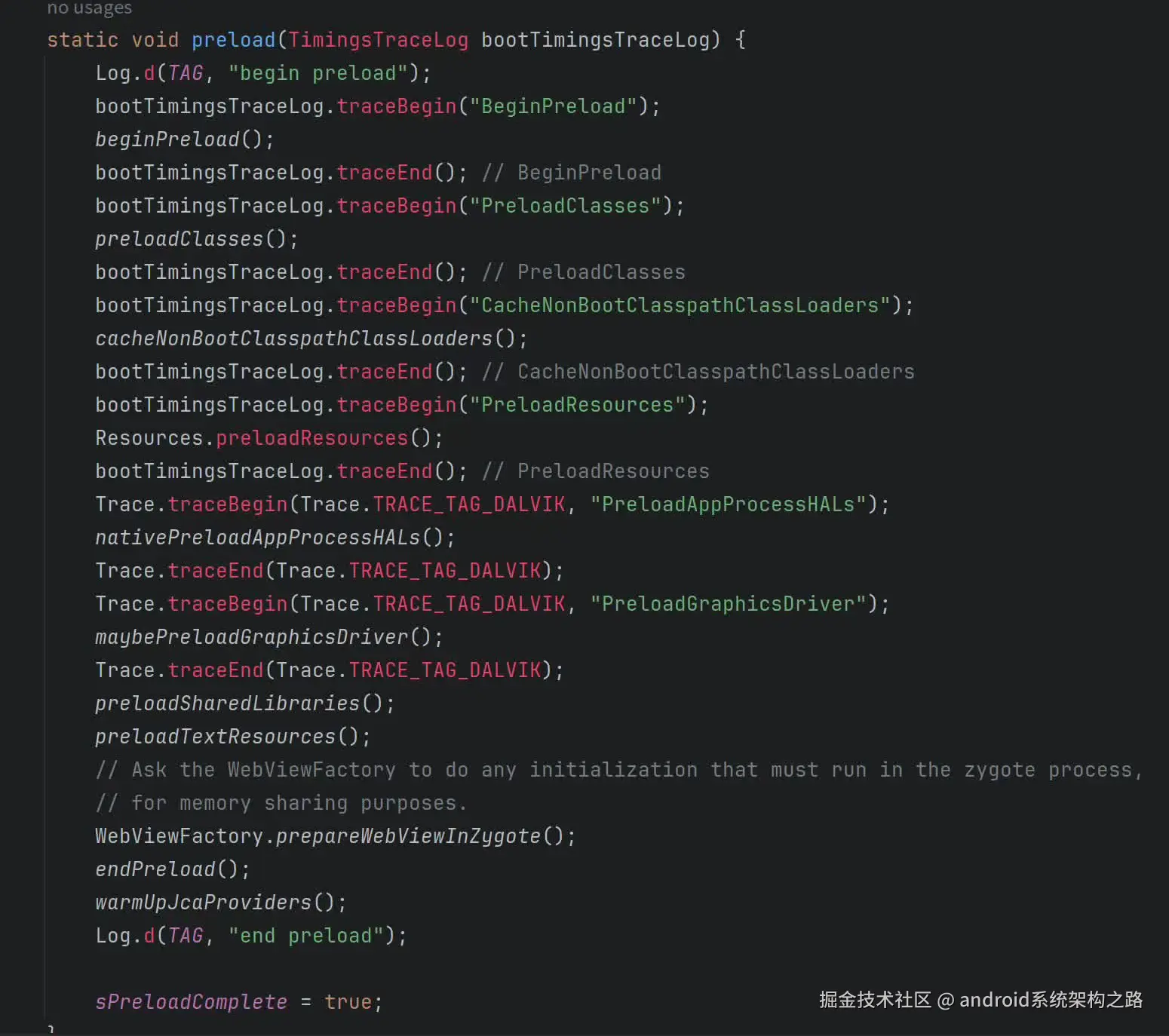

Zygote预加载机制
1.Zygote 在启动时会预加载公共类库、资源和 JNI 库，所有子进程（如 App 进程）共享这些预加载内容，避免重复加载，提高效率。（frameworks/base/core/java/com/android/internal/os/ZygoteInit.java）
如上关键代码解释：
-
preloadClasses()：
从/system/etc/preloaded-classes文件读取需要预加载的类列表（如core-libart.jar、framework.jar中的类）。
该文件由编译系统生成，包含所有标记为preloaded的类。 -
preloadResources()：
加载framework-res.apk中的资源（如布局、主题、字符串），避免每个 App 单独加载 -
nativePreloadAppProcessHAL()：
通过 JNI 调用加载系统核心 JNI 库

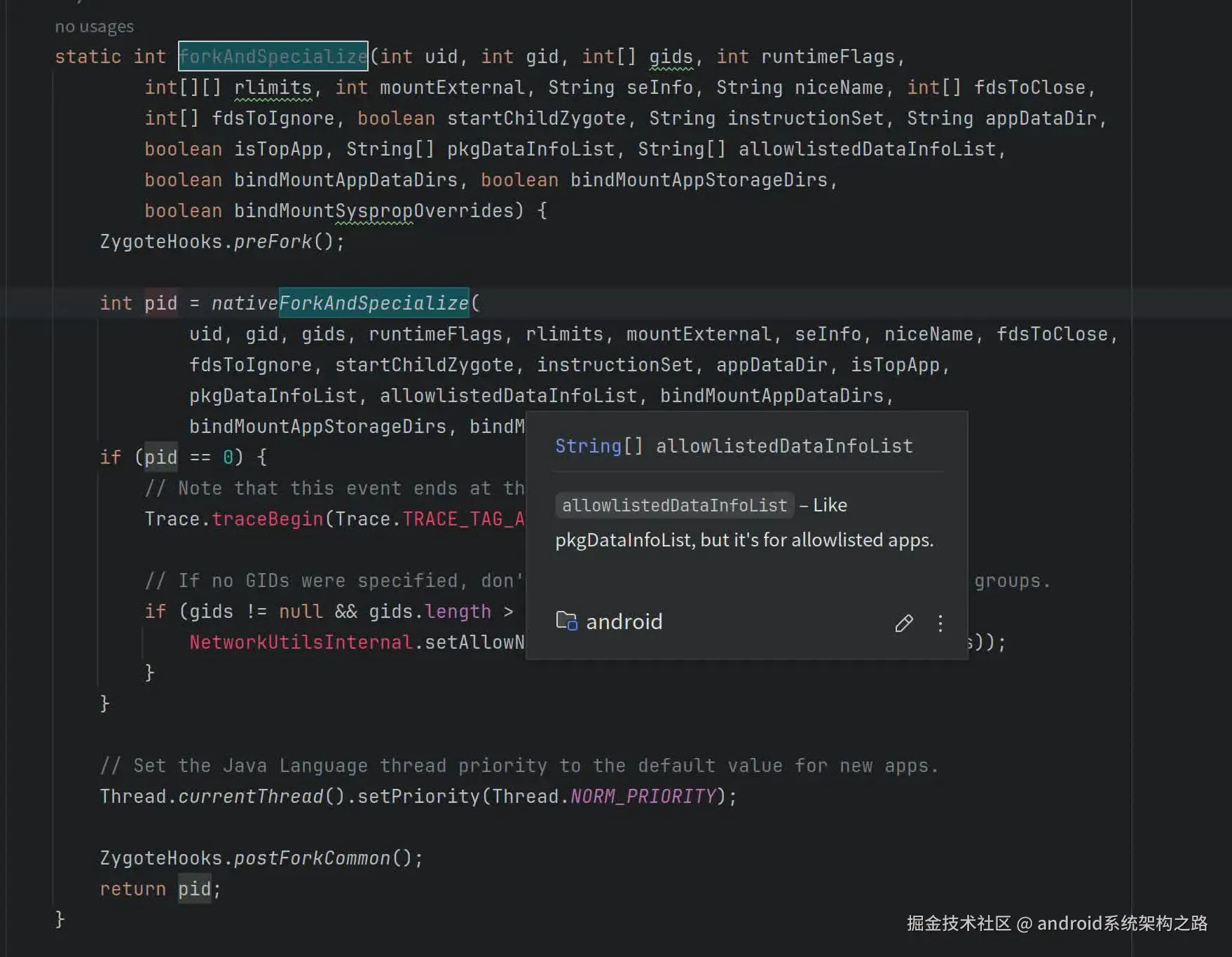

2.copy-on-write
Zygote 通过 Linux 的 fork() 机制创建子进程，所有子进程共享 Zygote 的只读内存页。当子进程尝试修改内存时，会触发 写时复制，复制一份新内存页供子进程使用。
核心代码如下：
2.启动SystemServer进程
Zygote 在启动后，会创建第一个子进程 SystemServer，它是所有系统服务的宿主（如 ActivityManagerService、PackageManagerService）。
-
启动流程代码
核心代码如下：ZygoteInit.java 中的main方法
@UnsupportedAppUsage
public static void main(String[] argv) {
ZygoteServer zygoteServer = null;
// Mark zygote start. This ensures that thread creation will throw
// an error.
ZygoteHooks.startZygoteNoThreadCreation();
// Zygote goes into its own process group.
try {
Os.setpgid(0, 0);
} catch (ErrnoException ex) {
throw new RuntimeException("Failed to setpgid(0,0)", ex);
}
Runnable caller;
try {
// Store now for StatsLogging later.
final long startTime = SystemClock.elapsedRealtime();
final boolean isRuntimeRestarted = "1".equals(
SystemProperties.get("sys.boot_completed"));
String bootTimeTag = Process.is64Bit() ? "Zygote64Timing" : "Zygote32Timing";
TimingsTraceLog bootTimingsTraceLog = new TimingsTraceLog(bootTimeTag,
Trace.TRACE_TAG_DALVIK);
bootTimingsTraceLog.traceBegin("ZygoteInit");
RuntimeInit.preForkInit();
boolean startSystemServer = false;
String zygoteSocketName = "zygote";
String abiList = null;
boolean enableLazyPreload = false;
for (int i = 1; i < argv.length; i++) {
if ("start-system-server".equals(argv[i])) {
startSystemServer = true;
} else if ("--enable-lazy-preload".equals(argv[i])) {
enableLazyPreload = true;
} else if (argv[i].startsWith(ABI_LIST_ARG)) {
abiList = argv[i].substring(ABI_LIST_ARG.length());
} else if (argv[i].startsWith(SOCKET_NAME_ARG)) {
zygoteSocketName = argv[i].substring(SOCKET_NAME_ARG.length());
} else {
throw new RuntimeException("Unknown command line argument: " + argv[i]);
}
}
final boolean isPrimaryZygote = zygoteSocketName.equals(Zygote.PRIMARY_SOCKET_NAME);
if (!isRuntimeRestarted) {
if (isPrimaryZygote) {
FrameworkStatsLog.write(FrameworkStatsLog.BOOT_TIME_EVENT_ELAPSED_TIME_REPORTED,
BOOT_TIME_EVENT_ELAPSED_TIME__EVENT__ZYGOTE_INIT_START,
startTime);
} else if (zygoteSocketName.equals(Zygote.SECONDARY_SOCKET_NAME)) {
FrameworkStatsLog.write(FrameworkStatsLog.BOOT_TIME_EVENT_ELAPSED_TIME_REPORTED,
BOOT_TIME_EVENT_ELAPSED_TIME__EVENT__SECONDARY_ZYGOTE_INIT_START,
startTime);
}
}
if (abiList == null) {
throw new RuntimeException("No ABI list supplied.");
}
// In some configurations, we avoid preloading resources and classes eagerly.
// In such cases, we will preload things prior to our first fork.
if (!enableLazyPreload) {
bootTimingsTraceLog.traceBegin("ZygotePreload");
EventLog.writeEvent(LOG_BOOT_PROGRESS_PRELOAD_START,
SystemClock.uptimeMillis());
preload(bootTimingsTraceLog);
EventLog.writeEvent(LOG_BOOT_PROGRESS_PRELOAD_END,
SystemClock.uptimeMillis());
bootTimingsTraceLog.traceEnd(); // ZygotePreload
}
// Do an initial gc to clean up after startup
bootTimingsTraceLog.traceBegin("PostZygoteInitGC");
gcAndFinalize();
bootTimingsTraceLog.traceEnd(); // PostZygoteInitGC
bootTimingsTraceLog.traceEnd(); // ZygoteInit
Zygote.initNativeState(isPrimaryZygote);
ZygoteHooks.stopZygoteNoThreadCreation();
zygoteServer = new ZygoteServer(isPrimaryZygote);
if (startSystemServer) {
Runnable r = forkSystemServer(abiList, zygoteSocketName, zygoteServer);
// {@code r == null} in the parent (zygote) process, and {@code r != null} in the
// child (system_server) process.
if (r != null) {
r.run();
return;
}
}
Log.i(TAG, "Accepting command socket connections");
// The select loop returns early in the child process after a fork and
// loops forever in the zygote.
caller = zygoteServer.runSelectLoop(abiList);
} catch (Throwable ex) {
Log.e(TAG, "System zygote died with fatal exception", ex);
throw ex;
} finally {
if (zygoteServer != null) {
zygoteServer.closeServerSocket();
}
}
// We're in the child process and have exited the select loop. Proceed to execute the
// command.
if (caller != null) {
caller.run();
}
}
关键步骤：
-
参数检查：
启动 Zygote 时传入--start-system-server参数（见init.rc中的服务定义），触发forkSystemServer()。 -
调用
fork()：
通过Zygote.forkSystemServer()调用底层fork()，创建子进程。 -
子进程初始化：
子进程（SystemServer）执行handleSystemServerProcess()，最终调用SystemServer.main()。
-
SystemServer 入口代码
frameworks/base/services/java/com/android/server/SystemServer.java核心代码:
//入口
public static void main(String[] args) {
new SystemServer().run();
}
```
private void run() {
// 1. 初始化系统上下文
createSystemContext(); // 使用 Zygote 预加载的类库和资源
// 2. 启动引导服务（ActivityManagerService、PowerManagerService 等）
startBootstrapServices();
// 3. 启动核心服务（BatteryService、UsageStatsService 等）
startCoreServices();
// 4. 启动其他服务（WindowManagerService、InputManagerService 等）
startOtherServices();
}
```
-
继承 Zygote 的预加载资源：
由于 SystemServer 是 Zygote 的子进程，直接共享 Zygote 预加载的类、资源和 JNI 库，无需重新加载。 -
系统服务初始化：
SystemServer依次启动所有系统服务，例如ActivityManagerService的启动代码：
二、AMS启动与初始化
1. SystemServer启动AMS
-
启动入口
SystemServer.startBootstrapServices()中调用：代码如下：
ActivityTaskManagerService atm = mSystemServiceManager.startService(
ActivityTaskManagerService.Lifecycle.class).getService();
mActivityManagerService = ActivityManagerService.Lifecycle.startService(
mSystemServiceManager, atm);
2. AMS构造函数核心操作
public ActivityManagerService(Context systemContext, ActivityTaskManagerService atm) {
LockGuard.installLock(this, LockGuard.INDEX_ACTIVITY);
mInjector = new Injector(systemContext);
mContext = systemContext;
mFactoryTest = FactoryTest.getMode();
mSystemThread = ActivityThread.currentActivityThread();
mUiContext = mSystemThread.getSystemUiContext();
Slog.i(TAG, "Memory class: " + ActivityManager.staticGetMemoryClass());
mHandlerThread = new ServiceThread(TAG,
THREAD_PRIORITY_FOREGROUND, false /*allowIo*/);
mHandlerThread.start();
mHandler = new MainHandler(mHandlerThread.getLooper());
mUiHandler = mInjector.getUiHandler(this);
mProcStartHandlerThread = new ServiceThread(TAG + ":procStart",
THREAD_PRIORITY_FOREGROUND, false /* allowIo */);
mProcStartHandlerThread.start();
mProcStartHandler = new ProcStartHandler(this, mProcStartHandlerThread.getLooper());
mConstants = new ActivityManagerConstants(mContext, this, mHandler);
final ActiveUids activeUids = new ActiveUids(this, true /* postChangesToAtm */);
mPlatformCompat = (PlatformCompat) ServiceManager.getService(
Context.PLATFORM_COMPAT_SERVICE);
mProcessList = mInjector.getProcessList(this);
mProcessList.init(this, activeUids, mPlatformCompat);
mAppProfiler = new AppProfiler(this, BackgroundThread.getHandler().getLooper(),
new LowMemDetector(this));
mPhantomProcessList = new PhantomProcessList(this);
mOomAdjuster = mConstants.ENABLE_NEW_OOMADJ
? new OomAdjusterModernImpl(this, mProcessList, activeUids)
: new OomAdjuster(this, mProcessList, activeUids);
mEnableOffloadQueue = SystemProperties.getBoolean(
"persist.device_config.activity_manager_native_boot.offload_queue_enabled", true);
mEnableModernQueue = new BroadcastConstants(
Settings.Global.BROADCAST_FG_CONSTANTS).MODERN_QUEUE_ENABLED;
mBroadcastQueues = mInjector.getBroadcastQueues(this);
mServices = new ActiveServices(this);
mCpHelper = new ContentProviderHelper(this, true);
mPackageWatchdog = PackageWatchdog.getInstance(mUiContext);
mAppErrors = new AppErrors(mUiContext, this, mPackageWatchdog);
mUidObserverController = new UidObserverController(mUiHandler);
final File systemDir = SystemServiceManager.ensureSystemDir();
// TODO: Move creation of battery stats service outside of activity manager service.
mBatteryStatsService = BatteryStatsService.create(systemContext, systemDir,
BackgroundThread.getHandler(), this);
mOnBattery = DEBUG_POWER ? true
: mBatteryStatsService.getActiveStatistics().getIsOnBattery();
mOomAdjProfiler.batteryPowerChanged(mOnBattery);
mProcessStats = new ProcessStatsService(this, new File(systemDir, "procstats"));
mAppOpsService = mInjector.getAppOpsService(new File(systemDir, "appops_accesses.xml"),
new File(systemDir, "appops.xml"), mHandler);
mUgmInternal = LocalServices.getService(UriGrantsManagerInternal.class);
mUserController = new UserController(this);
mInjector.mUserController = mUserController;
mPendingIntentController = new PendingIntentController(
mHandlerThread.getLooper(), mUserController, mConstants);
mAppRestrictionController = new AppRestrictionController(mContext, this);
mUseFifoUiScheduling = SystemProperties.getInt("sys.use_fifo_ui", 0) != 0;
mTrackingAssociations = "1".equals(SystemProperties.get("debug.track-associations"));
mIntentFirewall = new IntentFirewall(new IntentFirewallInterface(), mHandler);
mActivityTaskManager = atm;
mActivityTaskManager.initialize(mIntentFirewall, mPendingIntentController,
DisplayThread.get().getLooper());
mAtmInternal = LocalServices.getService(ActivityTaskManagerInternal.class);
mHiddenApiBlacklist = new HiddenApiSettings(mHandler, mContext);
Watchdog.getInstance().addMonitor(this);
Watchdog.getInstance().addThread(mHandler);
// bind background threads to little cores
// this is expected to fail inside of framework tests because apps can't touch cpusets directly
// make sure we've already adjusted system_server's internal view of itself first
updateOomAdjLocked(OOM_ADJ_REASON_SYSTEM_INIT);
try {
Process.setThreadGroupAndCpuset(BackgroundThread.get().getThreadId(),
Process.THREAD_GROUP_SYSTEM);
Process.setThreadGroupAndCpuset(
mOomAdjuster.mCachedAppOptimizer.mCachedAppOptimizerThread.getThreadId(),
Process.THREAD_GROUP_SYSTEM);
} catch (Exception e) {
Slog.w(TAG, "Setting background thread cpuset failed");
}
mInternal = new LocalService();
mPendingStartActivityUids = new PendingStartActivityUids();
mTraceErrorLogger = new TraceErrorLogger();
mComponentAliasResolver = new ComponentAliasResolver(this);
}
在Lifecycle.onStart()中调用publishBinderService()，向ServiceManager注册activity服务
systemReady()调用链：
mActivityManagerService.systemReady(() -> { startHomeActivityLocked(); // 启动Launcher });
此时完成权限检查、服务依赖初始化，触发首Activity启动
三、Launcher启动与Activity触发
源码位置：frameworks/base/services/core/java/com/android/server/wm/ActivityTaskManagerService.java
核心流程：
Intent 构建： 此处开始触发Activity调用
Intent getHomeIntent() {
Intent intent = new Intent(mTopAction, mTopData != null ? Uri.parse(mTopData) : null);
intent.setComponent(mTopComponent);
intent.addFlags(Intent.FLAG_DEBUG_TRIAGED_MISSING);
if (mFactoryTest != FactoryTest.FACTORY_TEST_LOW_LEVEL) {
intent.addCategory(Intent.CATEGORY_HOME);
}
return intent;
}
ActivityStack管理：
创建ActivityRecord并压入前台栈（mFocusedStack）
启动流程
void setFocusedTask(int taskId, ActivityRecord touchedActivity) {
ProtoLog.d(WM_DEBUG_FOCUS, "setFocusedTask: taskId=%d touchedActivity=%s", taskId,
touchedActivity);
final Task task = mRootWindowContainer.anyTaskForId(taskId, MATCH_ATTACHED_TASK_ONLY);
if (task == null) {
return;
}
final ActivityRecord r = task.topRunningActivityLocked();
if (r == null) {
return;
}
if ((touchedActivity == null || r == touchedActivity) && r.isState(RESUMED)
&& r == mRootWindowContainer.getTopResumedActivity()) {
setLastResumedActivityUncheckLocked(r, "setFocusedTask-alreadyTop");
return;
}
final Transition transition = (getTransitionController().isCollecting()
|| !getTransitionController().isShellTransitionsEnabled()) ? null
: getTransitionController().createTransition(TRANSIT_TO_FRONT);
if (transition != null) {
// Set ready before doing anything. If order does change, then that will set it unready
// so that we wait for the new lifecycles to complete.
transition.setReady(task, true /* ready */);
}
final boolean movedToTop = r.moveFocusableActivityToTop("setFocusedTask");
if (movedToTop) {
if (transition != null) {
getTransitionController().requestStartTransition(
transition, null /* startTask */, null /* remote */, null /* display */);
}
mRootWindowContainer.resumeFocusedTasksTopActivities();
} else if (touchedActivity != null && touchedActivity.isFocusable()) {
final TaskFragment parent = touchedActivity.getTaskFragment();
if (parent != null && parent.isEmbedded()) {
// Set the focused app directly if the focused window is currently embedded
final DisplayContent displayContent = touchedActivity.getDisplayContent();
displayContent.setFocusedApp(touchedActivity);
mWindowManager.updateFocusedWindowLocked(UPDATE_FOCUS_NORMAL,
true /* updateInputWindows */);
}
}
if (transition != null && !movedToTop) {
// No order changes and focus-changes, alone, aren't captured in transitions.
transition.abort();
}
}
四、应用进程创建与ActivityThread初始化

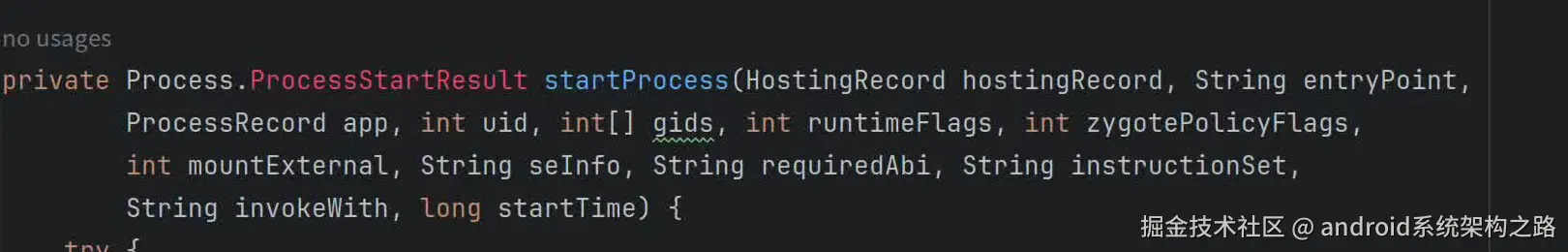

1.进程创建请求：
frameworks/base/services/core/java/com/android/server/am/ProcessList.java
源码入口：ActivityManagerService.startProcessLocked()
关键函数：
startResult = Process.start(entryPoint,
app.processName, uid, uid, gids, runtimeFlags, mountExternal,
app.info.targetSdkVersion, seInfo, requiredAbi, instructionSet,
app.info.dataDir, invokeWith, app.info.packageName, zygotePolicyFlags,
isTopApp, app.getDisabledCompatChanges(), pkgDataInfoMap,
allowlistedAppDataInfoMap, bindMountAppsData, bindMountAppStorageDirs,
bindOverrideSysprops,
new String[]{PROC_START_SEQ_IDENT + app.getStartSeq()});
如上函数，目的是 通过Socket向Zygote发送fork请求
2.Zygote响应与进程初始化：
frameworks/base/core/java/com/android/internal/os/ZygoteConnection.java
private Runnable handleChildProc(ZygoteArguments parsedArgs,
FileDescriptor pipeFd, boolean isZygote) {
/*
* By the time we get here, the native code has closed the two actual Zygote
* socket connections, and substituted /dev/null in their place. The LocalSocket
* objects still need to be closed properly.
*/
closeSocket();
Zygote.setAppProcessName(parsedArgs, TAG);
// End of the postFork event.
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
if (parsedArgs.mInvokeWith != null) {
WrapperInit.execApplication(parsedArgs.mInvokeWith,
parsedArgs.mNiceName, parsedArgs.mTargetSdkVersion,
VMRuntime.getCurrentInstructionSet(),
pipeFd, parsedArgs.mRemainingArgs);
// Should not get here.
throw new IllegalStateException("WrapperInit.execApplication unexpectedly returned");
} else {
if (!isZygote) {
return ZygoteInit.zygoteInit(parsedArgs.mTargetSdkVersion,
parsedArgs.mDisabledCompatChanges,
parsedArgs.mRemainingArgs, null /* classLoader */);
} else {
return ZygoteInit.childZygoteInit(
parsedArgs.mRemainingArgs /* classLoader */);
}
}
}
ActivityThread主线程启动：
源码入口：ActivityThread.main()
关键操作：
- 创建主线程Looper（
Looper.prepareMainLooper()） - 绑定到AMS（
attach()->AMS.attachApplication()）
五、Activity生命周期与UI绘制
Activity启动回调：
源码入口：ActivityThread.handleLaunchActivity()
位置：frameworks/base/core/java/android/app/ActivityThread.java
@Override
public Activity handleLaunchActivity(ActivityClientRecord r,
PendingTransactionActions pendingActions, int deviceId, Intent customIntent) {
// If we are getting ready to gc after going to the background, well
// we are back active so skip it.
unscheduleGcIdler();
mSomeActivitiesChanged = true;
if (r.profilerInfo != null) {
mProfiler.setProfiler(r.profilerInfo);
mProfiler.startProfiling();
}
// Make sure we are running with the most recent config and resource paths.
applyPendingApplicationInfoChanges(r.activityInfo.packageName);
mConfigurationController.handleConfigurationChanged(null, null);
updateDeviceIdForNonUIContexts(deviceId);
if (localLOGV) Slog.v(
TAG, "Handling launch of " + r);
// Initialize before creating the activity
if (ThreadedRenderer.sRendererEnabled
&& (r.activityInfo.flags & ActivityInfo.FLAG_HARDWARE_ACCELERATED) != 0) {
HardwareRenderer.preload();
}
WindowManagerGlobal.initialize();
// Hint the GraphicsEnvironment that an activity is launching on the process.
GraphicsEnvironment.hintActivityLaunch();
final Activity a = performLaunchActivity(r, customIntent);
if (a != null) {
r.createdConfig = new Configuration(mConfigurationController.getConfiguration());
reportSizeConfigurations(r);
if (!r.activity.mFinished && pendingActions != null) {
pendingActions.setOldState(r.state);
pendingActions.setRestoreInstanceState(true);
pendingActions.setCallOnPostCreate(true);
}
} else {
// If there was an error, for any reason, tell the activity manager to stop us.
ActivityClient.getInstance().finishActivity(r.token, Activity.RESULT_CANCELED,
null /* resultData */, Activity.DONT_FINISH_TASK_WITH_ACTIVITY);
}
return a;
}
UI绘制流程：
ViewRootImpl初始化：
（这个专题在后面会结合 SurfaceFlinger 一起讲解）
至此，AMS流程基本结束，在梳理整个AMS的过程中，有几个延伸的点，我将大纲列在下面，大家感兴趣的可以去阅读后面的博客
