Dify.ai 开发 “Figma to Code” 智能体

Figma to Code 智能体

背景

记一次 Dify.ai 开发的 “Figma to Code” 智能体

智能体流程

“Figma to Code” 智能体主要包括以下核心流程：

1. 调用 Figma API 获取 JSON 文件结构

Figma REST API：www.figma.com/developers/…

通过接入 Figma API，用户只需提供公开链接或文件 ID，智能体即可获取设计文件的结构信息，包括页面、图层、组件、布局等。

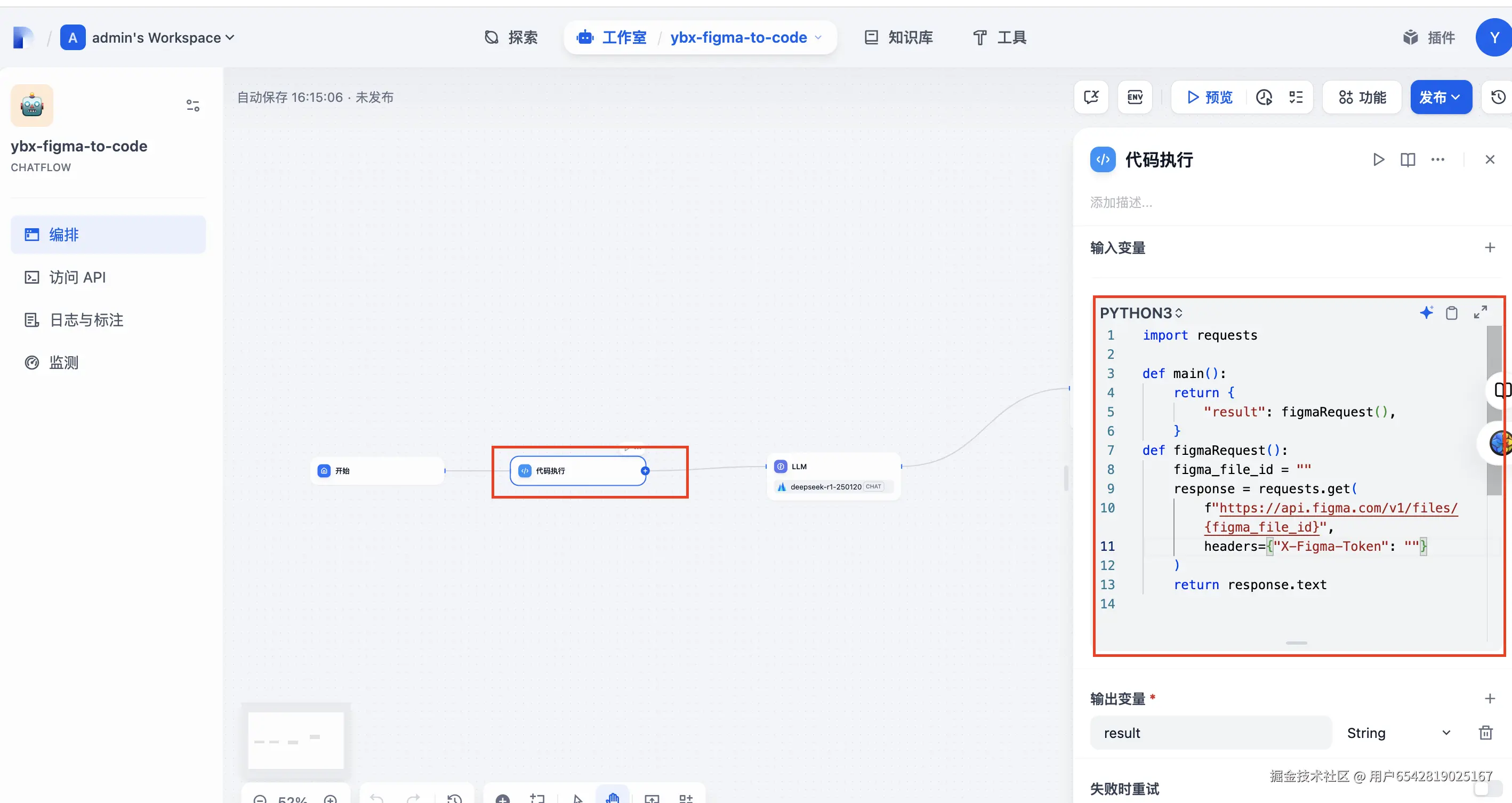

代码执行节点：

import requests

def main():
    return {
        "result": figmaRequest(),
    }
def figmaRequest():
    figma_file_id = ""
    response = requests.get(
        f"https://api.figma.com/v1/files/{figma_file_id}",
        headers={"X-Figma-Token": ""}
    )
    return response.text

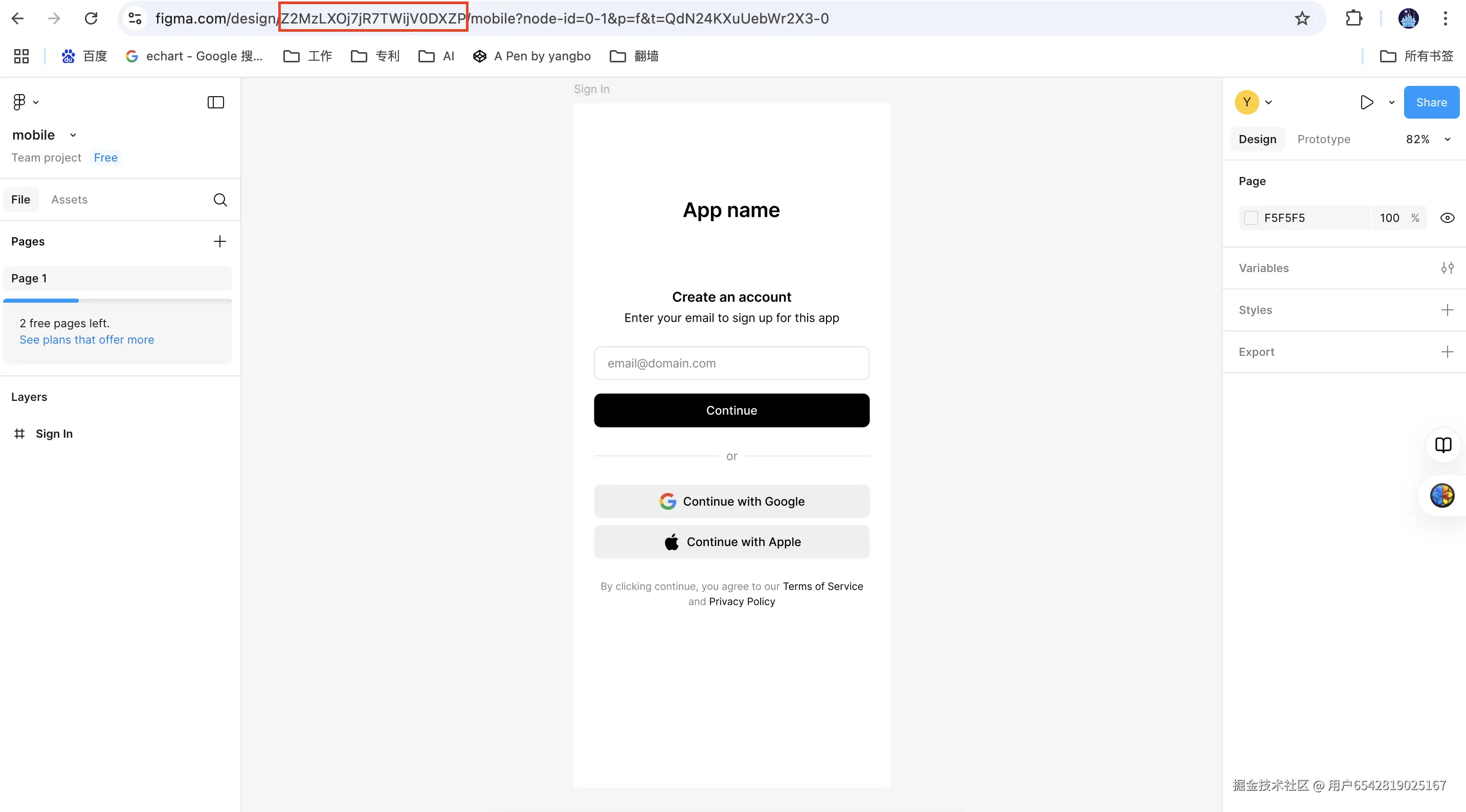

fileId：

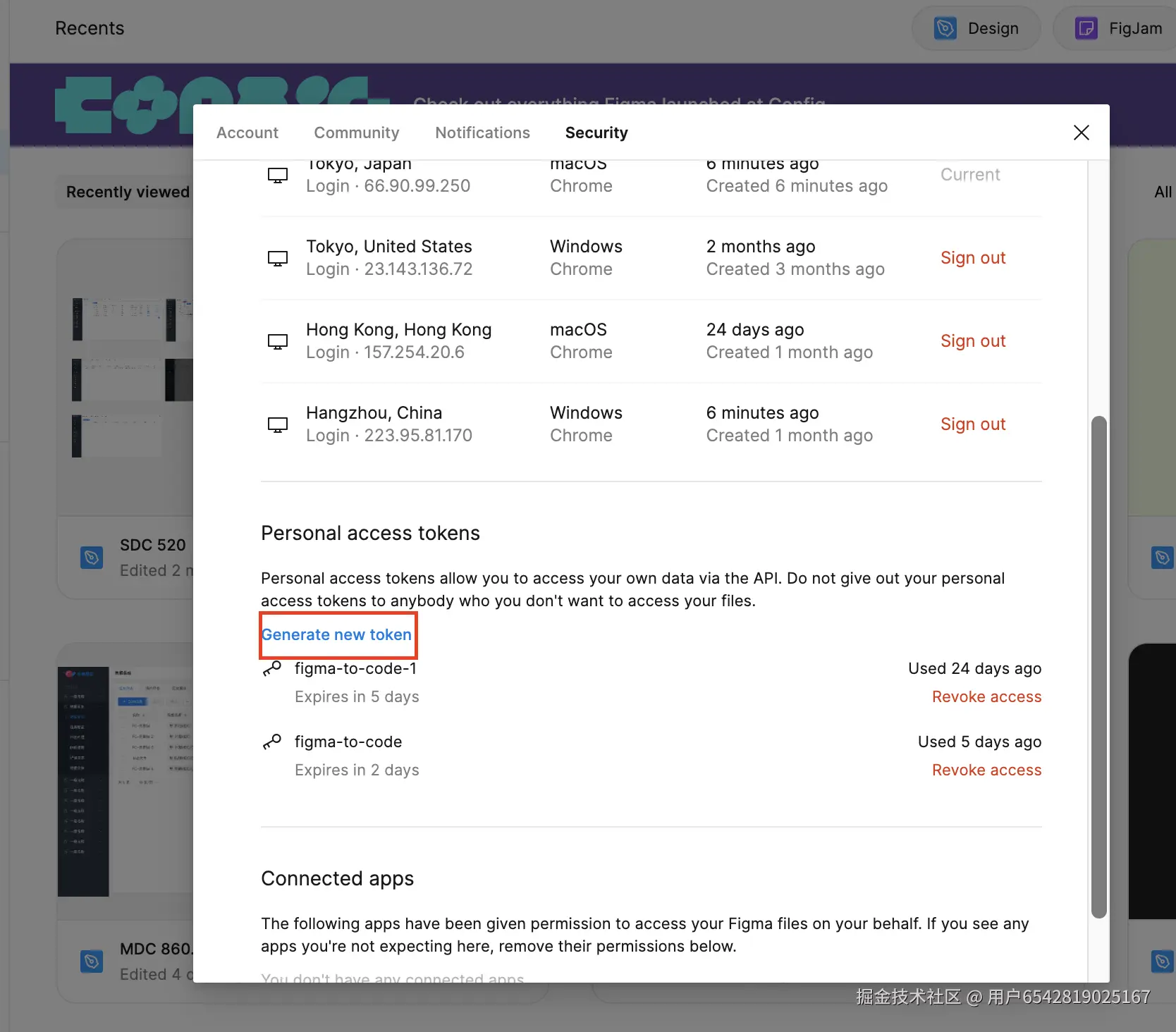

X-Figma-Token：

2. 配置大模型

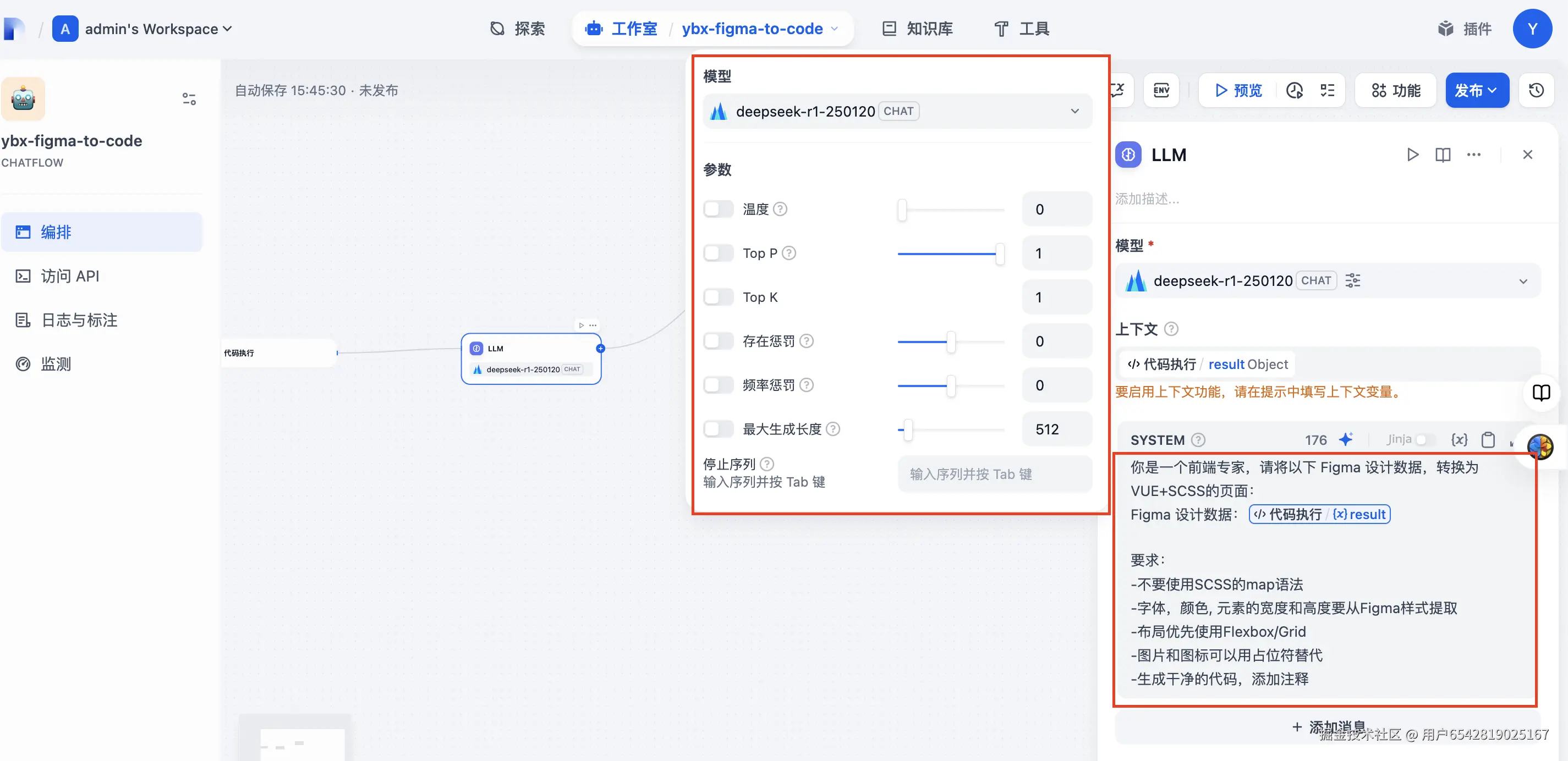

配置大模型节点，调整模型参数，优化模型提示词

模型配置

提示词：

你是一个前端专家，请将以下 Figma 设计数据，转换为VUE+SCSS的页面：

Figma 设计数据：{result}

要求：

-不要使用SCSS的map语法

-字体，颜色, 元素的宽度和高度要从Figma样式提取

-布局优先使用Flexbox/Grid

-图片和图标可以用占位符替代

-生成干净的代码，添加注释

-输出Vue + Scss代码

示例展示

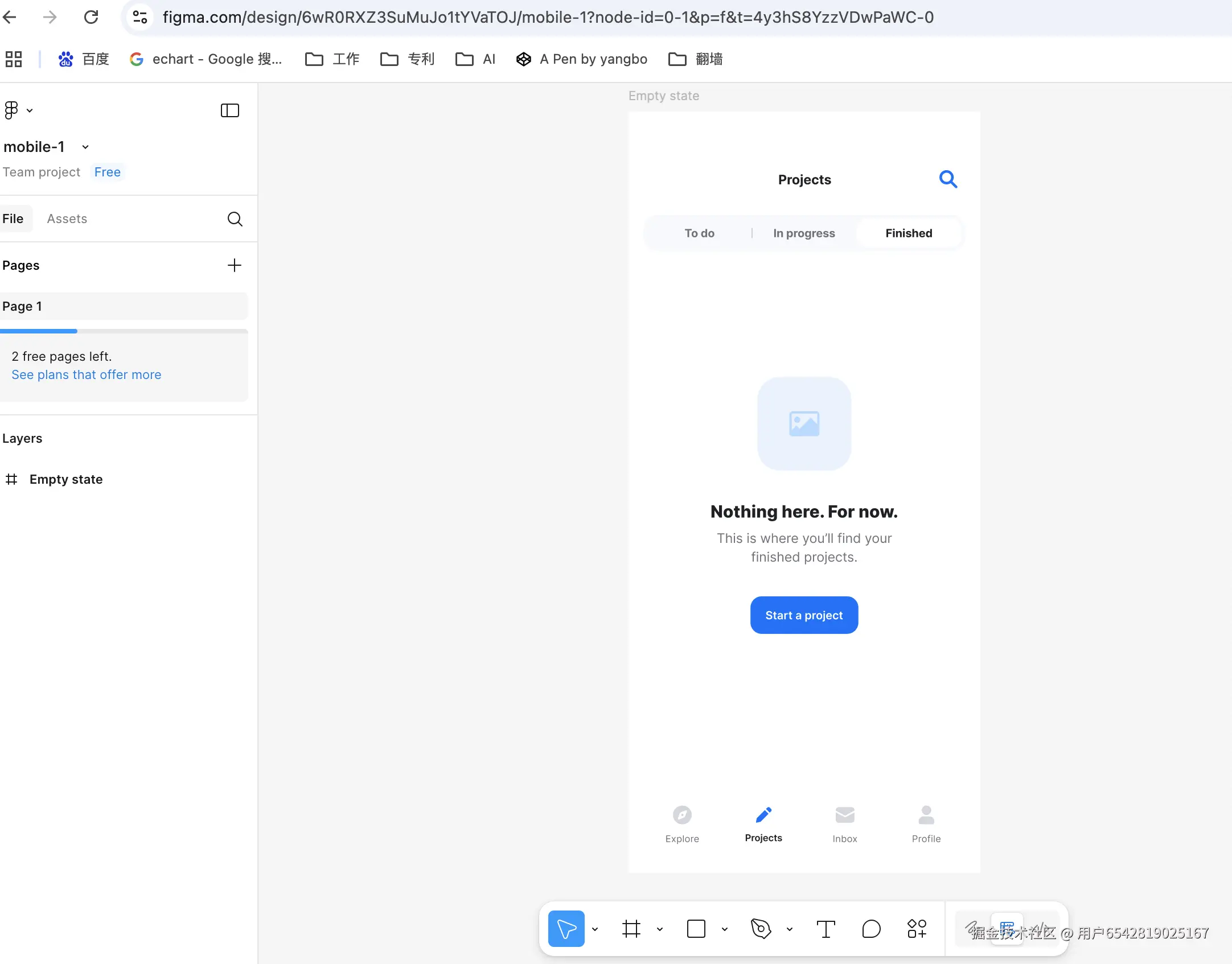

Figma 设计稿图片

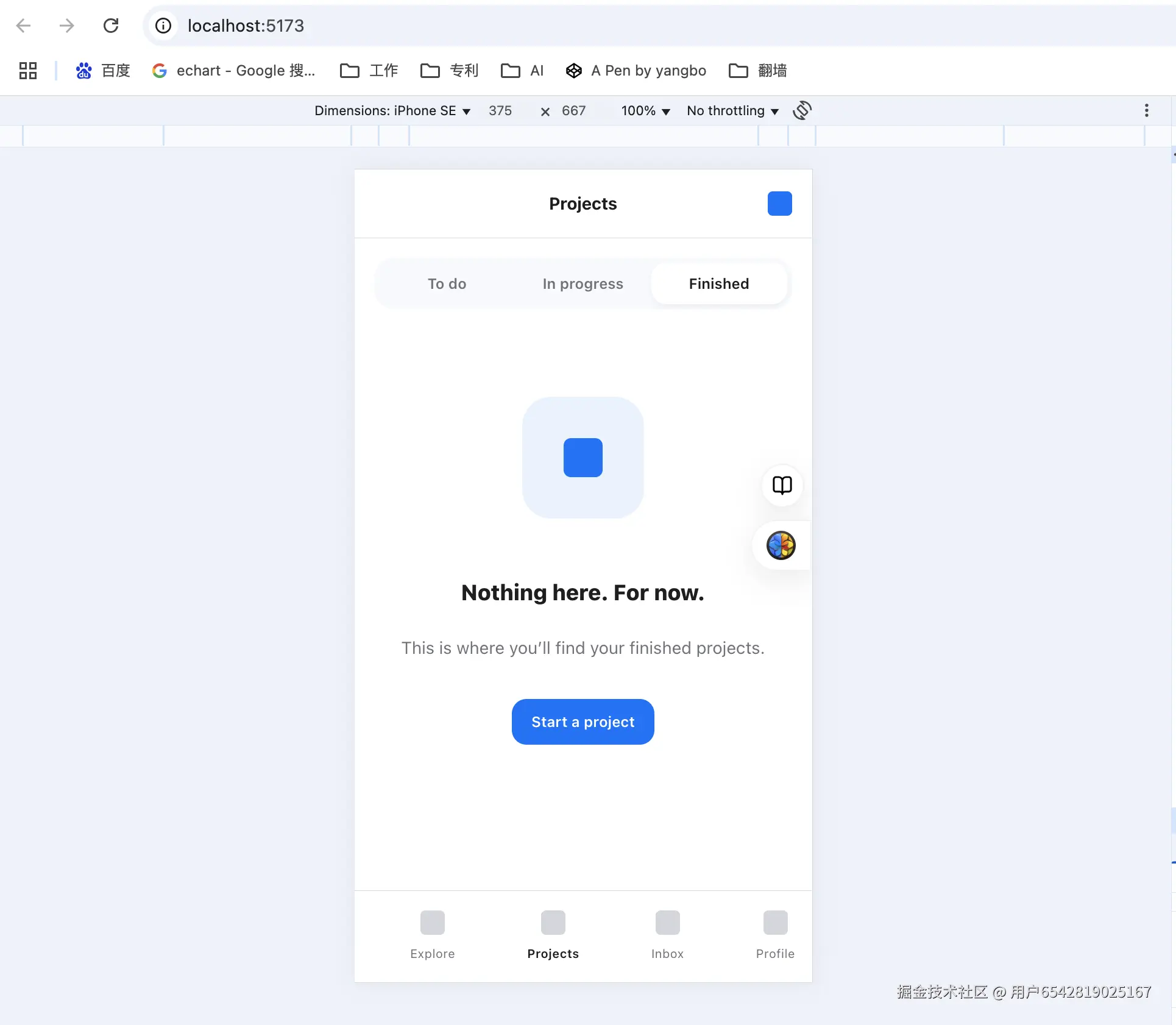

输出代码呈现效果：

输出代码片段（VUE + SCSS） ：

<template>
  <div class="container">
    <!-- 导航栏 -->
    <nav class="nav-bar">
      <h1 class="nav-title">Projects</h1>
      <div class="nav-icon"></div>
    </nav>

    <!-- 内容切换器 -->
    <div class="content-switcher">
      <div
        v-for="(tab, index) in tabs"
        :key="index"
        :class="['tab', { active: tab.active }]"
      >
        {{ tab.title }}
      </div>
    </div>

    <!-- 空状态 -->
    <div class="empty-state">
      <div class="image-placeholder"></div>
      <h2 class="empty-title">Nothing here. For now.</h2>
      <p class="empty-description">This is where you’ll find your finished projects.</p>
      <button class="primary-button">Start a project</button>
    </div>

    <!-- 底部标签栏 -->
    <div class="tab-bar">
      <div
        v-for="(item, index) in tabItems"
        :key="index"
        class="tab-item"
      >
        <div class="tab-icon"></div>
        <span :class="['tab-label', { active: item.active }]">{{ item.label }}</span>
      </div>
    </div>
  </div>
</template>

<script>
export default {
  data() {
    return {
      tabs: [
        { title: 'To do', active: false },
        { title: 'In progress', active: false },
        { title: 'Finished', active: true }
      ],
      tabItems: [
        { label: 'Explore', active: false },
        { label: 'Projects', active: true },
        { label: 'Inbox', active: false },
        { label: 'Profile', active: false }
      ]
    }
  }
}
</script>

<style lang="scss">
// 颜色变量
$neutral-dark: #1E1E1E;
$neutral-medium: #71727A;
$neutral-light: #D4D6DD;
$neutral-bg: #F8F9FE;
$highlight-blue: #006FFD;
$pure-white: #FFFFFF;

.container {
  max-width: 375px;
  margin: 0 auto;
  background: $pure-white;
  min-height: 100vh;
  position: relative;
}

// 导航栏样式
.nav-bar {
  height: 56px;
  display: flex;
  align-items: center;
  justify-content: center;
  border-bottom: 0.5px solid $neutral-light;
  position: relative;

  .nav-title {
    font-size: 14px;
    font-weight: 700;
    color: $neutral-dark;
    letter-spacing: -0.15px;
  }

  .nav-icon {
    width: 20px;
    height: 20px;
    background: $highlight-blue;
    position: absolute;
    right: 16px;
    border-radius: 4px;
  }
}

// 内容切换器
.content-switcher {
  background: $neutral-bg;
  border-radius: 16px;
  margin: 16px;
  padding: 4px;
  display: flex;
  justify-content: space-between;

  .tab {
    flex: 1;
    padding: 8px 12px;
    border-radius: 12px;
    text-align: center;
    font-size: 12px;
    font-weight: 600;
    color: $neutral-medium;
    transition: all 0.2s;

    &.active {
      background: $pure-white;
      color: $neutral-dark;
      box-shadow: 0 2px 4px rgba(0, 0, 0, 0.05);
    }
  }
}

// 空状态
.empty-state {
  display: flex;
  flex-direction: column;
  align-items: center;
  padding: 40px 24px;
  margin-top: 32px;

  .image-placeholder {
    width: 100px;
    height: 100px;
    background: #EAF2FF;
    border-radius: 24px;
    margin-bottom: 32px;
    position: relative;

    &::after {
      content: '';
      position: absolute;
      top: 50%;
      left: 50%;
      transform: translate(-50%, -50%);
      width: 32px;
      height: 32px;
      background: $highlight-blue;
      border-radius: 6px;
    }
  }

  .empty-title {
    font-size: 18px;
    font-weight: 800;
    color: $neutral-dark;
    letter-spacing: 0.09px;
    margin-bottom: 8px;
  }

  .empty-description {
    font-size: 14px;
    color: $neutral-medium;
    text-align: center;
    line-height: 20px;
    margin-bottom: 32px;
  }
}

// 主要按钮
.primary-button {
  background: $highlight-blue;
  color: $pure-white;
  padding: 12px 16px;
  border-radius: 12px;
  font-size: 12px;
  font-weight: 600;
  border: none;
  cursor: pointer;
  transition: opacity 0.2s;

  &:hover {
    opacity: 0.9;
  }
}

// 底部标签栏
.tab-bar {
  position: fixed;
  bottom: 0;
  width: 100%;
  max-width: 375px;
  background: $pure-white;
  padding: 16px;
  display: flex;
  justify-content: space-around;
  border-top: 0.5px solid $neutral-light;

  .tab-item {
    display: flex;
    flex-direction: column;
    align-items: center;

    .tab-icon {
      width: 20px;
      height: 20px;
      background: $neutral-light;
      margin-bottom: 8px;
      border-radius: 4px;
    }

    .tab-label {
      font-size: 10px;
      color: $neutral-medium;
      letter-spacing: 0.15px;

      &.active {
        color: $neutral-dark;
        font-weight: 600;
      }
    }
  }
}
</style>

问题

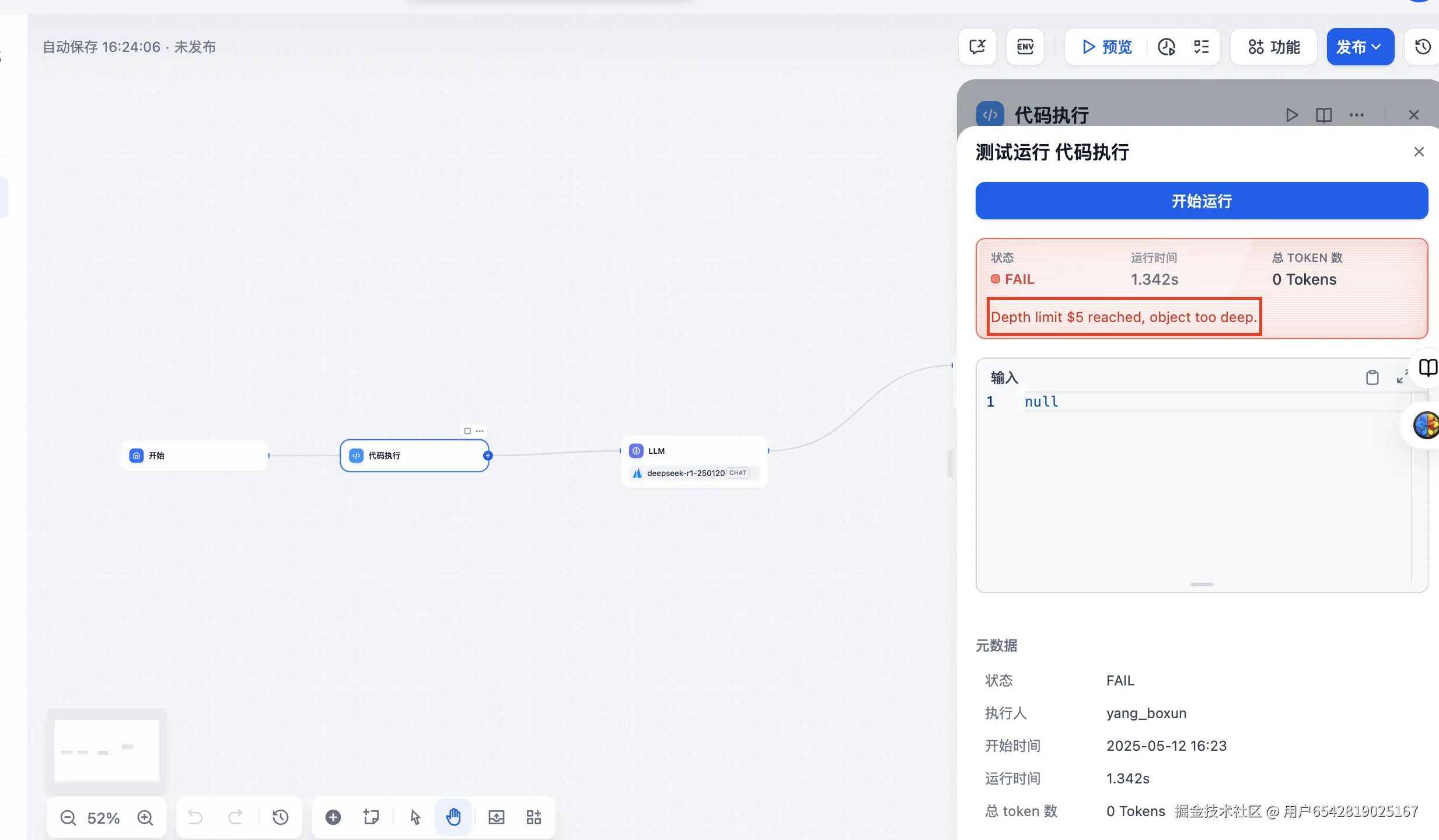

1. figma数据结构嵌套过深

解决方案：github.com/langgenius/…

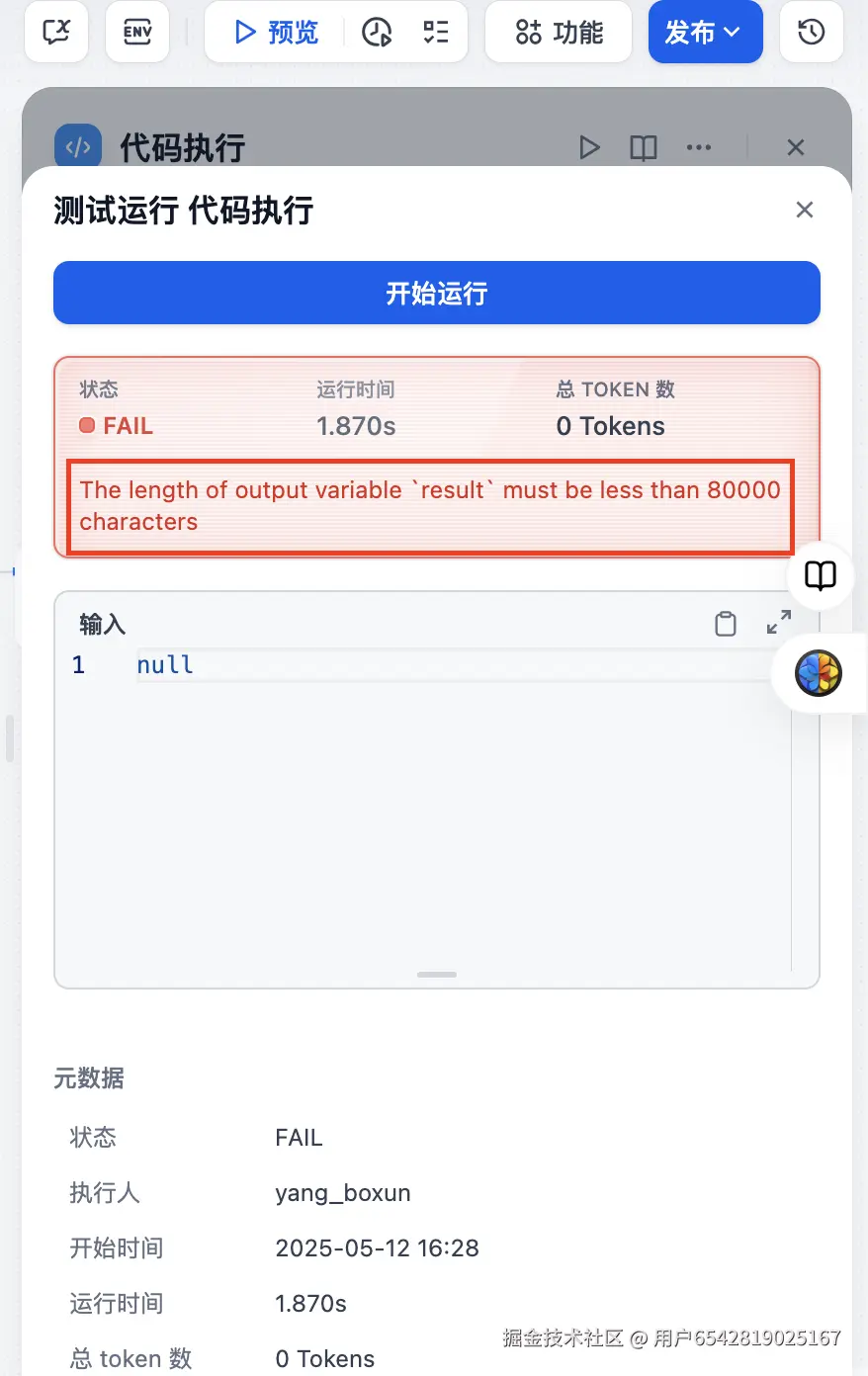

2. 字符串长度过长

解决方案：github.com/langgenius/…

总结

经过这次的智能体开发，深入了解到了dify.ai智能体的开发流程，也验证了由Figma设计稿快速转换为高保真页面的可行性
