uniapp uView picker组件多选封装改造

鱼钓猫
966 阅读4分钟

最近写项目遇到一个需求，手机端（uniapp H5）下拉选需要多选，用的是uView组件库，但是原有的picker组件并没有这个功能，索性自己上手了，简单封装一下。

组件根据我的需求封装，我的需求是：组件绑定值为选项的name字段拼接字符串，所以组件绑定值和内部 input 绑定值共用。
后续也更新了绑定值为 code 拼接字符串的组件。

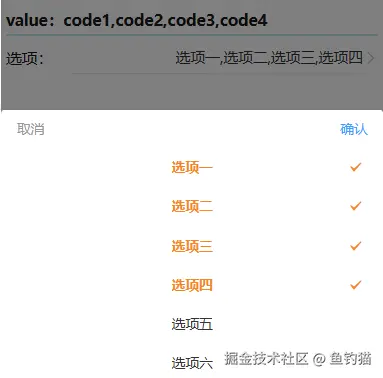

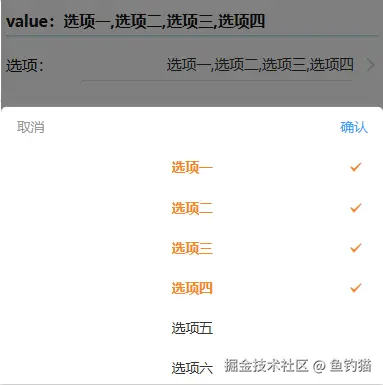

1. 效果图

Snipaste_2025-04-26_14-18-02.png Snipaste_2025-04-26_14-12-51.png

2. 使用方法

<template>
  <view class="content">
    <view class="chk_val">value：{{ value }}</view>
    <view class="option">
      <view class="label">选项：</view>
      <g-picker
        v-model="value"
        :columns="columns"
        @confirm="confirm"
      ></g-picker>
    </view>
  </view>
</template>

<script>
export default {
  data() {
    return {
      value: "",
      columns: [
        { label: "选项一", value: "code1" },
        { label: "选项二", value: "code2" },
        { label: "选项三", value: "code3" },
        { label: "选项四", value: "code4" },
        { label: "选项五", value: "code5" },
        { label: "选项六", value: "code6" },
        { label: "选项七", value: "code7" },
      ],
    };
  },
  methods: {
    confirm(data, value, label) {
      console.log(data, value, label);
    },
  },
};
</script>
<style lang="scss" scoped>
.option {
  display: flex;
  align-items: center;
  .label {
    width: 160rpx;
  }
}
</style>

3. 使用说明

props：
  • value (v-model)：picker组件绑定值，所选值用逗号拼接
  • columns： 数据源
  • filter：数据显示格式化，label 为组件显示名称 name 字段（默认为label），value 为数据相对应的 code 字段（默认为value）
  • disabled：是否禁用
  • activedColor：选中后的颜色
  • inputAlign：文本对齐方式，默认右对齐
  • placeholder：默认提示
Events：
  • confirm：点击确定按钮触发。(data, value, label) => {}
    • data：选中的数据集合
    • value：选中的数据 value 集合
    • label：选中的数据 label 集合

4. 源码

  1. 直接在 components 里面创建相同的文件夹和文件名，这样可以省去注册步骤直接引用。 在这里插入图片描述
  2. g-picker.vue （绑定值为 name 拼接字符串）
<template>
  <view class="g-picker">
    <view class="g-picker-value" @click.native="showPicker">
      <u-input
        v-model="value"
        disabled
        disabledColor="#fff"
        :inputAlign="inputAlign"
        :placeholder="placeholder"
        style="pointer-events: none"
      >
      </u-input>
      <u-icon v-if="!disabled" name="arrow-right" color="#c0c4cc"></u-icon>
    </view>
    <u-popup :show="show" :round="6" mode="bottom">
      <view class="g-picker-con">
        <view class="g-picker-operate">
          <text @click="show = false">取消</text>
          <text @click="confirm">确认</text>
        </view>
        <view class="g-picker-list">
          <view
            class="g-picker-item"
            v-for="(col, inx) in columnsList"
            :key="inx"
            @click="checkItem(col, inx)"
          >
            <view
              :class="['g-picker-item_label', col._check ? 'g-picker-item--actived' : '']"
              :style="{ color: col._check ? activedColor : '#333' }"
              >
              {{ col[filter.label] }}
            </view>
            <u-icon
              class="g-picker-item_icon"
              v-show="col._check"
              name="checkbox-mark"
              :color="activedColor"
            ></u-icon>
          </view>
        </view>
      </view>
    </u-popup>
  </view>
</template>

<script>
export default {
  model: {
    prop: "value",
    event: "change",
  },
  props: {
    // picker组件绑定值，默认 name 用，拼接
    value: {
      type: String,
      default: "",
    },
    // 数据源
    columns: {
      type: Array,
      default: () => {
        return [];
      },
    },
    // 数据显示格式化
    filter: {
      type: Object,
      default: () => {
        return {
          label: "label",
          value: "value",
        };
      },
    },
    // 是否禁用
    disabled: {
      type: Boolean,
      default: false,
    },
    // 选中后颜色
    activedColor: {
      type: String,
      default: "#F58621",
    },
    // 文本对齐方式
    inputAlign: {
      type: String,
      default: "right",
    },
    // 默认提示
    placeholder: {
      type: String,
      default: "请选择",
    },
  },
  data() {
    return {
      show: false,
      columnsList: [],
      value_chx: [],
    };
  },
  watch: {
    value: {
      handler(n) {
        if (n) this.reShow();
      },
      immediate: true,
    },
    columns: {
      handler(n) {
        if (n.length) {
          this.columnsList = n;
          for (let val of this.columnsList) {
            this.$set(val, "_check", false);
          }
        }
      },
      immediate: true,
    },
  },
  methods: {
    showPicker() {
      if (this.disabled) return;
      this.show = true;
    },
    reShow() {
      let data = this.value.split(",");
      setTimeout(() => {
        for (let val of this.columnsList) {
          if (data.includes(val[this.filter.label])) val._check = true;
        }
      }, 100);
    },
    checkItem(col, inx) {
      col._check = !col._check;
    },
    // close() {
    // 	this.show = false
    // 	this.$emit("close")
    // },
    confirm() {
      let value = [],
        label = [];
      this.value_chx = this.columns.filter((v) => v._check);
      for (let val of this.value_chx) {
        value.push(val[this.filter.value]);
        label.push(val[this.filter.label]);
      }
      this.show = false;
      this.$emit("confirm", this.value_chx, value, label);
      this.$emit("change", label.join(","));
    },
  },
};
</script>
<style lang="scss" scoped>
.g-picker {
  width: 100%;
  .g-picker-value {
    display: flex;
  }

  .g-picker-con {
    color: #333;
    font-size: 28rpx;

    .g-picker-operate {
      display: flex;
      align-items: center;
      justify-content: space-between;
      height: 80rpx;
      padding: 0 32rpx;

      text {
        color: #999;

        &:last-child {
          color: #3c9cff;
        }
      }
    }

    .g-picker-list {
      min-height: 30vh;
      max-height: 60vh;
      overflow-y: scroll;

      .g-picker-item {
        position: relative;
        width: 100%;
        height: 80rpx;

        .g-picker-item_label {
          width: 66%;
          margin: 0 auto;
          text-align: center;
          line-height: 80rpx;
          white-space: nowrap;
          text-overflow: ellipsis;
          overflow: hidden;
        }

        .g-picker-item--actived {
          font-weight: 600;
        }

        .g-picker-item_icon {
          position: absolute;
          top: 50%;
          right: 40rpx;
          transform: translateY(-50%);
        }
      }
    }
  }
}
</style>
  1. g-picker.vue （绑定值为 code 拼接字符串）
<template>
  <view class="g-picker">
    <view class="g-picker-value" @click="showPicker">
      <u-input
        v-model="val"
        disabled
        disabledColor="#fff"
        :inputAlign="inputAlign"
        border="none"
        :placeholder="placeholder"
        style="pointer-events: none"
      >
      </u-input>
      <u-icon v-if="!disabled" name="arrow-right" color="#c0c4cc"></u-icon>
    </view>
    <u-popup :show="show" :round="6" mode="bottom">
      <view class="g-picker-con">
        <view class="g-picker-operate">
          <text @click="show = false">取消</text>
          <text @click="confirm">确认</text>
        </view>
        <view class="g-picker-list">
          <view
            class="g-picker-item"
            v-for="(col, inx) in columnsList"
            :key="inx"
            @click="checkItem(col, inx)"
          >
            <view
              :class="['g-picker-item_label', col._check ? 'g-picker-item--actived' : '']"
              :style="{ color: col._check ? activedColor : '#333' }"
              >
              {{ col[filter.label] }}
            </view>
            <u-icon
              class="g-picker-item_icon"
              v-show="col._check"
              name="checkbox-mark"
              :color="activedColor"
            ></u-icon>
          </view>
        </view>
      </view>
    </u-popup>
  </view>
</template>

<script>
export default {
  // model: {
  // 	prop: 'value',
  // 	event: 'change'
  // },
  props: {
    // picker组件绑定值，默认 name 用，拼接
    value: {
      type: String,
      default: "",
    },
    // 数据源
    columns: {
      type: Array,
      default: () => {
        return [];
      },
    },
    // 数据显示格式化
    filter: {
      type: Object,
      default: () => {
        return {
          label: "label",
          value: "value",
        };
      },
    },
    // 是否禁用
    disabled: {
      type: Boolean,
      default: false,
    },
    // 选中后颜色
    activedColor: {
      type: String,
      default: "#F58621",
    },
    // 文本对齐方式
    inputAlign: {
      type: String,
      default: "right",
    },
    // 默认提示
    placeholder: {
      type: String,
      default: "请选择",
    },
  },
  data() {
    return {
      show: false,
      val: "",
      columnsList: [],
      value_chx: [],
    };
  },
  watch: {
    value: {
      handler(n) {
        if (n) this.reShow();
      },
      immediate: true,
    },
    columns: {
      handler(n) {
        if (n.length) {
          this.columnsList = n;
          for (let val of this.columnsList) {
            this.$set(val, "_check", false);
          }
        }
      },
      immediate: true,
    },
  },
  methods: {
    showPicker() {
      if (this.disabled) return;
      this.show = true;
    },
    reShow() {
      let data = this.value.split(",");
      setTimeout(() => {
        let ary = [];
        for (let val of this.columnsList) {
          if (data.includes(val[this.filter.value])) {
            val._check = true;
            ary.push(val[this.filter.label]);
          }
        }
        this.val = ary.join(",");
      }, 100);
    },
    checkItem(col, inx) {
      col._check = !col._check;
    },
    confirm() {
      let value = [],
        label = [];
      this.value_chx = this.columns.filter((v) => v._check);
      for (let val of this.value_chx) {
        value.push(val[this.filter.value]);
        label.push(val[this.filter.label]);
      }
      this.show = false;
      this.val = label.join(",");
      this.$emit("input", value.join(","));
      this.$emit("confirm", this.value_chx, value, label);
    },
  },
};
</script>
<style lang="scss" scoped>
.g-picker {
  width: 100%;
  .g-picker-value {
    display: flex;
  }

  .g-picker-con {
    color: #333;
    font-size: 28rpx;

    .g-picker-operate {
      display: flex;
      align-items: center;
      justify-content: space-between;
      height: 80rpx;
      padding: 0 32rpx;

      text {
        color: #999;

        &:last-child {
          color: #3c9cff;
        }
      }
    }

    .g-picker-list {
      min-height: 30vh;
      max-height: 60vh;
      overflow-y: scroll;

      .g-picker-item {
        position: relative;
        width: 100%;
        height: 80rpx;

        .g-picker-item_label {
          width: 66%;
          margin: 0 auto;
          text-align: center;
          line-height: 80rpx;
          white-space: nowrap;
          text-overflow: ellipsis;
          overflow: hidden;
        }

        .g-picker-item--actived {
          font-weight: 600;
        }

        .g-picker-item_icon {
          position: absolute;
          top: 50%;
          right: 40rpx;
          transform: translateY(-50%);
        }
      }
    }
  }
}
</style>

封装的比较简单，够我目前使用，大家可以根据自己的需求修改。
