概念

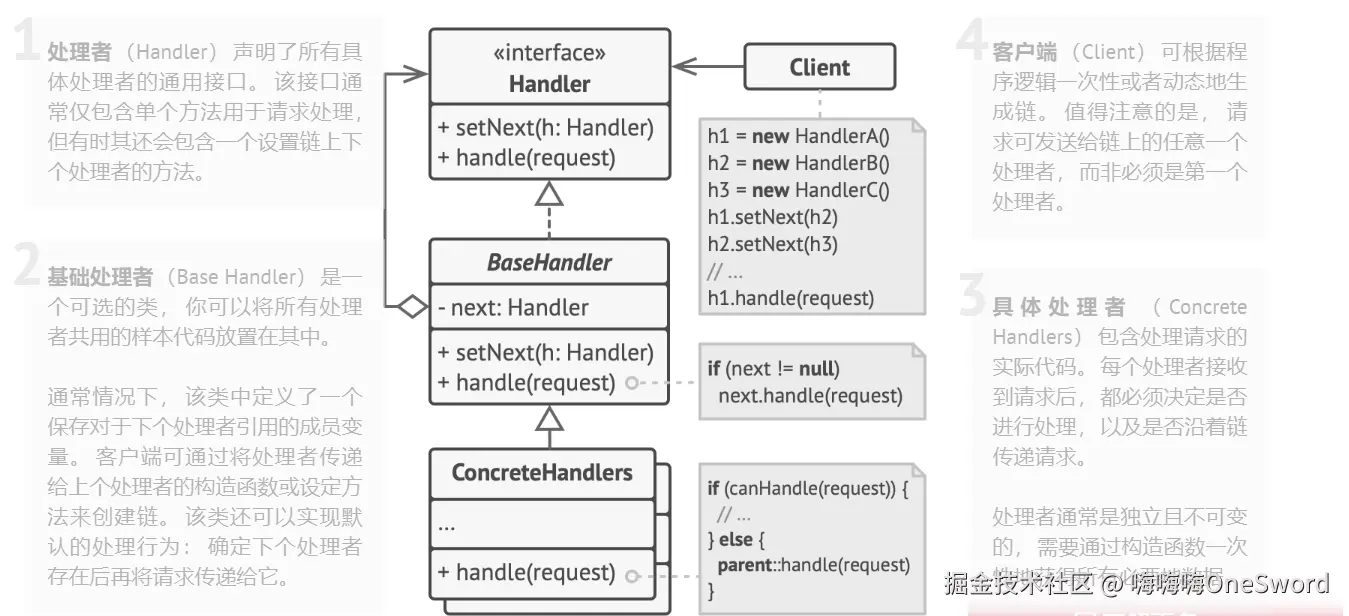

责任链模式是一种行为设计模式， 允许你将请求沿着处理者链进行发送。 收到请求后， 每个处理者均可对请求进行处理， 或将其传递给链上的下个处理者。 处理者既可以决定当前请求继续沿着处理链传递，也可以取消后续的处理链的执行。
责任链模式多种不同的处理方式：
- 执行链上的所有操作都会执行
- 执行链上的某个处理者处理后取消后续处理的执行
- 执行链上的执行者判断是否自己可以处理，如果可以则处理，否则交给后续处理者进行处理（执行链上最多只有一个处理者进行处理）
实例
使用责任链模式进行请求参数校验(结合组合模式)
处理者接口
public interface AbstractChainHandler<T> extends Ordered {
/**
* 执行责任链逻辑
*
* @param requestParam 责任链执行入参
*/
void handler(T requestParam);
/**
* @return 责任链组件标识
*/
String mark();
}
责任链容器
public final class AbstractChainContext<T> implements CommandLineRunner {
private final Map<String, List<AbstractChainHandler>> abstractChainHandlerContainer = new HashMap<>();
/**
* 责任链组件执行
*
* @param mark 责任链组件标识
* @param requestParam 请求参数
*/
public void handler(String mark, T requestParam) {
List<AbstractChainHandler> abstractChainHandlers = abstractChainHandlerContainer.get(mark);
if (CollectionUtils.isEmpty(abstractChainHandlers)) {
throw new RuntimeException(String.format("[%s] Chain of Responsibility ID is undefined.", mark));
}
abstractChainHandlers.forEach(each -> each.handler(requestParam));
}
@Override
public void run(String... args) throws Exception {
Map<String, AbstractChainHandler> chainFilterMap = ApplicationContextHolder
.getBeansOfType(AbstractChainHandler.class);
chainFilterMap.forEach((beanName, bean) -> {
List<AbstractChainHandler> abstractChainHandlers = abstractChainHandlerContainer.get(bean.mark());
if (CollectionUtils.isEmpty(abstractChainHandlers)) {
abstractChainHandlers = new ArrayList();
}
abstractChainHandlers.add(bean);
List<AbstractChainHandler> actualAbstractChainHandlers = abstractChainHandlers.stream()
.sorted(Comparator.comparing(Ordered::getOrder))
.collect(Collectors.toList());
abstractChainHandlerContainer.put(bean.mark(), actualAbstractChainHandlers);
});
}
}
某个业务的基础处理者
//
public interface TrainPurchaseTicketChainFilter<T extends PurchaseTicketReqDTO> extends AbstractChainHandler<PurchaseTicketReqDTO> {
@Override
default String mark() {
return TicketChainMarkEnum.TRAIN_PURCHASE_TICKET_FILTER.name();
}
}
业务下的具体处理者
//
public class TrainPurchaseTicketParamNotNullChainHandler implements TrainPurchaseTicketChainFilter<PurchaseTicketReqDTO> {
@Override
public void handler(PurchaseTicketReqDTO requestParam) {
if (StrUtil.isBlank(requestParam.getTrainId())) {
throw new ClientException("列车标识不能为空");
}
if (StrUtil.isBlank(requestParam.getDeparture())) {
throw new ClientException("出发站点不能为空");
}
if (StrUtil.isBlank(requestParam.getArrival())) {
throw new ClientException("到达站点不能为空");
}
if (CollUtil.isEmpty(requestParam.getPassengers())) {
throw new ClientException("乘车人至少选择一位");
}
for (PurchaseTicketPassengerDetailDTO each : requestParam.getPassengers()) {
if (StrUtil.isBlank(each.getPassengerId())) {
throw new ClientException("乘车人不能为空");
}
if (Objects.isNull(each.getSeatType())) {
throw new ClientException("座位类型不能为空");
}
}
}
@Override
public int getOrder() {
return 0;
}
}
框架中的责任链模式
请求到达dipatcherServlet后，执行invoke()方法，创建过滤器执行链，在createFilterChain()方法中将Filter添加到执行链中。
private void invoke(ServletRequest request, ServletResponse response, State state)
throws IOException, ServletException {
...
// Get the FilterChain Here
ApplicationFilterChain filterChain = ApplicationFilterFactory.createFilterChain(request, wrapper, servlet);
...
}
public static ApplicationFilterChain createFilterChain(ServletRequest request, Wrapper wrapper, Servlet servlet) {
...
filterChain.addFilter(filterConfig);
...
}
ApplicationFilterChain类
public final class ApplicationFilterChain implements FilterChain {
void addFilter(ApplicationFilterConfig filterConfig) {
}
public void doFilter(ServletRequest request, ServletResponse response) throws IOException, ServletException {
if (Globals.IS_SECURITY_ENABLED) {
final ServletRequest req = request;
final ServletResponse res = response;
try {
java.security.AccessController.doPrivileged((java.security.PrivilegedExceptionAction<Void>) () -> {
internalDoFilter(req, res); //调用过滤器执行
return null;
});
} catch (PrivilegedActionException pe) {
Exception e = pe.getException();
if (e instanceof ServletException) {
throw (ServletException) e;
} else if (e instanceof IOException) {
throw (IOException) e;
} else if (e instanceof RuntimeException) {
throw (RuntimeException) e;
} else {
throw new ServletException(e.getMessage(), e);
}
}
} else {
internalDoFilter(request, response);//调用过滤器执行
}
}
}
private void internalDoFilter(ServletRequest request, ServletResponse response)
throws IOException, ServletException {
// Call the next filter if there is one
if (pos < n) {
ApplicationFilterConfig filterConfig = filters[pos++];
try {
Filter filter = filterConfig.getFilter();
if (request.isAsyncSupported() &&
"false".equalsIgnoreCase(filterConfig.getFilterDef().getAsyncSupported())) {
request.setAttribute(Globals.ASYNC_SUPPORTED_ATTR, Boolean.FALSE);
}
if (Globals.IS_SECURITY_ENABLED) {
final ServletRequest req = request;
final ServletResponse res = response;
Principal principal = ((HttpServletRequest) req).getUserPrincipal();
Object[] args = new Object[] { req, res, this };
SecurityUtil.doAsPrivilege("doFilter", filter, classType, args, principal);
} else {
filter.doFilter(request, response, this); //找到下一个filter并执行
}
} catch (IOException | ServletException | RuntimeException e) {
throw e;
} catch (Throwable e) {
e = ExceptionUtils.unwrapInvocationTargetException(e);
ExceptionUtils.handleThrowable(e);
throw new ServletException(sm.getString("filterChain.filter"), e);
}
return;
}
// We fell off the end of the chain -- call the servlet instance
try {
if (dispatcherWrapsSameObject) {
lastServicedRequest.set(request);
lastServicedResponse.set(response);
}
if (request.isAsyncSupported() && !servletSupportsAsync) {
request.setAttribute(Globals.ASYNC_SUPPORTED_ATTR, Boolean.FALSE);
}
// Use potentially wrapped request from this point
if ((request instanceof HttpServletRequest) && (response instanceof HttpServletResponse) &&
Globals.IS_SECURITY_ENABLED) {
final ServletRequest req = request;
final ServletResponse res = response;
Principal principal = ((HttpServletRequest) req).getUserPrincipal();
Object[] args = new Object[] { req, res };
SecurityUtil.doAsPrivilege("service", servlet, classTypeUsedInService, args, principal);
} else {
servlet.service(request, response); //结束过滤器执行或没有过滤器了，执行service()方法处理请求。
}
} catch (IOException | ServletException | RuntimeException e) {
throw e;
} catch (Throwable e) {
e = ExceptionUtils.unwrapInvocationTargetException(e);
ExceptionUtils.handleThrowable(e);
throw new ServletException(sm.getString("filterChain.servlet"), e);
} finally {
if (dispatcherWrapsSameObject) {
lastServicedRequest.set(null);
lastServicedResponse.set(null);
}
}
}
写点责任链外的
springmvc执行流程

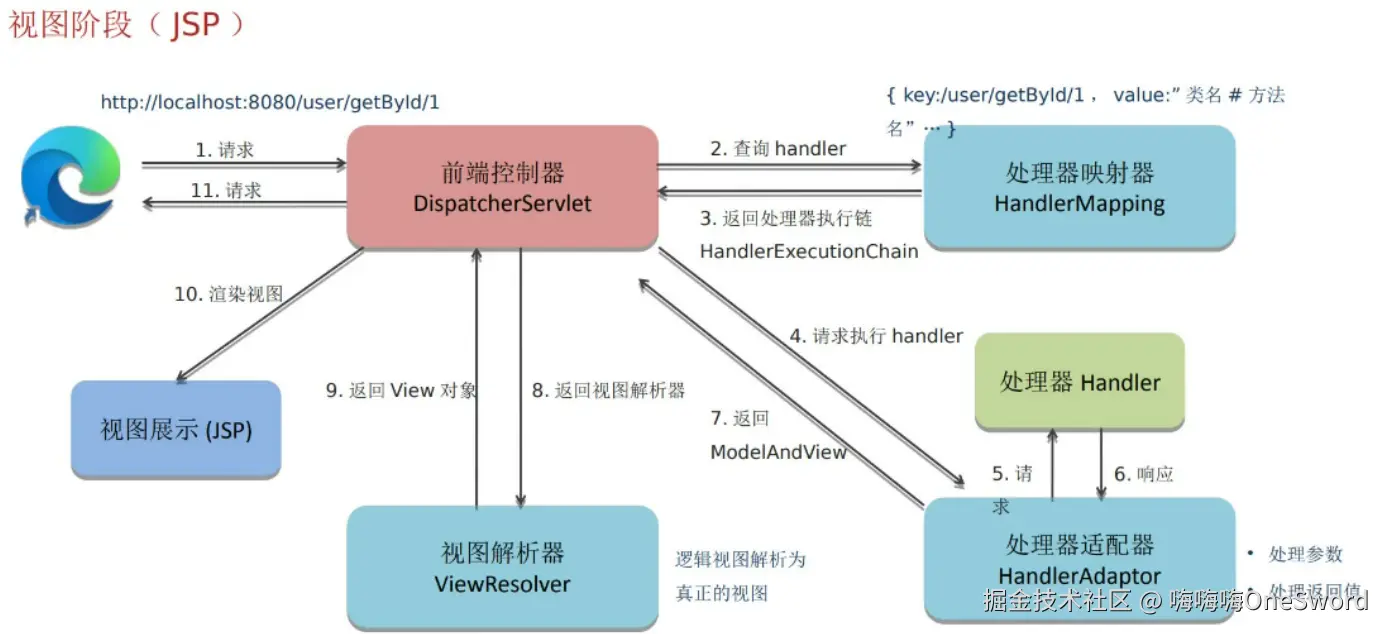

传统jsp

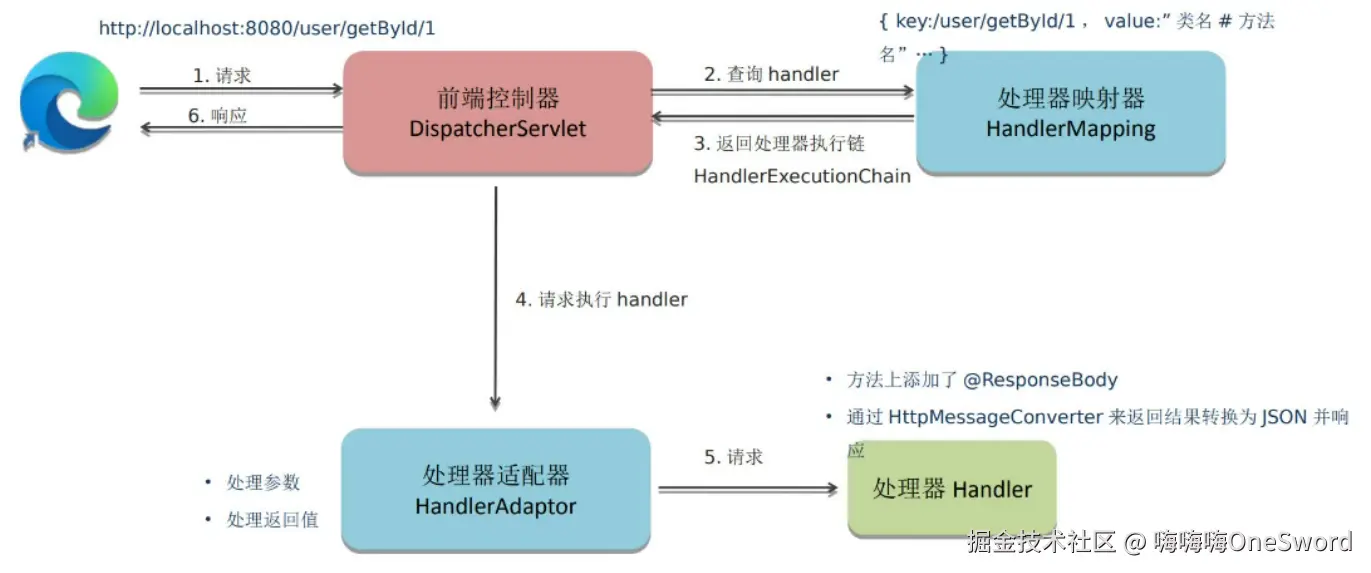

前后端分离
调用service()，对于传统的servlet项目，会使用HttpServlet执行service()方法去处理请求，比如使用doGet(),doPost()等。对于spring项目，会使用ServletHttpHandlerAdapter进行请求参数处理（适配），然后调用handle()处理请求
HttpServlet.service()方法
protected void service(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
String method = req.getMethod();
if (method.equals(METHOD_GET)) {
long lastModified = getLastModified(req);
if (lastModified == -1) {
// servlet doesn't support if-modified-since, no reason
// to go through further expensive logic
doGet(req, resp);
} else {
long ifModifiedSince;
try {
ifModifiedSince = req.getDateHeader(HEADER_IFMODSINCE);
} catch (IllegalArgumentException iae) {
// Invalid date header - proceed as if none was set
ifModifiedSince = -1;
}
if (ifModifiedSince < (lastModified / 1000 * 1000)) {
// If the servlet mod time is later, call doGet()
// Round down to the nearest second for a proper compare
// A ifModifiedSince of -1 will always be less
maybeSetLastModified(resp, lastModified);
doGet(req, resp);
} else {
resp.setStatus(HttpServletResponse.SC_NOT_MODIFIED);
}
}
} else if (method.equals(METHOD_HEAD)) {
long lastModified = getLastModified(req);
maybeSetLastModified(resp, lastModified);
doHead(req, resp);
} else if (method.equals(METHOD_POST)) {
doPost(req, resp);
} else if (method.equals(METHOD_PUT)) {
doPut(req, resp);
} else if (method.equals(METHOD_DELETE)) {
doDelete(req, resp);
} else if (method.equals(METHOD_OPTIONS)) {
doOptions(req, resp);
} else if (method.equals(METHOD_TRACE)) {
doTrace(req, resp);
} else {
//
// Note that this means NO servlet supports whatever
// method was requested, anywhere on this server.
//
String errMsg = lStrings.getString("http.method_not_implemented");
Object[] errArgs = new Object[1];
errArgs[0] = method;
errMsg = MessageFormat.format(errMsg, errArgs);
resp.sendError(HttpServletResponse.SC_NOT_IMPLEMENTED, errMsg);
}
}
ServletHttpHandlerAdapter.service()
public void service(ServletRequest request, ServletResponse response) throws ServletException, IOException {
...
this.httpHandler.handle(httpRequest, httpResponse).subscribe(subscriber); //由handler处理请求
...
}
暂时写到这吧，后面等看懂了再写
