【Java 网络编程实战】深度解析：网址输入到页面呈现的全过程与优化要点

异常君
115 阅读14分钟

大家好，今天我们来聊一个看似简单但实际上非常深奥的话题：当你在浏览器里敲下一个网址并按下回车键后，到底发生了什么？这个过程涉及到了网络协议、Java 网络编程、服务器处理等多个方面的知识。作为 Java 开发者，理解这个过程对于解决网络问题、优化应用性能至关重要。本文将从 Java 开发者的角度，带你深入探索这个网络请求的完整生命周期。

1. 从 URL 解析开始

当你在浏览器中输入https://www.example.com/index.html并按下回车，第一步就是 URL 解析。

1.1 URL 的结构和解析

URL（统一资源定位符）通常包含以下几个部分：

  • 协议（Protocol）：如 http 或 https
  • 主机名（Host）：如 www.example.com
  • 端口（Port）：默认 HTTP 是 80，HTTPS 是 443
  • 路径（Path）：如/index.html
  • 查询参数（Query String）：如?id=123
  • 片段标识符（Fragment）：如#section1

在 Java 中，我们可以使用java.net.URL类来解析 URL：

try {
    URL url = new URL("https://www.example.com/index.html?id=123#section1");
    System.out.println("协议: " + url.getProtocol());  // https
    System.out.println("主机名: " + url.getHost());    // www.example.com
    System.out.println("端口: " + url.getPort());      // -1 (使用默认端口)
    System.out.println("路径: " + url.getPath());      // /index.html
    System.out.println("查询: " + url.getQuery());     // id=123
    System.out.println("片段: " + url.getRef());       // section1
} catch (MalformedURLException e) {
    System.out.println("URL格式错误: " + e.getMessage());
}

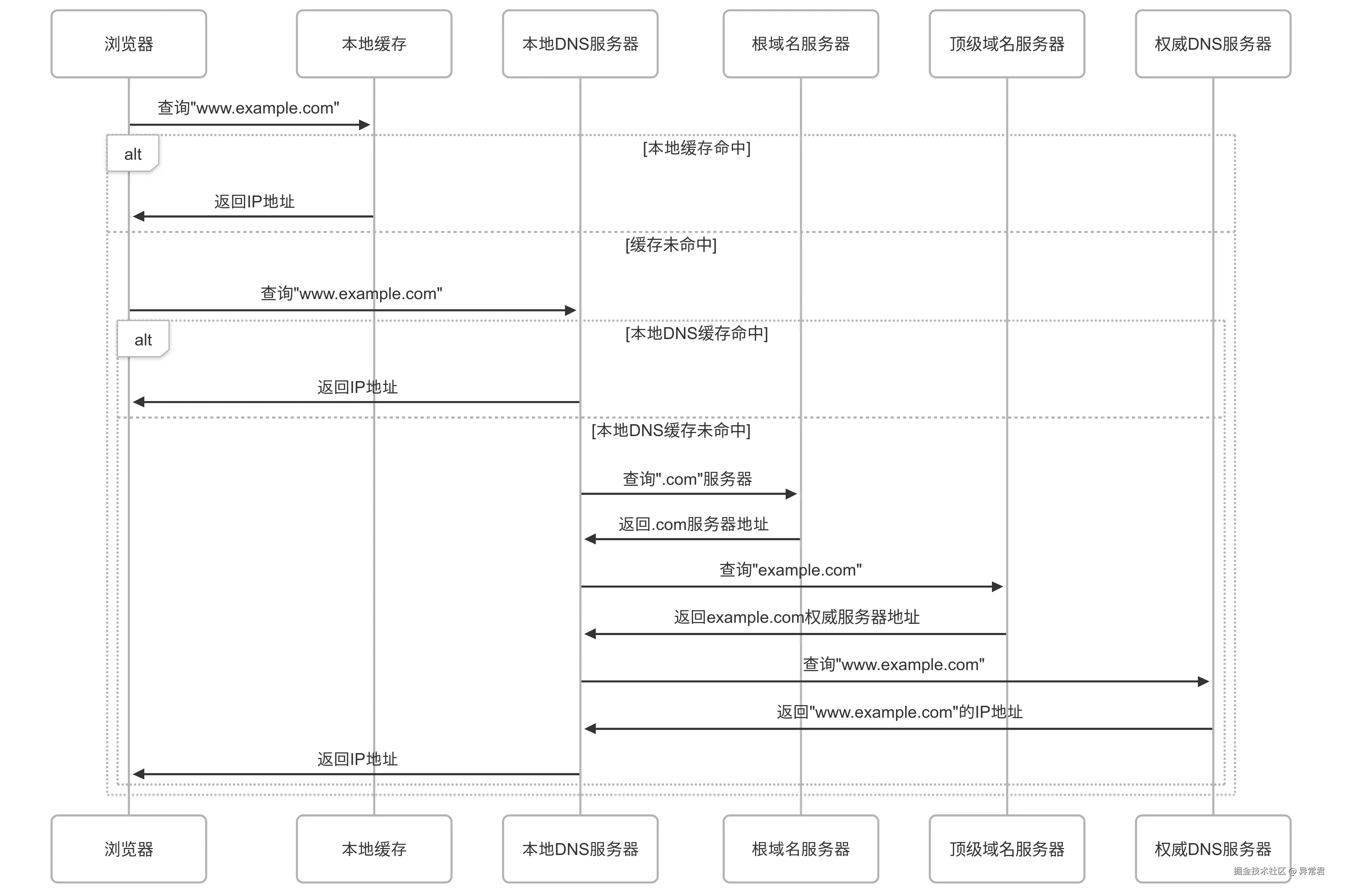

1.2 DNS 解析：将域名转换为 IP 地址

浏览器需要知道服务器的 IP 地址才能建立连接。DNS(Domain Name System)解析就是将域名转换为 IP 地址的过程。

在 Java 中，我们可以使用InetAddress类进行 DNS 查询：

try {
    InetAddress address = InetAddress.getByName("www.example.com");
    System.out.println("IP地址: " + address.getHostAddress());

    // 获取所有IP地址（如果域名有多个A记录）
    InetAddress[] allAddresses = InetAddress.getAllByName("www.example.com");
    for (InetAddress addr : allAddresses) {
        System.out.println("IP地址: " + addr.getHostAddress());
    }
} catch (UnknownHostException e) {
    System.out.println("无法解析域名: " + e.getMessage());
}

DNS 解析问题及优化

在大型 Java 应用中，DNS 解析可能成为性能瓶颈。常见的问题和优化方法：

  1. DNS 缓存设置：Java 默认会缓存 DNS 解析结果，可以通过设置 JVM 参数调整缓存时间
// 设置DNS缓存时间为300秒（负值表示永久缓存）
System.setProperty("networkaddress.cache.ttl", "300");
  1. DNS 解析异步化处理：使用CompletableFuture实现异步 DNS 解析，避免阻塞主线程
public static CompletableFuture<InetAddress[]> resolveAsync(String host) {
    return CompletableFuture.supplyAsync(() -> {
        try {
            return InetAddress.getAllByName(host);
        } catch (UnknownHostException e) {
            throw new CompletionException(e);
        }
    });
}

// 使用示例
resolveAsync("www.example.com")
    .thenAccept(addresses -> {
        for (InetAddress addr : addresses) {
            System.out.println("解析到IP: " + addr.getHostAddress());
        }
    })
    .exceptionally(ex -> {
        System.err.println("DNS解析失败: " + ex.getMessage());
        return null;
    });
  1. DNS 解析超时处理：实现重试机制处理 DNS 解析超时
public static InetAddress resolveWithRetry(String host, int maxRetries, int retryDelayMs) {
    for (int i = 0; i < maxRetries; i++) {
        try {
            return InetAddress.getByName(host);
        } catch (UnknownHostException e) {
            if (i == maxRetries - 1) {
                throw new RuntimeException("DNS解析失败，已重试" + maxRetries + "次", e);
            }
            System.out.println("DNS解析失败，正在重试(" + (i+1) + "/" + maxRetries + ")...");
            try { Thread.sleep(retryDelayMs); } catch (InterruptedException ie) {
                Thread.currentThread().interrupt();
            }
        }
    }
    return null; // 编译需要，实际不会执行到这里
}

2. TCP 连接建立

获取到服务器 IP 地址后，浏览器需要与服务器建立 TCP 连接。

2.1 TCP 三次握手

TCP 连接的建立需要经过三次握手过程：

sequenceDiagram
    participant Client as 客户端
    participant Server as 服务器

    Client->>Server: SYN (seq=x)
    note right of Client: 第一次握手：发送同步请求
    Server->>Client: SYN-ACK (seq=y, ack=x+1)
    note left of Server: 第二次握手：确认并请求同步
    Client->>Server: ACK (ack=y+1)
    note right of Client: 第三次握手：确认连接
    note over Client,Server: TCP连接建立完成

在 Java 中，Socket API 会自动处理 TCP 握手过程：

try {
    // 创建Socket时自动进行TCP三次握手
    Socket socket = new Socket();

    // 设置连接超时时间
    socket.connect(new InetSocketAddress("www.example.com", 80), 5000);

    // 设置SO_KEEPALIVE选项，定期检测连接是否存活
    socket.setKeepAlive(true);

    // 禁用Nagle算法，减少小数据包的延迟（适用于需要实时响应的应用）
    socket.setTcpNoDelay(true);

    // 设置接收和发送缓冲区大小（根据带宽和延迟调整）
    socket.setReceiveBufferSize(65536);
    socket.setSendBufferSize(65536);

    // 设置读取操作超时：30秒
    socket.setSoTimeout(30000);

    // 使用连接...

    // 关闭连接
    socket.close();
} catch (SocketTimeoutException e) {
    System.out.println("连接超时: " + e.getMessage());
} catch (IOException e) {
    System.out.println("连接失败: " + e.getMessage());
}

2.2 TCP 连接优化

在高并发场景下，TCP 连接的建立和维护可能成为性能瓶颈。一些优化方法：

  1. 连接池：重用已建立的连接，减少连接建立的开销
public class OptimizedTcpConnectionPool {
    private final ConcurrentLinkedQueue<Socket> pool = new ConcurrentLinkedQueue<>();
    private final String host;
    private final int port;
    private final AtomicInteger currentSize = new AtomicInteger(0);
    private final int maxSize;
    private final int maxIdleTimeMs;
    private final ConcurrentHashMap<Socket, Long> lastUsedTime = new ConcurrentHashMap<>();
    private final ReentrantLock cleanupLock = new ReentrantLock();

    // 连接池监控指标
    private final AtomicLong totalConnectionsCreated = new AtomicLong(0);
    private final AtomicLong totalConnectionsReused = new AtomicLong(0);
    private final AtomicLong totalConnectionsFailed = new AtomicLong(0);

    public OptimizedTcpConnectionPool(String host, int port, int maxSize, int maxIdleTimeMs) {
        this.host = host;
        this.port = port;
        this.maxSize = maxSize;
        this.maxIdleTimeMs = maxIdleTimeMs;

        // 启动定期清理任务
        ScheduledExecutorService scheduler = Executors.newSingleThreadScheduledExecutor(r -> {
            Thread t = new Thread(r, "ConnectionPool-Cleanup");
            t.setDaemon(true);
            return t;
        });

        scheduler.scheduleAtFixedRate(this::cleanupIdleConnections,
                maxIdleTimeMs / 2, maxIdleTimeMs / 2, TimeUnit.MILLISECONDS);
    }

    public Socket getConnection() throws IOException {
        Socket socket = pool.poll();
        if (socket != null) {
            Long lastUsed = lastUsedTime.remove(socket);
            if (lastUsed != null && System.currentTimeMillis() - lastUsed <= maxIdleTimeMs
                    && !socket.isClosed()) {
                try {
                    // 验证连接是否仍然有效
                    if (socket.getKeepAlive()) {
                        totalConnectionsReused.incrementAndGet();
                        return socket;
                    }
                } catch (SocketException e) {
                    // 连接已失效，关闭并创建新连接
                    try { socket.close(); } catch (IOException ignored) {}
                    currentSize.decrementAndGet();
                }
            } else {
                // 连接过期，关闭并创建新连接
                try { socket.close(); } catch (IOException ignored) {}
                currentSize.decrementAndGet();
            }
        }

        // 创建新连接
        if (currentSize.incrementAndGet() > maxSize) {
            currentSize.decrementAndGet();
            throw new IOException("连接池已满，无法创建新连接");
        }

        try {
            Socket newSocket = createSocket();
            totalConnectionsCreated.incrementAndGet();
            return newSocket;
        } catch (IOException e) {
            currentSize.decrementAndGet();
            totalConnectionsFailed.incrementAndGet();
            throw e;
        }
    }

    private Socket createSocket() throws IOException {
        Socket socket = new Socket();
        socket.setKeepAlive(true);
        socket.setTcpNoDelay(true);
        socket.connect(new InetSocketAddress(host, port), 5000);
        return socket;
    }

    public void releaseConnection(Socket socket) {
        if (socket == null || socket.isClosed()) {
            return;
        }

        lastUsedTime.put(socket, System.currentTimeMillis());
        pool.offer(socket);
    }

    private void cleanupIdleConnections() {
        if (!cleanupLock.tryLock()) {
            return; // 其他线程正在清理
        }

        try {
            long now = System.currentTimeMillis();
            Iterator<Map.Entry<Socket, Long>> iterator = lastUsedTime.entrySet().iterator();

            while (iterator.hasNext()) {
                Map.Entry<Socket, Long> entry = iterator.next();
                if (now - entry.getValue() > maxIdleTimeMs) {
                    Socket socket = entry.getKey();
                    iterator.remove();
                    pool.remove(socket);
                    try { socket.close(); } catch (IOException ignored) {}
                    currentSize.decrementAndGet();
                }
            }
        } finally {
            cleanupLock.unlock();
        }
    }

    // 获取监控指标
    public Map<String, Long> getMetrics() {
        Map<String, Long> metrics = new HashMap<>();
        metrics.put("currentPoolSize", (long) currentSize.get());
        metrics.put("totalCreated", totalConnectionsCreated.get());
        metrics.put("totalReused", totalConnectionsReused.get());
        metrics.put("totalFailed", totalConnectionsFailed.get());
        metrics.put("idleConnections", (long) pool.size());
        return metrics;
    }

    // 导出指标到Micrometer/Prometheus
    public void registerMetrics(MeterRegistry registry) {
        Gauge.builder("tcp.pool.size", currentSize, AtomicInteger::get)
             .description("当前连接池大小")
             .register(registry);

        Gauge.builder("tcp.pool.created", totalConnectionsCreated, AtomicLong::get)
             .description("创建的总连接数")
             .register(registry);

        Gauge.builder("tcp.pool.reused", totalConnectionsReused, AtomicLong::get)
             .description("复用的总连接数")
             .register(registry);
    }

    public void shutdown() {
        for (Socket socket : pool) {
            try { socket.close(); } catch (IOException ignored) {}
        }
        pool.clear();
        lastUsedTime.clear();
    }
}
  1. 连接池参数调优：根据应用特性调整连接池参数
graph LR
    A[连接池参数] --> B[最大连接数]
    B --> B1[QPS / 单连接处理能力]
    A --> C[最大空闲时间]
    C --> C1[负载波动 vs 连接开销]
    A --> D[验证间隔]
    D --> D1[网络稳定性 vs 资源占用]

连接池参数调优表：

参数描述调优思路示例值
maxTotal连接池最大连接数峰值 QPS / 单连接每秒处理能力200
maxPerRoute每个路由的最大连接数单域名并发请求数50
validateAfterInactivity空闲检查时间代理/防火墙超时时间的一半30000ms
keepAliveStrategy连接保活策略根据服务器配置和网络环境60000ms

3. HTTP 请求构建与发送

TCP 连接建立后，浏览器会构建 HTTP 请求并发送给服务器。

3.1 传统 HTTP 请求方式

使用HttpURLConnection发送 HTTP 请求：

try {
    URL url = new URL("https://www.example.com/api/data");
    HttpURLConnection connection = (HttpURLConnection) url.openConnection();

    // 设置请求方法
    connection.setRequestMethod("GET");

    // 设置请求头
    connection.setRequestProperty("User-Agent", "Mozilla/5.0 Java Client");
    connection.setRequestProperty("Accept", "application/json");

    // 设置超时
    connection.setConnectTimeout(5000);
    connection.setReadTimeout(10000);

    // 获取响应码
    int responseCode = connection.getResponseCode();
    System.out.println("响应状态码: " + responseCode);

    // 读取响应内容
    try (BufferedReader reader = new BufferedReader(
            new InputStreamReader(connection.getInputStream()))) {
        String line;
        StringBuilder response = new StringBuilder();
        while ((line = reader.readLine()) != null) {
            response.append(line);
        }
        System.out.println("响应内容: " + response.toString());
    }

    // 断开连接
    connection.disconnect();
} catch (MalformedURLException e) {
    System.out.println("URL格式错误: " + e.getMessage());
} catch (SocketTimeoutException e) {
    System.out.println("请求超时: " + e.getMessage());
} catch (IOException e) {
    System.out.println("IO错误: " + e.getMessage());
}

3.2 现代 Java HTTP 客户端（Java 11+）

Java 11 引入了新的HttpClient API，提供了更现代化的 HTTP 客户端功能：

import java.net.URI;
import java.net.http.HttpClient;
import java.net.http.HttpRequest;
import java.net.http.HttpResponse;
import java.time.Duration;
import java.util.concurrent.CompletableFuture;

// 同步请求
HttpClient client = HttpClient.newBuilder()
    .version(HttpClient.Version.HTTP_2)  // 支持HTTP/2
    .connectTimeout(Duration.ofSeconds(5))
    .build();

HttpRequest request = HttpRequest.newBuilder()
    .uri(URI.create("https://www.example.com/api/data"))
    .header("User-Agent", "Java HttpClient")
    .header("Accept", "application/json")
    .timeout(Duration.ofSeconds(10))
    .GET()
    .build();

try {
    HttpResponse<String> response = client.send(request,
            HttpResponse.BodyHandlers.ofString());

    System.out.println("状态码: " + response.statusCode());
    System.out.println("响应头: " + response.headers());
    System.out.println("响应体: " + response.body());
} catch (IOException | InterruptedException e) {
    System.out.println("请求失败: " + e.getMessage());
    if (e instanceof InterruptedException) {
        Thread.currentThread().interrupt();
    }
}

// 异步请求
CompletableFuture<HttpResponse<String>> futureResponse = client.sendAsync(
        request, HttpResponse.BodyHandlers.ofString());

futureResponse
    .thenApply(response -> {
        System.out.println("状态码: " + response.statusCode());
        return response.body();
    })
    .thenAccept(System.out::println)
    .exceptionally(e -> {
        System.out.println("请求失败: " + e.getMessage());
        return null;
    });

3.3 HTTPS 连接处理

如果网址使用 HTTPS 协议，则需要进行 SSL/TLS 握手：

sequenceDiagram
    participant Client as 客户端
    participant Server as 服务器

    Client->>Server: Client Hello
    note right of Client: 包含支持的加密算法列表
    Server->>Client: Server Hello
    note left of Server: 选择使用的加密算法
    Server->>Client: Certificate
    note left of Server: 发送服务器证书
    Server->>Client: Server Key Exchange
    Server->>Client: Server Hello Done
    Client->>Client: 验证证书
    Client->>Server: Client Key Exchange
    note right of Client: 包含预主密钥
    Client->>Server: Change Cipher Spec
    Client->>Server: Finished
    Server->>Client: Change Cipher Spec
    Server->>Client: Finished
    note over Client,Server: SSL/TLS握手完成，开始加密通信

在 Java 中正确配置 HTTPS，使用标准验证逻辑：

import javax.net.ssl.*;
import java.security.KeyStore;
import java.security.cert.CertificateFactory;
import java.security.cert.X509Certificate;

// 创建并配置标准的SSLContext
public static SSLContext createSSLContext() throws Exception {
    // 使用默认信任管理器工厂
    TrustManagerFactory tmf = TrustManagerFactory.getInstance(
            TrustManagerFactory.getDefaultAlgorithm());

    // 初始化默认的信任库
    tmf.init((KeyStore) null);

    // 创建SSLContext并配置
    SSLContext sslContext = SSLContext.getInstance("TLS");
    sslContext.init(null, tmf.getTrustManagers(), null);

    return sslContext;
}

// 在HTTPS连接中使用
URL url = new URL("https://www.example.com");
HttpsURLConnection connection = (HttpsURLConnection) url.openConnection();

// 设置SSLContext
SSLContext sslContext = createSSLContext();
connection.setSSLSocketFactory(sslContext.getSocketFactory());

// 使用默认的主机名验证器
HostnameVerifier defaultVerifier = HttpsURLConnection.getDefaultHostnameVerifier();
connection.setHostnameVerifier(defaultVerifier);

// 主机名验证原理：DefaultHostnameVerifier的实现逻辑
// 1. 检查证书中的SubjectAlternativeName(SAN)扩展字段是否包含请求的主机名
// 2. 如果SAN不存在，则检查证书CN(Common Name)字段是否匹配主机名
// 3. 支持通配符匹配（如*.example.com可匹配sub.example.com）
// 4. 比较时忽略大小写，但不允许部分匹配（如example.com不匹配myexample.com）

// 配置TLS会话重用，减少握手开销
System.setProperty("jdk.tls.client.sessionCacheSize", "1024"); // 缓存大小
System.setProperty("jdk.tls.client.sessionTimeout", "3600");   // 会话超时（秒）

// 配置安全的加密套件（仅使用强加密算法）
SSLParameters params = new SSLParameters();
params.setProtocols(new String[] {"TLSv1.2", "TLSv1.3"}); // 仅使用TLS 1.2及以上版本
params.setCipherSuites(new String[] {
    "TLS_AES_256_GCM_SHA384",
    "TLS_CHACHA20_POLY1305_SHA256",
    "TLS_AES_128_GCM_SHA256",
    "TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384",
    "TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384"
});

// 启用OCSP Stapling（减少证书有效性验证延迟）
Security.setProperty("ocsp.enable", "true");
Security.setProperty("jdk.tls.client.enableStatusRequestExtension", "true");

// 应用SSL参数到SSLSocket
((SSLSocket) connection.getSocket()).setSSLParameters(params);

3.4 HTTP/3 支持情况

Java 官方目前尚未内置 HTTP/3 支持，但可通过第三方库实现：

// 使用OkHttp库支持HTTP/3
// Maven依赖：
// <dependency>
//   <groupId>com.squareup.okhttp3</groupId>
//   <artifactId>okhttp</artifactId>
//   <version>4.10.0</version>
// </dependency>
// <dependency>
//   <groupId>org.conscrypt</groupId>
//   <artifactId>conscrypt-openjdk-uber</artifactId>
//   <version>2.5.2</version>
// </dependency>

// 注意：HTTP/3需要操作系统支持
// - Windows 10+ 带有最新更新
// - Linux内核 4.18+ 且支持QUIC协议
// - macOS 10.15+ (Catalina)及更高版本

// 初始化Conscrypt提供者（为QUIC提供密码学支持）
Security.insertProviderAt(Conscrypt.newProvider(), 1);

// 构建支持HTTP/3的OkHttp客户端
OkHttpClient client = new OkHttpClient.Builder()
    .protocols(Arrays.asList(Protocol.HTTP_3, Protocol.HTTP_2, Protocol.HTTP_1_1))
    .connectTimeout(5, TimeUnit.SECONDS)
    .readTimeout(10, TimeUnit.SECONDS)
    .build();

// 构建请求
Request request = new Request.Builder()
    .url("https://www.example.com")
    .header("User-Agent", "OkHttp HTTP/3 Client")
    .build();

// 发送请求
try (Response response = client.newCall(request).execute()) {
    // 如果服务器不支持HTTP/3，会自动降级到HTTP/2或HTTP/1.1
    System.out.println("协议: " + response.protocol());
    System.out.println("状态码: " + response.code());
    System.out.println("响应体: " + response.body().string());
}

// 常见HTTP/3问题排查：
// 1. 若出现"Protocol not found: h3"错误，说明操作系统不支持QUIC或HTTP/3
// 2. 若连接时出现超时，可能是网络中间设备（防火墙、路由器）阻止了UDP流量
// 3. 若服务器不支持HTTP/3，请求会自动降级，性能不会受到影响

4. 服务器处理请求

当 HTTP 请求到达服务器后，服务器端的处理流程开始。

4.1 Web 服务器处理

以 Tomcat 为例，请求处理流程如下：

flowchart TD
    A[接收HTTP请求] --> B[解析HTTP请求头和请求体]
    B --> C[查找对应的Web应用]
    C --> D[查找对应的Servlet]
    D --> E[调用Servlet的service方法]
    E --> F["根据HTTP方法调用doGet、doPost等方法"]
    F --> G[Servlet处理请求]
    G --> H[生成HTTP响应]
    H --> I[发送HTTP响应]

4.2 Java Servlet 处理请求

以下是一个 Servlet 示例，包含参数验证和安全处理：

@WebServlet("/hello")
public class HelloServlet extends HttpServlet {

    private static final Logger logger = LoggerFactory.getLogger(HelloServlet.class);

    @Override
    protected void doGet(HttpServletRequest request, HttpServletResponse response)
            throws ServletException, IOException {

        // 获取请求参数
        String name = request.getParameter("name");

        // 参数验证和安全处理
        if (name == null || name.trim().isEmpty()) {
            name = "Guest";
        } else {
            // 防止XSS攻击
            name = Jsoup.clean(name, Safelist.basic());
        }

        // 设置安全响应头
        response.setHeader("X-Content-Type-Options", "nosniff");
        response.setHeader("X-Frame-Options", "DENY");
        response.setHeader("Content-Security-Policy", "default-src 'self'");

        // 设置响应类型
        response.setContentType("text/html;charset=UTF-8");

        try (PrintWriter out = response.getWriter()) {
            out.println("<!DOCTYPE html>");
            out.println("<html>");
            out.println("<head><title>Hello Servlet</title></head>");
            out.println("<body>");
            out.println("<h1>Hello, " + name + "!</h1>");
            out.println("<p>当前时间: " + new Date() + "</p>");
            out.println("</body>");
            out.println("</html>");
        }
    }

    @Override
    protected void doPost(HttpServletRequest request, HttpServletResponse response)
            throws ServletException, IOException {

        try {
            // 读取请求体，设置限制防止DOS攻击
            StringBuilder body = new StringBuilder();
            try (BufferedReader reader = request.getReader()) {
                char[] buffer = new char[1024];
                int bytesRead;
                int totalBytes = 0;
                int maxSize = 1024 * 1024; // 1MB限制

                while ((bytesRead = reader.read(buffer)) != -1) {
                    totalBytes += bytesRead;
                    if (totalBytes > maxSize) {
                        response.sendError(HttpServletResponse.SC_REQUEST_ENTITY_TOO_LARGE);
                        return;
                    }
                    body.append(buffer, 0, bytesRead);
                }
            }

            // 处理请求...

            // 返回JSON响应
            response.setContentType("application/json");
            response.setCharacterEncoding("UTF-8");

            try (PrintWriter out = response.getWriter()) {
                out.print("{\"status\":\"success\",\"message\":\"处理完成\"}");
            }

        } catch (Exception e) {
            logger.error("处理POST请求时发生错误", e);
            response.sendError(HttpServletResponse.SC_INTERNAL_SERVER_ERROR);
        }
    }
}

4.3 Spring MVC 处理请求

现代 Java Web 应用多使用 Spring 框架，包含参数验证和异常处理：

@RestController
@RequestMapping("/api")
public class UserController {

    private static final Logger logger = LoggerFactory.getLogger(UserController.class);

    @Autowired
    private UserService userService;

    // 全局异常处理
    @ExceptionHandler(Exception.class)
    public ResponseEntity<ErrorResponse> handleException(Exception e) {
        logger.error("发生未处理的异常", e);
        ErrorResponse error = new ErrorResponse("服务器错误", e.getMessage());
        return new ResponseEntity<>(error, HttpStatus.INTERNAL_SERVER_ERROR);
    }

    @GetMapping("/users")
    public ResponseEntity<List<User>> getUsers() {
        List<User> users = userService.findAll();
        return new ResponseEntity<>(users, HttpStatus.OK);
    }

    @GetMapping("/users/{id}")
    public ResponseEntity<User> getUserById(@PathVariable("id") @Min(1) long id) {
        Optional<User> userData = userService.findById(id);

        return userData.map(user -> new ResponseEntity<>(user, HttpStatus.OK))
                      .orElseThrow(() -> new ResourceNotFoundException("未找到ID为" + id + "的用户"));
    }

    @PostMapping("/users")
    public ResponseEntity<User> createUser(
            @RequestBody @Valid User user,
            BindingResult bindingResult) {

        if (bindingResult.hasErrors()) {
            throw new ValidationException(bindingResult.getAllErrors().get(0).getDefaultMessage());
        }

        User savedUser = userService.save(user);
        return new ResponseEntity<>(savedUser, HttpStatus.CREATED);
    }
}

// 自定义异常类
@ResponseStatus(HttpStatus.NOT_FOUND)
public class ResourceNotFoundException extends RuntimeException {
    public ResourceNotFoundException(String message) {
        super(message);
    }
}

@ResponseStatus(HttpStatus.BAD_REQUEST)
public class ValidationException extends RuntimeException {
    public ValidationException(String message) {
        super(message);
    }
}

4.4 数据库交互

使用 JDBC 与数据库连接池进行数据库操作：

// 使用HikariCP连接池配置
@Bean
public DataSource dataSource() {
    HikariConfig config = new HikariConfig();
    config.setJdbcUrl("jdbc:mysql://localhost:3306/mydb");
    config.setUsername("user");
    config.setPassword("password");
    config.setMaximumPoolSize(10);
    config.setMinimumIdle(5);
    config.setIdleTimeout(300000);
    config.setConnectionTimeout(10000);
    config.setMaxLifetime(1800000);

    // 连接池指标收集
    config.setMetricRegistry(new MicrometerMetricsTrackerFactory(Metrics.globalRegistry));

    // 设置连接测试查询
    config.setConnectionTestQuery("SELECT 1");

    return new HikariDataSource(config);
}

// 使用连接池的数据库操作
public User findById(Long id) {
    String sql = "SELECT id, username, email FROM users WHERE id = ?";

    try (Connection conn = dataSource.getConnection();
         PreparedStatement stmt = conn.prepareStatement(sql)) {

        // 参数验证和预处理
        if (id == null || id <= 0) {
            throw new IllegalArgumentException("无效的用户ID");
        }

        stmt.setLong(1, id);

        try (ResultSet rs = stmt.executeQuery()) {
            if (rs.next()) {
                User user = new User();
                user.setId(rs.getLong("id"));
                user.setUsername(rs.getString("username"));
                user.setEmail(rs.getString("email"));
                return user;
            } else {
                return null; // 用户不存在
            }
        }
    } catch (SQLException e) {
        logger.error("查询用户数据时发生错误", e);
        throw new RuntimeException("数据库操作失败", e);
    }
}

5. HTTP 响应返回

服务器处理完请求后，会生成 HTTP 响应并返回给浏览器。

5.1 HTTP 响应结构

HTTP 响应包含：

  • 状态行：包含 HTTP 版本、状态码和状态消息
  • 响应头：包含各种元数据
  • 响应体：包含实际内容（HTML、JSON 等）

5.2 HTTP/2 和 HTTP/3 支持

现代 Web 应用应考虑支持 HTTP/2 和 HTTP/3 协议，提升性能：

// 配置Tomcat支持HTTP/2
public static void configureHttp2(Tomcat tomcat) {
    Connector connector = new Connector("org.apache.coyote.http11.Http11NioProtocol");
    connector.setPort(8443);

    Http11NioProtocol protocol = (Http11NioProtocol) connector.getProtocolHandler();
    protocol.setSSLEnabled(true);

    // 配置SSL
    protocol.setKeystoreFile("/path/to/keystore.jks");
    protocol.setKeystorePass("password");
    protocol.setKeystoreType("JKS");

    // 启用HTTP/2
    connector.addUpgradeProtocol(new Http2Protocol());

    tomcat.setConnector(connector);
}

// Spring Boot配置HTTP/2
// 在application.properties中：
// server.http2.enabled=true
// server.ssl.key-store=classpath:keystore.jks
// server.ssl.key-store-password=password
// server.ssl.key-password=password
// server.ssl.enabled=true

5.3 响应压缩和缓存

优化响应大小和速度：

@GetMapping("/large-data")
public ResponseEntity<String> getLargeData(HttpServletRequest request) {
    String data = generateLargeData();

    // 设置ETag（基于内容的哈希值）
    String etag = "\"" + DigestUtils.md5Hex(data) + "\"";

    // 检查If-None-Match头，实现客户端缓存
    String ifNoneMatch = request.getHeader("If-None-Match");
    if (ifNoneMatch != null && ifNoneMatch.equals(etag)) {
        return ResponseEntity.status(HttpStatus.NOT_MODIFIED).build();
    }

    // 返回带压缩和缓存控制的响应
    return ResponseEntity.ok()
            .header(HttpHeaders.ETAG, etag)
            .header(HttpHeaders.CACHE_CONTROL, "public, max-age=3600") // 1小时缓存
            .header(HttpHeaders.CONTENT_ENCODING, "gzip")
            .body(compressData(data));
}

private String compressData(String data) {
    try (ByteArrayOutputStream baos = new ByteArrayOutputStream();
         GZIPOutputStream gzipOut = new GZIPOutputStream(baos)) {
        gzipOut.write(data.getBytes(StandardCharsets.UTF_8));
        gzipOut.finish();
        return Base64.getEncoder().encodeToString(baos.toByteArray());
    } catch (IOException e) {
        throw new RuntimeException("压缩数据失败", e);
    }
}

6. 浏览器渲染页面

接收到 HTTP 响应后，浏览器开始解析和渲染页面内容。

6.1 浏览器渲染流程

flowchart TD
    A[接收HTTP响应] --> B[解析HTML]
    B --> C[构建DOM树]
    A --> D[解析CSS]
    D --> E[构建CSSOM]
    C --> F[合并DOM和CSSOM]
    E --> F
    F --> G[构建渲染树]
    G --> H[布局计算]
    H --> I[绘制页面]

7. 常见网络问题及 Java 解决方案

7.1 连接超时

// 同时处理连接超时和读取超时
public static String httpRequestWithTimeout(String urlString) {
    try {
        URL url = new URL(urlString);
        HttpURLConnection connection = (HttpURLConnection) url.openConnection();

        // 设置连接超时（5秒）
        connection.setConnectTimeout(5000);

        // 设置读取超时（10秒）
        connection.setReadTimeout(10000);

        // 读取响应
        try (BufferedReader reader = new BufferedReader(
                new InputStreamReader(connection.getInputStream()))) {
            StringBuilder response = new StringBuilder();
            String line;

            while ((line = reader.readLine()) != null) {
                response.append(line);
            }

            return response.toString();
        } finally {
            connection.disconnect();
        }
    } catch (SocketTimeoutException e) {
        return "请求超时: " + e.getMessage();
    } catch (MalformedURLException e) {
        return "URL格式错误: " + e.getMessage();
    } catch (IOException e) {
        return "IO异常: " + e.getMessage();
    }
}

7.2 连接池耗尽

使用 HttpClient 的连接池管理与监控：

// 创建连接池管理器
PoolingHttpClientConnectionManager connectionManager = new PoolingHttpClientConnectionManager();
// 设置最大连接数
connectionManager.setMaxTotal(100);
// 设置每个路由的最大连接数
connectionManager.setDefaultMaxPerRoute(20);
// 设置连接验证间隔
connectionManager.setValidateAfterInactivity(30000);

// 配置请求超时
RequestConfig requestConfig = RequestConfig.custom()
        .setConnectTimeout(5000)
        .setSocketTimeout(30000)
        .setConnectionRequestTimeout(5000)
        .build();

// 设置保活策略
ConnectionKeepAliveStrategy keepAliveStrategy = (response, context) -> {
    // 获取服务器返回的Keep-Alive头
    HeaderElementIterator it = new BasicHeaderElementIterator(
            response.headerIterator(HTTP.CONN_KEEP_ALIVE));

    while (it.hasNext()) {
        HeaderElement he = it.nextElement();
        String param = he.getName();
        String value = he.getValue();

        if (value != null && param.equalsIgnoreCase("timeout")) {
            try {
                return Long.parseLong(value) * 1000;
            } catch (NumberFormatException e) {
                // 忽略错误格式
            }
        }
    }

    // 默认30秒
    return 30000;
};

// 创建HttpClient
CloseableHttpClient httpClient = HttpClients.custom()
        .setConnectionManager(connectionManager)
        .setDefaultRequestConfig(requestConfig)
        .setKeepAliveStrategy(keepAliveStrategy)
        .build();

// 连接池监控 - 与Prometheus集成
// 1. 添加Micrometer依赖
// implementation 'io.micrometer:micrometer-registry-prometheus:1.9.0'

// 2. 注册指标到Prometheus
PrometheusMeterRegistry registry = new PrometheusMeterRegistry(PrometheusConfig.DEFAULT);

// 3. 创建连接池指标
Gauge.builder("httpclient.connections.leased", connectionManager,
        cm -> cm.getTotalStats().getLeased())
    .description("当前正在使用的连接数")
    .register(registry);

Gauge.builder("httpclient.connections.available", connectionManager,
        cm -> cm.getTotalStats().getAvailable())
    .description("当前可用的连接数")
    .register(registry);

Gauge.builder("httpclient.connections.pending", connectionManager,
        cm -> cm.getTotalStats().getPending())
    .description("当前等待获取连接的请求数")
    .register(registry);

// 4. 定期清理过期连接
ScheduledExecutorService scheduler = Executors.newScheduledThreadPool(1);
scheduler.scheduleAtFixedRate(() -> {
    // 关闭过期连接
    connectionManager.closeExpiredConnections();
    // 关闭空闲超过30秒的连接
    connectionManager.closeIdleConnections(30, TimeUnit.SECONDS);
}, 0, 60, TimeUnit.SECONDS);

// 执行请求
HttpGet httpGet = new HttpGet("https://www.example.com");
try (CloseableHttpResponse response = httpClient.execute(httpGet)) {
    // 处理响应
    HttpEntity entity = response.getEntity();
    if (entity != null) {
        String content = EntityUtils.toString(entity);
        System.out.println(content);
    }
}

7.3 DNS 解析失败

public static InetAddress[] getAddressesWithFallback(String hostname) {
    try {
        // 尝试DNS解析
        return InetAddress.getAllByName(hostname);
    } catch (UnknownHostException e) {
        System.out.println("DNS解析失败: " + e.getMessage());

        // 使用hosts文件作为备份
        Map<String, String> hostsMap = loadHostsFile();
        String ip = hostsMap.get(hostname);

        if (ip != null) {
            try {
                InetAddress address = InetAddress.getByName(ip);
                return new InetAddress[] { address };
            } catch (UnknownHostException ex) {
                System.out.println("备份IP解析失败: " + ex.getMessage());
            }
        }

        // 如果所有尝试都失败
        throw new RuntimeException("无法解析主机名: " + hostname, e);
    }
}

private static Map<String, String> loadHostsFile() {
    Map<String, String> hostsMap = new HashMap<>();
    String hostsPath = System.getProperty("os.name").startsWith("Windows") ?
            "C:\\Windows\\System32\\drivers\\etc\\hosts" : "/etc/hosts";

    try {
        Path path = Paths.get(hostsPath);
        if (Files.exists(path)) {
            List<String> lines = Files.readAllLines(path);
            for (String line : lines) {
                line = line.trim();
                if (line.isEmpty() || line.startsWith("#")) continue;

                String[] parts = line.split("\\s+");
                if (parts.length >= 2) {
                    String ip = parts[0];
                    for (int i = 1; i < parts.length; i++) {
                        hostsMap.put(parts[i], ip);
                    }
                }
            }
        }
    } catch (IOException e) {
        System.out.println("读取hosts文件失败: " + e.getMessage());
    }
    return hostsMap;
}

总结

阶段关键步骤Java 技术常见问题与解决方案
URL 解析解析 URL 组成部分java.net.URLURL 格式错误：捕获 MalformedURLException 并提供友好提示
DNS 解析域名转换为 IP 地址InetAddressDNS 解析超时：实现 DNS 缓存、异步解析、重试机制
TCP 连接三次握手建立连接Socket连接超时：设置连接超时、TCP 参数优化、使用连接池
HTTP 请求构建和发送 HTTP 请求HttpURLConnection, HttpClient, Java 11 HttpClient请求错误：参数校验、错误重试、超时控制
SSL/TLS加密通道建立SSLContext, KeyStore证书验证失败：正确配置信任库、禁用弱加密套件、TLS 会话重用
服务器处理解析请求、调用业务逻辑Servlet, Spring MVC服务器错误：参数验证、异常处理、安全防护
数据库交互执行 SQL、处理结果JDBC, 连接池连接泄漏：使用 HikariCP 等连接池、try-with-resources
HTTP 响应构建 HTTP 响应返回客户端HttpServletResponse响应优化：HTTP/2 支持、响应压缩、缓存控制
浏览器渲染解析 HTML、CSS、JS前端相关技术渲染优化：服务器端渲染、减少阻塞资源
avatar
文章
阅读
粉丝
