利用Sentry监控应用里的前后端

300 阅读5分钟

这篇笔记主要记录用Sentry监控应用里的前后端,分别配置应用里的前端和后端并测试是否生效。我用到的Sentry功能点如下

功能点编号功能名称功能说明
1监控应用性能追踪页面加载时间、接口响应时间、慢请求等性能指标
2报错监控捕获并上报前端或后端的异常信息,快速定位到代码位置
3用户会话复现自动录制用户点击、输入等操作,报错时可回放用户操作视频
4用户操作痕迹记录用户的行为路径,如点击、跳转、输入等操作

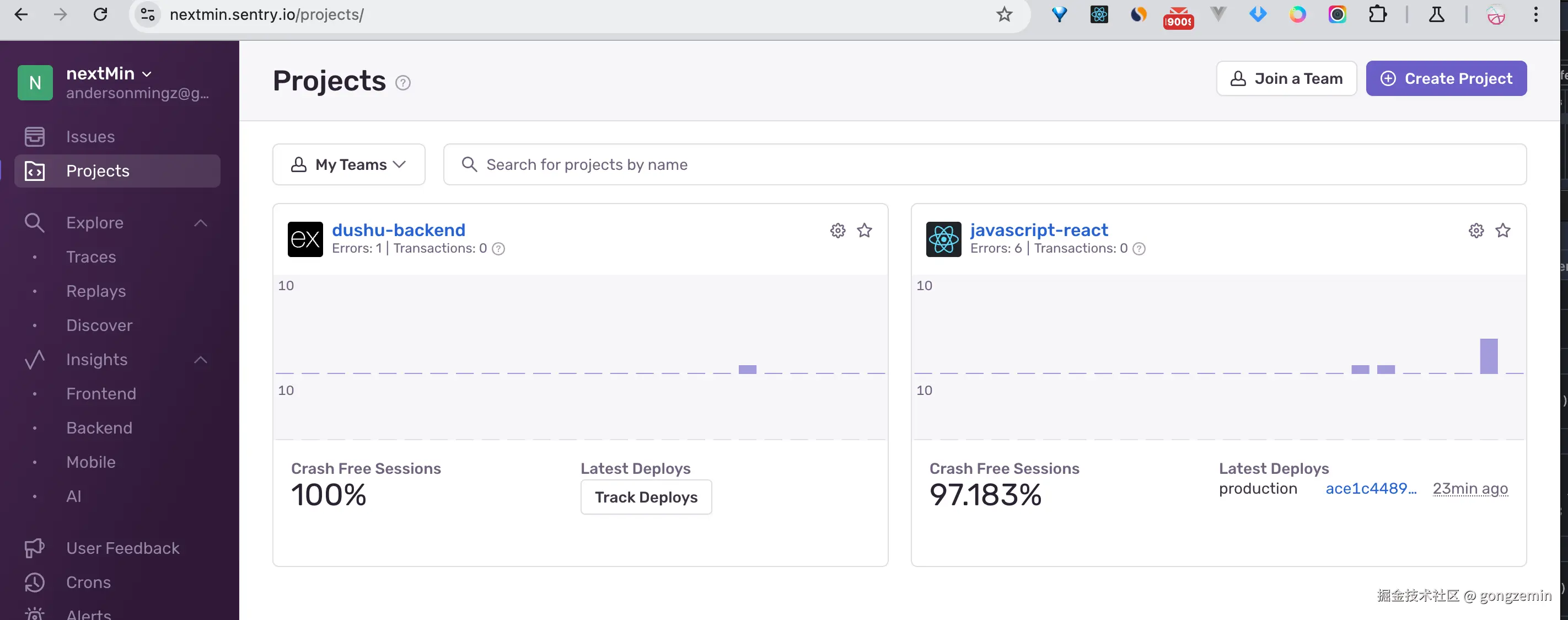

新建了应用里的前端和后端项目 image.png

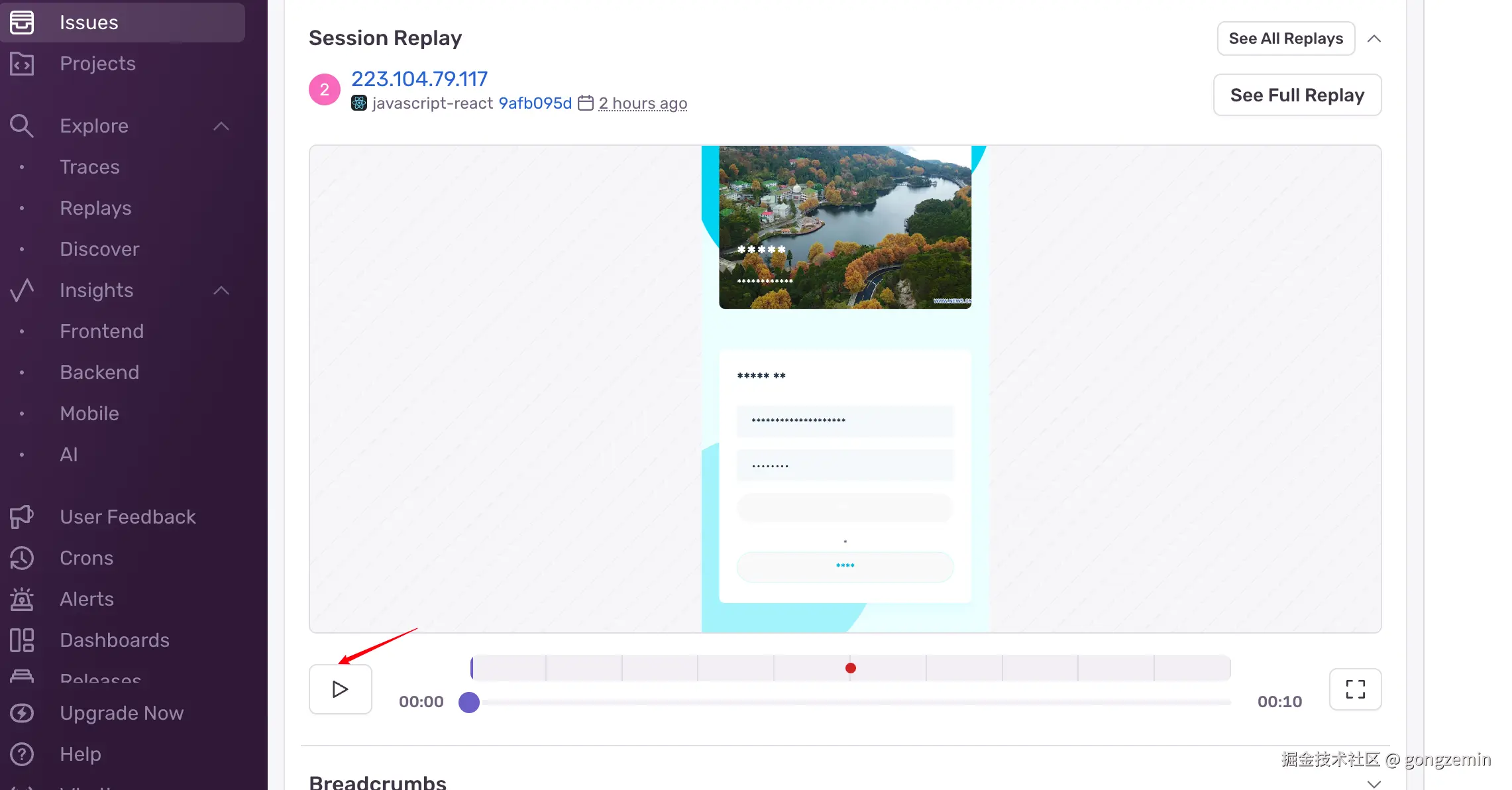

用户会话复现

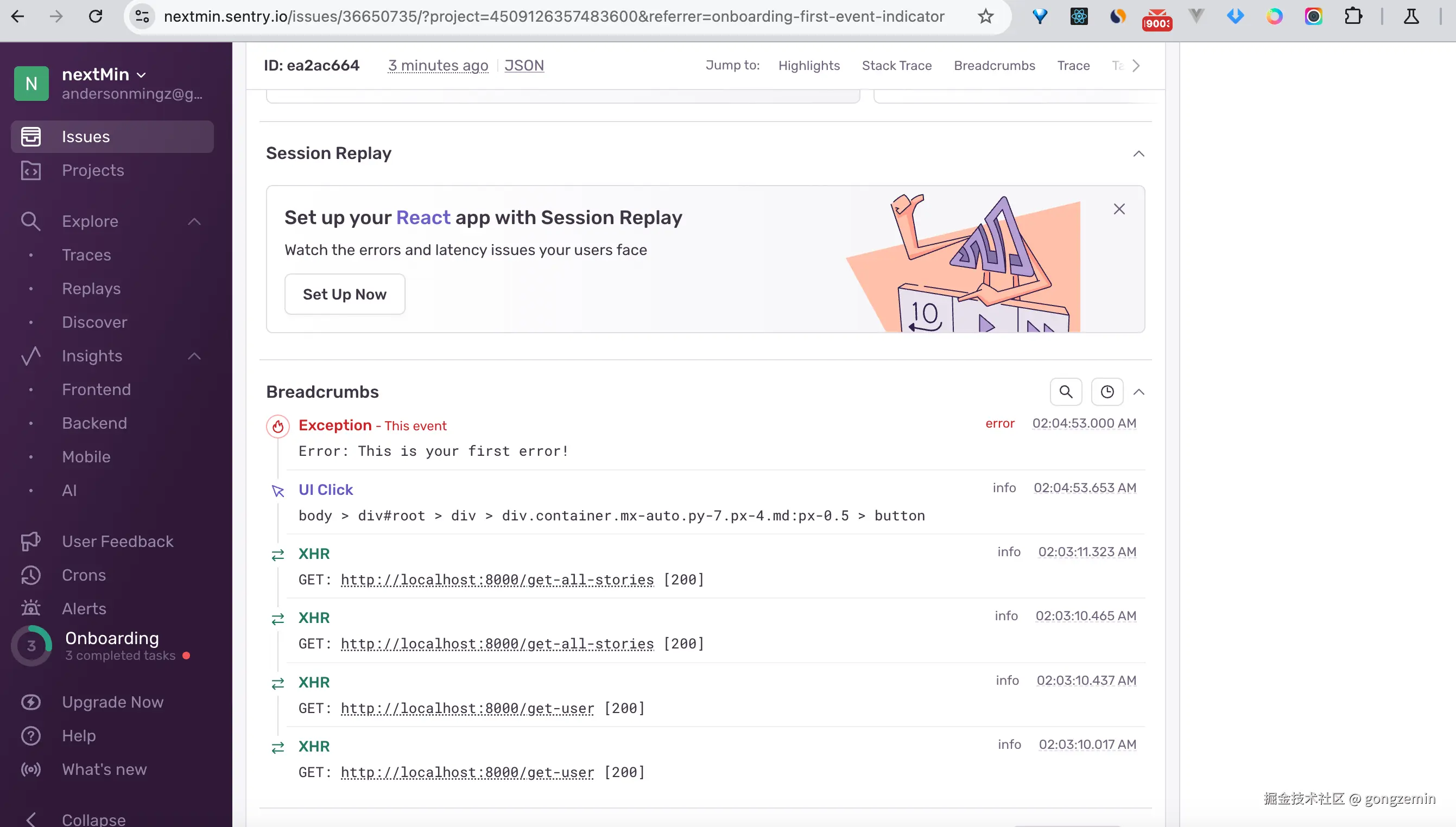

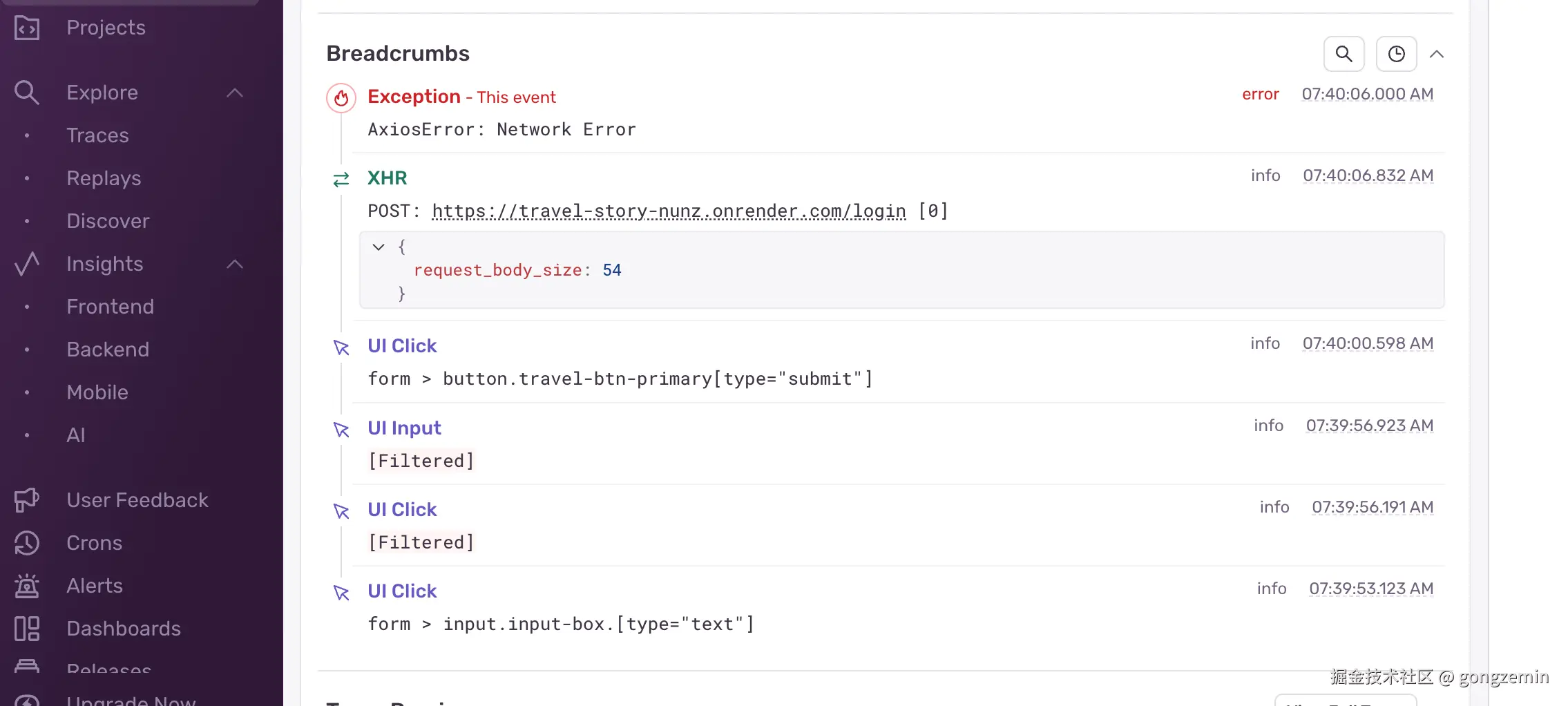

用户操作痕迹,点击 点击 输入 点击 报错 image.png

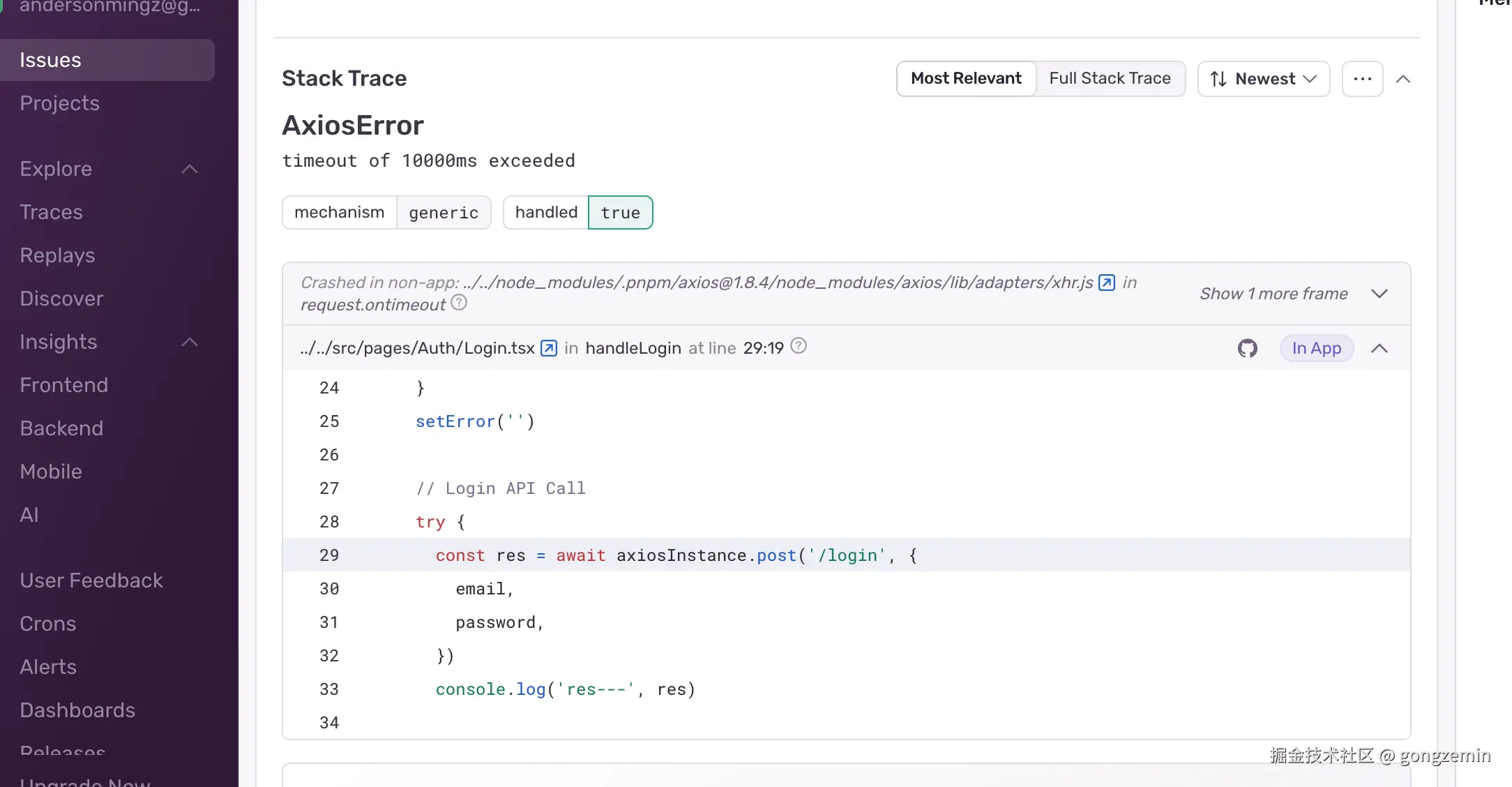

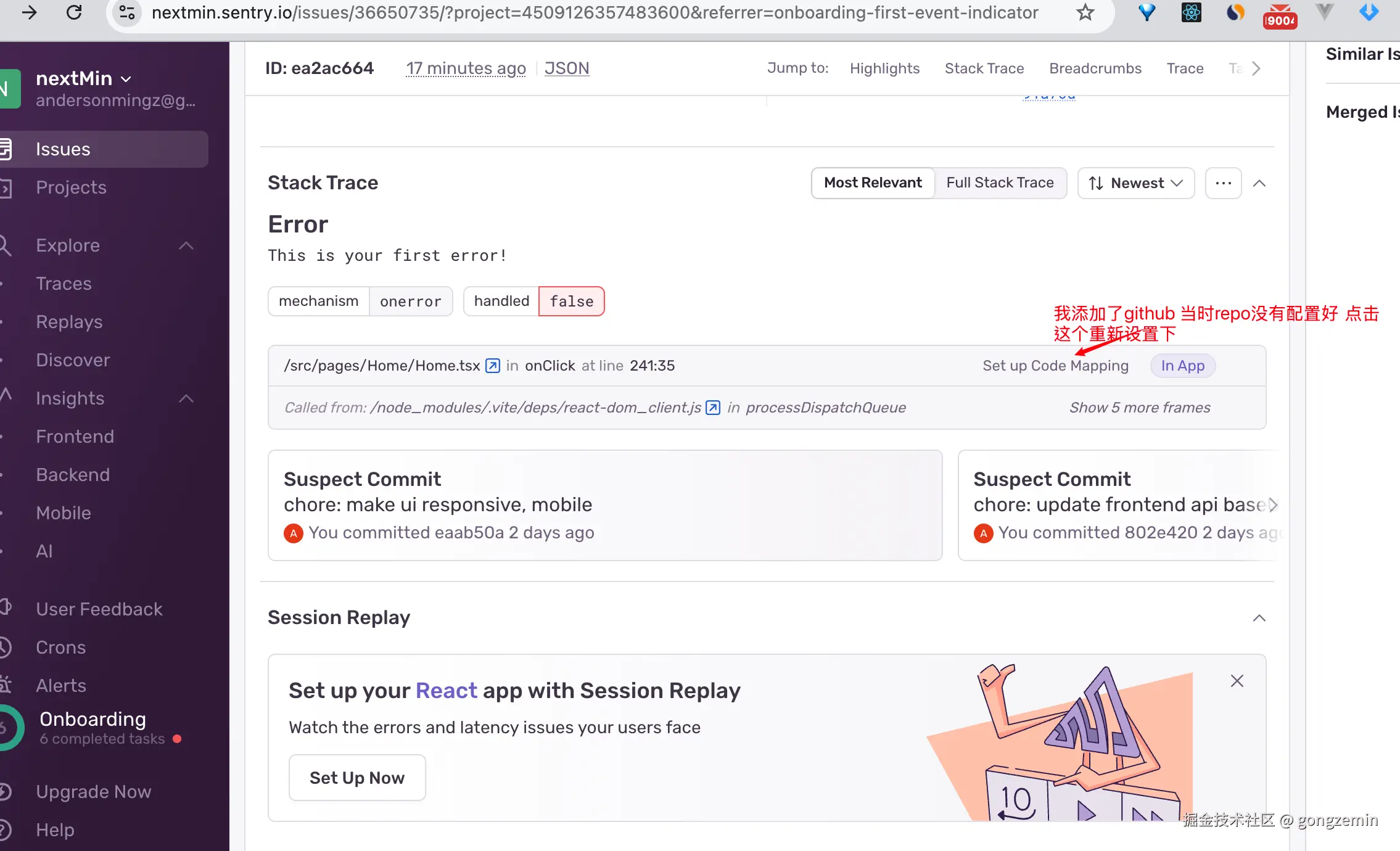

追踪代码报错的位置 image.png

还有些其他功能,我没有用到, 如错误关联具体用户,版本控制(Release tracking),知道是哪个版本上线后报错,我用的是免费版。

我们要监控的应用是一个全栈应用,技术栈是MEAN(MongoDB Express React Node),开始配置吧

配置前端项目

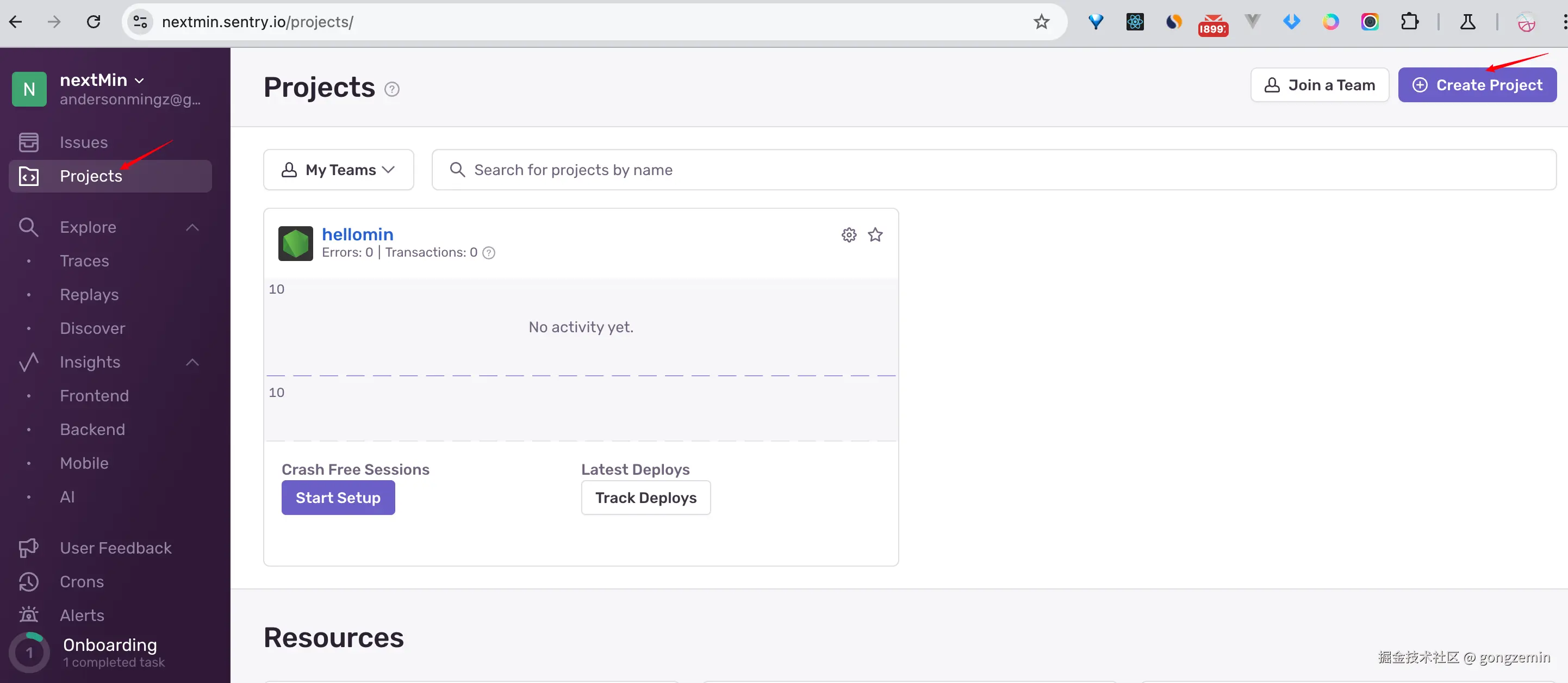

进入Sentry控制台, 点击新建项目

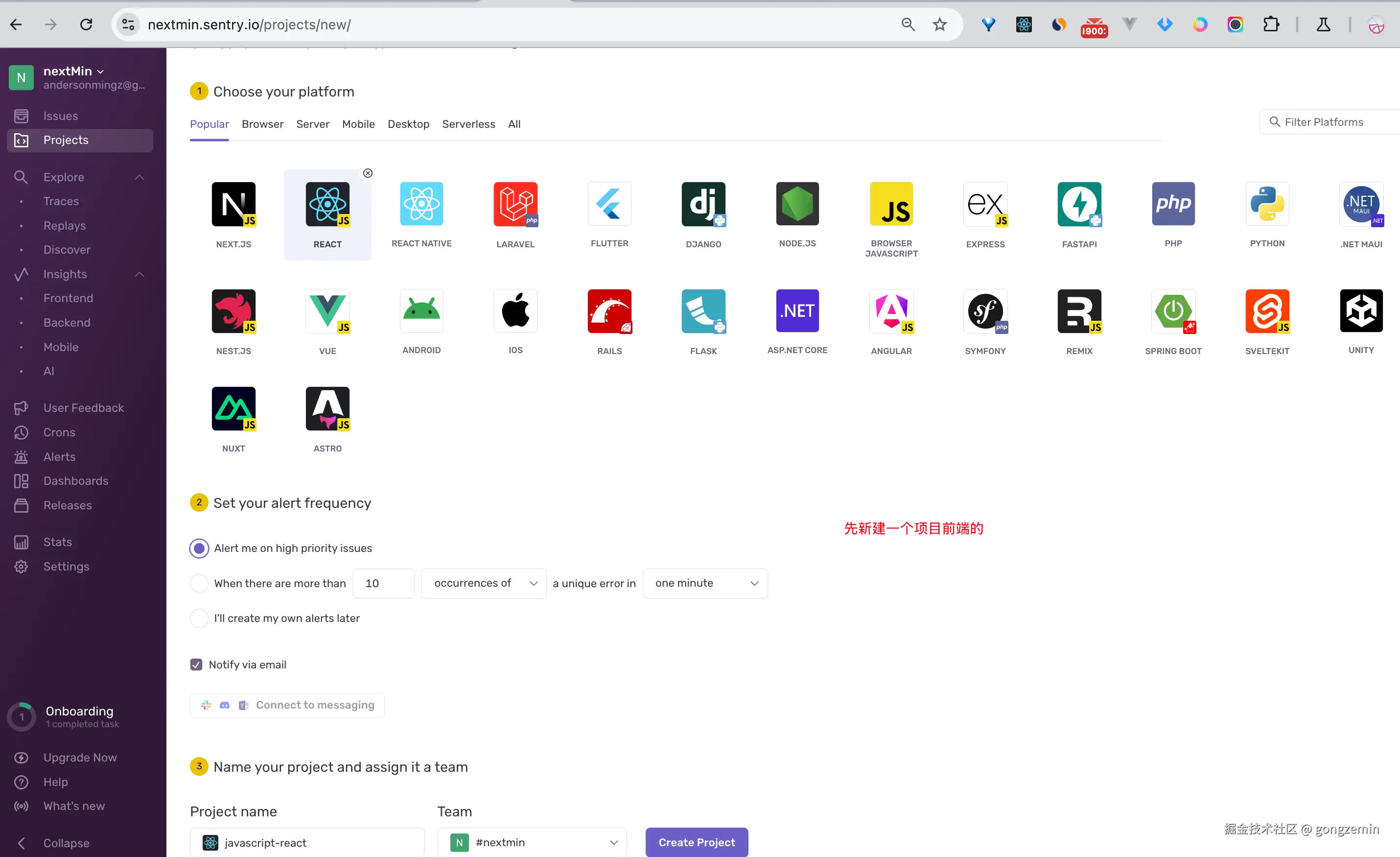

因为我的是React, 选择React, 其他我保持默认,比如项目名,是否邮件通知 image.png

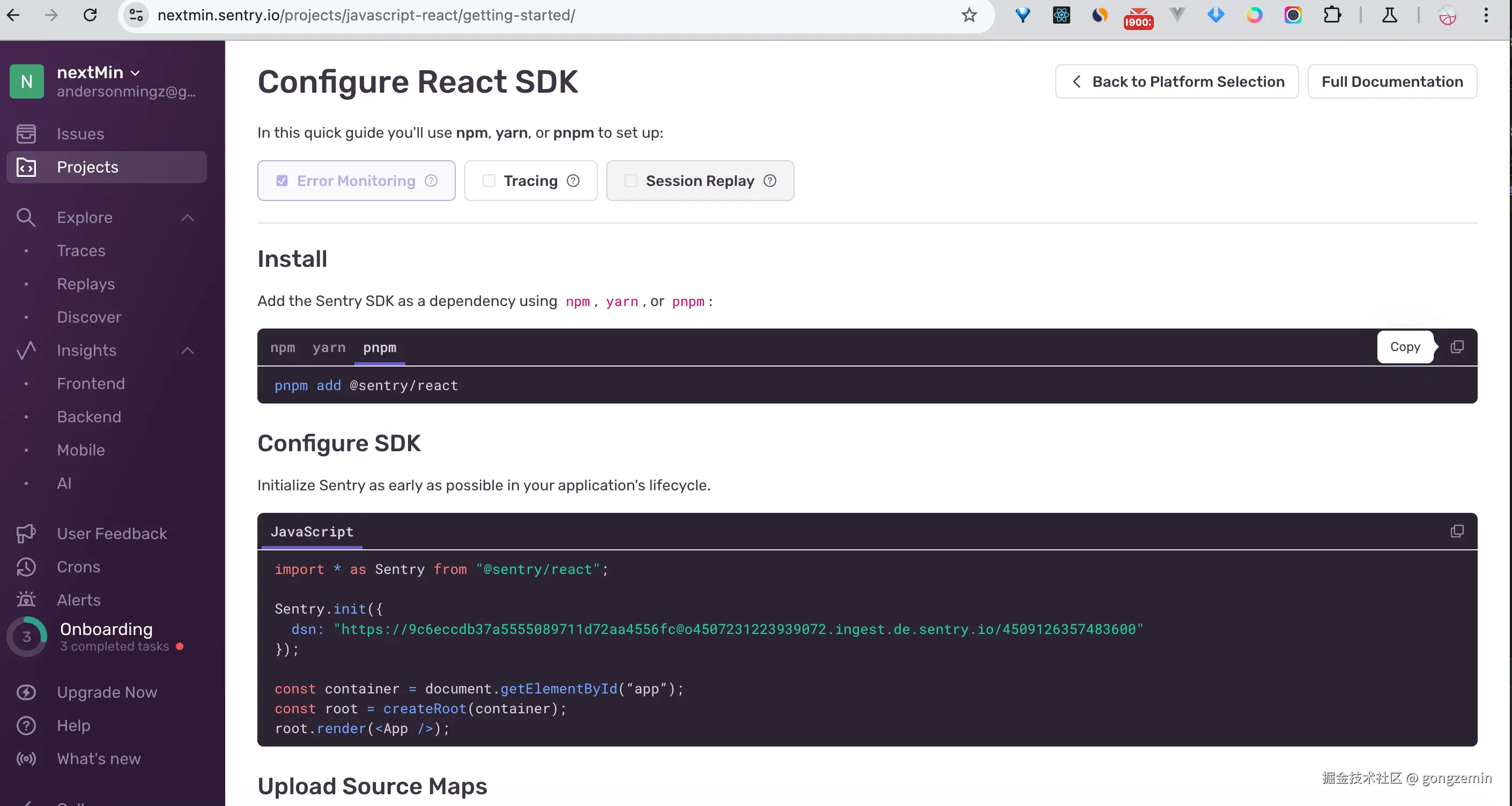

点击新建项目按钮后就跳到如下页面,里面有配置步骤 image.png

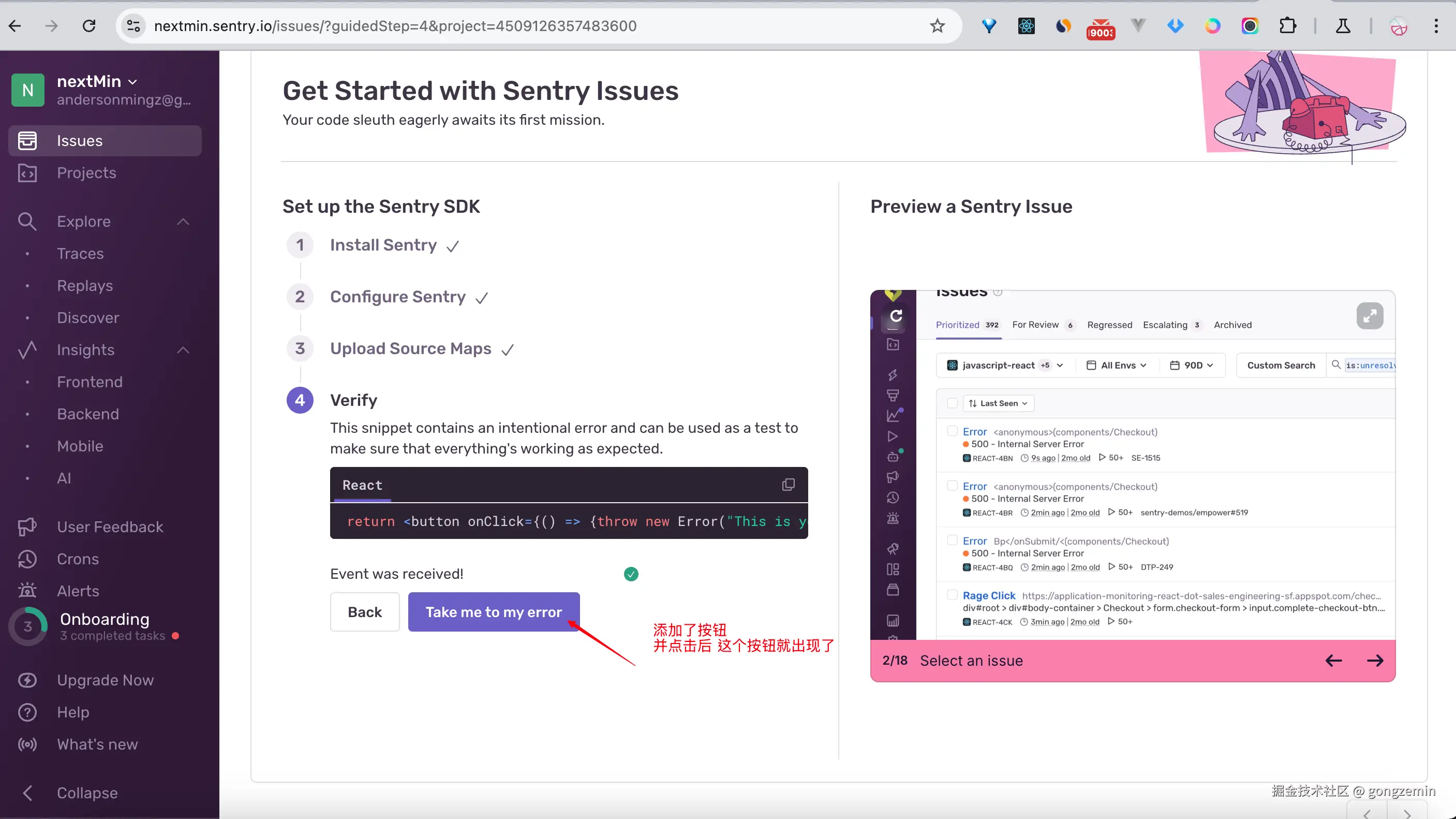

来自未来的一张截图 展示配置只要4步 image.png

安装@sentry/react 执行安装下
pnpm add @sentry/react
接着配置SDK 在main.tsx里配置
import { StrictMode } from 'react'
import { createRoot } from 'react-dom/client'
import App from './App.tsx'
import 'react-day-picker/style.css'
import './index.css'
import * as Sentry from '@sentry/react'

Sentry.init({
  dsn: 'https://9c6eccdb37a5555089711d72aa4556fc@o4507231223939072.ingest.de.sentry.io/4509126357483600',
  integrations: [Sentry.replayIntegration()],
  // Session Replay
  replaysSessionSampleRate: 1, // This sets the sample rate at 10%. You may want to change it to 100% while in development and then sample at a lower rate in production.
  replaysOnErrorSampleRate: 1.0, // If you're not already sampling the entire session, change the sample rate to 100% when sampling sessions where errors occur.
})

createRoot(document.getElementById('root')!).render(
  <StrictMode>
    <App />
  </StrictMode>
)

上传Source Maps

这里可以选择自动还是手动,我用的是vite, 我选择自动,执行下面命令, 就会安装执行引导程序

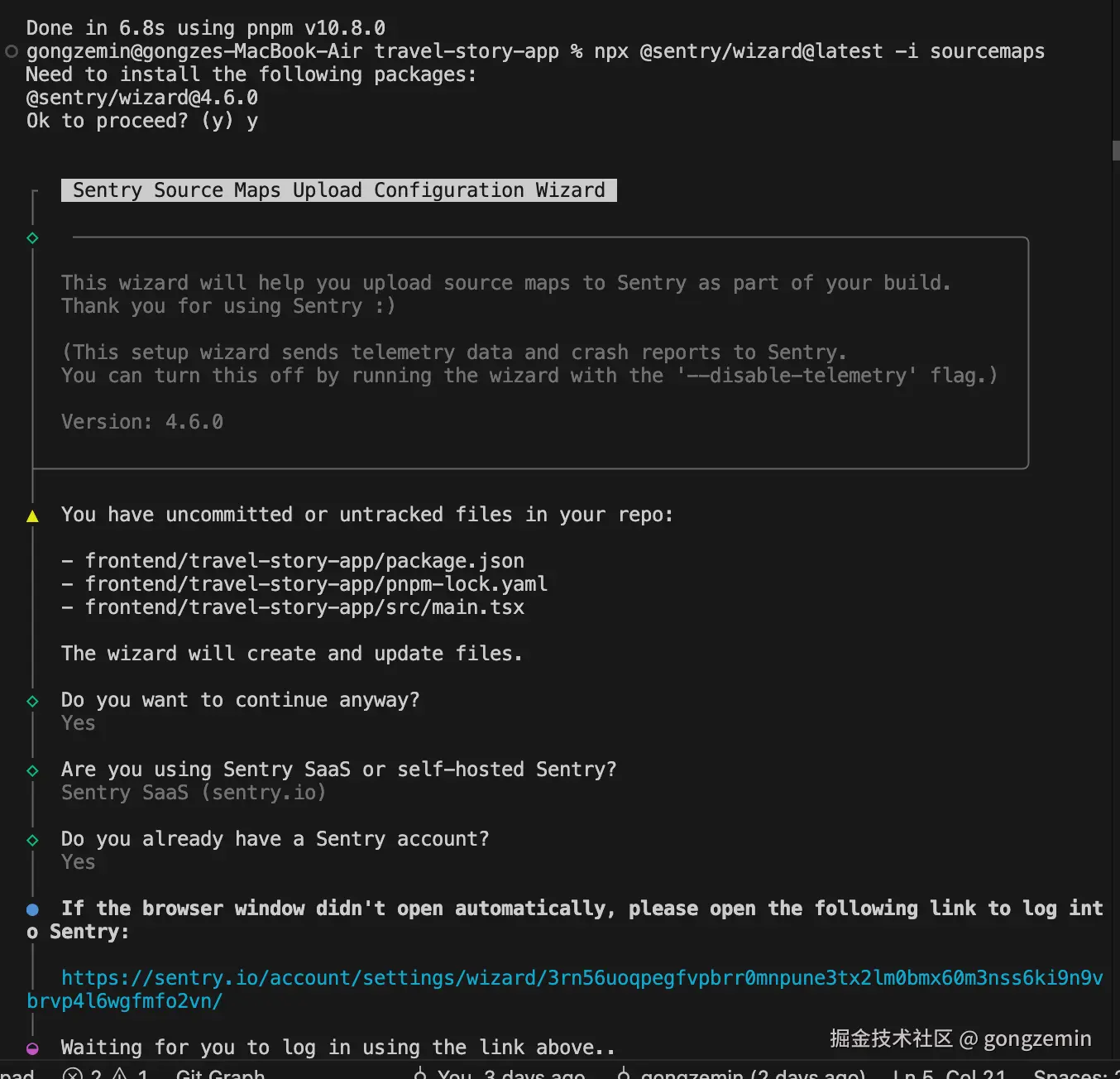

npx @sentry/wizard@latest -i sourcemaps

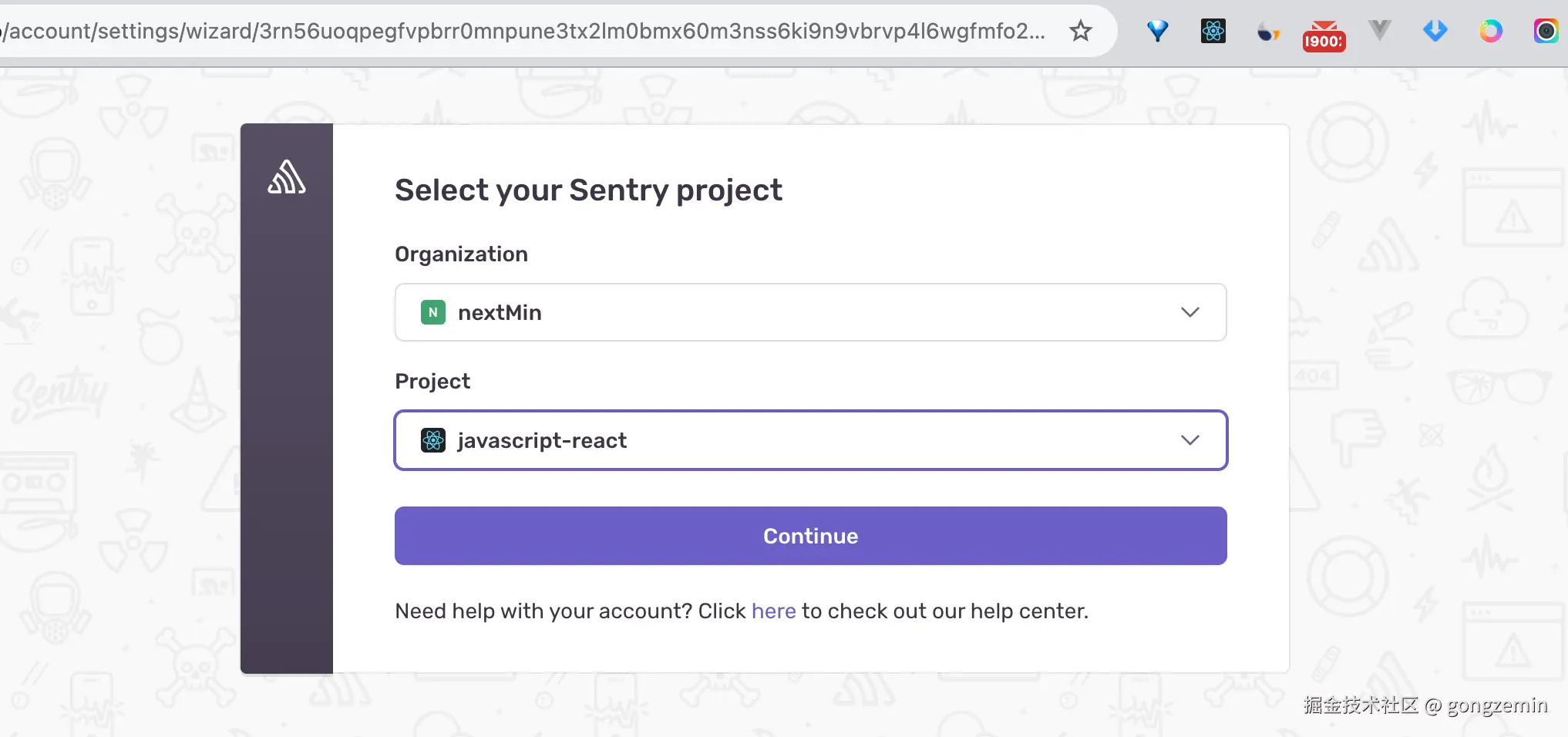

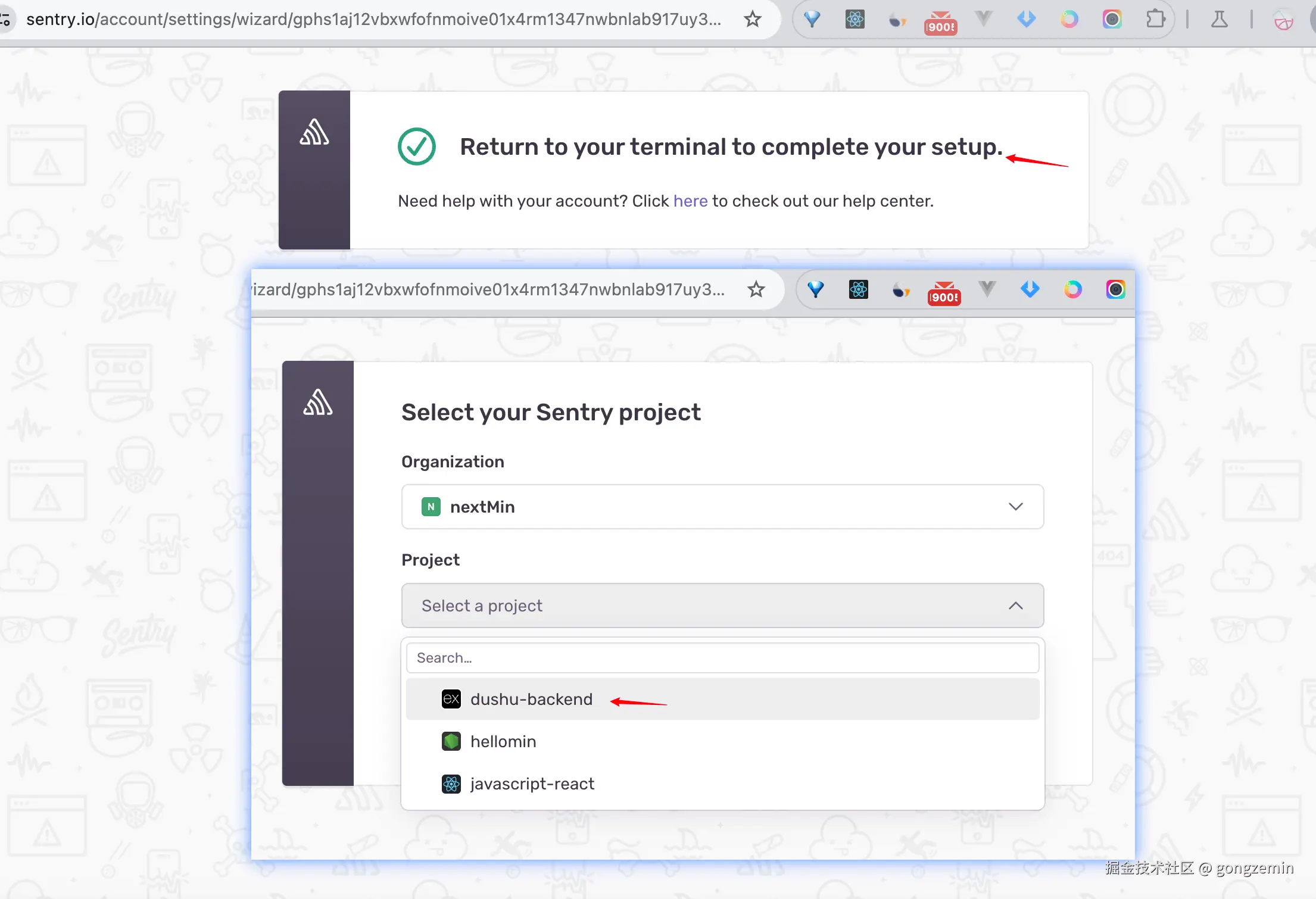

问我用的是自己部署的Sentry还是官方的Sass, 我用的官方免费版,,自动打开sentry网页,因为我已经登录,就让我选择要配置的项目, 这里选择刚才新建的javascript-react项目,选择好了后页面就提示回到控制台,继续执行source-map配置引导程序 image.png

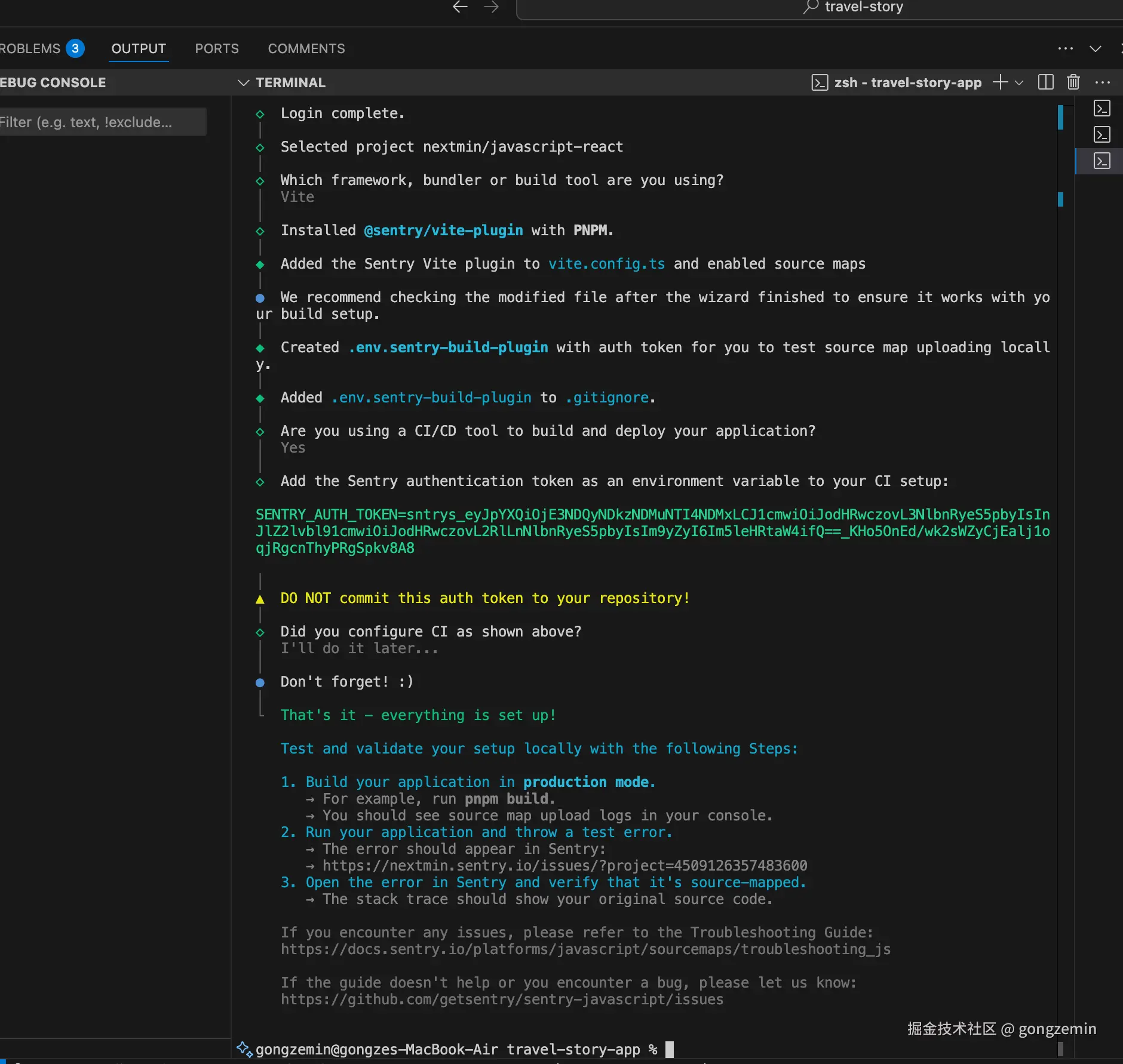

问我选择了什么构建工具,我选了vite, 创建了一个.env.sentry-build-plugin

然后配置CI/CD 我选择的是I will do this later(晚点再配), 因为当时给的是Github actions, jinkins, 没仔细看有没有netlify(前端自动部署用的这个),要自己配下 image.png

并给出了配置的token, 后面用到

SENTRY_AUTH_TOKEN=sntrys_eyJpYXQiOjE3NDQyNDkzNDMuNTI4NDMxLCJ1cmwiOiJodHRwczovL3NlbnRyeS5pbyIsInJlZ2lvbl91xxxxxx

引导程序结束后有测试验证的流程,

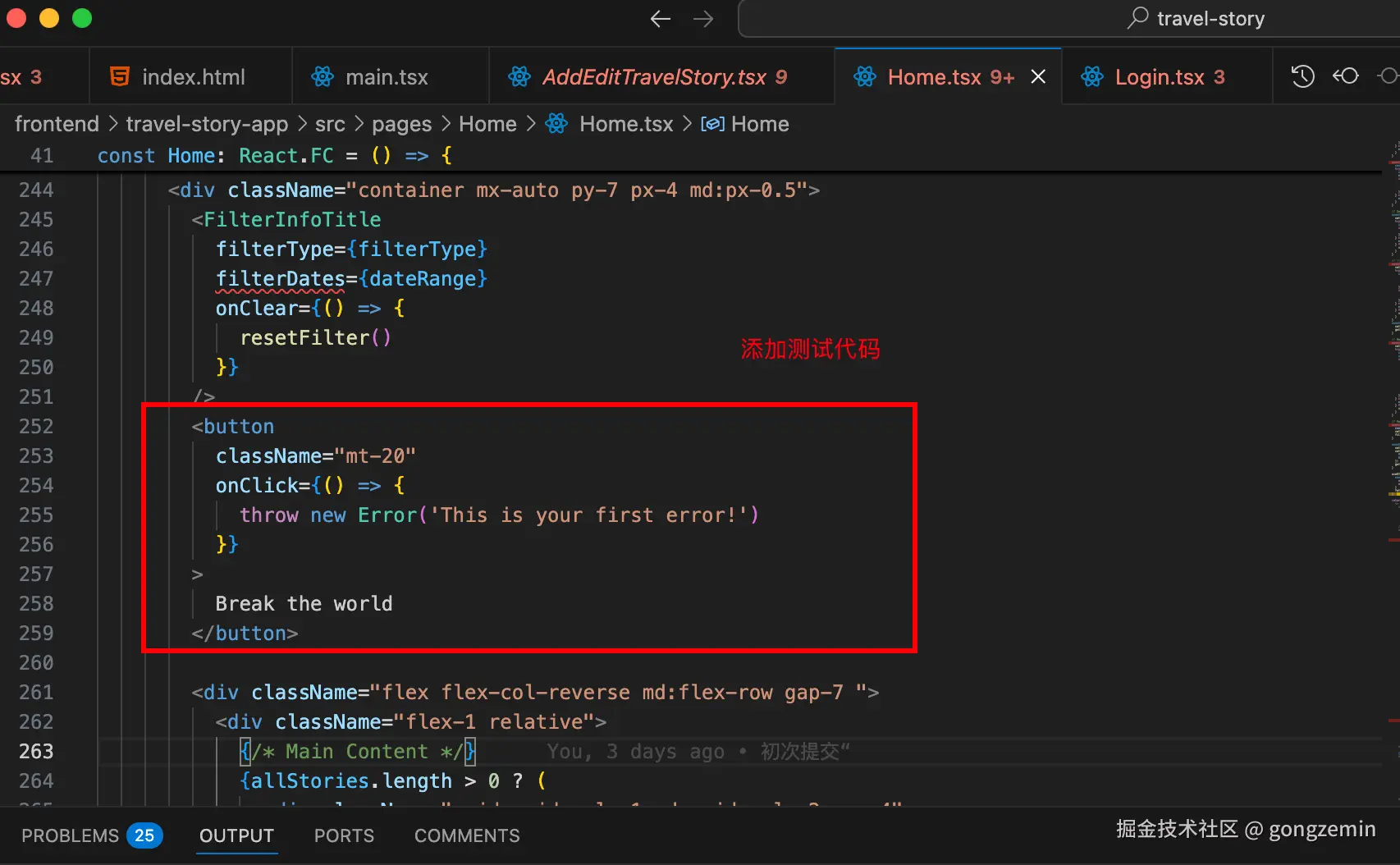

添加测试代码


按照引导程序给出的流程验证,在本地测试和验证

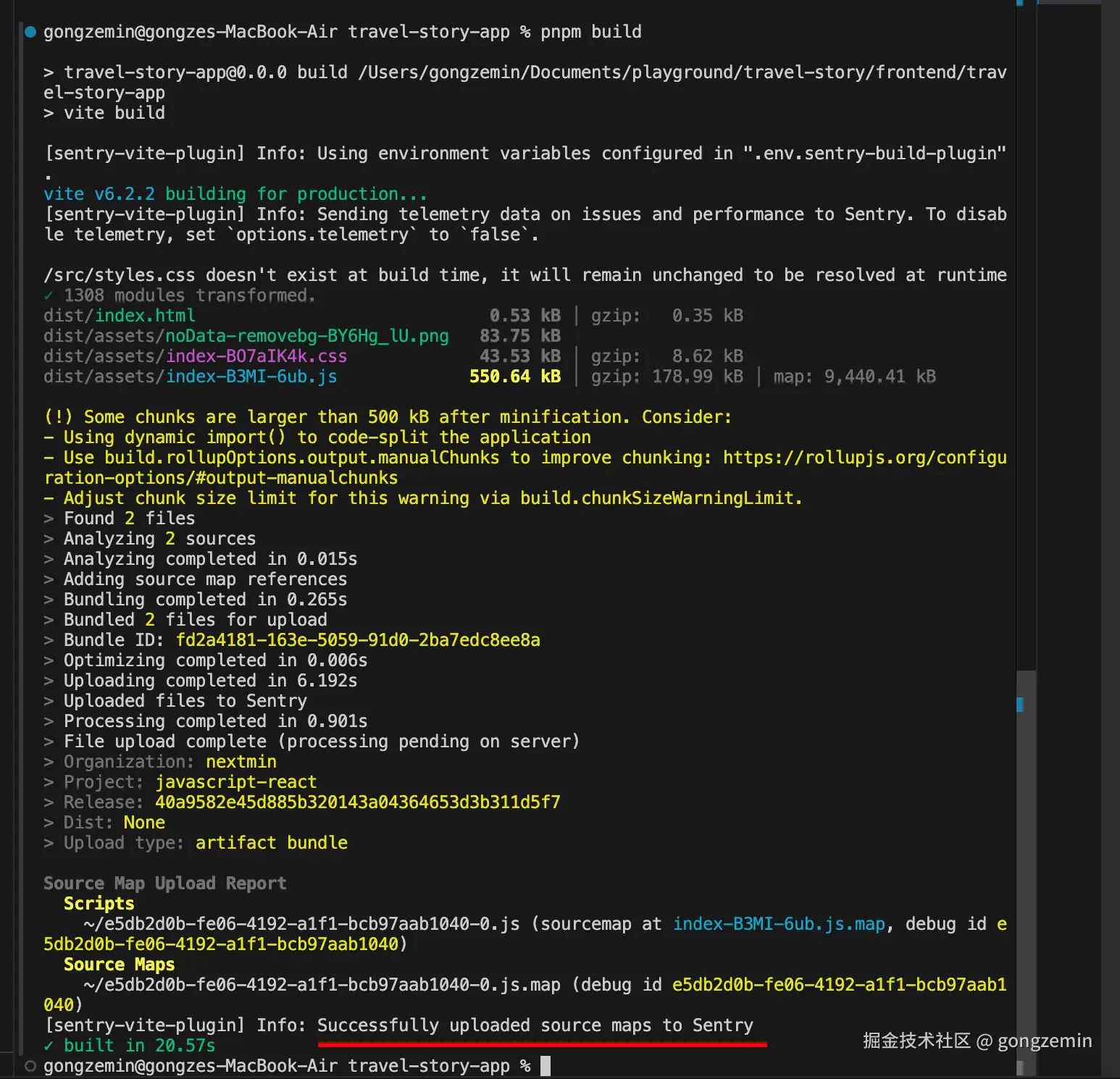

  1. pnpm build 打个包 成功上传source map 到sentry了 image.png

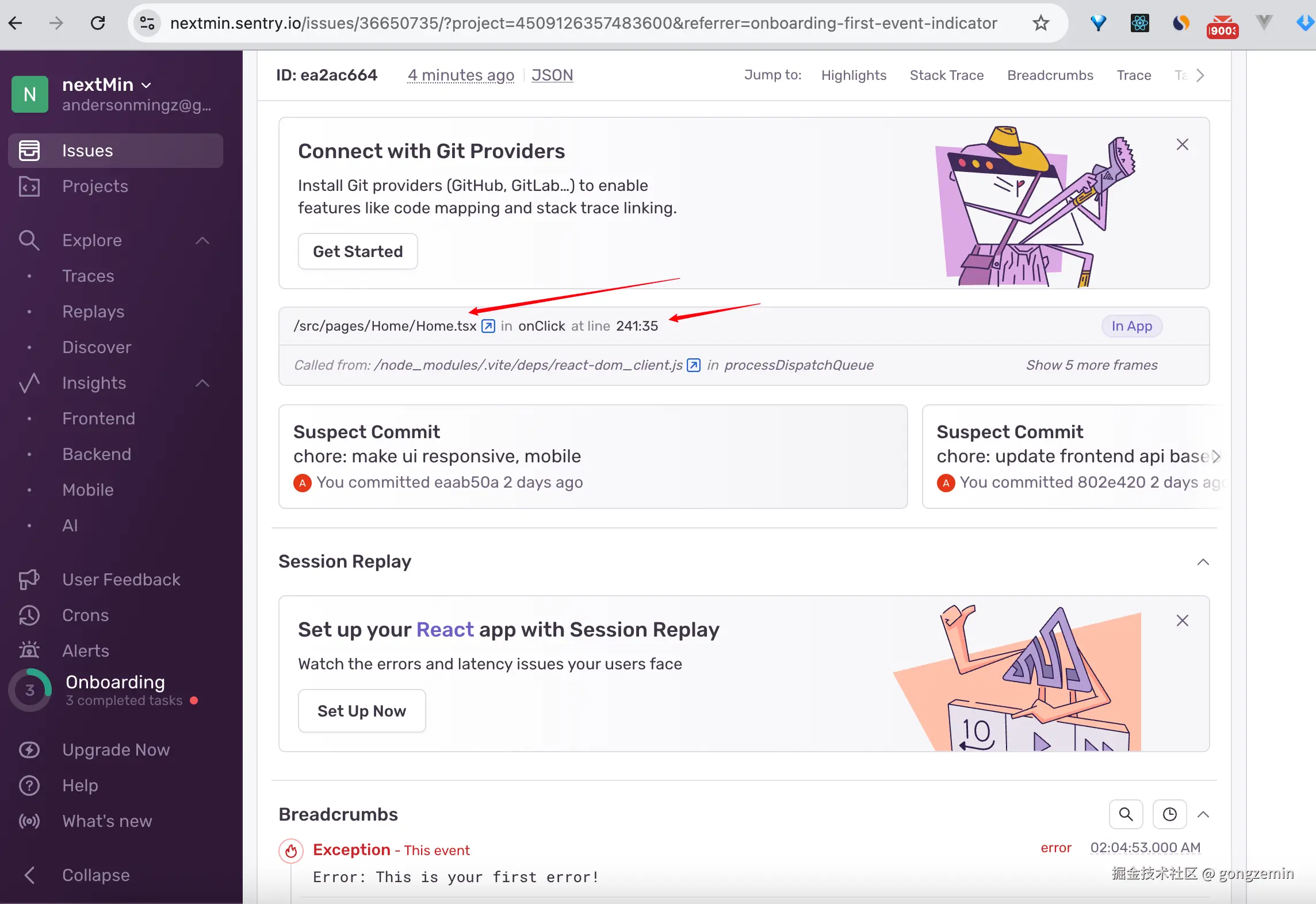

  2. 运行应用 测试错误 打完包之后,我们运行应用,去Sentry控制台,发现有报错 image.png


可以看到代码提示的错误位置


前端项目配置成功🎉🎉

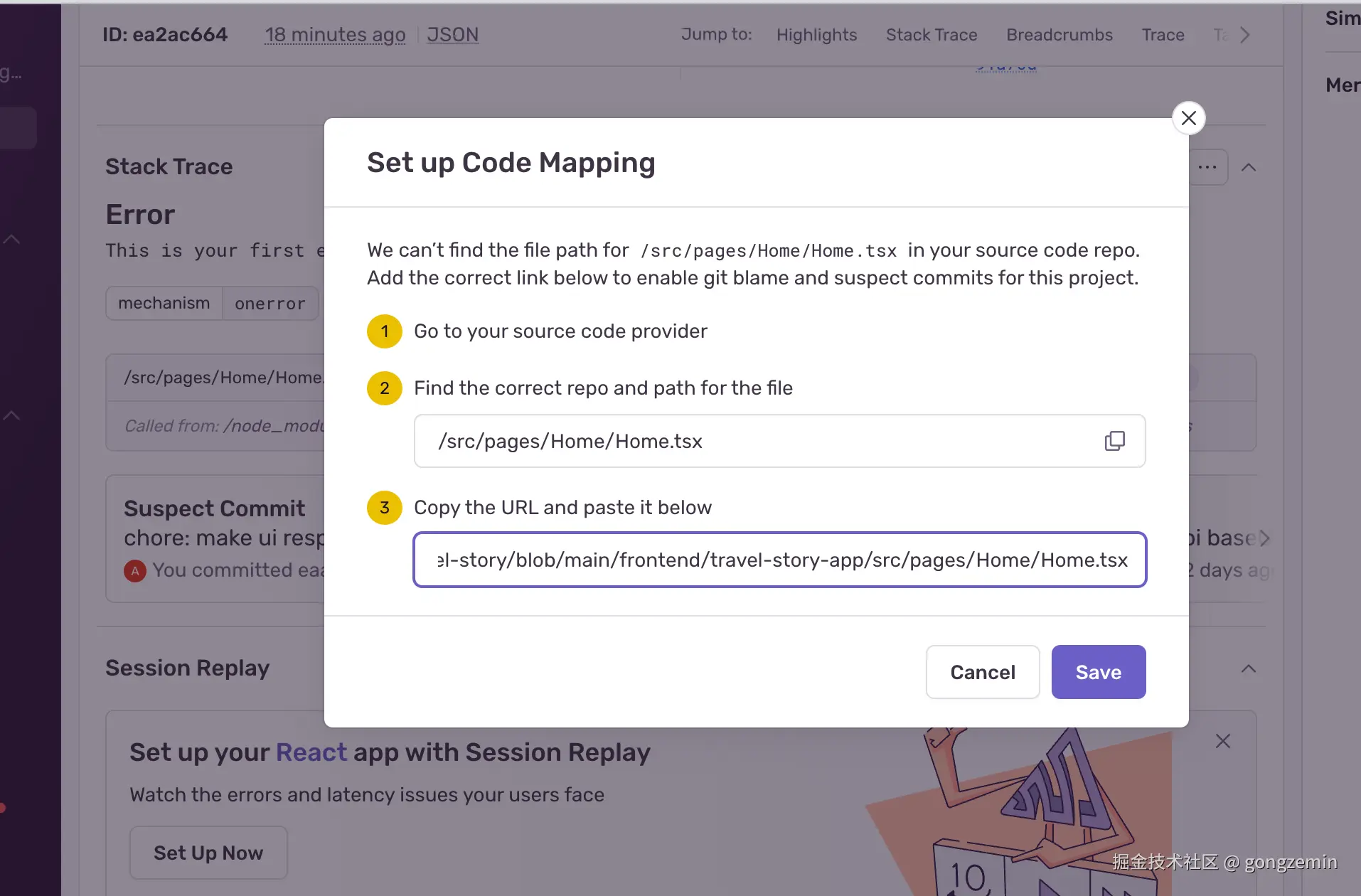

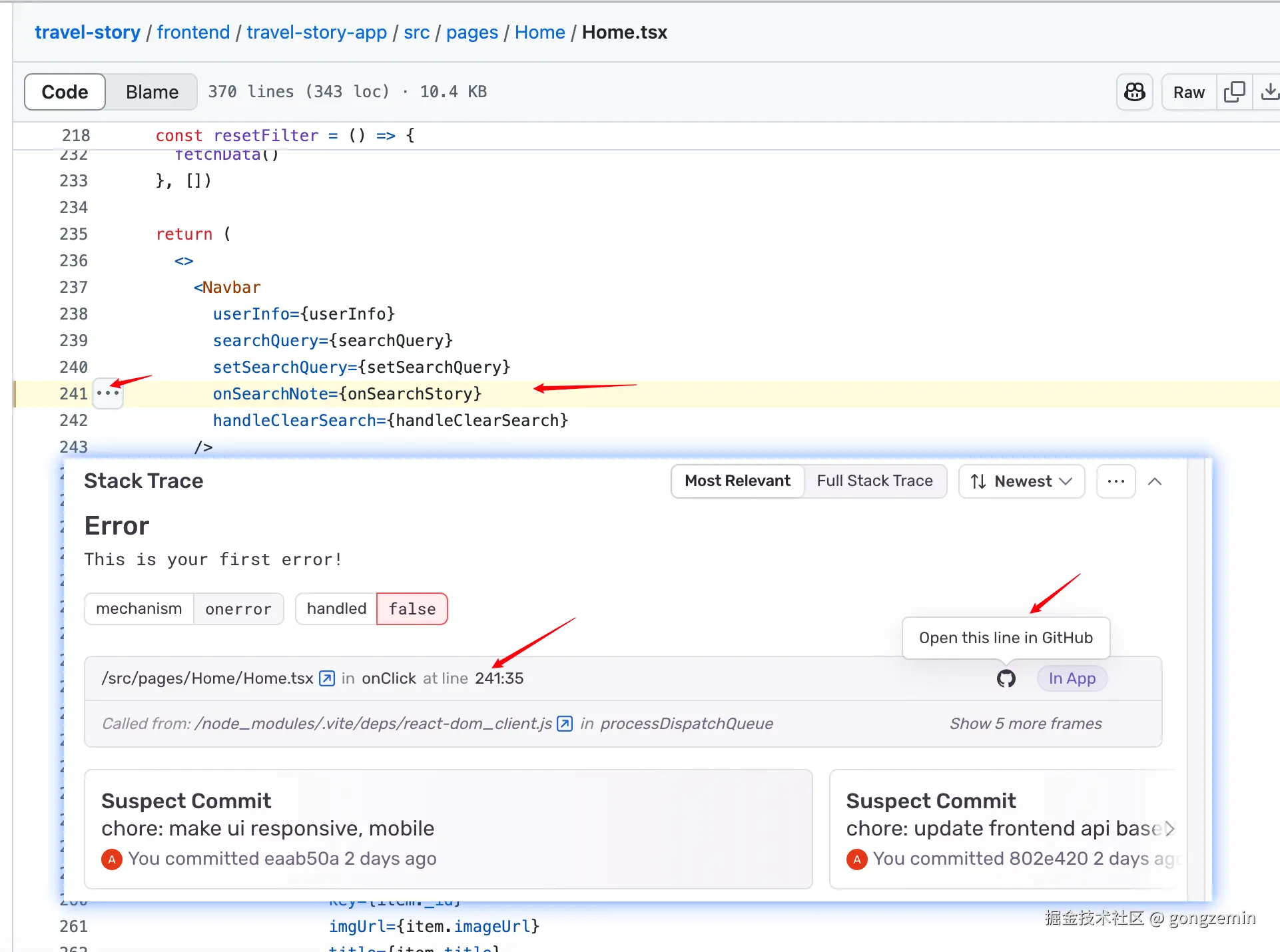

Tip 配置Github 这样可以在Github看到代码报错位置

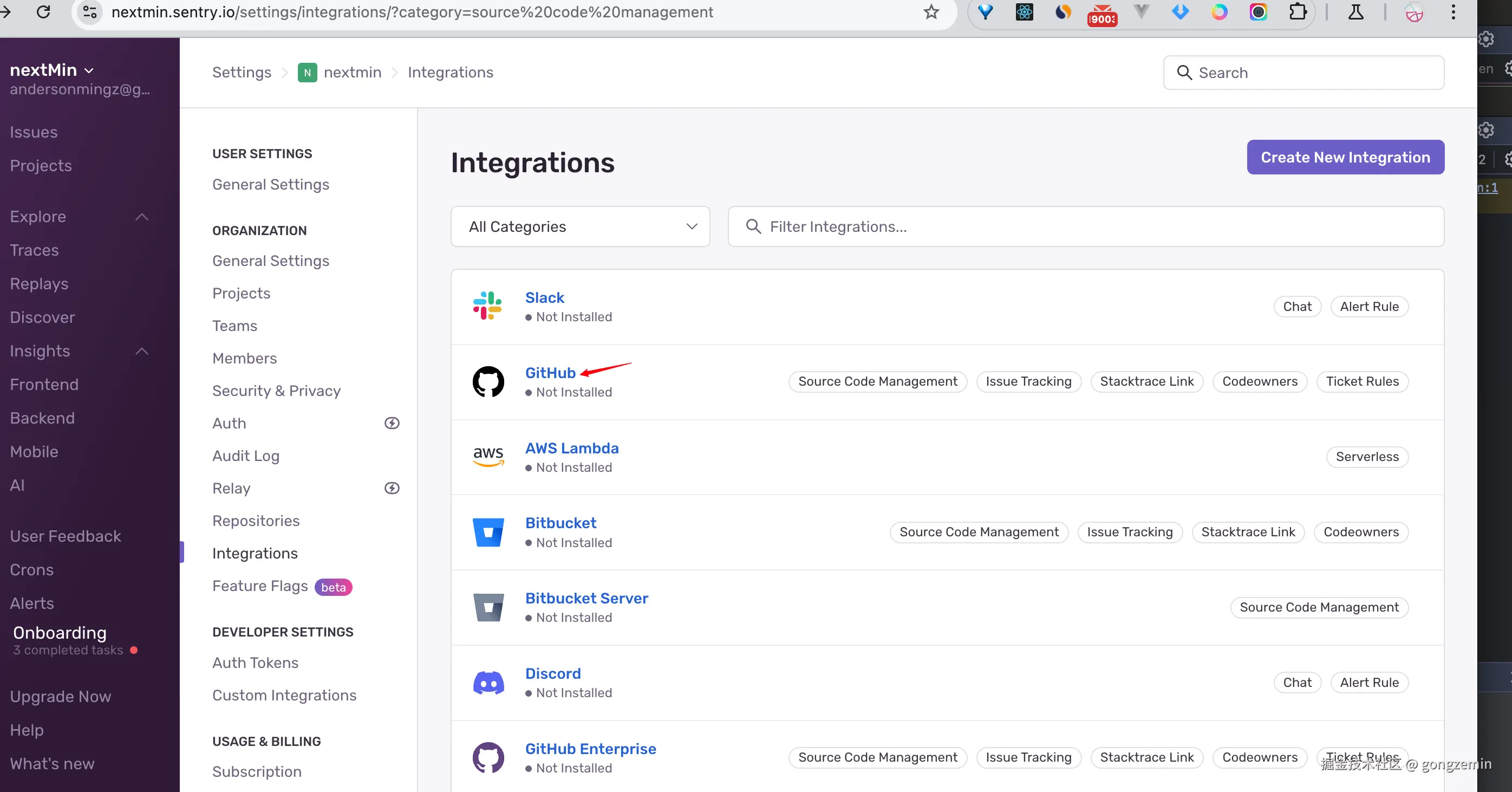

上面截图有让我们连接Git Providers, 这样就可以code mapping, 点击Get Started




但是这个测试代码我还没有提交,所以打开的时候 虽然是提示的这个代码位置,但是并没有错误代码

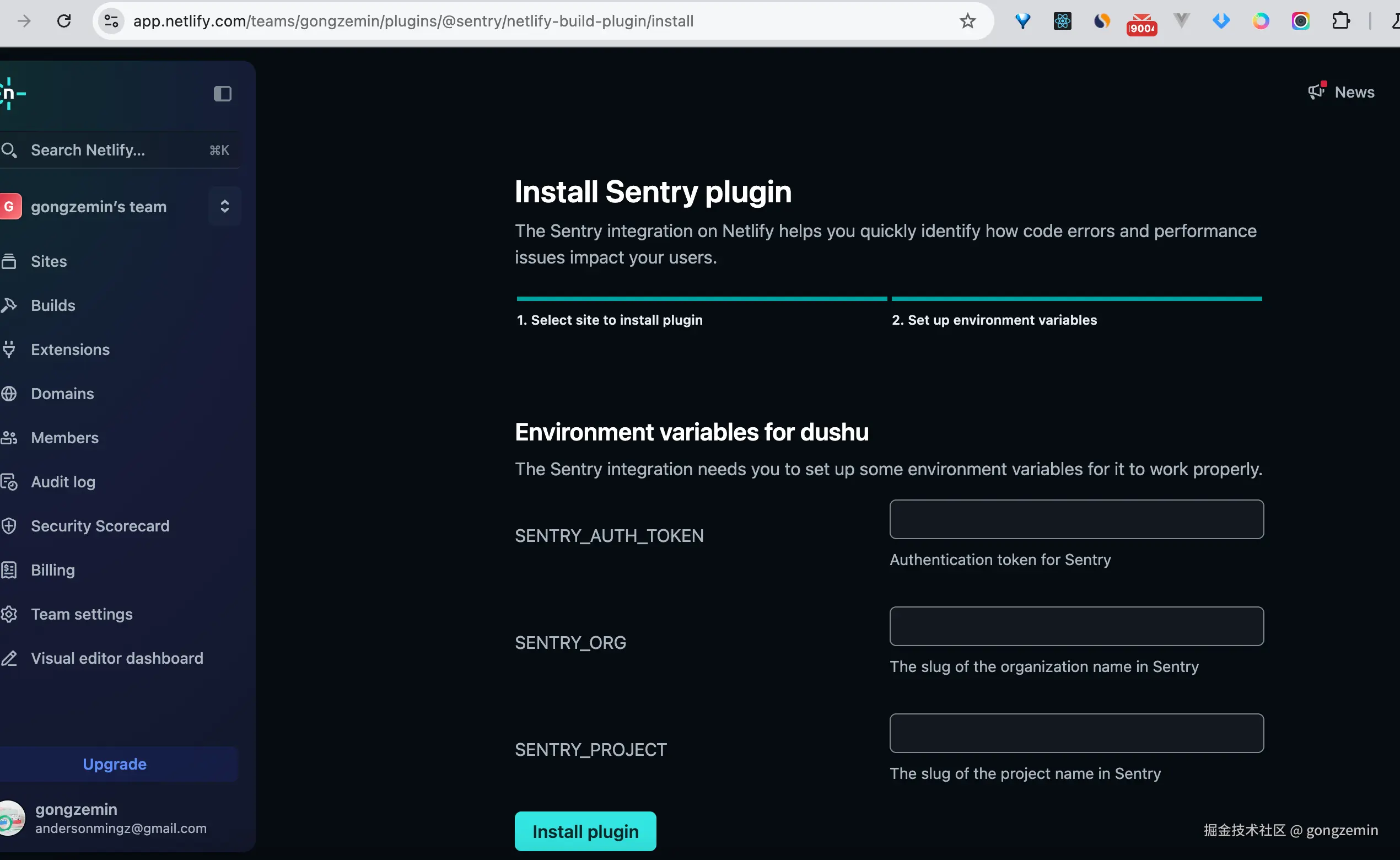

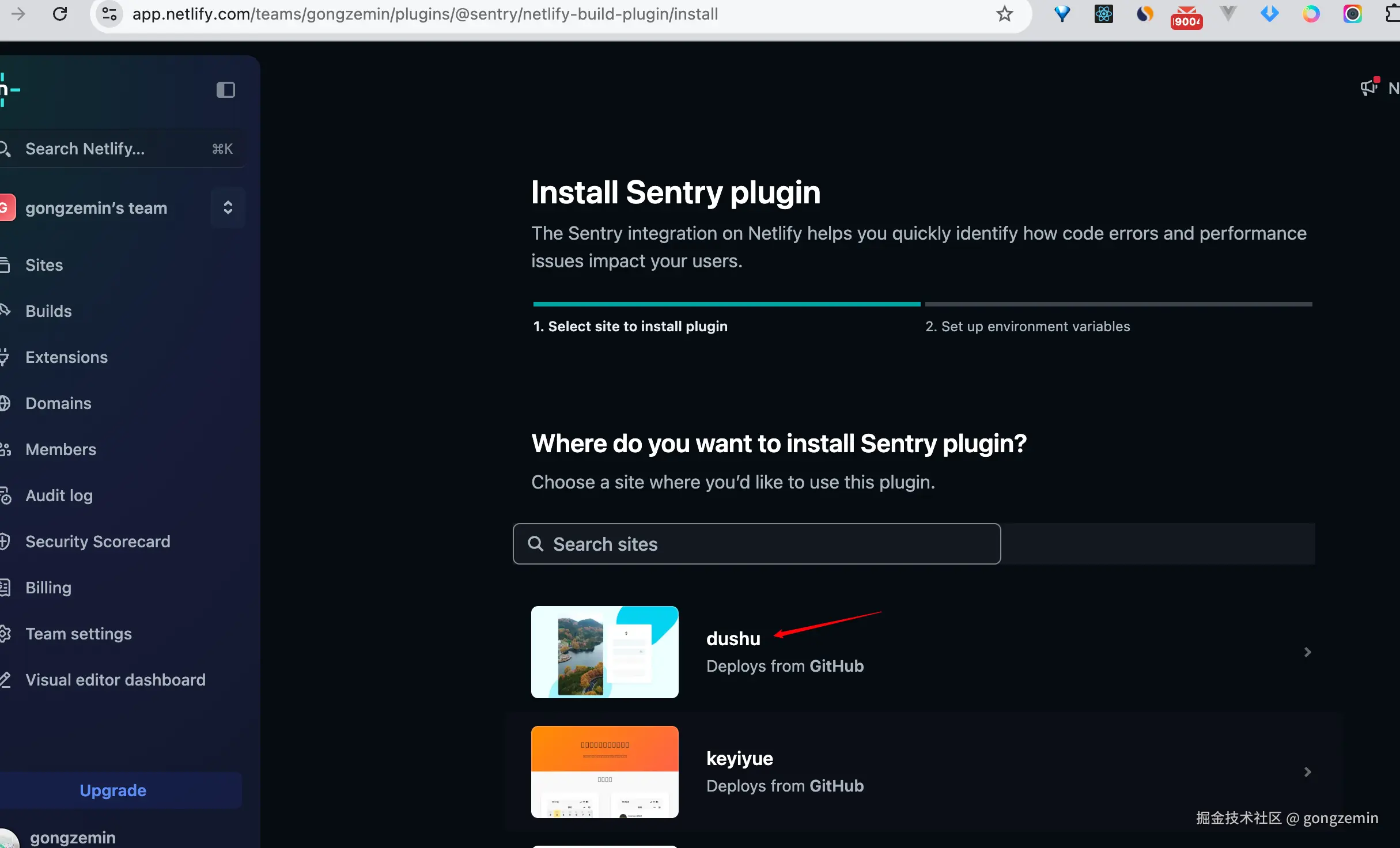

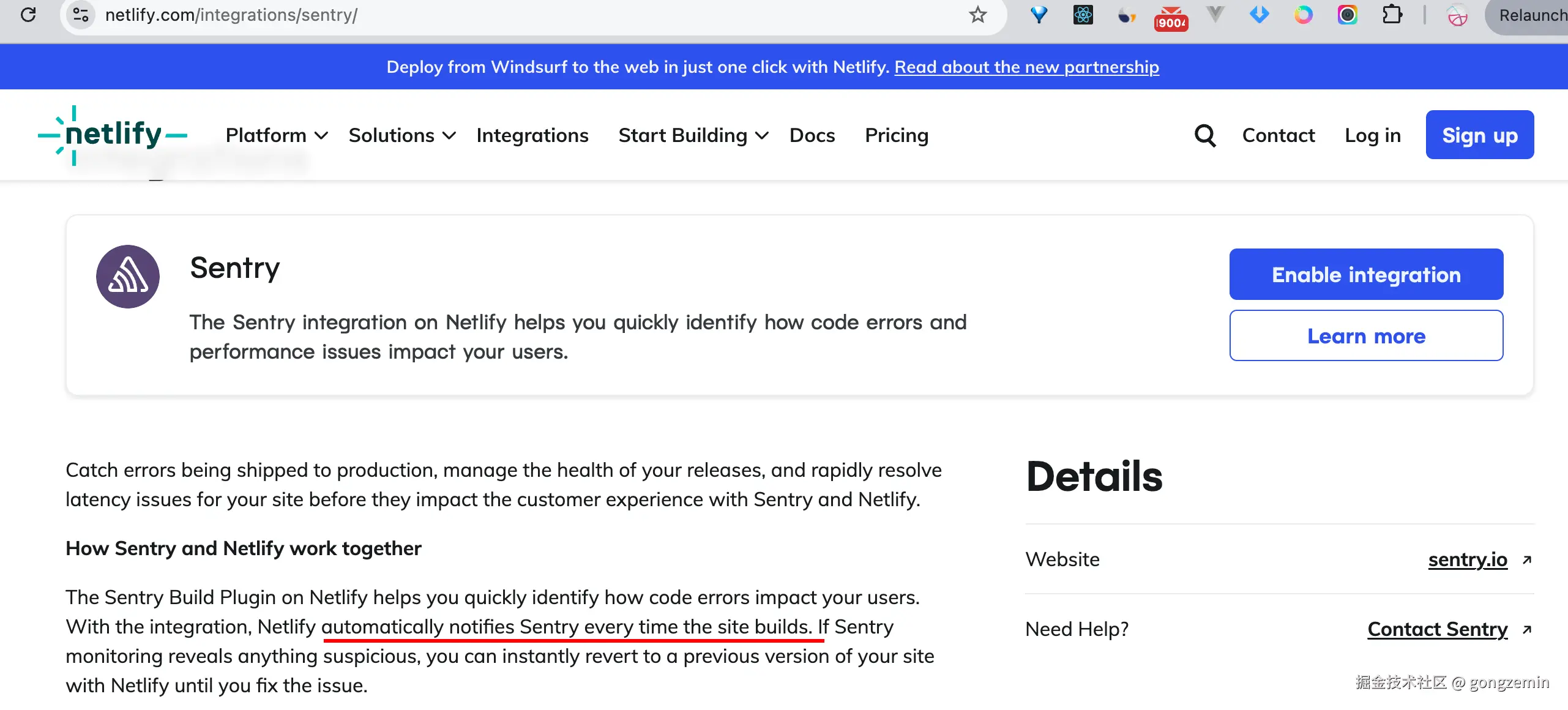

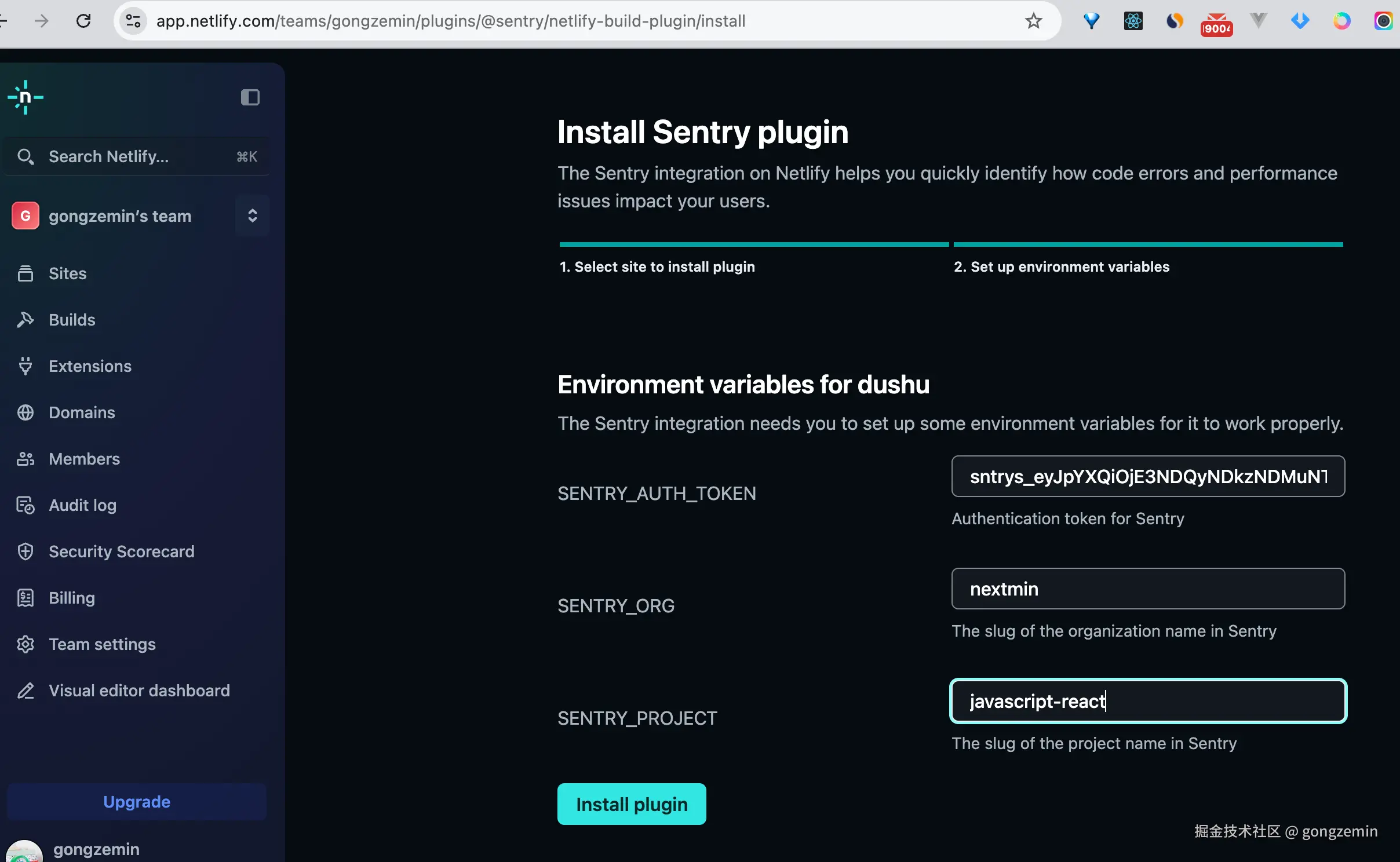

netlify 集成sentry

在这个页面,



image.png image.png

给应用里的后端部分配置Sentry

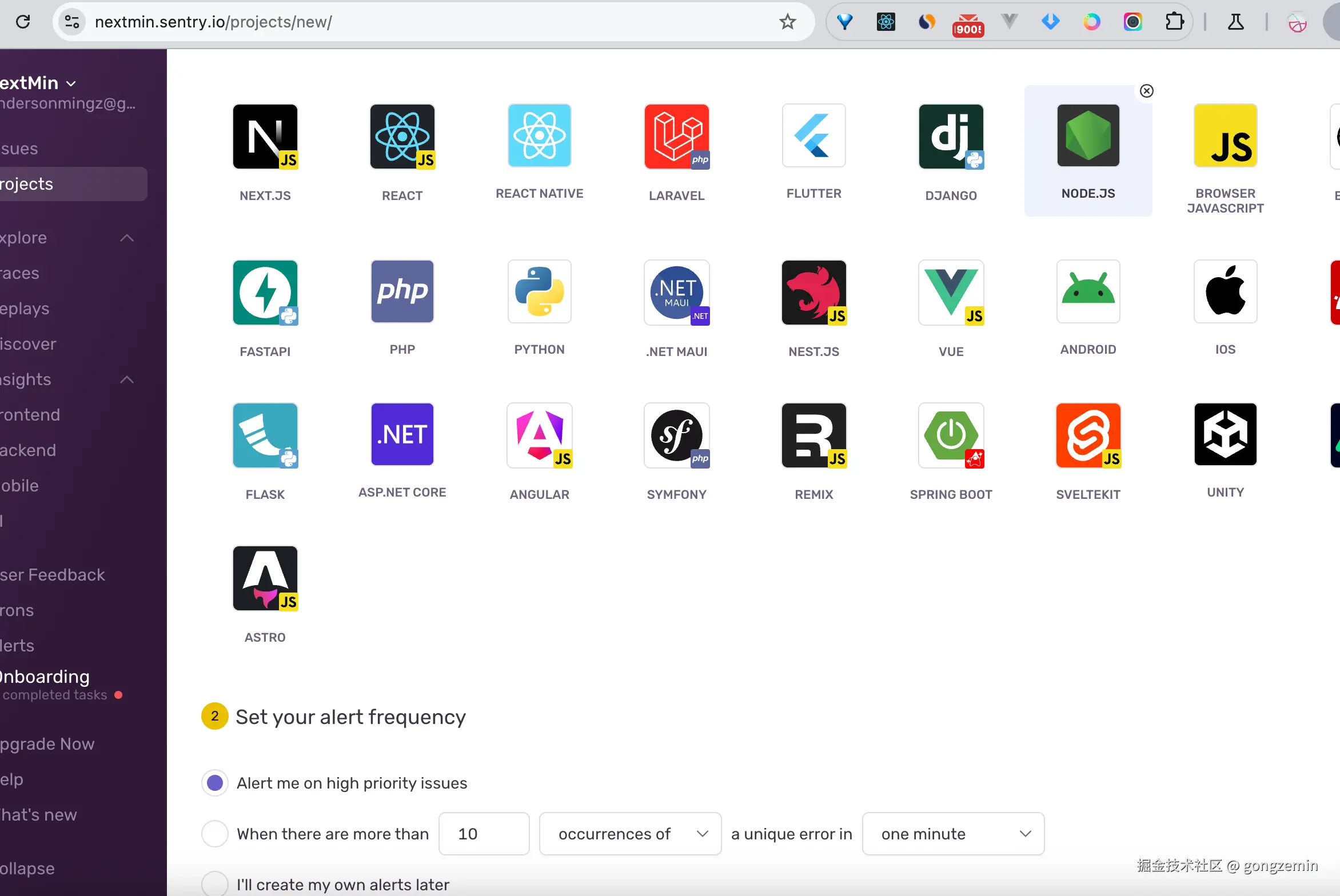

和前端一样的流程,选择NODE.JS, 现在有了经验,大胆点给项目取名叫做dushu-backend

新建项目

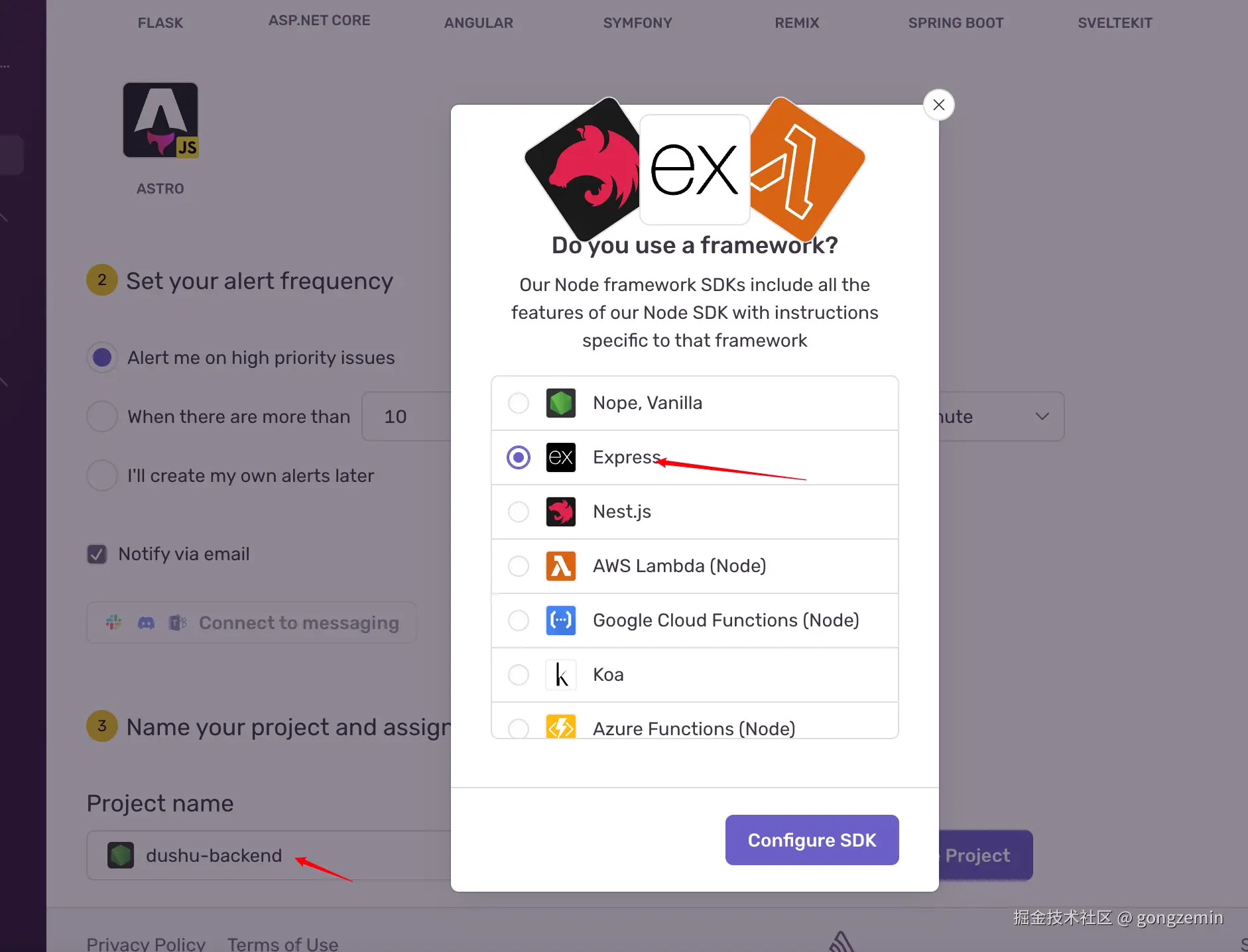

选择我用的框架Express image.png

安装@sentry/node

然后来到了下面的界面

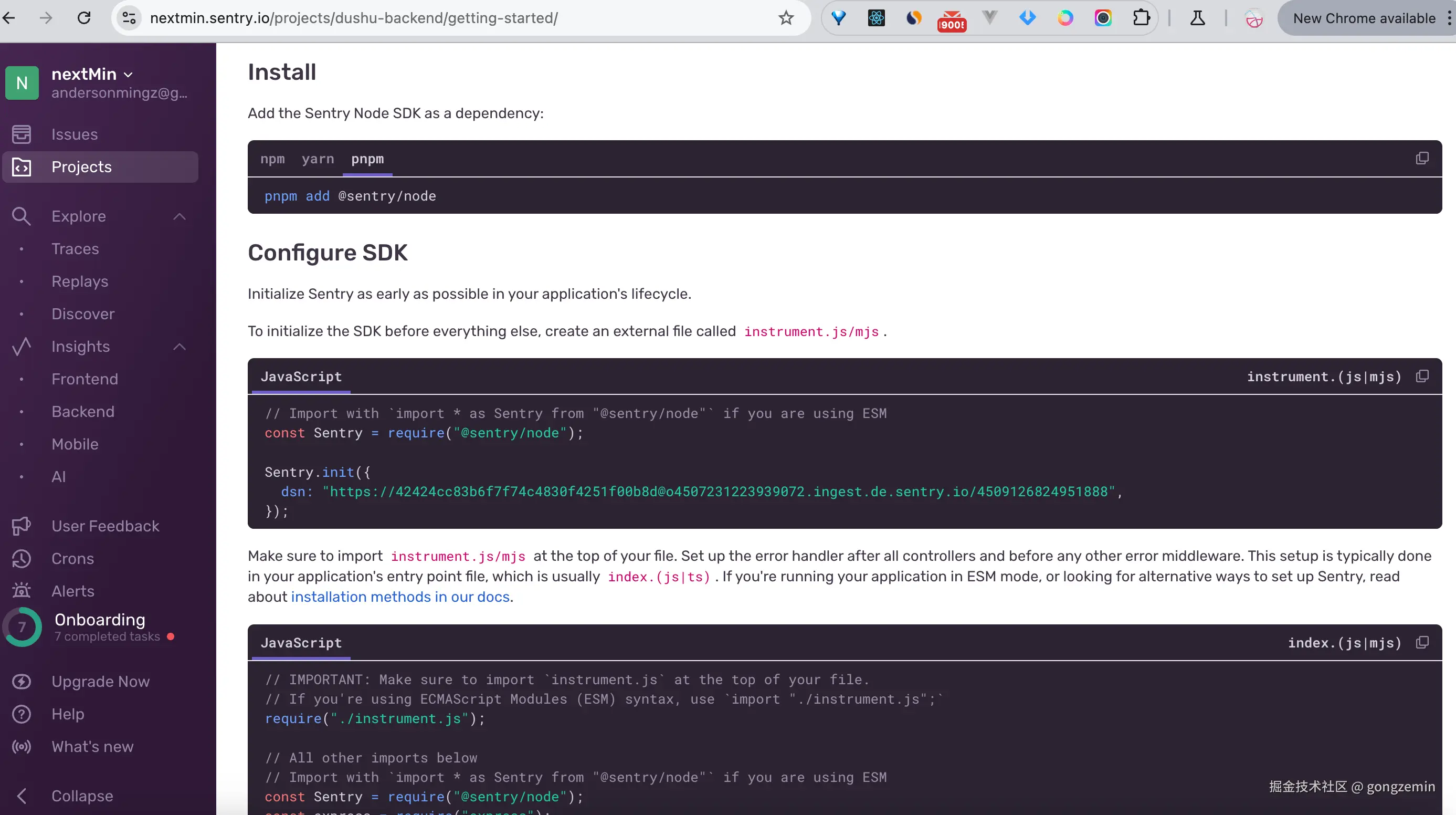

配置SDK

安装了后@sentry/node后,配置SDK,在项目根目录新增一个instrument.js

// Import with `import * as Sentry from "@sentry/node"` if you are using ESM
const Sentry = require("@sentry/node");

Sentry.init({
  dsn: "https://42424cc83b6f7f74c4830f4251f00b8d@o4507231223939072.ingest.de.sentry.io/4509126824951888",
});

在index.js首页引入配置 刚才新建的这个instrument.js 引入要放在最前面

// IMPORTANT: Make sure to import `instrument.js` at the top of your file.
// If you're using ECMAScript Modules (ESM) syntax, use `import "./instrument.js";`
require("./instrument.js");

// All other imports below
// Import with `import * as Sentry from "@sentry/node"` if you are using ESM
const Sentry = require("@sentry/node");
const express = require("express");

const app = express();

// All your controllers should live here

app.get("/", function rootHandler(req, res) {
  res.end("Hello world!");
});

// The error handler must be registered before any other error middleware and after all controllers
Sentry.setupExpressErrorHandler(app);

// Optional fallthrough error handler
app.use(function onError(err, req, res, next) {
  // The error id is attached to `res.sentry` to be returned
  // and optionally displayed to the user for support.
  res.statusCode = 500;
  res.end(res.sentry + "\n");
});

app.listen(3000);

注意这里,Sentry.setupExpressErrorHandler(app);这句要放在app.post, app.get, app.put...这些控制器后面,错误中间件前面

source-map 配置

同样我们用自动配置

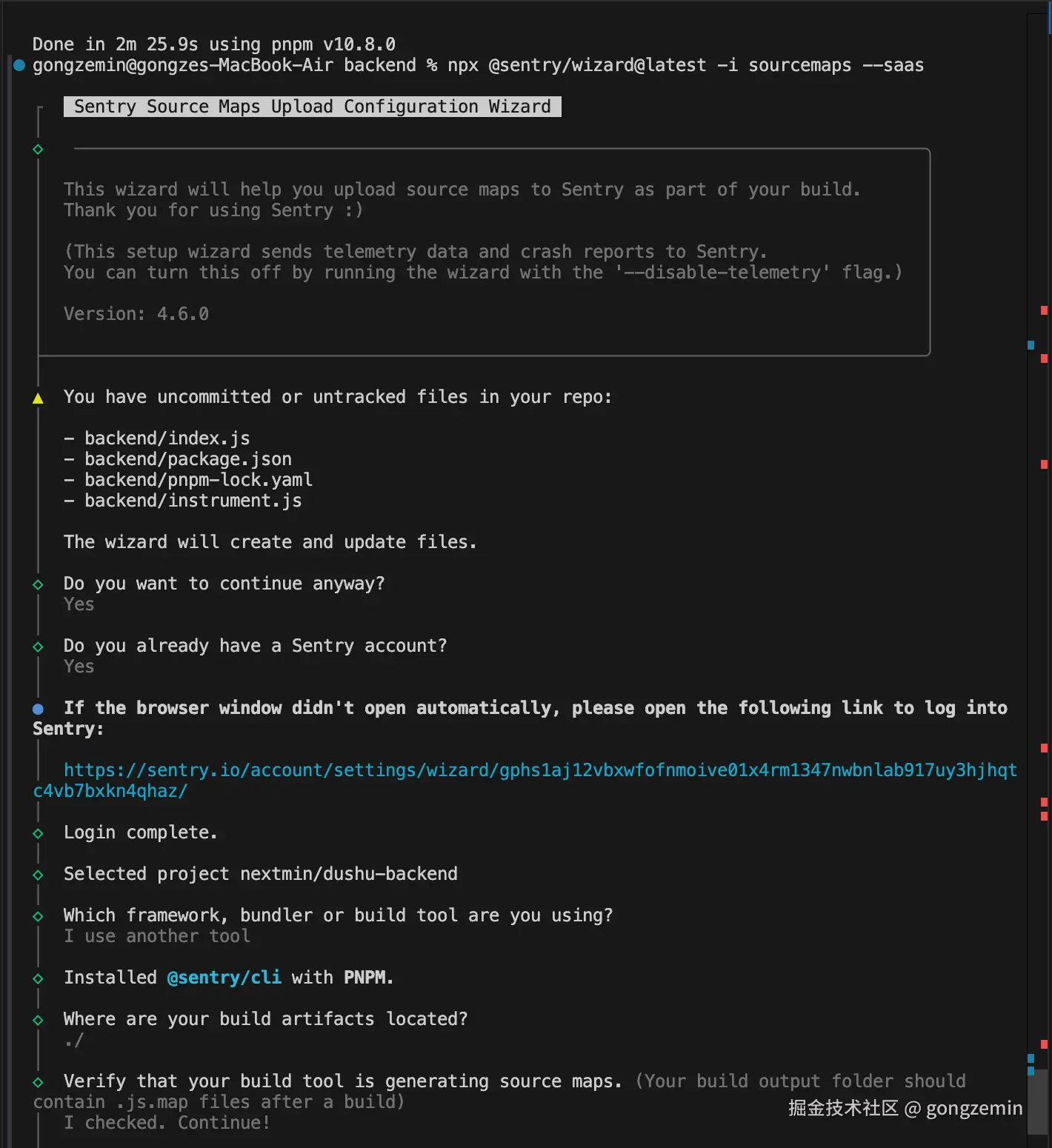

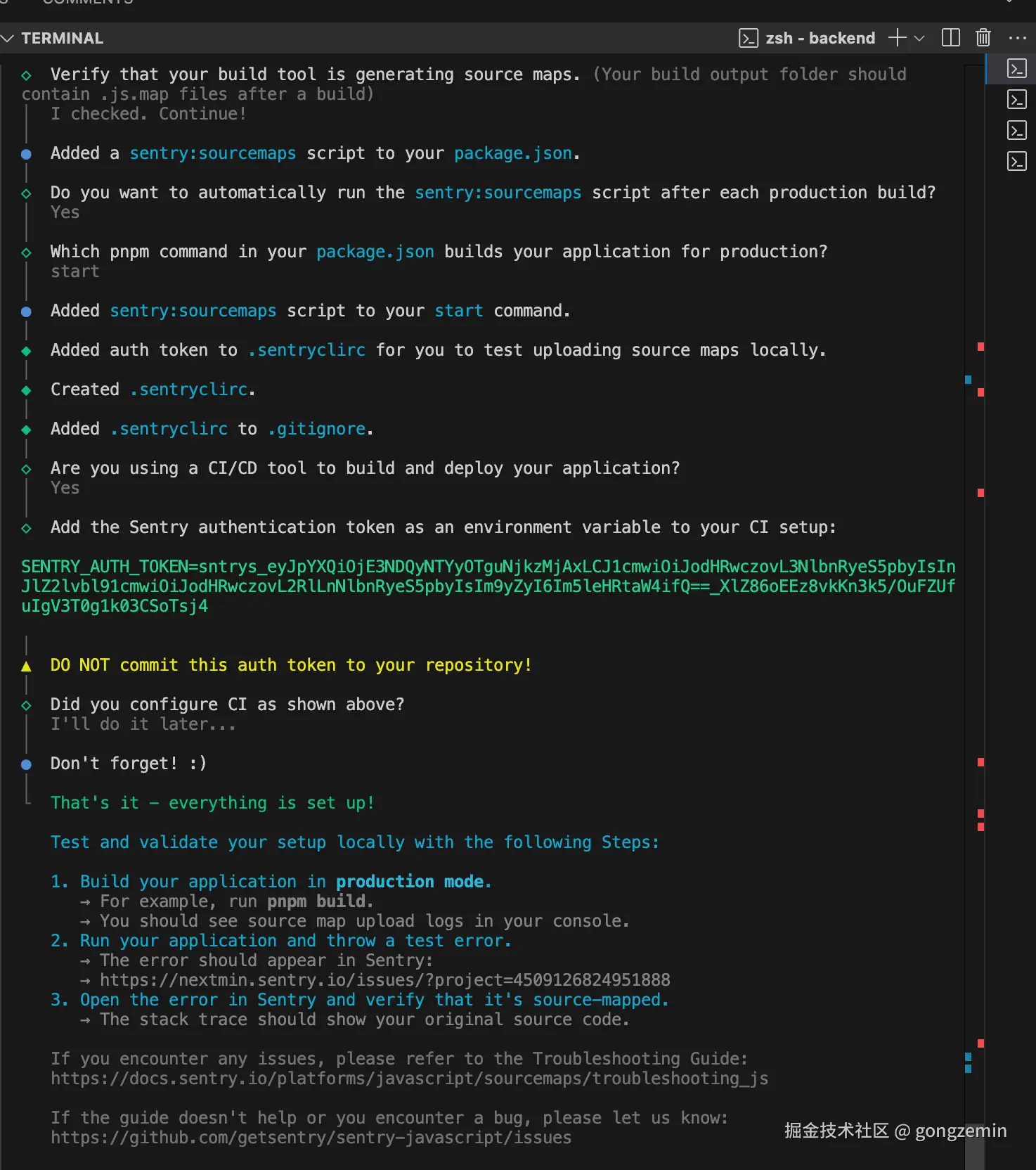

npx @sentry/wizard@latest -i sourcemaps -sass



SENTRY_AUTH_TOKEN=sntrys_eyJpYXQiOjE3NDQyNTYyOTguNjkzMjAxLCJ1cmwiOiJodHRwczovL3NlbnRyeS5pbyIsInJlZ2lvbl91xxx

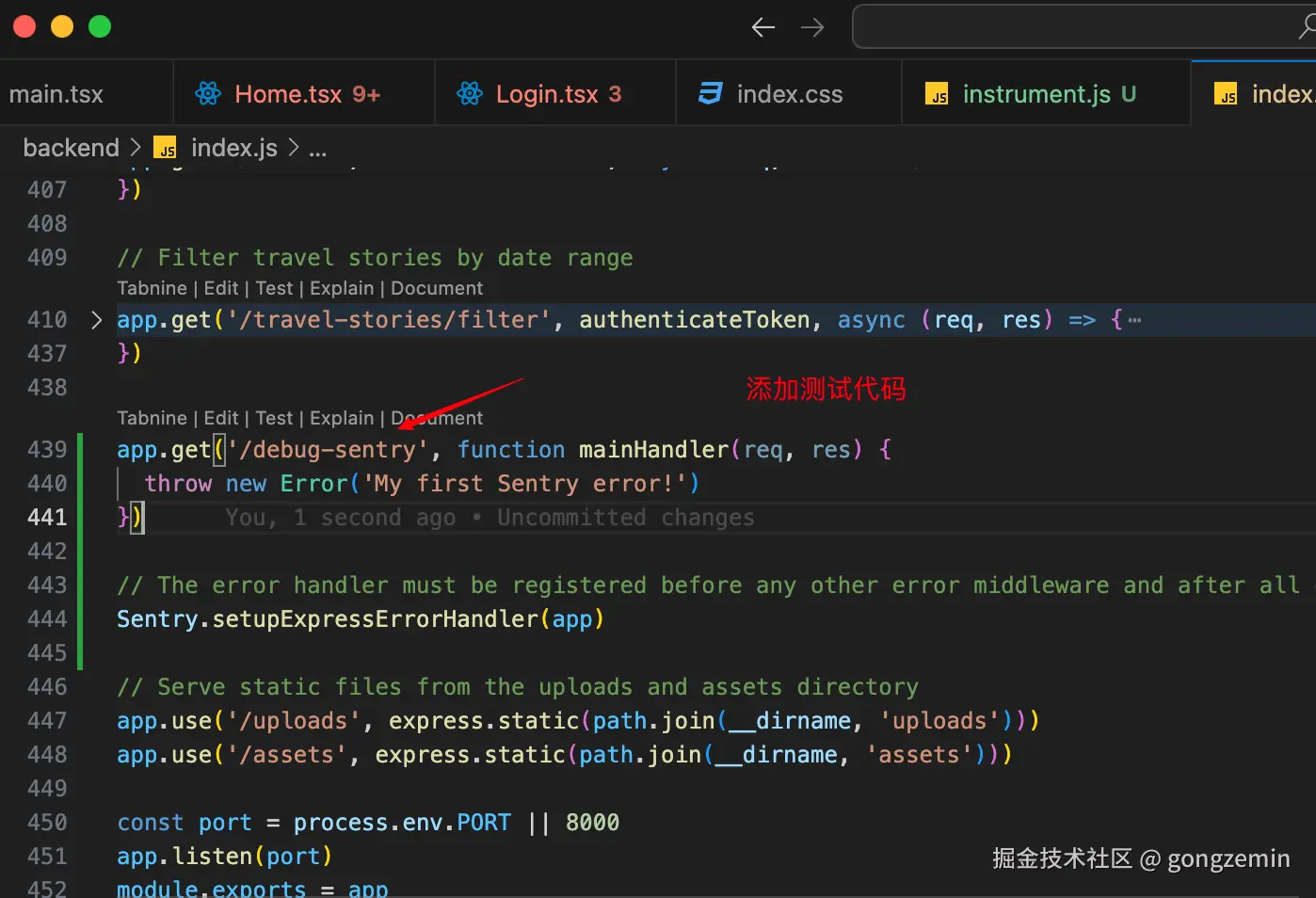

添加测试代码

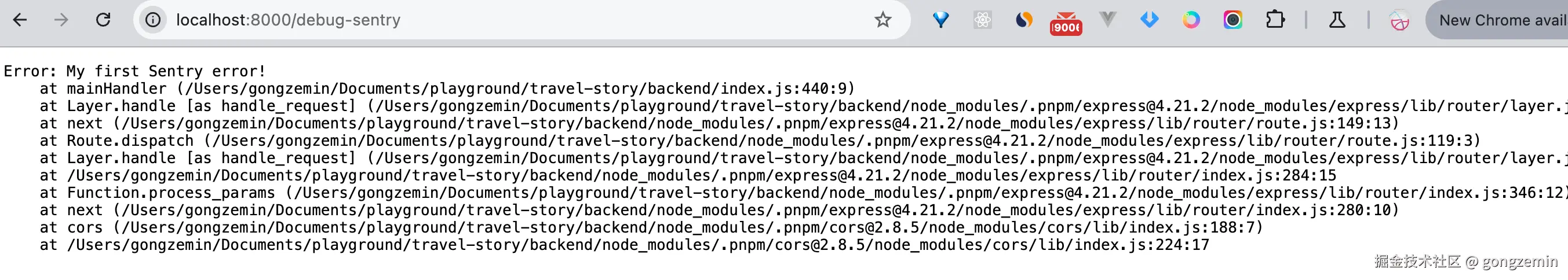

构建项目 后端我们就重新运行下项目 测试代码生效

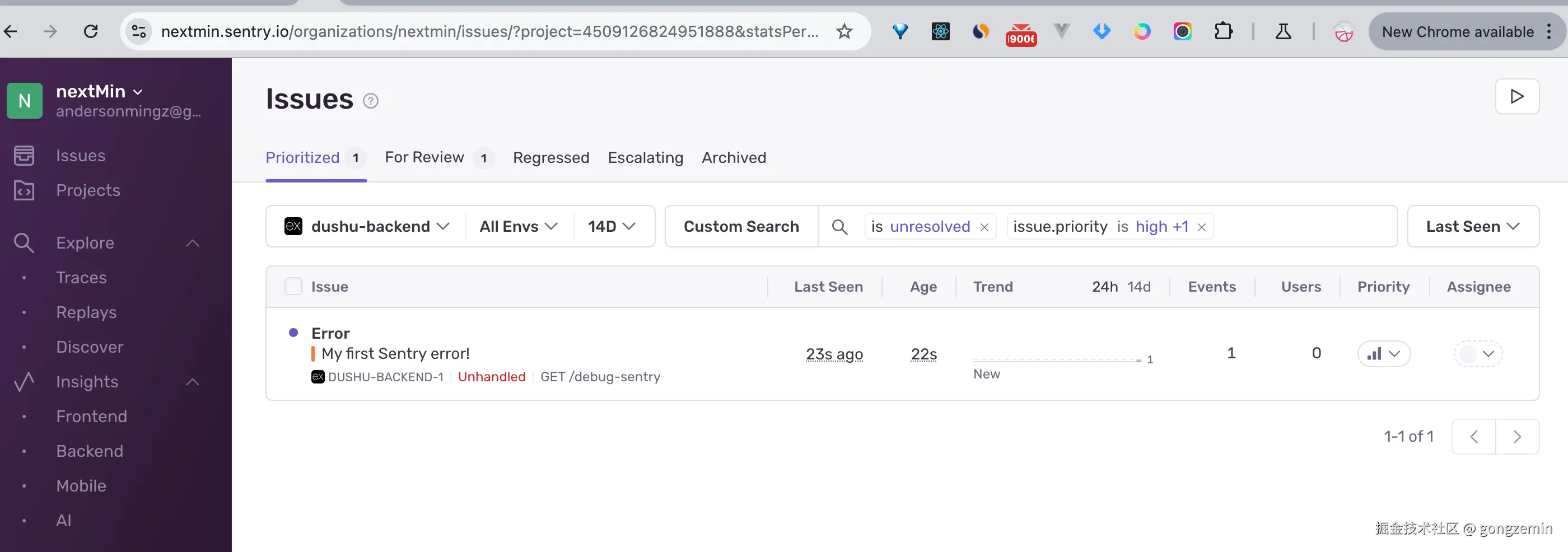

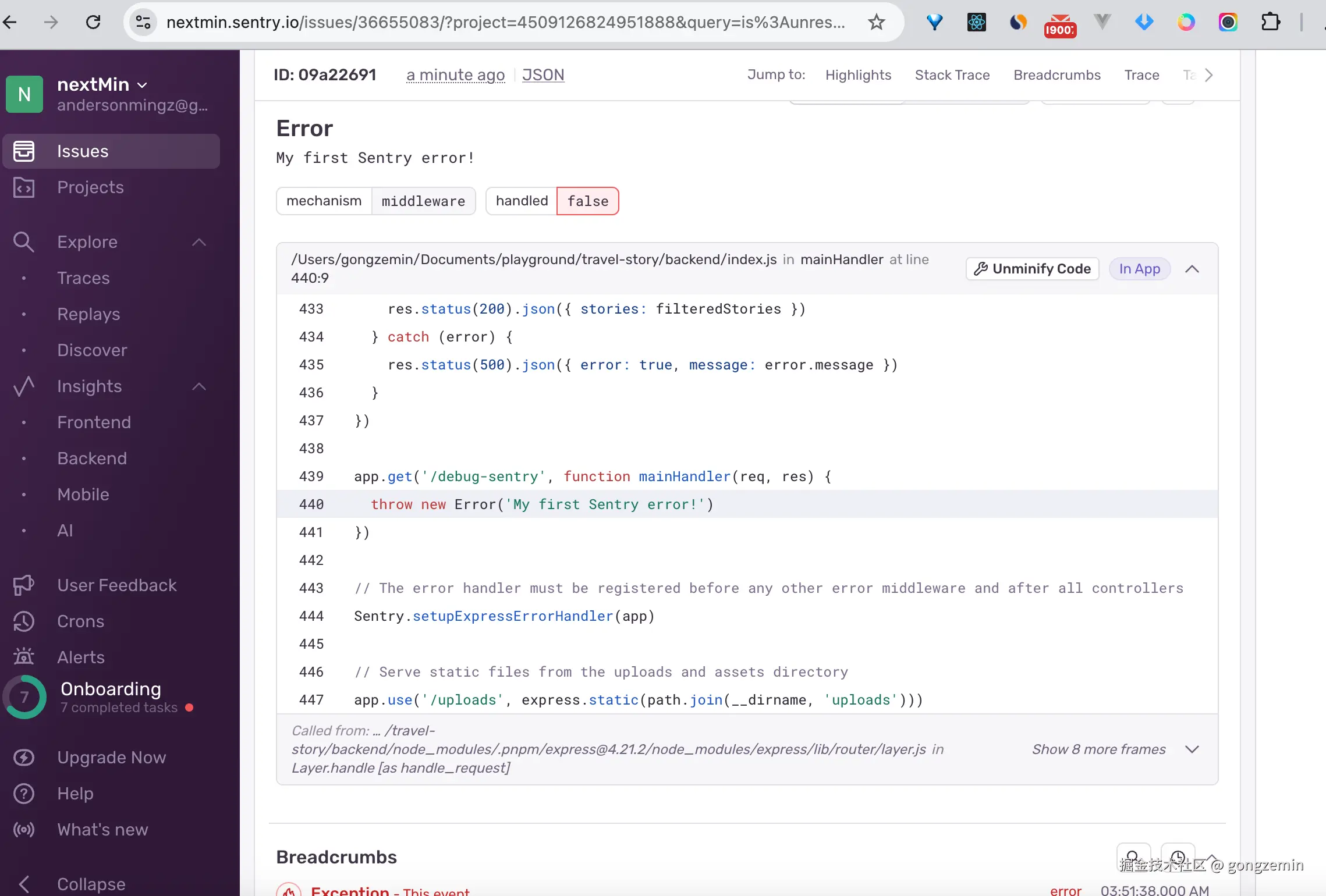

sentry 后台也有报错信息

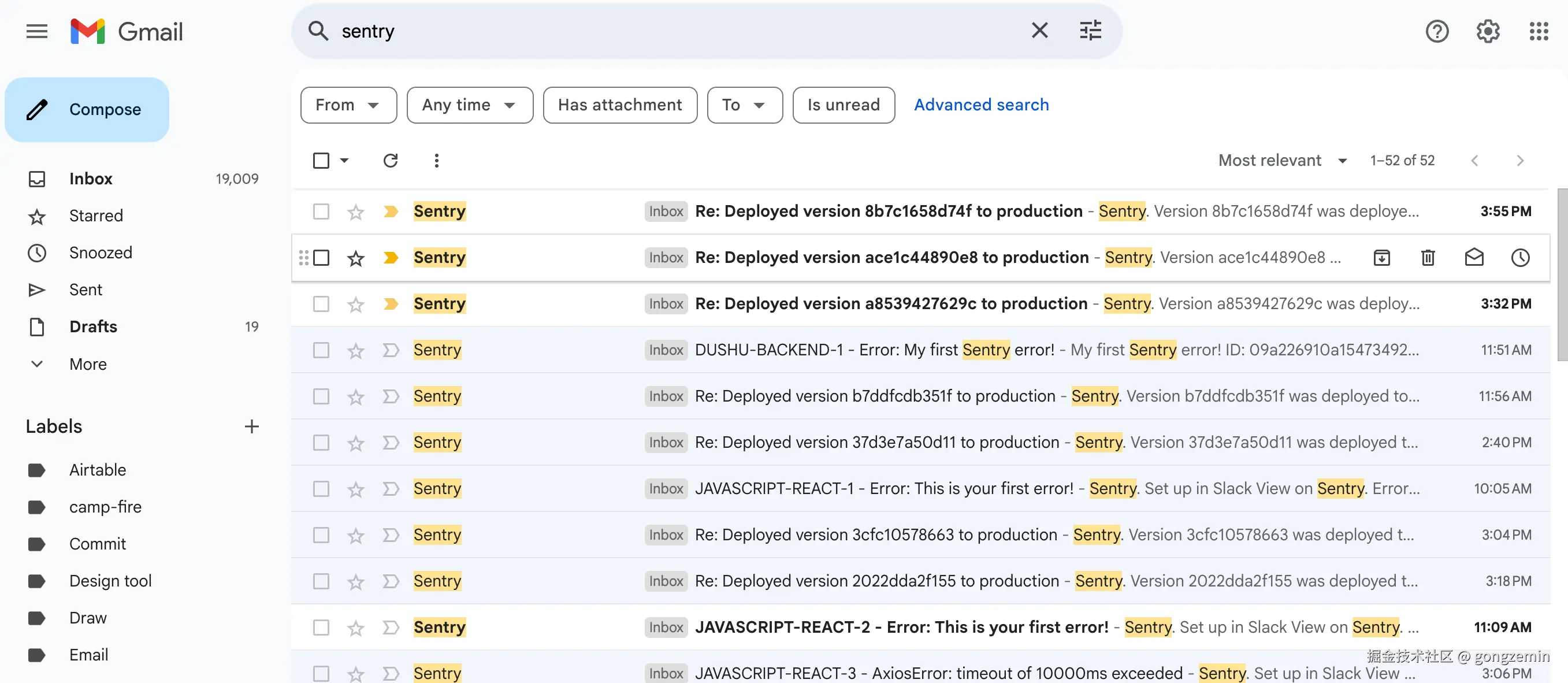

这样我们前后端就都配置成功了。 自动构建成功,有错误提醒都会发邮件通知,不想要这个通知,这个我们也可以关掉
