vue+elementUI使用wavesurfer.js实现音频可视化

1,016 阅读3分钟

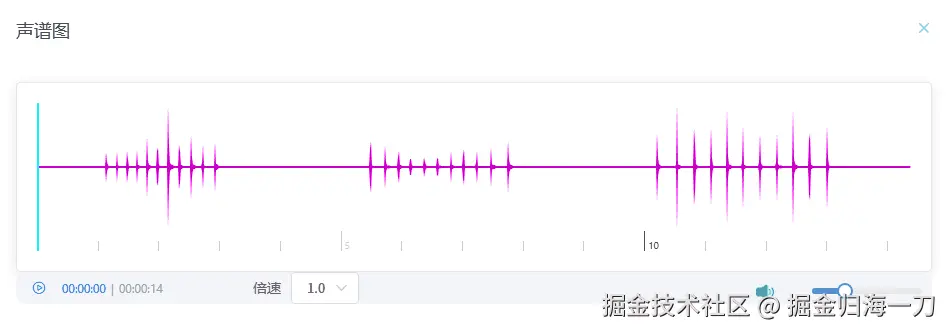

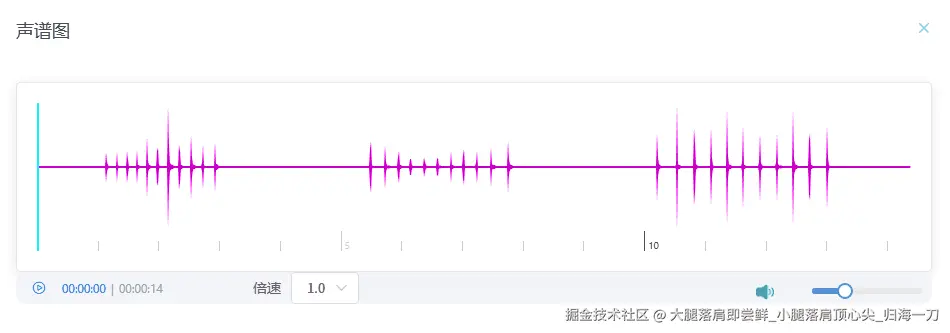

WaveSurfer.js是一个开源的音频可视化库,用于创建交互式、可定制的波形。文章详细介绍了配置选项,包括播放速度、音频渲染、波形样式、交互性等,并提供了事件处理方法如播放、暂停、音量控制等。本文要实现的效果图如下:

voice_img.gif 官网地址: wavesurfer.xyz/

安装

按照官方文档步骤

1.安装
npm install --save wavesurfer.js
2.引入
import WaveSurfer from 'wavesurfer.js'
//需要时间轴的话需要引入
import Timeline from 'wavesurfer.js/dist/plugins/timeline.esm.js'

封装Vue 组件

接下来,我们将 WaveSurfer.js 封装成一个 Vue 组件,方便在项目中复用。以下是完整的组件代码

<template>
    <div id="aiccAudio">
        <el-card>
            <div id="wavefrom" ref="wavefrom" @click="getTime">
            </div>
        </el-card>
        <div class="audio-controlBar">
            <!-- 播放/暂停按钮 -->
            <button @click="playMusic">
                <i v-if="videoPlay" class="el-icon-video-play"></i>
                <i v-else class="el-icon-video-pause"></i>
            </button>
            <!-- 时间  -->
            <div class="audio-time">
                <div class="audio-current-time" aria-label="time">{{ currentTime }}</div>
                <span class="audio-fen-line">|</span>
                <div class="audio-duration" aria-label="duration">{{ duration }}</div>
            </div>
            <!-- 倍速  -->
            <span style="margin-left: 80px;margin-right: 10px;">倍速</span>
            <el-select class="audio-speed" v-model="speedValue" @change="speedChange">
                <el-option v-for="item in options" :key="item.value" :label="item.label" :value="item.value">
                </el-option>
            </el-select>
            <!-- <span class="audio-line">|</span> -->
            <!--  音量  -->
            <div class="audio-volume">
                <img v-if="audioVolumeStatus == true" @click="volumeStatusChange('open')" class="audio-volume-img"
                    src="../../../../public/images/voice_open.png">
                <img v-else class="audio-volume-img" @click="volumeStatusChange('close')"
                    src="../../../../public/images/voice_close.png">
                <el-slider class="audio-volume-slider" v-model="volume" @input="volumeChange"></el-slider>
            </div>
        </div>
    </div>
</template>
<script>
import WaveSurfer from 'wavesurfer.js' //导入wavesurfer.js
import Timeline from 'wavesurfer.js/dist/plugins/timeline.esm.js' //导入时间轴插件
export default {
    name: 'AiccAudio',
    props: {
        src: {
            type: String
        },
        recordPath: {
            type: String
        }
    },
    data() {
        return {
            wavesurfer: null,
            timer: null,
            options: [
                {
                    value: '0.5',
                    label: '0.5',
                }, {
                    value: '1.0',
                    label: '1.0',
                }, {
                    value: '1.5',
                    label: '1.5',
                }, {
                    value: '2.0',
                    label: '2.0',
                }
            ],
            speedValue: '1.0',
            currentTime: '00:00:00', //当前播放
            duration: '00:00:00', //总时长
            volume: 30,//音量,
            audioVolumeStatus: false, //是否静音
            videoPlay: true,
        }
    },
    created() {
        this.keyDown();
    },
    mounted() {
        this.$nextTick(() => {
            if (this.recordPath != null && this.recordPath != '') {
                this.wavesurfer = WaveSurfer.create({
                    container: this.$refs.wavefrom,
                    height: 128,
                    waveColor: 'rgb(200, 0, 200)',
                    progressColor: '#00f2fe',
                    cursorColor: '#00f2fe', //指示播放头位置的光标填充颜色
                    cursorWidth: 2,
                    // backend: 'MediaElement',
                    mediaControls: false,
                    audioRate: this.speedValue,
                    hideScrollbar: true,
                    setPlaybackRate: [0.5, 1.0, 1.5, 2.0],
                    //使用时间轴插件
                    plugins: [Timeline.create()],
                })
                this.wavesurfer.load('http://localhost:9527/89A3099B9253566.mp3')
                console.log(this.wavesurfer)
                //音频加载完成触发
                this.wavesurfer.on("ready", () => {
                    this.wavesurfer.setVolume(this.volume / 100);
                    this.duration = this.formatSecond(this.wavesurfer.getDuration())
                });
                this.wavesurfer.on('click', () => {
                    this.wavesurfer.play()
                    this.videoPlay = false
                })
            }
        })
    },
    methods: {
        getSoundUrl(options) {
            // 具体请求怎么写就看每个人的项目用的是什么了
            return axios.get(url, { responseType: 'blob' })
                .then(res => {
                    if (!res.headers['content-disposition']) {
                        return console.error('文件名称不存在');
                    }
                    // 获取到的blob类型文件地址
                    return URL.createObjectURL(res.data);
                })
                .catch(err => {
                    console.error('文件获取失败');
                })
        },
        playMusic() {
            if (this.recordPath != null && this.recordPath != '') {
                //"播放/暂停"按钮的单击触发事件,暂停的话单击则播放,正在播放的话单击则暂停播放
                this.wavesurfer.playPause.bind(this.wavesurfer)();
                //每秒获取进度 有时间轴时使用
                // this.getProcess();
                //判断是否播放
                this.videoPlay = this.wavesurfer.isPlaying() == true ? false : true;
                //音频播放时触发
                this.wavesurfer.on("audioprocess", () => {
                    this.currentTime = this.formatSecond(this.wavesurfer.getCurrentTime())
                })
                //结束播放
                this.wavesurfer.on("finish", () => {
                    this.wavesurfer.stop();
                    this.videoPlay = true;
                    this.currentTime = '00:00:00'
                });
            }
        },
        formatSecond(seconds) {
            // console.log(seconds)
            // 确保输入是数字类型
            if (typeof seconds !== 'number' || isNaN(seconds)) {
                this.$message.error('error')
            }
            // 将秒数拆分为小时、分钟和秒
            const totalSeconds = Math.floor(seconds); // 只保留整数部分
            const hours = String(Math.floor(totalSeconds / 3600)).padStart(2, '0'); // 计算小时并补零
            const minutes = String(Math.floor((totalSeconds % 3600) / 60)).padStart(2, '0'); // 计算分钟并补零
            const secs = String(totalSeconds % 60).padStart(2, '0'); // 计算秒并补零

            return `${hours}:${minutes}:${secs}`;
        },
        //有时间轴时使用
        // getProcess(){
        //   if(this.wavesurfer.isPlaying()){
        //     this.timer=setInterval(()=>{
        //       this.percent=(this.wavesurfer.getCurrentTime().toFixed(0)/this.wavesurfer.getDuration()*100).toFixed(0)
        //       this.config={
        //         value:this.percent
        //       }
        //     },1000)
        //   }else{
        //     clearInterval(this.timer)
        //   }
        // },
        //点击获取点击进度
        getTime() {
            if (this.recordPath != null && this.recordPath != '') {
                //加定时器,不然获取的是点击前的播放时间
                setTimeout(() => {
                    this.currentTime = this.formatSecond(this.wavesurfer.getCurrentTime())
                    ///有时间轴时使用
                    // this.percent=(this.wavesurfer.getCurrentTime()/this.wavesurfer.getDuration()*100).toFixed(0)
                    // this.config={
                    //   value:this.percent
                    // }
                }, 100)
            }
        },
        //按键跳转进度
        // jump(e){
        // this.wavesurfer.play([e.target.innerHTML-0])
        // this.percent=(this.wavesurfer.getCurrentTime().toFixed(0)/this.wavesurfer.getDuration()*100).toFixed(0)
        // this.config={
        //   value:this.percent
        // }
        // this.getProcess()
        // },
        // 监听键盘
        keyDown() {
            if (this.recordPath != null && this.recordPath != '') {
                document.onkeydown = (e) => {
                    //事件对象兼容
                    var eCode = e.keyCode ? e.keyCode : e.which ? e.which : e.charCode;
                    //键盘按键判断:左箭头-37;上箭头-38;右箭头-39;下箭头-40
                    //左
                    if (eCode == 37) {
                        // 按下左箭头
                        this.wavesurfer.skip(-6)
                        this.getTime()
                    } else if (eCode == 39) {
                        // 按下右箭头
                        this.wavesurfer.skip(6)
                        this.getTime()
                    }
                }
            }
        },
        //倍速
        speedChange(val) {
            if (this.recordPath != null && this.recordPath != '') {
                this.speedValue = val;
                this.wavesurfer.setPlaybackRate(this.speedValue)
            }
        },
        //音量大小改变
        volumeChange(val) {
            if (this.recordPath != null && this.recordPath != '') {
                this.volume = val;
                if (this.wavesurfer != null) {
                    this.wavesurfer.setVolume(val / 100);
                }
                if (val == '0') {
                    this.audioVolumeStatus = false
                } else {
                    this.audioVolumeStatus = true
                }
            }
        },
        //静音开启关闭
        volumeStatusChange(status) {
            if (this.recordPath != null && this.recordPath != '') {
                if (status == 'open') {
                    this.audioVolumeStatus = false
                    this.volume = 0;
                    this.wavesurfer.setVolume(0);
                } else {
                    this.audioVolumeStatus = true
                    this.volume = 30;
                    this.wavesurfer.setVolume(30 / 100);
                }
            }
        }
    }
}

</script>
<style lang="scss" scoped>
.audio-controlBar {
    background-color: #f4f6f9;
    padding: 0 10px;
    border-radius: 10px;

    button {
        border: none;
        background-color: #f4f6f9;
    }

    i {
        //color: #95979f;
        color: #1053ee;
    }
}

//时间
.audio-time {
    display: inline-block;
    font-size: 12px;
    color: #95979f;
    margin: 0 10px;
}

.audio-current-time {
    display: inline-block;
    color: #1053ee;
}

.audio-fen-line {
    margin: 0 5px;
}

.audio-duration {
    display: inline-block;
}

//倍速
.audio-speed {
    width: 68px;
    // margin-left: 85px;

    .el-input__inner {
        background-color: #f4f6f9;
    }
}

.audio-line {
    color: #95979f;
    margin-right: 5px;
}

//音量条
.audio-volume {
    width: 166px;
    float: right;

    .audio-volume-slider {
        width: 110px;
        float: right;
    }
}

.audio-volume-img {
    width: 18px;
    margin-top: 12px;
}
</style>

我为了方便测试,音频路径是写在里面的,有用的同学可以根据项目需求传入组件中,样式功能啥的可以自行调整。

总结

通过 WaveSurfer.js,我们可以轻松实现音频的可视化与播放控制。本文介绍的 Vue 组件封装了常见的音频播放功能,包括播放/暂停、倍速控制、音量调节等,方便在项目中复用。根据项目需求,可以进一步调整样式和功能。
