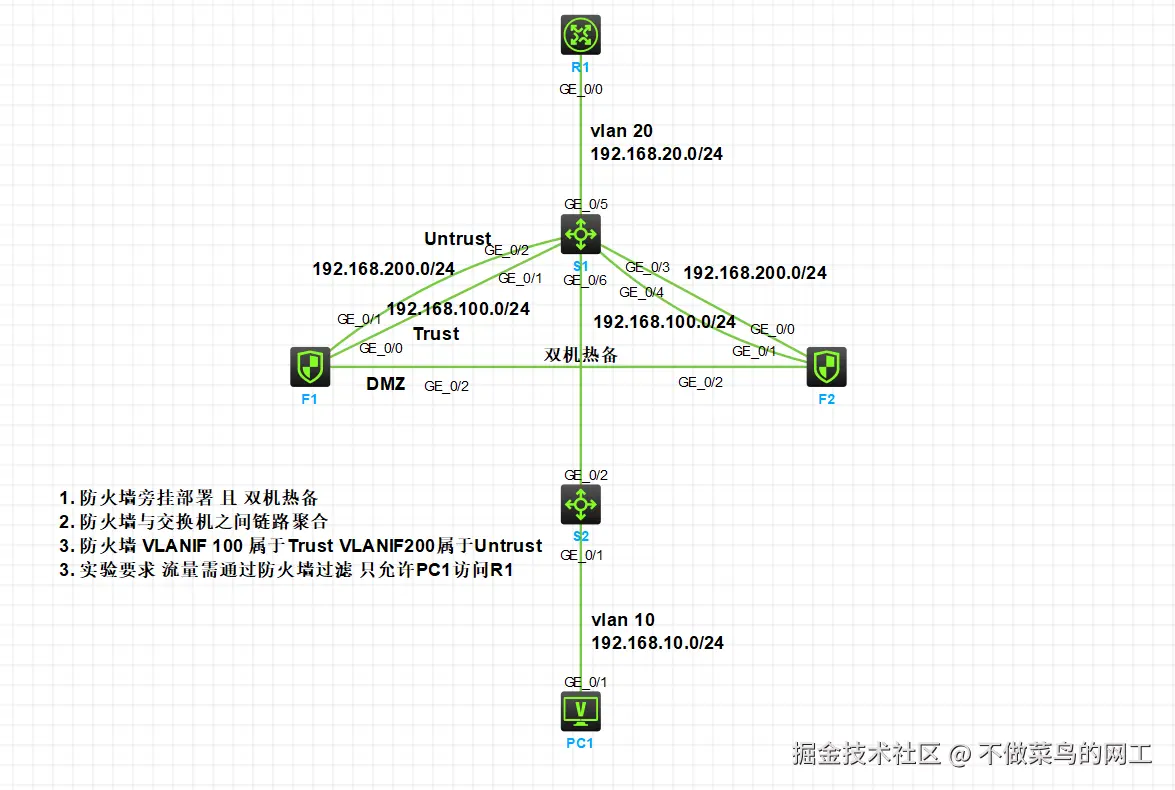

网络拓扑
S1
| 接口 | VLAN | IP |
|---|
| VLAN100 | 100 | 192.168.100.254 |
| VLAN200 | 200 | 192.168.200.254 |
| AGG1 | 100 200 | --- |
| AGG2 | 100 200 | --- |
| G1/0/5 | 20 | 192.168.20.254 |
| G1/0/6 | 10 | 192.168.10.254 |
F1
| 接口 | VLAN | IP |
|---|
| VLAN100 | 100 | 192.168.100.251 |
| VLAN200 | 200 | 192.168.200.251 |
| VRRP | 100 200 | 192.168.100.253 192.168.200.253 |
| AGG1 | 100 200 | --- |
| G1/0/2 | --- | 192.168.99.1 |
F2
| 接口 | VLAN | IP |
|---|
| VLAN100 | 100 | 192.168.100.252 |
| VLAN200 | 200 | 192.168.200.252 |
| VRRP | 100 200 | 192.168.100.253 192.168.200.253 |
| AGG2 | 100 200 | --- |
| G1/0/2 | --- | 192.168.99.2 |
配置过程
S1
# 创建链路聚合
interface Bridge-Aggregation1
link-aggregation mode dynamic
interface Bridge-Aggregation2
link-aggregation mode dynamic
# 将接口添加至链路聚合组
int range GigabitEthernet 1/0/1 to g1/0/2
port link-aggregation group 1
int range GigabitEthernet 1/0/3 to g1/0/4
port link-aggregation group 2
# 划分VLAN
vlan 10 20 100 200
interface Bridge-Aggregation1
port link-type trunk
port trunk permit vlan 100 200
interface Bridge-Aggregation2
port link-type trunk
port trunk permit vlan 100 200
interface GigabitEthernet1/0/5
port access vlan 2
interface GigabitEthernet1/0/6
port link-type trunk
port trunk permit vlan 10
# 创建VPN实例
ip vpn-instance a
address-family ipv4
ip vpn-instance b
address-family ipv4
interface Vlan-interface10
ip binding vpn-instance a
ip address 192.168.10.254 255.255.255.0
interface Vlan-interface20
ip binding vpn-instance b
ip address 192.168.20.254 255.255.255.0
interface Vlan-interface100
ip binding vpn-instance a
ip address 192.168.100.254 255.255.255.0
interface Vlan-interface200
ip binding vpn-instance b
ip address 192.168.200.254 255.255.255.0
# 写缺省路由 PC>F1/F2
ip route-static vpn-instance a 0.0.0.0 0 192.168.100.253
ip route-static vpn-instance b 0.0.0.0 0 192.168.20.1
# 写回程明细路由 R1>F1/F2
ip route-static vpn-instance b 192.168.10.0 24 192.168.200.253
F1配置
interface Bridge-Aggregation1
link-aggregation mode dynamic
int range GigabitEthernet 1/0/0 to g1/0/1
port link-aggregation group 1
# 划分VLAN
vlan 100 200
interface Bridge-Aggregation1
port link-type trunk
port trunk permit vlan 100 200
# 配置IP地址
interface Vlan-interface100
ip address 192.168.100.251 255.255.255.0
interface Vlan-interface200
ip address 192.168.200.251 255.255.255.0
interface GigabitEthernet1/0/2
port link-mode route
ip address 192.168.99.1 255.255.255.252
# 划分安全区域
security-zone name Trust
import interface Vlan-interface100
security-zone name DMZ
import interface GigabitEthernet1/0/2
security-zone name Untrust
import interface Vlan-interface200
# 配置双机热备
remote-backup group
data-channel interface GigabitEthernet1/0/2
configuration sync-check interval 1
delay-time 1
local-ip 192.168.99.1
remote-ip 192.168.99.2
device-role primary
interface Vlan-interface100
vrrp vrid 1 virtual-ip 192.168.100.253 active
interface Vlan-interface200
vrrp vrid 1 virtual-ip 192.168.200.253 active
# 配置放行策略
security-policy ip
rule 5 name Trust>Untrust
action pass
source-zone Trust
destination-zone Untrust
# 配置路由条目
ip route-static 0.0.0.0 0 192.168.200.254
ip route-static 192.168.10.0 24 192.168.100.254
F2配置
interface Bridge-Aggregation2
link-aggregation mode dynamic
int range GigabitEthernet 1/0/0 to g1/0/1
port link-aggregation group 2
# 划分VLAN
vlan 100 200
interface Bridge-Aggregation2
port link-type trunk
port trunk permit vlan 100 200
# 配置IP地址
interface Vlan-interface100
ip address 192.168.100.252 255.255.255.0
interface Vlan-interface200
ip address 192.168.200.252 255.255.255.0
interface GigabitEthernet1/0/2
port link-mode route
ip address 192.168.99.2 255.255.255.252
# 划分安全区域
security-zone name Trust
import interface Vlan-interface100
security-zone name DMZ
import interface GigabitEthernet1/0/2
security-zone name Untrust
import interface Vlan-interface200
# 配置双机热备
remote-backup group
data-channel interface GigabitEthernet1/0/2
configuration sync-check interval 1
delay-time 1
local-ip 192.168.99.2
remote-ip 192.168.99.1
device-role secondary
interface Vlan-interface100
vrrp vrid 1 virtual-ip 192.168.100.253 standby
interface Vlan-interface200
vrrp vrid 1 virtual-ip 192.168.200.253 standby
# 配置路由条目
ip route-static 0.0.0.0 0 192.168.200.254
ip route-static 192.168.10.0 24 192.168.100.254
R1配置
interface GigabitEthernet0/0
port link-mode route
ip address 192.168.20.1 255.255.255.0
ip route-static 192.168.10.0 24 192.168.20.254
配置验证

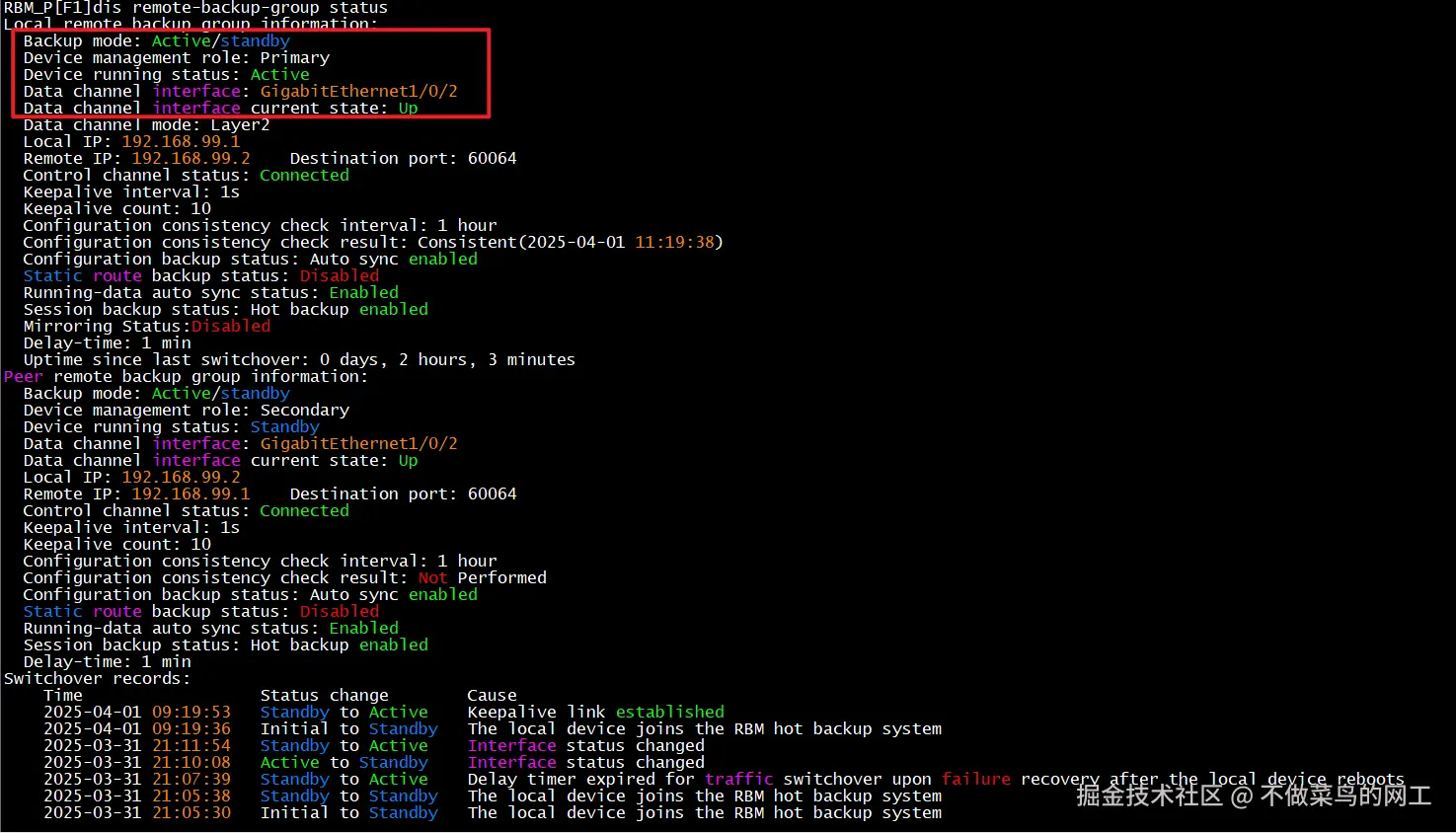

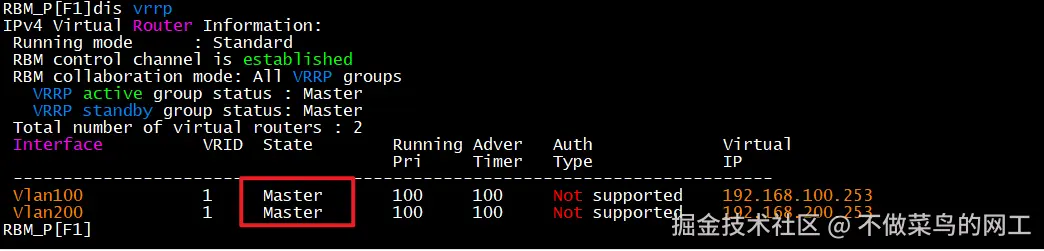

查看双机热备建立情况

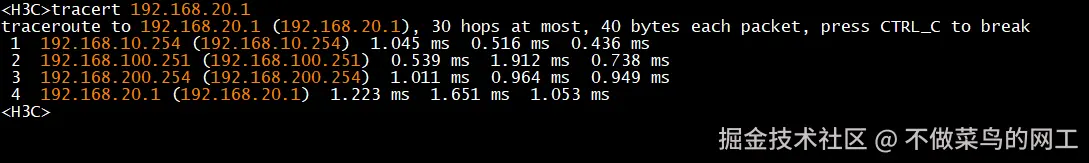

查看数据转发路径
