🟢 第 1 周:SwiftUI 基础 & 布局

79 阅读2分钟

📖 学习内容****

1️⃣ SwiftUI 介绍 & 和 UIKit 的区别****

SwiftUI 是 Apple 在 iOS 13 引入的 UI 框架,采用声明式语法,与 UIKit 的命令式方式不同:

UIKit:基于 UIView,需要手动管理视图层级。

SwiftUI:基于 View,代码更简洁,数据驱动 UI 变化

2️⃣  SwiftUI 基础组件

SwiftUI 主要使用结构体 (struct) 作为 View,例如:

struct ContentView: View {
    var body: some View {
        Text("Hello, SwiftUI!")
    }
}

• Text:显示文本,支持 .font(), .bold(), .foregroundColor()

• Image:加载图片,支持 .resizable(), .scaledToFit()

• Button:创建按钮,使用 action 和 label

3️⃣ 布局系统****

SwiftUI 主要使用 HStack, VStack, ZStack 来布局:

VStack {
    Text("标题")
    Text("副标题")
}

HStack(水平排列)

VStack(垂直排列)

ZStack(层叠布局)

4️⃣ 视图修饰符****

SwiftUI 提供 .padding(), .background(), .cornerRadius(), .shadow() 等修饰符:

Text("Hello")
    .padding()
    .background(Color.blue)
    .cornerRadius(10)
    .shadow(radius: 5)

5️⃣ 颜色 & SF Symbols

使用 Color.primary 适配暗黑模式,使用 Image(systemName:) 加载 SF Symbols:

Image(systemName: "star.fill")
    .foregroundColor(.yellow)

💻 练习项目****

计数器 App****

• 使用 @State 存储数值

• Button("+") 和 Button("-") 控制计数

个人名片 UI****

• VStack 布局 Image + Text

• 添加 .cornerRadius(), .shadow()

• 适配深色模式

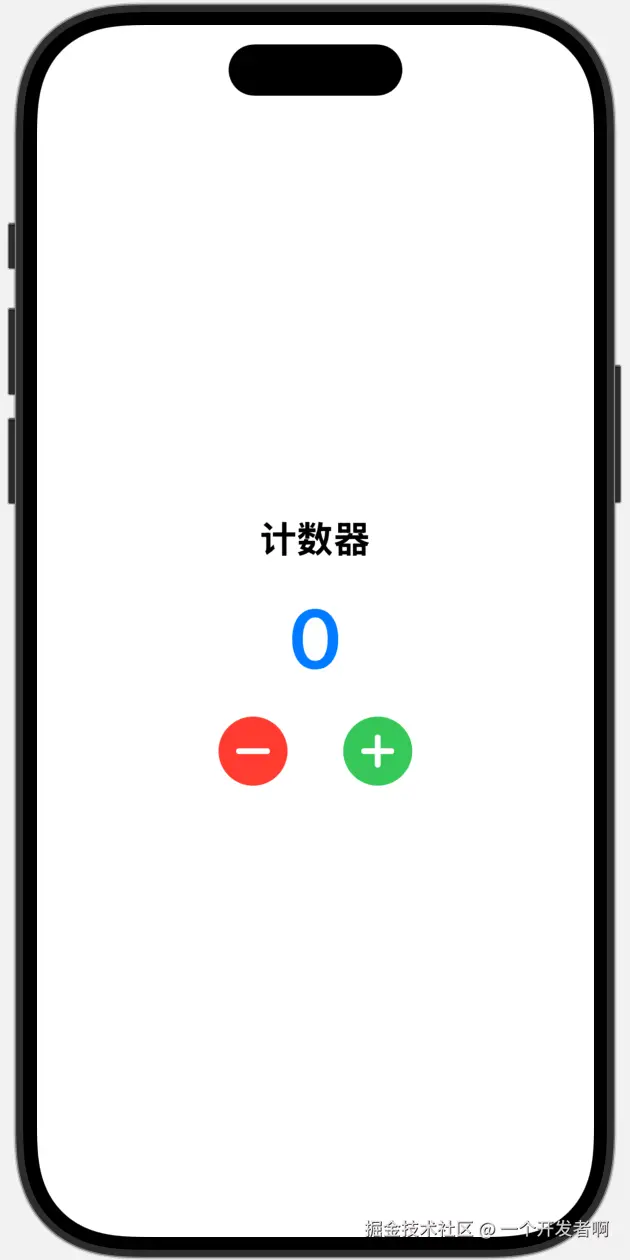

✅ 练习 1:计数器 App

import SwiftUI

struct CounterView: View {

    @State private var count = 0



    var body: some View {

        VStack(spacing: 20) {

            Text("计数器")

                .font(.title)

                .bold()



            Text("\(count)")

                .font(.system(size: 60, weight: .semibold))

                .foregroundStyle(.blue)



            HStack(spacing: 40) {

                Button {

                    count -= 1

                } label: {

                    Image(systemName: "minus.circle.fill")

                        .resizable()

                        .frame(width: 50, height: 50)

                        .foregroundStyle(.red)

                }



                Button {

                    count += 1

                } label: {

                    Image(systemName: "plus.circle.fill")

                        .resizable()

                        .frame(width: 50, height: 50)

                        .foregroundStyle(.green)

                }




            }

        }



    }

}

#Preview {
    CounterView()
}

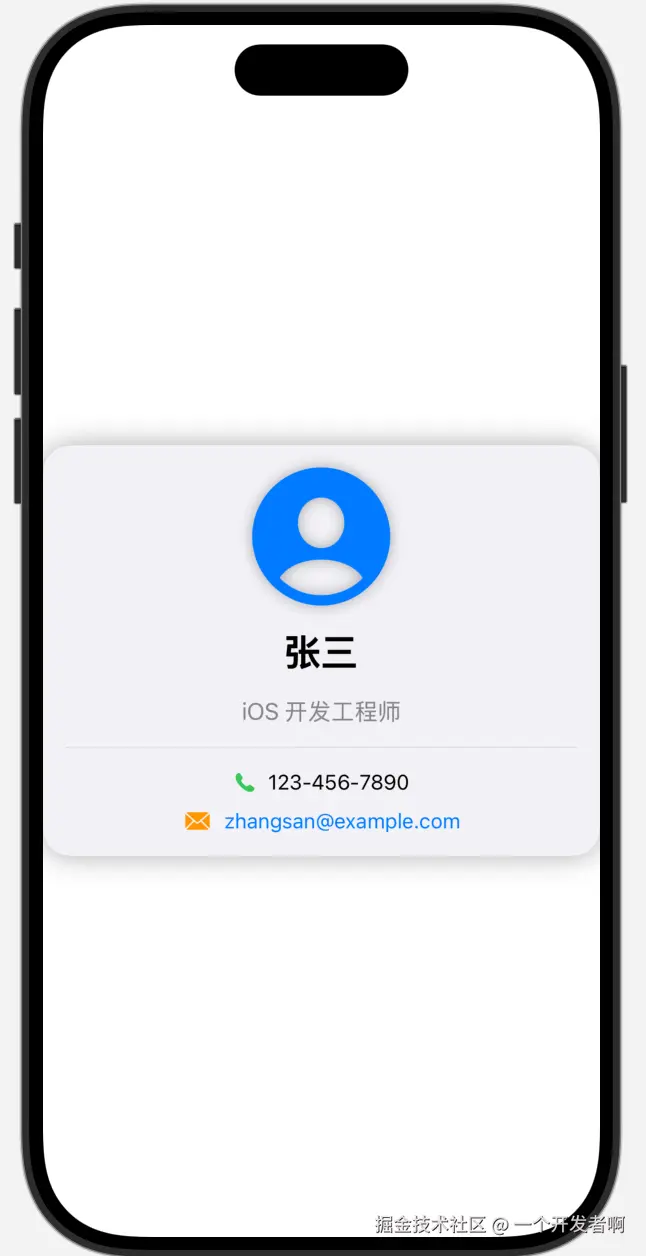

练习 2:个人名片 UI**

import SwiftUI

struct  ProfileCardView: View {

    var body: some View {

        ZStack {

            Color(.systemBackground)

                .ignoresSafeArea(edges: .all)



            VStack(spacing: 16) {

                Image(systemName: "person.crop.circle.fill")

                    .resizable()

                    .frame(width: 100, height: 100)

                    .foregroundStyle(.blue)

                    .shadow(radius: 5)



                Text("张三")

                    .font(.title)

                    .bold()



                Text("iOS 开发工程师")

                    .foregroundStyle(.secondary)



                Divider()



                VStack(spacing: 10) {

                    HStack{

                        Image(systemName: "phone.fill")

                            .foregroundStyle(.green)

                        Text("123-456-7890")

                    }

                    HStack{

                        Image(systemName: "envelope.fill")

                            .foregroundStyle(.orange)

                        Text("zhangsan@example.com")



                    }

                }

                .font(.subheadline)

            }

            .padding()

            .background(Color(.systemGray6))

            .clipShape(RoundedRectangle(cornerRadius: 20))

            .shadow(radius: 10)



        }

    }

}

#Preview {
    ProfileCardView()
        .preferredColorScheme(.dark) // 深色模式预览
}
