JVM
Java参数配置
PROMETHEUS_PORT：需要暴露的端口，将监控数据上报
java \
-javaagent:/root/data/soft/jmx_exporter/jmx_prometheus_javaagent-0.17.2.jar=$PROMETHEUS_PORT:/root/data/soft/jmx_exporter/configs/config.yml \
-jar \
/opt/project/${JAR}
mx_prometheus_javaagent-0.17.2.jar与config.yml下载地址： gitee.com/bookc_org/d…
prometheus
运行prometheus
docker run -d -m 1024M \
--name prometheus \
--restart=always \
-p 9090:9090 \
-v /root/prometheus/config/prometheus.yml:/etc/prometheus/prometheus.yml \
prom/prometheus
prometheus.yml
# my global config
global:
scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
# scrape_timeout is set to the global default (10s).
# Alertmanager configuration
alerting:
alertmanagers:
- static_configs:
- targets:
# - alertmanager:9093
# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
# - "first_rules.yml"
# - "second_rules.yml"
# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
# 项目配置
- job_name: 'facility'
scrape_interval: 10s
metrics_path: '/metrics'
static_configs:
- targets: ["192.168.1.83:10001"]
labels:
appname: 'facility'
- job_name: 'gateway'
scrape_interval: 10s
metrics_path: '/metrics'
static_configs:
- targets: ["192.168.11.201:10002","192.168.11.108:10002"]
labels:
appname: 'gateway'
grafana
运行grafana
docker run -d -m 1024M --name=grafana -p 3000:3000 grafana/grafana

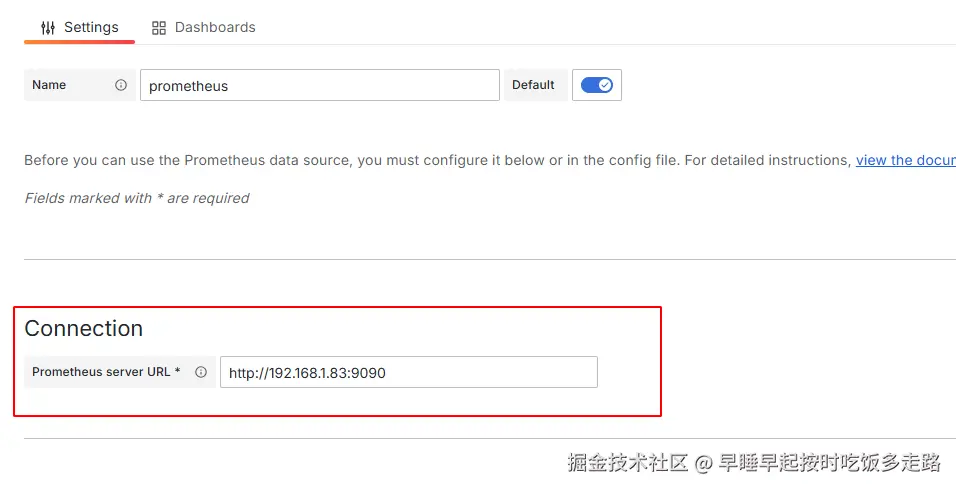

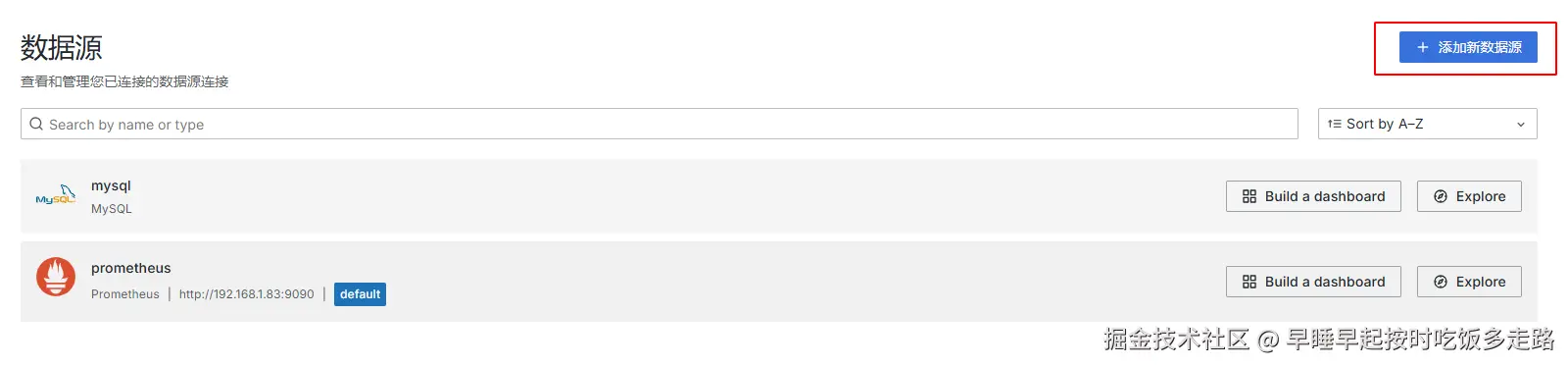

添加数据源

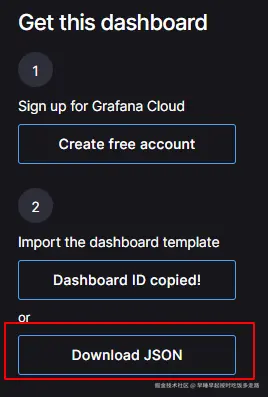

JVM面板插件

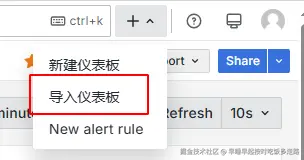

JVM Json配置导入
{
"annotations": {
"list": [
{
"builtIn": 1,
"datasource": {
"type": "datasource",
"uid": "grafana"
},
"enable": true,
"hide": true,
"iconColor": "rgba(0, 211, 255, 1)",
"name": "Annotations & Alerts",
"type": "dashboard"
}
]
},
"description": "Complete dashboard using metrics from prometheus JMX exporter, with drill down per job > instance",
"editable": true,
"fiscalYearStartMonth": 0,
"graphTooltip": 0,
"id": 2,
"links": [],
"panels": [
{
"datasource": {
"uid": "$datasource"
},
"fieldConfig": {
"defaults": {
"mappings": [
{
"options": {
"1": {
"text": "UP"
}
},
"type": "value"
},
{
"options": {
"0": {
"text": "DOWN"
}
},
"type": "value"
},
{
"options": {
"match": "null",
"result": {
"text": "DOWN"
}
},
"type": "special"
}
],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "#d44a3a"
},
{
"color": "#e24d42",
"value": 0
},
{
"color": "#299c46",
"value": 1
}
]
},
"unit": "none"
},
"overrides": []
},
"gridPos": {
"h": 4,
"w": 3,
"x": 0,
"y": 0
},
"id": 21,
"links": [
{
"targetBlank": true,
"title": "Tomcat dashboard",
"url": "/d/chanjarster-tomcat-dashboard/tomcat-dashboard?$__url_time_range&$__all_variables"
}
],
"maxDataPoints": 100,
"options": {
"colorMode": "value",
"graphMode": "none",
"justifyMode": "auto",
"orientation": "horizontal",
"percentChangeColorMode": "standard",
"reduceOptions": {
"calcs": [
"lastNotNull"
],
"fields": "",
"values": false
},
"showPercentChange": false,
"textMode": "auto",
"wideLayout": true
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"uid": "$datasource"
},
"expr": "up{job=\"$job\",instance=\"$instance\"}",
"format": "time_series",
"instant": true,
"intervalFactor": 1,
"refId": "A"
}
],
"title": "Status",
"type": "stat"
},
{
"datasource": {
"uid": "$datasource"
},
"fieldConfig": {
"defaults": {
"decimals": 0,
"mappings": [
{
"options": {
"match": "null",
"result": {
"text": "N/A"
}
},
"type": "special"
}
],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
},
{
"color": "red",
"value": 80
}
]
},
"unit": "s"
},
"overrides": []
},
"gridPos": {
"h": 4,
"w": 4,
"x": 3,
"y": 0
},
"id": 14,
"maxDataPoints": 100,
"options": {
"colorMode": "none",
"graphMode": "none",
"justifyMode": "auto",
"orientation": "horizontal",
"percentChangeColorMode": "standard",
"reduceOptions": {
"calcs": [
"lastNotNull"
],
"fields": "",
"values": false
},
"showPercentChange": false,
"textMode": "auto",
"wideLayout": true
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"uid": "$datasource"
},
"expr": "time() - process_start_time_seconds{job=\"$job\",instance=\"$instance\"}",
"format": "time_series",
"instant": true,
"intervalFactor": 1,
"refId": "A"
}
],
"title": "Uptime",
"type": "stat"
},
{
"datasource": {
"uid": "$datasource"
},
"fieldConfig": {
"defaults": {
"mappings": [
{
"options": {
"match": "null",
"result": {
"text": "N/A"
}
},
"type": "special"
}
],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "#299c46"
},
{
"color": "rgba(237, 129, 40, 0.89)",
"value": 35
},
{
"color": "#d44a3a",
"value": 50
}
]
},
"unit": "dateTimeAsIso"
},
"overrides": []
},
"gridPos": {
"h": 4,
"w": 5,
"x": 7,
"y": 0
},
"id": 15,
"maxDataPoints": 100,
"options": {
"colorMode": "none",
"graphMode": "none",
"justifyMode": "auto",
"orientation": "horizontal",
"percentChangeColorMode": "standard",
"reduceOptions": {
"calcs": [
"lastNotNull"
],
"fields": "",
"values": false
},
"showPercentChange": false,
"textMode": "auto",
"wideLayout": true
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"uid": "$datasource"
},
"expr": "process_start_time_seconds{job=\"$job\",instance=\"$instance\"}*1000",
"format": "time_series",
"instant": true,
"intervalFactor": 1,
"refId": "A"
}
],
"title": "Start time",
"type": "stat"
},
{
"datasource": {
"uid": "$datasource"
},
"fieldConfig": {
"defaults": {
"decimals": 0,
"mappings": [
{
"options": {
"match": "null",
"result": {
"text": "N/A"
}
},
"type": "special"
}
],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
},
{
"color": "red",
"value": 80
}
]
},
"unit": "none"
},
"overrides": []
},
"gridPos": {
"h": 4,
"w": 12,
"x": 12,
"y": 0
},
"id": 19,
"maxDataPoints": 100,
"options": {
"colorMode": "none",
"graphMode": "none",
"justifyMode": "auto",
"orientation": "horizontal",
"percentChangeColorMode": "standard",
"reduceOptions": {
"calcs": [
"lastNotNull"
],
"fields": "/^jdk$/",
"values": false
},
"showPercentChange": false,
"textMode": "auto",
"wideLayout": true
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"uid": "$datasource"
},
"expr": "label_join(jvm_info{job=\"$job\",instance=\"$instance\"}, \"jdk\", \", \", \"vendor\", \"runtime\", \"version\")",
"format": "table",
"instant": true,
"intervalFactor": 1,
"legendFormat": "",
"refId": "A"
}
],
"title": "JVM Version",
"type": "stat"
},
{
"datasource": {
"uid": "$datasource"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 10,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "never",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
},
{
"color": "red",
"value": 80
}
]
},
"unit": "bytes"
},
"overrides": [
{
"matcher": {
"id": "byName",
"options": "Usage %"
},
"properties": [
{
"id": "custom.drawStyle",
"value": "bars"
},
{
"id": "custom.fillOpacity",
"value": 100
},
{
"id": "color",
"value": {
"fixedColor": "#6d1f62",
"mode": "fixed"
}
},
{
"id": "custom.lineWidth",
"value": 0
},
{
"id": "unit",
"value": "percentunit"
},
{
"id": "min",
"value": 0
},
{
"id": "max",
"value": 1
},
{
"id": "custom.axisPlacement",
"value": "right"
}
]
}
]
},
"gridPos": {
"h": 9,
"w": 24,
"x": 0,
"y": 4
},
"id": 8,
"maxPerRow": 2,
"options": {
"legend": {
"calcs": [
"mean",
"lastNotNull",
"max",
"min"
],
"displayMode": "table",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "multi",
"sort": "none"
}
},
"pluginVersion": "11.6.0",
"repeat": "memarea",
"repeatDirection": "h",
"targets": [
{
"datasource": {
"uid": "$datasource"
},
"expr": "jvm_memory_bytes_used{area=\"$memarea\",job=\"$job\",instance=\"$instance\"}",
"format": "time_series",
"intervalFactor": 1,
"legendFormat": "Used",
"refId": "A"
},
{
"datasource": {
"uid": "$datasource"
},
"expr": " jvm_memory_bytes_max{area=\"$memarea\",job=\"$job\",instance=\"$instance\"}",
"format": "time_series",
"intervalFactor": 1,
"legendFormat": "Max",
"refId": "B"
},
{
"datasource": {
"uid": "$datasource"
},
"expr": "jvm_memory_bytes_used{area=\"$memarea\",job=\"$job\",instance=\"$instance\"} / jvm_memory_bytes_max >= 0",
"format": "time_series",
"intervalFactor": 1,
"legendFormat": "Usage %",
"refId": "C"
}
],
"title": "Memory area [$memarea]",
"type": "timeseries"
},
{
"datasource": {
"uid": "$datasource"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 10,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "never",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
},
{
"color": "red",
"value": 80
}
]
},
"unit": "s"
},
"overrides": []
},
"gridPos": {
"h": 9,
"w": 12,
"x": 0,
"y": 13
},
"id": 5,
"options": {
"legend": {
"calcs": [
"lastNotNull",
"max",
"min"
],
"displayMode": "table",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "multi",
"sort": "none"
}
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"uid": "$datasource"
},
"expr": "increase(jvm_gc_collection_seconds_sum{job=\"$job\",instance=~\"$instance\"}[$__interval])",
"format": "time_series",
"interval": "60s",
"intervalFactor": 1,
"legendFormat": "{{gc}}",
"metric": "jvm_gc_collection_seconds_sum",
"refId": "A",
"step": 10
}
],
"title": "GC time",
"type": "timeseries"
},
{
"datasource": {
"uid": "$datasource"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 10,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "never",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"decimals": 0,
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
},
{
"color": "red",
"value": 80
}
]
},
"unit": "short"
},
"overrides": []
},
"gridPos": {
"h": 9,
"w": 12,
"x": 12,
"y": 13
},
"id": 6,
"options": {
"legend": {
"calcs": [
"lastNotNull",
"max",
"min"
],
"displayMode": "table",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "multi",
"sort": "none"
}
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"uid": "$datasource"
},
"expr": "increase(jvm_gc_collection_seconds_count{job=\"$job\",instance=~\"$instance\"}[$__interval])",
"format": "time_series",
"interval": "60s",
"intervalFactor": 1,
"legendFormat": "{{gc}}",
"metric": "",
"refId": "A",
"step": 10
}
],
"title": "GC count increase",
"type": "timeseries"
},
{
"datasource": {
"uid": "$datasource"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"barWidthFactor": 0.6,
"drawStyle": "line",
"fillOpacity": 10,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "never",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"decimals": 0,
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green"
},
{
"color": "red",
"value": 80
}
]
},
"unit": "short"
},
"overrides": [
{
"matcher": {
"id": "byValue",
"options": {
"op": "gte",
"reducer": "allIsZero",
"value": 0
}
},
"properties": [
{
"id": "custom.hideFrom",
"value": {
"legend": true,
"tooltip": true,
"viz": false
}
}
]
}
]
},
"gridPos": {
"h": 9,
"w": 24,
"x": 0,
"y": 22
},
"id": 3,
"options": {
"legend": {
"calcs": [
"lastNotNull",
"max"
],
"displayMode": "table",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"hideZeros": false,
"mode": "multi",
"sort": "none"
}
},
"pluginVersion": "11.6.0",
"targets": [
{
"datasource": {
"uid": "$datasource"
},
"expr": "jvm_threads_current{job=\"$job\",instance=\"$instance\"}",
"format": "time_series",
"intervalFactor": 5,
"legendFormat": "JVM current threads",
"metric": "jvm_threads_current",
"refId": "A",
"step": 10
},
{
"datasource": {
"uid": "$datasource"
},
"expr": "jvm_threads_daemon{job=\"$job\",instance=\"$instance\"}",
"format": "time_series",
"intervalFactor": 5,
"legendFormat": "JVM daemon threads",
"metric": "jvm_threads_daemon",
"refId": "B",
"step": 10
},
{
"datasource": {
"uid": "$datasource"
},
"expr": "jvm_threads_deadlocked{job=\"$job\",instance=\"$instance\"}",
"format": "time_series",
"intervalFactor": 1,
"legendFormat": "JVM deadlocked threads",
"refId": "C"
}
],
"title": "Threads used",
"type": "timeseries"
},
{
"datasource": {
"uid": "$datasource"
},
"fieldConfig": {
"defaults": {},
"overrides": []
},
"gridPos": {
"h": 9,
"w": 24,
"x": 0,
"y": 31
},
"id": 2,
"maxPerRow": 2,
"options": {},
"repeat": "mempool",
"repeatDirection": "h",
"targets": [
{
"datasource": {
"uid": "$datasource"
},
"expr": "jvm_memory_pool_bytes_max{pool=\"$mempool\",job=\"$job\",instance=\"$instance\"}",
"format": "time_series",
"interval": "",
"intervalFactor": 1,
"legendFormat": "Max",
"metric": "jvm_memory_bytes_used",
"refId": "B",
"step": 5
},
{
"datasource": {
"uid": "$datasource"
},
"expr": "jvm_memory_pool_bytes_used{pool=\"$mempool\",job=\"$job\",instance=\"$instance\"}",
"format": "time_series",
"interval": "",
"intervalFactor": 1,
"legendFormat": "Used",
"metric": "jvm_memory_bytes_used",
"refId": "A",
"step": 5
},
{
"datasource": {
"uid": "$datasource"
},
"expr": "jvm_memory_pool_bytes_committed{pool=\"$mempool\",job=\"$job\",instance=\"$instance\"}",
"format": "time_series",
"interval": "",
"intervalFactor": 1,
"legendFormat": "Committed",
"metric": "jvm_memory_bytes_used",
"refId": "C",
"step": 5
}
],
"title": "Memory pool [$mempool]",
"type": "timeseries"
}
],
"preload": false,
"refresh": "10s",
"schemaVersion": 41,
"tags": [
"JVM"
],
"templating": {
"list": [
{
"current": {
"text": "prometheus",
"value": "cegz55e3q8npce"
},
"name": "datasource",
"options": [],
"query": "prometheus",
"refresh": 1,
"regex": "",
"type": "datasource"
},
{
"allValue": "",
"current": {
"text": "gateway",
"value": "gateway"
},
"includeAll": false,
"label": "job",
"name": "job",
"options": [
{
"selected": true,
"text": "gateway",
"value": "gateway"
},
{
"selected": false,
"text": "facility",
"value": "facility"
},
{
"selected": false,
"text": "reception",
"value": "reception"
},
{
"selected": false,
"text": "transfer",
"value": "transfer"
},
{
"selected": false,
"text": "system",
"value": "system"
},
{
"selected": false,
"text": "auth",
"value": "auth"
},
{
"selected": false,
"text": "file",
"value": "file"
},
{
"selected": false,
"text": "job",
"value": "job"
}
],
"query": "gateway,facility,reception,transfer,system,auth,file,job",
"type": "custom"
},
{
"allValue": ".*",
"current": {
"text": "192.168.11.108:10002",
"value": "192.168.11.108:10002"
},
"datasource": "$datasource",
"definition": "",
"includeAll": false,
"label": "instance",
"name": "instance",
"options": [],
"query": "label_values(jvm_info{job=\"$job\"},instance)",
"refresh": 1,
"regex": "",
"sort": 1,
"type": "query"
},
{
"current": {
"text": "All",
"value": "$__all"
},
"datasource": "$datasource",
"definition": "",
"hide": 2,
"includeAll": true,
"multi": true,
"name": "mempool",
"options": [],
"query": "label_values(jvm_memory_pool_bytes_max{job=\"$job\", instance=\"$instance\"}, pool)",
"refresh": 1,
"regex": "",
"sort": 1,
"type": "query"
},
{
"current": {
"text": "All",
"value": "$__all"
},
"datasource": "$datasource",
"definition": "",
"hide": 2,
"includeAll": true,
"multi": true,
"name": "memarea",
"options": [],
"query": "label_values(jvm_memory_bytes_used{job=\"$job\", instance=\"$instance\"}, area)",
"refresh": 1,
"regex": "",
"type": "query"
}
]
},
"time": {
"from": "now-15m",
"to": "now"
},
"timepicker": {
"refresh_intervals": [
"5s",
"10s",
"30s",
"1m",
"5m"
]
},
"timezone": "",
"title": "JVM dashboard",
"uid": "chanjarster-jvm-dashboard",
"version": 8
}
