基于云原生技术栈的微服务系统构建与部署指南## 一、技术架构全景图 ![%% RocketMQ事务消息流程图（Merma

一、技术架构全景图

%% RocketMQ事务消息流程图（Mermaid）.png

核心组件矩阵

分类	技术选型	版本号	部署形态
运行时	OpenJDK	21	容器镜像
开发框架	Spring Boot	3.2.4	应用JAR包
服务治理	Apache Dubbo	3.2.7	K8S Deployment
配置中心	Nacos	2.2.3	K8S StatefulSet
数据持久化	MySQL	8.0.32	K8S StatefulSet
缓存	Redis	7.0.12	K8S Deployment
消息队列	RocketMQ	5.1.3	K8S StatefulSet
容器编排	Kubernetes	1.28	集群环境

二、项目工程化设计

1. Maven多模块结构

cloud-native-demo/
├── common-core         # 公共模块
├── user-api            # 用户服务接口定义
├── user-service        # 用户服务实现
├── order-api           # 订单服务接口定义
├── order-service       # 订单服务实现
├── gateway             # API网关
└── pom.xml             # 父级POM管理

2. 核心POM依赖配置

<!-- 父级pom.xml -->
<dependencyManagement>
    <dependencies>
        <!-- Spring Boot 3 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-dependencies</artifactId>
            <version>3.2.4</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>

        <!-- Dubbo Spring Boot Starter -->
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-spring-boot-starter</artifactId>
            <version>3.2.7</version>
        </dependency>

        <!-- MyBatis-Plus -->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.5.5</version>
        </dependency>
    </dependencies>
</dependencyManagement>

运行 HTML

三、服务治理核心实现

1. Dubbo3服务接口定义

// UserService.java
@DubboService
public interface UserService {
    UserDTO getUserById(@RequestParam("userId") Long userId);
}

// 实现类
@Service
public class UserServiceImpl implements UserService {

    @Autowired
    private UserMapper userMapper;

    @Override
    public UserDTO getUserById(Long userId) {
        return userMapper.selectById(userId);
    }
}

2. Nacos2动态配置管理

# application-prod.yaml
dubbo:
  registry:
    address: nacos://nacos-cluster.cloud-native.svc.cluster.local:8848
  config-center:
    address: nacos://nacos-cluster.cloud-native.svc.cluster.local:8848

spring:
  cloud:
    nacos:
      config:
        server-addr: nacos-cluster.cloud-native.svc.cluster.local:8848
        file-extension: yaml
        namespace: prod-env

四、Kubernetes部署架构

1. 命名空间规划

apiVersion: v1
kind: Namespace
metadata:
  name: cloud-native

2. 中间件部署配置

MySQL集群（StatefulSet）

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: mysql-cluster
  namespace: cloud-native
spec:
  serviceName: mysql
  replicas: 3
  template:
    metadata:
      labels:
        app: mysql
    spec:
      containers:
      - name: mysql
        image: mysql:8.0.32
        env:
        - name: MYSQL_ROOT_PASSWORD
          valueFrom:
            secretKeyRef:
              name: mysql-secret
              key: root-password
        ports:
        - containerPort: 3306
        volumeMounts:
        - name: mysql-data
          mountPath: /var/lib/mysql
  volumeClaimTemplates:
  - metadata:
      name: mysql-data
    spec:
      accessModes: [ "ReadWriteOnce" ]
      storageClassName: "ssd-storage"
      resources:
        requests:
          storage: 100Gi

RocketMQ集群

# rocketmq-namesrv.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: rocketmq-namesrv
  namespace: cloud-native
spec:
  serviceName: rocketmq-namesrv
  replicas: 2
  template:
    metadata:
      labels:
        app: rocketmq-namesrv
    spec:
      containers:
      - name: namesrv
        image: apache/rocketmq:5.1.3
        command: ["/bin/sh", "-c"]
        args: ["cd /home/rocketmq/bin && export JAVA_OPT="${JAVA_OPT} -Duser.home=/home/rocketmq" && sh mqnamesrv"]
        ports:
        - containerPort: 9876

# rocketmq-broker.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: rocketmq-broker
  namespace: cloud-native
spec:
  serviceName: rocketmq-broker
  replicas: 3
  template:
    metadata:
      labels:
        app: rocketmq-broker
    spec:
      containers:
      - name: broker
        image: apache/rocketmq:5.1.3
        env:
        - name: NAMESRV_ADDR
          value: "rocketmq-namesrv-0.rocketmq-namesrv:9876;rocketmq-namesrv-1.rocketmq-namesrv:9876"
        command: ["/bin/sh", "-c"]
        args: ["cd /home/rocketmq/bin && export JAVA_OPT="${JAVA_OPT} -Duser.home=/home/rocketmq" && sh mqbroker -n $NAMESRV_ADDR"]
        ports:
        - containerPort: 10909
        - containerPort: 10911

3. 微服务部署模板

# user-service-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: user-service
  namespace: cloud-native
spec:
  replicas: 3
  selector:
    matchLabels:
      app: user-service
  template:
    metadata:
      labels:
        app: user-service
      annotations:
        prometheus.io/scrape: "true"
        prometheus.io/port: "8080"
    spec:
      containers:
      - name: user-service
        image: registry.example.com/cloud-native/user-service:1.2.0
        ports:
        - containerPort: 8080
        - containerPort: 20880  # Dubbo协议端口
        envFrom:
        - configMapRef:
            name: global-config
        - secretRef:
            name: database-secret
        resources:
          requests:
            memory: "512Mi"
            cpu: "500m"
          limits:
            memory: "2Gi"
            cpu: "1"
        livenessProbe:
          httpGet:
            path: /actuator/health
            port: 8080
          initialDelaySeconds: 30
          periodSeconds: 10
        readinessProbe:
          httpGet:
            path: /actuator/health/readiness
            port: 8080
          initialDelaySeconds: 20
          periodSeconds: 5

五、持续交付流水线

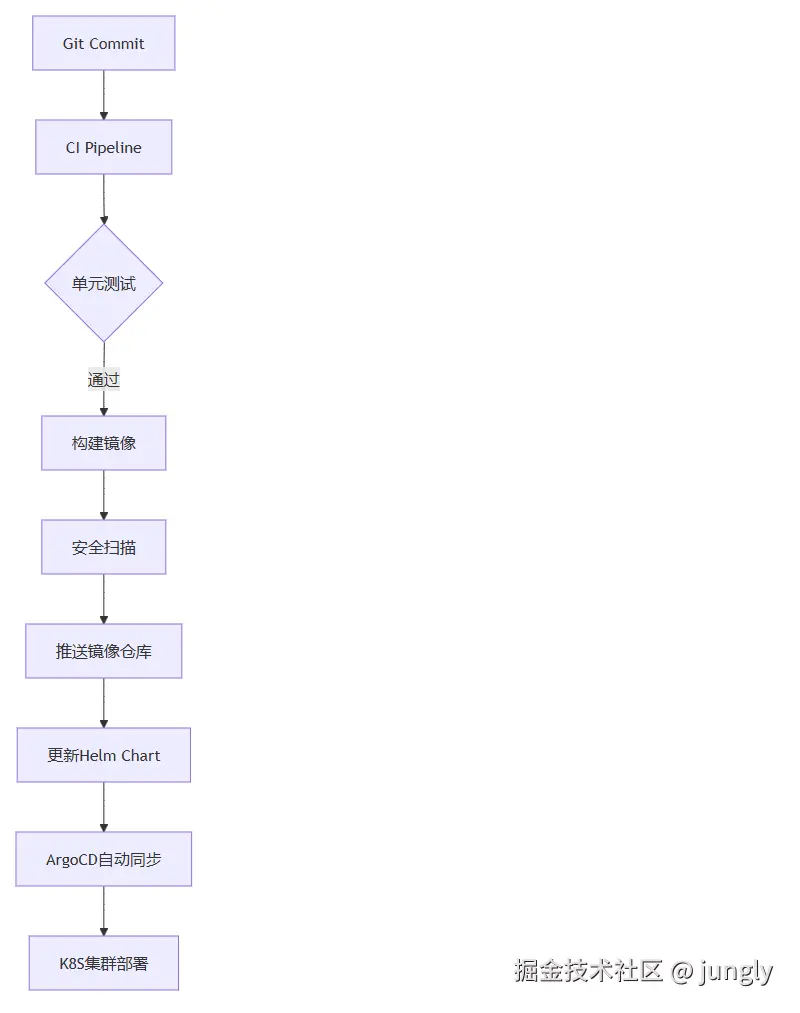

1. GitOps架构设计

%% RocketMQ事务消息流程图（Mermaid）.png

2. 镜像构建优化策略

dockerfile

复制

# 多阶段构建Dockerfile
FROM eclipse-temurin:21-jdk-jammy as builder
WORKDIR /app
COPY .mvn .mvn
COPY mvnw .
COPY pom.xml .
COPY src src
RUN ./mvnw clean package -DskipTests

FROM eclipse-temurin:21-jre-jammy
WORKDIR /app
COPY --from=builder /app/target/*.jar app.jar
RUN useradd -ms /bin/bash appuser
USER appuser
EXPOSE 8080 20880
ENTRYPOINT ["java","-jar","/app.jar"]

六、监控与可观测性

1. Prometheus监控配置

# dubbo-monitor.yaml
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: dubbo-monitor
  namespace: monitoring
spec:
  selector:
    matchLabels:
      app: dubbo-service
  endpoints:
  - port: metrics
    interval: 15s
    path: /metrics
  namespaceSelector:
    matchNames:
    - cloud-native

2. Grafana监控面板示例图

%% RocketMQ事务消息流程图（Mermaid）.png

七、安全加固方案

1. 网络策略配置

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: dubbo-network-policy
  namespace: cloud-native
spec:
  podSelector:
    matchLabels:
      app.kubernetes.io/component: dubbo-service
  policyTypes:
  - Ingress
  ingress:
  - from:
    - namespaceSelector:
        matchLabels:
          project: cloud-native
    ports:
    - protocol: TCP
      port: 20880
    - protocol: TCP
      port: 8080

2. 敏感信息管理

# 创建数据库Secret
kubectl create secret generic mysql-secret \
  --namespace cloud-native \
  --from-literal=root-password='S3cur3P@ssw0rd!' \
  --dry-run=client -o yaml | kubectl apply -f -

八、最佳实践与优化建议

服务网格集成：
- 使用Istio实现细粒度流量管理
- 启用mTLS实现服务间通信加密
- 通过Envoy实现API级监控
JVM调优参数：

# 容器JVM参数配置
env:
- name: JAVA_TOOL_OPTIONS
  value: >
    -XX:+UseZGC
    -Xms1024m
    -Xmx1024m
    -XX:MaxRAMPercentage=75
    -Djava.security.egd=file:/dev/./urandom

弹性伸缩策略：

apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: user-service-hpa
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: user-service
  minReplicas: 2
  maxReplicas: 10
  metrics:
  - type: Resource
    resource:
      name: cpu
      target:
        type: Utilization
        averageUtilization: 60
  - type: Pods
    pods:
      metric:
        name: dubbo_requests_per_second
      target:
        type: AverageValue
        averageValue: 100

本方案实现了从代码开发到生产部署的完整云原生技术闭环，建议在实际落地过程中重点关注以下方面：

渐进式交付：采用蓝绿部署策略降低发布风险
混沌工程：定期进行故障注入测试
成本优化：使用Cluster Autoscaler实现节点自动扩缩
日志审计：集成EFK实现全链路日志追踪
安全合规：定期进行镜像漏洞扫描和运行时安全检测
