Docker 部署 Minio 集群

Backgroud

Minio 有单节点、集群两种部署方式

单节点多硬盘利用数据冗余实现数据可靠性，但单节点不具备高可用

集群一般推荐至少 4 节点 + 4 硬盘，即每节点 1 块硬盘，最多支持两节点故障

Docker Compose 部署

在单机上启 4 个 Minio 容器模拟多节点部署

http://minio{1...4}:9000/data 中 minio{1...4} 表示 4 个节点的 hostname，/data 表示磁盘

每个节点有多块磁盘时，可以使用 /data{1...2}

version: "3.8"

services:
  minio1:
    image: minio/minio:RELEASE.2024-07-04T14-25-45Z
    hostname: minio1
    restart: on-failure
    ports:
      - "9002:9000"
      - "9003:9001"
    volumes:
      - /etc/timezone:/etc/timezone:ro
      - /etc/localtime:/etc/localtime:ro
      - /minio01-data:/data
    environment:
      - MINIO_ROOT_USER=minio
      - MINIO_ROOT_PASSWORD=miniopass123
    command:
      - server
      - http://minio{1...4}:9000/data
      - --address
      - ":9000"
      - --console-address
      - ":9001"

  minio2:
    image: minio/minio:RELEASE.2024-07-04T14-25-45Z
    hostname: minio2
    restart: on-failure
    ports:
      - "9004:9000"
      - "9005:9001"
    volumes:
      - /etc/timezone:/etc/timezone:ro
      - /etc/localtime:/etc/localtime:ro
      - /minio02-data:/data
    environment:
      - MINIO_ROOT_USER=minio
      - MINIO_ROOT_PASSWORD=miniopass123
    command:
      - server
      - http://minio{1...4}:9000/data
      - --address
      - ":9000"
      - --console-address
      - ":9001"

  minio3:
    image: minio/minio:RELEASE.2024-07-04T14-25-45Z
    hostname: minio3
    restart: on-failure
    ports:
      - "9006:9000"
      - "9007:9001"
    volumes:
      - /etc/timezone:/etc/timezone:ro
      - /etc/localtime:/etc/localtime:ro
      - /minio03-data:/data
    environment:
      - MINIO_ROOT_USER=minio
      - MINIO_ROOT_PASSWORD=miniopass123
    command:
      - server
      - http://minio{1...4}:9000/data
      - --address
      - ":9000"
      - --console-address
      - ":9001"

  minio4:
    image: minio/minio:RELEASE.2024-07-04T14-25-45Z
    hostname: minio4
    restart: on-failure
    ports:
      - "9008:9000"
      - "9009:9001"
    volumes:
      - /etc/timezone:/etc/timezone:ro
      - /etc/localtime:/etc/localtime:ro
      - /minio04-data:/data
    environment:
      - MINIO_ROOT_USER=minio
      - MINIO_ROOT_PASSWORD=miniopass123
    command:
      - server
      - http://minio{1...4}:9000/data
      - --address
      - ":9000"
      - --console-address
      - ":9001"

启动容器，登录任意一个节点的 console-address

docker compose up -d

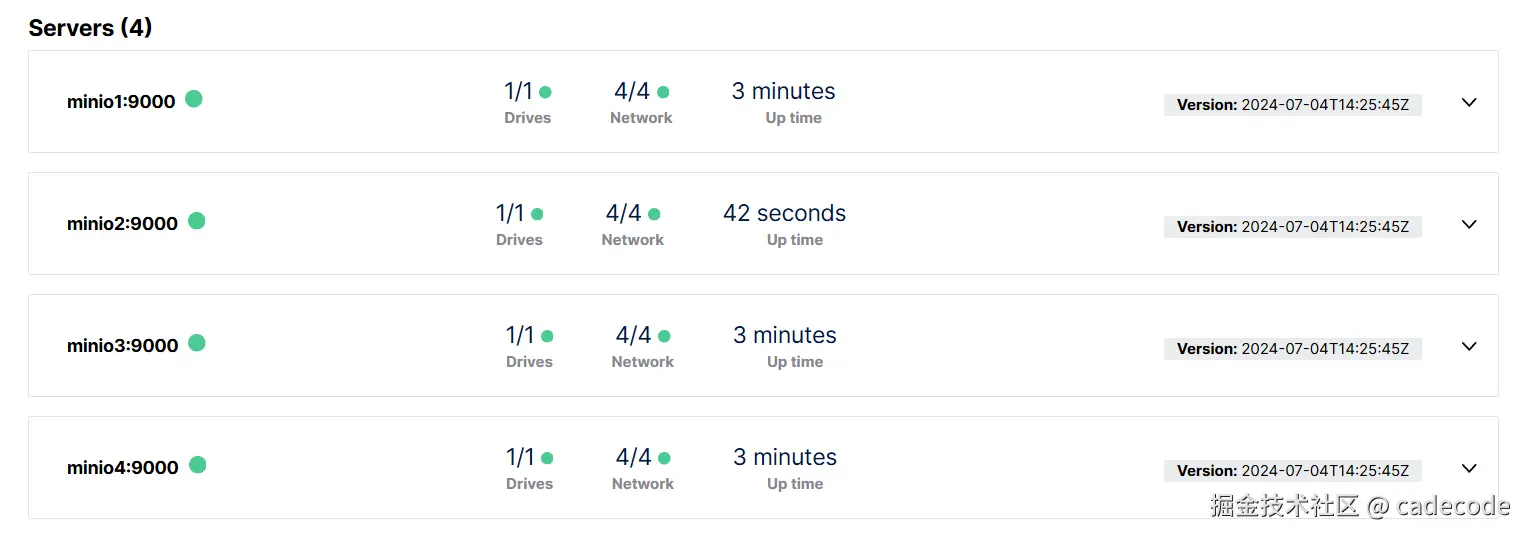

进入 Monitoring 查看节点和磁盘状态
