背景
在微服务架构中，日志的完整性和可读性是排查问题的关键。传统日志框架（如Log4j2）默认会输出异常的全部堆栈信息，但在高并发或复杂调用链路场景下，这会导致以下问题：
- 日志冗余：一次请求产生的完整堆栈可能包含数百行，增加存储和分析成本；
- 信息过载：开发人员需手动筛选关键堆栈节点，一般只关注最底部的
Cause By，影响排查效率； - 线程安全：异步线程池中，堆栈信息可能因线程复用而断裂。
因此，需要一个 log4j2 插件来解决这些问题。
目标
设计一个轻量级插件，实现异常堆栈倒排，压缩日志内容，零侵入配置。
实现
使用 Log4j2 插件提供的扩展点 LogEventPatternConverter 进行实现。
倒排堆栈
在 LogEventPatternConverter 提供的 format 方法扩展格式化日志输出。
@Override
public void format(LogEvent event, StringBuilder output) {
Throwable throwable = event.getThrown();
if (throwable != null) {
ForwardCounter counter = new ForwardCounter();
output.append("\n");
recursiveReversePrint(throwable, output, counter); // 倒排
}
}
private void recursiveReversePrint(Throwable throwable, StringBuilder output,
ForwardCounter counter) {
if (throwable == null || counter.value >= causeDepth) {
return;
}
if (throwable.getCause() != null) {
recursiveReversePrint(throwable.getCause(), output, counter);
}
if (counter.value++ < causeDepth) {
printSingleStack(throwable, output);
}
}
private void printSingleStack(Throwable throwable, StringBuilder output) {
output.append(reduceClassName(throwable.getClass().getName()))
.append(": ")
.append(throwable.getMessage())
.append("\n");
StackTraceElement[] stack = throwable.getStackTrace();
for (int i = 0; i < Math.min(stackDepth, stack.length); i++) {
output.append("\tat ")
.append(formatStackElement(stack[i])) // 压缩堆栈信息，下文会提及到
.append("\n");
}
if (stack.length > stackDepth) {
output.append("\t... ").append(stack.length - stackDepth)
.append(" more\n");
}
}
压缩内容
将 package 进行压缩，截取首字母，例如 org.ylzl.framework.extension 压缩为 o.y.f.e。
private static String formatStackElement(StackTraceElement element) {
return reduceClassName(element.getClassName()) +
"#" + element.getMethodName() +
":" + element.getLineNumber();
}
private static String reduceClassName(String className) {
String[] parts = className.split("\\.");
StringBuilder sb = new StringBuilder();
for (int i = 0; i < parts.length - 1; i++) {
sb.append(parts[i].charAt(0)).append('.');
}
sb.append(parts[parts.length - 1]);
return sb.toString();
}
好，看不懂没关系，这里直接上完整的代码。
@Plugin(name = "StackTraceConverter", category = PatternConverter.CATEGORY)
@ConverterKeys({"st", "stacktrace"})
public class StackTraceConverter extends LogEventPatternConverter {
private static final int DEFAULT_CAUSE_DEPTH = 3;
private static final int DEFAULT_STACK_DEPTH = 5;
/** Cause by 深度 */
private final int causeDepth;
/** 堆栈深度 */
private final int stackDepth;
public StackTraceConverter(int causeDepth, int stackDepth) {
super("StackTrace", "stacktrace");
this.causeDepth = causeDepth > 0 ? causeDepth : DEFAULT_CAUSE_DEPTH;
this.stackDepth = stackDepth > 0 ? stackDepth : DEFAULT_STACK_DEPTH;
}
public static StackTraceConverter newInstance(String[] options) {
int causeDepth = parseOption(options, 0, DEFAULT_CAUSE_DEPTH);
int stackDepth = parseOption(options, 1, DEFAULT_STACK_DEPTH);
return new StackTraceConverter(causeDepth, stackDepth);
}
private static int parseOption(String[] options, int index, int defaultValue) {
try {
if (options != null && options.length > index) {
return Integer.parseInt(options[index]);
}
} catch (NumberFormatException ignored) {
}
return defaultValue;
}
@Override
public void format(LogEvent event, StringBuilder output) {
Throwable throwable = event.getThrown();
if (throwable != null) {
ForwardCounter counter = new ForwardCounter();
output.append("\n");
recursiveReversePrint(throwable, output, counter);
}
}
private void recursiveReversePrint(Throwable throwable, StringBuilder output,
ForwardCounter counter) {
if (throwable == null || counter.value >= causeDepth) {
return;
}
if (throwable.getCause() != null) {
recursiveReversePrint(throwable.getCause(), output, counter);
}
if (counter.value++ < causeDepth) {
printSingleStack(throwable, output);
}
}
private void printSingleStack(Throwable throwable, StringBuilder output) {
output.append(reduceClassName(throwable.getClass().getName()))
.append(": ")
.append(throwable.getMessage())
.append("\n");
StackTraceElement[] stack = throwable.getStackTrace();
for (int i = 0; i < Math.min(stackDepth, stack.length); i++) {
output.append("\tat ")
.append(formatStackElement(stack[i]))
.append("\n");
}
if (stack.length > stackDepth) {
output.append("\t... ").append(stack.length - stackDepth)
.append(" more\n");
}
}
private static String formatStackElement(StackTraceElement element) {
return reduceClassName(element.getClassName()) +
"#" + element.getMethodName() +
":" + element.getLineNumber();
}
private static String reduceClassName(String className) {
String[] parts = className.split("\\.");
StringBuilder sb = new StringBuilder();
for (int i = 0; i < parts.length - 1; i++) {
sb.append(parts[i].charAt(0)).append('.');
}
sb.append(parts[parts.length - 1]);
return sb.toString();
}
private static class ForwardCounter {
private int value = 0;
}
}
其中，@ConverterKeys({"st", "stacktrace"}) 这一行用于配置 log4j2 配置文件的占位符。
例如，我们的 log4j2.yml 文件如下。
Configuration:
status: WARN
monitorInterval: 30
Properties:
Property:
- name: APP_NAME
value: $${spring:spring.application.name:-eden-demo-cola}
- name: PROFILES
value: $${spring:spring.profiles.active}
- name: LOG_PATH
value: $${spring:logging.file.path:-/app/logs}
- name: LOG_PATTERN
value: "%d{yyyy-MM-dd HH:mm:ss.SSS} %-5level [${PROFILES}] [%t] [%X{traceId}] %msg%n%throwable"
Appenders:
Console:
name: STDOUT
target: SYSTEM_OUT
PatternLayout:
pattern: ${LOG_PATTERN}
Filters:
ThresholdFilter:
level: INFO
onMatch: ACCEPT
onMismatch: DENY
BurstFilter:
level: INFO
rate: 1000
maxBurst: 10000
Loggers:
Root:
level: INFO
includeLocation: false
AppenderRef:
- ref: STDOUT
将 %throwable 替换为 %stacktrace{3,5}，表示对象的堆栈进行倒排，Cause by 的深度为 3，栈的深度为 5。关于 3 和 5 这个数值，只是笔者的个人经验，您可以按需调整。
Configuration:
status: WARN
monitorInterval: 30
Properties:
Property:
- name: LOG_PATTERN
value: "%d{yyyy-MM-dd HH:mm:ss.SSS} %-5level [${PROFILES}] [%t] [%X{traceId}] %msg%n%stacktrace{3,5}"

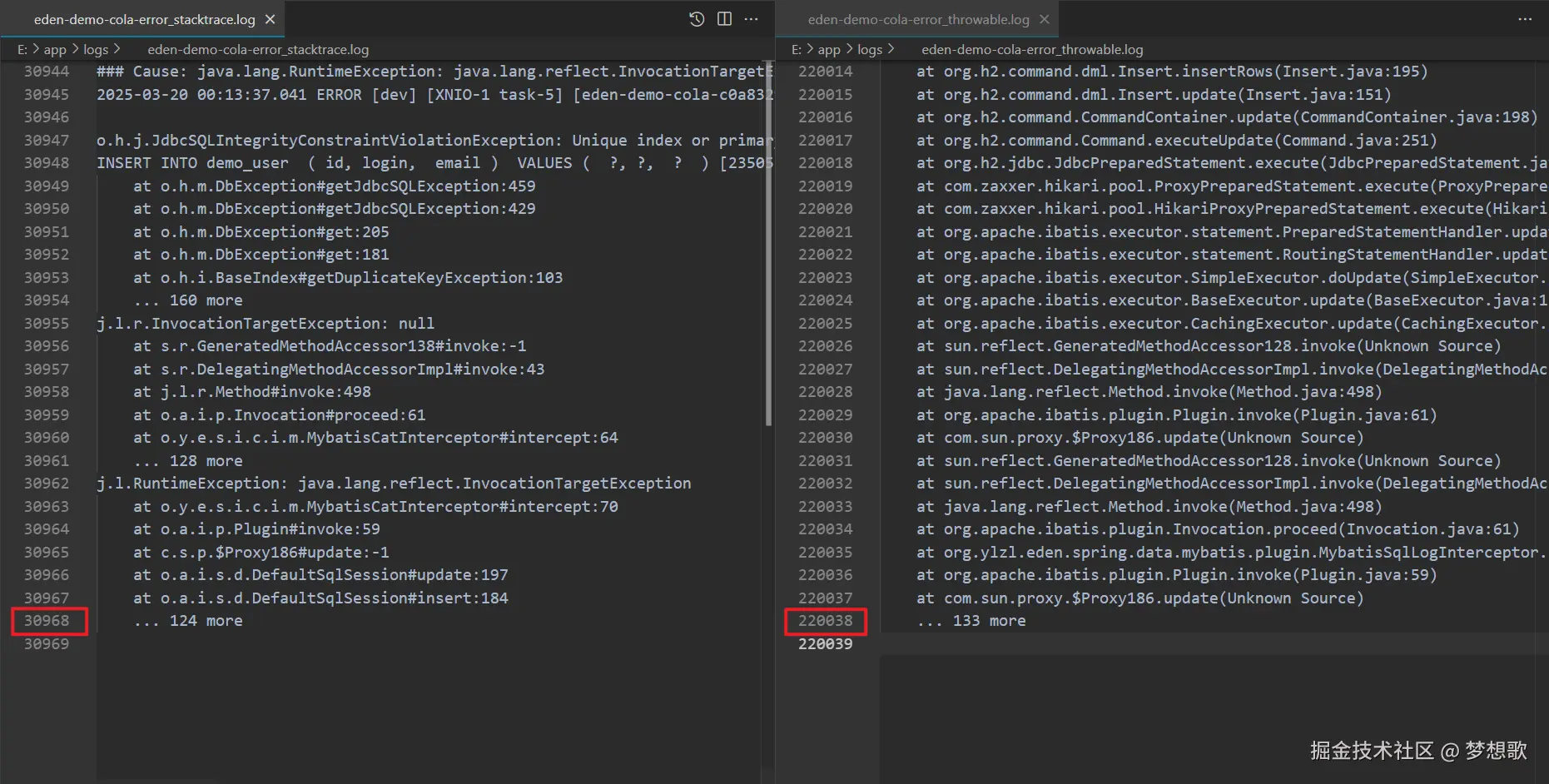

效果验证

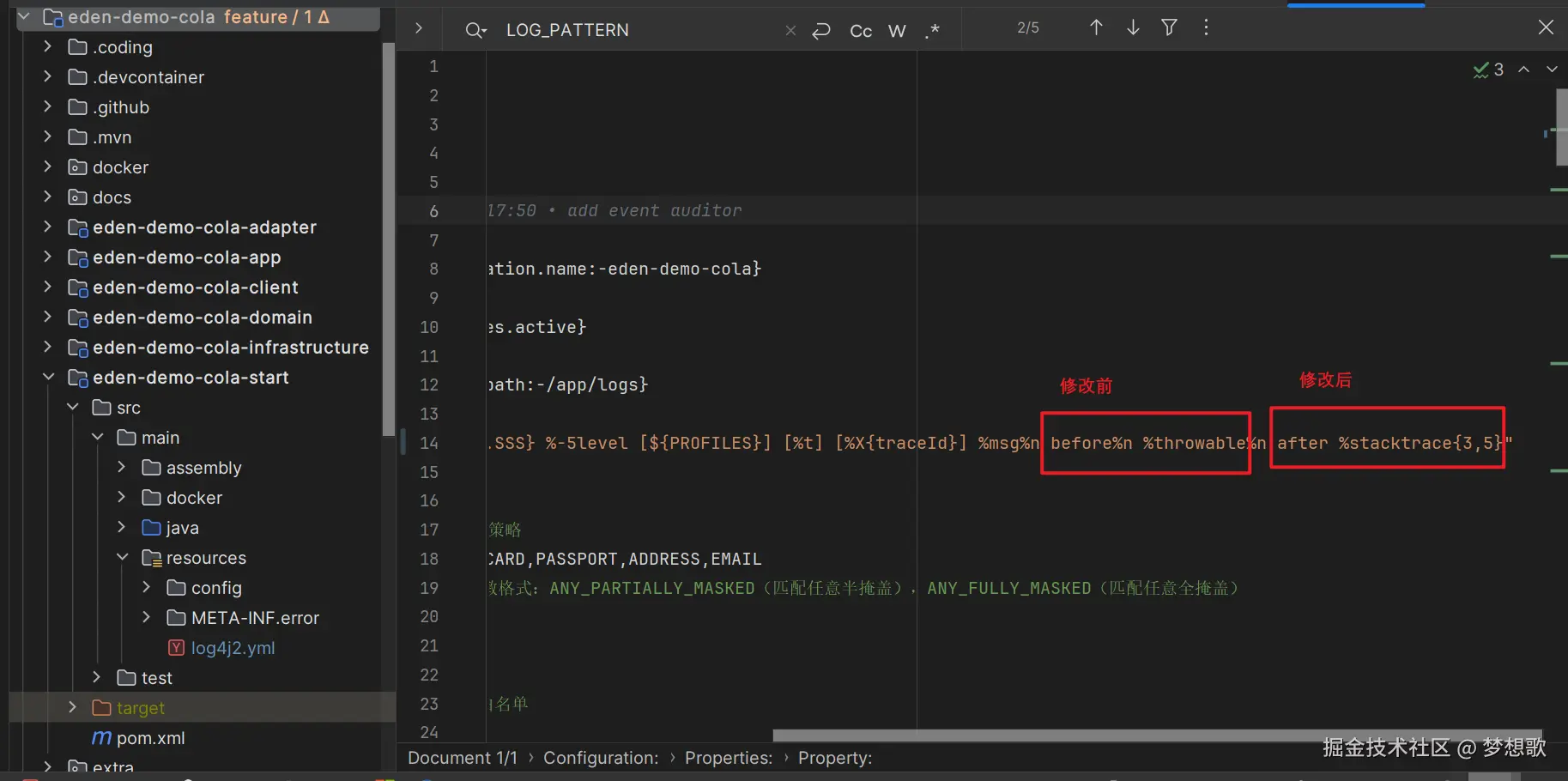

笔者在 log4j2.yaml 的 pattern 设置了 before%n%throwable%nafter%n%stacktrace{3,5}，将默认的 %throwable 和优化后的 %stacktrace{3,5} 进行对比，如下。
发起一次请求测试日志输出情况。
优化前的 %throwable 日志输出如下，累计 193 行。
org.mybatis.spring.MyBatisSystemException: nested exception is org.apache.ibatis.exceptions.PersistenceException:
### Error updating database. Cause: java.lang.RuntimeException: java.lang.reflect.InvocationTargetException
### The error may involve org.ylzl.eden.demo.infrastructure.user.database.UserMapper.insert-Inline
### The error occurred while setting parameters
### SQL: INSERT INTO demo_user ( id, login, email ) VALUES ( ?, ?, ? )
### Cause: java.lang.RuntimeException: java.lang.reflect.InvocationTargetException
at org.mybatis.spring.MyBatisExceptionTranslator.translateExceptionIfPossible(MyBatisExceptionTranslator.java:97)
at org.mybatis.spring.SqlSessionTemplate$SqlSessionInterceptor.invoke(SqlSessionTemplate.java:439)
at com.sun.proxy.$Proxy148.insert(Unknown Source)
at org.mybatis.spring.SqlSessionTemplate.insert(SqlSessionTemplate.java:272)
at com.baomidou.mybatisplus.core.override.MybatisMapperMethod.execute(MybatisMapperMethod.java:59)
at com.baomidou.mybatisplus.core.override.MybatisMapperProxy$PlainMethodInvoker.invoke(MybatisMapperProxy.java:152)
at com.baomidou.mybatisplus.core.override.MybatisMapperProxy.invoke(MybatisMapperProxy.java:89)
at com.sun.proxy.$Proxy149.insert(Unknown Source)
at org.ylzl.eden.demo.infrastructure.user.gateway.UserGatewayImpl.save(UserGatewayImpl.java:49)
at org.ylzl.eden.demo.infrastructure.user.gateway.UserGatewayImpl$$FastClassBySpringCGLIB$$d8b0b6f3.invoke(<generated>)
at org.springframework.cglib.proxy.MethodProxy.invoke(MethodProxy.java:218)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.invokeJoinpoint(CglibAopProxy.java:783)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:163)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:753)
at org.springframework.dao.support.PersistenceExceptionTranslationInterceptor.invoke(PersistenceExceptionTranslationInterceptor.java:137)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:753)
at org.springframework.aop.framework.CglibAopProxy$DynamicAdvisedInterceptor.intercept(CglibAopProxy.java:698)
at org.ylzl.eden.demo.infrastructure.user.gateway.UserGatewayImpl$$EnhancerBySpringCGLIB$$f587547c.save(<generated>)
at org.ylzl.eden.demo.app.user.executor.command.UserAddCmdExe.execute(UserAddCmdExe.java:45)
at org.ylzl.eden.demo.app.user.service.UserServiceImpl.createUser(UserServiceImpl.java:69)
at org.ylzl.eden.demo.app.user.service.UserServiceImpl$$FastClassBySpringCGLIB$$f054739f.invoke(<generated>)
at org.springframework.cglib.proxy.MethodProxy.invoke(MethodProxy.java:218)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.invokeJoinpoint(CglibAopProxy.java:783)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:163)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:753)
at org.springframework.transaction.interceptor.TransactionInterceptor$1.proceedWithInvocation(TransactionInterceptor.java:123)
at org.springframework.transaction.interceptor.TransactionAspectSupport.invokeWithinTransaction(TransactionAspectSupport.java:388)
at org.springframework.transaction.interceptor.TransactionInterceptor.invoke(TransactionInterceptor.java:119)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:753)
at org.springframework.aop.framework.CglibAopProxy$DynamicAdvisedInterceptor.intercept(CglibAopProxy.java:698)
at org.ylzl.eden.demo.app.user.service.UserServiceImpl$$EnhancerBySpringCGLIB$$ab23bab3.createUser(<generated>)
at org.ylzl.eden.demo.adapter.user.web.UserController.createUser(UserController.java:58)
at org.ylzl.eden.demo.adapter.user.web.UserController$$FastClassBySpringCGLIB$$3ab5b0e1.invoke(<generated>)
at org.springframework.cglib.proxy.MethodProxy.invoke(MethodProxy.java:218)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.invokeJoinpoint(CglibAopProxy.java:783)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:163)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:753)
at org.ylzl.eden.spring.framework.logging.access.aop.AccessLogInterceptor.invoke(AccessLogInterceptor.java:66)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:753)
at org.springframework.aop.interceptor.ExposeInvocationInterceptor.invoke(ExposeInvocationInterceptor.java:97)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
at org.springframework.aop.framework.CglibAopProxy$CglibMethodInvocation.proceed(CglibAopProxy.java:753)
at org.springframework.aop.framework.CglibAopProxy$DynamicAdvisedInterceptor.intercept(CglibAopProxy.java:698)
at org.ylzl.eden.demo.adapter.user.web.UserController$$EnhancerBySpringCGLIB$$64eb74d9.createUser(<generated>)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.springframework.web.method.support.InvocableHandlerMethod.doInvoke(InvocableHandlerMethod.java:205)
at org.springframework.web.method.support.InvocableHandlerMethod.invokeForRequest(InvocableHandlerMethod.java:150)
at org.springframework.web.servlet.mvc.method.annotation.ServletInvocableHandlerMethod.invokeAndHandle(ServletInvocableHandlerMethod.java:117)
at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.invokeHandlerMethod(RequestMappingHandlerAdapter.java:895)
at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.handleInternal(RequestMappingHandlerAdapter.java:808)
at org.springframework.web.servlet.mvc.method.AbstractHandlerMethodAdapter.handle(AbstractHandlerMethodAdapter.java:87)
at org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:1067)
at org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:963)
at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:1006)
at org.springframework.web.servlet.FrameworkServlet.doPost(FrameworkServlet.java:909)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:517)
at org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:883)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:584)
at io.undertow.servlet.handlers.ServletHandler.handleRequest(ServletHandler.java:74)
at io.undertow.servlet.handlers.FilterHandler$FilterChainImpl.doFilter(FilterHandler.java:129)
at org.ylzl.eden.spring.framework.logging.bootstrap.filter.BootstrapLogHttpFilter.doFilter(BootstrapLogHttpFilter.java:70)
at javax.servlet.http.HttpFilter.doFilter(HttpFilter.java:97)
at io.undertow.servlet.core.ManagedFilter.doFilter(ManagedFilter.java:61)
at io.undertow.servlet.handlers.FilterHandler$FilterChainImpl.doFilter(FilterHandler.java:131)
at org.ylzl.eden.spring.integration.cat.integration.web.HttpCatFilter.logTransaction(HttpCatFilter.java:167)
at org.ylzl.eden.spring.integration.cat.integration.web.HttpCatFilter.doFilter(HttpCatFilter.java:143)
at io.undertow.servlet.core.ManagedFilter.doFilter(ManagedFilter.java:61)
at io.undertow.servlet.handlers.FilterHandler$FilterChainImpl.doFilter(FilterHandler.java:131)
at org.springframework.web.filter.RequestContextFilter.doFilterInternal(RequestContextFilter.java:100)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at io.undertow.servlet.core.ManagedFilter.doFilter(ManagedFilter.java:61)
at io.undertow.servlet.handlers.FilterHandler$FilterChainImpl.doFilter(FilterHandler.java:131)
at org.springframework.web.filter.FormContentFilter.doFilterInternal(FormContentFilter.java:93)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at io.undertow.servlet.core.ManagedFilter.doFilter(ManagedFilter.java:61)
at io.undertow.servlet.handlers.FilterHandler$FilterChainImpl.doFilter(FilterHandler.java:131)
at org.springframework.boot.actuate.metrics.web.servlet.WebMvcMetricsFilter.doFilterInternal(WebMvcMetricsFilter.java:97)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at io.undertow.servlet.core.ManagedFilter.doFilter(ManagedFilter.java:61)
at io.undertow.servlet.handlers.FilterHandler$FilterChainImpl.doFilter(FilterHandler.java:131)
at org.springframework.web.filter.CharacterEncodingFilter.doFilterInternal(CharacterEncodingFilter.java:201)
at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:119)
at io.undertow.servlet.core.ManagedFilter.doFilter(ManagedFilter.java:61)
at io.undertow.servlet.handlers.FilterHandler$FilterChainImpl.doFilter(FilterHandler.java:131)
at io.undertow.servlet.handlers.FilterHandler.handleRequest(FilterHandler.java:84)
at io.undertow.servlet.handlers.security.ServletSecurityRoleHandler.handleRequest(ServletSecurityRoleHandler.java:62)
at io.undertow.servlet.handlers.ServletChain$1.handleRequest(ServletChain.java:68)
at io.undertow.servlet.handlers.ServletDispatchingHandler.handleRequest(ServletDispatchingHandler.java:36)
at io.undertow.servlet.handlers.RedirectDirHandler.handleRequest(RedirectDirHandler.java:68)
at io.undertow.servlet.handlers.security.SSLInformationAssociationHandler.handleRequest(SSLInformationAssociationHandler.java:117)
at io.undertow.servlet.handlers.security.ServletAuthenticationCallHandler.handleRequest(ServletAuthenticationCallHandler.java:57)
at io.undertow.server.handlers.PredicateHandler.handleRequest(PredicateHandler.java:43)
at io.undertow.security.handlers.AbstractConfidentialityHandler.handleRequest(AbstractConfidentialityHandler.java:46)
at io.undertow.servlet.handlers.security.ServletConfidentialityConstraintHandler.handleRequest(ServletConfidentialityConstraintHandler.java:64)
at io.undertow.security.handlers.AuthenticationMechanismsHandler.handleRequest(AuthenticationMechanismsHandler.java:60)
at io.undertow.servlet.handlers.security.CachedAuthenticatedSessionHandler.handleRequest(CachedAuthenticatedSessionHandler.java:77)
at io.undertow.security.handlers.AbstractSecurityContextAssociationHandler.handleRequest(AbstractSecurityContextAssociationHandler.java:43)
at io.undertow.server.handlers.PredicateHandler.handleRequest(PredicateHandler.java:43)
at io.undertow.servlet.handlers.SendErrorPageHandler.handleRequest(SendErrorPageHandler.java:52)
at io.undertow.server.handlers.PredicateHandler.handleRequest(PredicateHandler.java:43)
at io.undertow.servlet.handlers.ServletInitialHandler.handleFirstRequest(ServletInitialHandler.java:280)
at io.undertow.servlet.handlers.ServletInitialHandler.access$100(ServletInitialHandler.java:79)
at io.undertow.servlet.handlers.ServletInitialHandler$2.call(ServletInitialHandler.java:134)
at io.undertow.servlet.handlers.ServletInitialHandler$2.call(ServletInitialHandler.java:131)
at io.undertow.servlet.core.ServletRequestContextThreadSetupAction$1.call(ServletRequestContextThreadSetupAction.java:48)
at io.undertow.servlet.core.ContextClassLoaderSetupAction$1.call(ContextClassLoaderSetupAction.java:43)
at io.undertow.servlet.handlers.ServletInitialHandler.dispatchRequest(ServletInitialHandler.java:260)
at io.undertow.servlet.handlers.ServletInitialHandler.access$000(ServletInitialHandler.java:79)
at io.undertow.servlet.handlers.ServletInitialHandler$1.handleRequest(ServletInitialHandler.java:100)
at io.undertow.server.Connectors.executeRootHandler(Connectors.java:387)
at io.undertow.server.HttpServerExchange$1.run(HttpServerExchange.java:852)
at org.jboss.threads.ContextClassLoaderSavingRunnable.run(ContextClassLoaderSavingRunnable.java:35)
at org.jboss.threads.EnhancedQueueExecutor.safeRun(EnhancedQueueExecutor.java:2019)
at org.jboss.threads.EnhancedQueueExecutor$ThreadBody.doRunTask(EnhancedQueueExecutor.java:1558)
at org.jboss.threads.EnhancedQueueExecutor$ThreadBody.run(EnhancedQueueExecutor.java:1449)
at org.xnio.XnioWorker$WorkerThreadFactory$1$1.run(XnioWorker.java:1280)
at java.lang.Thread.run(Thread.java:748)
Caused by: org.apache.ibatis.exceptions.PersistenceException:
### Error updating database. Cause: java.lang.RuntimeException: java.lang.reflect.InvocationTargetException
### The error may involve org.ylzl.eden.demo.infrastructure.user.database.UserMapper.insert-Inline
### The error occurred while setting parameters
### SQL: INSERT INTO demo_user ( id, login, email ) VALUES ( ?, ?, ? )
### Cause: java.lang.RuntimeException: java.lang.reflect.InvocationTargetException
at org.apache.ibatis.exceptions.ExceptionFactory.wrapException(ExceptionFactory.java:30)
at org.apache.ibatis.session.defaults.DefaultSqlSession.update(DefaultSqlSession.java:199)
at org.apache.ibatis.session.defaults.DefaultSqlSession.insert(DefaultSqlSession.java:184)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.mybatis.spring.SqlSessionTemplate$SqlSessionInterceptor.invoke(SqlSessionTemplate.java:425)
... 121 more
Caused by: java.lang.RuntimeException: java.lang.reflect.InvocationTargetException
at org.ylzl.eden.spring.integration.cat.integration.mybatis.MybatisCatInterceptor.intercept(MybatisCatInterceptor.java:70)
at org.apache.ibatis.plugin.Plugin.invoke(Plugin.java:59)
at com.sun.proxy.$Proxy185.update(Unknown Source)
at org.apache.ibatis.session.defaults.DefaultSqlSession.update(DefaultSqlSession.java:197)
... 127 more
Caused by: java.lang.reflect.InvocationTargetException
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.apache.ibatis.plugin.Invocation.proceed(Invocation.java:61)
at org.ylzl.eden.spring.integration.cat.integration.mybatis.MybatisCatInterceptor.intercept(MybatisCatInterceptor.java:64)
... 130 more
Caused by: org.h2.jdbc.JdbcSQLIntegrityConstraintViolationException: Unique index or primary key violation: "PRIMARY KEY ON PUBLIC.DEMO_USER(ID) [1, 'admin', '{bcrypt}$2a$10$gSAhZrxMllrbgj/kkK9UceBPpChGWJA7SYIb1Mqo.n5aNLq1/oRrC', '1813******@qq.com|FCBD1399F72052DCB729247191079CFC', TRUE, FALSE, 'zh-cn', NULL, NULL, NULL, 'system', TIMESTAMP '2025-03-19 17:07:31.328', 'system', NULL]"; SQL statement:
INSERT INTO demo_user ( id, login, email ) VALUES ( ?, ?, ? ) [23505-200]
at org.h2.message.DbException.getJdbcSQLException(DbException.java:459)
at org.h2.message.DbException.getJdbcSQLException(DbException.java:429)
at org.h2.message.DbException.get(DbException.java:205)
at org.h2.message.DbException.get(DbException.java:181)
at org.h2.mvstore.db.MVPrimaryIndex.add(MVPrimaryIndex.java:127)
at org.h2.mvstore.db.MVTable.addRow(MVTable.java:531)
at org.h2.command.dml.Insert.insertRows(Insert.java:195)
at org.h2.command.dml.Insert.update(Insert.java:151)
at org.h2.command.CommandContainer.update(CommandContainer.java:198)
at org.h2.command.Command.executeUpdate(Command.java:251)
at org.h2.jdbc.JdbcPreparedStatement.execute(JdbcPreparedStatement.java:240)
at com.zaxxer.hikari.pool.ProxyPreparedStatement.execute(ProxyPreparedStatement.java:44)
at com.zaxxer.hikari.pool.HikariProxyPreparedStatement.execute(HikariProxyPreparedStatement.java)
at org.apache.ibatis.executor.statement.PreparedStatementHandler.update(PreparedStatementHandler.java:48)
at org.apache.ibatis.executor.statement.RoutingStatementHandler.update(RoutingStatementHandler.java:75)
at org.apache.ibatis.executor.SimpleExecutor.doUpdate(SimpleExecutor.java:50)
at org.apache.ibatis.executor.BaseExecutor.update(BaseExecutor.java:117)
at org.apache.ibatis.executor.CachingExecutor.update(CachingExecutor.java:76)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.apache.ibatis.plugin.Plugin.invoke(Plugin.java:61)
at com.sun.proxy.$Proxy185.update(Unknown Source)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.apache.ibatis.plugin.Invocation.proceed(Invocation.java:61)
at org.ylzl.eden.spring.data.mybatis.plugin.MybatisSqlLogInterceptor.intercept(MybatisSqlLogInterceptor.java:64)
at org.apache.ibatis.plugin.Plugin.invoke(Plugin.java:59)
at com.sun.proxy.$Proxy185.update(Unknown Source)
... 136 more
优化后的 %%stacktrace{3,5} 日志输出如下，累计 22 行。基于倒排的优势，在前面几行，我们马上就能定位到 Cause by 原因了。
o.h.j.JdbcSQLIntegrityConstraintViolationException: Unique index or primary key violation: "PRIMARY KEY ON PUBLIC.DEMO_USER(ID) [1, 'admin', '{bcrypt}$2a$10$gSAhZrxMllrbgj/kkK9UceBPpChGWJA7SYIb1Mqo.n5aNLq1/oRrC', '1813******@qq.com|FCBD1399F72052DCB729247191079CFC', TRUE, FALSE, 'zh-cn', NULL, NULL, NULL, 'system', TIMESTAMP '2025-03-19 17:07:31.328', 'system', NULL]"; SQL statement:
INSERT INTO demo_user ( id, login, email ) VALUES ( ?, ?, ? ) [23505-200]
at o.h.m.DbException#getJdbcSQLException:459
at o.h.m.DbException#getJdbcSQLException:429
at o.h.m.DbException#get:205
at o.h.m.DbException#get:181
at o.h.m.d.MVPrimaryIndex#add:127
... 163 more
j.l.r.InvocationTargetException: null
at s.r.NativeMethodAccessorImpl#invoke0:-2
at s.r.NativeMethodAccessorImpl#invoke:62
at s.r.DelegatingMethodAccessorImpl#invoke:43
at j.l.r.Method#invoke:498
at o.a.i.p.Invocation#proceed:61
... 131 more
j.l.RuntimeException: java.lang.reflect.InvocationTargetException
at o.y.e.s.i.c.i.m.MybatisCatInterceptor#intercept:70
at o.a.i.p.Plugin#invoke:59
at c.s.p.$Proxy185#update:-1
at o.a.i.s.d.DefaultSqlSession#update:197
at o.a.i.s.d.DefaultSqlSession#insert:184
... 126 more
现在发起 1000 次请求，可以看到优化前产生了 22W 行，优化前减少到 3W 行。
对应的体积变化，优化前占用 20MB，优化后只占用 2MB，缩减了 10 倍。
产出
本次改动没有任何代码侵入，研发团队只需要在 log4j2.yml 微调 pattern，就可以将日志的占用空间缩减 10 倍，并且，在排查问题只需要关注第一段堆栈的信息，就能定位到业务代码问题。
本文涉及的代码完全开源，感兴趣的伙伴可以查阅 eden-spring-framework 的 StackTraceConverter 类。
