基于docker模拟pod实验

一、环境

• 操作系统：rocky linux
• 内存：4G
• CPU：2核4线程
• 硬盘：100G
• 网卡1：仅主机模式（192.168.64.130）
• 网卡2：NAT模式

二、操作步骤

2.1 系统环境初始化

#修改IP
vi /etc/NetworkManager/system-connections/ens160.nmconnection
[ipv4]
method=manual
address1=192.168.64.130/24

systemctl restart NetworkManager

#更换系统镜像源
sed -e 's|^mirrorlist=|#mirrorlist=|g' -e 's|^#baseurl=http://dl.rockylinux.org/$contentdir|baseurl=https://mirrors.aliyun.com/rockylinux|g' -i.bak /etc/yum.repos.d/rocky*.repo
dnf makecache
systemctl stop firewalld
systemctl disable firewalld
dnf -y install iptables-services
#查看规则
iptables -L
#清空规则
iptables -F
service iptables save
systemctl enable iptables

#关闭selinux
setenforce 0
sed -i "s/SELINUX=enforcing/SELINUX=disabled/g" /etc/selinux/config
grubby --update-kernel ALL --args selinux=0
#查看是否禁用
grubby --info DEFAULT

timedatectl set-timezone Asia/Shanghai

关闭系统，设置快照。

2.2 配置docker环境

yum install -y epel-release
yum install -y bridge-utils

#加载模块，所有经过网桥的流量必须要经过防火墙处理
modprobe br_netfilter
echo 'br_netfilter' >> /etc/modules-load.d/bridge.conf
echo 'net.bridge.bridge-nf-call-iptables=1' >> /etc/sysctl.conf
echo 'net.bridge.bridge-nf-call-ip6tables=1' >> /etc/sysctl.conf
echo 'net.ipv4.ip_forward=1' >> /etc/sysctl.conf
sysctl -p

#替换docker镜像源
mv mv docker-ce.repo docker-ce.repo.bak
yum install -y yum-utils device-mapper-persistent-data lvm2
yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
sed -i 's+download.docker.com+mirrors.aliyun.com/docker-ce+' /etc/yum.repos.d/docker-ce.repo

#安装docker-ce
yum -y install docker-ce

#配置daemon
cat > /etc/docker/daemon.json <<EOF
{
	"default-ipc-mode":"shareable",
	"data-root":"/data/docker",
	"exec-opts":["native.cgroupdriver=systemd"],
	"log-driver":"json-file",
	"log-opts":{
		"max-size":"100m",
		"max-file":"100"
		},
	"insecure-registries":["harbor.xinxainghf.com"],
	"registry-mirrors":["https://docker.m.daocloud.io",
		"https://0dj0t5fb.mirror.aliyuncs.com",
		"https://docker.mirrors.ustc.edu.cn",
		"https://6kx4zyno.mirror.aliyuncs.com",
		"https://registry.docker-cn.com"]
}
EOF

mkdir -p /etc/systemd/system/docker.service.d
systemctl daemon-reload && systemctl restart docker && systemctl enable docker

手动上传pause.tar至/root目录下

docker load -i /root/pause.tar
docker run --name pause -p 8080:80 -d k8s.gcr.io/pause:3.1

#编写nginx的配置文件至/root目录下
cat <<EOF>> /root/nginx.conf
error_log stderr;
events {
	worker_connections 1024;
	}
http {
	access_log /dev/stdout combined;
	server {
		listen 80 default_server;
		server_name example.com www.example.com;

		location / {
			proxy_pass http://127.0.0.1:2368;
			}
		}
	}
EOF

docker run --name nginx -v /root/nginx.conf:/etc/nginx/nginx.conf --net=container:pause --ipc=container:pause --pid=container:pause -d nginx
docker run --name ghost --net=container:pause --ipc=container:pause --pid=container:pause -d ghost:4.48.2

#查看容器运行
[root@localhost ~]# docker ps
CONTAINER ID   IMAGE                  COMMAND                  CREATED             STATUS             PORTS                                     NAMES
a0d09fe4ee01   ghost:4.48.2           "docker-entrypoint.s…"   57 minutes ago      Up 56 minutes                                                ghost
292946d563cf   nginx                  "/docker-entrypoint.…"   58 minutes ago      Up 58 minutes                                                nginx
ce1fa2481edd   k8s.gcr.io/pause:3.1   "/pause"                 About an hour ago   Up About an hour   0.0.0.0:8080->80/tcp, [::]:8080->80/tcp   pause

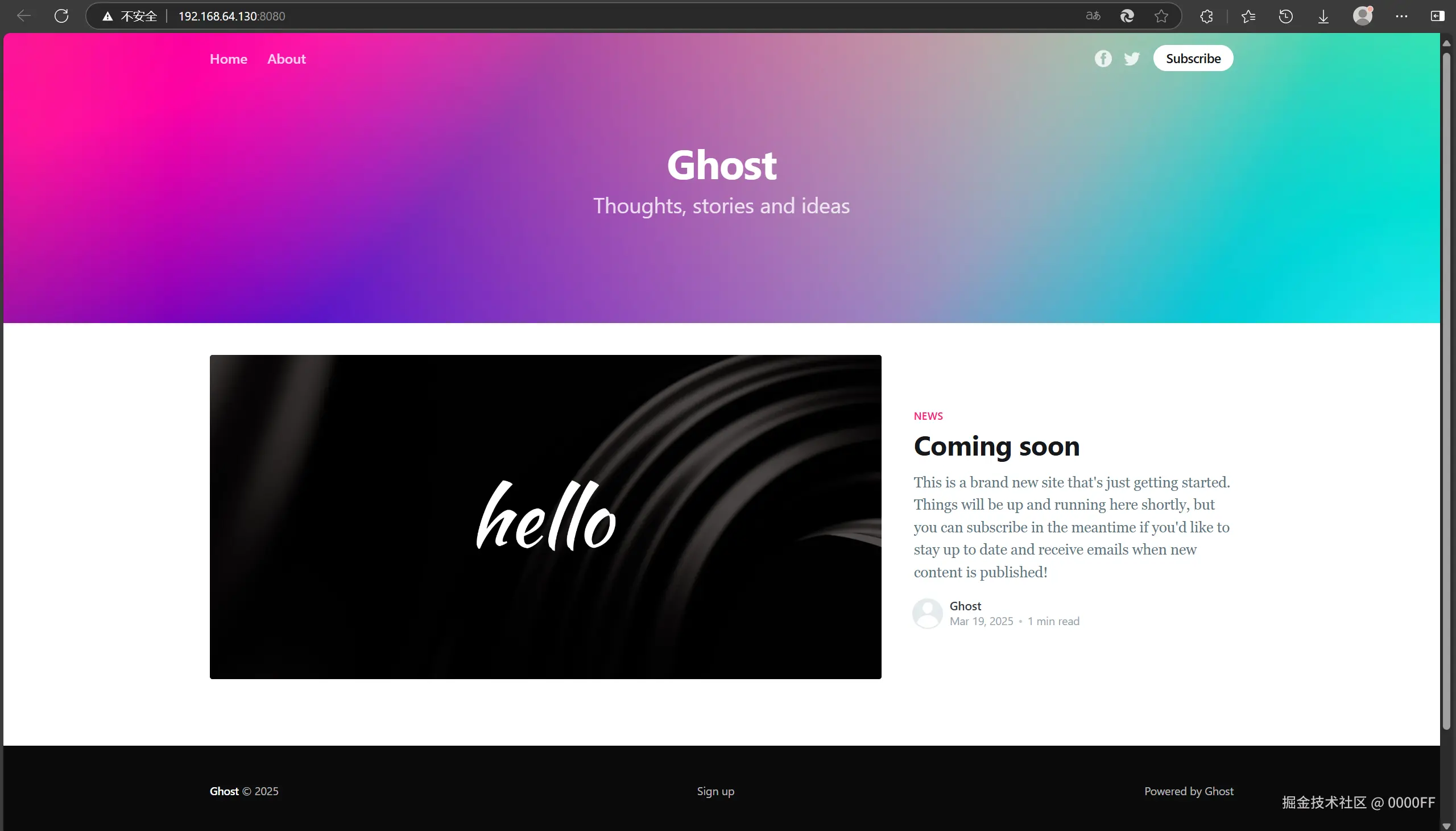

三、结果测试

访问http://192.168.64.130:8080/
