Android U 分屏——SystemUI侧处理

简介

本文主要描述在分屏流程中常出现的方法，如果有没有提及的常用方法，请参考分屏系列相关文章。

WMShell相关的dump命令

手机分屏启动应用后运行命令：adb shell dumpsys activity service SystemUIService WMShell 我们可以找到其中分屏的部分，如下图所示：

分屏的组成

上下分屏简图

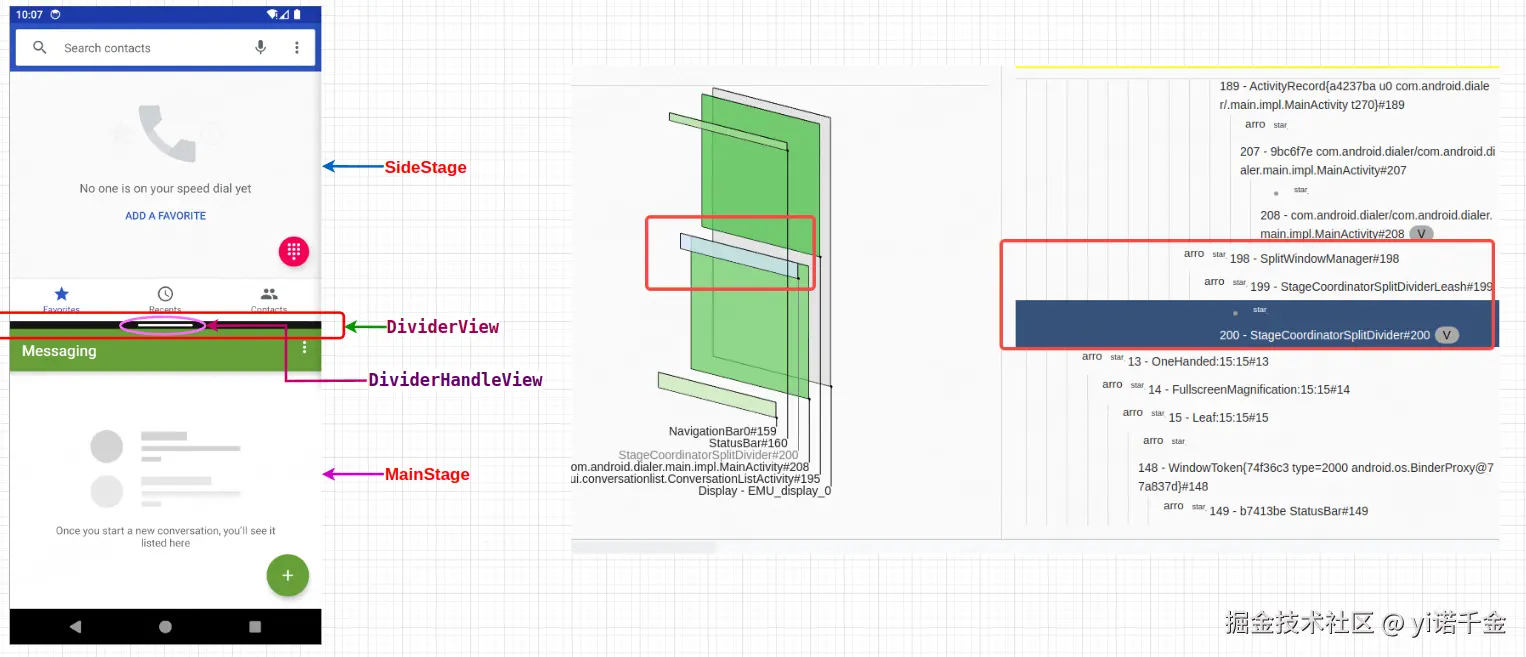

分屏是由上分屏(SideStage)、下分屏(MainStage)以及分割线组成。这里我们主要关注分屏的Stage部分，如下图所示：

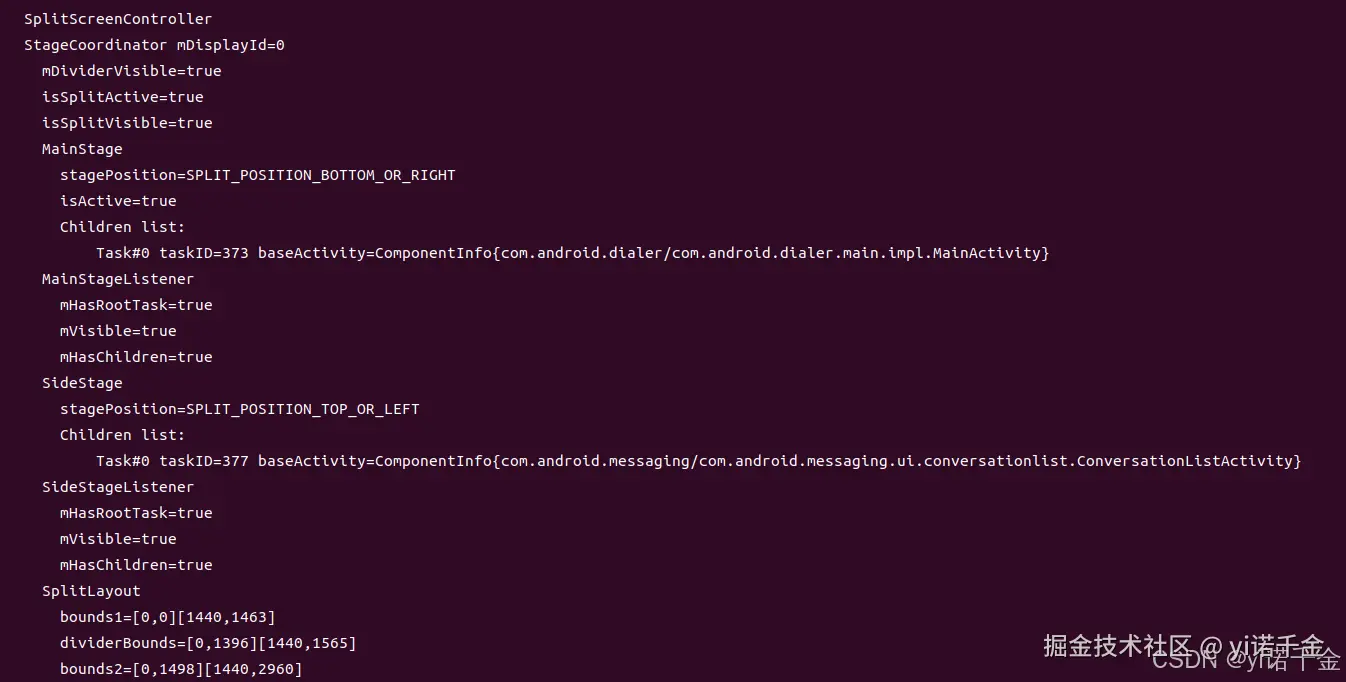

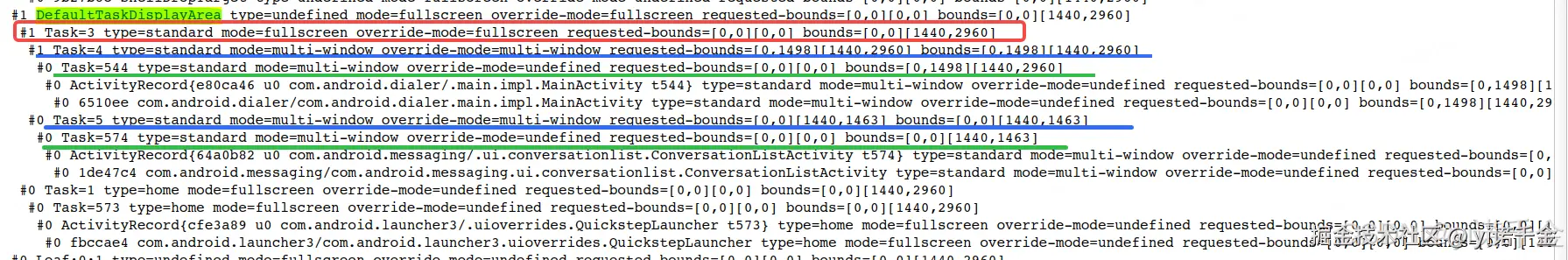

我们这里上分屏是电话，下分屏是短信。 通过adb shell dumpsys activity containers命令可以看层级结构，这里我们看看上下分屏指的是什么 这里Task=331其实就是分屏的RootTask，通过wct.reorder(mRootTaskInfo.token, true);(在system_server进程中)设置的，使其显示到最前面。其下面挂着Task=332(MainStage，下分屏)和Task=333(SideStage，上分屏)，这段代码也就是为了把这两个task下面挂上对应应用的task，即Task=333(SideStage，上分屏)下面挂着应用task=335(电话Task)，Task=332(MainStage，下分屏)下面挂着应用task=334(短信Task) 总之，我们需要分清楚分屏的task和应用的task，不要弄混淆。

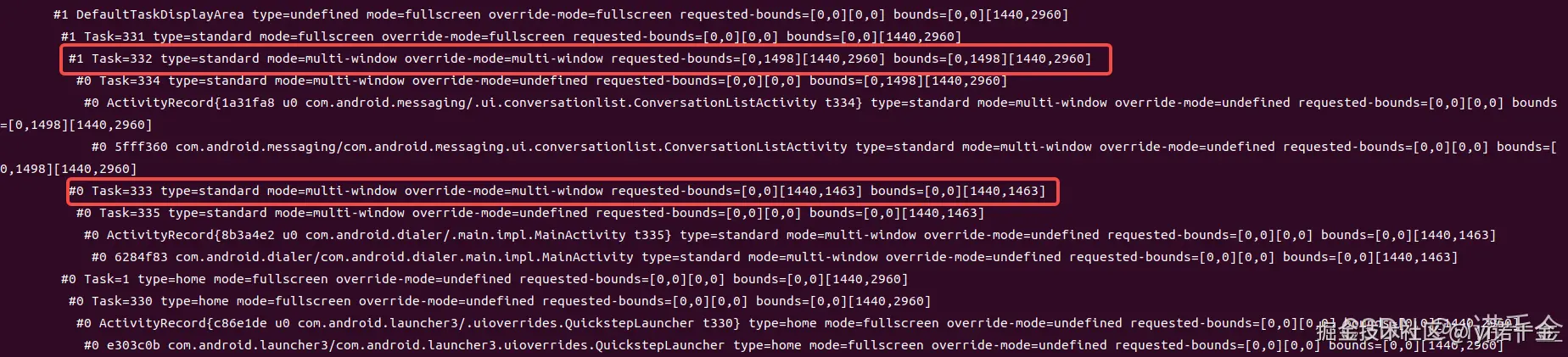

注：在android T(13) 中，上分屏为MainStage，下分屏为SideStage

分屏task的创建与stage的挂载

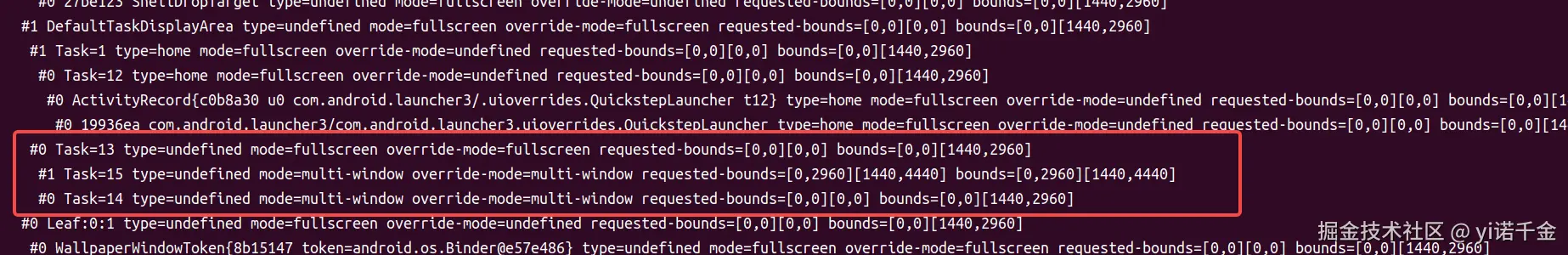

下图为系统刚启动时的层级结构树 分屏的布局会在系统启动之后预留相关task。即图中task=13，因此会触发TaskOrganizer.onTaskAppeared调用到分屏的StageCoordinator.onTaskAppeared方法。而图中的task=15(SideStage，上分屏)和task=14(MainStage，下分屏)，这个两个stage正是在StageCoordinator.onTaskAppeared方法中创建的。

代码路径：frameworks/base/libs/WindowManager/Shell/src/com/android/wm/shell/splitscreen/StageCoordinator.java

    public void onTaskAppeared(ActivityManager.RunningTaskInfo taskInfo, SurfaceControl leash) {
        if (mRootTaskInfo != null || taskInfo.hasParentTask()) {
            throw new IllegalArgumentException(this + "\n Unknown task appeared: " + taskInfo);
        }

        mRootTaskInfo = taskInfo;
        mRootTaskLeash = leash;

        //如果mSplitLayout为空，则初始化分屏布局
        if (mSplitLayout == null) {
            mSplitLayout = new SplitLayout(TAG + "SplitDivider", mContext,
                    mRootTaskInfo.configuration, this, mParentContainerCallbacks,
                    mDisplayController, mDisplayImeController, mTaskOrganizer,
                    PARALLAX_ALIGN_CENTER /* parallaxType */);
            mDisplayInsetsController.addInsetsChangedListener(mDisplayId, mSplitLayout);
        }

        //挂载对应stage到分屏task
        onRootTaskAppeared();
    }

这里mRootTaskInfo就是对应图中task=13，我们再看看onRootTaskAppeared();，该方法主要就是挂载对应stage到分屏task。

    void onRootTaskAppeared() {
        // Wait unit all root tasks appeared.
        if (mRootTaskInfo == null
                || !mMainStageListener.mHasRootTask
                || !mSideStageListener.mHasRootTask) {
            return;
        }

        final WindowContainerTransaction wct = new WindowContainerTransaction();
        wct.reparent(mMainStage.mRootTaskInfo.token, mRootTaskInfo.token, true);
        wct.reparent(mSideStage.mRootTaskInfo.token, mRootTaskInfo.token, true);
        // Make the stages adjacent to each other so they occlude what's behind them.
        wct.setAdjacentRoots(mMainStage.mRootTaskInfo.token, mSideStage.mRootTaskInfo.token);
        wct.setLaunchAdjacentFlagRoot(mSideStage.mRootTaskInfo.token);
        setRootForceTranslucent(true, wct);
        mSplitLayout.getInvisibleBounds(mTempRect1);
        wct.setBounds(mSideStage.mRootTaskInfo.token, mTempRect1);
        mSyncQueue.queue(wct);
        mSyncQueue.runInSync(t -> {
            t.setPosition(mSideStage.mRootLeash, mTempRect1.left, mTempRect1.top);


这里我们主要看这两句

        wct.reparent(mMainStage.mRootTaskInfo.token, mRootTaskInfo.token, true);
        wct.reparent(mSideStage.mRootTaskInfo.token, mRootTaskInfo.token, true);

mMainStage.mRootTaskInfo.token就是task=14(MainStage，下分屏) mSideStage.mRootTaskInfo.token就是task=15(SideStage，上分屏) 把MainStage和SideStage挂载到分屏task上，这里就是我们看到图中task=13下挂载着task=15(SideStage，上分屏)和task=14(MainStage，下分屏)的原因。

分屏的StageCoordinator.onTaskAppeared方法一般情况只会调用一次，除非上图中的分屏Task没了，需要重新创建。

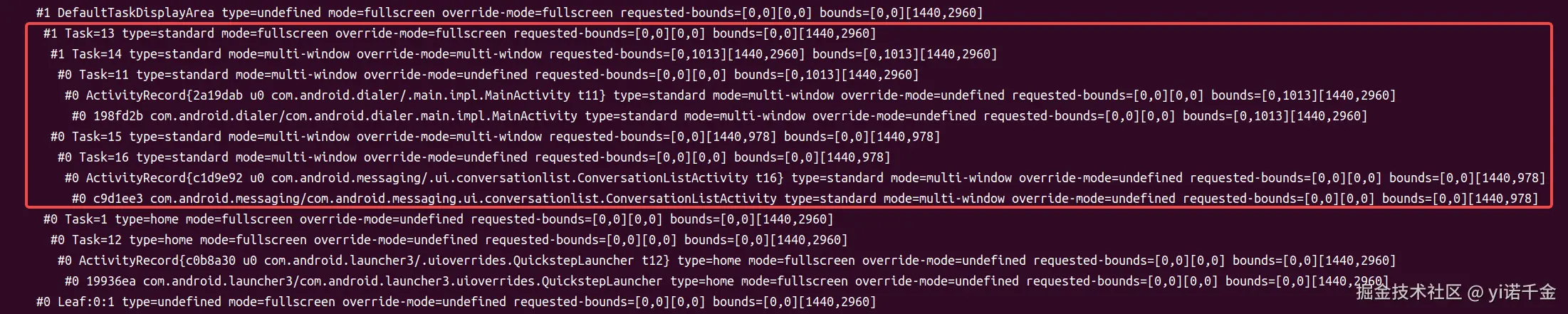

我们分屏之后就加载对应的应用task到了分屏task下面，如图：

stage的创建

在StageCoordinator构造方法中创建了MainStage和SideStage。 代码路径：frameworks/base/libs/WindowManager/Shell/src/com/android/wm/shell/splitscreen/StageCoordinator.java

protected StageCoordinator(Context context, int displayId, SyncTransactionQueue syncQueue,
            ShellTaskOrganizer taskOrganizer, DisplayController displayController,
            DisplayImeController displayImeController,
            DisplayInsetsController displayInsetsController, Transitions transitions,
            TransactionPool transactionPool,
            IconProvider iconProvider, ShellExecutor mainExecutor,
            Optional<RecentTasksController> recentTasks) {
        ......
        mMainStage = new MainStage(
                mContext,
                mTaskOrganizer,
                mDisplayId,
                mMainStageListener,
                mSyncQueue,
                mSurfaceSession,
                iconProvider);
        mSideStage = new SideStage(
                mContext,
                mTaskOrganizer,
                mDisplayId,
                mSideStageListener,
                mSyncQueue,
                mSurfaceSession,
                iconProvider);
        ......
}

MainStage 代码路径：frameworks/base/libs/WindowManager/Shell/src/com/android/wm/shell/splitscreen/MainStage.java

class MainStage extends StageTaskListener {
    ......
    MainStage(Context context, ShellTaskOrganizer taskOrganizer, int displayId,
            StageListenerCallbacks callbacks, SyncTransactionQueue syncQueue,
            SurfaceSession surfaceSession, IconProvider iconProvider) {
        super(context, taskOrganizer, displayId, callbacks, syncQueue, surfaceSession,
                iconProvider);
    }

SideStage 代码路径：frameworks/base/libs/WindowManager/Shell/src/com/android/wm/shell/splitscreen/SideStage.java

class SideStage extends StageTaskListener {
    ......
    SideStage(Context context, ShellTaskOrganizer taskOrganizer, int displayId,
            StageListenerCallbacks callbacks, SyncTransactionQueue syncQueue,
            SurfaceSession surfaceSession, IconProvider iconProvider) {
        super(context, taskOrganizer, displayId, callbacks, syncQueue, surfaceSession,
                iconProvider);
    }

这里我们可以看到MainStage和SideStage的构造方法都调用其父类构造方法，而他们的父类都是StageTaskListener，所以我们只需要关注StageTaskListener构造方法即可。 代码路径：frameworks/base/libs/WindowManager/Shell/src/com/android/wm/shell/splitscreen/StageTaskListener.java

    StageTaskListener(Context context, ShellTaskOrganizer taskOrganizer, int displayId,
            StageListenerCallbacks callbacks, SyncTransactionQueue syncQueue,
            SurfaceSession surfaceSession, IconProvider iconProvider) {
        mContext = context;
        mCallbacks = callbacks;
        mSyncQueue = syncQueue;
        mSurfaceSession = surfaceSession;
        mIconProvider = iconProvider;
        taskOrganizer.createRootTask(displayId, WINDOWING_MODE_MULTI_WINDOW, this);
    }

这里我们可以看到最关键的创建方法就是createRootTask，传递了当前Display（displayId）、当前窗口模式（WINDOWING_MODE_MULTI_WINDOW）和当前Stage（this）。 代码路径：frameworks/base/libs/WindowManager/Shell/src/com/android/wm/shell/ShellTaskOrganizer.java

    /**
     * Creates a persistent root task in WM for a particular windowing-mode.
     * @param displayId The display to create the root task on.
     * @param windowingMode Windowing mode to put the root task in.
     * @param listener The listener to get the created task callback.
     */
    public void createRootTask(int displayId, int windowingMode, TaskListener listener) {
        createRootTask(displayId, windowingMode, listener, false /* removeWithTaskOrganizer */);
    }

    /**
     * Creates a persistent root task in WM for a particular windowing-mode.
     * @param displayId The display to create the root task on.
     * @param windowingMode Windowing mode to put the root task in.
     * @param listener The listener to get the created task callback.
     * @param removeWithTaskOrganizer True if this task should be removed when organizer destroyed.
     */
    public void createRootTask(int displayId, int windowingMode, TaskListener listener,
            boolean removeWithTaskOrganizer) {
        ProtoLog.v(WM_SHELL_TASK_ORG, "createRootTask() displayId=%d winMode=%d listener=%s" ,
                displayId, windowingMode, listener.toString());
        final IBinder cookie = new Binder();
        setPendingLaunchCookieListener(cookie, listener);
        super.createRootTask(displayId, windowingMode, cookie, removeWithTaskOrganizer);
    }

设置了removeWithTaskOrganizer参数为false，继续传递参数调用到其父类TaskOrganizer的createRootTask方法 代码路径：frameworks/base/core/java/android/window/TaskOrganizer.java

    /**
     * Creates a persistent root task in WM for a particular windowing-mode.
     * @param displayId The display to create the root task on.
     * @param windowingMode Windowing mode to put the root task in.
     * @param launchCookie Launch cookie to associate with the task so that is can be identified
     *                     when the {@link ITaskOrganizer#onTaskAppeared} callback is called.
     * @param removeWithTaskOrganizer True if this task should be removed when organizer destroyed.
     * @hide
     */
    @RequiresPermission(android.Manifest.permission.MANAGE_ACTIVITY_TASKS)
    public void createRootTask(int displayId, int windowingMode, @Nullable IBinder launchCookie,
            boolean removeWithTaskOrganizer) {
        try {
            mTaskOrganizerController.createRootTask(displayId, windowingMode, launchCookie,
                    removeWithTaskOrganizer);
        } catch (RemoteException e) {
            throw e.rethrowFromSystemServer();
        }
    }

这里mTaskOrganizerController是ITaskOrganizerController对象，通过跨进程到system_server侧创建Task，其实现方法在TaskOrganizerController中。 代码路径：frameworks/base/services/core/java/com/android/server/wm/TaskOrganizerController.java

    @Override
    public void createRootTask(int displayId, int windowingMode, @Nullable IBinder launchCookie,
            boolean removeWithTaskOrganizer) {
        enforceTaskPermission("createRootTask()");
        final long origId = Binder.clearCallingIdentity();
        try {
            synchronized (mGlobalLock) {
                //获取当前DisplayContent
                DisplayContent display = mService.mRootWindowContainer.getDisplayContent(displayId);
                if (display == null) {
                    ProtoLog.e(WM_DEBUG_WINDOW_ORGANIZER,
                            "createRootTask unknown displayId=%d", displayId);
                    return;
                }

                createRootTask(display, windowingMode, launchCookie, removeWithTaskOrganizer);
            }
        } finally {
            Binder.restoreCallingIdentity(origId);
        }
    }

    @VisibleForTesting
    Task createRootTask(DisplayContent display, int windowingMode, @Nullable IBinder launchCookie) {
        return createRootTask(display, windowingMode, launchCookie,
                false /* removeWithTaskOrganizer */);
    }

    Task createRootTask(DisplayContent display, int windowingMode, @Nullable IBinder launchCookie,
            boolean removeWithTaskOrganizer) {
        ProtoLog.v(WM_DEBUG_WINDOW_ORGANIZER, "Create root task displayId=%d winMode=%d",
                display.mDisplayId, windowingMode);
        // We want to defer the task appear signal until the task is fully created and attached to
        // to the hierarchy so that the complete starting configuration is in the task info we send
        // over to the organizer.
        //创建Task
        final Task task = new Task.Builder(mService)
                .setWindowingMode(windowingMode)
                .setIntent(new Intent())
                .setCreatedByOrganizer(true)
                .setDeferTaskAppear(true)
                .setLaunchCookie(launchCookie)
                .setParent(display.getDefaultTaskDisplayArea())
                .setRemoveWithTaskOrganizer(removeWithTaskOrganizer)
                .build();
        task.setDeferTaskAppear(false /* deferTaskAppear */);
        return task;
    }

这个方法很简单，就是获取了当前DisplayContent，然后创建了Task。这里还设置setCreatedByOrganizer(true)，表示是通过TaskOrganizer的方式创建的。

分屏surface创建相关

surface分析

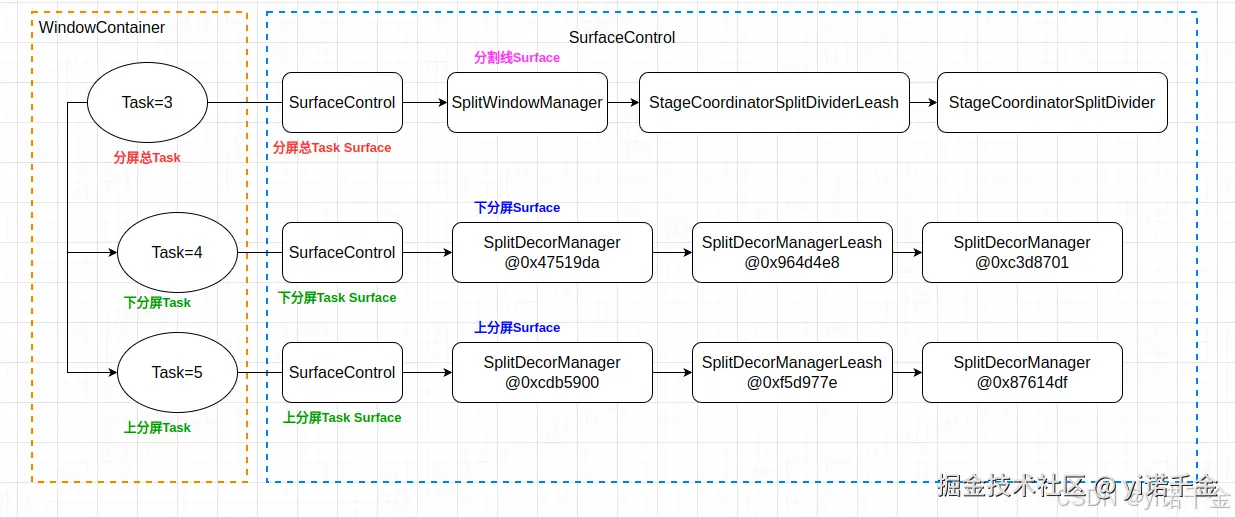

使用命令查看对应的层级结构 adb shell dumpsys activity containers 这里Task=3为分屏的总Task，Task=5和Task=4分别是上分屏和下分屏的Task。

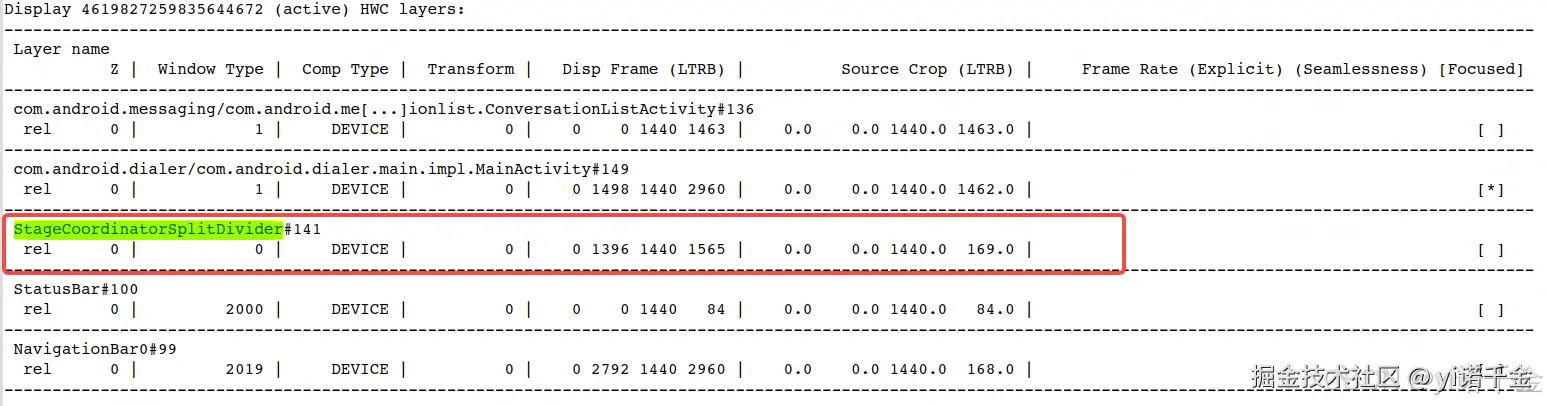

使用命令查看对应的Surface adb shell dumpsys SurfaceFlinger 从Surface中找到了分割线的图层，通过搜索该图层分析其层级结构

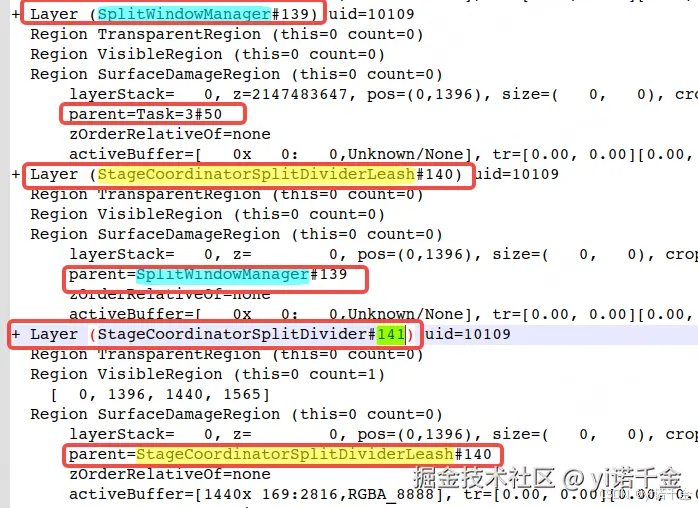

在图层中显示的分割线为StageCoordinatorSplitDivider其父图层为SplitWindowManager，也是分屏侧实际操作的图层。 这里我们可以看到SplitWindowManager挂载在Task=3（分屏的总Task）下面。

分屏分割线surface创建堆栈

代码路径：frameworks/base/libs/WindowManager/Shell/src/com/android/wm/shell/common/split/SplitWindowManager.java

    @Override
    protected SurfaceControl getParentSurface(IWindow window, WindowManager.LayoutParams attrs) {
        // Can't set position for the ViewRootImpl SC directly. Create a leash to manipulate later.
        final SurfaceControl.Builder builder = new SurfaceControl.Builder(new SurfaceSession())
                .setContainerLayer()
                .setName(TAG)
                .setHidden(true)
                .setCallsite("SplitWindowManager#attachToParentSurface");
        mParentContainerCallbacks.attachToParentSurface(builder);
        mLeash = builder.build();
        mParentContainerCallbacks.onLeashReady(mLeash);
        android.util.Log.i("SplitWindowManager","getParentSurface() mLeash:"+mLeash.toString(),new Exception());
        return mLeash;
    }

该方法重写WindowlessWindowManager.getParentSurface方法，并在WindowlessWindowManager.addToDisplay中调用。

代码路径：frameworks/base/core/java/android/view/WindowlessWindowManager.java

    @Override
    public int addToDisplay(IWindow window, WindowManager.LayoutParams attrs,
            int viewVisibility, int displayId, @InsetsType int requestedVisibleTypes,
            InputChannel outInputChannel, InsetsState outInsetsState,
            InsetsSourceControl.Array outActiveControls, Rect outAttachedFrame,
            float[] outSizeCompatScale) {
        final SurfaceControl leash = new SurfaceControl.Builder(mSurfaceSession)
                .setName(attrs.getTitle().toString() + "Leash")
                .setCallsite("WindowlessWindowManager.addToDisplay")
                .setParent(getParentSurface(window, attrs))
                .build();

        final SurfaceControl sc = new SurfaceControl.Builder(mSurfaceSession)
                .setFormat(attrs.format)
                .setBLASTLayer()
                .setName(attrs.getTitle().toString())
                .setCallsite("WindowlessWindowManager.addToDisplay")
                .setHidden(false)
                .setParent(leash)
                .build();

这里我们可以看到sc的父图层为leash。 堆栈如下：

SplitWindowManager: getParentSurface() mLeash:Surface(name=SplitWindowManager)/@0x8fe904e
SplitWindowManager: java.lang.Exception
SplitWindowManager: 	at com.android.wm.shell.common.split.SplitWindowManager.getParentSurface(go/retraceme 0d9615079747c5776f764e530e7c5bffe361ce574e8eadd276d93db88b4b553a:108)
WindowlessWindowManager: addToDisplay() leash:Surface(name=StageCoordinatorSplitDividerLeash)/@0x470327c sc:Surface(name=StageCoordinatorSplitDivider)/@0xb0f7705
WindowlessWindowManager: 	at android.view.WindowlessWindowManager.addToDisplay(WindowlessWindowManager.java:197)
WindowlessWindowManager: 	at android.view.WindowlessWindowManager.addToDisplayAsUser(WindowlessWindowManager.java:262)
SplitWindowManager: 	at android.view.ViewRootImpl.setView(ViewRootImpl.java:1340)
SplitWindowManager: 	at android.view.ViewRootImpl.setView(ViewRootImpl.java:1215)
SplitWindowManager: 	at android.view.SurfaceControlViewHost.setView(SurfaceControlViewHost.java:443)
SplitWindowManager: 	at com.android.wm.shell.common.split.SplitWindowManager.init(go/retraceme 0d9615079747c5776f764e530e7c5bffe361ce574e8eadd276d93db88b4b553a:135)
SplitWindowManager: 	at com.android.wm.shell.common.split.SplitLayout.init(go/retraceme 0d9615079747c5776f764e530e7c5bffe361ce574e8eadd276d93db88b4b553a:411)
SplitWindowManager: 	at com.android.wm.shell.common.split.SplitLayout.update(go/retraceme 0d9615079747c5776f764e530e7c5bffe361ce574e8eadd276d93db88b4b553a:435)
SplitWindowManager: 	at com.android.wm.shell.splitscreen.StageCoordinator.finishEnterSplitScreen(go/retraceme 0d9615079747c5776f764e530e7c5bffe361ce574e8eadd276d93db88b4b553a:1608)
SplitWindowManager: 	at com.android.wm.shell.splitscreen.StageCoordinator.startPendingEnterAnimation(go/retraceme 0d9615079747c5776f764e530e7c5bffe361ce574e8eadd276d93db88b4b553a:2854)
SplitWindowManager: 	at com.android.wm.shell.splitscreen.StageCoordinator.startPendingAnimation(go/retraceme 0d9615079747c5776f764e530e7c5bffe361ce574e8eadd276d93db88b4b553a:2696)
SplitWindowManager: 	at com.android.wm.shell.splitscreen.StageCoordinator.startAnimation(go/retraceme 0d9615079747c5776f764e530e7c5bffe361ce574e8eadd276d93db88b4b553a:2632)
SplitWindowManager: 	at com.android.wm.shell.transition.Transitions.playTransition(go/retraceme 0d9615079747c5776f764e530e7c5bffe361ce574e8eadd276d93db88b4b553a:885)
SplitWindowManager: 	at com.android.wm.shell.transition.Transitions.processReadyQueue(go/retraceme 0d9615079747c5776f764e530e7c5bffe361ce574e8eadd276d93db88b4b553a:819)
SplitWindowManager: 	at com.android.wm.shell.transition.Transitions.dispatchReady(go/retraceme 0d9615079747c5776f764e530e7c5bffe361ce574e8eadd276d93db88b4b553a:760)
SplitWindowManager: 	at com.android.wm.shell.transition.Transitions.onTransitionReady(go/retraceme 0d9615079747c5776f764e530e7c5bffe361ce574e8eadd276d93db88b4b553a:669)
SplitWindowManager: 	at com.android.wm.shell.transition.Transitions$TransitionPlayerImpl.lambda$onTransitionReady$0(go/retraceme 0d9615079747c5776f764e530e7c5bffe361ce574e8eadd276d93db88b4b553a:1353)
SplitWindowManager: 	at com.android.wm.shell.transition.Transitions$TransitionPlayerImpl.$r8$lambda$qsRfWn1ItrZqnFeABBdxU50jPc4(go/retraceme 0d9615079747c5776f764e530e7c5bffe361ce574e8eadd276d93db88b4b553a:0)
SplitWindowManager: 	at com.android.wm.shell.transition.Transitions$TransitionPlayerImpl$$ExternalSyntheticLambda0.run(go/retraceme 0d9615079747c5776f764e530e7c5bffe361ce574e8eadd276d93db88b4b553a:0)
SplitWindowManager: 	at android.os.Handler.handleCallback(Handler.java:958)
SplitWindowManager: 	at android.os.Handler.dispatchMessage(Handler.java:99)
SplitWindowManager: 	at android.os.Looper.loopOnce(Looper.java:205)
SplitWindowManager: 	at android.os.Looper.loop(Looper.java:294)
SplitWindowManager: 	at android.os.HandlerThread.run(HandlerThread.java:67)

进入分屏后通过SplitWindowManager.init初始化，后续在system_server侧的WindowlessWindowManager.addToDisplay创建StageCoordinatorSplitDivider以及其父Surface StageCoordinatorSplitDividerLeash，并调用SplitWindowManager.getParentSurface创建SplitWindowManager。

上下分屏surface创建堆栈

代码路径：frameworks/base/libs/WindowManager/Shell/src/com/android/wm/shell/common/split/SplitDecorManager.java

    @Override
    protected SurfaceControl getParentSurface(IWindow window, WindowManager.LayoutParams attrs) {
        // Can't set position for the ViewRootImpl SC directly. Create a leash to manipulate later.
        final SurfaceControl.Builder builder = new SurfaceControl.Builder(new SurfaceSession())
                .setContainerLayer()
                .setName(TAG)
                .setHidden(true)
                .setParent(mHostLeash)
                .setCallsite("SplitDecorManager#attachToParentSurface");
        mIconLeash = builder.build();
        android.util.Log.i("SplitDecorManager","getParentSurface() mIconLeash:"+mIconLeash+" mHostLeash:"+mHostLeash,new Exception());
        return mIconLeash;
    }

mHostLeash其实就是对应的分屏Task的Surface。 该方法重写WindowlessWindowManager.getParentSurface方法，并在WindowlessWindowManager.addToDisplay中调用。

代码路径：frameworks/base/core/java/android/view/WindowlessWindowManager.java

    @Override
    public int addToDisplay(IWindow window, WindowManager.LayoutParams attrs,
            int viewVisibility, int displayId, @InsetsType int requestedVisibleTypes,
            InputChannel outInputChannel, InsetsState outInsetsState,
            InsetsSourceControl.Array outActiveControls, Rect outAttachedFrame,
            float[] outSizeCompatScale) {
        final SurfaceControl leash = new SurfaceControl.Builder(mSurfaceSession)
                .setName(attrs.getTitle().toString() + "Leash")
                .setCallsite("WindowlessWindowManager.addToDisplay")
                .setParent(getParentSurface(window, attrs))
                .build();

        final SurfaceControl sc = new SurfaceControl.Builder(mSurfaceSession)
                .setFormat(attrs.format)
                .setBLASTLayer()
                .setName(attrs.getTitle().toString())
                .setCallsite("WindowlessWindowManager.addToDisplay")
                .setHidden(false)
                .setParent(leash)
                .build();

这里我们可以看到sc的父图层为leash。 堆栈如下：

SplitDecorManager: getParentSurface() mIconLeash:Surface(name=SplitDecorManager)/@0x47519da mHostLeash:Surface(name=Task=4)/@0x5c8746a
SplitDecorManager: java.lang.Exception
SplitDecorManager: 	at com.android.wm.shell.common.split.SplitDecorManager.getParentSurface(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:109)
WindowlessWindowManager: addToDisplay() leash:Surface(name=SplitDecorManagerLeash)/@0x964d4e8 sc:Surface(name=SplitDecorManager)/@0xc3d8701
WindowlessWindowManager: 	at android.view.WindowlessWindowManager.addToDisplay(WindowlessWindowManager.java:197)
WindowlessWindowManager: 	at android.view.WindowlessWindowManager.addToDisplayAsUser(WindowlessWindowManager.java:262)
SplitDecorManager: 	at android.view.ViewRootImpl.setView(ViewRootImpl.java:1340)
SplitDecorManager: 	at android.view.ViewRootImpl.setView(ViewRootImpl.java:1215)
SplitDecorManager: 	at android.view.SurfaceControlViewHost.setView(SurfaceControlViewHost.java:443)
SplitDecorManager: 	at com.android.wm.shell.common.split.SplitDecorManager.inflate(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:140)
SplitDecorManager: 	at com.android.wm.shell.splitscreen.StageCoordinator.finishEnterSplitScreen(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:1609)
SplitDecorManager: 	at com.android.wm.shell.splitscreen.StageCoordinator.startPendingEnterAnimation(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:2854)
SplitDecorManager: 	at com.android.wm.shell.splitscreen.StageCoordinator.startPendingAnimation(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:2696)
SplitDecorManager: 	at com.android.wm.shell.splitscreen.StageCoordinator.startAnimation(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:2632)
SplitDecorManager: 	at com.android.wm.shell.transition.Transitions.playTransition(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:885)
SplitDecorManager: 	at com.android.wm.shell.transition.Transitions.processReadyQueue(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:819)
SplitDecorManager: 	at com.android.wm.shell.transition.Transitions.dispatchReady(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:760)
SplitDecorManager: 	at com.android.wm.shell.transition.Transitions.onTransitionReady(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:669)
SplitDecorManager: 	at com.android.wm.shell.transition.Transitions$TransitionPlayerImpl.lambda$onTransitionReady$0(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:1353)
SplitDecorManager: 	at com.android.wm.shell.transition.Transitions$TransitionPlayerImpl.$r8$lambda$qsRfWn1ItrZqnFeABBdxU50jPc4(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:0)
SplitDecorManager: 	at com.android.wm.shell.transition.Transitions$TransitionPlayerImpl$$ExternalSyntheticLambda0.run(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:0)
SplitDecorManager: 	at android.os.Handler.handleCallback(Handler.java:958)
SplitDecorManager: 	at android.os.Handler.dispatchMessage(Handler.java:99)
SplitDecorManager: 	at android.os.Looper.loopOnce(Looper.java:205)
SplitDecorManager: 	at android.os.Looper.loop(Looper.java:294)
SplitDecorManager: 	at android.os.HandlerThread.run(HandlerThread.java:67)


SplitDecorManager: getParentSurface() mIconLeash:Surface(name=SplitDecorManager)/@0xcdb5900 mHostLeash:Surface(name=Task=5)/@0x82f99f8
SplitDecorManager: java.lang.Exception
SplitDecorManager: 	at com.android.wm.shell.common.split.SplitDecorManager.getParentSurface(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:109)
WindowlessWindowManager: addToDisplay() leash:Surface(name=SplitDecorManagerLeash)/@0xf5d977e sc:Surface(name=SplitDecorManager)/@0x87614df
WindowlessWindowManager: 	at android.view.WindowlessWindowManager.addToDisplay(WindowlessWindowManager.java:197)
WindowlessWindowManager: 	at android.view.WindowlessWindowManager.addToDisplayAsUser(WindowlessWindowManager.java:262)
SplitDecorManager: 	at android.view.ViewRootImpl.setView(ViewRootImpl.java:1340)
SplitDecorManager: 	at android.view.ViewRootImpl.setView(ViewRootImpl.java:1215)
SplitDecorManager: 	at android.view.SurfaceControlViewHost.setView(SurfaceControlViewHost.java:443)
SplitDecorManager: 	at com.android.wm.shell.common.split.SplitDecorManager.inflate(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:140)
SplitDecorManager: 	at com.android.wm.shell.splitscreen.StageCoordinator.finishEnterSplitScreen(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:1611)
SplitDecorManager: 	at com.android.wm.shell.splitscreen.StageCoordinator.startPendingEnterAnimation(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:2854)
SplitDecorManager: 	at com.android.wm.shell.splitscreen.StageCoordinator.startPendingAnimation(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:2696)
SplitDecorManager: 	at com.android.wm.shell.splitscreen.StageCoordinator.startAnimation(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:2632)
SplitDecorManager: 	at com.android.wm.shell.transition.Transitions.playTransition(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:885)
SplitDecorManager: 	at com.android.wm.shell.transition.Transitions.processReadyQueue(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:819)
SplitDecorManager: 	at com.android.wm.shell.transition.Transitions.dispatchReady(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:760)
SplitDecorManager: 	at com.android.wm.shell.transition.Transitions.onTransitionReady(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:669)
SplitDecorManager: 	at com.android.wm.shell.transition.Transitions$TransitionPlayerImpl.lambda$onTransitionReady$0(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:1353)
SplitDecorManager: 	at com.android.wm.shell.transition.Transitions$TransitionPlayerImpl.$r8$lambda$qsRfWn1ItrZqnFeABBdxU50jPc4(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:0)
SplitDecorManager: 	at com.android.wm.shell.transition.Transitions$TransitionPlayerImpl$$ExternalSyntheticLambda0.run(go/retraceme 68a42a0724b247a6035322d0bfaa0664da04ae43d52a60e64aa4fda3985af039:0)
SplitDecorManager: 	at android.os.Handler.handleCallback(Handler.java:958)
SplitDecorManager: 	at android.os.Handler.dispatchMessage(Handler.java:99)
SplitDecorManager: 	at android.os.Looper.loopOnce(Looper.java:205)
SplitDecorManager: 	at android.os.Looper.loop(Looper.java:294)
SplitDecorManager: 	at android.os.HandlerThread.run(HandlerThread.java:67)

上下分屏Surface堆栈流程是相同的，进入分屏后通过SplitDecorManager.inflate初始化，后续在system_server侧的WindowlessWindowManager.addToDisplay创建SplitDecorManager @0xc3d8701以及其父Surface SplitDecorManagerLeash，并调用SplitWindowManager.getParentSurface创建SplitWindowManager @0x47519da。 注意这里的两个SplitWindowManager名称相同，但是是不同的图层。

简图

结合dumpsys信息和代码获得如下简图：

分屏流程中的关键方法

设置分屏task

以前面设置分屏task方法为例

        //设置分屏Options
        addActivityOptions(options1, mSideStage);
        //添加启动分屏task（system_server进程）
        wct.startTask(taskId1, options1);

mSideStage为SideStage对象，MainStage和SideStage，他们都是继承StageTaskListener。 并且其后会调用WindowContainerTransaction的startTask方法启动分屏的task，这里是在system_server进程中进行的。

设置分屏Options

代码路径：frameworks/base/libs/WindowManager/Shell/src/com/android/wm/shell/splitscreen/StageCoordinator.java

    private void addActivityOptions(Bundle opts, @Nullable StageTaskListener launchTarget) {
        if (launchTarget != null) {
            //设置sideStage的WindowContainerToken，也就是上分屏的task的token
            //设置mainStage的WindowContainerToken，也就是下分屏的task的token
            opts.putParcelable(KEY_LAUNCH_ROOT_TASK_TOKEN, launchTarget.mRootTaskInfo.token);
        }
        // Put BAL flags to avoid activity start aborted. Otherwise, flows like shortcut to split
        // will be canceled.
        //允许其使用pendingInetent方式启动
        opts.putBoolean(KEY_PENDING_INTENT_BACKGROUND_ACTIVITY_ALLOWED, true);
        opts.putBoolean(KEY_PENDING_INTENT_BACKGROUND_ACTIVITY_ALLOWED_BY_PERMISSION, true);
    }

launchTarget.mRootTaskInfo.token是WindowContainerToken对象，这里就是设置上分屏的task的token（sideStage的WindowContainerToken）到传递进来的Bundle对象中。

后续在system_server侧会通过ActivityOptions构造方法设置sideStage的WindowContainerToken。 代码路径：frameworks/base/core/java/android/app/ActivityOptions.java

    public ActivityOptions(Bundle opts) {
        super(opts);
        ......
        mLaunchRootTask = opts.getParcelable(KEY_LAUNCH_ROOT_TASK_TOKEN, android.window.WindowContainerToken.class);
        ......
    }

在ActivityOptions构造方法中，会取出之前存放的WindowContainerToken对象赋值给mLaunchRootTask。 即把sideStage的WindowContainerToken设置为mLaunchRootTask，mainStage也是同理。

添加启动分屏应用task（system_server进程）

代码路径：frameworks/base/core/java/android/window/WindowContainerTransaction.java

    /**
     * Starts a task by id. The task is expected to already exist (eg. as a recent task).
     * @param taskId Id of task to start.
     * @param options bundle containing ActivityOptions for the task's top activity.
     * @hide
     */
    @NonNull
    public WindowContainerTransaction startTask(int taskId, @Nullable Bundle options) {
        mHierarchyOps.add(HierarchyOp.createForTaskLaunch(taskId, options));
        return this;
    }

通过应用taskId来启动应用task，此时只是将该应用task以及之前设置的options设置到层级结构树中，尚未提交事务，真正的添加在后续通过SplitTransitions.startEnterTransition（涉及RemoteTransition的情况，我们这里从多任务启动分屏就是这种情况）或者SyncTransactionQueue（涉及RemoteAnimationAdapter的情况）提交事务到系统侧才会真正的启动。

设置分屏位置

setSideStagePosition(splitPosition, wct); 代码路径：frameworks/base/libs/WindowManager/Shell/src/com/android/wm/shell/splitscreen/StageCoordinator.java

    void setSideStagePosition(@SplitPosition int sideStagePosition,
            @Nullable WindowContainerTransaction wct) {
        //传递参数updateBounds为true
        setSideStagePosition(sideStagePosition, true /* updateBounds */, wct);
    }

    private void setSideStagePosition(@SplitPosition int sideStagePosition, boolean updateBounds,
            @Nullable WindowContainerTransaction wct) {
        //mSideStagePosition默认为SPLIT_POSITION_BOTTOM_OR_RIGHT，下分屏位置
        //mSideStagePosition与传递过来的sideStagePosition相同，则不修改
        if (mSideStagePosition == sideStagePosition) return;
        //不同时，将mSideStagePosition赋值为传递过来的sideStagePosition
        mSideStagePosition = sideStagePosition;
        //通知stage位置发生改变
        sendOnStagePositionChanged();
        //mSideStageListener.mVisible判断分屏的可见性
        //updateBounds传递了true
        if (mSideStageListener.mVisible && updateBounds) {
            if (wct == null) {
                // onLayoutChanged builds/applies a wct with the contents of updateWindowBounds.
                //如果WindowContainerTransaction为空(这里一般不为空)
                //这个方法会创建一个WindowContainerTransaction对象
                //然后再调用updateWindowBounds方法
                //之后MainStage和SideStage分别调用SplitDecorManager.onResized调整分屏size
                onLayoutSizeChanged(mSplitLayout);
            } else {
                //更新窗口bounds，后续会讲
                updateWindowBounds(mSplitLayout, wct);
                //通知bounds改变
                sendOnBoundsChanged();
            }
        }
    }

mSideStagePosition

这个方法主要就是SideStage的分屏位置进行设置

private int mSideStagePosition = SPLIT_POSITION_BOTTOM_OR_RIGHT;

其中mSideStagePosition从代码中可以发现默认值为SPLIT_POSITION_BOTTOM_OR_RIGHT，即值为1

但在多任务启动分屏的流程中传递过来的值是0，即sideStagePosition值为0，在上分屏显示。

mSideStageListener.mVisible分屏可见性

1. 多任务中进入分屏时，会在shell动画流程中最后调用StageCoordinator.finishEnterSplitScreen去调用StageCoordinator.setSplitsVisible设置分屏可见性为true。
2. HOME键退出分屏时，会在远程动画流程中（涉及APP的切换）最后调用通过StageCoordinator.onRecentsInSplitAnimationFinish去调用StageCoordinator.setSplitsVisible设置分屏可见性为false。
3. 返回键退出分屏时，会在shell动画流程中最后调用StageCoordinator.prepareDismissAnimation去调用StageCoordinator.setSplitsVisible设置分屏可见性为false。

不管是哪种方式，最终都会通过StageCoordinator.setSplitsVisible设置分屏可见性。

onLayoutSizeChanged(mSplitLayout);

在多任务启动分屏流程中，WindowContainerTransaction对象不会为空，因此不会走到该流程。 这个方法主要是创建一个WindowContainerTransaction对象，并调用updateWindowBounds方法更新bounds，之后MainStage和SideStage分别调用SplitDecorManager.onResized调整分屏size，在没有更新bounds的情况下清除一些状态。

updateWindowBounds(mSplitLayout, wct);

见后文【更新分屏task的bound】

sendOnBoundsChanged();

这个方法本地验证注释过，没有发现什么影响。这里把这段代码上库时的注释放出来，仅供参考。

Adds real unfold animation for split-screen tasks when
doing the Shell unfold transition.
The approach is similar to full-screen tasks:
we animate the surfaces using shell transition
only when unfolding, when folding we are doing
it in the old way (by directly accessing
the surfaces from TaskOrganizer).

Refactored the previous fullscreen/splitscreen unfold
controllers flow to have one controller where we can
register diferrent 'animators'. This controller listens
to all task events in the shell task organizer.

简单分析下这个方法：

    private void sendOnBoundsChanged() {
        if (mSplitLayout == null) return;
        for (int i = mListeners.size() - 1; i >= 0; --i) {
            mListeners.get(i).onSplitBoundsChanged(mSplitLayout.getRootBounds(),
                    getMainStageBounds(), getSideStageBounds());
        }
    }

从这个方法中我们可以看到，主要就是调用了onSplitBoundsChanged。

	@ExternalThread
	public interface SplitScreen {
	    ......
	    interface SplitScreenListener {
	        default void onStagePositionChanged(@StageType int stage, @SplitPosition int position) {}
	        default void onTaskStageChanged(int taskId, @StageType int stage, boolean visible) {}
	        default void onSplitBoundsChanged(Rect rootBounds, Rect mainBounds, Rect sideBounds) {}
	        default void onSplitVisibilityChanged(boolean visible) {}
	    }
	    ......
	}

onSplitBoundsChanged是SplitScreen.SplitScreenListener的接口方法，需要找到其实现在哪。 因此先来看看前面的mListeners里面存放是什么

	private final List<SplitScreen.SplitScreenListener> mListeners = new ArrayList<>();

	void registerSplitScreenListener(SplitScreen.SplitScreenListener listener) {
        if (mListeners.contains(listener)) return;
        mListeners.add(listener);
        sendStatusToListener(listener);
    }

存放的是注册的SplitScreen.SplitScreenListener对象，这里添加的listener指的就是ISplitScreenImpl中创建的对象，我们找到其中创建的对象。

    private static class ISplitScreenImpl extends ISplitScreen.Stub
            implements ExternalInterfaceBinder {
        private SplitScreenController mController;
        private final SingleInstanceRemoteListener<SplitScreenController,
                ISplitScreenListener> mListener;
        private final SplitScreen.SplitScreenListener mSplitScreenListener =
                new SplitScreen.SplitScreenListener() {
                    @Override
                    public void onStagePositionChanged(int stage, int position) {
                        mListener.call(l -> l.onStagePositionChanged(stage, position));
                    }

                    @Override
                    public void onTaskStageChanged(int taskId, int stage, boolean visible) {
                        mListener.call(l -> l.onTaskStageChanged(taskId, stage, visible));
                    }
                };

        public ISplitScreenImpl(SplitScreenController controller) {
            mController = controller;
            mListener = new SingleInstanceRemoteListener<>(controller,
                    c -> c.registerSplitScreenListener(mSplitScreenListener),
                    c -> c.unregisterSplitScreenListener(mSplitScreenListener));
        }

        ......

        @Override
        public void registerSplitScreenListener(ISplitScreenListener listener) {
            executeRemoteCallWithTaskPermission(mController, "registerSplitScreenListener",
                    (controller) -> mListener.register(listener));
        }
        ......
}

这里(controller) -> mListener.register(listener));实际上就是调用的c -> c.registerSplitScreenListener(mSplitScreenListener)。 也就是说在registerSplitScreenListener的实现中mListeners.add(listener);，其中的listener指的就是这里的mSplitScreenListener。 但是我们可以看到mSplitScreenListener中并没有实现接口中的onSplitBoundsChanged方法，因此什么都没有做。 且本地验证SplitScreen接口中其他的实现也没有在设置分屏位置场景调用，感兴趣的可以研究补充。 具体流程不在赘述，附registerSplitScreenListener调用堆栈流程

registerSplitScreenListener: listener:com.android.wm.shell.splitscreen.SplitScreenController$ISplitScreenImpl$1@ef57f97
registerSplitScreenListener: java.lang.Exception
registerSplitScreenListener: 	at com.android.wm.shell.splitscreen.StageCoordinator.registerSplitScreenListener(go/retraceme e9084556ee5ba06aeb29383d2803776323e77195400e5ee36c8cd4861c083ef6:1662)
registerSplitScreenListener: 	at com.android.wm.shell.splitscreen.SplitScreenController.registerSplitScreenListener(go/retraceme e9084556ee5ba06aeb29383d2803776323e77195400e5ee36c8cd4861c083ef6:451)
registerSplitScreenListener: 	at com.android.wm.shell.splitscreen.SplitScreenController$ISplitScreenImpl.lambda$new$0(go/retraceme e9084556ee5ba06aeb29383d2803776323e77195400e5ee36c8cd4861c083ef6:1074)
registerSplitScreenListener: 	at com.android.wm.shell.splitscreen.SplitScreenController$ISplitScreenImpl.$r8$lambda$LTc1wMcZo9Of3RPyGCWtg6YiS5s(go/retraceme e9084556ee5ba06aeb29383d2803776323e77195400e5ee36c8cd4861c083ef6:0)
registerSplitScreenListener: 	at com.android.wm.shell.splitscreen.SplitScreenController$ISplitScreenImpl$$ExternalSyntheticLambda15.accept(go/retraceme e9084556ee5ba06aeb29383d2803776323e77195400e5ee36c8cd4861c083ef6:0)
registerSplitScreenListener: 	at com.android.wm.shell.common.SingleInstanceRemoteListener.register(go/retraceme e9084556ee5ba06aeb29383d2803776323e77195400e5ee36c8cd4861c083ef6:97)
registerSplitScreenListener: 	at com.android.wm.shell.splitscreen.SplitScreenController$ISplitScreenImpl.lambda$registerSplitScreenListener$2(go/retraceme e9084556ee5ba06aeb29383d2803776323e77195400e5ee36c8cd4861c083ef6:1091)
registerSplitScreenListener: 	at com.android.wm.shell.splitscreen.SplitScreenController$ISplitScreenImpl.$r8$lambda$3asGbaEmeTX8SI0BiI_eYjbgpQA(go/retraceme e9084556ee5ba06aeb29383d2803776323e77195400e5ee36c8cd4861c083ef6:0)
registerSplitScreenListener: 	at com.android.wm.shell.splitscreen.SplitScreenController$ISplitScreenImpl$$ExternalSyntheticLambda11.accept(go/retraceme e9084556ee5ba06aeb29383d2803776323e77195400e5ee36c8cd4861c083ef6:0)
registerSplitScreenListener: 	at com.android.wm.shell.common.ExecutorUtils.lambda$executeRemoteCallWithTaskPermission$1(go/retraceme e9084556ee5ba06aeb29383d2803776323e77195400e5ee36c8cd4861c083ef6:60)
registerSplitScreenListener: 	at com.android.wm.shell.common.ExecutorUtils.$r8$lambda$s8eUOdyrqpqzzyFwAMGxO-MaCg4(go/retraceme e9084556ee5ba06aeb29383d2803776323e77195400e5ee36c8cd4861c083ef6:0)
registerSplitScreenListener: 	at com.android.wm.shell.common.ExecutorUtils$$ExternalSyntheticLambda1.run(go/retraceme e9084556ee5ba06aeb29383d2803776323e77195400e5ee36c8cd4861c083ef6:0)
registerSplitScreenListener: 	at android.os.Handler.handleCallback(Handler.java:958)
registerSplitScreenListener: 	at android.os.Handler.dispatchMessage(Handler.java:99)
registerSplitScreenListener: 	at android.os.Looper.loopOnce(Looper.java:205)
registerSplitScreenListener: 	at android.os.Looper.loop(Looper.java:294)
registerSplitScreenListener: 	at android.os.HandlerThread.run(HandlerThread.java:67)

设置分屏比例

mSplitLayout.setDivideRatio(splitRatio);

    /** Updates divide position and split bounds base on the ratio within root bounds. */
    public void setDivideRatio(float ratio) {
        final int position = isLandscape()
                ? mRootBounds.left + (int) (mRootBounds.width() * ratio)
                : mRootBounds.top + (int) (mRootBounds.height() * ratio);
        final DividerSnapAlgorithm.SnapTarget snapTarget =
                mDividerSnapAlgorithm.calculateNonDismissingSnapTarget(position);
        setDividePosition(snapTarget.position, false /* applyLayoutChange */);
    }

这里会先根据ratio计算出一个位置position,但是这个position并不是直接的SnapTarget的position，需要把这个position传递到calculateNonDismissingSnapTarget方法计算出SnapTarget，然后在使用SnapTarget的position。 具体见分屏分割线相关 (留坑，尚未更新)

更新分屏task的bounds

updateWindowBounds(mSplitLayout, wct);

传递上下分屏task信息

代码路径：frameworks/base/libs/WindowManager/Shell/src/com/android/wm/shell/splitscreen/StageCoordinator.java

    /**
     * Populates `wct` with operations that match the split windows to the current layout.
     * To match relevant surfaces, make sure to call updateSurfaceBounds after `wct` is applied
     *
     * @return true if stage bounds actually .
     */
    private boolean updateWindowBounds(SplitLayout layout, WindowContainerTransaction wct) {
        final StageTaskListener topLeftStage =
                mSideStagePosition == SPLIT_POSITION_TOP_OR_LEFT ? mSideStage : mMainStage;
        final StageTaskListener bottomRightStage =
                mSideStagePosition == SPLIT_POSITION_TOP_OR_LEFT ? mMainStage : mSideStage;
        return layout.applyTaskChanges(wct, topLeftStage.mRootTaskInfo,
                bottomRightStage.mRootTaskInfo);
    }

这个方法传递了上下屏task信息后，要对这些task的bound进行修改。 注意：这里传递的是SideStage和MainStage这个两个上下分屏容器task信息，而非这个两个Stage下面的挂着的应用的task信息。 layout.applyTaskChanges方法传递了WindowContainerTransaction对象和上下分屏的task信息。

设置bounds

代码路径：frameworks/base/libs/WindowManager/Shell/src/com/android/wm/shell/common/split/SplitLayout.java

    public boolean applyTaskChanges(WindowContainerTransaction wct,
            ActivityManager.RunningTaskInfo task1, ActivityManager.RunningTaskInfo task2) {
        boolean boundsChanged = false;
        //两个条件满足其一即可
        //1.新bounds的值与之前bounds的值不一致
        //2.或者新task与之前task不一致（上下分屏交换的场景）
        if (!mBounds1.equals(mWinBounds1) || !task1.token.equals(mWinToken1)) {
            //设置bounds
            wct.setBounds(task1.token, mBounds1);
            wct.setSmallestScreenWidthDp(task1.token, getSmallestWidthDp(mBounds1));
            //记录新的bounds
            mWinBounds1.set(mBounds1);
            mWinToken1 = task1.token;
            boundsChanged = true;
        }
        //两个条件满足其一即可
        //1.新bounds的值与之前bounds的值不一致
        //2.或者新task与之前task不一致（上下分屏交换的场景）
        if (!mBounds2.equals(mWinBounds2) || !task2.token.equals(mWinToken2)) {
            //设置bounds
            wct.setBounds(task2.token, mBounds2);
            wct.setSmallestScreenWidthDp(task2.token, getSmallestWidthDp(mBounds2));
            //记录新的bounds
            mWinBounds2.set(mBounds2);
            mWinToken2 = task2.token;
            boundsChanged = true;
        }
        return boundsChanged;
    }

这个方法主要就是在bounds发生改变，或者上下分屏切换时，设置新bounds，并把新的bounds记录到Rect对象中。 这里通过WindowContainerTransaction对象对bounds进行设置。

设置bounds的实现(system_server侧)

    /**
     * Resize a container.
     */
    @NonNull
    public WindowContainerTransaction setBounds(
            @NonNull WindowContainerToken container,@NonNull Rect bounds) {
        Change chg = getOrCreateChange(container.asBinder());
        chg.mConfiguration.windowConfiguration.setBounds(bounds);
        chg.mConfigSetMask |= ActivityInfo.CONFIG_WINDOW_CONFIGURATION;
        chg.mWindowSetMask |= WindowConfiguration.WINDOW_CONFIG_BOUNDS;
        return this;
    }

    /**
     * Set the smallestScreenWidth of a container.
     */
    @NonNull
    public WindowContainerTransaction setSmallestScreenWidthDp(
            @NonNull WindowContainerToken container, int widthDp) {
        Change cfg = getOrCreateChange(container.asBinder());
        cfg.mConfiguration.smallestScreenWidthDp = widthDp;
        cfg.mConfigSetMask |= ActivityInfo.CONFIG_SMALLEST_SCREEN_SIZE;
        return this;
    }

这里就是把设置的bounds保存到Change对象中，后续提交WindowContainerTransaction后，在system_server侧便会进行真正的处理。

更新SurfaceBounds

updateSurfaceBounds(mSplitLayout, t, false /* applyResizingOffset */); 代码路径：frameworks/base/libs/WindowManager/Shell/src/com/android/wm/shell/splitscreen/StageCoordinator.java

    void updateSurfaceBounds(@Nullable SplitLayout layout, @NonNull SurfaceControl.Transaction t,
            boolean applyResizingOffset) {
        final StageTaskListener topLeftStage =
                mSideStagePosition == SPLIT_POSITION_TOP_OR_LEFT ? mSideStage : mMainStage;
        final StageTaskListener bottomRightStage =
                mSideStagePosition == SPLIT_POSITION_TOP_OR_LEFT ? mMainStage : mSideStage;
        (layout != null ? layout : mSplitLayout).applySurfaceChanges(t, topLeftStage.mRootLeash,
                bottomRightStage.mRootLeash, topLeftStage.mDimLayer, bottomRightStage.mDimLayer,
                applyResizingOffset);
    }

这个方法主要就获取对应的stage传递他们的leash用来后续更新对应的SurfaceBounds。 代码路径：frameworks/base/libs/WindowManager/Shell/src/com/android/wm/shell/common/split/SplitLayout.java

    /** Apply recorded surface layout to the {@link SurfaceControl.Transaction}. */
    public void applySurfaceChanges(SurfaceControl.Transaction t, SurfaceControl leash1,
            SurfaceControl leash2, SurfaceControl dimLayer1, SurfaceControl dimLayer2,
            boolean applyResizingOffset) {
        //获取分割线图层
        final SurfaceControl dividerLeash = getDividerLeash();
        if (dividerLeash != null) {
            //获取前面更新的分割线bounds(mDividerBounds),将其保存到mTempRect中
            getRefDividerBounds(mTempRect);
            //更新图层位置
            t.setPosition(dividerLeash, mTempRect.left, mTempRect.top);
            // Resets layer of divider bar to make sure it is always on top.
            t.setLayer(dividerLeash, Integer.MAX_VALUE);
        }
        //获取更新后的mBounds1（上分屏bounds）,将其保存到mTempRect中
        getRefBounds1(mTempRect);
        //更新上分屏图层位置
        t.setPosition(leash1, mTempRect.left, mTempRect.top)
                .setWindowCrop(leash1, mTempRect.width(), mTempRect.height());
        //获取更新后的mBounds2（下分屏bounds）,将其保存到mTempRect中
        getRefBounds2(mTempRect);
        //更新下分屏图层位置
        t.setPosition(leash2, mTempRect.left, mTempRect.top)
                .setWindowCrop(leash2, mTempRect.width(), mTempRect.height());

        if (mImePositionProcessor.adjustSurfaceLayoutForIme(
                t, dividerLeash, leash1, leash2, dimLayer1, dimLayer2)) {
            return;
        }

        mSurfaceEffectPolicy.adjustDimSurface(t, dimLayer1, dimLayer2);
        if (applyResizingOffset) {
            mSurfaceEffectPolicy.adjustRootSurface(t, leash1, leash2);
        }
    }
