离线安装集群

使用kubeasz 离线安装 k8s集群需要下载四个部分：

  • kubeasz 项目代码
  • 二进制文件（k8s、etcd、containerd等组件）
  • 容器镜像文件（calico、coredns、metrics-server等容器镜像）
  • 系统软件安装包（ipset、libseccomp2等，仅无法使用本地yum/apt源时需要）

离线文件准备

在一台能够访问互联网的服务器上执行：

  • 下载工具脚本ezdown，举例使用kubeasz版本3.6.5

export release=3.6.5 wget <https://github.com/easzlab/kubeasz/releases/download/${release}/ezdown> chmod +x ./ezdown

  • 使用工具脚本下载（更多关于ezdown的参数，运行./ezdown 查看）

下载kubeasz代码、二进制、默认容器镜像

# 国内环境
./ezdown -D

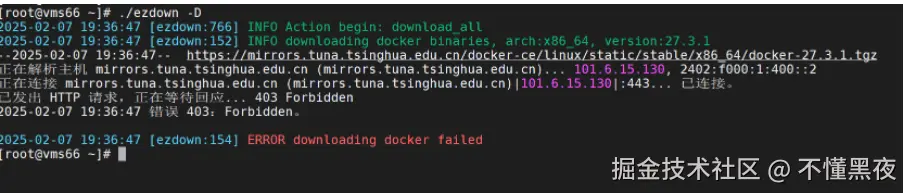

出现这种情况

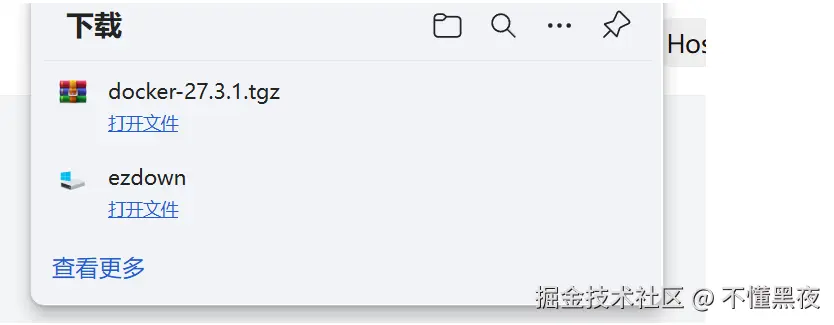

浏览器下载 mirrors.tuna.tsinghua.edu.cn/docker-ce/l… 上传到/etc/kubeasz/down 目录下面 再执行./ezdown -D


[可选]如果需要更多组件，请下载额外容器镜像（cilium,flannel,prometheus等）

./ezdown -X flannel
./ezdown -X prometheus
...

下载离线系统包 (适用于无法使用yum/apt仓库情形)

# 如果操作系统是centos_7
./ezdown -P centos_7

上述脚本运行成功后，所有文件（kubeasz代码、二进制、离线镜像）均已整理好放入目录/etc/kubeasz

  • /etc/kubeasz 包含 kubeasz 版本为 ${release} 的发布代码
  • /etc/kubeasz/bin 包含 k8s/etcd/docker/cni 等二进制文件
  • /etc/kubeasz/down 包含集群安装时需要的离线容器镜像
  • /etc/kubeasz/down/packages 包含集群安装时需要的系统基础软件

离线安装

上述下载完成后，把/etc/kubeasz整个目录复制到目标离线服务器相同目录，然后在离线服务器/etc/kubeasz目录下执行：

在控制节点安装依赖工具

yum install ansible git -y

ssh免密登录

#控制节点生成秘钥执行
ssh-keygen
#$IP为所有节点地址包括自身，按照提示输入yes 和root密码
ssh-copy-id $IP

创建集群配置集群

[root@vms66 ~]# cd /etc/kubeasz/
[root@vms66 kubeasz]# ./ezctl new test
2025-02-07 20:39:30 [ezctl:145] DEBUG generate custom cluster files in /etc/kubeasz/clusters/test
2025-02-07 20:39:30 [ezctl:151] DEBUG set versions
2025-02-07 20:39:30 [ezctl:193] DEBUG cluster test: files successfully created.
2025-02-07 20:39:30 [ezctl:194] INFO next steps 1: to config '/etc/kubeasz/clusters/test/hosts'
2025-02-07 20:39:30 [ezctl:195] INFO next steps 2: to config '/etc/kubeasz/clusters/test/config.yml'

编辑/etc/kubeasz/clusters/test/hosts 文件修改了ansible_python_interpreter =/usr/bin/python2.7 以及主机

# 'etcd' cluster should have odd member(s) (1,3,5,...)
[etcd]
192.168.26.66
192.168.26.67
192.168.26.68


# master node(s), set unique 'k8s_nodename' for each node
# CAUTION: 'k8s_nodename' must consist of lower case alphanumeric characters, '-' or '.',
# and must start and end with an alphanumeric character
[kube_master]
192.168.26.66 k8s_nodename='master-01'
192.168.26.67 k8s_nodename='master-02'
192.168.26.68 k8s_nodename='master-03'

# work node(s), set unique 'k8s_nodename' for each node
# CAUTION: 'k8s_nodename' must consist of lower case alphanumeric characters, '-' or '.',
# and must start and end with an alphanumeric character
[kube_node]
192.168.26.69 k8s_nodename='worker-01'

# [optional] harbor server, a private docker registry
# 'NEW_INSTALL': 'true' to install a harbor server; 'false' to integrate with existed one
[harbor]
#192.168.1.8 NEW_INSTALL=false

# [optional] loadbalance for accessing k8s from outside
[ex_lb]
#192.168.1.6 LB_ROLE=backup EX_APISERVER_VIP=192.168.1.250 EX_APISERVER_PORT=8443
#192.168.1.7 LB_ROLE=master EX_APISERVER_VIP=192.168.1.250 EX_APISERVER_PORT=8443

# [optional] ntp server for the cluster
[chrony]
#192.168.1.1

[all:vars]
# --------- Main Variables ---------------
# Secure port for apiservers
SECURE_PORT="6443"

# Cluster container-runtime supported: docker, containerd
# if k8s version >= 1.24, docker is not supported
CONTAINER_RUNTIME="containerd"

# Network plugins supported: calico, flannel, kube-router, cilium, kube-ovn
CLUSTER_NETWORK="calico"

# Service proxy mode of kube-proxy: 'iptables' or 'ipvs'
PROXY_MODE="ipvs"

# K8S Service CIDR, not overlap with node(host) networking
SERVICE_CIDR="10.68.0.0/16"

# Cluster CIDR (Pod CIDR), not overlap with node(host) networking
CLUSTER_CIDR="172.20.0.0/16"

# NodePort Range
NODE_PORT_RANGE="30000-32767"

# Cluster DNS Domain
CLUSTER_DNS_DOMAIN="cluster.local"

# -------- Additional Variables (don't change the default value right now) ---
# Binaries Directory
bin_dir="/opt/kube/bin"

# Deploy Directory (kubeasz workspace)
base_dir="/etc/kubeasz"

# Directory for a specific cluster
cluster_dir="{{ base_dir }}/clusters/test"

# CA and other components cert/key Directory
ca_dir="/etc/kubernetes/ssl"

# Default 'k8s_nodename' is empty
k8s_nodename=''

# Default python interpreter
ansible_python_interpreter=/usr/bin/python3
[root@vms66 ~]# vim /etc/kubeasz/clusters/test/hosts
[root@vms66 ~]# cat /etc/kubeasz/clusters/test/hosts
# 'etcd' cluster should have odd member(s) (1,3,5,...)
[etcd]
192.168.26.66
192.168.26.67
192.168.26.68


# master node(s), set unique 'k8s_nodename' for each node
# CAUTION: 'k8s_nodename' must consist of lower case alphanumeric characters, '-' or '.',
# and must start and end with an alphanumeric character
[kube_master]
192.168.26.66 k8s_nodename='master-01'
192.168.26.67 k8s_nodename='master-02'
192.168.26.68 k8s_nodename='master-03'

# work node(s), set unique 'k8s_nodename' for each node
# CAUTION: 'k8s_nodename' must consist of lower case alphanumeric characters, '-' or '.',
# and must start and end with an alphanumeric character
[kube_node]
192.168.26.69 k8s_nodename='worker-01'

# [optional] harbor server, a private docker registry
# 'NEW_INSTALL': 'true' to install a harbor server; 'false' to integrate with existed one
[harbor]
#192.168.1.8 NEW_INSTALL=false

# [optional] loadbalance for accessing k8s from outside
[ex_lb]
#192.168.1.6 LB_ROLE=backup EX_APISERVER_VIP=192.168.1.250 EX_APISERVER_PORT=8443
#192.168.1.7 LB_ROLE=master EX_APISERVER_VIP=192.168.1.250 EX_APISERVER_PORT=8443

# [optional] ntp server for the cluster
[chrony]
#192.168.1.1

[all:vars]
# --------- Main Variables ---------------
# Secure port for apiservers
SECURE_PORT="6443"

# Cluster container-runtime supported: docker, containerd
# if k8s version >= 1.24, docker is not supported
CONTAINER_RUNTIME="containerd"

# Network plugins supported: calico, flannel, kube-router, cilium, kube-ovn
CLUSTER_NETWORK="calico"

# Service proxy mode of kube-proxy: 'iptables' or 'ipvs'
PROXY_MODE="ipvs"

# K8S Service CIDR, not overlap with node(host) networking
SERVICE_CIDR="10.68.0.0/16"

# Cluster CIDR (Pod CIDR), not overlap with node(host) networking
CLUSTER_CIDR="172.20.0.0/16"

# NodePort Range
NODE_PORT_RANGE="30000-32767"

# Cluster DNS Domain
CLUSTER_DNS_DOMAIN="cluster.local"

# -------- Additional Variables (don't change the default value right now) ---
# Binaries Directory
bin_dir="/opt/kube/bin"

# Deploy Directory (kubeasz workspace)
base_dir="/etc/kubeasz"

# Directory for a specific cluster
cluster_dir="{{ base_dir }}/clusters/test"

# CA and other components cert/key Directory
ca_dir="/etc/kubernetes/ssl"

# Default 'k8s_nodename' is empty
k8s_nodename=''

# Default python interpreter
ansible_python_interpreter=/usr/bin/python2.7

修改基础包为离线

[root@vms66 kubeasz]# cat /etc/kubeasz/clusters/test/config.yml
############################
# prepare
############################
# 可选离线安装系统软件包 (offline|online)
INSTALL_SOURCE: "offline"

安装


[root@vms66 kubeasz]# ./ezctl setup test all
