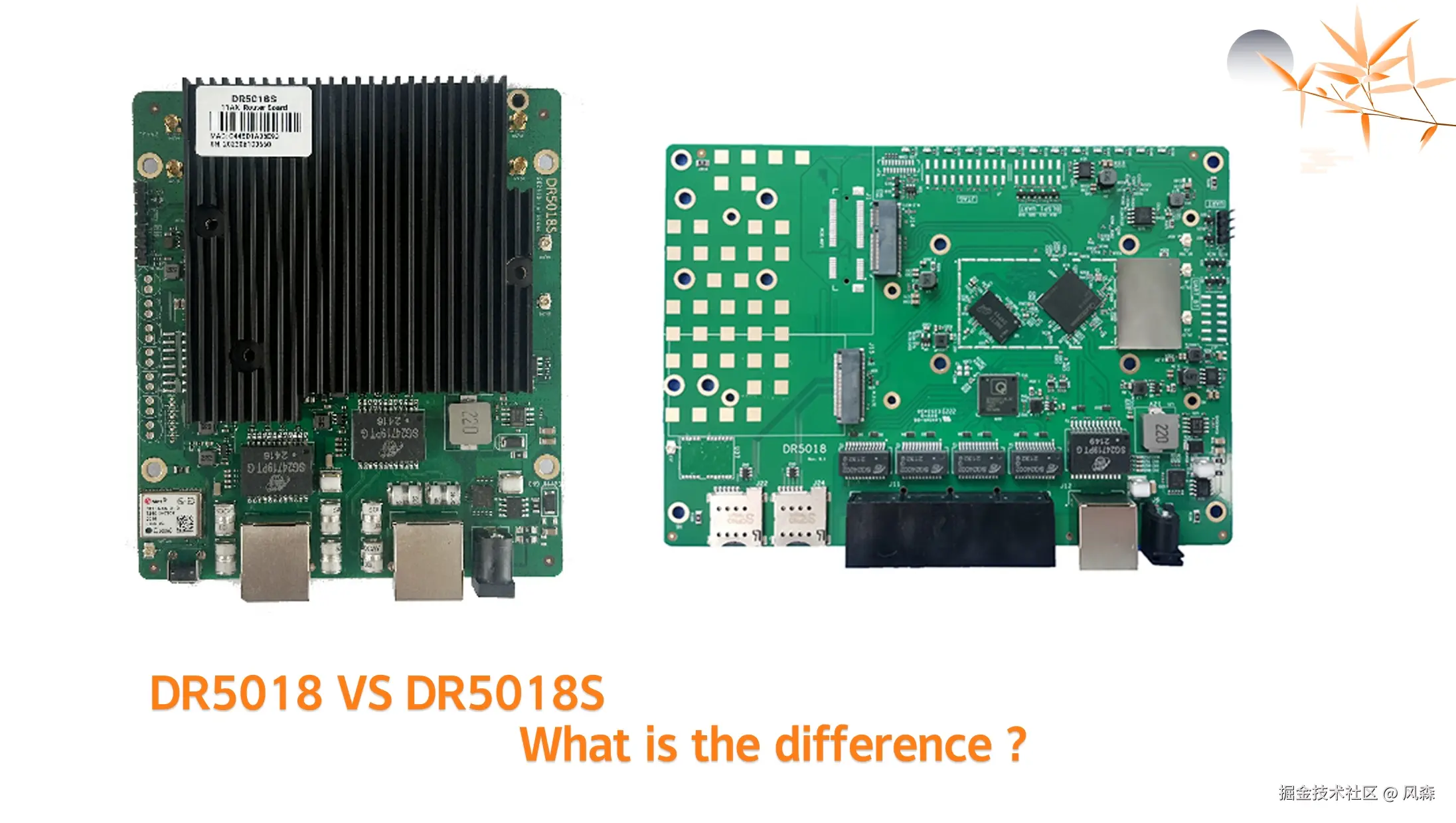

In the ever-evolving landscape of wireless technology, Wallys offers two remarkable enterprise-grade wireless modules - DR5018S and DR5018. Let's dive into their similarities, differences, and what makes Wallys the top choice for your networking needs.
Shared Strengths****
1. Robust Processing Power: Both the DR5018S and DR5018 are powered by the Dual-core ARM 64-bit A53 @1.0GHz processor. This ensures smooth operation, efficient data handling, and the ability to manage multiple concurrent connections without a hitch. Whether it's in a bustling office or a demanding industrial environment, these modules can keep up with the workload.
2. Openwifi Compatibility: They both support Openwifi, providing users with greater flexibility and the freedom to customize and optimize their wireless networks. This open - source platform allows for seamless integration with various networking setups and encourages innovation in network management.
3. Sufficient Storage and Memory: With NOR Flash and NAND Flash storage options, along with DDR system memory, both modules offer enough space to store essential system files and run applications efficiently. The DR5018S comes with 8MB NOR Flash and 256MB NAND Flash, while the DR5018 has 4MB NOR Flash and 128MB NAND Flash, both paired with 512MB DDR (the DR5018 can support 1G as an option).
4. 2.4GHz Wireless Capability: Equipped with 2x2 on - board 2.4GHz radios, both can achieve a physical data rate of up to 573Mbps. This enables reliable wireless connectivity for a wide range of devices, from smartphones and tablets to IoT devices, ensuring stable communication in the 2.4GHz band.
5. Rugged Temperature Tolerance: They share similar temperature ranges for operation and storage. With an operating temperature range of -40°C to +70°C and a storage temperature range of -45°C to +105°C, these modules can withstand harsh environmental conditions, making them suitable for use in diverse settings, including factories, warehouses, and outdoor installations.
Distinctive Features****
1. Wireless Bands and Speeds:
1. DR5018S: Stands out with its integrated 2x2 5GHz and 2x2 6GHz high - power radio modules. The 5GHz radio can reach up to 2402Mbps, and the 6GHz radio can also achieve 2402Mbps. This tri - band configuration provides high - bandwidth support for applications like high - definition video streaming, large - file downloads, and real - time gaming, catering to the most demanding network usage scenarios.
2. DR5018: Lacks the built - in 5GHz and 6GHz radios. However, it has M.2 card slots for expansion. It has an M.2 card slot for 5G (QUECTEL RM 500Q - GL) and another for a QCN9074 WIFI 6E card, allowing for more flexibility in customizing the wireless capabilities according to specific requirements.
2. Ethernet Ports:
1. DR5018S: Boasts an impressive array of Ethernet ports, including 11 x 1Gbps Ethernet Ports and 1x2.5Gbps Ethernet Port. This extensive port configuration is ideal for large - scale networking setups, such as in office buildings or data centers, where multiple devices need to be connected with high - speed wired connections.
2. DR5018: Offers more flexibility in Ethernet port options, with either 4 x 1Gbps Ethernet Ports or 1 x 1Gbps Ethernet Port & Poe. This makes it suitable for smaller networks or applications where Power over Ethernet (PoE) functionality is a priority.
3. Bluetooth and Optional Features:
1. DR5018S: Supports BT5.1 as an optional feature, which can be useful for connecting Bluetooth - enabled devices in an enterprise environment, such as wireless keyboards, mice, or audio devices. It also has the option to support GPS, which can be beneficial for location - based services.
2. DR5018: Also supports BT5.1 as an option and has an M.2 card slot for BLE (Bluetooth Low Energy), which can be used for connecting low - power Bluetooth devices.
Why Choose Wallys?****
1. Innovation and Quality: Wallys is at the forefront of wireless technology innovation. Our products are designed and engineered with the latest industry standards in mind, ensuring top - notch performance and reliability. The DR5018S and DR5018 are no exception, built with high - quality components to withstand the rigors of daily use in various environments.
2. Versatile Solutions: Whether you need a high - performance tri - band module like the DR5018S for large - scale networks or a more customizable option like the DR5018 for smaller setups or specific requirements, Wallys has you covered. Our products offer a wide range of features and expandability options to meet diverse networking needs.
3. Exceptional Support: We provide comprehensive support and downloads for all our products. Our dedicated team of experts is available to assist you with any technical issues, product inquiries, or installation guidance. You can rely on Wallys for prompt and efficient support, ensuring a smooth experience with our wireless modules.
In conclusion, whether you opt for the DR5018S or the DR5018, you're choosing a Wallys product that combines cutting - edge technology, reliability, and flexibility. Upgrade your wireless network today and experience the difference that Wallys brings.
