六、深入浅出React源码：协调器（Reconciler）核心流程解析

Reconciler 模块概述

React 协调器（Reconciler）是 React 架构中‌负责组件更新协调与虚拟 DOM 树构建‌的核心模块。其核心目标是通过以下机制实现高效渲染：

1. ‌增量更新‌：仅处理变化的组件，避免全量渲染‌。
2. ‌双缓冲机制‌：在内存中维护两棵 Fiber 树（current 与 workInProgress），通过交替切换实现无卡顿更新‌。
3. ‌优先级调度‌：与调度器（Scheduler）协作，支持高优先级任务抢占式执行‌。
4. ‌可中断渲染‌：通过时间切片和任务优先级调度，允许高优先级任务中断并抢占低优先级任务‌。

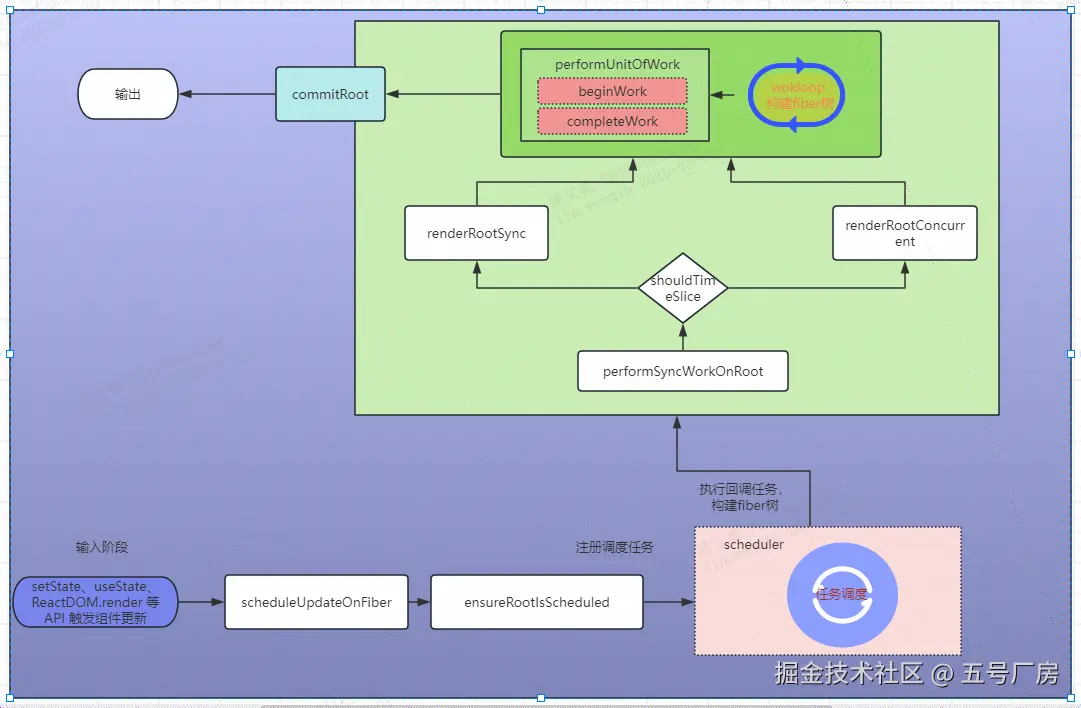

下面是整个react reconciler 的运作流程

一、输入阶段

1. ‌初始化 Fiber 树‌
   首次渲染时，通过 createRoot 创建根 Fiber 节点，并调用 updateContainer 触发初始协调流程‌。

2. ‌触发更新‌
   通过 setState、useState、ReactDOM.render 等 API 触发组件更新，最终调用 scheduleUpdateOnFiber 函数。此函数标记需要更新的 Fiber 节点并生成更新优先级‌。

    export function updateContainer(
      element: ReactNodeList,
      container: OpaqueRoot,
      parentComponent: ?React$Component<any, any>,
      callback: ?Function,
    ): Lane {
      const current = container.current;
      const lane = requestUpdateLane(current);
      updateContainerImpl(
        current,
        lane,
        element,
        container,
        parentComponent,
        callback,
      );
      return lane;
    }

scheduleUpdateOnFiber 源码

export function scheduleUpdateOnFiber(
  root: FiberRoot,
  fiber: Fiber,
  lane: Lane,
) {
  if (__DEV__) {
    if (isRunningInsertionEffect) {
      console.error('useInsertionEffect must not schedule updates.');
    }
  }

  if (__DEV__) {
    if (isFlushingPassiveEffects) {
      didScheduleUpdateDuringPassiveEffects = true;
    }
  }

  // Check if the work loop is currently suspended and waiting for data to
  // finish loading.
  if (
    // Suspended render phase
    (root === workInProgressRoot &&
      (workInProgressSuspendedReason === SuspendedOnData ||
        workInProgressSuspendedReason === SuspendedOnAction)) ||
    // Suspended commit phase
    root.cancelPendingCommit !== null
  ) {
    // The incoming update might unblock the current render. Interrupt the
    // current attempt and restart from the top.
    prepareFreshStack(root, NoLanes);
    const didAttemptEntireTree = false;
    markRootSuspended(
      root,
      workInProgressRootRenderLanes,
      workInProgressDeferredLane,
      didAttemptEntireTree,
    );
  }

  // Mark that the root has a pending update.
  markRootUpdated(root, lane);

  if (
    (executionContext & RenderContext) !== NoLanes &&
    root === workInProgressRoot
  ) {
    // This update was dispatched during the render phase. This is a mistake
    // if the update originates from user space (with the exception of local
    // hook updates, which are handled differently and don't reach this
    // function), but there are some internal React features that use this as
    // an implementation detail, like selective hydration.
    warnAboutRenderPhaseUpdatesInDEV(fiber);

    // Track lanes that were updated during the render phase
    workInProgressRootRenderPhaseUpdatedLanes = mergeLanes(
      workInProgressRootRenderPhaseUpdatedLanes,
      lane,
    );
  } else {
    // This is a normal update, scheduled from outside the render phase. For
    // example, during an input event.
    if (enableUpdaterTracking) {
      if (isDevToolsPresent) {
        addFiberToLanesMap(root, fiber, lane);
      }
    }

    warnIfUpdatesNotWrappedWithActDEV(fiber);

    if (enableTransitionTracing) {
      const transition = ReactSharedInternals.T;
      if (transition !== null && transition.name != null) {
        if (transition.startTime === -1) {
          transition.startTime = now();
        }

        // $FlowFixMe[prop-missing]: The BatchConfigTransition and Transition types are incompatible but was previously untyped and thus uncaught
        // $FlowFixMe[incompatible-call]: "
        addTransitionToLanesMap(root, transition, lane);
      }
    }

    if (root === workInProgressRoot) {
      // Received an update to a tree that's in the middle of rendering. Mark
      // that there was an interleaved update work on this root.
      if ((executionContext & RenderContext) === NoContext) {
        workInProgressRootInterleavedUpdatedLanes = mergeLanes(
          workInProgressRootInterleavedUpdatedLanes,
          lane,
        );
      }
      if (workInProgressRootExitStatus === RootSuspendedWithDelay) {
        // The root already suspended with a delay, which means this render
        // definitely won't finish. Since we have a new update, let's mark it as
        // suspended now, right before marking the incoming update. This has the
        // effect of interrupting the current render and switching to the update.
        // TODO: Make sure this doesn't override pings that happen while we've
        // already started rendering.
        const didAttemptEntireTree = false;
        markRootSuspended(
          root,
          workInProgressRootRenderLanes,
          workInProgressDeferredLane,
          didAttemptEntireTree,
        );
      }
    }

    ensureRootIsScheduled(root);
    if (
      lane === SyncLane &&
      executionContext === NoContext &&
      !disableLegacyMode &&
      (fiber.mode & ConcurrentMode) === NoMode
    ) {
      if (__DEV__ && ReactSharedInternals.isBatchingLegacy) {
        // Treat `act` as if it's inside `batchedUpdates`, even in legacy mode.
      } else {
        // Flush the synchronous work now, unless we're already working or inside
        // a batch. This is intentionally inside scheduleUpdateOnFiber instead of
        // scheduleCallbackForFiber to preserve the ability to schedule a callback
        // without immediately flushing it. We only do this for user-initiated
        // updates, to preserve historical behavior of legacy mode.
        resetRenderTimer();
        flushSyncWorkOnLegacyRootsOnly();
      }
    }
  }
}

二、协调阶段（Reconciler Phase）

1. ‌任务调度‌

与调度器（scheduler）交互，根据更新优先级将任务拆分为时间切片，注册到调度队列中等待执行‌。 调度主要代码如下：

/**
 * Copyright (c) Meta Platforms, Inc. and affiliates.
 *
 * This source code is licensed under the MIT license found in the
 * LICENSE file in the root directory of this source tree.
 *
 * @flow
 */

/* eslint-disable no-var */

import type {PriorityLevel} from '../SchedulerPriorities';

import {
  enableProfiling,
  frameYieldMs,
  userBlockingPriorityTimeout,
  lowPriorityTimeout,
  normalPriorityTimeout,
  enableRequestPaint,
  enableAlwaysYieldScheduler,
} from '../SchedulerFeatureFlags';

import {push, pop, peek} from '../SchedulerMinHeap';

// TODO: Use symbols?
import {
  ImmediatePriority,
  UserBlockingPriority,
  NormalPriority,
  LowPriority,
  IdlePriority,
} from '../SchedulerPriorities';
import {
  markTaskRun,
  markTaskYield,
  markTaskCompleted,
  markTaskCanceled,
  markTaskErrored,
  markSchedulerSuspended,
  markSchedulerUnsuspended,
  markTaskStart,
  stopLoggingProfilingEvents,
  startLoggingProfilingEvents,
} from '../SchedulerProfiling';

export type Callback = boolean => ?Callback;

export opaque type Task = {
  id: number,
  callback: Callback | null,
  priorityLevel: PriorityLevel,
  startTime: number,
  expirationTime: number,
  sortIndex: number,
  isQueued?: boolean,
};

let getCurrentTime: () => number | DOMHighResTimeStamp;
const hasPerformanceNow =
  // $FlowFixMe[method-unbinding]
  typeof performance === 'object' && typeof performance.now === 'function';

if (hasPerformanceNow) {
  const localPerformance = performance;
  getCurrentTime = () => localPerformance.now();
} else {
  const localDate = Date;
  const initialTime = localDate.now();
  getCurrentTime = () => localDate.now() - initialTime;
}

// Max 31 bit integer. The max integer size in V8 for 32-bit systems.
// Math.pow(2, 30) - 1
// 0b111111111111111111111111111111
var maxSigned31BitInt = 1073741823;

// Tasks are stored on a min heap
var taskQueue: Array<Task> = [];
var timerQueue: Array<Task> = [];

// Incrementing id counter. Used to maintain insertion order.
var taskIdCounter = 1;

var currentTask = null;
var currentPriorityLevel = NormalPriority;

// This is set while performing work, to prevent re-entrance.
var isPerformingWork = false;

var isHostCallbackScheduled = false;
var isHostTimeoutScheduled = false;

var needsPaint = false;

// Capture local references to native APIs, in case a polyfill overrides them.
const localSetTimeout = typeof setTimeout === 'function' ? setTimeout : null;
const localClearTimeout =
  typeof clearTimeout === 'function' ? clearTimeout : null;
const localSetImmediate =
  typeof setImmediate !== 'undefined' ? setImmediate : null; // IE and Node.js + jsdom

function advanceTimers(currentTime: number) {
  // Check for tasks that are no longer delayed and add them to the queue.
  let timer = peek(timerQueue);
  while (timer !== null) {
    if (timer.callback === null) {
      // Timer was cancelled.
      pop(timerQueue);
    } else if (timer.startTime <= currentTime) {
      // Timer fired. Transfer to the task queue.
      pop(timerQueue);
      timer.sortIndex = timer.expirationTime;
      push(taskQueue, timer);
      if (enableProfiling) {
        markTaskStart(timer, currentTime);
        timer.isQueued = true;
      }
    } else {
      // Remaining timers are pending.
      return;
    }
    timer = peek(timerQueue);
  }
}

function handleTimeout(currentTime: number) {
  isHostTimeoutScheduled = false;
  advanceTimers(currentTime);

  if (!isHostCallbackScheduled) {
    if (peek(taskQueue) !== null) {
      isHostCallbackScheduled = true;
      requestHostCallback();
    } else {
      const firstTimer = peek(timerQueue);
      if (firstTimer !== null) {
        requestHostTimeout(handleTimeout, firstTimer.startTime - currentTime);
      }
    }
  }
}

function flushWork(initialTime: number) {
  if (enableProfiling) {
    markSchedulerUnsuspended(initialTime);
  }

  // We'll need a host callback the next time work is scheduled.
  isHostCallbackScheduled = false;
  if (isHostTimeoutScheduled) {
    // We scheduled a timeout but it's no longer needed. Cancel it.
    isHostTimeoutScheduled = false;
    cancelHostTimeout();
  }

  isPerformingWork = true;
  const previousPriorityLevel = currentPriorityLevel;
  try {
    if (enableProfiling) {
      try {
        return workLoop(initialTime);
      } catch (error) {
        if (currentTask !== null) {
          const currentTime = getCurrentTime();
          // $FlowFixMe[incompatible-call] found when upgrading Flow
          markTaskErrored(currentTask, currentTime);
          // $FlowFixMe[incompatible-use] found when upgrading Flow
          currentTask.isQueued = false;
        }
        throw error;
      }
    } else {
      // No catch in prod code path.
      return workLoop(initialTime);
    }
  } finally {
    currentTask = null;
    currentPriorityLevel = previousPriorityLevel;
    isPerformingWork = false;
    if (enableProfiling) {
      const currentTime = getCurrentTime();
      markSchedulerSuspended(currentTime);
    }
  }
}

function workLoop(initialTime: number) {
  let currentTime = initialTime;
  advanceTimers(currentTime);
  currentTask = peek(taskQueue);
  while (currentTask !== null) {
    if (!enableAlwaysYieldScheduler) {
      if (currentTask.expirationTime > currentTime && shouldYieldToHost()) {
        // This currentTask hasn't expired, and we've reached the deadline.
        break;
      }
    }
    // $FlowFixMe[incompatible-use] found when upgrading Flow
    const callback = currentTask.callback;
    if (typeof callback === 'function') {
      // $FlowFixMe[incompatible-use] found when upgrading Flow
      currentTask.callback = null;
      // $FlowFixMe[incompatible-use] found when upgrading Flow
      currentPriorityLevel = currentTask.priorityLevel;
      // $FlowFixMe[incompatible-use] found when upgrading Flow
      const didUserCallbackTimeout = currentTask.expirationTime <= currentTime;
      if (enableProfiling) {
        // $FlowFixMe[incompatible-call] found when upgrading Flow
        markTaskRun(currentTask, currentTime);
      }
      const continuationCallback = callback(didUserCallbackTimeout);
      currentTime = getCurrentTime();
      if (typeof continuationCallback === 'function') {
        // If a continuation is returned, immediately yield to the main thread
        // regardless of how much time is left in the current time slice.
        // $FlowFixMe[incompatible-use] found when upgrading Flow
        currentTask.callback = continuationCallback;
        if (enableProfiling) {
          // $FlowFixMe[incompatible-call] found when upgrading Flow
          markTaskYield(currentTask, currentTime);
        }
        advanceTimers(currentTime);
        return true;
      } else {
        if (enableProfiling) {
          // $FlowFixMe[incompatible-call] found when upgrading Flow
          markTaskCompleted(currentTask, currentTime);
          // $FlowFixMe[incompatible-use] found when upgrading Flow
          currentTask.isQueued = false;
        }
        if (currentTask === peek(taskQueue)) {
          pop(taskQueue);
        }
        advanceTimers(currentTime);
      }
    } else {
      pop(taskQueue);
    }
    currentTask = peek(taskQueue);
    if (enableAlwaysYieldScheduler) {
      if (currentTask === null || currentTask.expirationTime > currentTime) {
        // This currentTask hasn't expired we yield to the browser task.
        break;
      }
    }
  }
  // Return whether there's additional work
  if (currentTask !== null) {
    return true;
  } else {
    const firstTimer = peek(timerQueue);
    if (firstTimer !== null) {
      requestHostTimeout(handleTimeout, firstTimer.startTime - currentTime);
    }
    return false;
  }
}

function unstable_runWithPriority<T>(
  priorityLevel: PriorityLevel,
  eventHandler: () => T,
): T {
  switch (priorityLevel) {
    case ImmediatePriority:
    case UserBlockingPriority:
    case NormalPriority:
    case LowPriority:
    case IdlePriority:
      break;
    default:
      priorityLevel = NormalPriority;
  }

  var previousPriorityLevel = currentPriorityLevel;
  currentPriorityLevel = priorityLevel;

  try {
    return eventHandler();
  } finally {
    currentPriorityLevel = previousPriorityLevel;
  }
}

function unstable_next<T>(eventHandler: () => T): T {
  var priorityLevel;
  switch (currentPriorityLevel) {
    case ImmediatePriority:
    case UserBlockingPriority:
    case NormalPriority:
      // Shift down to normal priority
      priorityLevel = NormalPriority;
      break;
    default:
      // Anything lower than normal priority should remain at the current level.
      priorityLevel = currentPriorityLevel;
      break;
  }

  var previousPriorityLevel = currentPriorityLevel;
  currentPriorityLevel = priorityLevel;

  try {
    return eventHandler();
  } finally {
    currentPriorityLevel = previousPriorityLevel;
  }
}

function unstable_wrapCallback<T: (...Array<mixed>) => mixed>(callback: T): T {
  var parentPriorityLevel = currentPriorityLevel;
  // $FlowFixMe[incompatible-return]
  // $FlowFixMe[missing-this-annot]
  return function () {
    // This is a fork of runWithPriority, inlined for performance.
    var previousPriorityLevel = currentPriorityLevel;
    currentPriorityLevel = parentPriorityLevel;

    try {
      return callback.apply(this, arguments);
    } finally {
      currentPriorityLevel = previousPriorityLevel;
    }
  };
}

function unstable_scheduleCallback(
  priorityLevel: PriorityLevel,
  callback: Callback,
  options?: {delay: number},
): Task {
  var currentTime = getCurrentTime();

  var startTime;
  if (typeof options === 'object' && options !== null) {
    var delay = options.delay;
    if (typeof delay === 'number' && delay > 0) {
      startTime = currentTime + delay;
    } else {
      startTime = currentTime;
    }
  } else {
    startTime = currentTime;
  }

  var timeout;
  switch (priorityLevel) {
    case ImmediatePriority:
      // Times out immediately
      timeout = -1;
      break;
    case UserBlockingPriority:
      // Eventually times out
      timeout = userBlockingPriorityTimeout;
      break;
    case IdlePriority:
      // Never times out
      timeout = maxSigned31BitInt;
      break;
    case LowPriority:
      // Eventually times out
      timeout = lowPriorityTimeout;
      break;
    case NormalPriority:
    default:
      // Eventually times out
      timeout = normalPriorityTimeout;
      break;
  }

  var expirationTime = startTime + timeout;

  var newTask: Task = {
    id: taskIdCounter++,
    callback,
    priorityLevel,
    startTime,
    expirationTime,
    sortIndex: -1,
  };
  if (enableProfiling) {
    newTask.isQueued = false;
  }

  if (startTime > currentTime) {
    // This is a delayed task.
    newTask.sortIndex = startTime;
    push(timerQueue, newTask);
    if (peek(taskQueue) === null && newTask === peek(timerQueue)) {
      // All tasks are delayed, and this is the task with the earliest delay.
      if (isHostTimeoutScheduled) {
        // Cancel an existing timeout.
        cancelHostTimeout();
      } else {
        isHostTimeoutScheduled = true;
      }
      // Schedule a timeout.
      requestHostTimeout(handleTimeout, startTime - currentTime);
    }
  } else {
    newTask.sortIndex = expirationTime;
    push(taskQueue, newTask);
    if (enableProfiling) {
      markTaskStart(newTask, currentTime);
      newTask.isQueued = true;
    }
    // Schedule a host callback, if needed. If we're already performing work,
    // wait until the next time we yield.
    if (!isHostCallbackScheduled && !isPerformingWork) {
      isHostCallbackScheduled = true;
      requestHostCallback();
    }
  }

  return newTask;
}

function unstable_cancelCallback(task: Task) {
  if (enableProfiling) {
    if (task.isQueued) {
      const currentTime = getCurrentTime();
      markTaskCanceled(task, currentTime);
      task.isQueued = false;
    }
  }

  // Null out the callback to indicate the task has been canceled. (Can't
  // remove from the queue because you can't remove arbitrary nodes from an
  // array based heap, only the first one.)
  task.callback = null;
}

function unstable_getCurrentPriorityLevel(): PriorityLevel {
  return currentPriorityLevel;
}

let isMessageLoopRunning = false;
let taskTimeoutID: TimeoutID = (-1: any);

// Scheduler periodically yields in case there is other work on the main
// thread, like user events. By default, it yields multiple times per frame.
// It does not attempt to align with frame boundaries, since most tasks don't
// need to be frame aligned; for those that do, use requestAnimationFrame.
let frameInterval = frameYieldMs;
let startTime = -1;

function shouldYieldToHost(): boolean {
  if (!enableAlwaysYieldScheduler && enableRequestPaint && needsPaint) {
    // Yield now.
    return true;
  }
  const timeElapsed = getCurrentTime() - startTime;
  if (timeElapsed < frameInterval) {
    // The main thread has only been blocked for a really short amount of time;
    // smaller than a single frame. Don't yield yet.
    return false;
  }
  // Yield now.
  return true;
}

function requestPaint() {
  if (enableRequestPaint) {
    needsPaint = true;
  }
}

function forceFrameRate(fps: number) {
  if (fps < 0 || fps > 125) {
    // Using console['error'] to evade Babel and ESLint
    console['error'](
      'forceFrameRate takes a positive int between 0 and 125, ' +
        'forcing frame rates higher than 125 fps is not supported',
    );
    return;
  }
  if (fps > 0) {
    frameInterval = Math.floor(1000 / fps);
  } else {
    // reset the framerate
    frameInterval = frameYieldMs;
  }
}

const performWorkUntilDeadline = () => {
  if (enableRequestPaint) {
    needsPaint = false;
  }
  if (isMessageLoopRunning) {
    const currentTime = getCurrentTime();
    // Keep track of the start time so we can measure how long the main thread
    // has been blocked.
    startTime = currentTime;

    // If a scheduler task throws, exit the current browser task so the
    // error can be observed.
    //
    // Intentionally not using a try-catch, since that makes some debugging
    // techniques harder. Instead, if `flushWork` errors, then `hasMoreWork` will
    // remain true, and we'll continue the work loop.
    let hasMoreWork = true;
    try {
      hasMoreWork = flushWork(currentTime);
    } finally {
      if (hasMoreWork) {
        // If there's more work, schedule the next message event at the end
        // of the preceding one.
        schedulePerformWorkUntilDeadline();
      } else {
        isMessageLoopRunning = false;
      }
    }
  }
};

let schedulePerformWorkUntilDeadline;
if (typeof localSetImmediate === 'function') {
  // Node.js and old IE.
  // There's a few reasons for why we prefer setImmediate.
  //
  // Unlike MessageChannel, it doesn't prevent a Node.js process from exiting.
  // (Even though this is a DOM fork of the Scheduler, you could get here
  // with a mix of Node.js 15+, which has a MessageChannel, and jsdom.)
  // https://github.com/facebook/react/issues/20756
  //
  // But also, it runs earlier which is the semantic we want.
  // If other browsers ever implement it, it's better to use it.
  // Although both of these would be inferior to native scheduling.
  schedulePerformWorkUntilDeadline = () => {
    localSetImmediate(performWorkUntilDeadline);
  };
} else if (typeof MessageChannel !== 'undefined') {
  // DOM and Worker environments.
  // We prefer MessageChannel because of the 4ms setTimeout clamping.
  const channel = new MessageChannel();
  const port = channel.port2;
  channel.port1.onmessage = performWorkUntilDeadline;
  schedulePerformWorkUntilDeadline = () => {
    port.postMessage(null);
  };
} else {
  // We should only fallback here in non-browser environments.
  schedulePerformWorkUntilDeadline = () => {
    // $FlowFixMe[not-a-function] nullable value
    localSetTimeout(performWorkUntilDeadline, 0);
  };
}

function requestHostCallback() {
  if (!isMessageLoopRunning) {
    isMessageLoopRunning = true;
    schedulePerformWorkUntilDeadline();
  }
}

function requestHostTimeout(
  callback: (currentTime: number) => void,
  ms: number,
) {
  // $FlowFixMe[not-a-function] nullable value
  taskTimeoutID = localSetTimeout(() => {
    callback(getCurrentTime());
  }, ms);
}

function cancelHostTimeout() {
  // $FlowFixMe[not-a-function] nullable value
  localClearTimeout(taskTimeoutID);
  taskTimeoutID = ((-1: any): TimeoutID);
}

export {
  ImmediatePriority as unstable_ImmediatePriority,
  UserBlockingPriority as unstable_UserBlockingPriority,
  NormalPriority as unstable_NormalPriority,
  IdlePriority as unstable_IdlePriority,
  LowPriority as unstable_LowPriority,
  unstable_runWithPriority,
  unstable_next,
  unstable_scheduleCallback,
  unstable_cancelCallback,
  unstable_wrapCallback,
  unstable_getCurrentPriorityLevel,
  shouldYieldToHost as unstable_shouldYield,
  requestPaint as unstable_requestPaint,
  getCurrentTime as unstable_now,
  forceFrameRate as unstable_forceFrameRate,
};

export const unstable_Profiling: {
  startLoggingProfilingEvents(): void,
  stopLoggingProfilingEvents(): ArrayBuffer | null,
} | null = enableProfiling
  ? {
      startLoggingProfilingEvents,
      stopLoggingProfilingEvents,
    }
  : null;

2. ‌构建 Fiber 树‌

以“双缓冲机制”为基础，在内存中构建新的 workInProgress Fiber 树： 通过 beginWork 逐层对比新旧 Fiber 节点，调用 updateClassComponent 或其它组件逻辑生成子节点‌。

function beginWork(
  current: Fiber | null,
  workInProgress: Fiber,
  renderLanes: Lanes,
): Fiber | null {
  if (__DEV__) {
    if (workInProgress._debugNeedsRemount && current !== null) {
      // This will restart the begin phase with a new fiber.
      const copiedFiber = createFiberFromTypeAndProps(
        workInProgress.type,
        workInProgress.key,
        workInProgress.pendingProps,
        workInProgress._debugOwner || null,
        workInProgress.mode,
        workInProgress.lanes,
      );
      if (enableOwnerStacks) {
        copiedFiber._debugStack = workInProgress._debugStack;
        copiedFiber._debugTask = workInProgress._debugTask;
      }
      return remountFiber(current, workInProgress, copiedFiber);
    }
  }

  if (current !== null) {
    const oldProps = current.memoizedProps;
    const newProps = workInProgress.pendingProps;

    if (
      oldProps !== newProps ||
      hasLegacyContextChanged() ||
      // Force a re-render if the implementation changed due to hot reload:
      (__DEV__ ? workInProgress.type !== current.type : false)
    ) {
      // If props or context changed, mark the fiber as having performed work.
      // This may be unset if the props are determined to be equal later (memo).
      didReceiveUpdate = true;
    } else {
      // Neither props nor legacy context changes. Check if there's a pending
      // update or context change.
      const hasScheduledUpdateOrContext = checkScheduledUpdateOrContext(
        current,
        renderLanes,
      );
      if (
        !hasScheduledUpdateOrContext &&
        // If this is the second pass of an error or suspense boundary, there
        // may not be work scheduled on `current`, so we check for this flag.
        (workInProgress.flags & DidCapture) === NoFlags
      ) {
        // No pending updates or context. Bail out now.
        didReceiveUpdate = false;
        return attemptEarlyBailoutIfNoScheduledUpdate(
          current,
          workInProgress,
          renderLanes,
        );
      }
      if ((current.flags & ForceUpdateForLegacySuspense) !== NoFlags) {
        // This is a special case that only exists for legacy mode.
        // See https://github.com/facebook/react/pull/19216.
        didReceiveUpdate = true;
      } else {
        // An update was scheduled on this fiber, but there are no new props
        // nor legacy context. Set this to false. If an update queue or context
        // consumer produces a changed value, it will set this to true. Otherwise,
        // the component will assume the children have not changed and bail out.
        didReceiveUpdate = false;
      }
    }
  } else {
    didReceiveUpdate = false;

    if (getIsHydrating() && isForkedChild(workInProgress)) {
      // Check if this child belongs to a list of muliple children in
      // its parent.
      //
      // In a true multi-threaded implementation, we would render children on
      // parallel threads. This would represent the beginning of a new render
      // thread for this subtree.
      //
      // We only use this for id generation during hydration, which is why the
      // logic is located in this special branch.
      const slotIndex = workInProgress.index;
      const numberOfForks = getForksAtLevel(workInProgress);
      pushTreeId(workInProgress, numberOfForks, slotIndex);
    }
  }

  // Before entering the begin phase, clear pending update priority.
  // TODO: This assumes that we're about to evaluate the component and process
  // the update queue. However, there's an exception: SimpleMemoComponent
  // sometimes bails out later in the begin phase. This indicates that we should
  // move this assignment out of the common path and into each branch.
  workInProgress.lanes = NoLanes;

  switch (workInProgress.tag) {
    case LazyComponent: {
      const elementType = workInProgress.elementType;
      return mountLazyComponent(
        current,
        workInProgress,
        elementType,
        renderLanes,
      );
    }
    case FunctionComponent: {
      const Component = workInProgress.type;
      const unresolvedProps = workInProgress.pendingProps;
      const resolvedProps =
        disableDefaultPropsExceptForClasses ||
        workInProgress.elementType === Component
          ? unresolvedProps
          : resolveDefaultPropsOnNonClassComponent(Component, unresolvedProps);
      return updateFunctionComponent(
        current,
        workInProgress,
        Component,
        resolvedProps,
        renderLanes,
      );
    }
    case ClassComponent: {
      const Component = workInProgress.type;
      const unresolvedProps = workInProgress.pendingProps;
      const resolvedProps = resolveClassComponentProps(
        Component,
        unresolvedProps,
        workInProgress.elementType === Component,
      );
      return updateClassComponent(
        current,
        workInProgress,
        Component,
        resolvedProps,
        renderLanes,
      );
    }
    case HostRoot:
      return updateHostRoot(current, workInProgress, renderLanes);
    case HostHoistable:
      if (supportsResources) {
        return updateHostHoistable(current, workInProgress, renderLanes);
      }
    // Fall through
    case HostSingleton:
      if (supportsSingletons) {
        return updateHostSingleton(current, workInProgress, renderLanes);
      }
    // Fall through
    case HostComponent:
      return updateHostComponent(current, workInProgress, renderLanes);
    case HostText:
      return updateHostText(current, workInProgress);
    case SuspenseComponent:
      return updateSuspenseComponent(current, workInProgress, renderLanes);
    case HostPortal:
      return updatePortalComponent(current, workInProgress, renderLanes);
    case ForwardRef: {
      const type = workInProgress.type;
      const unresolvedProps = workInProgress.pendingProps;
      const resolvedProps =
        disableDefaultPropsExceptForClasses ||
        workInProgress.elementType === type
          ? unresolvedProps
          : resolveDefaultPropsOnNonClassComponent(type, unresolvedProps);
      return updateForwardRef(
        current,
        workInProgress,
        type,
        resolvedProps,
        renderLanes,
      );
    }
    case Fragment:
      return updateFragment(current, workInProgress, renderLanes);
    case Mode:
      return updateMode(current, workInProgress, renderLanes);
    case Profiler:
      return updateProfiler(current, workInProgress, renderLanes);
    case ContextProvider:
      return updateContextProvider(current, workInProgress, renderLanes);
    case ContextConsumer:
      return updateContextConsumer(current, workInProgress, renderLanes);
    case MemoComponent: {
      const type = workInProgress.type;
      const unresolvedProps = workInProgress.pendingProps;
      // Resolve outer props first, then resolve inner props.
      let resolvedProps = disableDefaultPropsExceptForClasses
        ? unresolvedProps
        : resolveDefaultPropsOnNonClassComponent(type, unresolvedProps);
      resolvedProps = disableDefaultPropsExceptForClasses
        ? resolvedProps
        : resolveDefaultPropsOnNonClassComponent(type.type, resolvedProps);
      return updateMemoComponent(
        current,
        workInProgress,
        type,
        resolvedProps,
        renderLanes,
      );
    }
    case SimpleMemoComponent: {
      return updateSimpleMemoComponent(
        current,
        workInProgress,
        workInProgress.type,
        workInProgress.pendingProps,
        renderLanes,
      );
    }
    case IncompleteClassComponent: {
      if (disableLegacyMode) {
        break;
      }
      const Component = workInProgress.type;
      const unresolvedProps = workInProgress.pendingProps;
      const resolvedProps = resolveClassComponentProps(
        Component,
        unresolvedProps,
        workInProgress.elementType === Component,
      );
      return mountIncompleteClassComponent(
        current,
        workInProgress,
        Component,
        resolvedProps,
        renderLanes,
      );
    }
    case IncompleteFunctionComponent: {
      if (disableLegacyMode) {
        break;
      }
      const Component = workInProgress.type;
      const unresolvedProps = workInProgress.pendingProps;
      const resolvedProps = resolveClassComponentProps(
        Component,
        unresolvedProps,
        workInProgress.elementType === Component,
      );
      return mountIncompleteFunctionComponent(
        current,
        workInProgress,
        Component,
        resolvedProps,
        renderLanes,
      );
    }
    case SuspenseListComponent: {
      return updateSuspenseListComponent(current, workInProgress, renderLanes);
    }
    case ScopeComponent: {
      if (enableScopeAPI) {
        return updateScopeComponent(current, workInProgress, renderLanes);
      }
      break;
    }
    case OffscreenComponent: {
      return updateOffscreenComponent(current, workInProgress, renderLanes);
    }
    case LegacyHiddenComponent: {
      if (enableLegacyHidden) {
        return updateLegacyHiddenComponent(
          current,
          workInProgress,
          renderLanes,
        );
      }
      break;
    }
    case CacheComponent: {
      return updateCacheComponent(current, workInProgress, renderLanes);
    }
    case TracingMarkerComponent: {
      if (enableTransitionTracing) {
        return updateTracingMarkerComponent(
          current,
          workInProgress,
          renderLanes,
        );
      }
      break;
    }
    case ViewTransitionComponent: {
      if (enableViewTransition) {
        return updateViewTransition(current, workInProgress, renderLanes);
      }
      break;
    }
    case Throw: {
      // This represents a Component that threw in the reconciliation phase.
      // So we'll rethrow here. This might be a Thenable.
      throw workInProgress.pendingProps;
    }
  }

  throw new Error(
    `Unknown unit of work tag (${workInProgress.tag}). This error is likely caused by a bug in ` +
      'React. Please file an issue.',
  );
}

通过 completeWork 处理副作用（如 DOM 节点创建），并连接兄弟节点形成树结构‌。

function completeWork(
  current: Fiber | null,
  workInProgress: Fiber,
  renderLanes: Lanes,
): Fiber | null {
  const newProps = workInProgress.pendingProps;
  // Note: This intentionally doesn't check if we're hydrating because comparing
  // to the current tree provider fiber is just as fast and less error-prone.
  // Ideally we would have a special version of the work loop only
  // for hydration.
  popTreeContext(workInProgress);
  switch (workInProgress.tag) {
    case IncompleteFunctionComponent: {
      if (disableLegacyMode) {
        break;
      }
      // Fallthrough
    }
    case LazyComponent:
    case SimpleMemoComponent:
    case FunctionComponent:
    case ForwardRef:
    case Fragment:
    case Mode:
    case Profiler:
    case ContextConsumer:
    case MemoComponent:
      bubbleProperties(workInProgress);
      return null;
    case ClassComponent: {
      const Component = workInProgress.type;
      if (isLegacyContextProvider(Component)) {
        popLegacyContext(workInProgress);
      }
      bubbleProperties(workInProgress);
      return null;
    }
    case HostRoot: {
      const fiberRoot = (workInProgress.stateNode: FiberRoot);

      if (enableTransitionTracing) {
        const transitions = getWorkInProgressTransitions();
        // We set the Passive flag here because if there are new transitions,
        // we will need to schedule callbacks and process the transitions,
        // which we do in the passive phase
        if (transitions !== null) {
          workInProgress.flags |= Passive;
        }
      }

      let previousCache: Cache | null = null;
      if (current !== null) {
        previousCache = current.memoizedState.cache;
      }
      const cache: Cache = workInProgress.memoizedState.cache;
      if (cache !== previousCache) {
        // Run passive effects to retain/release the cache.
        workInProgress.flags |= Passive;
      }
      popCacheProvider(workInProgress, cache);

      if (enableTransitionTracing) {
        popRootMarkerInstance(workInProgress);
      }

      popRootTransition(workInProgress, fiberRoot, renderLanes);
      popHostContainer(workInProgress);
      popTopLevelLegacyContextObject(workInProgress);
      if (fiberRoot.pendingContext) {
        fiberRoot.context = fiberRoot.pendingContext;
        fiberRoot.pendingContext = null;
      }
      if (current === null || current.child === null) {
        // If we hydrated, pop so that we can delete any remaining children
        // that weren't hydrated.
        const wasHydrated = popHydrationState(workInProgress);
        if (wasHydrated) {
          emitPendingHydrationWarnings();
          // If we hydrated, then we'll need to schedule an update for
          // the commit side-effects on the root.
          markUpdate(workInProgress);
        } else {
          if (current !== null) {
            const prevState: RootState = current.memoizedState;
            if (
              // Check if this is a client root
              !prevState.isDehydrated ||
              // Check if we reverted to client rendering (e.g. due to an error)
              (workInProgress.flags & ForceClientRender) !== NoFlags
            ) {
              // Schedule an effect to clear this container at the start of the
              // next commit. This handles the case of React rendering into a
              // container with previous children. It's also safe to do for
              // updates too, because current.child would only be null if the
              // previous render was null (so the container would already
              // be empty).
              workInProgress.flags |= Snapshot;

              // If this was a forced client render, there may have been
              // recoverable errors during first hydration attempt. If so, add
              // them to a queue so we can log them in the commit phase.
              upgradeHydrationErrorsToRecoverable();
            }
          }
        }
      }
      updateHostContainer(current, workInProgress);
      bubbleProperties(workInProgress);
      if (enableTransitionTracing) {
        if ((workInProgress.subtreeFlags & Visibility) !== NoFlags) {
          // If any of our suspense children toggle visibility, this means that
          // the pending boundaries array needs to be updated, which we only
          // do in the passive phase.
          workInProgress.flags |= Passive;
        }
      }
      return null;
    }
    case HostHoistable: {
      if (supportsResources) {
        // The branching here is more complicated than you might expect because
        // a HostHoistable sometimes corresponds to a Resource and sometimes
        // corresponds to an Instance. It can also switch during an update.

        const type = workInProgress.type;
        const nextResource: Resource | null = workInProgress.memoizedState;
        if (current === null) {
          // We are mounting and must Update this Hoistable in this commit
          // @TODO refactor this block to create the instance here in complete
          // phase if we are not hydrating.
          markUpdate(workInProgress);
          if (nextResource !== null) {
            // This is a Hoistable Resource

            // This must come at the very end of the complete phase.
            bubbleProperties(workInProgress);
            preloadResourceAndSuspendIfNeeded(
              workInProgress,
              nextResource,
              type,
              newProps,
              renderLanes,
            );
            return null;
          } else {
            // This is a Hoistable Instance
            // This must come at the very end of the complete phase.
            bubbleProperties(workInProgress);
            preloadInstanceAndSuspendIfNeeded(
              workInProgress,
              type,
              newProps,
              renderLanes,
            );
            return null;
          }
        } else {
          // This is an update.
          if (nextResource) {
            // This is a Resource
            if (nextResource !== current.memoizedState) {
              // we have a new Resource. we need to update
              markUpdate(workInProgress);
              // This must come at the very end of the complete phase.
              bubbleProperties(workInProgress);
              // This must come at the very end of the complete phase, because it might
              // throw to suspend, and if the resource immediately loads, the work loop
              // will resume rendering as if the work-in-progress completed. So it must
              // fully complete.
              preloadResourceAndSuspendIfNeeded(
                workInProgress,
                nextResource,
                type,
                newProps,
                renderLanes,
              );
              return null;
            } else {
              // This must come at the very end of the complete phase.
              bubbleProperties(workInProgress);
              workInProgress.flags &= ~MaySuspendCommit;
              return null;
            }
          } else {
            // This is an Instance
            // We may have props to update on the Hoistable instance.
            if (supportsMutation) {
              const oldProps = current.memoizedProps;
              if (oldProps !== newProps) {
                markUpdate(workInProgress);
              }
            } else {
              // We use the updateHostComponent path becuase it produces
              // the update queue we need for Hoistables.
              updateHostComponent(
                current,
                workInProgress,
                type,
                newProps,
                renderLanes,
              );
            }
            // This must come at the very end of the complete phase.
            bubbleProperties(workInProgress);
            preloadInstanceAndSuspendIfNeeded(
              workInProgress,
              type,
              newProps,
              renderLanes,
            );
            return null;
          }
        }
      }
      // Fall through
    }
    case HostSingleton: {
      if (supportsSingletons) {
        popHostContext(workInProgress);
        const rootContainerInstance = getRootHostContainer();
        const type = workInProgress.type;
        if (current !== null && workInProgress.stateNode != null) {
          if (supportsMutation) {
            const oldProps = current.memoizedProps;
            if (oldProps !== newProps) {
              markUpdate(workInProgress);
            }
          } else {
            updateHostComponent(
              current,
              workInProgress,
              type,
              newProps,
              renderLanes,
            );
          }
        } else {
          if (!newProps) {
            if (workInProgress.stateNode === null) {
              throw new Error(
                'We must have new props for new mounts. This error is likely ' +
                  'caused by a bug in React. Please file an issue.',
              );
            }

            // This can happen when we abort work.
            bubbleProperties(workInProgress);
            if (enableViewTransition) {
              // Host Components act as their own View Transitions which doesn't run enter/exit animations.
              // We clear any ViewTransitionStatic flag bubbled from inner View Transitions.
              workInProgress.subtreeFlags &= ~ViewTransitionStatic;
            }
            return null;
          }

          const currentHostContext = getHostContext();
          const wasHydrated = popHydrationState(workInProgress);
          let instance: Instance;
          if (wasHydrated) {
            // We ignore the boolean indicating there is an updateQueue because
            // it is used only to set text children and HostSingletons do not
            // use them.
            prepareToHydrateHostInstance(workInProgress, currentHostContext);
            instance = workInProgress.stateNode;
          } else {
            instance = resolveSingletonInstance(
              type,
              newProps,
              rootContainerInstance,
              currentHostContext,
              true,
            );
            workInProgress.stateNode = instance;
            markUpdate(workInProgress);
          }
        }
        bubbleProperties(workInProgress);
        if (enableViewTransition) {
          // Host Components act as their own View Transitions which doesn't run enter/exit animations.
          // We clear any ViewTransitionStatic flag bubbled from inner View Transitions.
          workInProgress.subtreeFlags &= ~ViewTransitionStatic;
        }
        return null;
      }
      // Fall through
    }
    case HostComponent: {
      popHostContext(workInProgress);
      const type = workInProgress.type;
      if (current !== null && workInProgress.stateNode != null) {
        updateHostComponent(
          current,
          workInProgress,
          type,
          newProps,
          renderLanes,
        );
      } else {
        if (!newProps) {
          if (workInProgress.stateNode === null) {
            throw new Error(
              'We must have new props for new mounts. This error is likely ' +
                'caused by a bug in React. Please file an issue.',
            );
          }

          // This can happen when we abort work.
          bubbleProperties(workInProgress);
          if (enableViewTransition) {
            // Host Components act as their own View Transitions which doesn't run enter/exit animations.
            // We clear any ViewTransitionStatic flag bubbled from inner View Transitions.
            workInProgress.subtreeFlags &= ~ViewTransitionStatic;
          }
          return null;
        }

        const currentHostContext = getHostContext();
        // TODO: Move createInstance to beginWork and keep it on a context
        // "stack" as the parent. Then append children as we go in beginWork
        // or completeWork depending on whether we want to add them top->down or
        // bottom->up. Top->down is faster in IE11.
        const wasHydrated = popHydrationState(workInProgress);
        if (wasHydrated) {
          // TODO: Move this and createInstance step into the beginPhase
          // to consolidate.
          prepareToHydrateHostInstance(workInProgress, currentHostContext);
        } else {
          const rootContainerInstance = getRootHostContainer();
          const instance = createInstance(
            type,
            newProps,
            rootContainerInstance,
            currentHostContext,
            workInProgress,
          );
          // TODO: For persistent renderers, we should pass children as part
          // of the initial instance creation
          markCloned(workInProgress);
          appendAllChildren(instance, workInProgress, false, false);
          workInProgress.stateNode = instance;

          // Certain renderers require commit-time effects for initial mount.
          // (eg DOM renderer supports auto-focus for certain elements).
          // Make sure such renderers get scheduled for later work.
          if (
            finalizeInitialChildren(
              instance,
              type,
              newProps,
              currentHostContext,
            )
          ) {
            markUpdate(workInProgress);
          }
        }
      }
      bubbleProperties(workInProgress);
      if (enableViewTransition) {
        // Host Components act as their own View Transitions which doesn't run enter/exit animations.
        // We clear any ViewTransitionStatic flag bubbled from inner View Transitions.
        workInProgress.subtreeFlags &= ~ViewTransitionStatic;
      }

      // This must come at the very end of the complete phase, because it might
      // throw to suspend, and if the resource immediately loads, the work loop
      // will resume rendering as if the work-in-progress completed. So it must
      // fully complete.
      preloadInstanceAndSuspendIfNeeded(
        workInProgress,
        workInProgress.type,
        workInProgress.pendingProps,
        renderLanes,
      );
      return null;
    }
    case HostText: {
      const newText = newProps;
      if (current && workInProgress.stateNode != null) {
        const oldText = current.memoizedProps;
        // If we have an alternate, that means this is an update and we need
        // to schedule a side-effect to do the updates.
        updateHostText(current, workInProgress, oldText, newText);
      } else {
        if (typeof newText !== 'string') {
          if (workInProgress.stateNode === null) {
            throw new Error(
              'We must have new props for new mounts. This error is likely ' +
                'caused by a bug in React. Please file an issue.',
            );
          }
          // This can happen when we abort work.
        }
        const rootContainerInstance = getRootHostContainer();
        const currentHostContext = getHostContext();
        const wasHydrated = popHydrationState(workInProgress);
        if (wasHydrated) {
          prepareToHydrateHostTextInstance(workInProgress);
        } else {
          markCloned(workInProgress);
          workInProgress.stateNode = createTextInstance(
            newText,
            rootContainerInstance,
            currentHostContext,
            workInProgress,
          );
        }
      }
      bubbleProperties(workInProgress);
      return null;
    }
    case SuspenseComponent: {
      const nextState: null | SuspenseState = workInProgress.memoizedState;

      // Special path for dehydrated boundaries. We may eventually move this
      // to its own fiber type so that we can add other kinds of hydration
      // boundaries that aren't associated with a Suspense tree. In anticipation
      // of such a refactor, all the hydration logic is contained in
      // this branch.
      if (
        current === null ||
        (current.memoizedState !== null &&
          current.memoizedState.dehydrated !== null)
      ) {
        const fallthroughToNormalSuspensePath =
          completeDehydratedSuspenseBoundary(
            current,
            workInProgress,
            nextState,
          );
        if (!fallthroughToNormalSuspensePath) {
          if (workInProgress.flags & ForceClientRender) {
            popSuspenseHandler(workInProgress);
            // Special case. There were remaining unhydrated nodes. We treat
            // this as a mismatch. Revert to client rendering.
            return workInProgress;
          } else {
            popSuspenseHandler(workInProgress);
            // Did not finish hydrating, either because this is the initial
            // render or because something suspended.
            return null;
          }
        }

        // Continue with the normal Suspense path.
      }

      popSuspenseHandler(workInProgress);

      if ((workInProgress.flags & DidCapture) !== NoFlags) {
        // Something suspended. Re-render with the fallback children.
        workInProgress.lanes = renderLanes;
        // Do not reset the effect list.
        if (
          enableProfilerTimer &&
          (workInProgress.mode & ProfileMode) !== NoMode
        ) {
          transferActualDuration(workInProgress);
        }
        // Don't bubble properties in this case.
        return workInProgress;
      }

      const nextDidTimeout = nextState !== null;
      const prevDidTimeout =
        current !== null &&
        (current.memoizedState: null | SuspenseState) !== null;

      if (nextDidTimeout) {
        const offscreenFiber: Fiber = (workInProgress.child: any);
        let previousCache: Cache | null = null;
        if (
          offscreenFiber.alternate !== null &&
          offscreenFiber.alternate.memoizedState !== null &&
          offscreenFiber.alternate.memoizedState.cachePool !== null
        ) {
          previousCache = offscreenFiber.alternate.memoizedState.cachePool.pool;
        }
        let cache: Cache | null = null;
        if (
          offscreenFiber.memoizedState !== null &&
          offscreenFiber.memoizedState.cachePool !== null
        ) {
          cache = offscreenFiber.memoizedState.cachePool.pool;
        }
        if (cache !== previousCache) {
          // Run passive effects to retain/release the cache.
          offscreenFiber.flags |= Passive;
        }
      }

      // If the suspended state of the boundary changes, we need to schedule
      // a passive effect, which is when we process the transitions
      if (nextDidTimeout !== prevDidTimeout) {
        if (enableTransitionTracing) {
          const offscreenFiber: Fiber = (workInProgress.child: any);
          offscreenFiber.flags |= Passive;
        }

        // If the suspended state of the boundary changes, we need to schedule
        // an effect to toggle the subtree's visibility. When we switch from
        // fallback -> primary, the inner Offscreen fiber schedules this effect
        // as part of its normal complete phase. But when we switch from
        // primary -> fallback, the inner Offscreen fiber does not have a complete
        // phase. So we need to schedule its effect here.
        //
        // We also use this flag to connect/disconnect the effects, but the same
        // logic applies: when re-connecting, the Offscreen fiber's complete
        // phase will handle scheduling the effect. It's only when the fallback
        // is active that we have to do anything special.
        if (nextDidTimeout) {
          const offscreenFiber: Fiber = (workInProgress.child: any);
          offscreenFiber.flags |= Visibility;
        }
      }

      const retryQueue: RetryQueue | null = (workInProgress.updateQueue: any);
      scheduleRetryEffect(workInProgress, retryQueue);

      if (
        enableSuspenseCallback &&
        workInProgress.updateQueue !== null &&
        workInProgress.memoizedProps.suspenseCallback != null
      ) {
        // Always notify the callback
        // TODO: Move to passive phase
        workInProgress.flags |= Update;
      }
      bubbleProperties(workInProgress);
      if (enableProfilerTimer) {
        if ((workInProgress.mode & ProfileMode) !== NoMode) {
          if (nextDidTimeout) {
            // Don't count time spent in a timed out Suspense subtree as part of the base duration.
            const primaryChildFragment = workInProgress.child;
            if (primaryChildFragment !== null) {
              // $FlowFixMe[unsafe-arithmetic] Flow doesn't support type casting in combination with the -= operator
              workInProgress.treeBaseDuration -=
                ((primaryChildFragment.treeBaseDuration: any): number);
            }
          }
        }
      }
      return null;
    }
    case HostPortal:
      popHostContainer(workInProgress);
      updateHostContainer(current, workInProgress);
      if (current === null) {
        preparePortalMount(workInProgress.stateNode.containerInfo);
      }
      bubbleProperties(workInProgress);
      return null;
    case ContextProvider:
      // Pop provider fiber
      let context: ReactContext<any>;
      if (enableRenderableContext) {
        context = workInProgress.type;
      } else {
        context = workInProgress.type._context;
      }
      popProvider(context, workInProgress);
      bubbleProperties(workInProgress);
      return null;
    case IncompleteClassComponent: {
      if (disableLegacyMode) {
        break;
      }
      // Same as class component case. I put it down here so that the tags are
      // sequential to ensure this switch is compiled to a jump table.
      const Component = workInProgress.type;
      if (isLegacyContextProvider(Component)) {
        popLegacyContext(workInProgress);
      }
      bubbleProperties(workInProgress);
      return null;
    }
    case SuspenseListComponent: {
      popSuspenseListContext(workInProgress);

      const renderState: null | SuspenseListRenderState =
        workInProgress.memoizedState;

      if (renderState === null) {
        // We're running in the default, "independent" mode.
        // We don't do anything in this mode.
        bubbleProperties(workInProgress);
        return null;
      }

      let didSuspendAlready = (workInProgress.flags & DidCapture) !== NoFlags;

      const renderedTail = renderState.rendering;
      if (renderedTail === null) {
        // We just rendered the head.
        if (!didSuspendAlready) {
          // This is the first pass. We need to figure out if anything is still
          // suspended in the rendered set.

          // If new content unsuspended, but there's still some content that
          // didn't. Then we need to do a second pass that forces everything
          // to keep showing their fallbacks.

          // We might be suspended if something in this render pass suspended, or
          // something in the previous committed pass suspended. Otherwise,
          // there's no chance so we can skip the expensive call to
          // findFirstSuspended.
          const cannotBeSuspended =
            renderHasNotSuspendedYet() &&
            (current === null || (current.flags & DidCapture) === NoFlags);
          if (!cannotBeSuspended) {
            let row = workInProgress.child;
            while (row !== null) {
              const suspended = findFirstSuspended(row);
              if (suspended !== null) {
                didSuspendAlready = true;
                workInProgress.flags |= DidCapture;
                cutOffTailIfNeeded(renderState, false);

                // If this is a newly suspended tree, it might not get committed as
                // part of the second pass. In that case nothing will subscribe to
                // its thenables. Instead, we'll transfer its thenables to the
                // SuspenseList so that it can retry if they resolve.
                // There might be multiple of these in the list but since we're
                // going to wait for all of them anyway, it doesn't really matter
                // which ones gets to ping. In theory we could get clever and keep
                // track of how many dependencies remain but it gets tricky because
                // in the meantime, we can add/remove/change items and dependencies.
                // We might bail out of the loop before finding any but that
                // doesn't matter since that means that the other boundaries that
                // we did find already has their listeners attached.
                const retryQueue: RetryQueue | null =
                  (suspended.updateQueue: any);
                workInProgress.updateQueue = retryQueue;
                scheduleRetryEffect(workInProgress, retryQueue);

                // Rerender the whole list, but this time, we'll force fallbacks
                // to stay in place.
                // Reset the effect flags before doing the second pass since that's now invalid.
                // Reset the child fibers to their original state.
                workInProgress.subtreeFlags = NoFlags;
                resetChildFibers(workInProgress, renderLanes);

                // Set up the Suspense List Context to force suspense and
                // immediately rerender the children.
                pushSuspenseListContext(
                  workInProgress,
                  setShallowSuspenseListContext(
                    suspenseStackCursor.current,
                    ForceSuspenseFallback,
                  ),
                );
                // Don't bubble properties in this case.
                return workInProgress.child;
              }
              row = row.sibling;
            }
          }

          if (renderState.tail !== null && now() > getRenderTargetTime()) {
            // We have already passed our CPU deadline but we still have rows
            // left in the tail. We'll just give up further attempts to render
            // the main content and only render fallbacks.
            workInProgress.flags |= DidCapture;
            didSuspendAlready = true;

            cutOffTailIfNeeded(renderState, false);

            // Since nothing actually suspended, there will nothing to ping this
            // to get it started back up to attempt the next item. While in terms
            // of priority this work has the same priority as this current render,
            // it's not part of the same transition once the transition has
            // committed. If it's sync, we still want to yield so that it can be
            // painted. Conceptually, this is really the same as pinging.
            // We can use any RetryLane even if it's the one currently rendering
            // since we're leaving it behind on this node.
            workInProgress.lanes = SomeRetryLane;
          }
        } else {
          cutOffTailIfNeeded(renderState, false);
        }
        // Next we're going to render the tail.
      } else {
        // Append the rendered row to the child list.
        if (!didSuspendAlready) {
          const suspended = findFirstSuspended(renderedTail);
          if (suspended !== null) {
            workInProgress.flags |= DidCapture;
            didSuspendAlready = true;

            // Ensure we transfer the update queue to the parent so that it doesn't
            // get lost if this row ends up dropped during a second pass.
            const retryQueue: RetryQueue | null = (suspended.updateQueue: any);
            workInProgress.updateQueue = retryQueue;
            scheduleRetryEffect(workInProgress, retryQueue);

            cutOffTailIfNeeded(renderState, true);
            // This might have been modified.
            if (
              renderState.tail === null &&
              renderState.tailMode === 'hidden' &&
              !renderedTail.alternate &&
              !getIsHydrating() // We don't cut it if we're hydrating.
            ) {
              // We're done.
              bubbleProperties(workInProgress);
              return null;
            }
          } else if (
            // The time it took to render last row is greater than the remaining
            // time we have to render. So rendering one more row would likely
            // exceed it.
            now() * 2 - renderState.renderingStartTime >
              getRenderTargetTime() &&
            renderLanes !== OffscreenLane
          ) {
            // We have now passed our CPU deadline and we'll just give up further
            // attempts to render the main content and only render fallbacks.
            // The assumption is that this is usually faster.
            workInProgress.flags |= DidCapture;
            didSuspendAlready = true;

            cutOffTailIfNeeded(renderState, false);

            // Since nothing actually suspended, there will nothing to ping this
            // to get it started back up to attempt the next item. While in terms
            // of priority this work has the same priority as this current render,
            // it's not part of the same transition once the transition has
            // committed. If it's sync, we still want to yield so that it can be
            // painted. Conceptually, this is really the same as pinging.
            // We can use any RetryLane even if it's the one currently rendering
            // since we're leaving it behind on this node.
            workInProgress.lanes = SomeRetryLane;
          }
        }
        if (renderState.isBackwards) {
          // The effect list of the backwards tail will have been added
          // to the end. This breaks the guarantee that life-cycles fire in
          // sibling order but that isn't a strong guarantee promised by React.
          // Especially since these might also just pop in during future commits.
          // Append to the beginning of the list.
          renderedTail.sibling = workInProgress.child;
          workInProgress.child = renderedTail;
        } else {
          const previousSibling = renderState.last;
          if (previousSibling !== null) {
            previousSibling.sibling = renderedTail;
          } else {
            workInProgress.child = renderedTail;
          }
          renderState.last = renderedTail;
        }
      }

      if (renderState.tail !== null) {
        // We still have tail rows to render.
        // Pop a row.
        const next = renderState.tail;
        renderState.rendering = next;
        renderState.tail = next.sibling;
        renderState.renderingStartTime = now();
        next.sibling = null;

        // Restore the context.
        // TODO: We can probably just avoid popping it instead and only
        // setting it the first time we go from not suspended to suspended.
        let suspenseContext = suspenseStackCursor.current;
        if (didSuspendAlready) {
          suspenseContext = setShallowSuspenseListContext(
            suspenseContext,
            ForceSuspenseFallback,
          );
        } else {
          suspenseContext =
            setDefaultShallowSuspenseListContext(suspenseContext);
        }
        pushSuspenseListContext(workInProgress, suspenseContext);
        // Do a pass over the next row.
        // Don't bubble properties in this case.
        return next;
      }
      bubbleProperties(workInProgress);
      return null;
    }
    case ScopeComponent: {
      if (enableScopeAPI) {
        if (current === null) {
          const scopeInstance: ReactScopeInstance = createScopeInstance();
          workInProgress.stateNode = scopeInstance;
          prepareScopeUpdate(scopeInstance, workInProgress);
          if (workInProgress.ref !== null) {
            // Scope components always do work in the commit phase if there's a
            // ref attached.
            markUpdate(workInProgress);
          }
        } else {
          if (workInProgress.ref !== null) {
            // Scope components always do work in the commit phase if there's a
            // ref attached.
            markUpdate(workInProgress);
          }
        }
        bubbleProperties(workInProgress);
        return null;
      }
      break;
    }
    case OffscreenComponent:
    case LegacyHiddenComponent: {
      popSuspenseHandler(workInProgress);
      popHiddenContext(workInProgress);
      const nextState: OffscreenState | null = workInProgress.memoizedState;
      const nextIsHidden = nextState !== null;

      // Schedule a Visibility effect if the visibility has changed
      if (enableLegacyHidden && workInProgress.tag === LegacyHiddenComponent) {
        // LegacyHidden doesn't do any hiding — it only pre-renders.
      } else {
        if (current !== null) {
          const prevState: OffscreenState | null = current.memoizedState;
          const prevIsHidden = prevState !== null;
          if (prevIsHidden !== nextIsHidden) {
            workInProgress.flags |= Visibility;
          }
        } else {
          // On initial mount, we only need a Visibility effect if the tree
          // is hidden.
          if (nextIsHidden) {
            workInProgress.flags |= Visibility;
          }
        }
      }

      if (
        !nextIsHidden ||
        (!disableLegacyMode &&
          (workInProgress.mode & ConcurrentMode) === NoMode)
      ) {
        bubbleProperties(workInProgress);
      } else {
        // Don't bubble properties for hidden children unless we're rendering
        // at offscreen priority.
        if (
          includesSomeLane(renderLanes, (OffscreenLane: Lane)) &&
          // Also don't bubble if the tree suspended
          (workInProgress.flags & DidCapture) === NoLanes
        ) {
          bubbleProperties(workInProgress);
          // Check if there was an insertion or update in the hidden subtree.
          // If so, we need to hide those nodes in the commit phase, so
          // schedule a visibility effect.
          if (
            (!enableLegacyHidden ||
              workInProgress.tag !== LegacyHiddenComponent) &&
            workInProgress.subtreeFlags & (Placement | Update)
          ) {
            workInProgress.flags |= Visibility;
          }
        }
      }

      const offscreenQueue: OffscreenQueue | null =
        (workInProgress.updateQueue: any);
      if (offscreenQueue !== null) {
        const retryQueue = offscreenQueue.retryQueue;
        scheduleRetryEffect(workInProgress, retryQueue);
      }

      let previousCache: Cache | null = null;
      if (
        current !== null &&
        current.memoizedState !== null &&
        current.memoizedState.cachePool !== null
      ) {
        previousCache = current.memoizedState.cachePool.pool;
      }
      let cache: Cache | null = null;
      if (
        workInProgress.memoizedState !== null &&
        workInProgress.memoizedState.cachePool !== null
      ) {
        cache = workInProgress.memoizedState.cachePool.pool;
      }
      if (cache !== previousCache) {
        // Run passive effects to retain/release the cache.
        workInProgress.flags |= Passive;
      }

      popTransition(workInProgress, current);

      return null;
    }
    case CacheComponent: {
      let previousCache: Cache | null = null;
      if (current !== null) {
        previousCache = current.memoizedState.cache;
      }
      const cache: Cache = workInProgress.memoizedState.cache;
      if (cache !== previousCache) {
        // Run passive effects to retain/release the cache.
        workInProgress.flags |= Passive;
      }
      popCacheProvider(workInProgress, cache);
      bubbleProperties(workInProgress);
      return null;
    }
    case TracingMarkerComponent: {
      if (enableTransitionTracing) {
        const instance: TracingMarkerInstance | null = workInProgress.stateNode;
        if (instance !== null) {
          popMarkerInstance(workInProgress);
        }
        bubbleProperties(workInProgress);
      }
      return null;
    }
    case ViewTransitionComponent: {
      if (enableViewTransition) {
        // We're a component that might need an exit transition. This flag will
        // bubble up to the parent tree to indicate that there's a child that
        // might need an exit View Transition upon unmount.
        workInProgress.flags |= ViewTransitionStatic;
        bubbleProperties(workInProgress);
      }
      return null;
    }
    case Throw: {
      if (!disableLegacyMode) {
        // Only Legacy Mode completes an errored node.
        return null;
      }
    }
  }

  throw new Error(
    `Unknown unit of work tag (${workInProgress.tag}). This error is likely caused by a bug in ` +
      'React. Please file an issue.',
  );
}

3. ‌差异比较（Diff 算法） ‌

对比新旧虚拟 DOM，标记节点更新类型（如插入、更新、删除），生成 effectTag 标识‌。

4. ‌生成 Effect List‌

将带有副作用的 Fiber 节点（如需要 DOM 操作）连接成链表形式的 effectList，供提交阶段使用‌。

  function reconcileChildrenArray(
    returnFiber: Fiber,
    currentFirstChild: Fiber | null,
    newChildren: Array<any>,
    lanes: Lanes,
  ): Fiber | null {
    // This algorithm can't optimize by searching from both ends since we
    // don't have backpointers on fibers. I'm trying to see how far we can get
    // with that model. If it ends up not being worth the tradeoffs, we can
    // add it later.

    // Even with a two ended optimization, we'd want to optimize for the case
    // where there are few changes and brute force the comparison instead of
    // going for the Map. It'd like to explore hitting that path first in
    // forward-only mode and only go for the Map once we notice that we need
    // lots of look ahead. This doesn't handle reversal as well as two ended
    // search but that's unusual. Besides, for the two ended optimization to
    // work on Iterables, we'd need to copy the whole set.

    // In this first iteration, we'll just live with hitting the bad case
    // (adding everything to a Map) in for every insert/move.

    // If you change this code, also update reconcileChildrenIterator() which
    // uses the same algorithm.

    let knownKeys: Set<string> | null = null;

    let resultingFirstChild: Fiber | null = null;
    let previousNewFiber: Fiber | null = null;

    let oldFiber = currentFirstChild;
    let lastPlacedIndex = 0;
    let newIdx = 0;
    let nextOldFiber = null;
    for (; oldFiber !== null && newIdx < newChildren.length; newIdx++) {
      if (oldFiber.index > newIdx) {
        nextOldFiber = oldFiber;
        oldFiber = null;
      } else {
        nextOldFiber = oldFiber.sibling;
      }
      const newFiber = updateSlot(
        returnFiber,
        oldFiber,
        newChildren[newIdx],
        lanes,
      );
      if (newFiber === null) {
        // TODO: This breaks on empty slots like null children. That's
        // unfortunate because it triggers the slow path all the time. We need
        // a better way to communicate whether this was a miss or null,
        // boolean, undefined, etc.
        if (oldFiber === null) {
          oldFiber = nextOldFiber;
        }
        break;
      }

      if (__DEV__) {
        knownKeys = warnOnInvalidKey(
          returnFiber,
          newFiber,
          newChildren[newIdx],
          knownKeys,
        );
      }

      if (shouldTrackSideEffects) {
        if (oldFiber && newFiber.alternate === null) {
          // We matched the slot, but we didn't reuse the existing fiber, so we
          // need to delete the existing child.
          deleteChild(returnFiber, oldFiber);
        }
      }
      lastPlacedIndex = placeChild(newFiber, lastPlacedIndex, newIdx);
      if (previousNewFiber === null) {
        // TODO: Move out of the loop. This only happens for the first run.
        resultingFirstChild = newFiber;
      } else {
        // TODO: Defer siblings if we're not at the right index for this slot.
        // I.e. if we had null values before, then we want to defer this
        // for each null value. However, we also don't want to call updateSlot
        // with the previous one.
        previousNewFiber.sibling = newFiber;
      }
      previousNewFiber = newFiber;
      oldFiber = nextOldFiber;
    }

    if (newIdx === newChildren.length) {
      // We've reached the end of the new children. We can delete the rest.
      deleteRemainingChildren(returnFiber, oldFiber);
      if (getIsHydrating()) {
        const numberOfForks = newIdx;
        pushTreeFork(returnFiber, numberOfForks);
      }
      return resultingFirstChild;
    }

    if (oldFiber === null) {
      // If we don't have any more existing children we can choose a fast path
      // since the rest will all be insertions.
      for (; newIdx < newChildren.length; newIdx++) {
        const newFiber = createChild(returnFiber, newChildren[newIdx], lanes);
        if (newFiber === null) {
          continue;
        }
        if (__DEV__) {
          knownKeys = warnOnInvalidKey(
            returnFiber,
            newFiber,
            newChildren[newIdx],
            knownKeys,
          );
        }
        lastPlacedIndex = placeChild(newFiber, lastPlacedIndex, newIdx);
        if (previousNewFiber === null) {
          // TODO: Move out of the loop. This only happens for the first run.
          resultingFirstChild = newFiber;
        } else {
          previousNewFiber.sibling = newFiber;
        }
        previousNewFiber = newFiber;
      }
      if (getIsHydrating()) {
        const numberOfForks = newIdx;
        pushTreeFork(returnFiber, numberOfForks);
      }
      return resultingFirstChild;
    }

    // Add all children to a key map for quick lookups.
    const existingChildren = mapRemainingChildren(oldFiber);

    // Keep scanning and use the map to restore deleted items as moves.
    for (; newIdx < newChildren.length; newIdx++) {
      const newFiber = updateFromMap(
        existingChildren,
        returnFiber,
        newIdx,
        newChildren[newIdx],
        lanes,
      );
      if (newFiber !== null) {
        if (__DEV__) {
          knownKeys = warnOnInvalidKey(
            returnFiber,
            newFiber,
            newChildren[newIdx],
            knownKeys,
          );
        }
        if (shouldTrackSideEffects) {
          if (newFiber.alternate !== null) {
            // The new fiber is a work in progress, but if there exists a
            // current, that means that we reused the fiber. We need to delete
            // it from the child list so that we don't add it to the deletion
            // list.
            existingChildren.delete(
              newFiber.key === null ? newIdx : newFiber.key,
            );
          }
        }
        lastPlacedIndex = placeChild(newFiber, lastPlacedIndex, newIdx);
        if (previousNewFiber === null) {
          resultingFirstChild = newFiber;
        } else {
          previousNewFiber.sibling = newFiber;
        }
        previousNewFiber = newFiber;
      }
    }

    if (shouldTrackSideEffects) {
      // Any existing children that weren't consumed above were deleted. We need
      // to add them to the deletion list.
      existingChildren.forEach(child => deleteChild(returnFiber, child));
    }

    if (getIsHydrating()) {
      const numberOfForks = newIdx;
      pushTreeFork(returnFiber, numberOfForks);
    }
    return resultingFirstChild;
  }

三、输出阶段（Commit Phase）

1. ‌提交副作用‌
   遍历 effectList，根据 effectTag 调用渲染器（如 ReactDOM）执行 DOM 更新、生命周期函数等操作‌。
2. ‌切换 Fiber 树‌
   将 workInProgress Fiber 树设置为新的 current 树，完成双缓冲切换‌。

function commitRoot(
  root: FiberRoot,
  finishedWork: null | Fiber,
  lanes: Lanes,
  recoverableErrors: null | Array<CapturedValue<mixed>>,
  transitions: Array<Transition> | null,
  didIncludeRenderPhaseUpdate: boolean,
  spawnedLane: Lane,
  updatedLanes: Lanes,
  suspendedRetryLanes: Lanes,
  exitStatus: RootExitStatus,
  suspendedCommitReason: SuspendedCommitReason, // Profiling-only
  completedRenderStartTime: number, // Profiling-only
  completedRenderEndTime: number, // Profiling-only
): void {
  root.cancelPendingCommit = null;

  do {
    // `flushPassiveEffects` will call `flushSyncUpdateQueue` at the end, which
    // means `flushPassiveEffects` will sometimes result in additional
    // passive effects. So we need to keep flushing in a loop until there are
    // no more pending effects.
    // TODO: Might be better if `flushPassiveEffects` did not automatically
    // flush synchronous work at the end, to avoid factoring hazards like this.
    flushPendingEffects();
  } while (pendingEffectsStatus !== NO_PENDING_EFFECTS);
  flushRenderPhaseStrictModeWarningsInDEV();

  if ((executionContext & (RenderContext | CommitContext)) !== NoContext) {
    throw new Error('Should not already be working.');
  }

  if (enableProfilerTimer && enableComponentPerformanceTrack) {
    // Log the previous render phase once we commit. I.e. we weren't interrupted.
    setCurrentTrackFromLanes(lanes);
    if (exitStatus === RootErrored) {
      logErroredRenderPhase(
        completedRenderStartTime,
        completedRenderEndTime,
        lanes,
      );
    } else if (recoverableErrors !== null) {
      const hydrationFailed =
        finishedWork !== null &&
        finishedWork.alternate !== null &&
        (finishedWork.alternate.memoizedState: RootState).isDehydrated &&
        (finishedWork.flags & ForceClientRender) !== NoFlags;
      logRecoveredRenderPhase(
        completedRenderStartTime,
        completedRenderEndTime,
        lanes,
        recoverableErrors,
        hydrationFailed,
      );
    } else {
      logRenderPhase(completedRenderStartTime, completedRenderEndTime, lanes);
    }
  }

  if (enableSchedulingProfiler) {
    markCommitStarted(lanes);
  }

  if (finishedWork === null) {
    if (enableSchedulingProfiler) {
      markCommitStopped();
    }
    return;
  } else {
    if (__DEV__) {
      if (lanes === NoLanes) {
        console.error(
          'finishedLanes should not be empty during a commit. This is a ' +
            'bug in React.',
        );
      }
    }
  }

  if (finishedWork === root.current) {
    throw new Error(
      'Cannot commit the same tree as before. This error is likely caused by ' +
        'a bug in React. Please file an issue.',
    );
  }

  // Check which lanes no longer have any work scheduled on them, and mark
  // those as finished.
  let remainingLanes = mergeLanes(finishedWork.lanes, finishedWork.childLanes);

  // Make sure to account for lanes that were updated by a concurrent event
  // during the render phase; don't mark them as finished.
  const concurrentlyUpdatedLanes = getConcurrentlyUpdatedLanes();
  remainingLanes = mergeLanes(remainingLanes, concurrentlyUpdatedLanes);

  markRootFinished(
    root,
    lanes,
    remainingLanes,
    spawnedLane,
    updatedLanes,
    suspendedRetryLanes,
  );

  // Reset this before firing side effects so we can detect recursive updates.
  didIncludeCommitPhaseUpdate = false;

  if (root === workInProgressRoot) {
    // We can reset these now that they are finished.
    workInProgressRoot = null;
    workInProgress = null;
    workInProgressRootRenderLanes = NoLanes;
  } else {
    // This indicates that the last root we worked on is not the same one that
    // we're committing now. This most commonly happens when a suspended root
    // times out.
  }

  // workInProgressX might be overwritten, so we want
  // to store it in pendingPassiveX until they get processed
  // We need to pass this through as an argument to commitRoot
  // because workInProgressX might have changed between
  // the previous render and commit if we throttle the commit
  // with setTimeout
  pendingFinishedWork = finishedWork;
  pendingEffectsRoot = root;
  pendingEffectsLanes = lanes;
  pendingEffectsRemainingLanes = remainingLanes;
  pendingPassiveTransitions = transitions;
  pendingRecoverableErrors = recoverableErrors;
  pendingDidIncludeRenderPhaseUpdate = didIncludeRenderPhaseUpdate;
  if (enableProfilerTimer) {
    pendingEffectsRenderEndTime = completedRenderEndTime;
    pendingSuspendedCommitReason = suspendedCommitReason;
  }

  // If there are pending passive effects, schedule a callback to process them.
  // Do this as early as possible, so it is queued before anything else that
  // might get scheduled in the commit phase. (See #16714.)
  // TODO: Delete all other places that schedule the passive effect callback
  // They're redundant.
  let passiveSubtreeMask;
  if (enableViewTransition) {
    pendingViewTransitionEvents = null;
    if (includesOnlyViewTransitionEligibleLanes(lanes)) {
      // Claim any pending Transition Types for this commit.
      // This means that multiple roots committing independent View Transitions
      // 1) end up staggered because we can only have one at a time.
      // 2) only the first one gets all the Transition Types.
      pendingTransitionTypes = ReactSharedInternals.V;
      ReactSharedInternals.V = null;
      passiveSubtreeMask = PassiveTransitionMask;
    } else {
      pendingTransitionTypes = null;
      passiveSubtreeMask = PassiveMask;
    }
  } else {
    passiveSubtreeMask = PassiveMask;
  }
  if (
    // If this subtree rendered with profiling this commit, we need to visit it to log it.
    (enableProfilerTimer &&
      enableComponentPerformanceTrack &&
      finishedWork.actualDuration !== 0) ||
    (finishedWork.subtreeFlags & passiveSubtreeMask) !== NoFlags ||
    (finishedWork.flags & passiveSubtreeMask) !== NoFlags
  ) {
    if (enableYieldingBeforePassive) {
      // We don't schedule a separate task for flushing passive effects.
      // Instead, we just rely on ensureRootIsScheduled below to schedule
      // a callback for us to flush the passive effects.
    } else {
      // So we can clear these now to allow a new callback to be scheduled.
      root.callbackNode = null;
      root.callbackPriority = NoLane;
      scheduleCallback(NormalSchedulerPriority, () => {
        if (enableProfilerTimer && enableComponentPerformanceTrack) {
          // Track the currently executing event if there is one so we can ignore this
          // event when logging events.
          trackSchedulerEvent();
        }
        flushPassiveEffects(true);
        // This render triggered passive effects: release the root cache pool
        // *after* passive effects fire to avoid freeing a cache pool that may
        // be referenced by a node in the tree (HostRoot, Cache boundary etc)
        return null;
      });
    }
  } else {
    // If we don't have passive effects, we're not going to need to perform more work
    // so we can clear the callback now.
    root.callbackNode = null;
    root.callbackPriority = NoLane;
  }

  if (enableProfilerTimer) {
    // Mark the current commit time to be shared by all Profilers in this
    // batch. This enables them to be grouped later.
    resetCommitErrors();
    recordCommitTime();
    if (enableComponentPerformanceTrack) {
      if (suspendedCommitReason === SUSPENDED_COMMIT) {
        logSuspendedCommitPhase(completedRenderEndTime, commitStartTime);
      } else if (suspendedCommitReason === THROTTLED_COMMIT) {
        logSuspenseThrottlePhase(completedRenderEndTime, commitStartTime);
      }
    }
  }

  // The commit phase is broken into several sub-phases. We do a separate pass
  // of the effect list for each phase: all mutation effects come before all
  // layout effects, and so on.

  // Check if there are any effects in the whole tree.
  // TODO: This is left over from the effect list implementation, where we had
  // to check for the existence of `firstEffect` to satisfy Flow. I think the
  // only other reason this optimization exists is because it affects profiling.
  // Reconsider whether this is necessary.
  const subtreeHasBeforeMutationEffects =
    (finishedWork.subtreeFlags & (BeforeMutationMask | MutationMask)) !==
    NoFlags;
  const rootHasBeforeMutationEffect =
    (finishedWork.flags & (BeforeMutationMask | MutationMask)) !== NoFlags;

  if (subtreeHasBeforeMutationEffects || rootHasBeforeMutationEffect) {
    const prevTransition = ReactSharedInternals.T;
    ReactSharedInternals.T = null;
    const previousPriority = getCurrentUpdatePriority();
    setCurrentUpdatePriority(DiscreteEventPriority);
    const prevExecutionContext = executionContext;
    executionContext |= CommitContext;
    try {
      // The first phase a "before mutation" phase. We use this phase to read the
      // state of the host tree right before we mutate it. This is where
      // getSnapshotBeforeUpdate is called.
      commitBeforeMutationEffects(root, finishedWork, lanes);
    } finally {
      // Reset the priority to the previous non-sync value.
      executionContext = prevExecutionContext;
      setCurrentUpdatePriority(previousPriority);
      ReactSharedInternals.T = prevTransition;
    }
  }
  pendingEffectsStatus = PENDING_MUTATION_PHASE;
  const startedViewTransition =
    enableViewTransition &&
    shouldStartViewTransition &&
    startViewTransition(
      root.containerInfo,
      pendingTransitionTypes,
      flushMutationEffects,
      flushLayoutEffects,
      flushAfterMutationEffects,
      flushSpawnedWork,
      flushPassiveEffects,
    );
  if (!startedViewTransition) {
    // Flush synchronously.
    flushMutationEffects();
    flushLayoutEffects();
    // Skip flushAfterMutationEffects
    flushSpawnedWork();
  }
}

通过以上流程，React Reconciler 实现了‌高效、可中断、跨平台‌的组件更新机制，成为 React 高性能渲染的核心基础‌
