Nestjs商城实战---快速搭建portal的后端环境

这篇文章主要介绍使用docker-compose快速搭建ibuy-portal-backend的开发环境

相关的前端项目为ibuy-portal

1. 开发环境配置

1.1. .env.dev配置

JWT_SECRET=xxx
JWT_EXPIRES_IN=xxx

# elasticsearch dev enviroment
ES_NODE=http://localhost:9200
ELASTIC_USERNAME=elastic
# Password for the 'elastic' user (at least 6 characters)
ELASTIC_PASSWORD=123456
# Port to expose Elasticsearch HTTP API to the host
ES_PORT=9200
#ES_PORT=localhost:9200

# Password for the 'kibana_system' user (at least 6 characters)
KIBANA_PASSWORD=123456
# Port to expose Kibana to the host
KIBANA_PORT=5601
#KIBANA_PORT=80

# Version of Elastic products
STACK_VERSION=8.14.2

# Set the cluster name
CLUSTER_NAME=docker-cluster

# Set to 'basic' or 'trial' to automatically start the 30-day trial
LICENSE=basic
#LICENSE=trial

# Increase or decrease based on the available host memory (in bytes)
# 1GB
MEM_LIMIT=1073741824
# MEM_LIMIT=268435456

# Project namespace (defaults to the current folder name if not set)
#COMPOSE_PROJECT_NAME=myproject



#postgre
POSTGRES_HOST=localhost
POSTGRES_PORT=5432
POSTGRES_USER=postgres
POSTGRES_PASSWORD=xxx
POSTGRES_DATABASE=mall



# redis
REDIS_HOST=localhost
REDIS_PORT=6379
REDIS_PASSWORD=xxx



# minio
MINIO_HOST=localhost
MINIO_PORT=9000
MINIO_ROOT_USER=minio
MINIO_ROOT_PASSWORD=xxx
MINIO_ACCESS_KEY=xxx
MINIO_SECRET_KEY=xxx


# rabbitmq
RMQ_HOST=localhost
RMQ_PORT=5672
RMQ_USERNAME=xxx
RMQ_PASSWORD=xxx
RMQ_VIRTUAL_HOST=/ibuy

# 支付相关
# 商户id
ALIPAY_APP_ID: xxx
# 商户秘钥
ALIPAY_MERCHANT_PRIVATE_KEY: xxx
# 支付宝公钥
ALIPAY_PUBLIC_KEY: xxx
#支付状态异步通知
ALIPAY_NOTIFY_URL: xxx
#支付状态同步通知
ALIPAY_RETURN_URL: xxx
#支付宝开发环境网关 用的沙箱的网关
ALIPAY_GATEWAY_URL: xxx
ALIPAY_SIGN_TYPE: RSA2
#ALIPAY_CHARSET: utf-8
#ALIPAY_FORMAT: json

1.2. 配置docker-compose.dev.yml

这个文件是使用docker-compose统一管理开发过程中使用到的各种服务

version: "2.5"

services:
  setup:
    image: docker.elastic.co/elasticsearch/elasticsearch:${STACK_VERSION}
    volumes:
      - certs:/usr/share/elasticsearch/config/certs
    user: "0"
    command: >
      bash -c '
        if [ x${ELASTIC_PASSWORD} == x ]; then
          echo "Set the ELASTIC_PASSWORD environment variable in the .env file";
          exit 1;
        fi;
        if [ ! -f config/certs/ca.zip ]; then
          echo "Creating CA";
          bin/elasticsearch-certutil ca --silent --pem -out config/certs/ca.zip;
          unzip config/certs/ca.zip -d config/certs;
        fi;
        if [ ! -f config/certs/certs.zip ]; then
          echo "Creating certs";
          echo -ne \
          "instances:\n"\
          "  - name: es01\n"\
          "    dns:\n"\
          "      - es01\n"\
          "      - localhost\n"\
          "    ip:\n"\
          "      - 127.0.0.1\n"\
          > config/certs/instances.yml;
          bin/elasticsearch-certutil cert --silent --pem -out config/certs/certs.zip --in config/certs/instances.yml --ca-cert config/certs/ca/ca.crt --ca-key config/certs/ca/ca.key;
          unzip config/certs/certs.zip -d config/certs;
        fi;
        echo "Setting file permissions"
        chown -R root:root config/certs;
        find . -type d -exec chmod 750 {} ;;
        find . -type f -exec chmod 640 {} ;;
        echo "All done!";
      '
    healthcheck:
      test: ["CMD-SHELL", "[ -f config/certs/es01/es01.crt ]"]
      interval: 1s
      timeout: 5s
      retries: 120

  es01:
    depends_on:
      setup:
        condition: service_healthy
    image: docker.elastic.co/elasticsearch/elasticsearch:${STACK_VERSION}
    volumes:
      - certs:/usr/share/elasticsearch/config/certs
      - esdata01:/usr/share/elasticsearch/data
    ports:
      - ${ES_PORT}:9200
    environment:
      - node.name=es01
      - cluster.name=${CLUSTER_NAME}
      - discovery.type=single-node
      - ELASTIC_PASSWORD=${ELASTIC_PASSWORD}
      - bootstrap.memory_lock=true
      - xpack.security.enabled=true
      - xpack.security.http.ssl.enabled=true
      - xpack.security.http.ssl.key=certs/es01/es01.key
      - xpack.security.http.ssl.certificate=certs/es01/es01.crt
      - xpack.security.http.ssl.certificate_authorities=certs/ca/ca.crt
      - xpack.security.http.ssl.verification_mode=certificate
      - xpack.security.transport.ssl.enabled=true
      - xpack.security.transport.ssl.key=certs/es01/es01.key
      - xpack.security.transport.ssl.certificate=certs/es01/es01.crt
      - xpack.security.transport.ssl.certificate_authorities=certs/ca/ca.crt
      - xpack.security.transport.ssl.verification_mode=certificate
      - xpack.license.self_generated.type=${LICENSE}
    mem_limit: ${MEM_LIMIT}
    ulimits:
      memlock:
        soft: -1
        hard: -1
    healthcheck:
      test:
        [
          "CMD-SHELL",
          "curl -s --cacert config/certs/ca/ca.crt https://localhost:9200 | grep -q 'missing authentication credentials'",
        ]
      interval: 10s
      timeout: 10s
      retries: 120

  kibana:
    depends_on:
      es01:
        condition: service_healthy
    image: docker.elastic.co/kibana/kibana:${STACK_VERSION}
    volumes:
      - certs:/usr/share/kibana/config/certs
      - kibanadata:/usr/share/kibana/data
    ports:
      - ${KIBANA_PORT}:5601
    environment:
      - SERVERNAME=kibana
      - ELASTICSEARCH_HOSTS=https://es01:9200
      - ELASTICSEARCH_USERNAME=kibana_system
      - ELASTICSEARCH_PASSWORD=${KIBANA_PASSWORD}
      - ELASTICSEARCH_SSL_CERTIFICATEAUTHORITIES=config/certs/ca/ca.crt
    mem_limit: ${MEM_LIMIT}
    healthcheck:
      test:
        [
          "CMD-SHELL",
          "curl -s -I http://localhost:5601 | grep -q 'HTTP/1.1 302 Found'",
        ]
      interval: 10s
      timeout: 10s
      retries: 120

volumes:
  certs:
    driver: local
  esdata01:
    driver: local
  kibanadata:
    driver: local

1.3. 启动相关容器

在项目的根目录下运行下面的命令

docker-compose -f ./docker-compose.dev.yml --env-file .env.dev up -build -d

• -f：指定 Docker Compose 配置文件。
• --env-file：指定环境变量文件。
• up：启动服务。
• --build：参数用于在启动服务之前重新构建 Docker 镜像。如果你修改了 Dockerfile 或依赖文件（如 package.json），使用 --build 可以确保使用最新的代码和依赖构建镜像
• -d：表示以“分离模式”（detached mode）运行容器, 在后台运行容器。

1.4. 配置各个服务的相关设置

1.4.1. Elasticsearch和kibana

1.4.1.1. 将 http_ca.crt SSL 证书从容器复制到您的本地计算机。

等Elasticsearch启动后，在项目根目录运行以下命令

docker cp ibuy-portal-backend-es01-1:/usr/share/elasticsearch/config/certs/ca/ca.crt .

1.4.1.2. 向 Elasticsearch 发出 REST API 调用，以确保 Elasticsearch 容器正在运行。

curl --cacert ca.crt -u elastic:[ELASTIC_PASSWORD] https://localhost:9200

这里的 [ELASTIC_PASSWORD]要替换成.env文件中设置的密码

如果一切正常，你会看到如下内容:

{
  "name" : "es01",
  "cluster_name" : "docker-cluster",
  "cluster_uuid" : "t5DlPYalRAm_tceqPUo7gw",
  "version" : {
    "number" : "8.14.2",
    "build_flavor" : "default",
    "build_type" : "docker",
    "build_hash" : "2afe7caceec8a26ff53817e5ed88235e90592a1b",
    "build_date" : "2024-07-01T22:06:58.515911606Z",
    "build_snapshot" : false,
    "lucene_version" : "9.10.0",
    "minimum_wire_compatibility_version" : "7.17.0",
    "minimum_index_compatibility_version" : "7.0.0"
  },
  "tagline" : "You Know, for Search"
}

1.4.2. 配置minio相关设置

见使用minio实现文件存储

我们已经统一在docker-compose.dev.yml中配置了服务的启动方式，在看文章时可以跳过手动用docker部署的环节。

1.4.3. rabbitmq相关设置

1.4.3.1. 基于TTL + 死信队列实现延迟队列

在完成上述配置后，就可以通过http://localhost:15672/#/queues管理你的rabbitmq。

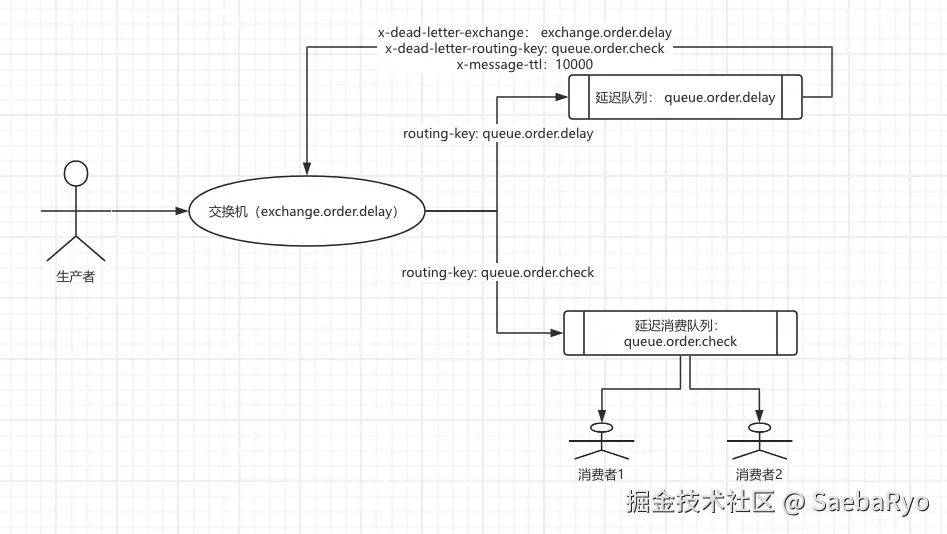

我们先看一下rabbitqm实现延迟队列的具体流程图。

我们的延迟队列用于处理用户提交订单后，超时未支付的情况

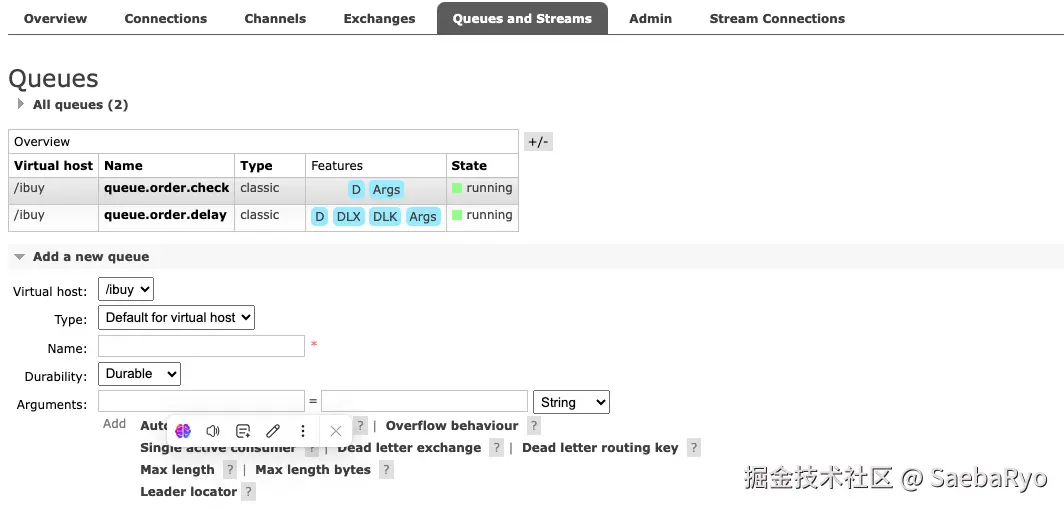

1.4.3.1.1. 创建queue.order.check消费队列（图中已有的队列是所有队列创建完后的样子）

1.4.3.1.2. 创建死信交换机exchange.order.delay

切换到Exchanges的tab创建一个死信交换机exchange.order.delay，type选择direct

然后点进exchange.order.delay交换机，并绑定消费队列queue.order.check，并设置routing key 为queue.order.check

到这，可以先publish一条message测试一下queue.order.check是否能收到信息。

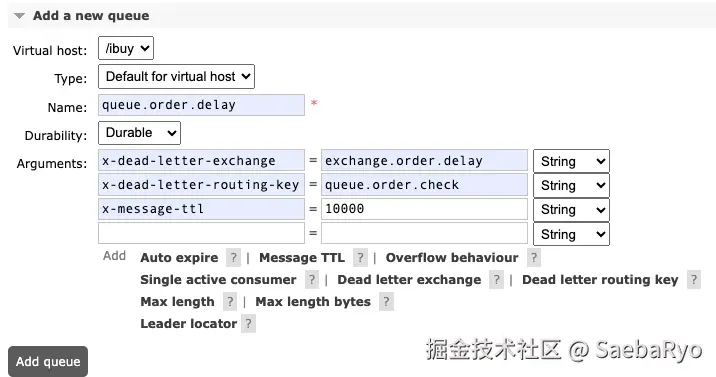

1.4.3.1.3. 创建死信队列queue.order.delay

这里，我们将死信队列的消息通过配置参数发送到了queue.order.check消费队列中。

x-message-ttl=10000 ，这个参数最好是在代码中配置。

最后就是在死信交换机exchange.order.delay中绑定queue.order.delay

1.4.3.2. 创建支付队列

这里的队列使用主要有以下两点原因

1. 异步处理支付结果、解耦支付处理流程，以及通过消息队列保证消息的可靠传递，防止消息丢失。
2. 削峰填谷：在订单系统中，下单的时候直接往数据库中写数据时，只能支撑每秒1000左右的并发写入，并发量再高就容易宕机。如果在高峰期时候，并发量突然激增到1000以上，或者更多，这个时候数据库就会可能卡死了，所以通过增加mq这个中间件来对写入数据进行缓存。

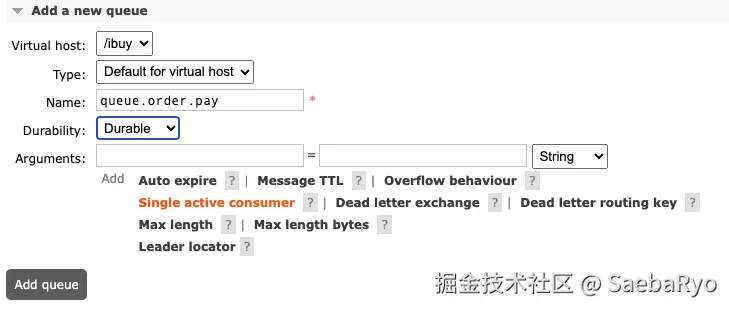

1.4.3.2.1. 创建一个支付队列queue.order.pay

不用加任何arguments

1.4.3.2.2. 创建支付队列交换机exchange.order.pay

点进去再绑定到支付队列queue.order.pay

1.4.3.3. 其他问题

rabbitmq相关的配置我们在docker-compose文件中已经配置好了，如果有问题，可以试着手动执行下面的命令

1.4.3.3.1. 等待服务器启动，然后启用流和流管理插件：

docker exec rabbitmq rabbitmq-plugins enable rabbitmq_stream rabbitmq_stream_management

1.4.3.3.2. 以root权限进入docker

docker exec -u root -it rabbitmq /bin/bash

1.4.3.3.3. 添加一个用户

rabbitmqctl add_user [username] [password]

1.4.3.3.4. 创建一个Virtualhost

rabbitmqctl add_vhost /ibuy

1.4.3.3.5. 给用户访问权限

rabbitmqctl set_permissions -p /ibuy [username] ".*" ".*" ".*"

1.4.3.3.6. 检查权限

如果你已经有用户，但提示没有管理权限，你可以使用以下命令查看用户权限：

rabbitmqctl list_users

该命令会列出所有用户及其角色。确保你登录的用户拥有 administrator 标签。如果没有，则可以使用以下命令为用户分配管理权限

rabbitmqctl set_user_tags [username] administrator

1.5. 本地运行项目代码

yarn run start:dev

在运行上面的命令后，如果你的所有配置都没问题，那么就可以访问localhost:8000来进行开发了

2. 生产环境配置

2.1. .env文件配置

JWT_SECRET=xxx
JWT_EXPIRES_IN=xxx

# elasticsearch
ES_NODE=https://es01:9200
ELASTIC_USERNAME=elastic
ELASTIC_PASSWORD=123456
ES_PORT=9200

# kibana
KIBANA_PASSWORD=123456
KIBANA_PORT=5601

# elastic stack
STACK_VERSION=8.14.2
CLUSTER_NAME=docker-cluster
LICENSE=basic
# 1GB
MEM_LIMIT=1073741824

# postgresql
POSTGRES_HOST=postgres
POSTGRES_PORT=5432
POSTGRES_USER=postgres
POSTGRES_PASSWORD=xxx
POSTGRES_DATABASE=mall

# redis
REDIS_HOST=redis
REDIS_PORT=6379
REDIS_PASSWORD=xxx

# minio
MINIO_HOST=minio
MINIO_PORT=9000
MINIO_ROOT_USER=minio
MINIO_ROOT_PASSWORD=xxx
MINIO_ACCESS_KEY=xxx
MINIO_SECRET_KEY=xxx

# rabbitmq
RMQ_HOST=rabbitmq
RMQ_PORT=5672
RMQ_USERNAME=xxx
RMQ_PASSWORD=xxx
RMQ_VIRTUAL_HOST=/ibuy



# 支付相关
# 商户id
ALIPAY_APP_ID: xxx
# 商户秘钥
ALIPAY_MERCHANT_PRIVATE_KEY: xxx
# 支付宝公钥
ALIPAY_PUBLIC_KEY: xxx
#支付状态异步通知
ALIPAY_NOTIFY_URL: xxx
#支付状态同步通知
ALIPAY_RETURN_URL: xxx
#支付宝开发环境网关 用的沙箱的网关
ALIPAY_GATEWAY_URL: zzz
#签名方式
ALIPAY_SIGN_TYPE: RSA2
#ALIPAY_CHARSET: utf-8
#ALIPAY_FORMAT: json

由于我们是用docker部署的项目代码, 所以和env.dev这个开发环境不同的是，在项目中连接其他容器的地址时，我们需要将url中的host部分替换为docker所管理的服务名。并且我们网关相应的url也需要改成自己项目部署的ip

2.2. 配置docker-compose.yml

version: "2.5"

services:
  # Elasticsearch setup service for generating certificates
  setup:
    image: docker.elastic.co/elasticsearch/elasticsearch:${STACK_VERSION}
    volumes:
      - certs:/usr/share/elasticsearch/config/certs
    user: "0"
    command: >
      bash -c '
        if [ x${ELASTIC_PASSWORD} == x ]; then
          echo "Set the ELASTIC_PASSWORD environment variable in the .env file";
          exit 1;
        fi;
        if [ ! -f config/certs/ca.zip ]; then
          echo "Creating CA";
          bin/elasticsearch-certutil ca --silent --pem -out config/certs/ca.zip;
          unzip config/certs/ca.zip -d config/certs;
        fi;
        if [ ! -f config/certs/certs.zip ]; then
          echo "Creating certs";
          echo -ne \
          "instances:\n"\
          "  - name: es01\n"\
          "    dns:\n"\
          "      - es01\n"\
          "      - localhost\n"\
          "    ip:\n"\
          "      - 127.0.0.1\n"\
          > config/certs/instances.yml;
          bin/elasticsearch-certutil cert --silent --pem -out config/certs/certs.zip --in config/certs/instances.yml --ca-cert config/certs/ca/ca.crt --ca-key config/certs/ca/ca.key;
          unzip config/certs/certs.zip -d config/certs;
        fi;
        echo "Setting file permissions"
        chown -R root:root config/certs;
        find . -type d -exec chmod 750 {} ;;
        find . -type f -exec chmod 640 {} ;;
        echo "All done!";
      '
    healthcheck:
      test: ["CMD-SHELL", "[ -f config/certs/es01/es01.crt ]"]
      interval: 1s
      timeout: 5s
      retries: 120

  # Elasticsearch main node
  es01:
    depends_on:
      setup:
        condition: service_healthy
    image: docker.elastic.co/elasticsearch/elasticsearch:${STACK_VERSION}
    container_name: ibuy-service-es01
    volumes:
      - certs:/usr/share/elasticsearch/config/certs
      - esdata01:/usr/share/elasticsearch/data
#      - /usr/local/docker-volumes/es01/config:/usr/share/elasticsearch/config
    ports:
      - ${ES_PORT}:9200
    environment:
      - node.name=es01
      - cluster.name=${CLUSTER_NAME}
      - discovery.type=single-node
      - ELASTIC_PASSWORD=${ELASTIC_PASSWORD}
      - bootstrap.memory_lock=true
      - xpack.security.enabled=true
      - xpack.security.http.ssl.enabled=true
      - xpack.security.http.ssl.key=certs/es01/es01.key
      - xpack.security.http.ssl.certificate=certs/es01/es01.crt
      - xpack.security.http.ssl.certificate_authorities=certs/ca/ca.crt
      - xpack.security.transport.ssl.enabled=true
      - xpack.security.transport.ssl.key=certs/es01/es01.key
      - xpack.security.transport.ssl.certificate=certs/es01/es01.crt
      - xpack.security.transport.ssl.certificate_authorities=certs/ca/ca.crt
    mem_limit: ${MEM_LIMIT}
    ulimits:
      memlock:
        soft: -1
        hard: -1
    healthcheck:
      test:
        [
          "CMD-SHELL",
          "curl -s --cacert config/certs/ca/ca.crt https://localhost:9200 | grep -q 'missing authentication credentials'",
        ]
      interval: 10s
      timeout: 10s
      retries: 120

  # Kibana service
  kibana:
    depends_on:
      es01:
        condition: service_healthy
    image: docker.elastic.co/kibana/kibana:${STACK_VERSION}
    container_name: ibuy-service-kibana
    volumes:
      - certs:/usr/share/kibana/config/certs
      - kibanadata:/usr/share/kibana/data
      # FATAL CLI ERROR Error: ENOENT: no such file or directory, open '/usr/share/kibana/config/kibana.yml'
#      - /usr/local/docker-volumes/kibana/config:/usr/share/kibana/config
    ports:
      - ${KIBANA_PORT}:5601
    environment:
      - SERVERNAME=kibana
      - ELASTICSEARCH_HOSTS=https://es01:9200
      - ELASTICSEARCH_USERNAME=kibana_system
      - ELASTICSEARCH_PASSWORD=${KIBANA_PASSWORD}
      - ELASTICSEARCH_SSL_CERTIFICATEAUTHORITIES=config/certs/ca/ca.crt
    mem_limit: ${MEM_LIMIT}
    healthcheck:
      test:
        [
          "CMD-SHELL",
          "curl -s -I http://localhost:5601 | grep -q 'HTTP/1.1 302 Found'",
        ]
      interval: 10s
      timeout: 10s
      retries: 120

  # PostgreSQL service
  postgres:
    image: postgres:17-alpine
    container_name: ibuy-service-postgres
    ports:
      - "${POSTGRES_PORT}:5432"
    environment:
      - POSTGRES_USER=${POSTGRES_USER}
      - POSTGRES_PASSWORD=${POSTGRES_PASSWORD}
      - POSTGRES_DB=${POSTGRES_DATABASE}
    volumes:
      - /usr/local/docker-volumes/postgre:/var/lib/postgresql/data
    healthcheck:
      test: ["CMD-SHELL", "pg_isready -U ${POSTGRES_USER}"]
      interval: 10s
      timeout: 5s
      retries: 5

  # Redis service
  redis:
    image: redis:7.2-alpine
    container_name: ibuy-service-redis
    ports:
      - "${REDIS_PORT}:6379"
    environment:
      - REDIS_PASSWORD=${REDIS_PASSWORD}
    command: redis-server --requirepass "${REDIS_PASSWORD}" --appendonly yes
    volumes:
      - /usr/local/docker-volumes/redis:/data
    restart: always
    healthcheck:
      test: ["CMD", "redis-cli", "-a", "${REDIS_PASSWORD}", "ping"]
      interval: 10s
      timeout: 5s
      retries: 5

  # MinIO service
  minio:
    image: minio/minio
    container_name: ibuy-service-minio
    ports:
      - "${MINIO_PORT}:9000"
      - "9090:9090"
    environment:
      - MINIO_ROOT_USER=${MINIO_ROOT_USER}
      - MINIO_ROOT_PASSWORD=${MINIO_ROOT_PASSWORD}
    command: server /data --console-address ":9090" --address ":9000"
    volumes:
      - /usr/local/docker-volumes/minio/data:/data
      - /usr/local/docker-volumes/minio/config:/root/.minio
    restart: always
    healthcheck:
      test: ["CMD-SHELL", "curl -f http://127.0.0.1:9000/minio/health/live || exit 1"]
      interval: 10s
      timeout: 5s
      retries: 5

  # RabbitMQ service
  rabbitmq:
    image: rabbitmq:4.0
    container_name: ibuy-service-rabbitmq
    ports:
      - "${RMQ_PORT}:5672"
      - "15672:15672"
    environment:
      - RABBITMQ_DEFAULT_USER=${RMQ_USERNAME}
      - RABBITMQ_DEFAULT_PASS=${RMQ_PASSWORD}
      - RABBITMQ_DEFAULT_VHOST=${RMQ_VIRTUAL_HOST}

    # 启用流式队列和webui和命令行管理工具
    command: >
      bash -c "
        rabbitmq-plugins enable rabbitmq_stream rabbitmq_stream_management &&
        rabbitmq-server
      "
    volumes:
      - /usr/local/docker-volumes/rabbitmq:/var/lib/rabbitmq
    restart: always
    healthcheck:
      test: ["CMD-SHELL", "rabbitmqctl status > /dev/null 2>&1 || exit 1"]
      interval: 10s
      timeout: 5s
      retries: 10

  # NestJS service
  nestjs:
    build:
      context: .
      dockerfile: Dockerfile
    container_name: ibuy-service-nestjs
    ports:
      - "8000:8000"
    volumes:
      - /usr/local/docker-volumes/app/logs:/app/logs
    environment:
      - NODE_ENV=production
      - POSTGRES_HOST=ibuy-service-postgres
      - POSTGRES_PORT=${POSTGRES_PORT}
      - POSTGRES_USER=${POSTGRES_USER}
      - POSTGRES_PASSWORD=${POSTGRES_PASSWORD}
      - POSTGRES_DB=${POSTGRES_DATABASE}
      - REDIS_HOST=ibuy-service-redis
      - REDIS_PORT=${REDIS_PORT}
      - REDIS_PASSWORD=${REDIS_PASSWORD}
      - MINIO_HOST=ibuy-service-minio
      - MINIO_PORT=${MINIO_PORT}
      - RMQ_HOST=ibuy-service-rabbitmq
      - RMQ_PORT=${RMQ_PORT}
      - RMQ_USERNAME=${RMQ_USERNAME}
      - RMQ_PASSWORD=${RMQ_PASSWORD}
      - ALIPAY_APP_ID=${ALIPAY_APP_ID}
      - ALIPAY_MERCHANT_PRIVATE_KEY=${ALIPAY_MERCHANT_PRIVATE_KEY}
      - ALIPAY_PUBLIC_KEY=${ALIPAY_PUBLIC_KEY}
      - ALIPAY_NOTIFY_URL=${ALIPAY_NOTIFY_URL}
      - ALIPAY_RETURN_URL=${ALIPAY_RETURN_URL}
      - ALIPAY_GATEWAY_URL=${ALIPAY_GATEWAY_URL}
      - ALIPAY_SIGN_TYPE=${ALIPAY_SIGN_TYPE}
      - JWT_SECRET=${JWT_SECRET}
      - JWT_EXPIRES_IN=${JWT_EXPIRES_IN}
      - ES_NODE=${ES_NODE}
      - ELASTIC_USERNAME=${ELASTIC_USERNAME}
      - ELASTIC_PASSWORD=${ELASTIC_PASSWORD}
    # 注意depends_on是服务名，而不是容器名
    depends_on:
#      - postgres
#      - redis
#      - minio
#      - rabbitmq
#      - es01
      rabbitmq:
        condition: service_healthy  # 确保在 rabbitmq 健康后启动
      postgres:
        condition: service_healthy
      redis:
        condition: service_healthy
      minio:
        condition: service_healthy
      es01:
        condition: service_healthy
    restart: always

volumes:
  certs:
    driver: local
  esdata01:
    driver: local
  kibanadata:
    driver: local
  postgre:
    driver: local
  redis:
    driver: local
  minio:
    driver: local
  rabbitmq:
    driver: local

2.3. 启动相关容器

docker-compose up --build -d

2.4. 配置个服务相关配置

同上

2.5. 确保服务器的防火墙相应的服务端口开放

根据自己的云服务厂商来配置

3. 问题其他问题

3.1. failed to authenticate user [kibana_system]

在启动elastic以及kibana后如果遇到401的错误，那可能就是kibana_system用户的密码设置的有问题，正常在停掉容器后再删除掉对应的volumn就可以了，但如果还出错，可以尝试使用以下的方法

---

3.1.1. 确认 .env 文件被正确加载

确保 docker-compose 在启动时正确加载了 .env 文件，并将其中的变量注入到服务中。

检查加载 .env 文件：

运行以下命令，查看 docker-compose 是否正确读取了 .env 文件中的环境变量：

docker-compose config

在输出中，检查以下变量是否和你.env中的配置一样：

• ELASTIC_PASSWORD
• KIBANA_PASSWORD

如果这些变量的值为空或不正确，说明 .env 文件没有正确加载。请确认以下内容：

• .env 文件和 docker-compose.yml 文件位于同一目录。
• .env 文件名正确（没有额外的扩展名，例如 .env.txt）。
• 文件内容中没有多余的空格或隐藏字符。

---

3.1.2. 确保 Elasticsearch 中 kibana_system 的密码正确

Elasticsearch 会保存用户密码的哈希值。如果 kibana_system 的密码被更改或没有正确初始化，可能会导致认证失败。

验证 kibana_system 密码：

登录到 Elasticsearch 容器：

docker exec -it <es01_container_id> /bin/bash

尝试使用 kibana_system 用户登录：

curl -u kibana_system:123456 https://localhost:9200 -k

如果返回 401 Unauthorized，说明密码不匹配。

重置 kibana_system 密码：

在 Elasticsearch 容器中运行以下命令重置密码：

bin/elasticsearch-reset-password -u kibana_system -i

输入新的密码（与 .env 文件中的 KIBANA_PASSWORD 保持一致），并确认。

如果上面的命令无法运行，那可以使用以下命令，明确指定连接的es服务,我们的配置只有一个es节点 es01

bin/elasticsearch-reset-password -u kibana_system -i \
--url "https://es01:9200"

文章参考

elasticstack.blog.csdn.net/article/det…
