CPU 和 GPU
cpu 中央处理器 ：控制单元 计算单元 存储单元
gpu 图像处理器
webgl产生背景
WebGL 是一种3D绘图标准，这种绘图技术标准 允许将js和OpenGL结合 (GLSL)
webgl的工作原理
工作方式和流水线类似，将一个绘图过程分为多个步骤，当前步骤只对前一步骤的结果进行处理，然后传递给下一个步骤，最终渲染到2d屏幕上，业界将这种渲染方式称为 图形管线 或者 渲染管线

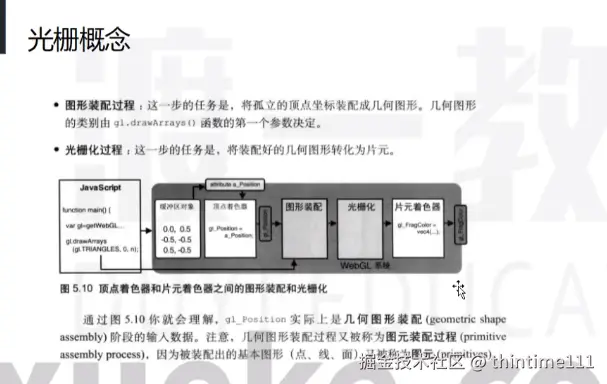

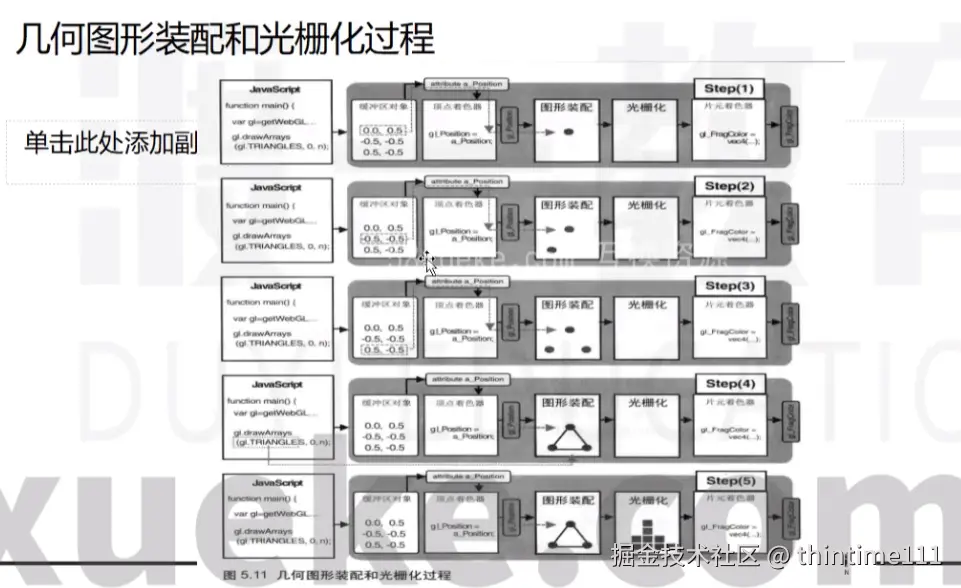

GPU渲染管线的主要处理过程：
1.首先进入顶点着色器阶段，利用GPU的并行计算优势对顶点逐个进行坐标变换
2.进入图源装配阶段，将顶点按照图源类型组装成图形
3.接下来到光栅化阶段，光栅化阶段图形用不含颜色信息的像素填充
4.片元着色器阶段，该阶段为像素着色器，并最终显示在屏幕上

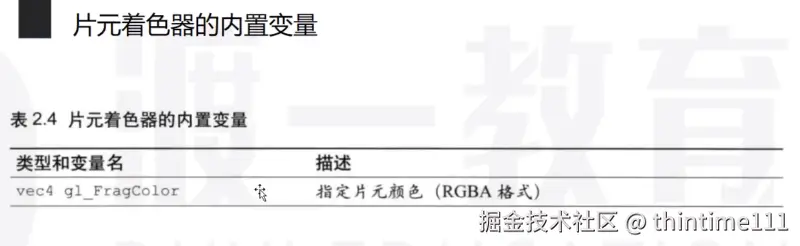

着色器：顶点着色器 、片元着色器

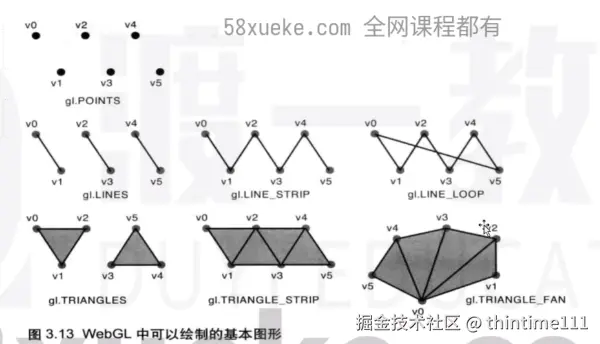

webgl可绘制的图元
点 线段 三角形
webgl的优点
1.只需要 编辑器 、浏览器 可完成三维图形程序
2.使用通用的web技术发布三维图形程序的显示
3.充分利用率浏览器的功能
4.资料丰富

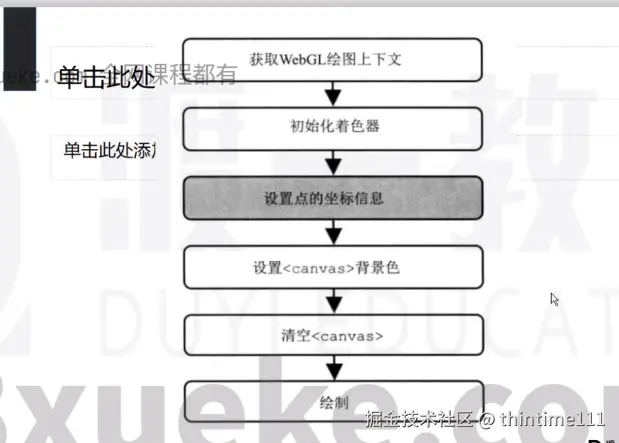

WebGL之点的绘制
webGL 坐标系统
uniform 赋值
完整的点绘制
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>绘制点</title>
</head>
<body>
<canvas id="canvas" width="800" height="600"></canvas>
<script type="notjs" id="vertex" >
attribute vec2 a_position;
attribute vec4 a_color;
uniform vec2 screenSize;
varying vec4 v_color;
void main(){
float x = a_position.x * 2.0 / screenSize.x - 1.0;
float y = 1.0 - ( a_position.y * 2.0 / screenSize.y);
gl_Position = vec4(x, y, 0, 1);
gl_PointSize = 10.0;
v_color = a_color;
}
</script>
<script type="notjs" id="fragment" >
precision mediump float;
varying vec4 v_color;
void main(){
gl_FragColor = v_color;
}
</script>
<script>
var canvas = document.getElementById("canvas");
var gl = canvas.getContext("webgl");
if(!gl){
alert('浏览器不支持webgl')
}
// var str = ''
//创建着色器(两种着色器)
function createShader(gl,type,source){
var shader = gl.createShader(type);
gl.shaderSource(shader,source);
gl.compileShader(shader);
var success= gl.getShaderParameter(shader,gl.COMPILE_STATUS);
if(success){
return shader;
}
console.log(gl.getShaderInfoLog(shader));
// gl.deleteShader(shader);
}
var vetexStr = document.getElementById('vertex').innerText;
var fragmentStr = document.getElementById('fragment').innerText;
console.log(vetexStr,fragmentStr)
//创建着色器程序
var vertexShader = createShader(gl,gl.VERTEX_SHADER,vetexStr);
var fragmentShader = createShader(gl,gl.FRAGMENT_SHADER,fragmentStr);

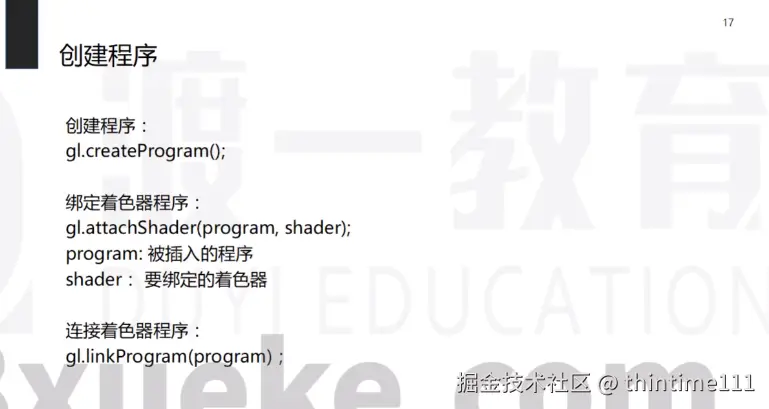

function createProgram(gl,vertexShader,fragmentShader){
//链接着色器程序
var program = gl.createProgram();
gl.attachShader(program,vertexShader);
gl.attachShader(program,fragmentShader);
gl.linkProgram(program);
var success= gl.getProgramParameter(program,gl.LINK_STATUS);
if(success){
return program;
}
console.log(success);
}
var program = createProgram(gl,vertexShader,fragmentShader);
gl.useProgram(program); //使用着色器程序
gl.clearColor(0,0,1,1);
gl.clear(gl.COLOR_BUFFER_BIT); //清空画布
var a_position = gl.getAttribLocation(program,'a_position'); //获取变量存储位置
var screenSize = gl.getUniformLocation(program,'screenSize'); //获取变量存储位置
var a_color = gl.getAttribLocation(program,'a_color'); //获取变量存储位置
gl.uniform2f(screenSize,canvas.width,canvas.height);
var points = [];
function bindEvent(){
canvas.onmousedown = function (e){
// gl.clearColor(0,0,1,1);
// gl.clear(gl.COLOR_BUFFER_BIT); //清空画布
var x = e.offsetX;
var y = e.offsetY;
var color = randomColor();
points.push({x,y,color}); //记录点击位置
for(var i = 0;i<points.length;i++){

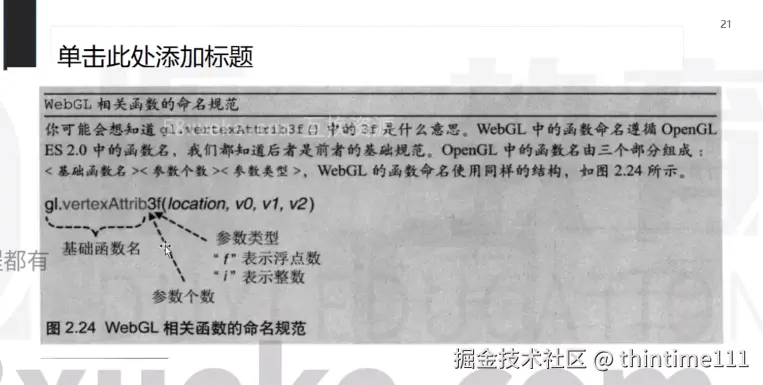

gl.vertexAttrib3f(a_position,points[i].x,points[i].y,0.0); //设置变量值
gl.vertexAttrib4f(a_color,points[i].color.r,points[i].color.g,points[i].color.b,points[i].color.a); //设置变量值
gl.drawArrays(gl.POINTS,0,1);
}
//gl.drawArrays(gl.POINTS,0,1);//放在循环外只能绘制一个点
}
};
function randomColor(){
var r = Math.random();
var g = Math.random();
var b = Math.random();
var a = 0.5 + Math.random()*0.5;
return {r,g,b,a};
}
bindEvent()
</script>
</body>
</html>
</body>
</html>

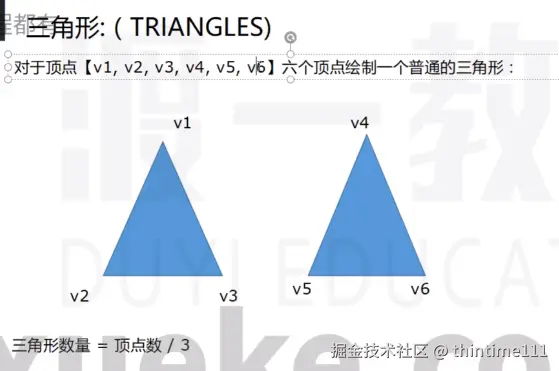

WebGL之绘制三角形

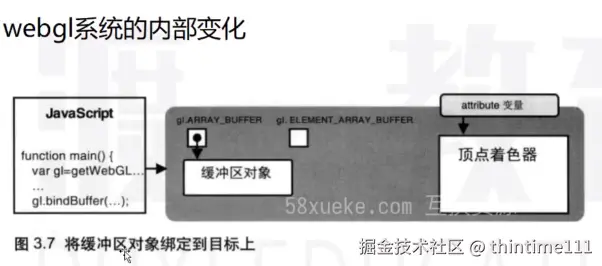

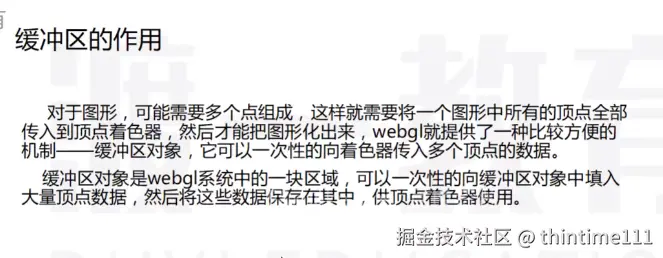

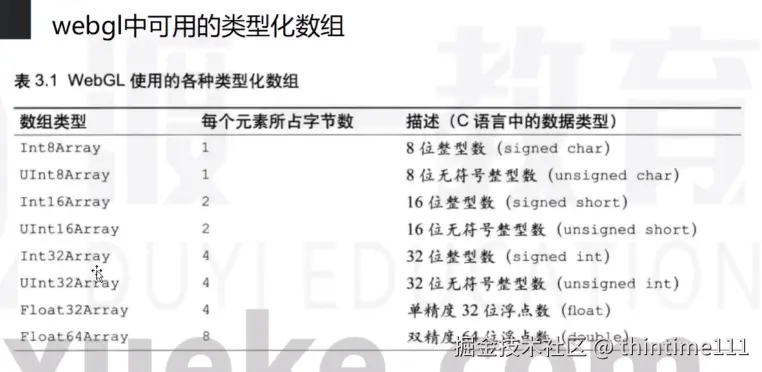

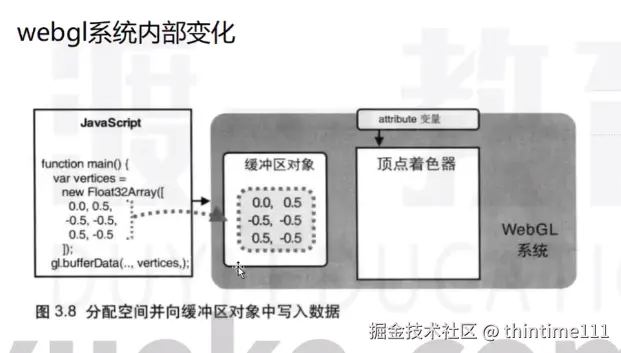

缓冲区对象
创建、删除缓冲区对象
绘制三角形
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>绘制三角形</title>
</head>
<body>
<canvas id="canvas" width="800" height="600"></canvas>
<script type="notjs" id="vertex" >
attribute vec2 a_position;
attribute vec4 a_color;
attribute float pointsize;
uniform vec2 screenSize;
varying vec4 v_color;
void main(){
float x = a_position.x * 2.0 / screenSize.x - 1.0;
float y = 1.0 - ( a_position.y * 2.0 / screenSize.y);
gl_Position = vec4(x, y, 0, 1);
gl_PointSize = pointsize;
v_color = a_color;
}
</script>
<script type="notjs" id="fragment" >
precision mediump float;
varying vec4 v_color;
void main(){
gl_FragColor = v_color;
}
</script>
<script>
var canvas = document.getElementById("canvas");
var gl = canvas.getContext("webgl");
if(!gl){
alert('浏览器不支持webgl')
}
// var str = ''
//创建着色器(两种着色器)
function createShader(gl,type,source){
var shader = gl.createShader(type);
gl.shaderSource(shader,source);
gl.compileShader(shader);
var success= gl.getShaderParameter(shader,gl.COMPILE_STATUS);
if(success){
return shader;
}
console.log(gl.getShaderInfoLog(shader));
// gl.deleteShader(shader);
}
var vetexStr = document.getElementById('vertex').innerText;
var fragmentStr = document.getElementById('fragment').innerText;
console.log(vetexStr,fragmentStr)
//创建着色器程序
var vertexShader = createShader(gl,gl.VERTEX_SHADER,vetexStr);
var fragmentShader = createShader(gl,gl.FRAGMENT_SHADER,fragmentStr);
function createProgram(gl,vertexShader,fragmentShader){
//链接着色器程序
var program = gl.createProgram();
gl.attachShader(program,vertexShader);
gl.attachShader(program,fragmentShader);
gl.linkProgram(program);
var success= gl.getProgramParameter(program,gl.LINK_STATUS);
if(success){
return program;
}
console.log(success);
}
var program = createProgram(gl,vertexShader,fragmentShader);
gl.useProgram(program); //使用着色器程序
// gl.clearColor(0,0,1,1);
// gl.clear(gl.COLOR_BUFFER_BIT); //清空画布
var a_position = gl.getAttribLocation(program,'a_position'); //获取变量存储位置
var pointsize = gl.getAttribLocation(program,'pointsize'); //获取变量存储位置
var screenSize = gl.getUniformLocation(program,'screenSize'); //获取变量存储位置
var a_color = gl.getAttribLocation(program,'a_color'); //获取变量存储位置
gl.uniform2f(screenSize,canvas.width,canvas.height);
gl.vertexAttrib4f(a_color,1,0,0,1);
var positionBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER,positionBuffer);
function bindEvent(){
var points = [];
canvas.onmousedown = function (e){
// gl.clearColor(0,0,1,1);
gl.clearColor(0,0,0,0);
gl.clear(gl.COLOR_BUFFER_BIT); //清空画布
var x = e.offsetX;
var y = e.offsetY;
var color = randomColor();
points.push(x,y,10.0); //记录点击位置
// points.push({x,y,
// size:10.0
// }); //记录点击位置
if(points.length % 3 == 0){
gl.bufferData(gl.ARRAY_BUFFER,new Float32Array(points),gl.STATIC_DRAW);

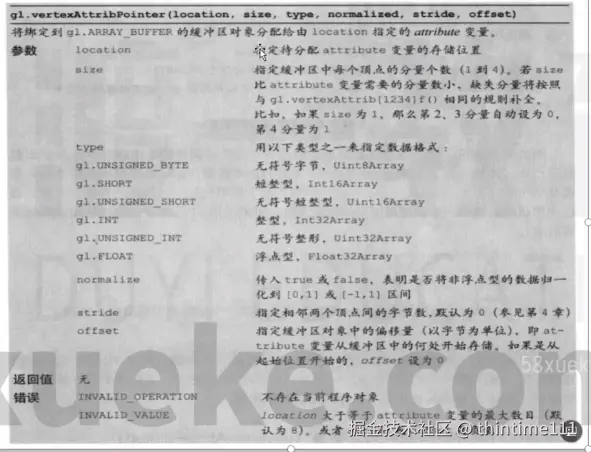

gl.vertexAttribPointer(a_position,2,gl.FLOAT,false,4*3,0);
gl.vertexAttribPointer(pointsize,1,gl.FLOAT,false,4*3,2*4);

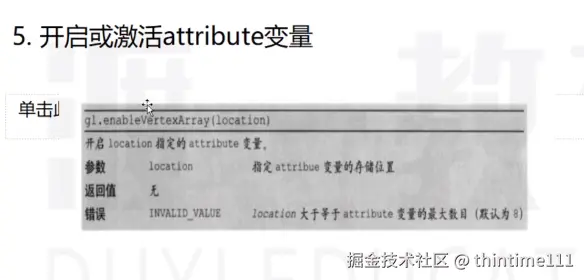

gl.enableVertexAttribArray(a_position);
gl.enableVertexAttribArray(pointsize);
// gl.drawArrays(gl.POINTS,0,3);
gl.drawArrays(gl.TRIANGLES,0, points.length/3 );
}
//gl.drawArrays(gl.POINTS,0,1);//放在循环外只能绘制一个点
}
};
// var positionBuffer = gl.createBuffer();
// gl.bindBuffer(gl.ARRAY_BUFFER,positionBuffer);
// gl.bufferData(gl.ARRAY_BUFFER,new Float32Array([50,50,10.0,50,100,20.0,100,100,30.0]),gl.STATIC_DRAW);
// gl.vertexAttribPointer(a_position,2,gl.FLOAT,false,4*3,0);
// gl.vertexAttribPointer(pointsize,1,gl.FLOAT,false,4*3,2*4);
// gl.enableVertexAttribArray(a_position);
// gl.enableVertexAttribArray(pointsize);
// // gl.drawArrays(gl.POINTS,0,3);
// gl.drawArrays(gl.TRIANGLES,0,3);
function randomColor(){
var r = Math.random();
var g = Math.random();
var b = Math.random();
var a = 0.5 + Math.random()*0.5;
return {r,g,b,a};
}
bindEvent()
</script>
</body>
</html>
</body>
</html>
WebGL之绘制线段
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>绘制三角形</title>
</head>
<body>
<canvas id="canvas" width="800" height="600"></canvas>
<script type="notjs" id="vertex" >
attribute vec2 a_position;
attribute vec4 a_color;
attribute float pointsize;
uniform vec2 screenSize;
varying vec4 v_color;
void main(){
float x = a_position.x * 2.0 / screenSize.x - 1.0;
float y = 1.0 - ( a_position.y * 2.0 / screenSize.y);
gl_Position = vec4(x, y, 0, 1);
gl_PointSize = pointsize;
v_color = a_color;
}
</script>
<script type="notjs" id="fragment" >
precision mediump float;
varying vec4 v_color;
void main(){
gl_FragColor = v_color;
}
</script>
<script>
var canvas = document.getElementById("canvas");
var gl = canvas.getContext("webgl");
if(!gl){
alert('浏览器不支持webgl')
}
// var str = ''
//创建着色器(两种着色器)
function createShader(gl,type,source){
var shader = gl.createShader(type);
gl.shaderSource(shader,source);
gl.compileShader(shader);
var success= gl.getShaderParameter(shader,gl.COMPILE_STATUS);
if(success){
return shader;
}
console.log(gl.getShaderInfoLog(shader));
// gl.deleteShader(shader);
}
var vetexStr = document.getElementById('vertex').innerText;
var fragmentStr = document.getElementById('fragment').innerText;
console.log(vetexStr,fragmentStr)
//创建着色器程序
var vertexShader = createShader(gl,gl.VERTEX_SHADER,vetexStr);
var fragmentShader = createShader(gl,gl.FRAGMENT_SHADER,fragmentStr);
function createProgram(gl,vertexShader,fragmentShader){
//链接着色器程序
var program = gl.createProgram();
gl.attachShader(program,vertexShader);
gl.attachShader(program,fragmentShader);
gl.linkProgram(program);
var success= gl.getProgramParameter(program,gl.LINK_STATUS);
if(success){
return program;
}
console.log(success);
}
var program = createProgram(gl,vertexShader,fragmentShader);
gl.useProgram(program); //使用着色器程序
// gl.clearColor(0,0,1,1);
// gl.clear(gl.COLOR_BUFFER_BIT); //清空画布
var a_position = gl.getAttribLocation(program,'a_position'); //获取变量存储位置
var pointsize = gl.getAttribLocation(program,'pointsize'); //获取变量存储位置
var screenSize = gl.getUniformLocation(program,'screenSize'); //获取变量存储位置
var a_color = gl.getAttribLocation(program,'a_color'); //获取变量存储位置
gl.uniform2f(screenSize,canvas.width,canvas.height);
gl.vertexAttrib4f(a_color,1,0,0,1);
var positionBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER,positionBuffer);
function bindEvent(){
var points = [];
canvas.onmousedown = function (e){
// gl.clearColor(0,0,1,1);
gl.clearColor(0,0,0,0);
gl.clear(gl.COLOR_BUFFER_BIT); //清空画布
var x = e.offsetX;
var y = e.offsetY;
var color = randomColor();
points.push(x,y,10.0); //记录点击位置
// points.push({x,y,
// size:10.0
// }); //记录点击位置
if(points.length % 3 == 0){
gl.bufferData(gl.ARRAY_BUFFER,new Float32Array(points),gl.STATIC_DRAW);
gl.vertexAttribPointer(a_position,2,gl.FLOAT,false,4*3,0);
gl.vertexAttribPointer(pointsize,1,gl.FLOAT,false,4*3,2*4);
gl.enableVertexAttribArray(a_position);
gl.enableVertexAttribArray(pointsize);
// gl.drawArrays(gl.POINTS,0,3);
//改变gl.LINES 、gl.LINE_STRIP、gl.LINE_LOOP 可以绘制线段 、线条 、闭合线条
// gl.drawArrays(gl.TRIANGLES,0, points.length/3 );
// gl.drawArrays(gl.LINES,0, points.length/3 );
// gl.drawArrays(gl.LINE_STRIP,0, points.length/3 );
gl.drawArrays(gl.LINE_LOOP,0, points.length/3 );
}
//gl.drawArrays(gl.POINTS,0,1);//放在循环外只能绘制一个点
}
};
// var positionBuffer = gl.createBuffer();
// gl.bindBuffer(gl.ARRAY_BUFFER,positionBuffer);
// gl.bufferData(gl.ARRAY_BUFFER,new Float32Array([50,50,10.0,50,100,20.0,100,100,30.0]),gl.STATIC_DRAW);
// gl.vertexAttribPointer(a_position,2,gl.FLOAT,false,4*3,0);
// gl.vertexAttribPointer(pointsize,1,gl.FLOAT,false,4*3,2*4);
// gl.enableVertexAttribArray(a_position);
// gl.enableVertexAttribArray(pointsize);
// // gl.drawArrays(gl.POINTS,0,3);
// gl.drawArrays(gl.TRIANGLES,0,3);
function randomColor(){
var r = Math.random();
var g = Math.random();
var b = Math.random();
var a = 0.5 + Math.random()*0.5;
return {r,g,b,a};
}
bindEvent()
</script>
</body>
</html>
</body>
</html>
WebGL之绘制矩形
索引缓冲区
绘制矩形的两种方法
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>绘制矩形</title>
</head>
<body>
<canvas id="canvas" width="800" height="600"></canvas>
<script type="notjs" id="vertex" >
attribute vec2 a_position;
attribute vec4 a_color;
uniform vec2 screenSize;
varying vec4 v_color;
void main(){
float x = a_position.x * 2.0 / screenSize.x - 1.0;
float y = 1.0 - ( a_position.y * 2.0 / screenSize.y);
gl_Position = vec4(x, y, 0, 1);
gl_PointSize = 10.0;
v_color = a_color;
}
</script>
<script type="notjs" id="fragment" >
precision mediump float;
varying vec4 v_color;
void main(){
gl_FragColor = v_color;
}
</script>
<script>
var canvas = document.getElementById("canvas");
var gl = canvas.getContext("webgl");
if(!gl){
alert('浏览器不支持webgl')
}
// var str = ''
//创建着色器(两种着色器)
function createShader(gl,type,source){
var shader = gl.createShader(type);
gl.shaderSource(shader,source);
gl.compileShader(shader);
var success= gl.getShaderParameter(shader,gl.COMPILE_STATUS);
if(success){
return shader;
}
console.log(gl.getShaderInfoLog(shader));
// gl.deleteShader(shader);
}
var vetexStr = document.getElementById('vertex').innerText;
var fragmentStr = document.getElementById('fragment').innerText;
console.log(vetexStr,fragmentStr)
//创建着色器程序
var vertexShader = createShader(gl,gl.VERTEX_SHADER,vetexStr);
var fragmentShader = createShader(gl,gl.FRAGMENT_SHADER,fragmentStr);
function createProgram(gl,vertexShader,fragmentShader){
//链接着色器程序
var program = gl.createProgram();
gl.attachShader(program,vertexShader);
gl.attachShader(program,fragmentShader);
gl.linkProgram(program);
var success= gl.getProgramParameter(program,gl.LINK_STATUS);
if(success){
return program;
}
console.log(success);
}
var program = createProgram(gl,vertexShader,fragmentShader);
gl.useProgram(program); //使用着色器程序
// gl.clearColor(0,0,1,1);
// gl.clear(gl.COLOR_BUFFER_BIT); //清空画布
var a_position = gl.getAttribLocation(program,'a_position'); //获取变量存储位置
var screenSize = gl.getUniformLocation(program,'screenSize'); //获取变量存储位置
var a_color = gl.getAttribLocation(program,'a_color'); //获取变量存储位置
gl.uniform2f(screenSize,canvas.width,canvas.height);
// gl.vertexAttrib4f(a_color,1,0,0,1);
var positionBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER,positionBuffer);
var indexBuffer = gl.createBuffer();
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER,indexBuffer);
// function bindEvent(){
// var points = [];
// canvas.onmousedown = function (e){
// // gl.clearColor(0,0,1,1);
// gl.clearColor(0,0,0,0);
// gl.clear(gl.COLOR_BUFFER_BIT); //清空画布
// var x = e.offsetX;
// var y = e.offsetY;
// var color = randomColor();
// points.push(x,y,10.0); //记录点击位置
// // points.push({x,y,
// // size:10.0
// // }); //记录点击位置
// if(points.length % 3 == 0){
// gl.bufferData(gl.ARRAY_BUFFER,new Float32Array(points),gl.STATIC_DRAW);
// gl.vertexAttribPointer(a_position,2,gl.FLOAT,false,4*3,0);
// // gl.vertexAttribPointer(pointsize,1,gl.FLOAT,false,4*3,2*4);
// gl.enableVertexAttribArray(a_position);
// // gl.enableVertexAttribArray(pointsize);
// // gl.drawArrays(gl.POINTS,0,3);
// //改变gl.LINES 、gl.LINE_STRIP、gl.LINE_LOOP 可以绘制线段 、线条 、闭合线条
// // gl.drawArrays(gl.TRIANGLES,0, points.length/3 );
// // gl.drawArrays(gl.LINES,0, points.length/3 );
// // gl.drawArrays(gl.LINE_STRIP,0, points.length/3 );
// gl.drawArrays(gl.LINE_LOOP,0, points.length/3 );
// }
// //gl.drawArrays(gl.POINTS,0,1);//放在循环外只能绘制一个点
// }
// };
function draw(){
gl.bufferData(gl.ARRAY_BUFFER,new Float32Array([
50,50,1,0,0,
50,100,0,1,0,
150,100,0,0,1,
150,50,1,1,0,
]),gl.STATIC_DRAW);
gl.bufferData(gl.ELEMENT_ARRAY_BUFFER,new Uint16Array([
0,1,2,
2,3,0
]),gl.STATIC_DRAW);
gl.vertexAttribPointer(a_position,2,gl.FLOAT,false, 4 * 5,0);
gl.vertexAttribPointer(a_color,3,gl.FLOAT,false, 4*5, 4*2);
gl.enableVertexAttribArray(a_position);
gl.enableVertexAttribArray(a_color);
gl.drawElements(gl.TRIANGLES,6,gl.UNSIGNED_SHORT,0);
// gl.drawArrays(gl.TRIANGLES,0,6);
}
draw()
// 绘制矩形的第二中方法
// var positionBuffer = gl.createBuffer();
// gl.bindBuffer(gl.ARRAY_BUFFER,positionBuffer);
// gl.bufferData(gl.ARRAY_BUFFER,new Float32Array([50,50,10.0,50,100,20.0,100,100,30.0]),gl.STATIC_DRAW);
// gl.vertexAttribPointer(a_position,2,gl.FLOAT,false,4*3,0);
// gl.vertexAttribPointer(pointsize,1,gl.FLOAT,false,4*3,2*4);
// gl.enableVertexAttribArray(a_position);
// gl.enableVertexAttribArray(pointsize);
// // gl.drawArrays(gl.POINTS,0,3);
// gl.drawArrays(gl.TRIANGLES,0,3);
function randomColor(){
var r = Math.random();
var g = Math.random();
var b = Math.random();
var a = 0.5 + Math.random()*0.5;
return {r,g,b,a};
}
// bindEvent()
</script>
</body>
</html>
</body>
</html>
WebGL之绘制矩形二
利用三角形扇实现矩形
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>绘制矩形</title>
</head>
<body>
<canvas id="canvas" width="800" height="600"></canvas>
<script type="notjs" id="vertex" >
attribute vec2 a_position;
attribute vec4 a_color;
uniform vec2 screenSize;
varying vec4 v_color;
void main(){
float x = a_position.x * 2.0 / screenSize.x - 1.0;
float y = 1.0 - ( a_position.y * 2.0 / screenSize.y);
gl_Position = vec4(x, y, 0, 1);
gl_PointSize = 10.0;
v_color = a_color;
}
</script>
<script type="notjs" id="fragment" >
precision mediump float;
varying vec4 v_color;
void main(){
gl_FragColor = v_color;
}
</script>
<script>
var canvas = document.getElementById("canvas");
var gl = canvas.getContext("webgl");
if(!gl){
alert('浏览器不支持webgl')
}
// var str = ''
//创建着色器(两种着色器)
function createShader(gl,type,source){
var shader = gl.createShader(type);
gl.shaderSource(shader,source);
gl.compileShader(shader);
var success= gl.getShaderParameter(shader,gl.COMPILE_STATUS);
if(success){
return shader;
}
console.log(gl.getShaderInfoLog(shader));
// gl.deleteShader(shader);
}
var vetexStr = document.getElementById('vertex').innerText;
var fragmentStr = document.getElementById('fragment').innerText;
console.log(vetexStr,fragmentStr)
//创建着色器程序
var vertexShader = createShader(gl,gl.VERTEX_SHADER,vetexStr);
var fragmentShader = createShader(gl,gl.FRAGMENT_SHADER,fragmentStr);
function createProgram(gl,vertexShader,fragmentShader){
//链接着色器程序
var program = gl.createProgram();
gl.attachShader(program,vertexShader);
gl.attachShader(program,fragmentShader);
gl.linkProgram(program);
var success= gl.getProgramParameter(program,gl.LINK_STATUS);
if(success){
return program;
}
console.log(success);
}
var program = createProgram(gl,vertexShader,fragmentShader);
gl.useProgram(program); //使用着色器程序
// gl.clearColor(0,0,1,1);
// gl.clear(gl.COLOR_BUFFER_BIT); //清空画布
var a_position = gl.getAttribLocation(program,'a_position'); //获取变量存储位置
var screenSize = gl.getUniformLocation(program,'screenSize'); //获取变量存储位置
var a_color = gl.getAttribLocation(program,'a_color'); //获取变量存储位置
gl.uniform2f(screenSize,canvas.width,canvas.height);
// gl.vertexAttrib4f(a_color,1,0,0,1);
var positionBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER,positionBuffer);
var indexBuffer = gl.createBuffer();
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER,indexBuffer);
// function bindEvent(){
// var points = [];
// canvas.onmousedown = function (e){
// // gl.clearColor(0,0,1,1);
// gl.clearColor(0,0,0,0);
// gl.clear(gl.COLOR_BUFFER_BIT); //清空画布
// var x = e.offsetX;
// var y = e.offsetY;
// var color = randomColor();
// points.push(x,y,10.0); //记录点击位置
// // points.push({x,y,
// // size:10.0
// // }); //记录点击位置
// if(points.length % 3 == 0){
// gl.bufferData(gl.ARRAY_BUFFER,new Float32Array(points),gl.STATIC_DRAW);
// gl.vertexAttribPointer(a_position,2,gl.FLOAT,false,4*3,0);
// // gl.vertexAttribPointer(pointsize,1,gl.FLOAT,false,4*3,2*4);
// gl.enableVertexAttribArray(a_position);
// // gl.enableVertexAttribArray(pointsize);
// // gl.drawArrays(gl.POINTS,0,3);
// //改变gl.LINES 、gl.LINE_STRIP、gl.LINE_LOOP 可以绘制线段 、线条 、闭合线条
// // gl.drawArrays(gl.TRIANGLES,0, points.length/3 );
// // gl.drawArrays(gl.LINES,0, points.length/3 );
// // gl.drawArrays(gl.LINE_STRIP,0, points.length/3 );
// gl.drawArrays(gl.LINE_LOOP,0, points.length/3 );
// }
// //gl.drawArrays(gl.POINTS,0,1);//放在循环外只能绘制一个点
// }
// };
function draw(){
gl.bufferData(gl.ARRAY_BUFFER,new Float32Array([
100,75,0,1,0,
50,50,1,0,0,
50,100,0,1,0,
150,100,0,0,1,
150,50,1,1,0,
50,50,1,0,0,
]),gl.STATIC_DRAW);
// gl.bufferData(gl.ELEMENT_ARRAY_BUFFER,new Uint16Array([
// 0,1,2,
// 2,3,0
// ]),gl.STATIC_DRAW);
gl.vertexAttribPointer(a_position,2,gl.FLOAT,false, 4 * 5,0);
gl.vertexAttribPointer(a_color,3,gl.FLOAT,false, 4*5, 4*2);
gl.enableVertexAttribArray(a_position);
gl.enableVertexAttribArray(a_color);
// gl.drawElements(gl.TRIANGLES,6,gl.UNSIGNED_SHORT,0);
// gl.drawElements(gl.TRIANGLE_STRIP,6,gl.UNSIGNED_SHORT,0);
// gl.drawElements(gl.TRIANGLE_FAN,6,gl.UNSIGNED_SHORT,0);
// gl.drawArrays(gl.TRIANGLES,0,6);
gl.drawArrays(gl.TRIANGLE_FAN,0,6);
}
draw()
// var positionBuffer = gl.createBuffer();
// gl.bindBuffer(gl.ARRAY_BUFFER,positionBuffer);
// gl.bufferData(gl.ARRAY_BUFFER,new Float32Array([50,50,10.0,50,100,20.0,100,100,30.0]),gl.STATIC_DRAW);
// gl.vertexAttribPointer(a_position,2,gl.FLOAT,false,4*3,0);
// gl.vertexAttribPointer(pointsize,1,gl.FLOAT,false,4*3,2*4);
// gl.enableVertexAttribArray(a_position);
// gl.enableVertexAttribArray(pointsize);
// // gl.drawArrays(gl.POINTS,0,3);
// gl.drawArrays(gl.TRIANGLES,0,3);
function randomColor(){
var r = Math.random();
var g = Math.random();
var b = Math.random();
var a = 0.5 + Math.random()*0.5;
return {r,g,b,a};
}
// bindEvent()
</script>
</body>
</html>
</body>
</html>
WebGL之绘制圆

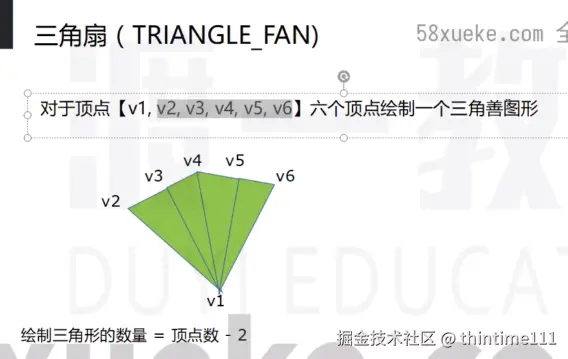

利用三角形 gl.TRIANGLE_FAN 模式绘制圆
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>绘制圆</title>
</head>
<body>
<canvas id="canvas" width="800" height="600"></canvas>
<script type="notjs" id="vertex" >
attribute vec2 a_position;
attribute vec4 a_color;
uniform vec2 screenSize;
varying vec4 v_color;
void main(){
float x = a_position.x * 2.0 / screenSize.x - 1.0;
float y = 1.0 - ( a_position.y * 2.0 / screenSize.y);
gl_Position = vec4(x, y, 0, 1);
gl_PointSize = 10.0;
v_color = a_color;
}
</script>
<script type="notjs" id="fragment" >
precision mediump float;
varying vec4 v_color;
void main(){
gl_FragColor = v_color;
}
</script>
<script>
var canvas = document.getElementById("canvas");
var gl = canvas.getContext("webgl");
if(!gl){
alert('浏览器不支持webgl')
}
// var str = ''
//创建着色器(两种着色器)
function createShader(gl,type,source){
var shader = gl.createShader(type);
gl.shaderSource(shader,source);
gl.compileShader(shader);
var success= gl.getShaderParameter(shader,gl.COMPILE_STATUS);
if(success){
return shader;
}
console.log(gl.getShaderInfoLog(shader));
// gl.deleteShader(shader);
}
var vetexStr = document.getElementById('vertex').innerText;
var fragmentStr = document.getElementById('fragment').innerText;
console.log(vetexStr,fragmentStr)
//创建着色器程序
var vertexShader = createShader(gl,gl.VERTEX_SHADER,vetexStr);
var fragmentShader = createShader(gl,gl.FRAGMENT_SHADER,fragmentStr);
function createProgram(gl,vertexShader,fragmentShader){
//链接着色器程序
var program = gl.createProgram();
gl.attachShader(program,vertexShader);
gl.attachShader(program,fragmentShader);
gl.linkProgram(program);
var success= gl.getProgramParameter(program,gl.LINK_STATUS);
if(success){
return program;
}
console.log(success);
}
var program = createProgram(gl,vertexShader,fragmentShader);
gl.useProgram(program); //使用着色器程序
// gl.clearColor(0,0,1,1);
// gl.clear(gl.COLOR_BUFFER_BIT); //清空画布
var a_position = gl.getAttribLocation(program,'a_position'); //获取变量存储位置
var screenSize = gl.getUniformLocation(program,'screenSize'); //获取变量存储位置
var a_color = gl.getAttribLocation(program,'a_color'); //获取变量存储位置
gl.uniform2f(screenSize,canvas.width,canvas.height);
// gl.vertexAttrib4f(a_color,1,0,0,1);
var positionBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER,positionBuffer);
var indexBuffer = gl.createBuffer();
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER,indexBuffer);
function draw(){
var positionData = circlePoints(100,100,50,100);
// gl.bufferData(gl.ARRAY_BUFFER,new Float32Array([
// 100,75,0,1,0,
// 50,50,1,0,0,
// 50,100,0,1,0,
// 150,100,0,0,1,
// 150,50,1,1,0,
// 50,50,1,0,0,
// ]),gl.STATIC_DRAW);
gl.bufferData(gl.ARRAY_BUFFER, new Float32Array(positionData) ,gl.STATIC_DRAW);
// gl.bufferData(gl.ELEMENT_ARRAY_BUFFER,new Uint16Array([
// 0,1,2,
// 2,3,0
// ]),gl.STATIC_DRAW);
gl.vertexAttribPointer(a_position,2,gl.FLOAT,false, 4 * 5,0);
gl.vertexAttribPointer(a_color,3,gl.FLOAT,false, 4*5, 4*2);
gl.enableVertexAttribArray(a_position);
gl.enableVertexAttribArray(a_color);
// gl.drawElements(gl.TRIANGLES,6,gl.UNSIGNED_SHORT,0);
// gl.drawElements(gl.TRIANGLE_STRIP,6,gl.UNSIGNED_SHORT,0);
// gl.drawElements(gl.TRIANGLE_FAN,6,gl.UNSIGNED_SHORT,0);
// gl.drawArrays(gl.TRIANGLES,0,6);
// gl.drawArrays(gl.TRIANGLE_FAN,0,6);
gl.drawArrays(gl.TRIANGLE_FAN,0,102);
}
function circlePoints(x,y,radius,n){
var points = [x,y,1,0,0];
var color = null;
for(var i = 0;i <= n;i++){
var angle = 2 * Math.PI / n;
pointsx = radius * Math.cos(angle * i) + x;
pointsy = radius * Math.sin(angle * i) + y;
points.push(pointsx,pointsy,Math.random(),Math.random(),Math.random());
}
return points;
}
draw()
</script>
</body>
</html>
</body>
</html>
WebGL之绘制圆环
利用两个三角形来绘制圆环
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>绘制圆环</title>
</head>
<body>
<canvas id="canvas" width="800" height="600"></canvas>
<script type="notjs" id="vertex" >
attribute vec2 a_position;
attribute vec4 a_color;
uniform vec2 screenSize;
varying vec4 v_color;
void main(){
float x = a_position.x * 2.0 / screenSize.x - 1.0;
float y = 1.0 - ( a_position.y * 2.0 / screenSize.y);
gl_Position = vec4(x, y, 0, 1);
gl_PointSize = 10.0;
v_color = a_color;
}
</script>
<script type="notjs" id="fragment" >
precision mediump float;
varying vec4 v_color;
void main(){
gl_FragColor = v_color;
}
</script>
<script>
var canvas = document.getElementById("canvas");
var gl = canvas.getContext("webgl");
if(!gl){
alert('浏览器不支持webgl')
}
// var str = ''
//创建着色器(两种着色器)
function createShader(gl,type,source){
var shader = gl.createShader(type);
gl.shaderSource(shader,source);
gl.compileShader(shader);
var success= gl.getShaderParameter(shader,gl.COMPILE_STATUS);
if(success){
return shader;
}
console.log(gl.getShaderInfoLog(shader));
// gl.deleteShader(shader);
}
var vetexStr = document.getElementById('vertex').innerText;
var fragmentStr = document.getElementById('fragment').innerText;
console.log(vetexStr,fragmentStr)
//创建着色器程序
var vertexShader = createShader(gl,gl.VERTEX_SHADER,vetexStr);
var fragmentShader = createShader(gl,gl.FRAGMENT_SHADER,fragmentStr);
function createProgram(gl,vertexShader,fragmentShader){
//链接着色器程序
var program = gl.createProgram();
gl.attachShader(program,vertexShader);
gl.attachShader(program,fragmentShader);
gl.linkProgram(program);
var success= gl.getProgramParameter(program,gl.LINK_STATUS);
if(success){
return program;
}
console.log(success);
}
var program = createProgram(gl,vertexShader,fragmentShader);
gl.useProgram(program); //使用着色器程序
// gl.clearColor(0,0,1,1);
// gl.clear(gl.COLOR_BUFFER_BIT); //清空画布
var a_position = gl.getAttribLocation(program,'a_position'); //获取变量存储位置
var screenSize = gl.getUniformLocation(program,'screenSize'); //获取变量存储位置
var a_color = gl.getAttribLocation(program,'a_color'); //获取变量存储位置
gl.uniform2f(screenSize,canvas.width,canvas.height);
// gl.vertexAttrib4f(a_color,1,0,0,1);
var positionBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER,positionBuffer);
var indexBuffer = gl.createBuffer();
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER,indexBuffer);
function draw(){
// var positionData = circlePoints(100,100,50,100);
var positionData = cirquePoints(100,100,100,50,100).positions;
var indexData = cirquePoints(100,100,100,50,100).indices;
// gl.bufferData(gl.ARRAY_BUFFER,new Float32Array([
// 100,75,0,1,0,
// 50,50,1,0,0,
// 50,100,0,1,0,
// 150,100,0,0,1,
// 150,50,1,1,0,
// 50,50,1,0,0,
// ]),gl.STATIC_DRAW);
gl.bufferData(gl.ARRAY_BUFFER, new Float32Array(positionData) ,gl.STATIC_DRAW);
gl.bufferData(gl.ELEMENT_ARRAY_BUFFER,new Uint16Array(indexData),gl.STATIC_DRAW);
gl.vertexAttribPointer(a_position,2,gl.FLOAT,false, 4 * 5,0);
gl.vertexAttribPointer(a_color,3,gl.FLOAT,false, 4*5, 4*2);
gl.enableVertexAttribArray(a_position);
gl.enableVertexAttribArray(a_color);
gl.drawElements(gl.TRIANGLES,indexData.length,gl.UNSIGNED_SHORT,0);
// gl.drawElements(gl.TRIANGLE_STRIP,6,gl.UNSIGNED_SHORT,0);
// gl.drawElements(gl.TRIANGLE_FAN,6,gl.UNSIGNED_SHORT,0);
// gl.drawArrays(gl.TRIANGLES,0,6);
// gl.drawArrays(gl.TRIANGLE_FAN,0,6);
// gl.drawArrays(gl.TRIANGLE_FAN,0,102);
}
// function circlePoints(x,y,radius,n){
// var points = [x,y,1,0,0];
// var color = null;
// for(var i = 0;i <= n;i++){
// var angle = 2 * Math.PI / n;
// pointsx = radius * Math.cos(angle * i) + x;
// pointsy = radius * Math.sin(angle * i) + y;
// points.push(pointsx,pointsy,Math.random(),Math.random(),Math.random());
// }
// return points;
// }
function cirquePoints(x,y,outerRadius,innerRadius,n){
var positions = [];
var indices = [];
for(var i = 0;i <= n;i++){
var angle = 2 * Math.PI / n;
var outerX = outerRadius * Math.cos(angle * i) + x;
var outerY = outerRadius * Math.sin(angle * i) + y;
var innerX = innerRadius * Math.cos(angle * i) + x;
var innerY = innerRadius * Math.sin(angle * i) + y;
positions.push(innerX,innerY,Math.random(),Math.random(),Math.random());
positions.push(outerX,outerY,Math.random(),Math.random(),Math.random());
var v0 = i * 2;
var v1 = v0 + 1;
var v2 = v0 + 2;
var v3 = v0 + 3;
if(i == n ){
v2 = 0;
v3 = 1;
}
indices.push(v0,v1,v2, v2,v1,v3);
}
return {
positions,
indices
}
}
draw()
</script>
</body>
</html>
</body>
</html>
利用三角形带来绘制圆环
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>绘制圆环</title>
</head>
<body>
<canvas id="canvas" width="800" height="600"></canvas>
<script type="notjs" id="vertex" >
attribute vec2 a_position;
attribute vec4 a_color;
uniform vec2 screenSize;
varying vec4 v_color;
void main(){
float x = a_position.x * 2.0 / screenSize.x - 1.0;
float y = 1.0 - ( a_position.y * 2.0 / screenSize.y);
gl_Position = vec4(x, y, 0, 1);
gl_PointSize = 10.0;
v_color = a_color;
}
</script>
<script type="notjs" id="fragment" >
precision mediump float;
varying vec4 v_color;
void main(){
gl_FragColor = v_color;
}
</script>
<script>
var canvas = document.getElementById("canvas");
var gl = canvas.getContext("webgl");
if(!gl){
alert('浏览器不支持webgl')
}
// var str = ''
//创建着色器(两种着色器)
function createShader(gl,type,source){
var shader = gl.createShader(type);
gl.shaderSource(shader,source);
gl.compileShader(shader);
var success= gl.getShaderParameter(shader,gl.COMPILE_STATUS);
if(success){
return shader;
}
console.log(gl.getShaderInfoLog(shader));
// gl.deleteShader(shader);
}
var vetexStr = document.getElementById('vertex').innerText;
var fragmentStr = document.getElementById('fragment').innerText;
console.log(vetexStr,fragmentStr)
//创建着色器程序
var vertexShader = createShader(gl,gl.VERTEX_SHADER,vetexStr);
var fragmentShader = createShader(gl,gl.FRAGMENT_SHADER,fragmentStr);
function createProgram(gl,vertexShader,fragmentShader){
//链接着色器程序
var program = gl.createProgram();
gl.attachShader(program,vertexShader);
gl.attachShader(program,fragmentShader);
gl.linkProgram(program);
var success= gl.getProgramParameter(program,gl.LINK_STATUS);
if(success){
return program;
}
console.log(success);
}
var program = createProgram(gl,vertexShader,fragmentShader);
gl.useProgram(program); //使用着色器程序
// gl.clearColor(0,0,1,1);
// gl.clear(gl.COLOR_BUFFER_BIT); //清空画布
var a_position = gl.getAttribLocation(program,'a_position'); //获取变量存储位置
var screenSize = gl.getUniformLocation(program,'screenSize'); //获取变量存储位置
var a_color = gl.getAttribLocation(program,'a_color'); //获取变量存储位置
gl.uniform2f(screenSize,canvas.width,canvas.height);
// gl.vertexAttrib4f(a_color,1,0,0,1);
var positionBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER,positionBuffer);
var indexBuffer = gl.createBuffer();
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER,indexBuffer);
function draw(){
// var positionData = circlePoints(100,100,50,100);
var positionData = cirquePoints(100,100,100,50,100).positions;
var indexData = cirquePoints(100,100,100,50,100).indices;
// gl.bufferData(gl.ARRAY_BUFFER,new Float32Array([
// 100,75,0,1,0,
// 50,50,1,0,0,
// 50,100,0,1,0,
// 150,100,0,0,1,
// 150,50,1,1,0,
// 50,50,1,0,0,
// ]),gl.STATIC_DRAW);
gl.bufferData(gl.ARRAY_BUFFER, new Float32Array(positionData) ,gl.STATIC_DRAW);
gl.bufferData(gl.ELEMENT_ARRAY_BUFFER,new Uint16Array(indexData),gl.STATIC_DRAW);
gl.vertexAttribPointer(a_position,2,gl.FLOAT,false, 4 * 5,0);
gl.vertexAttribPointer(a_color,3,gl.FLOAT,false, 4*5, 4*2);
gl.enableVertexAttribArray(a_position);
gl.enableVertexAttribArray(a_color);
gl.drawElements(gl.TRIANGLE_STRIP,indexData.length,gl.UNSIGNED_SHORT,0);
// gl.drawElements(gl.TRIANGLE_STRIP,6,gl.UNSIGNED_SHORT,0);
// gl.drawElements(gl.TRIANGLE_FAN,6,gl.UNSIGNED_SHORT,0);
// gl.drawArrays(gl.TRIANGLES,0,6);
// gl.drawArrays(gl.TRIANGLE_FAN,0,6);
// gl.drawArrays(gl.TRIANGLE_FAN,0,102);
}
// function circlePoints(x,y,radius,n){
// var points = [x,y,1,0,0];
// var color = null;
// for(var i = 0;i <= n;i++){
// var angle = 2 * Math.PI / n;
// pointsx = radius * Math.cos(angle * i) + x;
// pointsy = radius * Math.sin(angle * i) + y;
// points.push(pointsx,pointsy,Math.random(),Math.random(),Math.random());
// }
// return points;
// }
function cirquePoints(x,y,outerRadius,innerRadius,n){
var positions = [];
var indices = [];
for(var i = 0;i <= n;i++){
var angle = 2 * Math.PI / n;
var outerX = outerRadius * Math.cos(angle * i) + x;
var outerY = outerRadius * Math.sin(angle * i) + y;
var innerX = innerRadius * Math.cos(angle * i) + x;
var innerY = innerRadius * Math.sin(angle * i) + y;
positions.push(innerX,innerY,Math.random(),Math.random(),Math.random());
positions.push(outerX,outerY,Math.random(),Math.random(),Math.random());
var v0 = i * 2;
var v1 = v0 + 1;
var v2 = v0 + 2;
var v3 = v0 + 3;
if(i == n ){
v2 = 0;
v3 = 1;
}
indices.push(v0,v1,v2,v3);
}
return {
positions,
indices
}
}
draw()
</script>
</body>
</html>
</body>
</html>
WebGL之片元着色器绘图流程

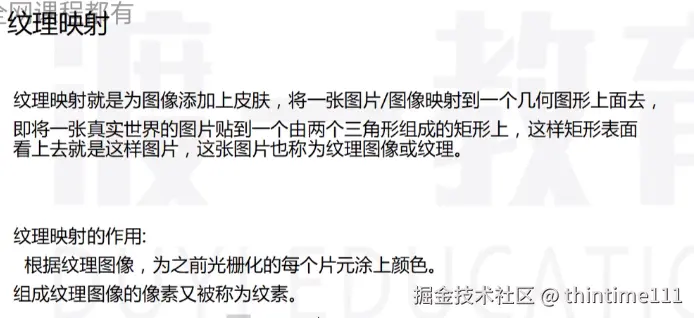

WebGL纹理
vscode 中可以使用插件 WebGL Syntax Hint 来代码补全以及提示
矩形纹理案例
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>绘制矩形</title>
</head>
<body>
<canvas id="canvas" width="800" height="600"></canvas>

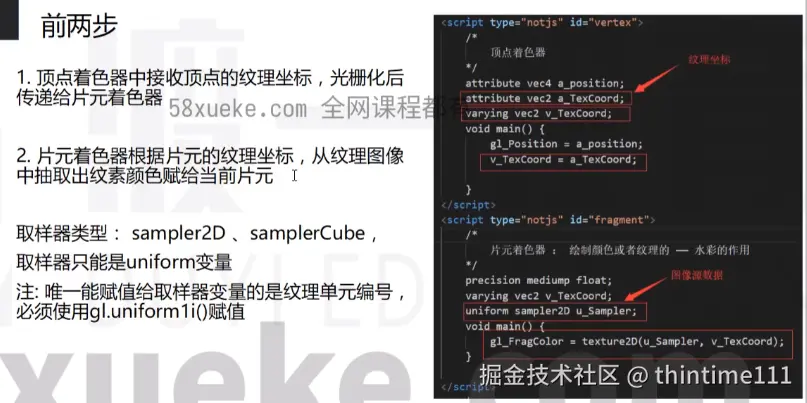

<!-- 将纹理坐标传递到顶点坐标系中 -->
<script type="notjs" id="vertex" >
/*
a_position 顶点坐标
a_TexCoord 纹理坐标
screenSize canvas画布尺寸
v_TexCoord 传递到片元着色器的纹理坐标
*/
attribute vec2 a_position;
attribute vec2 a_TexCoord ;
uniform vec2 screenSize;
varying vec2 v_TexCoord;
void main(){
/*
坐标转换 将canvas坐标转换为webgl坐标
*/
float x = a_position.x * 2.0 / screenSize.x - 1.0;
float y = 1.0 - ( a_position.y * 2.0 / screenSize.y);
gl_Position = vec4(x, y, 0, 1);
gl_PointSize = 10.0;
v_TexCoord = a_TexCoord;
}
</script>
<script type="notjs" id="fragment" >
/*
v_TexCoord 片元着色器接收的纹理坐标
u_Sampler 纹理图像源数据
*/
precision mediump float;
varying vec2 v_TexCoord;
uniform sampler2D u_Sampler;
void main(){
/*
texture2D 将纹理图像上指定位置（纹理坐标）纹素信息取出
*/
gl_FragColor = texture2D(u_Sampler, v_TexCoord);
}
</script>
<script>
var canvas = document.getElementById("canvas");
var gl = canvas.getContext("webgl");
if(!gl){
alert('浏览器不支持webgl')
}
// var str = ''
//创建着色器(两种着色器)
function createShader(gl,type,source){
var shader = gl.createShader(type);
gl.shaderSource(shader,source);
gl.compileShader(shader);
var success= gl.getShaderParameter(shader,gl.COMPILE_STATUS);
if(success){
return shader;
}
console.log(gl.getShaderInfoLog(shader));
// gl.deleteShader(shader);
}
var vetexStr = document.getElementById('vertex').innerText;
var fragmentStr = document.getElementById('fragment').innerText;
console.log(vetexStr,fragmentStr)
//创建着色器程序
var vertexShader = createShader(gl,gl.VERTEX_SHADER,vetexStr);
var fragmentShader = createShader(gl,gl.FRAGMENT_SHADER,fragmentStr);
function createProgram(gl,vertexShader,fragmentShader){
//链接着色器程序
var program = gl.createProgram();
gl.attachShader(program,vertexShader);
gl.attachShader(program,fragmentShader);
gl.linkProgram(program);
var success= gl.getProgramParameter(program,gl.LINK_STATUS);
if(success){
return program;
}
console.log(success);
}
var program = createProgram(gl,vertexShader,fragmentShader);
gl.useProgram(program); //使用着色器程序
var a_position = gl.getAttribLocation(program,'a_position'); //获取变量存储位置
var screenSize = gl.getUniformLocation(program,'screenSize'); //获取变量存储位置
var a_TexCoord = gl.getAttribLocation(program,'a_TexCoord'); //获取变量存储位置
var u_Sampler = gl.getUniformLocation(program,'u_Sampler'); //获取变量存储位置
gl.uniform2f(screenSize,canvas.width,canvas.height);
var positionBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER,positionBuffer);
var indexBuffer = gl.createBuffer();
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER,indexBuffer);
var img = new Image();
img.src = "./149291.jpg";
var texture = gl.createTexture();
img.onload = function(){

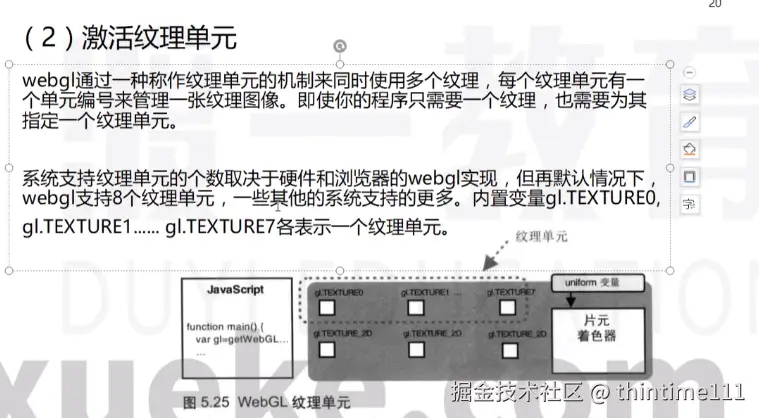

//激活纹理单元
gl.activeTexture(gl.TEXTURE0);

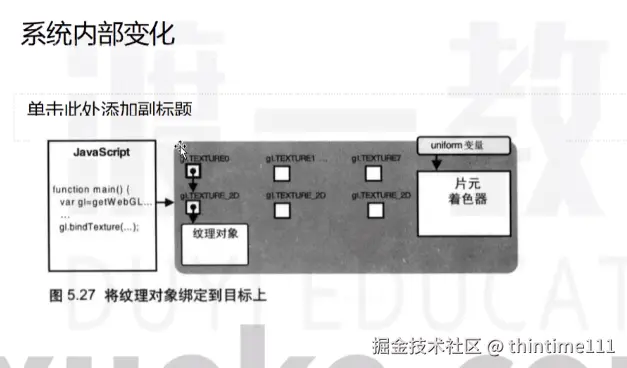

//绑定纹理对象
gl.bindTexture(gl.TEXTURE_2D,texture);

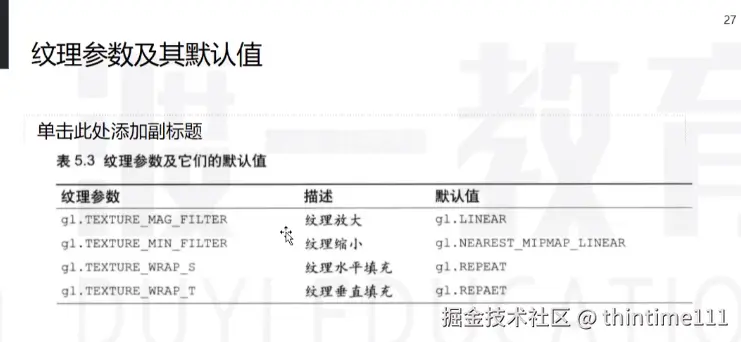

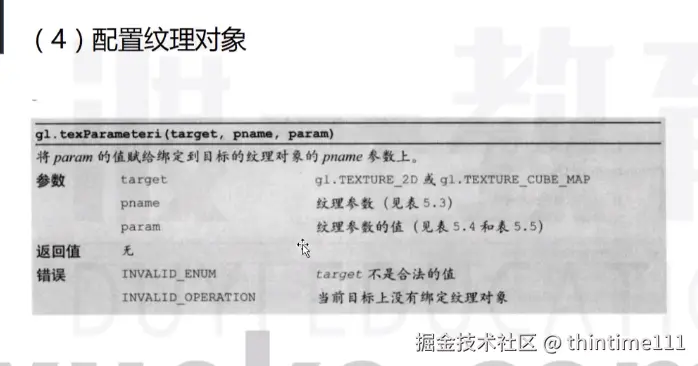

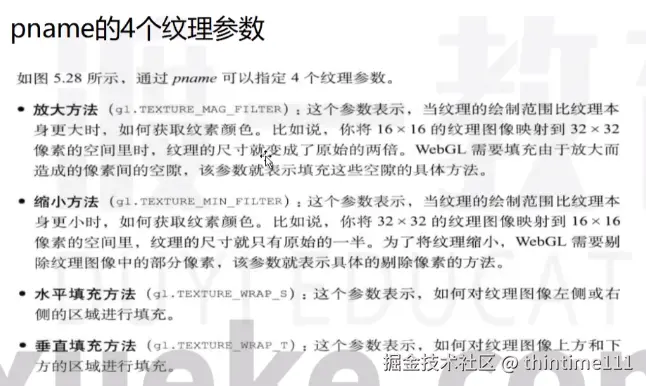

gl.texParameteri(gl.TEXTURE_2D,gl.TEXTURE_MAG_FILTER,gl.LINEAR);
gl.texParameteri(gl.TEXTURE_2D,gl.TEXTURE_MIN_FILTER,gl.LINEAR);
gl.texParameteri(gl.TEXTURE_2D,gl.TEXTURE_WRAP_S,gl.CLAMP_TO_EDGE);
gl.texParameteri(gl.TEXTURE_2D,gl.TEXTURE_WRAP_T,gl.CLAMP_TO_EDGE);

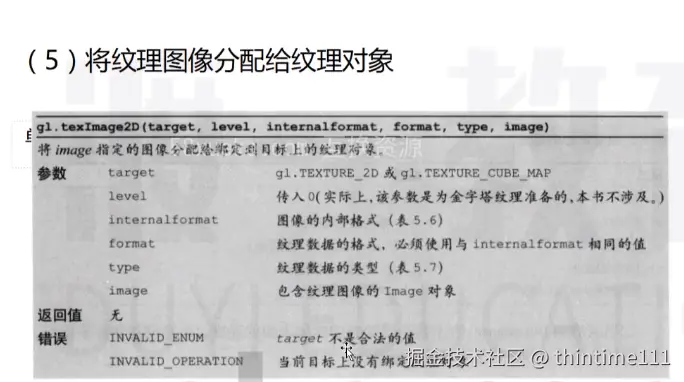

//配置纹理图像

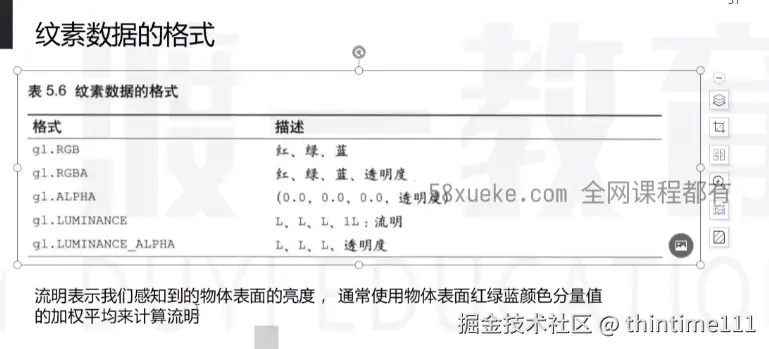

gl.texImage2D(gl.TEXTURE_2D,0,gl.RGBA,gl.RGBA,gl.UNSIGNED_BYTE,img);
gl.uniform1i(u_Sampler,0);
draw();
}
function draw(){
gl.bufferData(gl.ARRAY_BUFFER,new Float32Array([
50,50,0,0,
50,400,0,1,
650,400,1,1,
650,400,1,1,
650,50,1,0,
50,50,0,0,
]),gl.STATIC_DRAW);
gl.vertexAttribPointer(a_position,2,gl.FLOAT,false, 4 * 4,0);

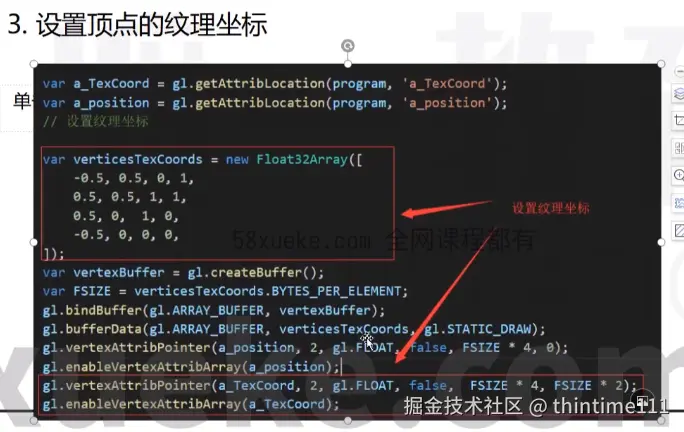

// 为纹理坐标配置数据
gl.vertexAttribPointer(a_TexCoord,2,gl.FLOAT,false, 4*4, 4*2);
gl.enableVertexAttribArray(a_position);
gl.enableVertexAttribArray(a_TexCoord);
// gl.drawArrays(gl.TRIANGLE_FAN,0,6);
gl.drawArrays(gl.TRIANGLES,0,6);
}
draw()
function randomColor(){
var r = Math.random();
var g = Math.random();
var b = Math.random();
var a = 0.5 + Math.random()*0.5;
return {r,g,b,a};
}
// bindEvent()
</script>
</body>
</html>
WebGL之数学向量

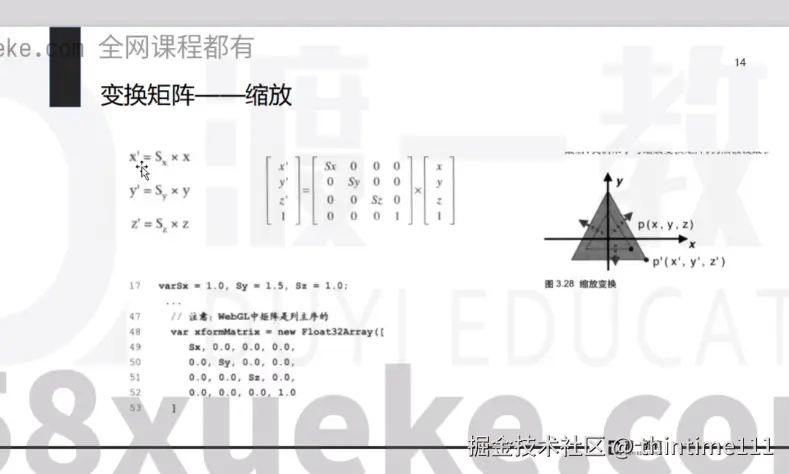

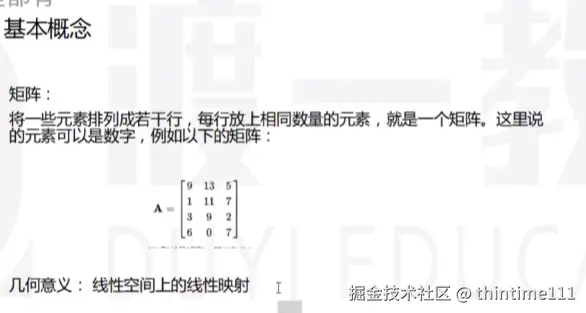

WebGL之数学矩阵
矩阵可以看看高等数学
WebGL之（矩阵变换）图像平移
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>绘制矩形</title>
</head>
<body>
<canvas id="canvas" width="800" height="600"></canvas>
<script type="notjs" id="vertex" >
//如果在三维坐标系中会用vec4表示;
/*
在三维坐标系中 A(x,y,z)
在齐次坐标系中我们会使用(x,y,z,w)来表示这个顶点的位置
(x,y,z,0)来表示向量
*/
attribute vec4 a_position;
attribute vec4 a_color;
uniform vec2 screenSize;
// 用vec2表示平移矢量（-0.5，-0.5）
uniform vec4 a_Translate
uniform float Tx;
uniform float Ty;
varying vec4 v_color;
void main(){
gl_Position = vec4(a_position + a_Translate );
v_color = a_color;
}
</script>
<script type="notjs" id="fragment" >
precision mediump float;
varying vec4 v_color;
void main(){
gl_FragColor = v_color;
}
</script>
<script>
var canvas = document.getElementById("canvas");
var gl = canvas.getContext("webgl");
if(!gl){
alert('浏览器不支持webgl')
}
// var str = ''
//创建着色器(两种着色器)
function createShader(gl,type,source){
var shader = gl.createShader(type);
gl.shaderSource(shader,source);
gl.compileShader(shader);
var success= gl.getShaderParameter(shader,gl.COMPILE_STATUS);
if(success){
return shader;
}
console.log(gl.getShaderInfoLog(shader));
// gl.deleteShader(shader);
}
var vetexStr = document.getElementById('vertex').innerText;
var fragmentStr = document.getElementById('fragment').innerText;
console.log(vetexStr,fragmentStr)
//创建着色器程序
var vertexShader = createShader(gl,gl.VERTEX_SHADER,vetexStr);
var fragmentShader = createShader(gl,gl.FRAGMENT_SHADER,fragmentStr);
function createProgram(gl,vertexShader,fragmentShader){
//链接着色器程序
var program = gl.createProgram();
gl.attachShader(program,vertexShader);
gl.attachShader(program,fragmentShader);
gl.linkProgram(program);
var success= gl.getProgramParameter(program,gl.LINK_STATUS);
if(success){
return program;
}
console.log(success);
}
var program = createProgram(gl,vertexShader,fragmentShader);
gl.useProgram(program); //使用着色器程序
// gl.clearColor(0,0,1,1);
// gl.clear(gl.COLOR_BUFFER_BIT); //清空画布
var a_position = gl.getAttribLocation(program,'a_position'); //获取变量存储位置
var screenSize = gl.getUniformLocation(program,'screenSize'); //获取变量存储位置
var a_Translate = gl.getUniformLocation(program,'a_Translate'); //获取变量存储位置
// var Ty = gl.getUniformLocation(program,'Ty'); //获取变量存储位置
var a_color = gl.getAttribLocation(program,'a_color'); //获取变量存储位置
//x轴上平移0.5 y轴上平移0.5
gl.uniform4f(a_Translate,0.5,0.5,0,0)
// gl.uniform1f(Ty,0.5)
gl.uniform2f(screenSize,canvas.width,canvas.height);
// gl.vertexAttrib4f(a_color,1,0,0,1);
var positionBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER,positionBuffer);
var indexBuffer = gl.createBuffer();
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER,indexBuffer);
// function bindEvent(){
// var points = [];
// canvas.onmousedown = function (e){
// // gl.clearColor(0,0,1,1);
// gl.clearColor(0,0,0,0);
// gl.clear(gl.COLOR_BUFFER_BIT); //清空画布
// var x = e.offsetX;
// var y = e.offsetY;
// var color = randomColor();
// points.push(x,y,10.0); //记录点击位置
// // points.push({x,y,
// // size:10.0
// // }); //记录点击位置
// if(points.length % 3 == 0){
// gl.bufferData(gl.ARRAY_BUFFER,new Float32Array(points),gl.STATIC_DRAW);
// gl.vertexAttribPointer(a_position,2,gl.FLOAT,false,4*3,0);
// // gl.vertexAttribPointer(pointsize,1,gl.FLOAT,false,4*3,2*4);
// gl.enableVertexAttribArray(a_position);
// // gl.enableVertexAttribArray(pointsize);
// // gl.drawArrays(gl.POINTS,0,3);
// //改变gl.LINES 、gl.LINE_STRIP、gl.LINE_LOOP 可以绘制线段 、线条 、闭合线条
// // gl.drawArrays(gl.TRIANGLES,0, points.length/3 );
// // gl.drawArrays(gl.LINES,0, points.length/3 );
// // gl.drawArrays(gl.LINE_STRIP,0, points.length/3 );
// gl.drawArrays(gl.LINE_LOOP,0, points.length/3 );
// }
// //gl.drawArrays(gl.POINTS,0,1);//放在循环外只能绘制一个点
// }
// };
function draw(){
gl.bufferData(gl.ARRAY_BUFFER,new Float32Array([
0,0,0,1,0,
-0.5,0.5,1,0,0,
0.5,0.5,0,1,0,
0.5,-0.5,0,0,1,
-0.5,-0.5,1,1,0,
-0.5,0.5,1,0,0,
]),gl.STATIC_DRAW);
// gl.bufferData(gl.ELEMENT_ARRAY_BUFFER,new Uint16Array([
// 0,1,2,
// 2,3,0
// ]),gl.STATIC_DRAW);
gl.vertexAttribPointer(a_position,2,gl.FLOAT,false, 4 * 5,0);
gl.vertexAttribPointer(a_color,3,gl.FLOAT,false, 4*5, 4*2);
gl.enableVertexAttribArray(a_position);
gl.enableVertexAttribArray(a_color);
// gl.drawElements(gl.TRIANGLES,6,gl.UNSIGNED_SHORT,0);
// gl.drawElements(gl.TRIANGLE_STRIP,6,gl.UNSIGNED_SHORT,0);
// gl.drawElements(gl.TRIANGLE_FAN,6,gl.UNSIGNED_SHORT,0);
// gl.drawArrays(gl.TRIANGLES,0,6);
gl.drawArrays(gl.TRIANGLE_FAN,0,6);
}
draw()
// var positionBuffer = gl.createBuffer();
// gl.bindBuffer(gl.ARRAY_BUFFER,positionBuffer);
// gl.bufferData(gl.ARRAY_BUFFER,new Float32Array([50,50,10.0,50,100,20.0,100,100,30.0]),gl.STATIC_DRAW);
// gl.vertexAttribPointer(a_position,2,gl.FLOAT,false,4*3,0);
// gl.vertexAttribPointer(pointsize,1,gl.FLOAT,false,4*3,2*4);
// gl.enableVertexAttribArray(a_position);
// gl.enableVertexAttribArray(pointsize);
// // gl.drawArrays(gl.POINTS,0,3);
// gl.drawArrays(gl.TRIANGLES,0,3);
function randomColor(){
var r = Math.random();
var g = Math.random();
var b = Math.random();
var a = 0.5 + Math.random()*0.5;
return {r,g,b,a};
}
// bindEvent()
</script>
</body>
</html>
</body>
</html>

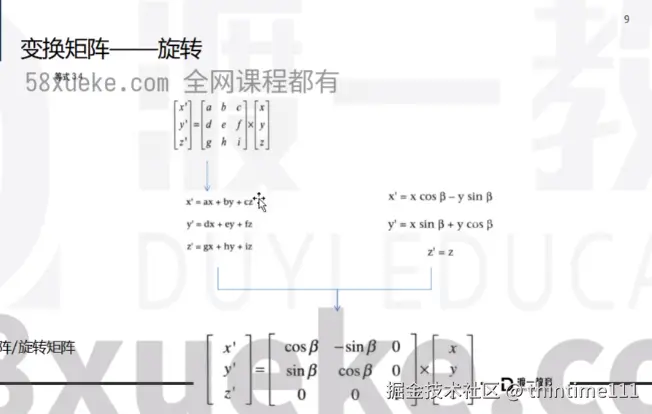

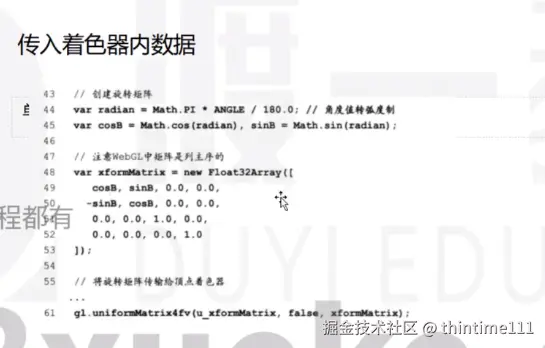

WebGL之（矩阵变换）旋转
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>绘制矩形平移</title>
</head>
<body>
<canvas id="canvas" width="800" height="600"></canvas>
<script type="notjs" id="vertex" >
//如果在三维坐标系中会用vec4表示;
/*
在三维坐标系中 A(x,y,z)
在齐次坐标系中我们会使用(x,y,z,w)来表示这个顶点的位置
(x,y,z,0)来表示向量
*/
attribute vec4 a_position;
attribute vec4 a_color;
uniform vec2 screenSize;
// 用vec2表示平移矢量(-0.5,-0.5)
uniform vec4 a_Translate;
uniform float cosb , sinb;
varying vec4 v_color;
void main(){
gl_Position.x = a_position.x * cosb - a_position.y * sinb;
gl_Position.y = a_position.x * sinb + a_position.y * cosb;
gl_Position.z = a_position.z ;
gl_Position.w = 1.0;
v_color = a_color;
}
</script>
<script type="notjs" id="fragment" >
precision mediump float;
varying vec4 v_color;
void main(){
gl_FragColor = v_color;
}
</script>
<script>
var canvas = document.getElementById("canvas");
var gl = canvas.getContext("webgl");
if(!gl){
alert('浏览器不支持webgl')
}
// var str = ''
//创建着色器(两种着色器)
function createShader(gl,type,source){
var shader = gl.createShader(type);
gl.shaderSource(shader,source);
gl.compileShader(shader);
var success= gl.getShaderParameter(shader,gl.COMPILE_STATUS);
if(success){
return shader;
}
console.log(gl.getShaderInfoLog(shader));
// gl.deleteShader(shader);
}
var vetexStr = document.getElementById('vertex').innerText;
var fragmentStr = document.getElementById('fragment').innerText;
console.log(vetexStr,fragmentStr)
//创建着色器程序
var vertexShader = createShader(gl,gl.VERTEX_SHADER,vetexStr);
var fragmentShader = createShader(gl,gl.FRAGMENT_SHADER,fragmentStr);
function createProgram(gl,vertexShader,fragmentShader){
//链接着色器程序
var program = gl.createProgram();
gl.attachShader(program,vertexShader);
gl.attachShader(program,fragmentShader);
gl.linkProgram(program);
var success= gl.getProgramParameter(program,gl.LINK_STATUS);
if(success){
return program;
}
console.log(success);
}
var program = createProgram(gl,vertexShader,fragmentShader);
gl.useProgram(program); //使用着色器程序
// gl.clearColor(0,0,1,1);
// gl.clear(gl.COLOR_BUFFER_BIT); //清空画布
var a_position = gl.getAttribLocation(program,'a_position'); //获取变量存储位置
var screenSize = gl.getUniformLocation(program,'screenSize'); //获取变量存储位置
var a_Translate = gl.getUniformLocation(program,'a_Translate'); //获取变量存储位置
var u_cosb = gl.getUniformLocation(program,'cosb'); //获取变量存储位置
var u_sinb = gl.getUniformLocation(program,'sinb'); //获取变量存储位置
var deg = 30;
var cosb = Math.cos(deg * Math.PI/180);
var sinb = Math.sin(deg * Math.PI/180);
console.log(cosb,sinb)
gl.uniform1f(u_cosb,cosb);
gl.uniform1f(u_sinb,sinb);
// var Ty = gl.getUniformLocation(program,'Ty'); //获取变量存储位置
var a_color = gl.getAttribLocation(program,'a_color'); //获取变量存储位置
//x轴上平移0.5 y轴上平移0.5
gl.uniform4f(a_Translate,0.5,0.5,0,0)
// gl.uniform1f(Ty,0.5)
gl.uniform2f(screenSize,canvas.width,canvas.height);
// gl.vertexAttrib4f(a_color,1,0,0,1);
var positionBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER,positionBuffer);
var indexBuffer = gl.createBuffer();
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER,indexBuffer);
function draw(){
gl.bufferData(gl.ARRAY_BUFFER,new Float32Array([
0,0,0, 0, 1,0,
-0.5,0.5,0, 1,0,0,
0.5,0.5,0, 0,1,0,
0.5,-0.5,0, 0,0,1,
-0.5,-0.5,0, 1,1,0,
-0.5,0.5,0, 1,0,0,
]),gl.STATIC_DRAW);
gl.vertexAttribPointer(a_position,3,gl.FLOAT,false, 4 * 6,0);
gl.vertexAttribPointer(a_color,3,gl.FLOAT,false, 4*6, 4*3);
gl.enableVertexAttribArray(a_position);
gl.enableVertexAttribArray(a_color);
// gl.drawElements(gl.TRIANGLES,6,gl.UNSIGNED_SHORT,0);
// gl.drawElements(gl.TRIANGLE_STRIP,6,gl.UNSIGNED_SHORT,0);
// gl.drawElements(gl.TRIANGLE_FAN,6,gl.UNSIGNED_SHORT,0);
// gl.drawArrays(gl.TRIANGLES,0,6);
gl.drawArrays(gl.TRIANGLE_FAN,0,6);
}
draw()
function randomColor(){
var r = Math.random();
var g = Math.random();
var b = Math.random();
var a = 0.5 + Math.random()*0.5;
return {r,g,b,a};
}
// bindEvent()
</script>
</body>
</html>
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>绘制矩形平移</title>
</head>
<body>
<canvas id="canvas" width="800" height="600"></canvas>
<script type="notjs" id="vertex" >
//如果在三维坐标系中会用vec4表示;
/*
在三维坐标系中 A(x,y,z)
在齐次坐标系中我们会使用(x,y,z,w)来表示这个顶点的位置
(x,y,z,0)来表示向量
*/
attribute vec3 a_position;
attribute vec4 a_color;
uniform vec2 screenSize;
// 用vec2表示平移矢量(-0.5,-0.5)
// uniform vec4 a_Translate;
// uniform float cosb , sinb;
/*
用矩阵的方式 申明旋转矩阵
*/
uniform mat3 rotateMatrix;
varying vec4 v_color;
void main(){
/* gl_Position.x = a_position.x * cosb - a_position.y * sinb;
gl_Position.y = a_position.x * sinb + a_position.y * cosb;
gl_Position.z = a_position.z ;
gl_Position.w = 1.0;
*/
gl_Position = vec4(rotateMatrix * a_position,1);
v_color = a_color;
}
</script>
<script type="notjs" id="fragment" >
precision mediump float;
varying vec4 v_color;
void main(){
gl_FragColor = v_color;
}
</script>
<script>
var canvas = document.getElementById("canvas");
var gl = canvas.getContext("webgl");
if(!gl){
alert('浏览器不支持webgl')
}
// var str = ''
//创建着色器(两种着色器)
function createShader(gl,type,source){
var shader = gl.createShader(type);
gl.shaderSource(shader,source);
gl.compileShader(shader);
var success= gl.getShaderParameter(shader,gl.COMPILE_STATUS);
if(success){
return shader;
}
// console.log(gl.getShaderInfoLog(shader));
// gl.deleteShader(shader);
}
var vetexStr = document.getElementById('vertex').innerText;
var fragmentStr = document.getElementById('fragment').innerText;
console.log(vetexStr,fragmentStr)
//创建着色器程序
var vertexShader = createShader(gl,gl.VERTEX_SHADER,vetexStr);
var fragmentShader = createShader(gl,gl.FRAGMENT_SHADER,fragmentStr);
function createProgram(gl,vertexShader,fragmentShader){
//链接着色器程序
var program = gl.createProgram();
gl.attachShader(program,vertexShader);
gl.attachShader(program,fragmentShader);
gl.linkProgram(program);
var success= gl.getProgramParameter(program,gl.LINK_STATUS);
if(success){
return program;
}
console.log(success);
}
var program = createProgram(gl,vertexShader,fragmentShader);
gl.useProgram(program); //使用着色器程序
// gl.clearColor(0,0,1,1);
// gl.clear(gl.COLOR_BUFFER_BIT); //清空画布
var a_position = gl.getAttribLocation(program,'a_position'); //获取变量存储位置
var screenSize = gl.getUniformLocation(program,'screenSize'); //获取变量存储位置
// var a_Translate = gl.getUniformLocation(program,'a_Translate'); //获取变量存储位置
// var u_cosb = gl.getUniformLocation(program,'cosb'); //获取变量存储位置
// var u_sinb = gl.getUniformLocation(program,'sinb'); //获取变量存储位置
var rotateMatrix = gl.getUniformLocation(program,'rotateMatrix'); //获取变量存储位置
var deg = 30;
var cosb = Math.cos(deg * Math.PI/180);
var sinb = Math.sin(deg * Math.PI/180);
// console.log(cosb,sinb)
// gl.uniform1f(u_cosb,cosb);
// gl.uniform1f(u_sinb,sinb);
// var Ty = gl.getUniformLocation(program,'Ty'); //获取变量存储位置
var a_color = gl.getAttribLocation(program,'a_color'); //获取变量存储位置
//x轴上平移0.5 y轴上平移0.5
gl.uniformMatrix3fv(rotateMatrix,false,new Float32Array([
cosb,sinb,0,
-sinb,cosb,0,
0,0,1
]));
// gl.uniform4f(a_Translate,0.5,0.5,0,0)
// gl.uniform1f(Ty,0.5)
gl.uniform2f(screenSize,canvas.width,canvas.height);
// gl.vertexAttrib4f(a_color,1,0,0,1);
var positionBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER,positionBuffer);
var indexBuffer = gl.createBuffer();
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER,indexBuffer);
function draw(){
gl.bufferData(gl.ARRAY_BUFFER,new Float32Array([
0,0,0, 0, 1,0,
-0.5,0.5,0, 1,0,0,
0.5,0.5,0, 0,1,0,
0.5,-0.5,0, 0,0,1,
-0.5,-0.5,0, 1,1,0,
-0.5,0.5,0, 1,0,0,
]),gl.STATIC_DRAW);
gl.vertexAttribPointer(a_position,3,gl.FLOAT,false, 4 * 6,0);
gl.vertexAttribPointer(a_color,3,gl.FLOAT,false, 4*6, 4*3);
gl.enableVertexAttribArray(a_position);
gl.enableVertexAttribArray(a_color);
// gl.drawElements(gl.TRIANGLES,6,gl.UNSIGNED_SHORT,0);
// gl.drawElements(gl.TRIANGLE_STRIP,6,gl.UNSIGNED_SHORT,0);
// gl.drawElements(gl.TRIANGLE_FAN,6,gl.UNSIGNED_SHORT,0);
// gl.drawArrays(gl.TRIANGLES,0,6);
gl.drawArrays(gl.TRIANGLE_FAN,0,6);
}
draw()
function randomColor(){
var r = Math.random();
var g = Math.random();
var b = Math.random();
var a = 0.5 + Math.random()*0.5;
return {r,g,b,a};
}
// bindEvent()
</script>
</body>
</html>
WebGL之（变换矩阵）缩放
WebGL之复合运算
先平移再旋转
WebGL坐标系统
01 模型坐标
02 世界坐标系
03 观察坐标系（视图坐标系）
正射投影 展示的形状是不变的
透视投影 会根据相机的距离改变物体的局部大小
04 裁剪坐标系 y轴向上 X轴向右 Z轴垂直平面向里
05 NDC坐标系
06 屏幕坐标
WebGL之立方体

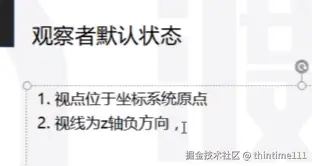

视点：观察者所在的位置；
视线：从视点出发沿着观察方向的视线

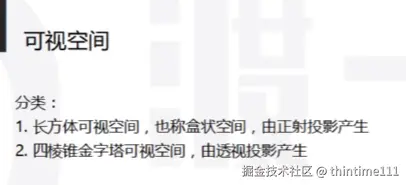

<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>绘制立方体</title>
</head>
<body>
<canvas id="canvas" width="800" height="600"></canvas>
<script src="./cuon-matrix.js" ></script>
<script type="notjs" id="vertex" >
attribute vec3 a_position;
attribute vec4 a_color;
uniform vec2 screenSize;
varying vec4 v_color;
uniform mat4 u_Matrix;
void main(){
gl_Position = u_Matrix * vec4(a_position, 1);
gl_PointSize = 10.0;
v_color = a_color;
}
</script>
<script type="notjs" id="fragment" >
precision mediump float;
varying vec4 v_color;
void main(){
gl_FragColor = v_color;
}
</script>
<script>
var canvas = document.getElementById("canvas");
var gl = canvas.getContext("webgl");
if(!gl){
alert('浏览器不支持webgl')
}
// var str = ''
//创建着色器(两种着色器)
function createShader(gl,type,source){
var shader = gl.createShader(type);
gl.shaderSource(shader,source);
gl.compileShader(shader);
var success= gl.getShaderParameter(shader,gl.COMPILE_STATUS);
if(success){
return shader;
}
console.log(gl.getShaderInfoLog(shader));
// gl.deleteShader(shader);
}
var vetexStr = document.getElementById('vertex').innerText;
var fragmentStr = document.getElementById('fragment').innerText;
console.log(vetexStr,fragmentStr)
//创建着色器程序
var vertexShader = createShader(gl,gl.VERTEX_SHADER,vetexStr);
var fragmentShader = createShader(gl,gl.FRAGMENT_SHADER,fragmentStr);
function createProgram(gl,vertexShader,fragmentShader){
//链接着色器程序
var program = gl.createProgram();
gl.attachShader(program,vertexShader);
gl.attachShader(program,fragmentShader);
gl.linkProgram(program);
var success= gl.getProgramParameter(program,gl.LINK_STATUS);
if(success){
return program;
}
console.log(success);
}
var program = createProgram(gl,vertexShader,fragmentShader);
gl.useProgram(program); //使用着色器程序
// gl.clearColor(0,0,1,1);
// gl.clear(gl.COLOR_BUFFER_BIT); //清空画布
var a_position = gl.getAttribLocation(program,'a_position'); //获取变量存储位置
var screenSize = gl.getUniformLocation(program,'screenSize'); //获取变量存储位置
var a_color = gl.getAttribLocation(program,'a_color'); //获取变量存储位置
var u_Matrix = gl.getUniformLocation(program,'u_Matrix'); //获取变量存储位置
gl.uniform2f(screenSize,canvas.width,canvas.height);
// gl.vertexAttrib4f(a_color,1,0,0,1);
var positionBuffer = gl.createBuffer();
gl.bindBuffer(gl.ARRAY_BUFFER,positionBuffer);
var indexBuffer = gl.createBuffer();
gl.bindBuffer(gl.ELEMENT_ARRAY_BUFFER,indexBuffer);
gl.enable(gl.DEPTH_TEST);// 深度检测 看有没有超过webgl系统的大小
var deg = 0;
function rotate(){
deg++
var viewMatrix = new Matrix4();
viewMatrix.setOrtho(-3,3,-3,3,100,-100);
var modelMatrix = new Matrix4();
modelMatrix.setRotate(deg,1,1,0);
var matrix =viewMatrix.multiply(modelMatrix);
gl.uniformMatrix4fv(u_Matrix, false, matrix.elements);
draw();
requestAnimationFrame(rotate)
}
rotate(deg);
// setInterval(()=>{
// deg++;
// rotate(deg);
// },100)
// function bindEvent(){
// var points = [];
// canvas.onmousedown = function (e){
// // gl.clearColor(0,0,1,1);
// gl.clearColor(0,0,0,0);
// gl.clear(gl.COLOR_BUFFER_BIT); //清空画布
// var x = e.offsetX;
// var y = e.offsetY;
// var color = randomColor();
// points.push(x,y,10.0); //记录点击位置
// // points.push({x,y,
// // size:10.0
// // }); //记录点击位置
// if(points.length % 3 == 0){
// gl.bufferData(gl.ARRAY_BUFFER,new Float32Array(points),gl.STATIC_DRAW);
// gl.vertexAttribPointer(a_position,2,gl.FLOAT,false,4*3,0);
// // gl.vertexAttribPointer(pointsize,1,gl.FLOAT,false,4*3,2*4);
// gl.enableVertexAttribArray(a_position);
// // gl.enableVertexAttribArray(pointsize);
// // gl.drawArrays(gl.POINTS,0,3);
// //改变gl.LINES 、gl.LINE_STRIP、gl.LINE_LOOP 可以绘制线段 、线条 、闭合线条
// // gl.drawArrays(gl.TRIANGLES,0, points.length/3 );
// // gl.drawArrays(gl.LINES,0, points.length/3 );
// // gl.drawArrays(gl.LINE_STRIP,0, points.length/3 );
// gl.drawArrays(gl.LINE_LOOP,0, points.length/3 );
// }
// //gl.drawArrays(gl.POINTS,0,1);//放在循环外只能绘制一个点
// }
// };
function draw(){
gl.bufferData(gl.ARRAY_BUFFER,new Float32Array([
// 前面
-0.5,0.5,-0.5,1,0,0,
-0.5,-0.5,-0.5,1,0,0,
0.5,-0.5,-0.5,1,0,0,
0.5,0.5,-0.5,1,0,0,
// 后面
-0.5,0.5,0.5,1,1,0,
-0.5,-0.5,0.5,1,1,0,
0.5,-0.5,0.5,1,1,0,
0.5,0.5,0.5,1,1,0,
//左面
-0.5,0.5,-0.5,0,1,0,
-0.5,0.5,0.5,0,1,0,
-0.5,-0.5,0.5,0,1,0,
-0.5,-0.5,-0.5,0,1,0,
//右面
0.5,0.5,-0.5,0,1,0,
0.5,0.5,0.5,0,1,0,
0.5,-0.5,0.5,0,1,0,
0.5,-0.5,-0.5,0,1,0,
//上面
-0.5,0.5,-0.5,1,0,1,
0.5,0.5,-0.5,1,0,1,
0.5,0.5,0.5,1,0,1,
-0.5,0.5,0.5,1,0,1,
//下面
-0.5,-0.5,-0.5,1,0,1,
0.5,-0.5,-0.5,1,0,1,
0.5,-0.5,0.5,1,0,1,
-0.5,-0.5,0.5,1,0,1,
]),gl.STATIC_DRAW);
gl.bufferData(gl.ELEMENT_ARRAY_BUFFER,new Uint16Array([
0,1,2,
2,3,0,
4,5,6,
6,7,4,
8,9,10,
10,11,8,
12,13,14,
14,15,12,
16,17,18,
18,19,16,
20,21,22,
22,23,20,
]),gl.STATIC_DRAW);
gl.vertexAttribPointer(a_position,3,gl.FLOAT,false, 4 * 6,0);
gl.vertexAttribPointer(a_color,3,gl.FLOAT,false, 4*5, 4*2);
gl.enableVertexAttribArray(a_position);
gl.enableVertexAttribArray(a_color);
gl.drawElements(gl.TRIANGLES,36,gl.UNSIGNED_SHORT,0);
// gl.drawElements(gl.TRIANGLE_STRIP,6,gl.UNSIGNED_SHORT,0);
// gl.drawElements(gl.TRIANGLE_FAN,6,gl.UNSIGNED_SHORT,0);
// gl.drawArrays(gl.TRIANGLES,0,6);
// gl.drawArrays(gl.TRIANGLE_FAN,0,6);
}
draw()
// var positionBuffer = gl.createBuffer();
// gl.bindBuffer(gl.ARRAY_BUFFER,positionBuffer);
// gl.bufferData(gl.ARRAY_BUFFER,new Float32Array([50,50,10.0,50,100,20.0,100,100,30.0]),gl.STATIC_DRAW);
// gl.vertexAttribPointer(a_position,2,gl.FLOAT,false,4*3,0);
// gl.vertexAttribPointer(pointsize,1,gl.FLOAT,false,4*3,2*4);
// gl.enableVertexAttribArray(a_position);
// gl.enableVertexAttribArray(pointsize);
// // gl.drawArrays(gl.POINTS,0,3);
// gl.drawArrays(gl.TRIANGLES,0,3);
function randomColor(){
var r = Math.random();
var g = Math.random();
var b = Math.random();
var a = 0.5 + Math.random()*0.5;
return {r,g,b,a};
}
// bindEvent()
</script>
</body>
</html>
</body>
</html>
