filebeat + logstash + elasticsearch 部署

配置基于elastic 8.11版本

filebeat配置

filebeat.inputs:
  - type: log
    enabled: true
    paths:
      - /share/project/logs/user-api.log
    # 添加自定义字段
    fields:
      serviceEnv: "prod" # 日志所属的环境
      serviceName: "user-api" # 日志所属服务
    multiline.pattern: '^\d{4}-\d{2}-\d{2}'  # 匹配日志行的开始位置（此处使用时间戳模式）
    multiline.negate: true  # 设置为 true，表示匹配多行的行不会被视为新事件的开头
    multiline.match: after  # 所有符合匹配模式的行和其后的行都将被合并到同一个事件中

  - type: log
    enabled: true
    paths:
      - /share/project/logs/storage-api.log
    fields:
      serviceEnv: "test"
      serviceName: "storage-api"
    multiline.pattern: '^\d{4}-\d{2}-\d{2}'
    multiline.negate: true
    multiline.match: after

  - type: log
    enabled: true
    paths:
      - /share/project/logs/auth-api.log
    fields:
      serviceEnv: "dev"
      serviceName: "auth-api"
    multiline.pattern: '^\d{4}-\d{2}-\d{2}'
    multiline.negate: true
    multiline.match: after


output.logstash:
  hosts: ["192.168.10.101:5044"]

logstash配置

input {
    beats {
        port => 5044
    }
}


filter {
    if [fields][serviceName] in ["user-api","storage-api","auth-api"] {
        grok {
            match => {
                # (?m) 表示开启多行匹配
                # %d{yyyy-MM-dd HH:mm:ss.SSS} [%X{traceId}] %-5.5level ${PID} --- [%15.15thread] %logger{20} %5.5line : %msg%n
                "message" => "(?m)%{TIMESTAMP_ISO8601:recordTime} \[%{DATA:traceId}\] %{LOGLEVEL:level} %{DATA:pid} --- \[%{DATA:thread}\] %{DATA:logger} %{NUMBER:line} : %{GREEDYDATA:message}"
            }
        }
    } else {
        grok {
            match => {
                # (?m) 表示开启多行匹配
                #  #%d{yyyy-MM-dd HH:mm:ss.SSS} %-5.5level ${PID} --- [%15.15thread] %logger{20} %5.5line : %msg%n
                "message" => "(?m)%{TIMESTAMP_ISO8601:recordTime} %{LOGLEVEL:level} %{DATA:pid} --- \[%{DATA:thread}\] %{DATA:logger} %{NUMBER:line} : %{GREEDYDATA:message}"
            }
        }
    }


    # 使用 date 过滤器将日期字段解析为 @timestamp
    date {
        match => ["recordTime", "yyyy-MM-dd HH:mm:ss.SSS"]
        target => "@timestamp"
        timezone => "Asia/Shanghai"
    }



    mutate {
       add_field => {
          "hostName" => "%{[host][name]}"

          "[data_stream][type]" => "logs"
          "[data_stream][dataset]" => "qserver-%{[fields][serviceEnv]}"
          "[data_stream][namespace]" => "%{[fields][serviceName]}"
       }
       remove_field => [ "host","ecs","event","agent","tags","fields","@version","input","log","recordTime"]
       strip => ["level", "thread","logger","pid"]
    }

}

output {
    stdout {}
    elasticsearch {
            hosts => ["http://dawn100.dawn.com:9200","http://dawn101.dawn.com:9200","http://dawn102.dawn.com:9200"]
            data_stream => "true"
            data_stream_sync_fields => "false"
        }
}

创建索引生命周期策略

PUT _ilm/policy/logs-qserver-policy
{
  "policy": {
    "phases": {
      "hot": {
        "min_age": "0ms",
        "actions": {
          "rollover": {
            "max_size": "10GB",
            "max_age": "7d"
          },
          "set_priority": {
            "priority": 100
          }
        }
      },
      "warm": {
        "min_age": "7d",
        "actions": {
          "forcemerge": {
              "max_num_segments": 1
            },
            "shrink": {
              "number_of_shards": 1
            }
        }
      },
      "cold": {
        "min_age": "60d",
        "actions": {}
      },
      "delete": {
        "min_age": "120d",
        "actions": {
          "delete": {}
        }
      }
    }
  }
}

创建索引模板

PUT /_index_template/logs-qserver-template
{
  "index_patterns": [
    "logs-qserver-*"
  ],
  "data_stream": {},
  "priority": 500,
  "template": {
    "settings": {
      "index.lifecycle.name": "logs-qserver-policy",
      "index.number_of_replicas": "1",
      "index.number_of_shards": "6",
      "analysis": {
        "analyzer": {
          "cld_analyzer": {
            "type": "custom",
            "char_filter": [
              "cld_filter"
            ],
            "tokenizer": "cld_tokenizer"
          }
        },
        "char_filter": {
          "cld_filter": {
            "pattern": """^.+\.""",
            "type": "pattern_replace",
            "replacement": ""
          }
        },
        "tokenizer": {
          "cld_tokenizer": {
            "type": "keyword"
          }
        }
      }
    },
    "mappings": {
      "properties": {
        "@timestamp": {
          "type": "date"
        },
        "hostName": {
          "type": "keyword"
        },
        "level": {
          "type": "keyword"
        },
        "line": {
          "type": "keyword"
        },
        "logger": {
          "type": "text"
        },
        "message": {
          "type": "text"
        },
        "pid": {
          "type": "keyword"
        },
        "serviceName": {
          "type": "keyword"
        },
        "thread": {
          "type": "keyword"
        },
        "traceId": {
          "type": "keyword"
        }
      }
    }
  }
}

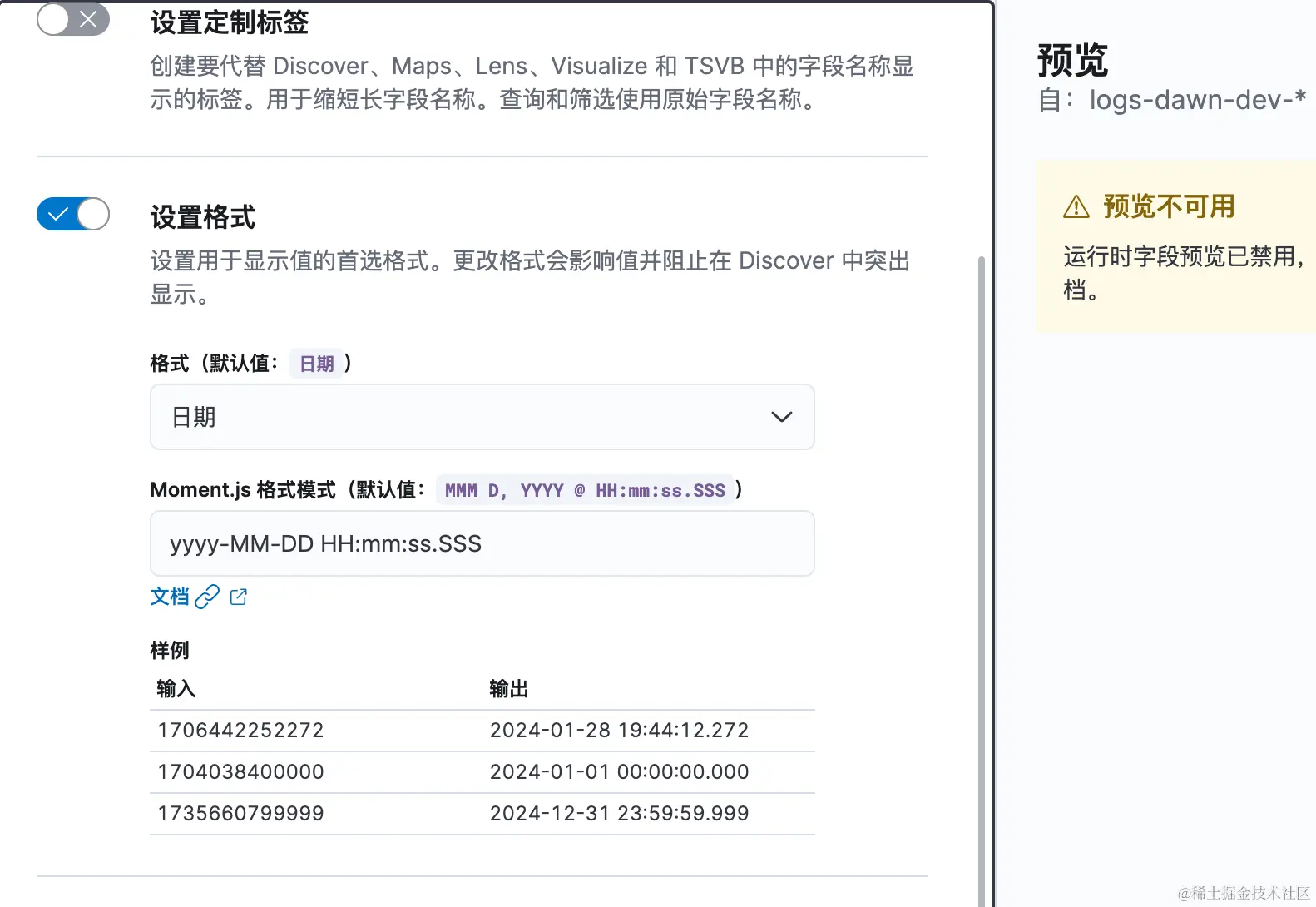

配置kibana中@timestamp的日期格式

• 设置展示值为：yyyy-MM-DD HH:mm:ss.SSS
