一般数据的统计都用到各种图表，曲线图和柱形图是最常见的。

一、思路：

用的是第三方MPAndroidChart

二、效果图：

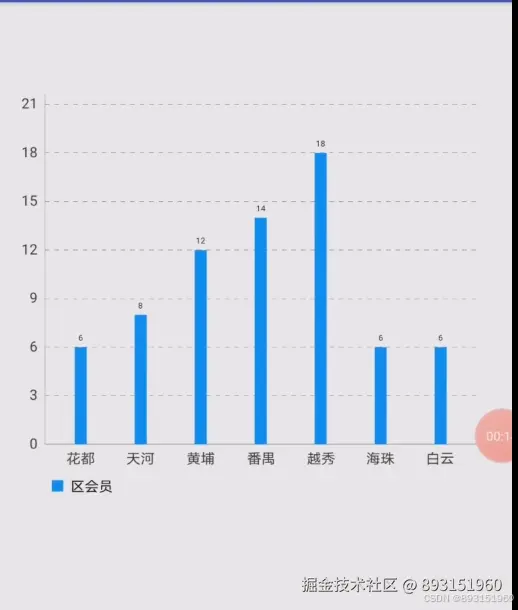

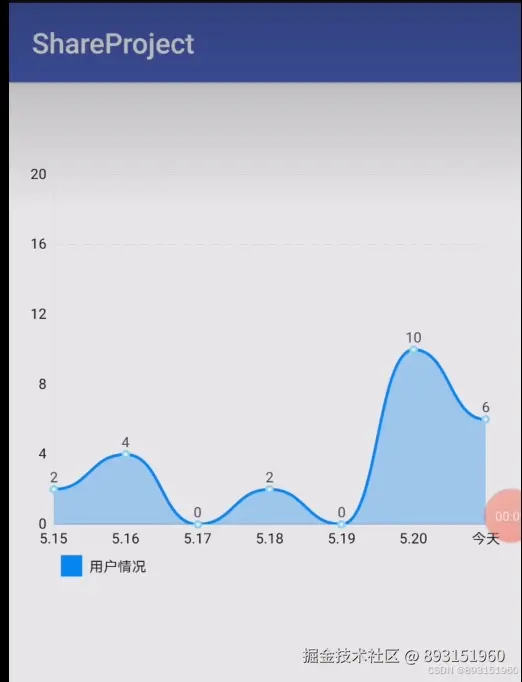

曲线图： 一根柱形图： 二根柱形图：

三、关键代码：

曲线图代码：

class LineChartActivity : AppCompatActivity(){

    var mContext:Context? = null

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_line_chart)
        mContext = this

        var user_7day = UtilHelper.JsonToObject(UtilHelper.getJson(mContext!!,"user.json"), User7DayBean::class.java)
        setChartView(lineChart_user,user_7day.user_7day!!.reversed())
    }

    private fun setChartView(lineChat: LineChart?, user_7day: List<User7day>?) {
        if (lineChat == null){
            return
        }
        lineChat.setDrawGridBackground(false)
        lineChat.description.isEnabled = false
        lineChat.isDragEnabled = false
        lineChat.setScaleEnabled(false)
        lineChat.setNoDataText("暂无数据")
        lineChat.legend?.isEnabled = true//是否显示图例
        //显示位置
//        lineChat.legend.setVerticalAlignment(Legend.LegendVerticalAlignment.TOP)
//        lineChat.legend.setHorizontalAlignment(Legend.LegendHorizontalAlignment.LEFT)
        lineChat.animateXY(2000, 2000)

        //获取X轴
        val xAxis = lineChat.xAxis
        //xAxis.setAvoidFirstLastClipping(true);
        xAxis?.axisMinimum = 0f
        xAxis?.setLabelCount(7, true)
        val floats = floatArrayOf(20.0f, 22f, 25f)
        xAxis?.position = XAxis.XAxisPosition.BOTTOM
        xAxis?.setDrawGridLines(false)
        //xAxis.setGridLineWidth(2f);
        xAxis?.axisLineWidth = 3f
        xAxis?.axisLineColor = Color.parseColor("#E3E2E6")
        xAxis?.textSize = 10f
        xAxis?.textColor = Color.parseColor("#000000")
        //xAxis.setGranularity(1f);
        xAxis?.isEnabled = true
        xAxis?.setDrawAxisLine(false)
        xAxis?.setGridDashedLine(DashPathEffect(floats, 10f))
        xAxis?.enableGridDashedLine(20f, 10f, 0f)
        //设置x轴数据
        if (!user_7day.isNullOrEmpty()) {
            xAxis?.valueFormatter = IAxisValueFormatter { value, _ -> user_7day[Math.min(Math.max(value.toInt(), 0), user_7day.size - 1)].display_date }
        }

        val leftAxis = lineChat.axisLeft
        leftAxis?.isEnabled = true
        leftAxis?.textSize = 10f
        leftAxis?.setLabelCount(5, false)
        leftAxis?.axisMinimum = 0f//设置最小值
        leftAxis?.axisMaximum = 50f
        //设置网格线为虚线效果
        leftAxis?.enableGridDashedLine(20f, 10f, 0f)
        leftAxis?.gridColor = Color.parseColor("#E3E2E6")
        //是否绘制0所在的网格线
        leftAxis?.setDrawZeroLine(true)
        leftAxis?.axisLineWidth = 0f
        leftAxis?.axisLineColor = Color.parseColor("#E3E2E6")
        leftAxis?.textColor = Color.parseColor("#000000")
        val rightAxis = lineChat.axisRight
        rightAxis?.isEnabled = false
        rightAxis?.setDrawZeroLine(false)

        //y轴数据格式
        var isStudyZero = true
        var maxNumber = 0f
        if (!user_7day.isNullOrEmpty()) {
            for (item in user_7day) {
                if (item.amount!! > 0) {
                    isStudyZero = false
                }
                if (item.amount!! > maxNumber) {
                    maxNumber = item.amount!!
                }
            }
        }


        if (isStudyZero) {
            leftAxis?.axisMaximum = 50f
        } else {
            leftAxis?.resetAxisMaximum()
            if (maxNumber <= 5) {
                leftAxis?.axisMaximum = 5f
            } else {
                leftAxis?.axisMaximum = maxNumber + 10
            }
        }

        leftAxis?.valueFormatter = IAxisValueFormatter { value, _ ->
            val mFormat = DecimalFormat("###")
            mFormat.format(value.toDouble())
        }

        //设置数据
        val entries = ArrayList<Entry>()
        if (!user_7day.isNullOrEmpty()) {
            for (i in user_7day.indices) {
                val xVal = i.toFloat()
                var yVal = 0f
                yVal = user_7day[i].amount!!
                entries.add(Entry(xVal, yVal))
            }
        }

        // sort by x-value
        Collections.sort(entries, EntryXComparator())
        val dataSet = LineDataSet(entries, "用户情况")
        dataSet.lineWidth = 2f
        dataSet.circleRadius = 3f

        dataSet.setDrawFilled(true)//阴影
        dataSet.fillDrawable = resources.getDrawable(R.drawable.chart_line_style)//阴影
        //dataSet.setCircleColor(Color.parseColor("#0091FF"))
        dataSet.setCircleColorHole(UtilHelper.getColor(mContext, R.color.m_white))
        dataSet.color = UtilHelper.getColor(mContext, R.color.color_0091FF)
        dataSet.fillColor = Color.parseColor("#0091FF")
        dataSet.isHighlightEnabled = false//数据位置是否可以点击
        dataSet.setDrawValues(true)//y轴是否显示数据
        dataSet.valueTextSize = 10f//数据字体大小
        dataSet.valueTextColor = UtilHelper.getColor(mContext, R.color.color_333651)
        dataSet.formSize = 15f//设置当前这条线的图例的大小

        dataSet.mode = LineDataSet.Mode.HORIZONTAL_BEZIER

        // create a data object with the datasets
        val data = LineData(dataSet)
//        data.setValueFormatter { value, _, _, _ ->
//            val mFormat = DecimalFormat("###")
//            mFormat.format(value.toDouble())
//        }

        //人要整数
        if (!user_7day.isNullOrEmpty()) {
            data.setValueFormatter(object : IValueFormatter {
                override fun getFormattedValue(value: Float, entry: Entry?, dataSetIndex: Int, viewPortHandler: ViewPortHandler?): String {
                    return value.toInt().toString()
                }

            })
        }
        // set data
        lineChat.data = data
        //lineChat.invalidate()
    }
}
