一、片元着色器解析
1. HSV 色彩空间转换
vec3 hsv2rgb(float h, float s, float v) {
vec4 t = vec4(1.0, 2.0/3.0, 1.0/3.0, 3.0);
vec3 p = abs(fract(vec3(h) + t.xyz) * 6.0 - vec3(t.w));
return v * mix(vec3(t.x), clamp(p - vec3(t.x), 0.0, 1.0), s);
}
实现原理：通过相位偏移和颜色分量混合生成彩虹色系
2. 动态光环生成算法
vec3 drawCircle(vec2 pos, float radius, float width, float power, vec4 color) {
vec2 mousePos = mouse * 2.0 - 1.0; // 转换到[-1,1]坐标系
float dist1 = length(pos);
dist1 = fract((dist1 * 5.0) - fract(time)); // 创建波纹重复效果
float dist2 = dist1 - radius;
float intensity = pow(radius / abs(dist2), width);
return color.rgb * intensity * power * max((0.8 - abs(dist2)), 0.0);
}
关键参数控制：
- *5.0：控制波纹密度
- fract(time)：生成无限循环动画
- pow()函数：控制光环衰减曲线
3. 主渲染逻辑
void main() {
// 坐标标准化处理
vec2 aspect = vec2(resolution.x / resolution.y, 1.0);
vec2 pos = (vUv * 2.0 - 1.0) * aspect; // 转换到[-aspect, aspect]坐标系
// 动态颜色生成
float h = mix(0.5, 0.65, length(pos)); // 基于距离混合色相
vec4 color = vec4(hsv2rgb(h, 1.0, 1.0), 1.0);
// 合成最终效果
vec3 finalColor = drawCircle(pos, 0.5, 0.8, 0.1, color);
gl_FragColor = vec4(finalColor, 1.0);
}
二、完整代码
import * as THREE from 'three';
import { OrbitControls } from 'three/examples/jsm/controls/OrbitControls.js';
// 初始化场景
const scene = new THREE.Scene();
const camera = new THREE.PerspectiveCamera(
75,
window.innerWidth / window.innerHeight,
0.1,
1000,
);
const renderer = new THREE.WebGLRenderer();
renderer.setSize(window.innerWidth, window.innerHeight);
document.body.appendChild(renderer.domElement);
// 着色器材质
const shaderMaterial = new THREE.ShaderMaterial({
uniforms: {
time: { value: 0 },
resolution: { value: new THREE.Vector2() },
mouse: { value: new THREE.Vector2(0.5, 0.5) },
},
vertexShader: `
varying vec2 vUv;
void main() {
vUv = uv;
gl_Position = projectionMatrix * modelViewMatrix * vec4(position, 1.0);
}
`,
fragmentShader: `
precision highp float;
uniform vec2 resolution;
uniform float time;
uniform vec2 mouse;
varying vec2 vUv;
vec3 hsv2rgb(float h, float s, float v) {
vec4 t = vec4(1.0, 2.0/3.0, 1.0/3.0, 3.0);
vec3 p = abs(fract(vec3(h) + t.xyz) * 6.0 - vec3(t.w));
return v * mix(vec3(t.x), clamp(p - vec3(t.x), 0.0, 1.0), s);
}
vec3 drawCircle(vec2 pos, float radius, float width, float power, vec4 color) {
vec2 mousePos = mouse * 2.0 - 1.0;
float dist1 = length(pos);
dist1 = fract((dist1 * 5.0) - fract(time));
float dist2 = dist1 - radius;
float intensity = pow(radius / abs(dist2), width);
return color.rgb * intensity * power * max((0.8 - abs(dist2)), 0.0);
}
void main() {
vec2 aspect = vec2(resolution.x / resolution.y, 1.0);
vec2 pos = (vUv * 2.0 - 1.0) * aspect;
float h = mix(0.5, 0.65, length(pos));
vec4 color = vec4(hsv2rgb(h, 1.0, 1.0), 1.0);
vec3 finalColor = drawCircle(pos, 0.5, 0.8, 0.1, color);
gl_FragColor = vec4(finalColor, 1.0);
}
`,
});
// 创建平面网格
const geometry = new THREE.PlaneGeometry(2, 2);
const mesh = new THREE.Mesh(geometry, shaderMaterial);
scene.add(mesh);
// 设置相机
camera.position.z = 1;
// 响应式处理
window.addEventListener('resize', () => {
camera.aspect = window.innerWidth / window.innerHeight;
camera.updateProjectionMatrix();
renderer.setSize(window.innerWidth, window.innerHeight);
shaderMaterial.uniforms.resolution.value.set(
window.innerWidth,
window.innerHeight,
);
});
// 鼠标交互
document.addEventListener('mousemove', (e) => {
shaderMaterial.uniforms.mouse.value.set(
e.clientX / window.innerWidth,
1.0 - e.clientY / window.innerHeight,
);
});
// 初始分辨率
shaderMaterial.uniforms.resolution.value.set(
window.innerWidth,
window.innerHeight,
);
// 动画循环
function animate() {
requestAnimationFrame(animate);
shaderMaterial.uniforms.time.value = performance.now() / 1000;
renderer.render(scene, camera);
}
animate();

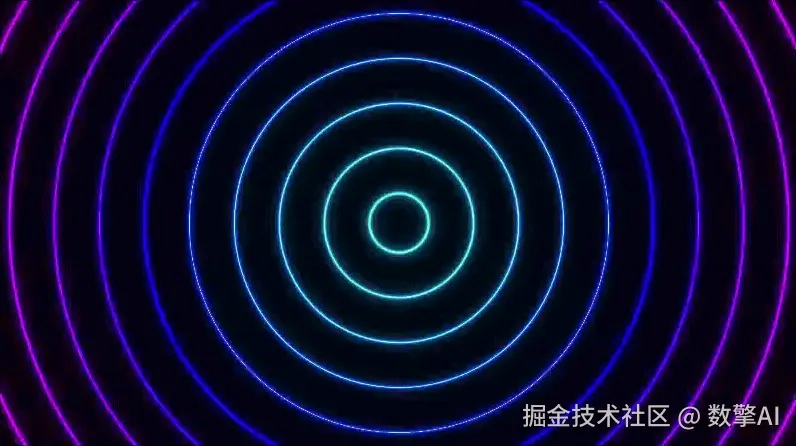

总结
该着色器创造了一个动态的极光波纹特效系统，通过 HSV 色彩空间转换生成彩虹色谱，利用标准化坐标映射技术实现自适应屏幕比例，核心采用分形时间函数 fract(time)驱动无限循环的波纹扩散。特效呈现中心辐射状多层光环，具备色相随距离渐变（0.5→0.65HSV 区间）、动态波纹密度（5 倍压缩系数）和指数衰减光晕（0.8 宽度参数
