按用户维度的灰度发布及灰度续传方案

蝉羽
399 阅读5分钟

gray-transmit

介绍

灰度发布组件：在网关层按用户维度进行流量分配，并将灰度标记续传到后续每一个节点

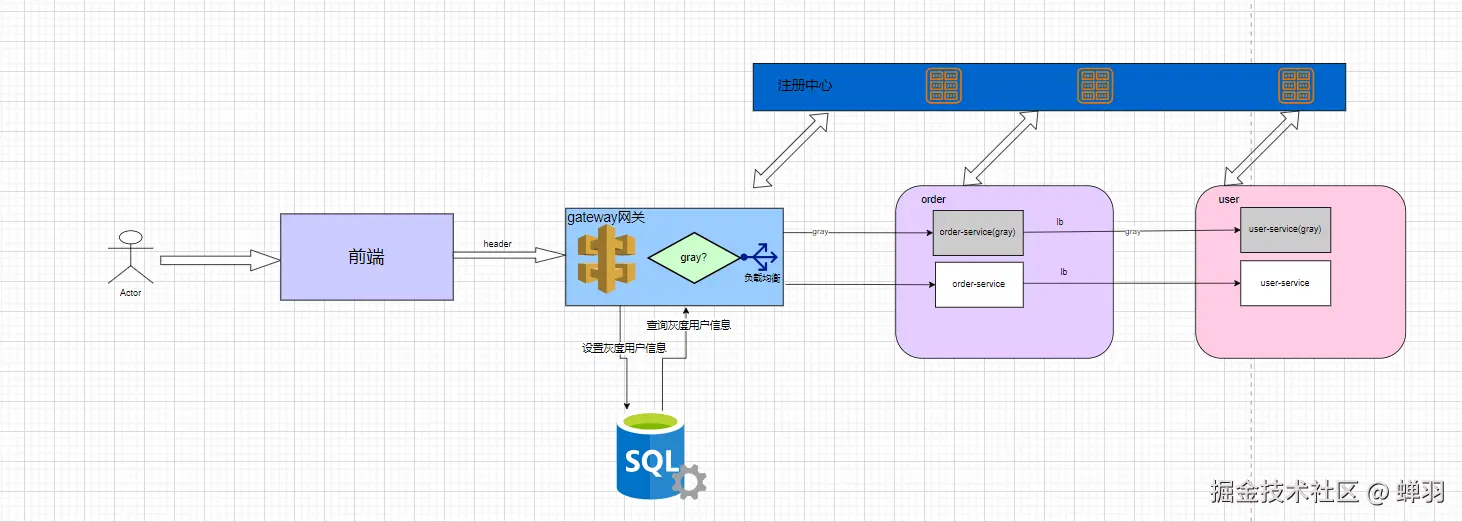

工作流程


  • 前端发起Http请求，header中携带用户信息
  • 网关gateway全局拦截器GlobalFilter获取用户信息，根据用户查询灰度用户配置
  • 如果当前用户是灰度用户，则在负载均衡时，选择灰度的实例，如果没有后续节点没有灰度节点，那就选择正式服务；如果当前用户是正式用户，走正式服务
  • 业务组件Mvc请求拦截器，如果header中的gray标记为true，则将灰度续传到下一个节点，LoadBalancer选择灰度实例。
具体实现

  • gray-common灰度发布组件实现：

    • 实现HandlerInterceptor接口，对Http请求进行灰度过滤，如果header中gray=true，将GrayRequestContextHolder中的灰度标记设置为ture，用ThreadLocal 保存gray状态，作为在后续负载均衡选择灰度服务的依据。

      public class GrayHandlerInterceptor implements HandlerInterceptor {
    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        String gray = request.getHeader("gray");
        // 如果HttpHeader中灰度标记为true，则将灰度标记放到holder中，如果需要就传递下去
        if (gray != null && gray.equals("true")) {
            GrayRequestContextHolder.setGrayTag(true);
        }
        return true;
    }

    @Override
    public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView) throws Exception {
        HandlerInterceptor.super.postHandle(request, response, handler, modelAndView);
    }

    @Override
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {
        GrayRequestContextHolder.remove();
    }
}

      public class GrayRequestContextHolder {
    private static final ThreadLocal<Boolean> GARY_TAG = new ThreadLocal<>();

    public static void setGrayTag(final Boolean tag) {
        GARY_TAG.set(tag);
    }

    public static Boolean getGrayTag() {
        return GARY_TAG.get();
    }

    public static void remove() {
        GARY_TAG.remove();
    }
}

      将上述GrayHandlerInterceptor灰度拦截器，配置到MVC拦截器中，拦截请求

      @Configuration
@ConditionalOnClass(value = WebMvcConfigurer.class)
public class GrayMvcConfig {

    /**
     * Spring MVC 请求拦截器
     * @return WebMvcConfigurer
     */
    @Bean
    public WebMvcConfigurer webMvcConfigurer() {
        return new WebMvcConfigurer() {
            @Override
            public void addInterceptors(InterceptorRegistry registry) {
                registry.addInterceptor(new GrayHandlerInterceptor());
            }
        };
    }

}

    • 自定义灰度负载均衡，实现springcloud的Loadbalancer

      @Slf4j
public class GrayLoadBalancer implements ReactorServiceInstanceLoadBalancer {
    private AtomicInteger position;

    private final String serviceId;

    private final ObjectProvider<ServiceInstanceListSupplier> serviceInstanceListSupplierProvider;

    public GrayLoadBalancer(String serviceId, ObjectProvider<ServiceInstanceListSupplier> serviceInstanceListSupplierProvider) {
        this.position = new AtomicInteger(0);
        this.serviceId = serviceId;
        this.serviceInstanceListSupplierProvider = serviceInstanceListSupplierProvider;
    }

    @Override
    public Mono<Response<ServiceInstance>> choose(Request request) {
        ServiceInstanceListSupplier supplier = serviceInstanceListSupplierProvider
                .getIfAvailable(NoopServiceInstanceListSupplier::new);
        return supplier.get(request).next()
                .map(serviceInstances -> processInstanceResponse(supplier, serviceInstances, request));
    }

    private Response<ServiceInstance> processInstanceResponse(ServiceInstanceListSupplier supplier,
                                                              List<ServiceInstance> serviceInstances,
                                                              Request request) {
        Response<ServiceInstance> serviceInstanceResponse = getInstanceResponse(serviceInstances, request);
        if (supplier instanceof SelectedInstanceCallback && serviceInstanceResponse.hasServer()) {
            ((SelectedInstanceCallback) supplier).selectedServiceInstance(serviceInstanceResponse.getServer());
        }
        return serviceInstanceResponse;
    }

    private Response<ServiceInstance> getInstanceResponse(List<ServiceInstance> instances, Request request) {
        if (instances.isEmpty()) {
            if (log.isWarnEnabled()) {
                log.warn("No servers available for service: " + serviceId);
            }
            return new EmptyResponse();
        }
        // 获取ServiceInstance列表
        instances = getInstances(instances, request);

        if (instances.size() == 1) {
            return new DefaultResponse(instances.get(0));
        }

        // 轮训策略
        int pos = this.position.incrementAndGet();

        ServiceInstance instance = instances.get(pos % instances.size());

        return new DefaultResponse(instance);
    }

    private List<ServiceInstance> getInstances(List<ServiceInstance> instances, Request request) {
        // 获取灰度标记
        String gray = GrayRequestContextHolder.getGrayTag().toString();
        // 灰度标记不为空并且标记为true, 筛选ServiceInstance
        if (StringUtils.isNotEmpty(gray) && StringUtils.equals("true", gray)) {
            List<ServiceInstance> list = new ArrayList<>();
            for (ServiceInstance instance : instances) {
                if (StringUtils.isNotEmpty(instance.getMetadata().get("gray"))
                        && "true".equalsIgnoreCase(instance.getMetadata().get("gray"))) {
                    list.add(instance);
                }
            }
            // 如果没有灰度实例，则转正式服务
            return !list.isEmpty() ? list : instances;
        } else {
            return instances;
        }
    }
}

      getInstances方法中，取出本地线程变量中gray标记，根据标记过滤灰度服务实例；如果没有灰度实例，则走正式服务，保证业务正常使用，这里可根据具体业务场景进行改写

      • 将自定义负载均衡器实例化

        @Configuration
public class LoadBalancerGrayAutoConfiguration {

    @Bean
    @ConditionalOnBean(LoadBalancerClientFactory.class)
    public ReactorLoadBalancer<ServiceInstance> grayReactorLoadBalancer(Environment environment,
                                                                        LoadBalancerClientFactory loadBalancerClientFactory) {
        String name = environment.getProperty(LoadBalancerClientFactory.PROPERTY_NAME);
        return new GrayLoadBalancer(name, loadBalancerClientFactory.getLazyProvider(name, ServiceInstanceListSupplier.class));
    }
}

      在开启灰度负载均衡，只需要在业务组件启动类上添加：

      @LoadBalancerClients(defaultConfiguration = {LoadBalancerGrayAutoConfiguration.class})

    • 改造客户端http请求拦截器，从ThreadLocal中取出灰度标记，并续传

      @Slf4j
public class GrayRuleInterceptor implements ClientHttpRequestInterceptor {
    @Override
    public ClientHttpResponse intercept(HttpRequest request, byte[] body, ClientHttpRequestExecution execution) throws IOException {

        HttpHeaders headers = request.getHeaders();
        log.info("灰度标记：{}", GrayRequestContextHolder.getGrayTag());
        headers.add("gray", GrayRequestContextHolder.getGrayTag().toString());
        return execution.execute(request, body);

    }
}

      将客户端http请求拦截器放入RestTemplate，使RestTemplate实现灰度在服务间续传

      @Configuration
public class RestConfig {
    @LoadBalanced
    @Bean
    public RestTemplate restTemplate() {
        RestTemplate restTemplate = new RestTemplate();
        List<ClientHttpRequestInterceptor> list = new ArrayList<>();
        list.add(new GrayRuleInterceptor());
        restTemplate.setInterceptors(list);
        return restTemplate;
    }

}

  • Gateway灰度改造

    在gateway中实现GlobalFilter接口、Ordered接口。在filter方法中，根据请求头中的USER_ID，查询灰度配置表tb_gray_user，如果配置是Y，则将这条链路设置为灰度gray=true，保存在本地线程变量ThreadLocal中，为网关负载均衡获取灰度实例备用

public class GrayPublishFilter implements GlobalFilter, Ordered {

    private IGrayService grayService;

    public GrayPublishFilter(IGrayService grayService) {
        this.grayService = grayService;
    }

    @Override
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {

        GrayRequestContextHolder.setGrayTag(false);

        // 从header中获取用户信息
        HttpHeaders headers = exchange.getRequest().getHeaders();
        String userId = Objects.requireNonNull(headers.get("USER_ID")).get(0);
        // 查询用户的灰度信息
        GrayUser user = GrayUser.builder().userId(userId).build();
        GrayUser grayUser = grayService.queryUserById(user);
        // Y:需要走灰度服务
        if ("Y".equalsIgnoreCase(grayUser.getGray())) {
            GrayRequestContextHolder.setGrayTag(true);

            ServerHttpRequest newRequest = exchange.getRequest().mutate()
                    .header("gray", GrayRequestContextHolder.getGrayTag().toString())
                    .build();
            ServerWebExchange newExchange = exchange.mutate()
                    .request(newRequest)
                    .build();
            return chain.filter(newExchange);
        }
        return chain.filter(exchange);

    }

    @Override
    public int getOrder() {
        return Ordered.HIGHEST_PRECEDENCE;
    }
}

将GrayPublishFilter灰度发布过滤器生效

@Configuration
public class GrayConfig {

    @Bean
    public GlobalFilter globalFilter(IGrayService grayService) {
        return new GrayPublishFilter(grayService);

   }

}

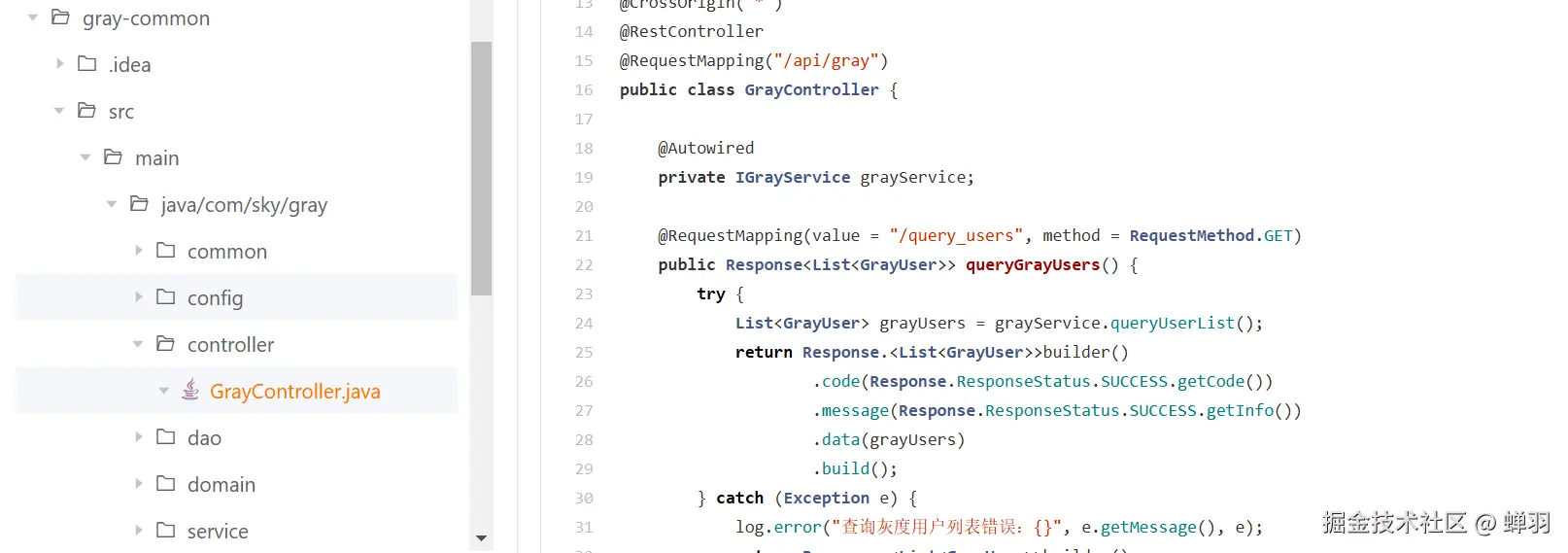

  • 灰度用户配置的增删改查接口封装在gray-common组件，在网关层对外暴露


数据库配置：

create table tb_gray_user
(
    id      int auto_increment comment '唯一id'
        primary key,
    user_id varchar(11)            not null comment '用户id',
    gray    varchar(1) default 'N' not null comment '是否灰度用户'
)
    comment '灰度用户配置表';
使用说明

  • 在gateway组件引入gray-common组件包

    <dependency>
    <groupId>com.sky</groupId>
    <artifactId>gray-common</artifactId>
    <version>1.0.1</version>
</dependency>

    • 启动类上@LoadBalancerClients(defaultConfiguration = {LoadBalancerGrayAutoConfiguration.class})

      @SpringBootApplication
@Configurable
@EnableEurekaClient
@LoadBalancerClients(defaultConfiguration = {LoadBalancerGrayAutoConfiguration.class})
public class GatewayApplication {

    public static void main(String[] args) {
        SpringApplication.run(GatewayApplication.class, args);
    }
}

    • gateway组件需要配置好数据库信息，以更新灰度用户

  • 业务组件引入gray-common包

    <dependency>
    <groupId>com.sky</groupId>
    <artifactId>gray-common</artifactId>
    <version>1.0.1</version>
</dependency>

    • 启动类上@LoadBalancerClients(defaultConfiguration = {LoadBalancerGrayAutoConfiguration.class})

    • 如果是灰度实例，需要在yml中配置：

      instance: metadata-map: { gray: true }

      eureka:
  client:
    service-url:
      defaultZone: http://127.0.0.1:8081/eureka/
  instance:
    metadata-map: { gray: true }
验证

order-service(8086)：正式服务

order-service(8087)：灰度服务

user-service(8088)：正式服务

user-service(8089)：灰度服务

网关服务：gateway(8030)

当前用户：10001 配置为灰度用户

调用关系：前端 -> gateway -> order-service -> user-service

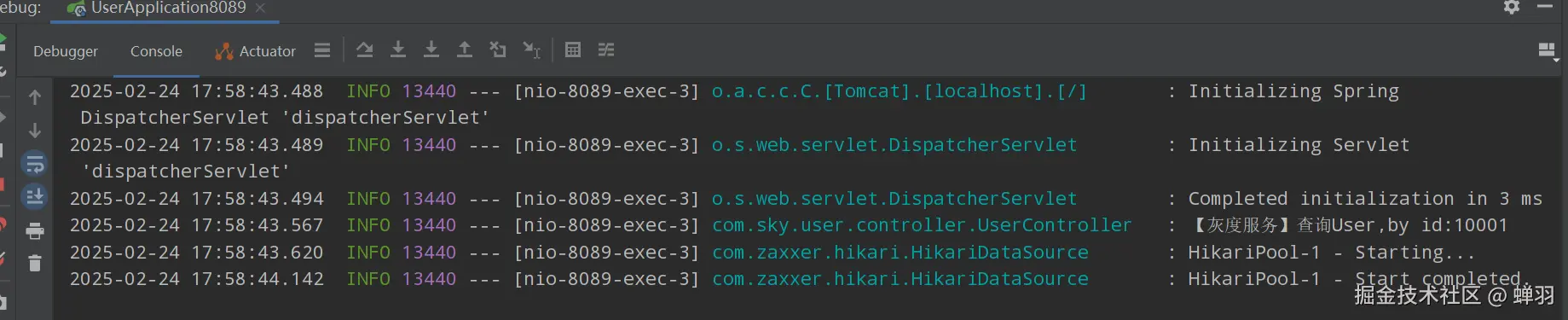

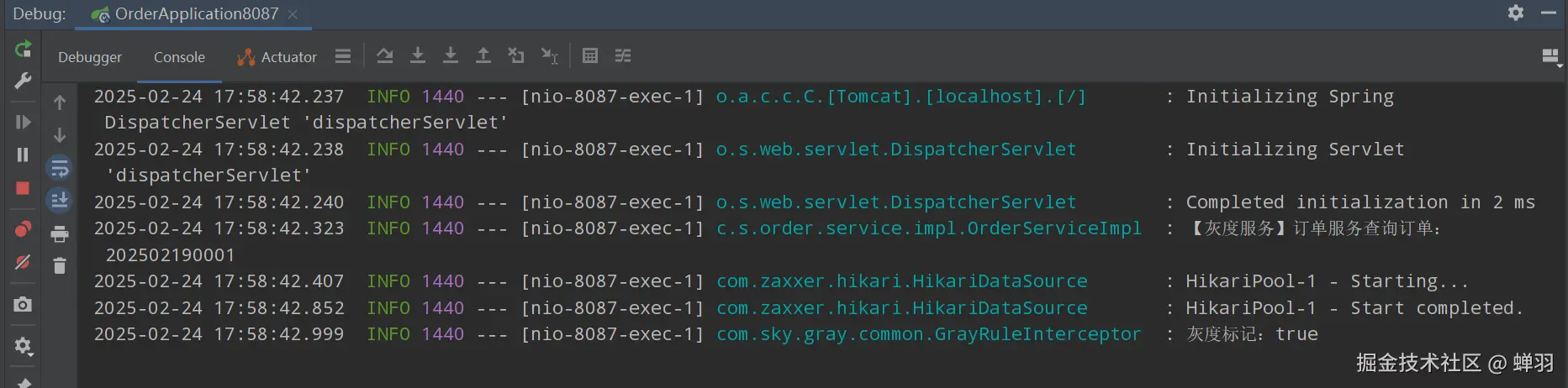

在灰度服务中，打印日志

log.info("【灰度服务】订单服务查询订单：{}", orderId);

log.info("【灰度服务】查询User,by id:{}", id);

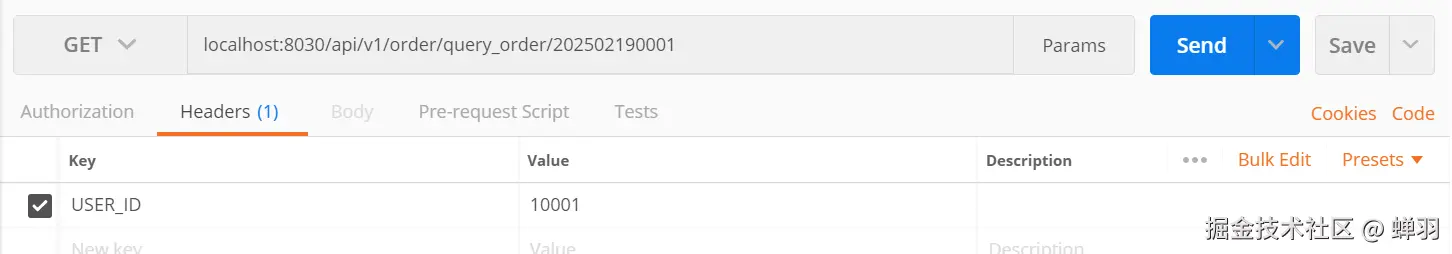

  • 验证灰度发布及续传结果：

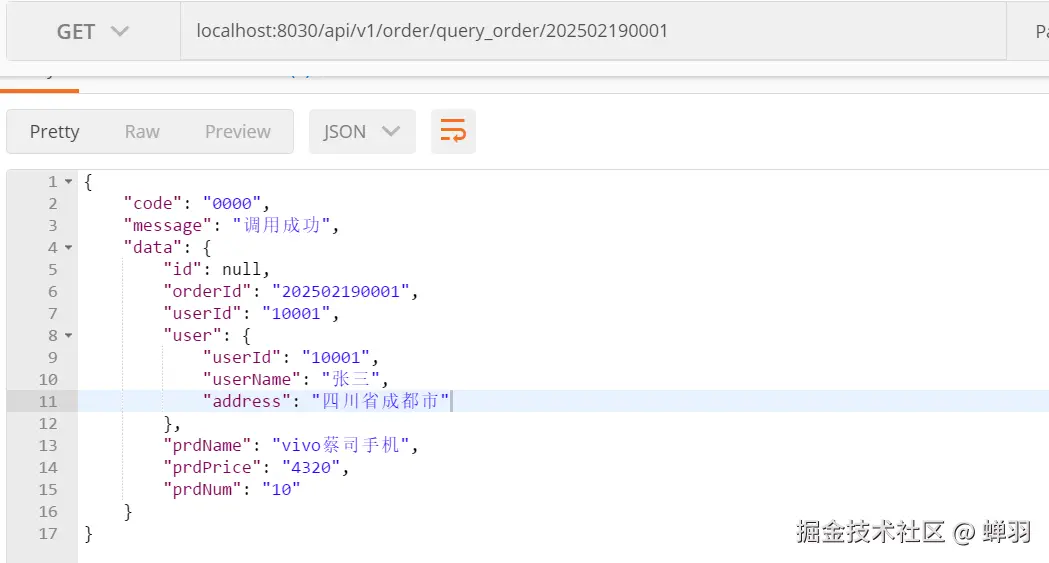

    访问 GET: localhost:8030/api/v1/order/query_order/202502190001

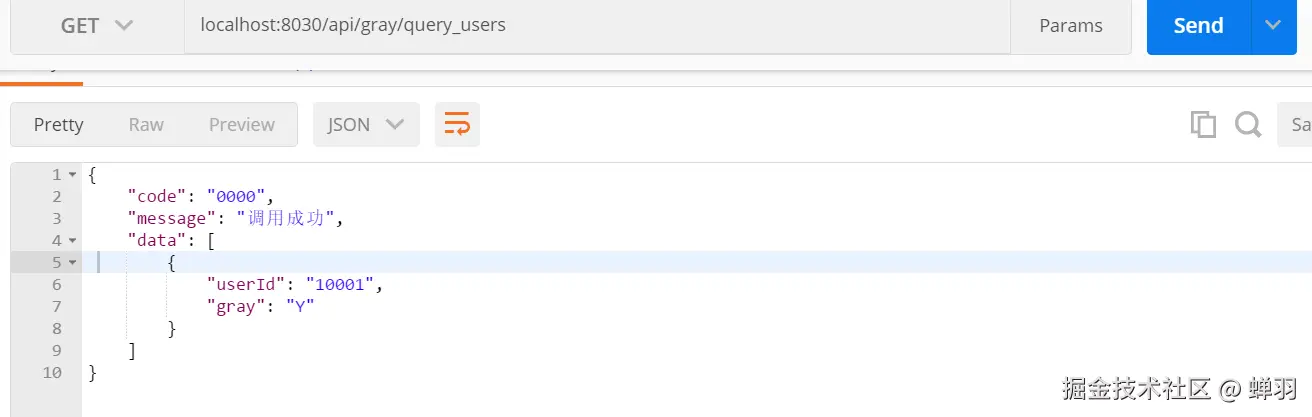

  • 验证gateway网关查询灰度用户：

    GET: localhost:8030/api/gray/query_users


完整代码: gitee.com/dmgyz/gray-…
