背景:
线上用户反馈播放器卡顿，联系到用户，录制了一个perfomace 发现录制结果如下，同时拿到了底层wasm 的版本

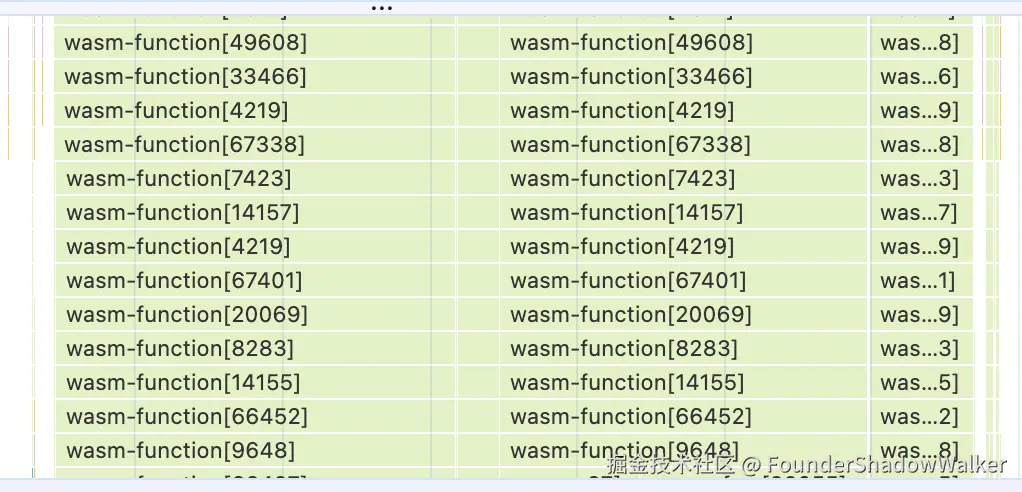

可以看到 worker 里的都变成 wasm-function
我们怎么排查呢？首先需要拿到项目的符号，这里编辑器的产物在jenkens上，我们可以下载到，下一步就是怎么将符号文件和wasm 结合，得到新的performance
我们写下先认识一下performance文件
"args": {
"data": {
"cpuProfile": {
"nodes": [{
{
"callFrame": {
"codeType": "wasm",
"columnNumber": 4504070,
"functionName": "wasm-function[16766]",
"lineNumber": 0,
"scriptId": 4,
"url": "wasm://wasm/07dea386"
},
"id": 6,
"parent": 5
}
"id": 1
}, {
"callFrame": {
"codeType": "JS",
"columnNumber": 11,
"functionName": "process",
"lineNumber": 211,
"scriptId": 3,
"url": "blob:https://xxxxxxxxxxx"
},
"id": 2,
"parent": 1
},
"samples": []
},
"lines": [],
"timeDeltas": []
}
},
"cat": "disabled-by-default-v8.cpu_profiler",
"id": "0x5",
"name": "ProfileChunk",
"ph": "P",
"pid": 783,
"tid": 85111,
"ts": 106611036180,
"tts": 2473
这里非常关键的就是 拿到node 的callframe 里的 wasm 需要把wasm-function[xxxx] 的匿名函数名，替换为C++源码中的实际函数名
因此我们写下了如下代码 拿到wasm[8283] 去符号表里去替换
就可以得到完整的json，因此我们写下如下脚本
#!/usr/bin/env python3
# -*- coding: UTF-8 -*-
import sys
import subprocess
import json
import os
import argparse
class ChromeSymbolParser(object):
def __init__(self, profile_path, ve_version, symbol_path=None):
print("{} {} {}".format(ve_version, profile_path, symbol_path))
self.ve_version = ve_version
self.profile_path = profile_path
self.symbol_path = symbol_path
self.symbol_list = self.__parse_symbol()
def start_parse(self):
msg = open(self.profile_path, "r").read()
j = json.loads(msg)
if "traceEvents" in j: # windows profile
j = j["traceEvents"]
try:
size = len(j)
for i in range(size):
args = j[i]["args"]
self.__find_symbol(args)
except:
pass
if "nodes" in j:
self.__find_symbol2(j)
self.__save(j)
def __find_symbol(self, args):
if "data" not in args:
return
data = args["data"]
if "cpuProfile" not in data:
return
cpuProfile = data["cpuProfile"]
if "nodes" not in cpuProfile:
return
nodes = cpuProfile["nodes"]
for x in range(len(nodes)):
frame = nodes[x]
callFrame = frame["callFrame"]
if callFrame["codeType"] == "wasm":
functionName = callFrame["functionName"]
callFrame["functionName"] = self.__replace_symbol(functionName)
def __find_symbol2(self, args): # 只录制一条线程
nodes = args["nodes"]
for x in range(len(nodes)):
frame = nodes[x]
callFrame = frame["callFrame"]
functionName = callFrame["functionName"]
callFrame["functionName"] = self.__replace_symbol(functionName)
def __parse_symbol(self):
symbol_path = self.symbol_path
if (not symbol_path) or (not os.path.isfile(symbol_path)):
symbol_path = self.__getjenkins()
# 11342:webrtcimported::WeightedAverage\28short*\2c\20short\2c\20short\20const*\29
# 符号中有转义字符(ASCII)，需要还原回来
lines = open(symbol_path, "r").readlines()
for i in range(len(lines)):
lines[i] = self.__trans_hex_to_ascii(lines[i])
return lines
def __save(self, j):
strj = json.dumps(j)
outname = ""
if not self.ve_version:
path, subffix = self.profile_path.split('.')
outname = path + "out." + subffix
else:
idx = self.profile_path.rfind('/')
outname = os.getcwd() + "/out"+self.profile_path[idx+1:]
f = open(outname, 'w')
f.write(strj)
f.close()
def __getjenkins(self):
if len(self.ve_version) > 4:
TOS_URL = "https://xxxxx" % (self.ve_version)
else:
TOS_URL = "https://xxxxx % (self.ve_version)
print(TOS_URL)
cmd = '''
rm -f xxx.zip
rm -rf xxx
wget -O out.zip %s
mv out.zip xxx.zip
echo "unziping"
unzip -o xxxx.zip -d xxxx
echo "clean and update"
''' % (TOS_URL)
subprocess.run(cmd, shell=True)
return os.path.join(os.getcwd(), "xxxx", "xxxx-xxxxx-opt.js.symbols") # simd, 非simd版本自己改改路径
def __trans_hex_to_ascii(self, symbol):
symbol = symbol.strip()
i = 0
last = 0
final = ''
while i < len(symbol):
if symbol[i] == '\\':
code = symbol[i+1:i+3]
dec_code = int(code, 16)
ascii_code = chr(dec_code)
final += symbol[last:i] + ascii_code
last = i + 3
i = last
continue
i += 1
final += symbol[last:]
return final
# "wasm-function[5450]"
def __replace_symbol(self, symbol):
try:
tmp = symbol.split('[')[1]
except Exception as e:
return symbol
symbol_index_str = tmp[:-1]
symbol_index = int(symbol_index_str)
if symbol_index > len(self.symbol_list):
print("symbol out of index, give npm version:%s may not match" %
self.ve_version)
subprocess.run("npm list", shell=True)
return symbol
tmp = self.symbol_list[symbol_index]
cpp_symbol = tmp[len(symbol_index_str)+1:]
return cpp_symbol
def find_index_of_id(_ids, _tid):
# 通过Profile 条目的id，找到它对应的index
for k, v in _ids.items():
if v[1] == _tid:
return k, v[0]
return None
for tid, idx_pid in threads.items():
idx = idx_pid[0]
if j[idx]['args']['name'] == 'DedicatedWorker thread':
id_idx = find_index_of_id(ids, tid)
if id_idx is None or result.get(id_idx[0]) is None:
# 假如thread没有profile id，或者堆栈数据中，没有这个id的数据，那可以通过删除thread_name条目，让它排到后面
j[idx]['args']['name'] = 'DedicatedWorker thread deleted'
j[idx]['name'] = 'thread_name_deleted'
pass
return
再download 下来就可以得到解密后的performance
由于我们是卡顿问题，优先关注gl线程，我们的问题是怎么找到gl线程呢，以下是我的几个方法
- 如果对项目 足够熟悉直接 search 比如一般子线程抛给gl线程渲染 都有统一的方法名
- 挨个看线程，除去挂起的，慢慢看也能找到 基本方法都会带些textture 关键字
- 结合performance frame 的状态 在最卡的时候 扫一遍各自的worker 基本能发现
找到后 就是常规分析 看long task 了 是否合理了
作者的问题 就是long task 和 codec 在同一个线程里 阻塞 解码了
由于作者也是第一次排查 记录一下
