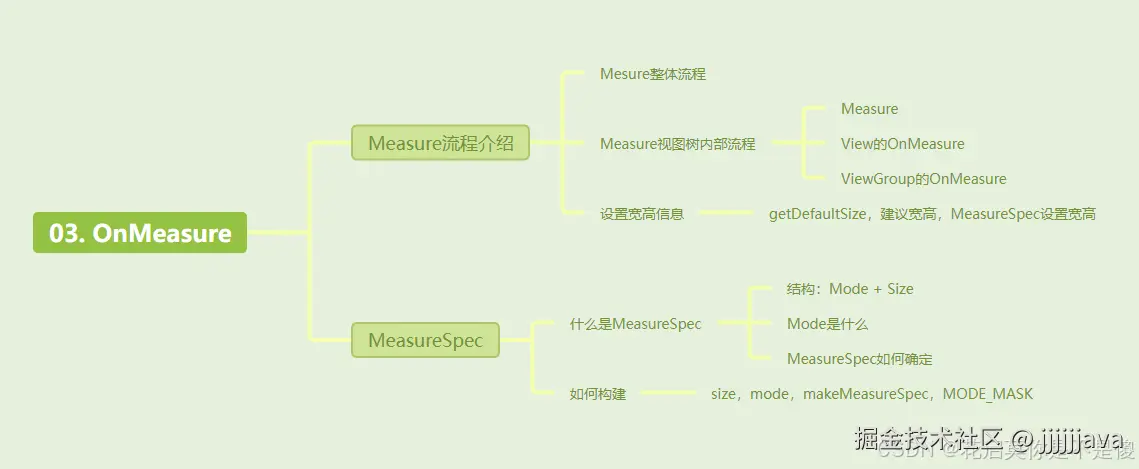

03. onMeasure介绍@[toc] 01.Measure流程分析 1.1 Measure整体流程整体介绍Mea

@[toc] 在这里插入图片描述

01.Measure流程分析

1.1 Measure整体流程

整体介绍Measure从ViewRootImpl到View树的调用过程
ViewRootImpl调用performTraversals后，经过performMeasure进入到DecorView的measure过程中（也就是视图树的View过程中）。
到这里，可能会困惑，什么是DecorView？我日常开发中怎么没见过？确实，我们日常见到的是布局文件，其里面是Activity的View，然后我们通过setContentView设置。可是实际上上，DecorView是是Android视图树的根节点视图，也是FrameLayout的子类。我们上面通过布局文件创建的View，其实是被添加到DecorView中的一个子View中，通常是id为content的FrameLayout。因为他也是一个FrameLayout，因此其会调用自身ViewGroup的onMeasure，在内部调用布局文件中子View的Measure，在他们测量完成并最终返回后，其最终确定自身尺寸。

    ViewRootImpl.performTraversals()
        → performMeasure()
            → DecorView.measure()
                → FrameLayout.onMeasure()
                    → 遍历measureChildWithMargins()测量子View
                    → setMeasuredDimension()确定自身尺寸

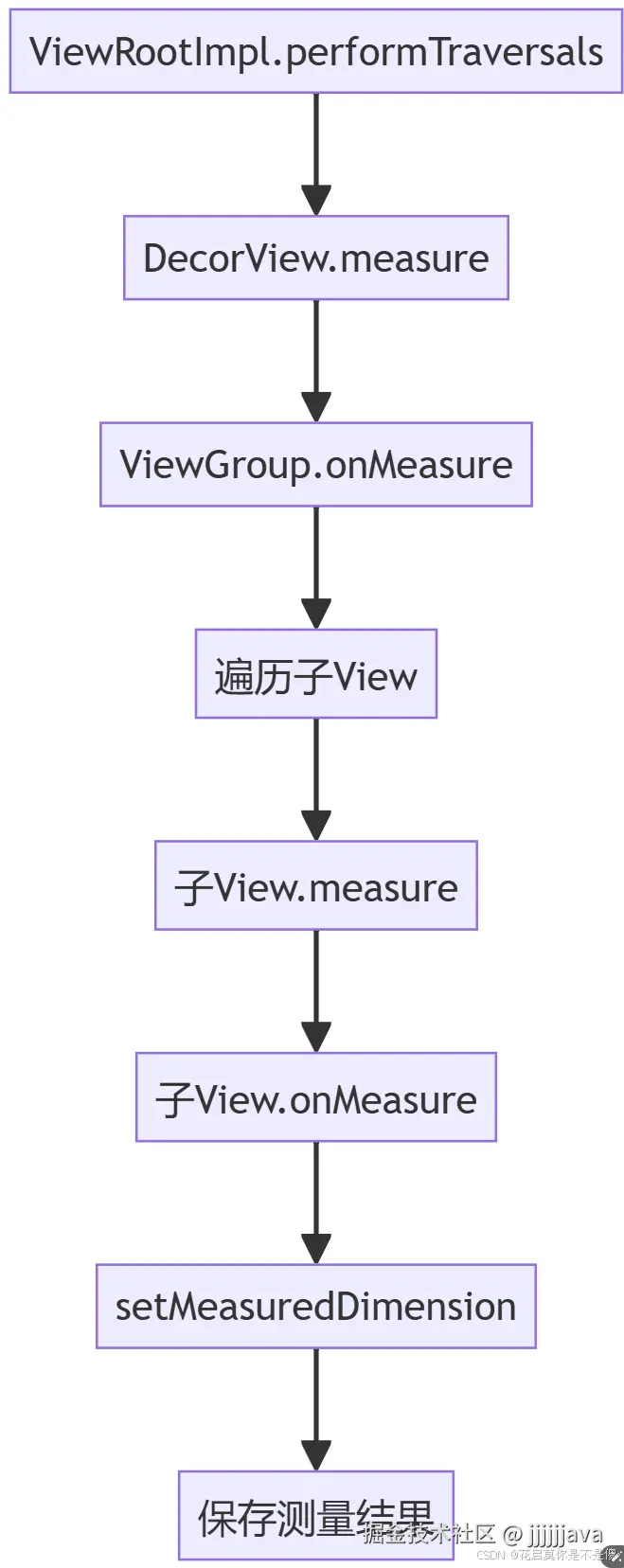

对应如下：

1.2 Measure视图树内部流程

视图树中就两个部分，一个是View，一个是ViewGroup，所以其实就是介绍View和ViewGroup的measure流程。

不管如何，他们都会先调用measure()方法，但是它不关键，只是进行一些逻辑处理，最终它会调用onMeasure，并在里面完成测量的逻辑。View和ViewGroup的差距关键就在于OnMeasure的执行。

// 测量入口（final方法，不可重写）
public final void measure(int widthMeasureSpec, int heightMeasureSpec) {
    // 1. 检查是否需要重新测量（通过PFLAG_FORCE_LAYOUT标记）
    if ((mPrivateFlags & PFLAG_FORCE_LAYOUT) != 0 || ...) {
        // 2. 调用onMeasure进行实际测量
        onMeasure(widthMeasureSpec, heightMeasureSpec);
        // 3. 设置测量完成标记
        mPrivateFlags |= PFLAG_LAYOUT_REQUIRED;
    }
    // 4. 保存父容器传递的MeasureSpec
    mOldWidthMeasureSpec = widthMeasureSpec;
    mOldHeightMeasureSpec = heightMeasureSpec;
}

普通View的OnMeasure

我们会传递给他widthMeasureSpec和heightMeasureSpec。
它会通过getSuggestedMinimumWidth获取建议尺寸。
最终通过getDefaultSize从传递的参数和建议尺寸中二选一，具体选择要根据传递的MeasureSpec的Mode决定。并最终通过setMeasuredDimension进行设置

protected void onMeasure(int widthSpec, int heightSpec) {
    /super.onMeasure(widthMeasureSpec, heightMeasureSpec);
    //从中获取View的宽/高
    int width = getDefaultSize(getSuggestedMinimumWidth(), widthMeasureSpec);
    int height = getDefaultSize(getSuggestedMinimumHeight(), heightMeasureSpec);
    //指定View的宽高，完成测量工作
    setMeasuredDimension(width,height);
}

ViewGroup的测量

ViewGroup内部可以容纳子View，所以其比较特殊
其首先测量所有子View，然后根据子View的尺寸计算自身尺寸，并考虑自身padding和父容器大小限制，得到最终的尺寸。并调用setMeasuredDimension应用。
具体代码如下：类似于后序遍历，先遍历完子View的大小，然后计算自身尺寸。

protected void onMeasure(int widthSpec, int heightSpec) {
    // 1. 测量所有子View
    measureChildren(widthSpec, heightSpec);

    // 2. 根据子View尺寸计算自身尺寸
    int totalWidth = 0;
    for (View child : children) {
        totalWidth += child.getMeasuredWidth();
    }

    // 3. 考虑自身padding
    totalWidth += getPaddingLeft() + getPaddingRight();

    // 4. 应用父容器限制
    int finalWidth = resolveSize(totalWidth, widthSpec);
    setMeasuredDimension(finalWidth, ...);
}

protected void measureChildren(int widthMeasureSpec, int heightMeasureSpec) {
    final int size = mChildrenCount;
    final View[] children = mChildren;
    // 遍历所有子View（包括GONE状态的View）
    for (int i = 0; i < size; ++i) {
        final View child = children[i];
        if ((child.mViewFlags & VISIBILITY_MASK) != GONE) {
            // 关键方法：计算子View的MeasureSpec
            measureChild(child, widthMeasureSpec, heightMeasureSpec);
        }
    }
}

对应测量过程如下：

1.3 最终结果：设置宽高信息

我们上面最终都会通过setMeasuredDimension()来完成测量，设置自身的宽高信息，我们设置的宽高究竟是什么呢？
宽高通过getDefaultSize获取，该方法接收两个参数，并选择一个作为宽高。这两个参数分别是getSuggestedMinimumWidth()和MeasureSpec。具体的选择方式是：根据MeasureSpec的MODE进行选取。
- 如果View的MODE为无限制，他的宽高将设置getSuggestedMinimumWidth(),；
- 如果View的MODE为 EXACTLY 或 AT_MOST，则会被设置为从MeasureSpec中获取的specSize。

其具体代码如下：

@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
    //super.onMeasure(widthMeasureSpec, heightMeasureSpec);
    //从中获取View的宽/高
    int width = getDefaultSize(getSuggestedMinimumWidth(), widthMeasureSpec);
    int height = getDefaultSize(getSuggestedMinimumHeight(), heightMeasureSpec);
    //指定View的宽高，完成测量工作
    setMeasuredDimension(width,height);
}

/**
 * 为宽度获取一个建议最小值
 */
protected int getSuggestedMinimumWidth () {
    return (mBackground == null) ? mMinWidth : max(mMinWidth , mBackground.getMinimumWidth());
}
/**
 * 获取默认的宽高值
 */
public static int getDefaultSize (int size, int measureSpec) {
    int result = size;
    int specMode = MeasureSpec. getMode(measureSpec);
    int specSize = MeasureSpec. getSize(measureSpec);
    switch (specMode) {
    case MeasureSpec. UNSPECIFIED:
        result = size;
        break;
    case MeasureSpec. AT_MOST:
    case MeasureSpec. EXACTLY:
        result = specSize;
        break;
    }
    return result;
}

从源码可以知道：

02.MeasureSpec的确定

getSuggestedMinimumWidth是给出的建议值。MeasureSpec是我们自己设置的值，那么MeasureSpec值的来源是什么？

2.1 MeasureSpec是什么

先介绍下什么是MeasureSpec？

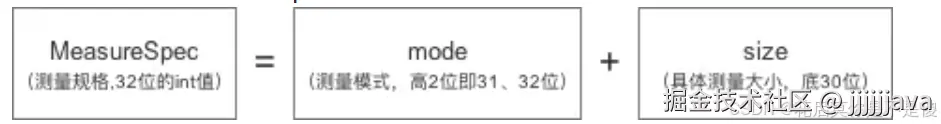

- 他是一个int类型，有32位大小，高两位是mode测量模式，低30位是size测量的尺寸大小。
其中，Mode模式共分为三类
- UNSPECIFIED ：无限制，不对View进行任何限制，要多大给多大。
- EXACTLY：精确尺寸，表示父容器要求子 View 的大小必须是精确的值。
- AT_MOST ：表示子 View 的大小不能超过父容器允许的最大值。这种模式通常与 LayoutParams 设置为 wrap_content 对应。

2.2 MeasureSpec如何构建？

代码如下所示：

    //view.class
    public static class MeasureSpec {
        private static final int MODE_SHIFT = 30;
        private static final int MODE_MASK  = 0x3 << MODE_SHIFT;

        /**
         * 这种模式不用关心
         */
        public static final int UNSPECIFIED = 0 << MODE_SHIFT;

        /**
         * 精确模式，对应的是match_parent和具体值，比如100dp
        public static final int EXACTLY     = 1 << MODE_SHIFT;

        /**
         * 最大模式，对应的就是wrap_content
         */
        public static final int AT_MOST     = 2 << MODE_SHIFT;


        public static int makeMeasureSpec(@IntRange(from = 0, to = (1 << MeasureSpec.MODE_SHIFT) - 1) int size,
                                          @MeasureSpecMode int mode) {
            if (sUseBrokenMakeMeasureSpec) {
                return size + mode;
            } else {
            //尺寸与低30为全1相与。模式与高两位全1相与。
                return (size & ~MODE_MASK) | (mode & MODE_MASK);
            }
        }

        /**
         * 获取测量的模式
         */
        @MeasureSpecMode
        public static int getMode(int measureSpec) {
            //noinspection ResourceType
            return (measureSpec & MODE_MASK);
        }

        /**
         * 获取测量到的尺寸大小
         */
        public static int getSize(int measureSpec) {
            return (measureSpec & ~MODE_MASK);
        }
    }

关键代码如下：

构建MeasureSpec时，会传递size和mode，调用makeMeasureSpec，构建，具体构建原理如下：
(size & ~MODE_MASK) | (mode & MODE_MASK)
MODE_MASK是0x3左移30位。

// 创建MeasureSpec示例：
int mode = MeasureSpec.EXACTLY;
int size = 1080;
int measureSpec = MeasureSpec.makeMeasureSpec(size, mode);

// 位操作分解：
size & ~MODE_MASK → 保留低30位（000...001111）
mode & MODE_MASK  → 保留高2位（1100...0000）
两者按位或 → 合并模式与尺寸

// 验证结果：
getMode(measureSpec) == EXACTLY  // true
getSize(measureSpec) == 1080     // true

2.3 Measure的size和Mode如何确定？

MeasureSpec 由父布局的 MeasureSpec和自身的 LayoutParams共同确定。如果是DecorView，没有父布局，其根据屏幕的尺寸和 LayoutParams确定 MeasureSpec。由于屏幕大小是固定的，DecorView 的尺寸不应超过屏幕的限制。

举例：

    假设屏幕的宽度为 1080px，高度为 1920px。

    Activity 的根布局（DecorView）的 LayoutParams 设置为具体的尺寸 500px 宽，800px 高。
    在这种情况下，DecorView 的宽高 MeasureSpec 为：
    宽度 MeasureSpec：EXACTLY 500px
    高度 MeasureSpec：EXACTLY 800px

    如果我们设置超过3680PX，那么还是1080PX

从上面可以看出MeasureSpec的指定也是从顶层布局开始一层层往下去，父布局影响子布局。

03. 实际案例

3.1 View中onMeasure方法

下面是真是开发案例中的代码，如下所示

//Android7.0以后，优化了View的绘制，onMeasure和onSizeChanged调用顺序有所变化
//Android7.0以下：onMeasure--->onSizeChanged--->onMeasure
//Android7.0以上：onMeasure--->onSizeChanged
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
    int heightSize = MeasureSpec.getSize(heightMeasureSpec);
    int heightMode = MeasureSpec.getMode(heightMeasureSpec);
    /*
     * onMeasure传入的widthMeasureSpec和heightMeasureSpec不是一般的尺寸数值，而是将模式和尺寸组合在一起的数值
     * MeasureSpec.EXACTLY 是精确尺寸
     * MeasureSpec.AT_MOST 是最大尺寸
     * MeasureSpec.UNSPECIFIED 是未指定尺寸
     */

    if (heightMode == MeasureSpec.EXACTLY) {
        heightSize = MeasureSpec.makeMeasureSpec(heightSize, MeasureSpec.EXACTLY);
    } else if (heightMode == MeasureSpec.AT_MOST && getParent() instanceof ViewGroup
            && heightSize == ViewGroup.LayoutParams.MATCH_PARENT) {
        heightSize = MeasureSpec.makeMeasureSpec(((ViewGroup) getParent()).getMeasuredHeight(), MeasureSpec.AT_MOST);
    } else {
        int heightNeeded;
        if (gravity == Gravity.CENTER) {
            if (tickMarkTextArray != null && tickMarkLayoutGravity == Gravity.BOTTOM) {
                heightNeeded = (int) (2 * (getRawHeight() - getTickMarkRawHeight()));
            } else {
                heightNeeded = (int) (2 * (getRawHeight() - Math.max(leftSB.getThumbScaleHeight(), rightSB.getThumbScaleHeight()) / 2));
            }
        } else {
            heightNeeded = (int) getRawHeight();
        }
        heightSize = MeasureSpec.makeMeasureSpec(heightNeeded, MeasureSpec.EXACTLY);
    }
    super.onMeasure(widthMeasureSpec, heightSize);
}

下面是ImageView的源代码

@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
    resolveUri();
    int w;
    int h;

    // Desired aspect ratio of the view's contents (not including padding)
    float desiredAspect = 0.0f;

    // We are allowed to change the view's width
    boolean resizeWidth = false;

    // We are allowed to change the view's height
    boolean resizeHeight = false;

    final int widthSpecMode = MeasureSpec.getMode(widthMeasureSpec);
    final int heightSpecMode = MeasureSpec.getMode(heightMeasureSpec);

    if (mDrawable == null) {
        // If no drawable, its intrinsic size is 0.
        mDrawableWidth = -1;
        mDrawableHeight = -1;
        w = h = 0;
    } else {
        w = mDrawableWidth;
        h = mDrawableHeight;
        if (w <= 0) w = 1;
        if (h <= 0) h = 1;

        // We are supposed to adjust view bounds to match the aspect
        // ratio of our drawable. See if that is possible.
        if (mAdjustViewBounds) {
            resizeWidth = widthSpecMode != MeasureSpec.EXACTLY;
            resizeHeight = heightSpecMode != MeasureSpec.EXACTLY;

            desiredAspect = (float) w / (float) h;
        }
    }

    final int pleft = mPaddingLeft;
    final int pright = mPaddingRight;
    final int ptop = mPaddingTop;
    final int pbottom = mPaddingBottom;

    int widthSize;
    int heightSize;

    if (resizeWidth || resizeHeight) {
        /* If we get here, it means we want to resize to match the
            drawables aspect ratio, and we have the freedom to change at
            least one dimension.
        */

        // Get the max possible width given our constraints
        widthSize = resolveAdjustedSize(w + pleft + pright, mMaxWidth, widthMeasureSpec);

        // Get the max possible height given our constraints
        heightSize = resolveAdjustedSize(h + ptop + pbottom, mMaxHeight, heightMeasureSpec);

        if (desiredAspect != 0.0f) {
            // See what our actual aspect ratio is
            final float actualAspect = (float)(widthSize - pleft - pright) /
                                    (heightSize - ptop - pbottom);

            if (Math.abs(actualAspect - desiredAspect) > 0.0000001) {

                boolean done = false;

                // Try adjusting width to be proportional to height
                if (resizeWidth) {
                    int newWidth = (int)(desiredAspect * (heightSize - ptop - pbottom)) +
                            pleft + pright;

                    // Allow the width to outgrow its original estimate if height is fixed.
                    if (!resizeHeight && !sCompatAdjustViewBounds) {
                        widthSize = resolveAdjustedSize(newWidth, mMaxWidth, widthMeasureSpec);
                    }

                    if (newWidth <= widthSize) {
                        widthSize = newWidth;
                        done = true;
                    }
                }

                // Try adjusting height to be proportional to width
                if (!done && resizeHeight) {
                    int newHeight = (int)((widthSize - pleft - pright) / desiredAspect) +
                            ptop + pbottom;

                    // Allow the height to outgrow its original estimate if width is fixed.
                    if (!resizeWidth && !sCompatAdjustViewBounds) {
                        heightSize = resolveAdjustedSize(newHeight, mMaxHeight,
                                heightMeasureSpec);
                    }

                    if (newHeight <= heightSize) {
                        heightSize = newHeight;
                    }
                }
            }
        }
    } else {
        /* We are either don't want to preserve the drawables aspect ratio,
           or we are not allowed to change view dimensions. Just measure in
           the normal way.
        */
        w += pleft + pright;
        h += ptop + pbottom;

        w = Math.max(w, getSuggestedMinimumWidth());
        h = Math.max(h, getSuggestedMinimumHeight());

        widthSize = resolveSizeAndState(w, widthMeasureSpec, 0);
        heightSize = resolveSizeAndState(h, heightMeasureSpec, 0);
    }

    setMeasuredDimension(widthSize, heightSize);
}

3.2 ViewGroup中onMeasure方法

下面是真是开发案例中LinearLayout的代码，如下所示

@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
    int myWidth = -1;
    int myHeight = -1;

    int width = 0;
    int height = 0;

    final int widthMode = MeasureSpec.getMode(widthMeasureSpec);
    final int heightMode = MeasureSpec.getMode(heightMeasureSpec);
    final int widthSize = MeasureSpec.getSize(widthMeasureSpec);
    final int heightSize = MeasureSpec.getSize(heightMeasureSpec);

    // Record our dimensions if they are known;
    if (widthMode != MeasureSpec.UNSPECIFIED) {
        myWidth = widthSize;
    }

    if (heightMode != MeasureSpec.UNSPECIFIED) {
        myHeight = heightSize;
    }

    if (widthMode == MeasureSpec.EXACTLY) {
        width = myWidth;
    }

    if (heightMode == MeasureSpec.EXACTLY) {
        height = myHeight;
    }

    View ignore = null;
    int gravity = mGravity & Gravity.RELATIVE_HORIZONTAL_GRAVITY_MASK;
    final boolean horizontalGravity = gravity != Gravity.START && gravity != 0;
    gravity = mGravity & Gravity.VERTICAL_GRAVITY_MASK;
    final boolean verticalGravity = gravity != Gravity.TOP && gravity != 0;

    int left = Integer.MAX_VALUE;
    int top = Integer.MAX_VALUE;
    int right = Integer.MIN_VALUE;
    int bottom = Integer.MIN_VALUE;

    boolean offsetHorizontalAxis = false;
    boolean offsetVerticalAxis = false;

    if ((horizontalGravity || verticalGravity) && mIgnoreGravity != View.NO_ID) {
        ignore = findViewById(mIgnoreGravity);
    }

    final boolean isWrapContentWidth = widthMode != MeasureSpec.EXACTLY;
    final boolean isWrapContentHeight = heightMode != MeasureSpec.EXACTLY;

    // We need to know our size for doing the correct computation of children positioning in RTL
    // mode but there is no practical way to get it instead of running the code below.
    // So, instead of running the code twice, we just set the width to a "default display width"
    // before the computation and then, as a last pass, we will update their real position with
    // an offset equals to "DEFAULT_WIDTH - width".
    final int layoutDirection = getLayoutDirection();
    if (isLayoutRtl() && myWidth == -1) {
        myWidth = DEFAULT_WIDTH;
    }

    View[] views = mSortedHorizontalChildren;
    int count = views.length;

    for (int i = 0; i < count; i++) {
        View child = views[i];
        if (child.getVisibility() != GONE) {
            LayoutParams params = (LayoutParams) child.getLayoutParams();
            int[] rules = params.getRules(layoutDirection);

            applyHorizontalSizeRules(params, myWidth, rules);
            measureChildHorizontal(child, params, myWidth, myHeight);

            if (positionChildHorizontal(child, params, myWidth, isWrapContentWidth)) {
                offsetHorizontalAxis = true;
            }
        }
    }

    views = mSortedVerticalChildren;
    count = views.length;
    final int targetSdkVersion = getContext().getApplicationInfo().targetSdkVersion;

    //省略部分代码

    setMeasuredDimension(width, height);
}
 applyHorizontalSizeRules(params, myWidth, rules);
            measureChildHorizontal(child, params, myWidth, myHeight);

            if (positionChildHorizontal(child, params, myWidth, isWrapContentWidth)) {
                offsetHorizontalAxis = true;
            }
        }
    }

    views = mSortedVerticalChildren;
    count = views.length;
    final int targetSdkVersion = getContext().getApplicationInfo().targetSdkVersion;

    //省略部分代码

    setMeasuredDimension(width, height);
}

其他介绍

01.关于我的博客

github：github.com/jjjjjjava
简书：www.jianshu.com/u/92a2412be…
csdn：my.csdn.net/qq_35829566
邮箱：934137388@qq.com
掘金：juejin.im/user/499639…
泡在网上的日子：www.jcodecraeer.com/member/cont…
